Model Maytag AGR3311WDW3 30`` GAS FREESTANDING STANDARD CLEAN RANGE ELECTRO – Common Parts & Diagrams

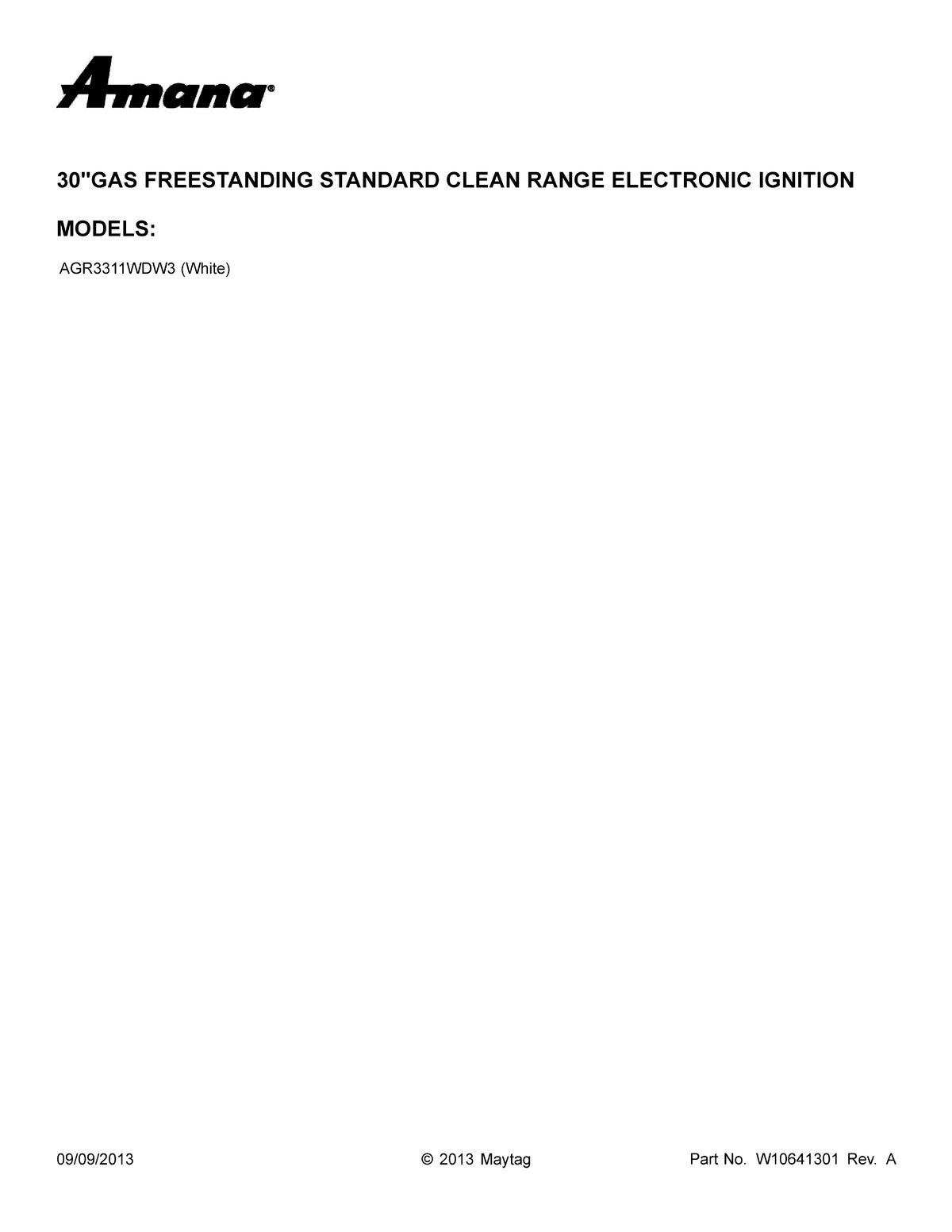

01 - COVER SHEET

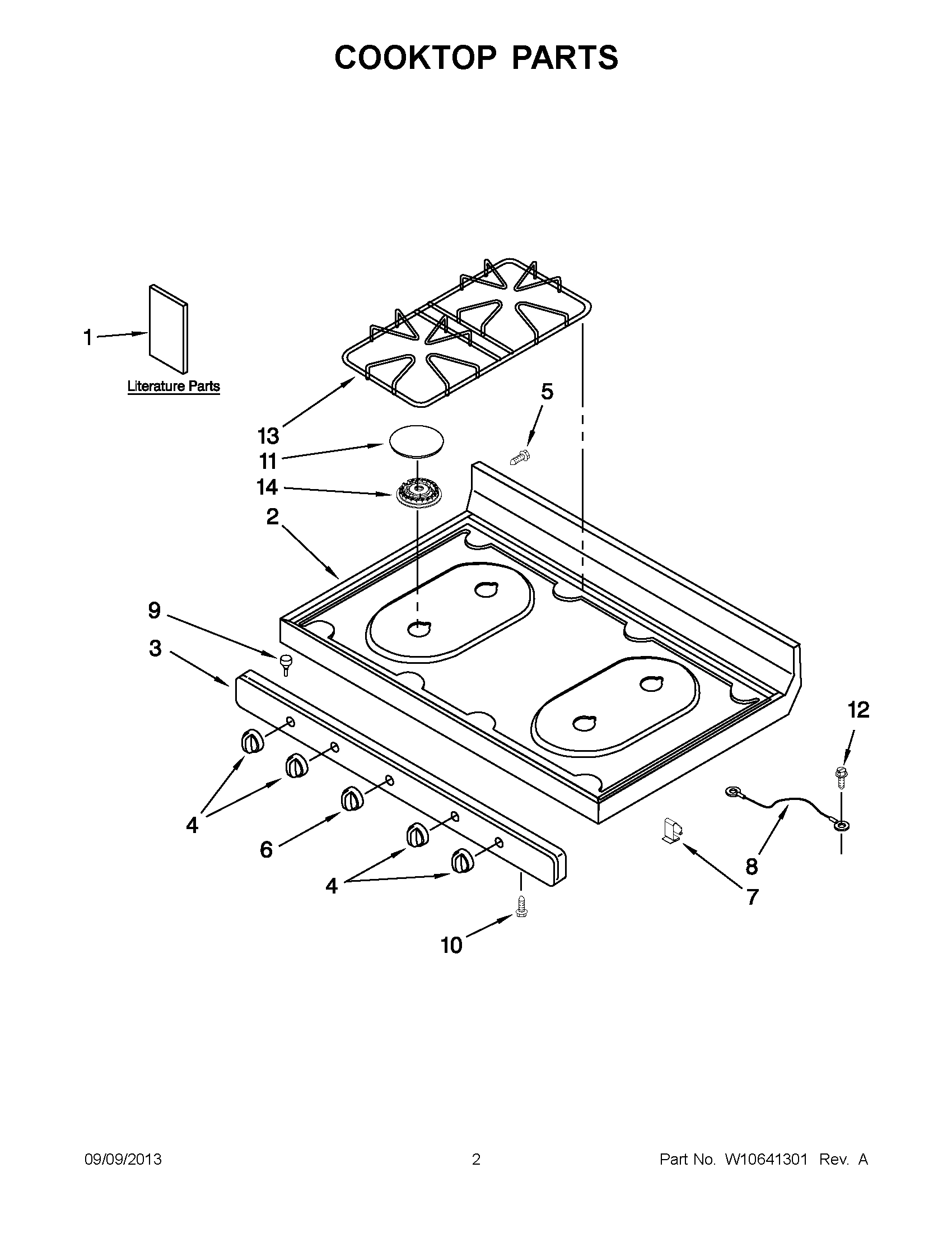

02 - COOKTOP PARTS

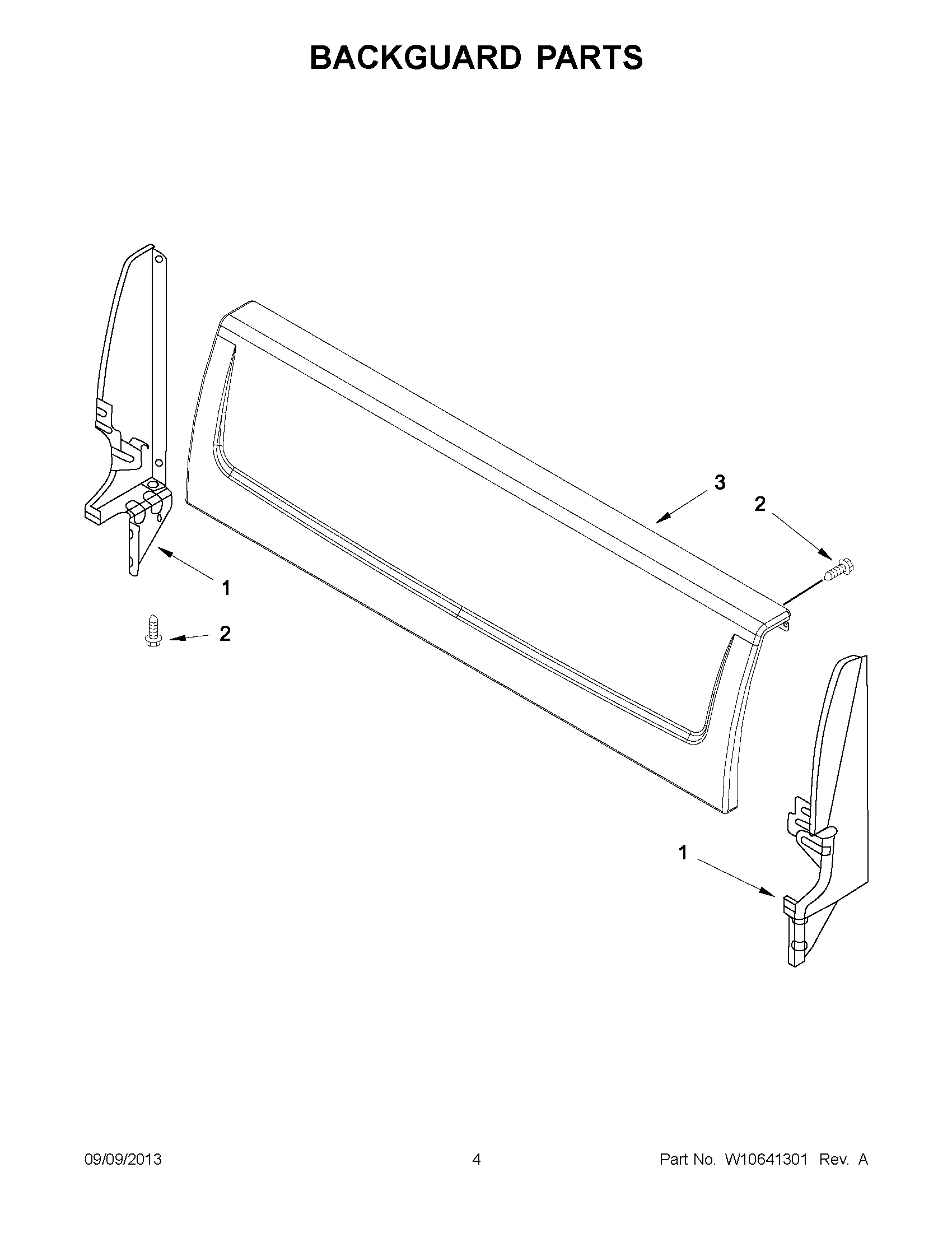

03 - BACKGUARD PARTS

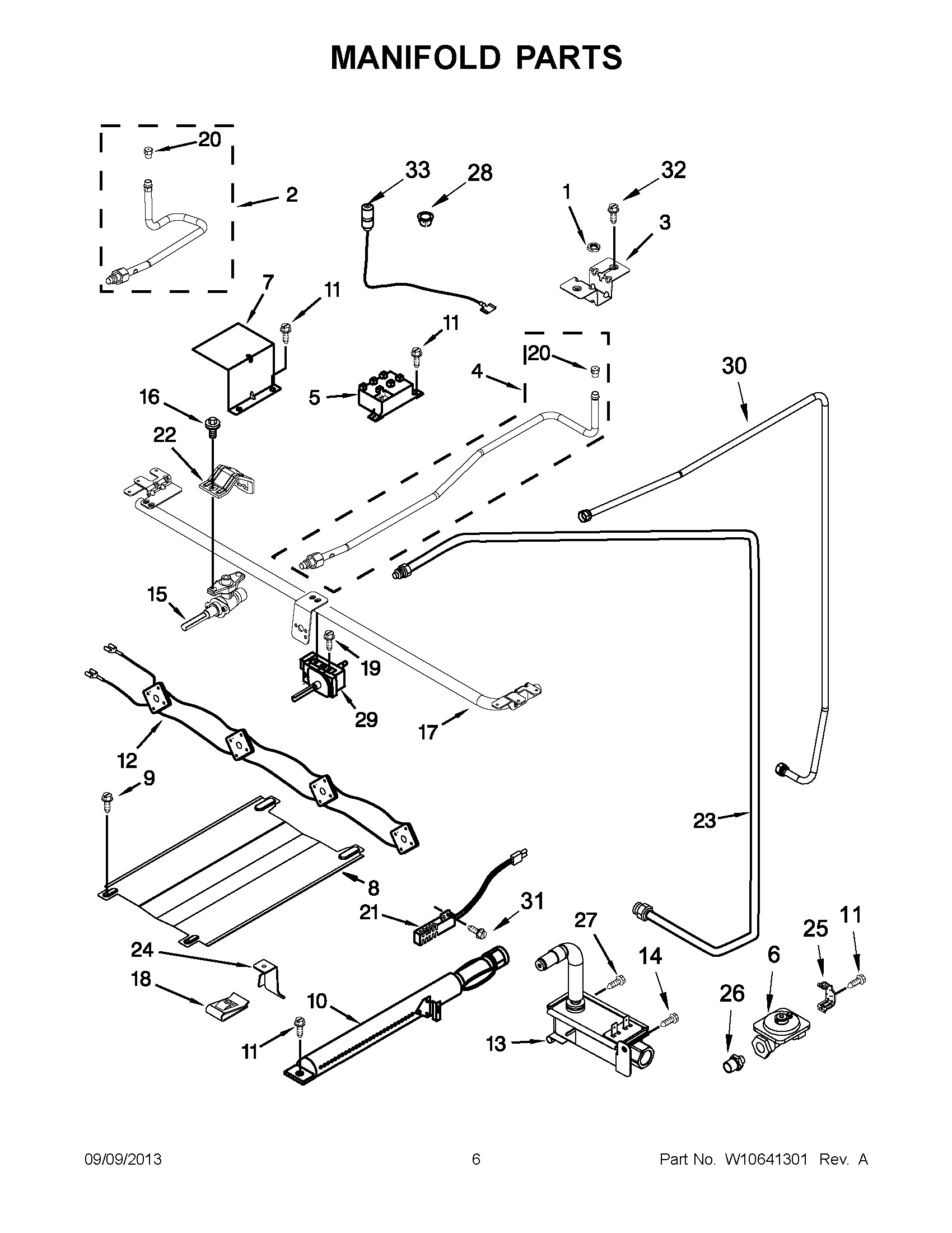

04 - MANIFOLD PARTS

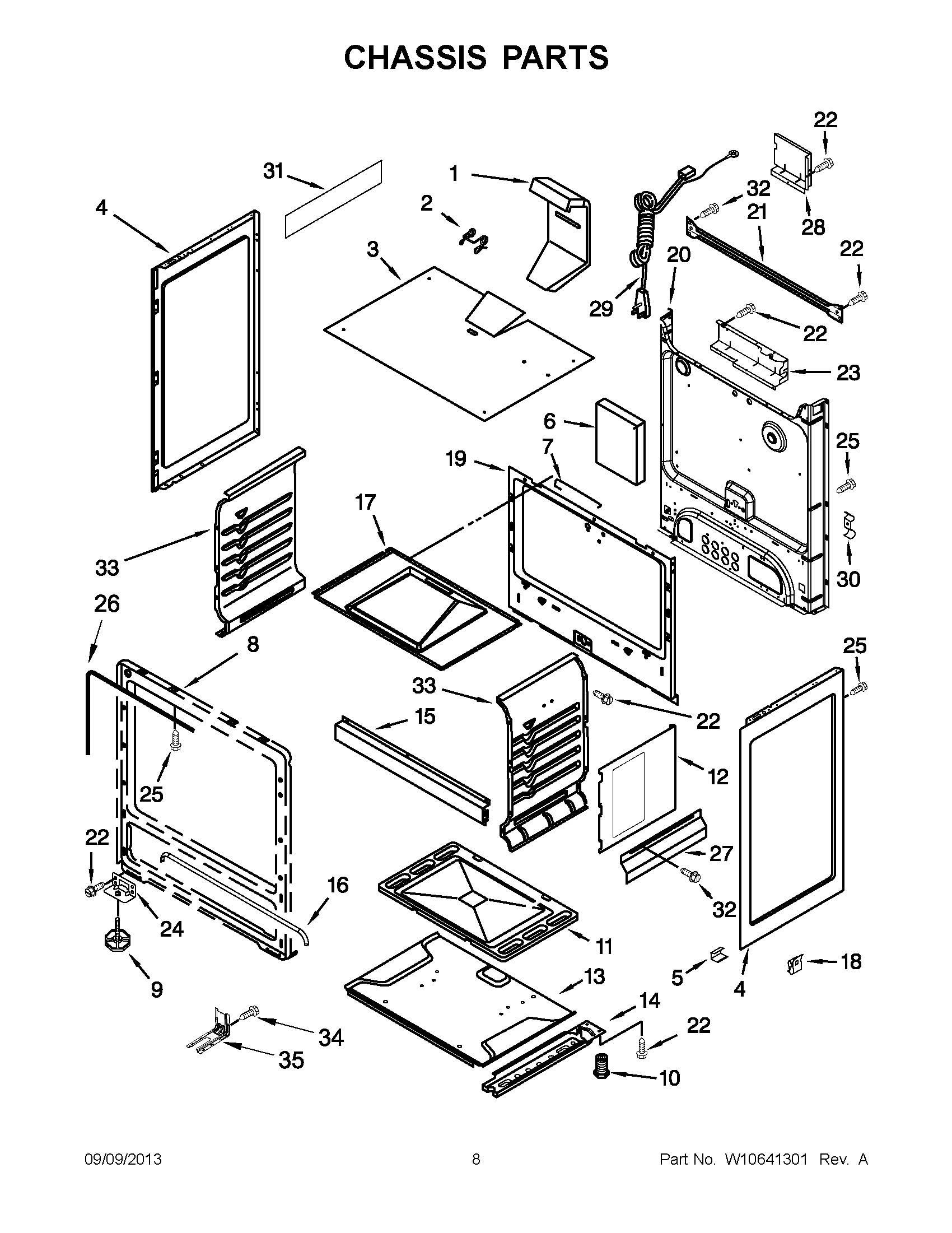

05 - CHASSIS PARTS

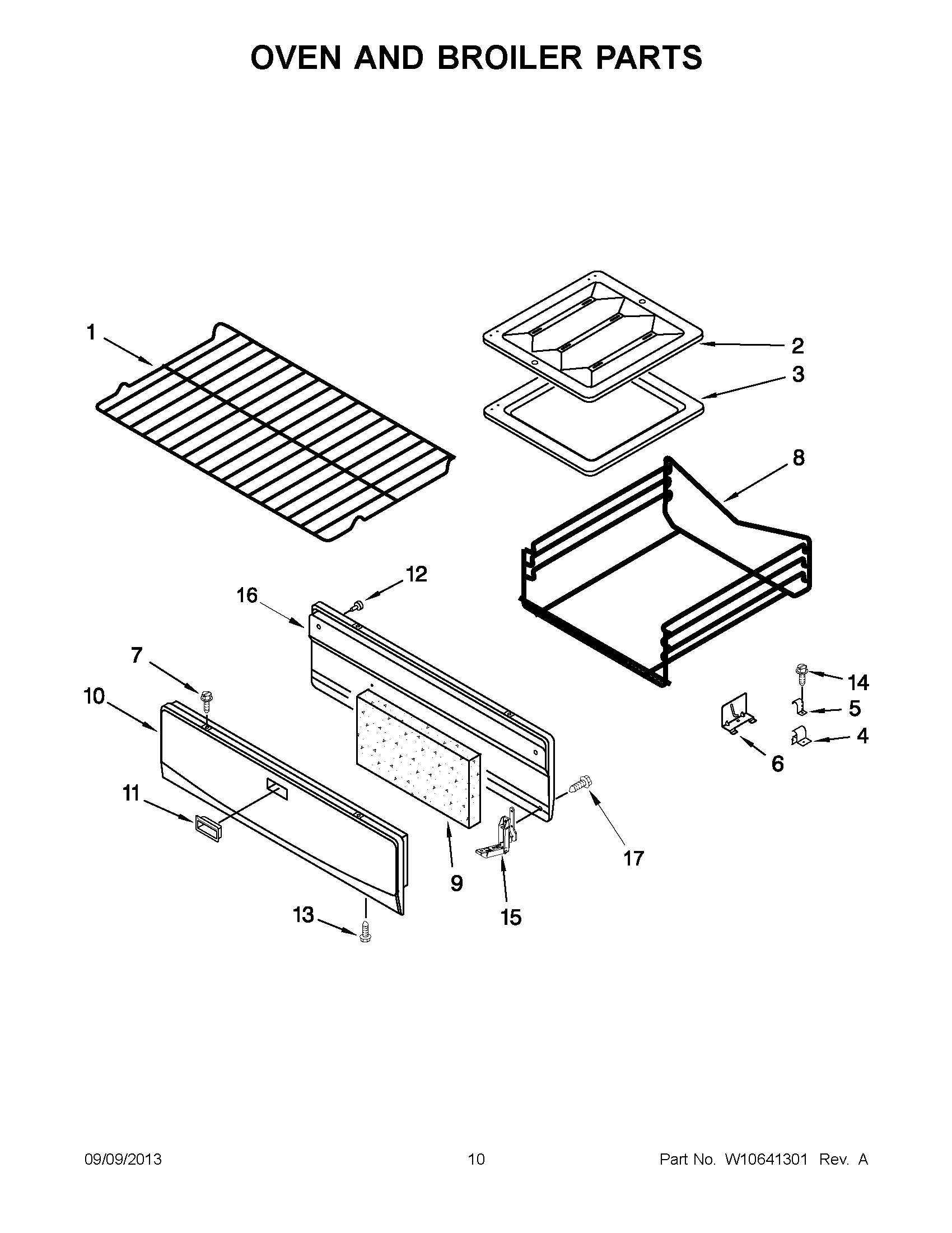

06 - OVEN AND BROILER PARTS

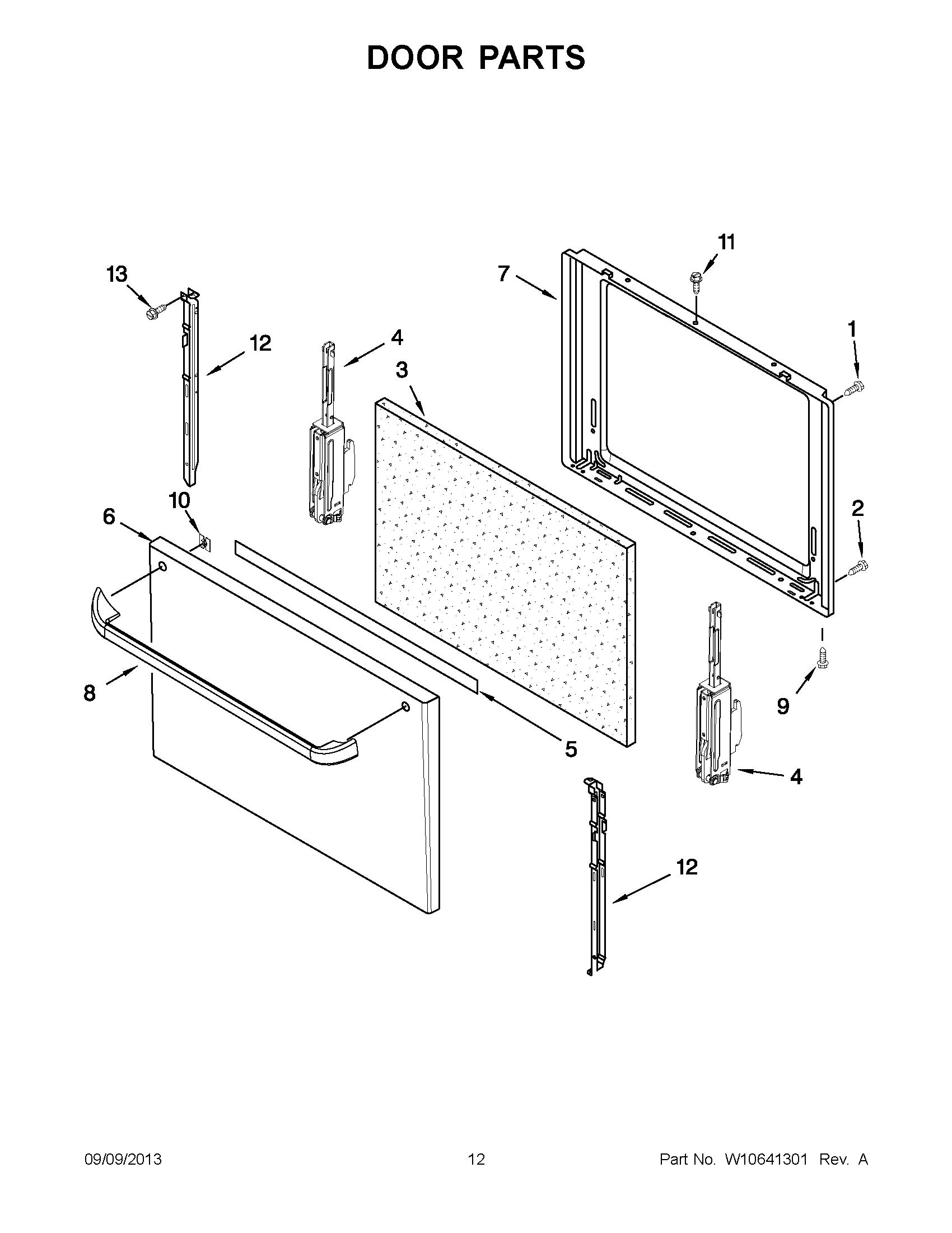

07 - DOOR PARTS
08 - OPTIONAL PARTS
Common parts from model Maytag AGR3311WDW3 30`` GAS FREESTANDING STANDARD CLEAN RANGE ELECTRO
1
MAY 98007032 MAY 98007032 Contact Us For Availability
1
TIPS, SAFE COOKING (ENGLISH) MAY 98007130 Contact Us For Availability
1
USE & CARE GUIDE MAY W10330187 Contact Us For Availability
1
MAY W10477533 MAY W10477533 Contact Us For Availability
1
ENDCAP (WHITE (LEFT HAND)) MAY 98005252 Contact Us For Availability
1
ENDCAP (WHITE (RIGHT HAND)) MAY 98005253 Contact Us For Availability
1
NUT MAY 98017323 Contact Us For Availability
1
MAY 98003799 MAY 98003799 Contact Us For Availability
1
MAY W10312013 MAY W10312013 Contact Us For Availability
1
MAY 8533842 MAY 8533842 Contact Us For Availability
2
Cooktop (White) MAY 98017619W Contact Us For Availability
2
Screw MAY 98015526 Contact Us For Availability
2
ASSEMBLY, TUBING MAY 98017582 Contact Us For Availability
2
MAY 98013690 MAY 98013690 Contact Us For Availability
2
MAY 98003480 MAY 98003480 Contact Us For Availability
2
MAY 98008699 MAY 98008699 Contact Us For Availability
3
MAY W10260205 MAY W10260205 Contact Us For Availability
3
PANEL, CONTROL (WHITE) MAY 98009818 Contact Us For Availability
3
BRACKET, VENTURI MAY 98017741 Contact Us For Availability
3
MAY W10164111 MAY W10164111 Contact Us For Availability
3
MAY 98016005 MAY 98016005 Contact Us For Availability
3
INSULATION, OVEN DOOR MAY W10137223 Contact Us For Availability
4
MAY W10483313 MAY W10483313 Contact Us For Availability
4
ASSEMBLY, TUBING MAY 98017359 Contact Us For Availability
4
PANEL, SIDE (WHITE) MAY 98010042 Contact Us For Availability
4
GUIDE, RACK MAY 98004715 Contact Us For Availability
4
HINGE, OVEN DOOR (YELLOW) MAY 98017873 Contact Us For Availability
4
HINGE, OVEN DOOR (WHITE) MAY 98017875 Contact Us For Availability
5
MAY 6610341 MAY 6610341 Contact Us For Availability
5
MAY 98005502 MAY 98005502 Contact Us For Availability
5
MAY 98008341 MAY 98008341 Contact Us For Availability
5
MAY W10544222 MAY W10544222 Contact Us For Availability
6
MAY W10483330 MAY W10483330 Contact Us For Availability
6
MAY W10469572 MAY W10469572 Contact Us For Availability
6
MAY 98006710 MAY 98006710 Contact Us For Availability
6
MAY 98004761 MAY 98004761 Contact Us For Availability
6
PANEL-DOOR MAY 98017968W Contact Us For Availability
7
MAY 98004722 MAY 98004722 Contact Us For Availability
7
MAY 98007192 MAY 98007192 Contact Us For Availability
7
MAY 98006739 MAY 98006739 Contact Us For Availability
7
Screw (White) MAY 98006727 Contact Us For Availability
7
MAY 98017966 MAY 98017966 Contact Us For Availability
8
Wire, Ground MAY 6610473 Contact Us For Availability
8
SPREAD, FLAME (BAKE) MAY 98015099 Contact Us For Availability
8
MAY W10166434 MAY W10166434 Contact Us For Availability
8
MAY 98016570 MAY 98016570 Contact Us For Availability
8
MAY 98017915W MAY 98017915W Contact Us For Availability
9
MAY 98013389 MAY 98013389 Contact Us For Availability
9
FOOT, FRONT MAY W10153610 Contact Us For Availability
9
INSULATION, BROILER DOOR MAY W10137230 Contact Us For Availability
9
MAY 98004993 MAY 98004993 Contact Us For Availability
10
SCREW MAY 98005000 Contact Us For Availability
10
MAY 98012138 MAY 98012138 Contact Us For Availability
10
MAY W10058460 MAY W10058460 Contact Us For Availability
10
PANEL, DRAWER FRONT (WHITE) MAY 98009342 Contact Us For Availability
10
BRACKET, HANDLE MAY 98017967 Contact Us For Availability
11
MAY 98007225 MAY 98007225 Contact Us For Availability
11
Cap, Burner (Black) MAY 98017461 Contact Us For Availability
11
MAY 98004449 MAY 98004449 Contact Us For Availability
11
HANDLE, BROILER DRAWER (WHITE) MAY 98008486 Contact Us For Availability
11
SCREW, TRIM MAY 98008545 Contact Us For Availability
12
MAY 8534079 MAY 8534079 Contact Us For Availability
12
MAY W10361492 MAY W10361492 Contact Us For Availability
12
BAFFLE, SIDE MAY W10164109 Contact Us For Availability
12
BUMPER, DOOR MAY 98004052 Contact Us For Availability
12
RETAINER (RIGHT HAND) MAY 98004564 Contact Us For Availability
12
RETAINER (LEFT HAND) MAY 98004629 Contact Us For Availability
13
GRATE, BURNER (BLACK) MAY W10180089 Contact Us For Availability
13
MAY 98014893 MAY 98014893 Contact Us For Availability
13
MAY 98003847 MAY 98003847 Contact Us For Availability
13
MAY 98004219 MAY 98004219 Contact Us For Availability
14
MAY W10243396 MAY W10243396 Contact Us For Availability
14
Screw MAY 98006633 Contact Us For Availability
14
MAY 98003830 MAY 98003830 Contact Us For Availability
15
VALVE, SADDLE MAY W10141709 Contact Us For Availability
15
MAY 98012175 MAY 98012175 Contact Us For Availability
15
HINGE, BROILER DOOR MAY W10201341 Contact Us For Availability
16
SCREW MAY 98017517 Contact Us For Availability
16
MAY W10560205 MAY W10560205 Contact Us For Availability
16
LINER, BROILER DOOR MAY W10162115 Contact Us For Availability
17
MAY W10583004 MAY W10583004 Contact Us For Availability
17
MAY 98004447 MAY 98004447 Contact Us For Availability
17
MAY W10155121 MAY W10155121 Contact Us For Availability
18
U-Nut MAY 98009179 Contact Us For Availability
19
SCREW MAY 98005663 Contact Us For Availability
19
MAY 98005768 MAY 98005768 Contact Us For Availability
20
ORIFICE, NATURAL (9.5K) MAY 98017348 Contact Us For Availability
20
MAY 98015100 MAY 98015100 Contact Us For Availability
21
IGNITER, HOT SURFACE MAY 98005652 Contact Us For Availability
21
MAY 98015363 MAY 98015363 Contact Us For Availability
22
MAY W10421119 MAY W10421119 Contact Us For Availability
23
MAY W10469571 MAY W10469571 Contact Us For Availability
23
MAY W10544168 MAY W10544168 Contact Us For Availability
24
MAY 98013314 MAY 98013314 Contact Us For Availability
24
Base, Foot MAY 98007126 Contact Us For Availability
25
MAY 98006632 MAY 98006632 Contact Us For Availability
25
MAY 98007410 MAY 98007410 Contact Us For Availability
26
MAY 98007431 MAY 98007431 Contact Us For Availability
26
MAY W10217472 MAY W10217472 Contact Us For Availability
27
MAY 98013634 MAY 98013634 Contact Us For Availability
27
MAY 98007191 MAY 98007191 Contact Us For Availability
28
MAY W10278150 MAY W10278150 Contact Us For Availability
28
MAY W10544177 MAY W10544177 Contact Us For Availability
29
MAY W10565875 MAY W10565875 Contact Us For Availability
29
CORD-POWER MAY 6610433 Contact Us For Availability
30
TUBING (MANIFOLD TO REGULATOR) MAY 98017171 Contact Us For Availability
30
MAY 98005026 MAY 98005026 Contact Us For Availability
31
MAY 98005659 MAY 98005659 Contact Us For Availability
31
MAY W10368736 MAY W10368736 Contact Us For Availability
32
MAY W10146346 MAY W10146346 Contact Us For Availability
32
Screw MAY 98006634 Contact Us For Availability
33
IGNITER, TOP (BLACK) MAY W10209656 Contact Us For Availability
33
IGNITER, TOP (NATURAL) MAY W10209657 Contact Us For Availability
33
Side, Oven (Left Hand) MAY 98004451 Contact Us For Availability
33
Side, Oven (Right Hand) MAY 98004452 Contact Us For Availability
34
MAY W10306542 MAY W10306542 Contact Us For Availability
35
SCREW, ANTI TIP MAY 7101P485-60 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
KIT, LP CONVERSION MAY W10032010 Contact Us For Availability
NI
MAY W10137227 MAY W10137227 Contact Us For Availability
NI
MAY W10137233 MAY W10137233 Contact Us For Availability
NI
KIT, DOOR PIN MAY 98012220 Contact Us For Availability
NI
INSULATION (2-1/2`` X 22`` X 120``) MAY 240132 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2`` X 24`` X 120``) MAY 261514 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLIP, HARNESS MAY 3196696 Contact Us For Availability
NI
WIRING HARNESS PARTS, TIE, CABLE MAY 3391018 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, THERMOSTAT MAY 6610434 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLAMP, CORD MAY 98005894 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLIP, WIRE MAY 98005896 Contact Us For Availability
NI
WIRING HARNESS PARTS, BUSHING, SNAP MAY 98015022 Contact Us For Availability
× ![]()
