Model GE AGBS300EP4BB Gas Range Or Dual Fuel – Common Parts &amp; Diagrams

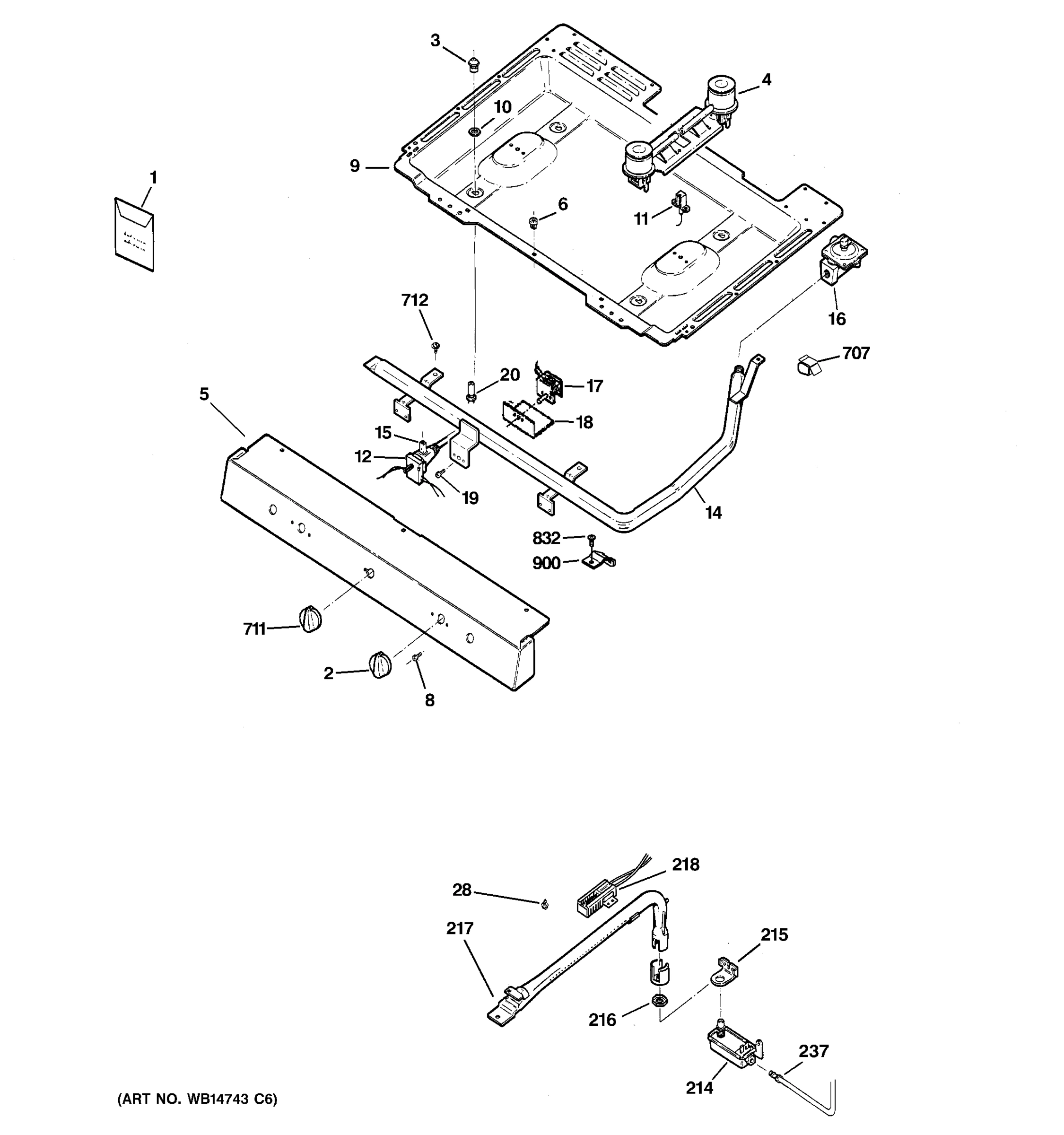

1

GEN 31-21458 GEN 31-21458 Contact Us For Availability

1

GEN 31-21464 GEN 31-21464 Contact Us For Availability

1

GEN 49-85155 GEN 49-85155 Contact Us For Availability

2

WB03K10034 GE Range Burner Knob In Stock GEN WB03K10034 $29.31

2

WB03K10035 GE Range Top Burner Knob In Stock GEN WB03K10035 $61.53

3

WB28K10033 GE Range Orifice Spud Backorder GEN WB28K10033 $20.07

3

WB28K10376 GE Range Orifice Backorder GEN WB28K10376 $7.54

4

WB16K10026 GE Oven Range Cooktop Double Burne In Stock GEN WB16K10026 $54.10

5

GEN WB36K10863 GEN WB36K10863 Contact Us For Availability

5

GEN WB36K10864 GEN WB36K10864 Contact Us For Availability

6

GEN WB02K0009 GEN WB02K0009 Contact Us For Availability

8

WB01K10002 GE Oven Screw 8-32 Backorder GEN WB01K10002 $21.00

9

WB64K10001 GE Range Burner Box Backorder GEN WB64K10001 $49.22

10

GEN WB01K0004 GEN WB01K0004 Contact Us For Availability

11

WB18X26987 GE Range Spark Electrode Top In Stock GEN WB18X26987 $11.28

11

WB18X26988 GE Range Top Spark Electrode In Stock GEN WB18X26988 $16.51

12

WB24K10065 GE Range Burner Box Harness Backorder GEN WB24K10065 $46.41

14

WB28K10579 GE Range Round Manifold Pipe Backorder GEN WB28K10579 $62.39

15

WB28K10578 GE Oven Surface Burner Valve In Stock GEN WB28K10578 $33.03

16

WB19K10055 GE Stove Range Oven Pressure Regul Backorder GEN WB19K10055 $71.92

17

WB20K8 GE Range Thermostat Temperature Contro In Stock GEN WB20K8 $183.93

18

WB2K24 GE Oven Valve Cover Backorder GEN WB2K24 $37.36

18

GEN WB02K0006 GEN WB02K0006 Contact Us For Availability

19

WB1K8 GE Range Thermostat Screw Backorder GEN WB1K8 $7.54

WB28K10009 GE Range Burner Tube Backorder GEN WB28K10009 $29.39

WB28K10010 GE Range Front Tube Assembly Backorder GEN WB28K10010 $44.87

WB28K10011 GE Range Rear Burner Tube Backorder GEN WB28K10011 $44.87

WB28K10012 GE Range Rear Burner Tube In Stock GEN WB28K10012 $25.91

28

WB1X1293 GE Oven Screw In Stock GEN WB1X1293 $7.54

GEN WB07K10001 GEN WB07K10001 Contact Us For Availability

GEN WB07K10002 GEN WB07K10002 Contact Us For Availability

GEN WB07K10023 GEN WB07K10023 Contact Us For Availability

GEN WB07K10022 GEN WB07K10022 Contact Us For Availability

109

GEN WB01X5743 GEN WB01X5743 Contact Us For Availability

110

WB13X24321 GE Range Ignition Module In Stock GEN WB13X24321 $22.59

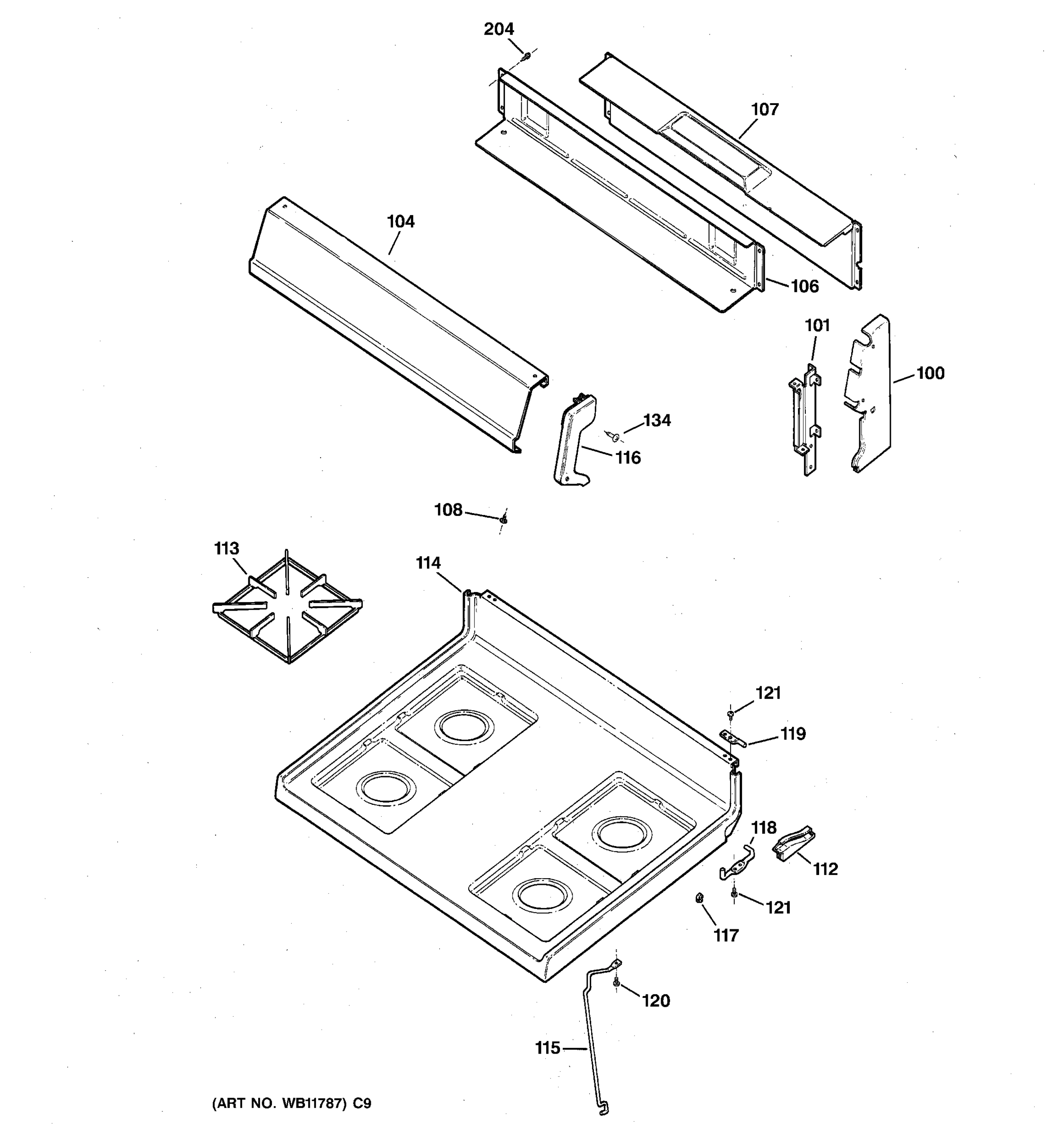

113

WB31K10015 GE Range Black Grate In Stock GEN WB31K10015 $35.16

114

WB62K10003 GE Range Cooktop Assembly (White) Backorder GEN WB62K10003 $376.74

114

WB62K10109 GE Range Top Standard Backorder GEN WB62K10109 $68.18

WB07K10003 GE Range Right Black Endcap Backorder GEN WB07K10003 $63.22

WB07K10005 GE Range Right Endcap In Stock GEN WB07K10005 $66.42

WB07K10007 GE Range Endcap Left Backorder GEN WB07K10007 $66.45

GEN WB07K10004 GEN WB07K10004 Contact Us For Availability

117

WB14K10004 GE Range Pin Locator Backorder GEN WB14K10004 $7.54

117

GEN WB02K0017 GEN WB02K0017 Contact Us For Availability

118

WB14K3 GE Range Right Side Glide Backorder GEN WB14K3 $7.17

120

WB1K45 GE Range Screw and Range Assembly Backorder GEN WB1K45 $7.54

121

WB1K5119 GE Oven Screw Backorder GEN WB1K5119 $7.54

134

GEN WB01K10004 GEN WB01K10004 Contact Us For Availability

134

GEN WB01K10003 GEN WB01K10003 Contact Us For Availability

201

WB48X10056 GE Broil Pan Set, Large Porcelain In Stock GEN WB48X10056 $34.40

203

WB18K10036 GE Oven Line Cord Backorder GEN WB18K10036 $23.20

204

WB1K5062 GE Oven Screw Backorder GEN WB1K5062 $7.54

204

WZ4X345D GE Screw Package 12 C92 Backorder GEN WZ4X345D $22.91

209

WB63K10119 GE Range Side Panel, Black Backorder GEN WB63K10119 $143.02

210

GEN WB35K10042 GEN WB35K10042 Contact Us For Availability

214

WB19K31 GE Gas Range Oven Cooktop Safety Valv Backorder GEN WB19K31 $132.65

215

WB2K65 GE Range SAF Valve Bracket Backorder GEN WB2K65 $7.54

217

GEN WB16K10065 GEN WB16K10065 Contact Us For Availability

218

WB13K21 GE Oven Igniter with 7 Leads In Stock GEN WB13K21 $140.85

237

WB28K147 GE Range Tube Valve Supply Backorder GEN WB28K147 $54.27

240

WB63X26890 GE Range Broiler Panel Backorder GEN WB63X26890 $41.95

241

WB63K10029 GE Range Bottom Backorder GEN WB63K10029 $88.97

245

WB02K10182 GE Oven Leveling Leg In Stock GEN WB02K10182 $11.48

250

GEN WB53K10016 GEN WB53K10016 Contact Us For Availability

254

GEN WB10K10009 GEN WB10K10009 Contact Us For Availability

254

GEN WB10K10010 GEN WB10K10010 Contact Us For Availability

257

WB38K10001 GE Range Vent Assembly Backorder GEN WB38K10001 $53.82

261

WB35K10155 GE Range Insulation Wrap Backorder GEN WB35K10155 $38.21

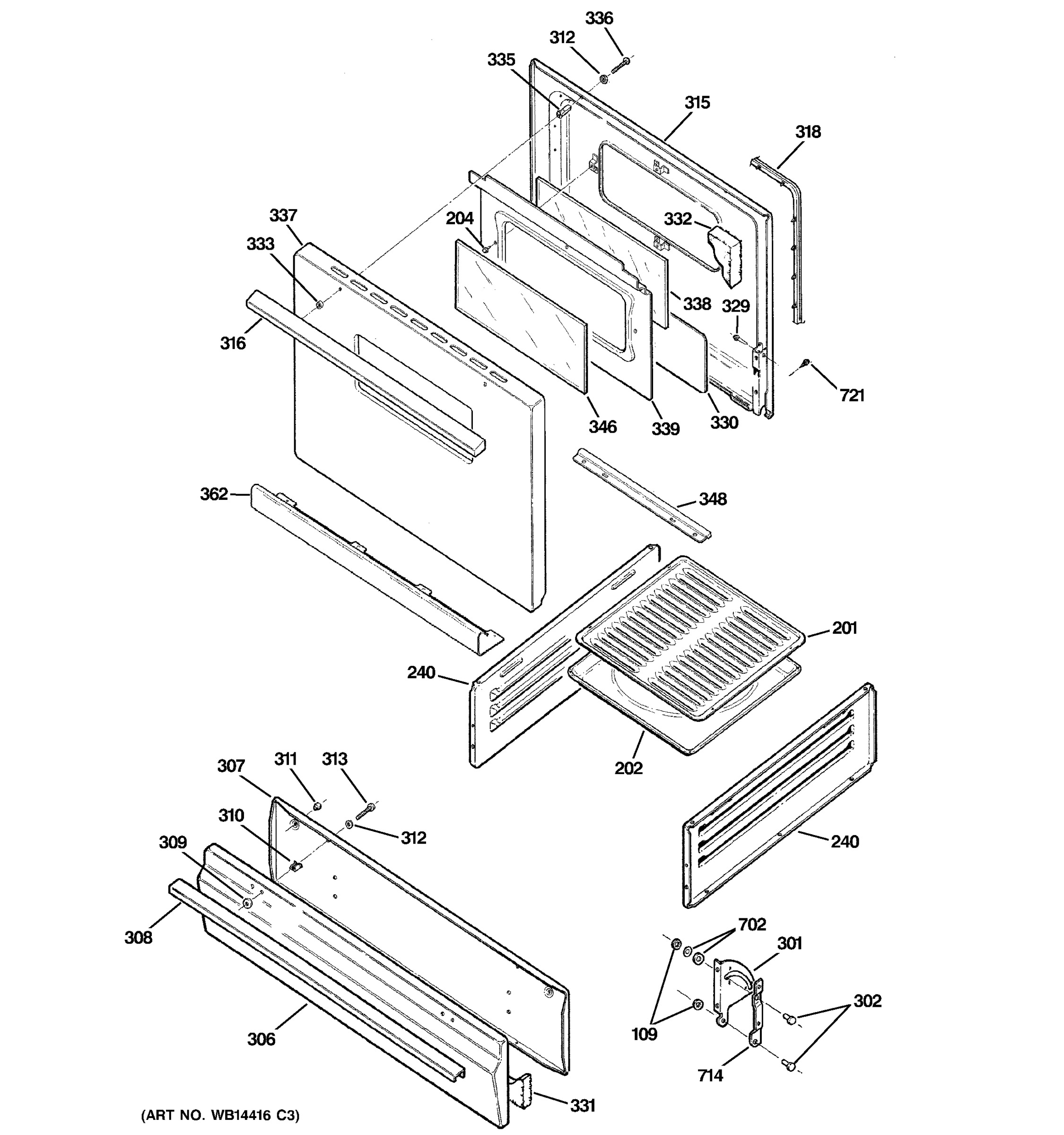

301

GEN WB10K0010 GEN WB10K0010 Contact Us For Availability

301

GEN WB10K0011 GEN WB10K0011 Contact Us For Availability

302

WB01K10035 GE Range Broiler Pin Backorder GEN WB01K10035 $7.54

302

GEN WB01K0007 GEN WB01K0007 Contact Us For Availability

302

GEN WB01K10036 GEN WB01K10036 Contact Us For Availability

306

WB56X21199 GE Range Drawer Panel Backorder GEN WB56X21199 $39.37

306

GEN WB39K0010 GEN WB39K0010 Contact Us For Availability

307

GEN WB39K10042 GEN WB39K10042 Contact Us For Availability

308

WB15K10008 GE Range Broil Handle Backorder GEN WB15K10008 $33.75

308

WB15K10013 GE Range Broiler Handle (Black) Backorder GEN WB15K10013 $23.15

309

GEN WB01X0560 GEN WB01X0560 Contact Us For Availability

310

WB2K14 GE Range Spacer In Stock GEN WB2K14 $7.54

311

WB2K15 GE Range Grate Bumper In Stock GEN WB2K15 $11.10

312

WB1X119D GE Oven Range Washer In Stock GEN WB1X119D $15.99

313

WB1X5731D GE Range Nut Package of 12 Backorder GEN WB1X5731D $27.05

315

GEN WB55K10050 GEN WB55K10050 Contact Us For Availability

316

WB15K1 GE Range Broil Handle Backorder GEN WB15K1 $46.01

318

WB35X29720 GE Oven Door Gasket In Stock GEN WB35X29720 $15.83

329

WB1X558D GE Oven Screw Package Backorder GEN WB1X558D $22.04

330

GEN WB55K0001 GEN WB55K0001 Contact Us For Availability

331

GEN WB35K0003 GEN WB35K0003 Contact Us For Availability

332

WB35K10151 GE Range Insulation Door Backorder GEN WB35K10151 $49.22

333

WB01K10020 GE Range Handle Spacer Backorder GEN WB01K10020 $7.54

335

WB02K10156 GE Oven Spacer In Stock GEN WB02K10156 $11.47

336

GEN WB01K10078 GEN WB01K10078 Contact Us For Availability

337

GEN WB56K10044 GEN WB56K10044 Contact Us For Availability

337

GEN WB56K10043 GEN WB56K10043 Contact Us For Availability

338

WB56K5 GE Range Crystal Wind Backorder GEN WB56K5 $120.07

339

WB56K10032 GE Range Guard Insulation Assembly Backorder GEN WB56K10032 $59.71

346

WB56K25 GE Range Wind Crystal Backorder GEN WB56K25 $112.52

346

WB57K18 GE Range Crystal Wind In Stock GEN WB57K18 $82.70

346

GEN WB01K0038 GEN WB01K0038 Contact Us For Availability

348

GEN WB02K0050 GEN WB02K0050 Contact Us For Availability

707

WB02K10267 GE Wire Clip Backorder GEN WB02K10267 $7.17

711

GEN WB03K10346 GEN WB03K10346 Contact Us For Availability

711

GEN WB03K10345 GEN WB03K10345 Contact Us For Availability

712

WB1K37 GE Range Screw Backorder GEN WB1K37 $7.54

714

WB39K34 GE Range Broil Support Right Backorder GEN WB39K34 $16.99

721

WB1X536 GE Oven Screw Backorder GEN WB1X536 $9.21

832

WB01K10043 GE Oven Screw Backorder GEN WB01K10043 $7.54

832

WB01K10080 GE Range Thermostat Screw Backorder GEN WB01K10080 $7.54

900

WB02K10263 GE Oven Round Valve Bracket Backorder GEN WB02K10263 $7.54

1120

WB02K10178 GE Range Bumper Backorder GEN WB02K10178 $7.54

1120

WB02K10179 GE Range Bumper Backorder GEN WB02K10179 $7.54
