Model Whirlpool AG4419 WASHER – Common Parts & Diagrams

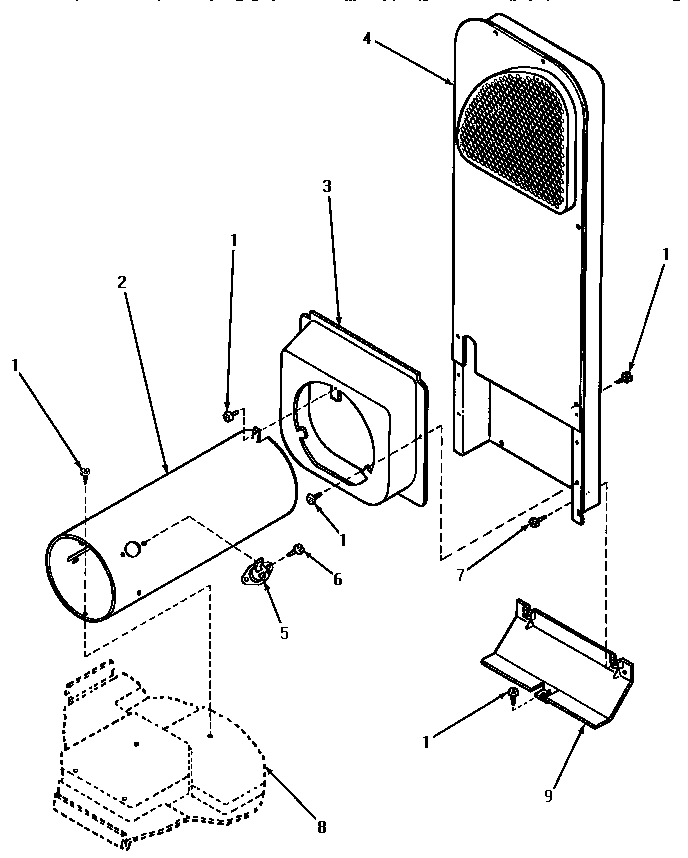

07 - HEATER BOX

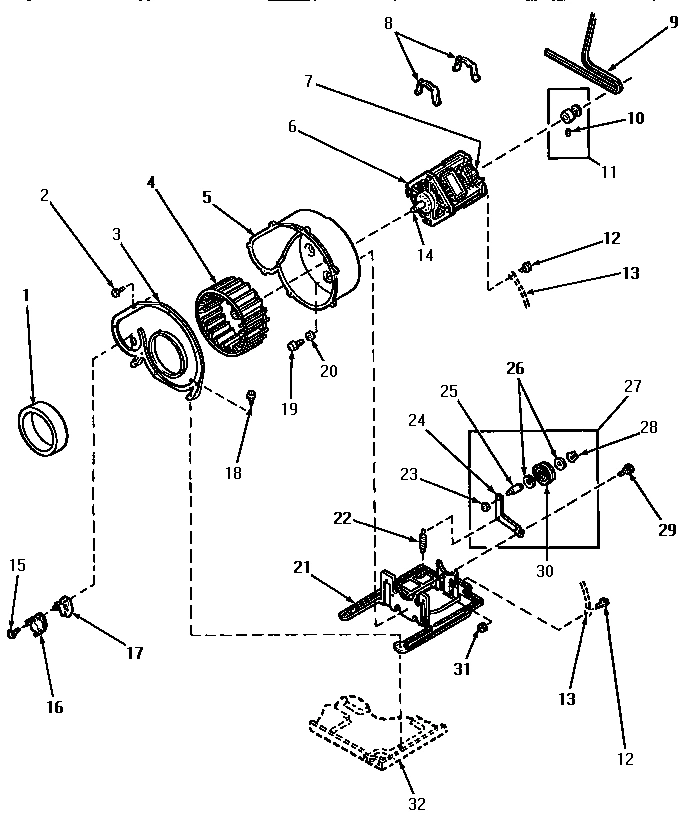

09 - MOTOR, EXHAUST FAN AND BELT

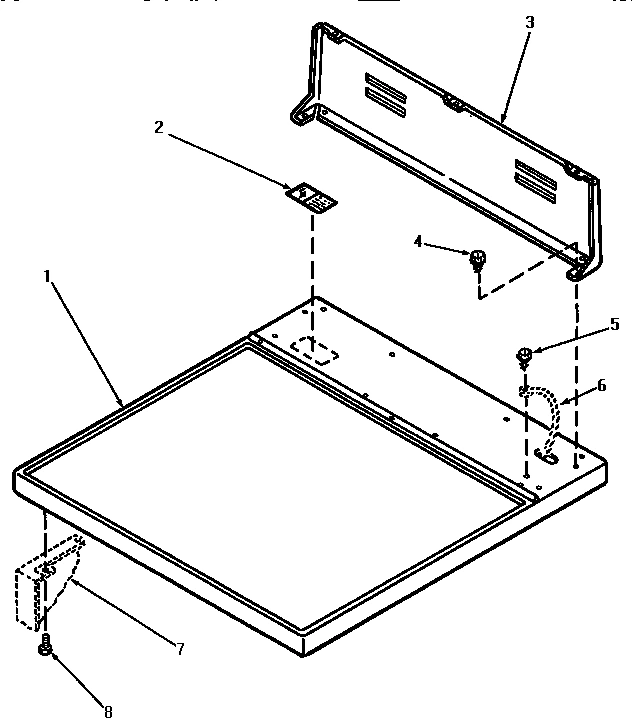

01 - CABINET TOP AND CONTROL HOOD REAR PANEL
03 - CYLINDER ROLLER

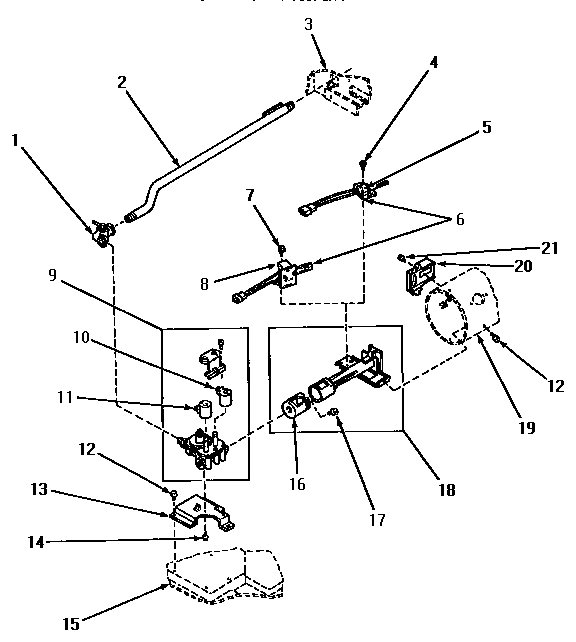

05 - GAS VALVE AND IGNITER

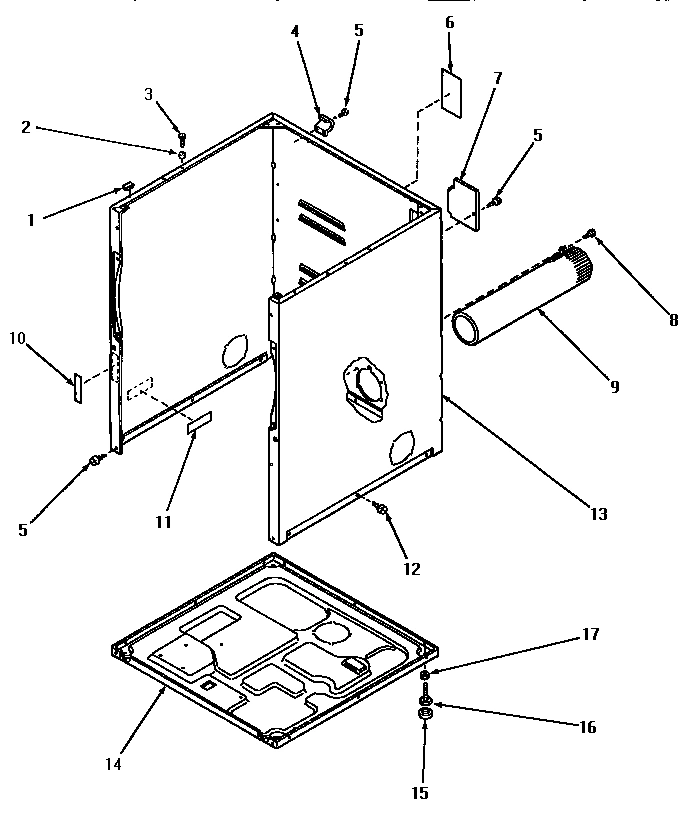

02 - CABINET, EXHAUST DUCT AND BASE

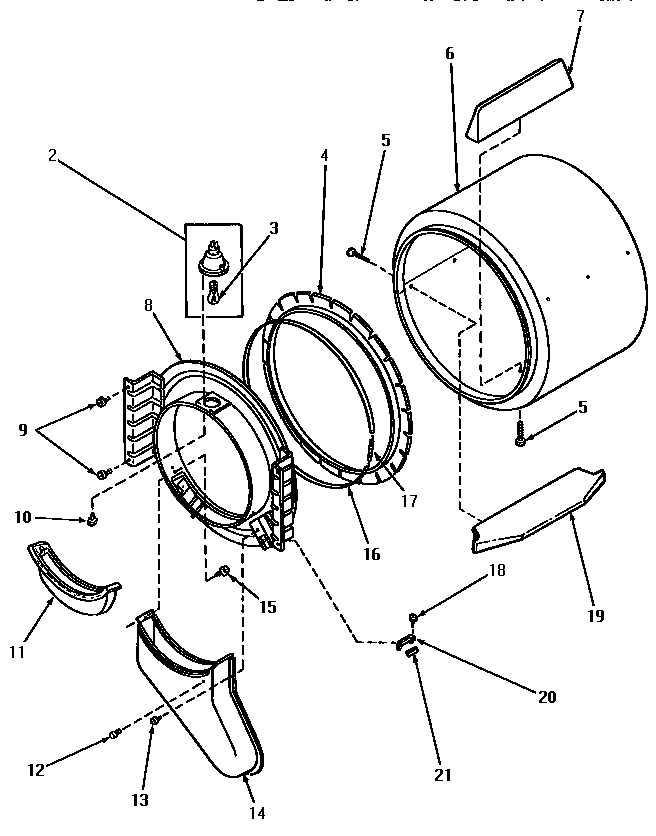

04 - FR BLKHD, AIR DUCT, FELT SEAL & CYLINDER

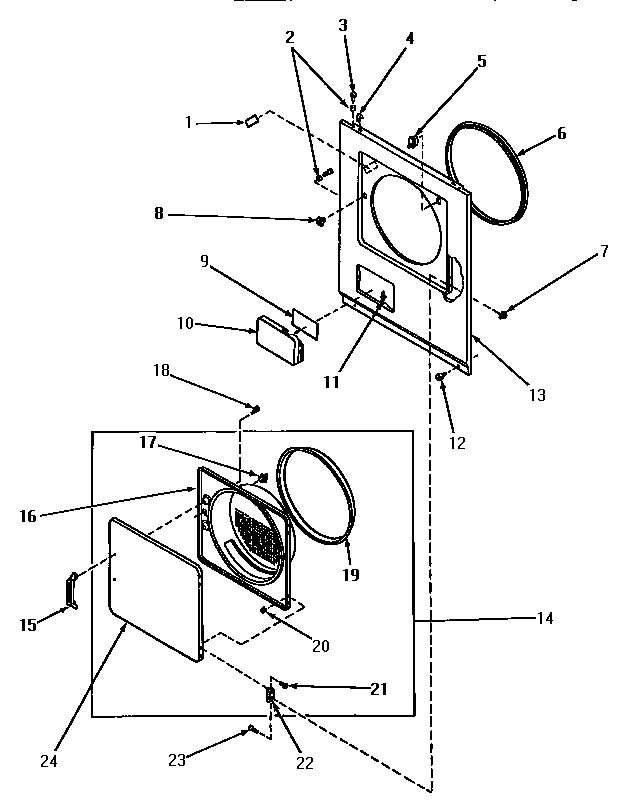

08 - LOADING DOOR, FRONT PANEL AND SEALS

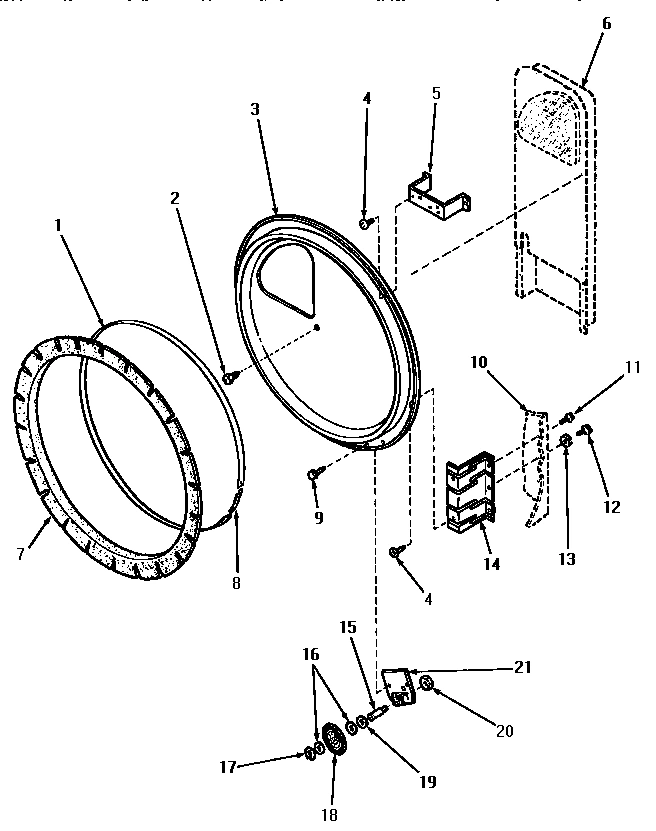

11 - REAR BLKHD, FELT SEAL & CYLINDER ROLLER

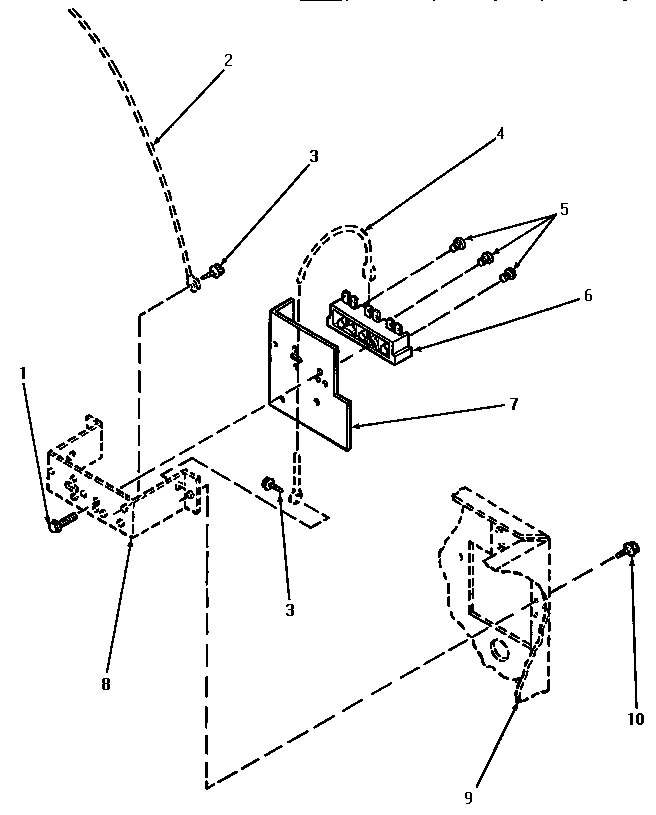

12 - TERMINAL BLOCK

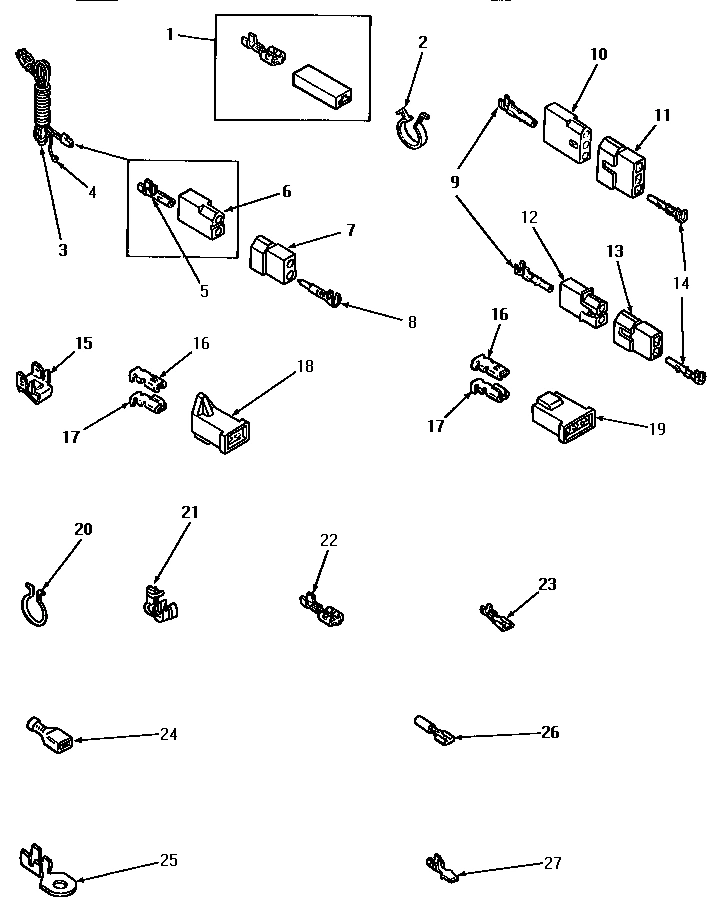

10 - POWER CORD AND TERMINALS

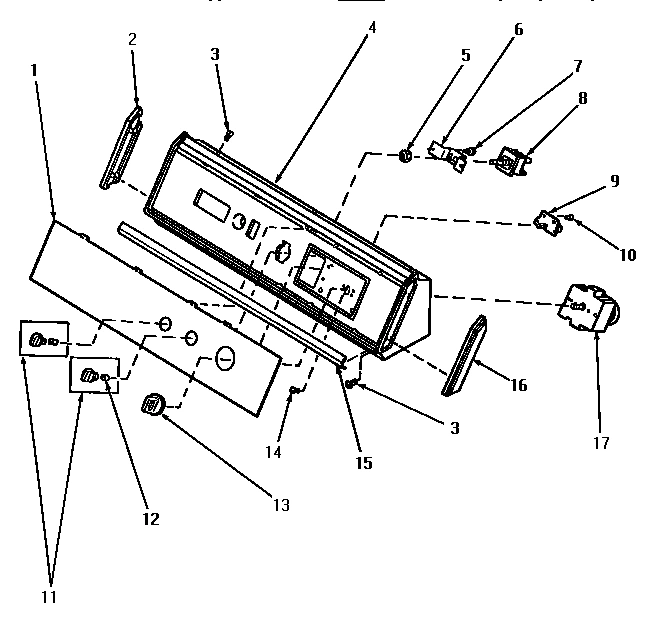

06 - GRAPHICS PANEL, CTRL HOOD AND CTRLS
Common parts from model Whirlpool AG4419 WASHER
NOTE 2: STARTING SERIAL NO. S6564538ZE, ALL H WPL NOTE Contact Us For Availability
1
SEAL WPL 56065 Contact Us For Availability
1
ASSY,TOP PANEL-DOMESTI WPL 60815H Contact Us For Availability
1
CABINET TOP, ALMOND WPL 60815L Contact Us For Availability
1
ASSY, TOP & CARTON WPL 60815W Contact Us For Availability
1
VALVE,ELBOW SHUT-OFF WPL Y56229 Contact Us For Availability
1
PAD, BUMPER WPL Y56128 Contact Us For Availability
1
SEAL STRAP WPL Y56090 Contact Us For Availability
1
REPL BY 500281 WPL 58854 Contact Us For Availability
1
SCREW WPL Y61200 Contact Us For Availability
1
TERMINAL,SPADE-1/4 FEM WPL Y00237 Contact Us For Availability
1
PANEL,GRAPHIC WPL 60731 Contact Us For Availability
2
ASSY,LEAD-IN PIPE WPL 58911 Contact Us For Availability
2
LOCATER, PANEL WPL 56079 Contact Us For Availability
2
CYLINDER LIGHT ASSEMBLY WPL 60953P Contact Us For Availability
2
CLIP,WIRE WPL 61510 Contact Us For Availability
2
CAP,END-L.H.-CHROME WPL 31249 Contact Us For Availability
3
COVER,BLOWER HOUSING WPL 60938P Contact Us For Availability
3
CONTROL HOOD, REAR PANEL WPL 59970 Contact Us For Availability
3
ROLLER, CYLINDER WPL Y62649 Contact Us For Availability
3
ASSY, REAR BULKHEAD/BRKT WPL Y61127 Contact Us For Availability
3
CORD,LEAD-IN WPL Y56222 Contact Us For Availability
3
SCREW,No.8ABX3/4 POZIDRI WPL 31752 Contact Us For Availability
4
SCREW, 6B-20X5/16 WPL 51782 Contact Us For Availability
4
SEE NOTE GROUND WIRE, GREEN WPL Y00000000 Contact Us For Availability
4
HINGE, TOP WPL 60826 Contact Us For Availability
4
M400664 WPL 56078 Contact Us For Availability
4
ASSY,HOOD & MOUNTING P WPL 59955 Contact Us For Availability
5
LIMIT THERMOSTAT WPL 489P3 Contact Us For Availability
5
HOUSING, BLOWER WPL 56020 Contact Us For Availability
5
SCREW,10BT X 1 TAPPING WPL 56131 Contact Us For Availability
5
TERMINAL BLOCK BRACKET WPL 60823 Contact Us For Availability
5
TERMINAL,PIN-1/8 FEMAL WPL 00130 Contact Us For Availability
5
NUT WPL 57584 Contact Us For Availability
6
MOTOR,1SP-120/60 WPL Y58044 Contact Us For Availability
6
ASSY,CYLINDER-WHITE WPL 61073P Contact Us For Availability
6
SEAL,FRONT PANEL WPL Y61380 Contact Us For Availability
6
TERMINAL BLOCK WPL 61923P Contact Us For Availability
6
RECEPTACLE,2 CIRCUIT WPL 56265 Contact Us For Availability
6
BRACKET,SWITCH MOUNT WPL 59704 Contact Us For Availability
7
SWITCH,MOTOR WPL 53226 Contact Us For Availability
7
SWITCH WPL 53249 Contact Us For Availability
7
MOTOR SWITCH, INTERNAL MOUNTED WPL 59895 Contact Us For Availability
7
SCREW,No.6-20X.44/.41 IN WPL 56693 Contact Us For Availability
7
ACESS COVER WPL 60821 Contact Us For Availability
7
BAFFLE,CYLINDER-SHORT- WPL Y61399 Contact Us For Availability
7
SCREW, No.8 X 3/8 IND H WPL 31260 Contact Us For Availability
7
NUT K WPL 51236 Contact Us For Availability
7
SHIELD,TERMINAL BLOCK WPL 56087 Contact Us For Availability
7
PLUG WPL 56266 Contact Us For Availability
8
ASSY,BULKHEAD-FRONT-SV WPL 62142W Contact Us For Availability
8
ASSY,BULKHEAD & GLIDE FRT WPL 62160W Contact Us For Availability
8
SPRING WPL 52310 Contact Us For Availability
8
TERMINAL,PIN-1/8 MALE WPL Y00127 Contact Us For Availability
8
SWITCH,FABRIC SELECTOR WPL Y61511 Contact Us For Availability
9
SHIELD,HEAT DUCT WPL 60952 Contact Us For Availability
9
ASSY,VALVE-GAS-SINGLE- WPL 58804 Contact Us For Availability
9
STICKER WPL 56427 Contact Us For Availability
9
ASSY, EXHAUST DUCT WPL 56118 Contact Us For Availability
9
FEMALE SOCKET TERMINAL WPL Y00117 Contact Us For Availability
9
SWITCH,ROTATE-TO-START WPL 59450 Contact Us For Availability
10
SETSCREW WPL 52906 Contact Us For Availability
10
STICKER,DISCONNECT POW WPL 24903 Contact Us For Availability
10
DOOR,ACCESS WPL 60795H Contact Us For Availability
10
DOOR,ACCESS WPL 60795L Contact Us For Availability
10
DOOR,ACCESS WPL 60795W Contact Us For Availability
10
RECEPTACLE,3 CIRCUIT WPL 23039 Contact Us For Availability
11
MOTOR PULLEY ASSEMBLY WPL 59173 Contact Us For Availability
11
STICKER WPL 61294 Contact Us For Availability
11
FILTER,LINT-WHITE W/INST. WPL 61376P Contact Us For Availability
11
BARREL,SUPPORT WPL 56534 Contact Us For Availability
11
PLUG, 3 CIRCUIT WPL 23040 Contact Us For Availability
11
ASSY,KNOB-ROTARY-BLK/O WPL 31286 Contact Us For Availability
12
SCREW WPL 58624 Contact Us For Availability
12
BUMPER WPL 56938 Contact Us For Availability
12
SCREW,10B-16 X 1/2 HEX WPL 52909 Contact Us For Availability
12
RECEPTACLE,2 CIRCUIT WPL 56451 Contact Us For Availability
12
RETAINER WPL 10519 Contact Us For Availability
13
MOUNTING BRACKET WPL 58912 Contact Us For Availability
13
SCREW,8-18 X 3/8 TAPPI WPL 56392 Contact Us For Availability
13
ASSY,DRYER CABINET WPL 60813HP Contact Us For Availability
13
xxxASSY,DRYER CABINET WPL 60813LP Contact Us For Availability
13
xxxASSY,DRYER CABINET WPL 60813WP Contact Us For Availability
13
PANEL,FRONT-GAS WPL 62421H Contact Us For Availability
13
PANEL, FRONT WPL 62421L Contact Us For Availability
13
PANEL, FRONT WPL 62421W Contact Us For Availability
13
WASHER,13/64IDX1/2ODX. WPL 51474 Contact Us For Availability
13
PLUG 2 CIRCUIT WPL 56448 Contact Us For Availability
13
ASSY,TIMER KNOB & SKIR WPL 59791 Contact Us For Availability
14
NEVER-SEEZE 1 OZ TUBE WPL 27604P Contact Us For Availability
14
ASSY,BASE-COMPLETE WPL 60811 Contact Us For Availability
14
ASSY,AIR DUCT-FRONT WPL 60786 Contact Us For Availability
14
ASSY,DOOR WPL 62151H Contact Us For Availability
14
ASSY,DOOR WPL 62151L Contact Us For Availability
14
ASSY,DOOR WPL 62151W Contact Us For Availability
14
BRACKET,BULKHEAD-REAR WPL 56055 Contact Us For Availability
14
TERMINAL,PIN-MALE WPL Y00116 Contact Us For Availability
15
PULL,DOOR WPL 54068P Contact Us For Availability
15
GROUND CLIP WPL Y00161 Contact Us For Availability
16
THERMOSTAT WPL Y61372 Contact Us For Availability
16
SHUTTER,AIR WPL 53007 Contact Us For Availability
16
INNER DOOR PANEL, HARVEST GOLD WPL 62152H Contact Us For Availability
16
LINER,DOOR WPL 62152L Contact Us For Availability
16
LINER,DOOR WPL 62152W Contact Us For Availability
16
TERMINAL WPL Y000189 Contact Us For Availability
16
CAP,END-R.H.-CHROME WPL 31248 Contact Us For Availability
17
THERMOSTAT HEATER WPL 61401 Contact Us For Availability
17
SCREW,6-32 X 5/16 RD H WPL 51356 Contact Us For Availability
17
CONNECTOR,RECEPTACLE WPL Y00190 Contact Us For Availability
17
TIMER,4 CYCLE WPL 59497 Contact Us For Availability
18
SCREW, THERMOSTAT WPL 52150 Contact Us For Availability
18
CYLINDER ROLLER WPL 56457 Contact Us For Availability
18
ASSEMBLY, BURNER WPL Y56234 Contact Us For Availability
18
CONNECTOR,2 CIRCUIT WPL 58799 Contact Us For Availability
19
WASHER,.578IDX1.25ODX1 WPL 23886 Contact Us For Availability
19
BAFFLE,CYLINDER-EXTEND WPL Y61027 Contact Us For Availability
19
DOOR SEAL WPL 61379 Contact Us For Availability
19
CONNECTOR,3 CIRCUIT WPL 58800 Contact Us For Availability
20
WASHER WPL 20492 Contact Us For Availability
20
NUT, 3/8-16 SERRATED WPL 56156 Contact Us For Availability
20
GLIDE,CYLINDER-RULON F WPL 61448 Contact Us For Availability
20
NUT,SPEED-8A TINN C15 WPL 23407 Contact Us For Availability
20
CLIP,WIRE WPL 51291 Contact Us For Availability
21
MOTOR MOUNTING BRACKET WPL Y60816 Contact Us For Availability
21
PAD,THIN WPL 58049 Contact Us For Availability
21
SCREW, 8B-16X5/8 TAP WPL 52864 Contact Us For Availability
21
BRACKET,CYLINDER ROLLER WPL 56042 Contact Us For Availability
21
STRAIN RELIEF WPL 21903 Contact Us For Availability
22
KIT,HINGE WPL 56045P Contact Us For Availability
22
SPADE TERMINAL(18 GAUGE) WPL Y00119 Contact Us For Availability
22
SPADE TERMINAL(12 GAUGE) WPL Y00121 Contact Us For Availability
22
TERMINAL,FEMALE-1/4 SP WPL Y00222 Contact Us For Availability
23
SCREW,8-32 X 13/32 FL WPL 22649 Contact Us For Availability
23
TERMINAL,SPADE 3/16 WPL 00156 Contact Us For Availability
23
TERMINAL,SPADE-3/16 FE WPL Y00124 Contact Us For Availability
23
TERMINAL,3/16 SPADE WPL Y00209 Contact Us For Availability
24
LEVER,IDLER WPL 56057 Contact Us For Availability
24
DOOR (GOLD) WPL 62153H Contact Us For Availability
24
DOOR WPL 62153L Contact Us For Availability
24
PANEL OUTER DOOR WPL 62153W Contact Us For Availability
25
TERMINAL,RING-10 STUD WPL 00110 Contact Us For Availability
25
TERMINAL,RING-10 STUD WPL Y00111 Contact Us For Availability
26
TERMINAL,1/4 SPADE PRE WPL Y00214 Contact Us For Availability
26
TERMINAL,1/4 SPADE PRE WPL Y00215 Contact Us For Availability
27
TERMINAL,TAB 1/4 MALE WPL Y00138 Contact Us For Availability
27
MALE TAB TERMINAL(12 GAUGE) WPL Y00139 Contact Us For Availability
29
SCREW,1/4-20 HEX HD SH WPL 56587 Contact Us For Availability
NI
KIT, CONVERSION-LP WPL 401P3 Contact Us For Availability
NI
KIT,CONVERSION-NG WPL 402P3 Contact Us For Availability
NI
ORIFICE,SCREW WPL 58719 Contact Us For Availability
NI
PLUG,BLOCK OPEN WPL 58754 Contact Us For Availability
NI
ORIFICE,LP WPL 58755 Contact Us For Availability
NI
SCREW,VENT WPL 58768 Contact Us For Availability
NI
PLATE,CONVERSION WPL 60514 Contact Us For Availability
NI
PLATE,CONVERSION WPL 60515 Contact Us For Availability
NI
STICKER,VALVE CONVERTED WPL 60516 Contact Us For Availability
NI
VALVE CONVERTED TO LP GAS STIC WPL 60517 Contact Us For Availability
NI
STICKER,LP GAS WPL 60520 Contact Us For Availability
NI
STICKER,NG OR MIXED GAS WPL 60521 Contact Us For Availability
NI
RD HD SCREW WPL 0045014 Contact Us For Availability
NI
CENTER ELEM ASSY WPL 0045019 Contact Us For Availability
NI
DRAWER LINER PK-471 WPL 0045056 Contact Us For Availability
NI
ROLLER ARM WPL 0045091 Contact Us For Availability
NI
TOP BURNER ASSY WPL 0045353 Contact Us For Availability
NI
SAIL SWITCH WPL 0045475 Contact Us For Availability
NI
LATCH ASSY WPL 0045480 Contact Us For Availability
NI
WIRE,18GA-WHT xREPLACE WPL 45000 Contact Us For Availability
NI
WIRE, 18 GA WPL 45001 Contact Us For Availability
NI
18 GAUGE WIRE, RED WPL 45002 Contact Us For Availability
NI
WIRE,18GA-BRN xREPLACE WPL 45003 Contact Us For Availability
NI
WIRE,18GA-PNK xREPLACE WPL 45004 Contact Us For Availability
NI
WIRE,18GA-BLU xREPLACE WPL 45006 Contact Us For Availability
NI
WIRE,18GA-GRY xREPLACE WPL 45007 Contact Us For Availability
NI
WIRE,18GA-YEL xREPLACE WPL 45008 Contact Us For Availability
NI
WIRE,18GA-WHT/BLK xREPLACE WPL 45010 Contact Us For Availability
NI
WIRE,18GA-WHT/RED xREPLACE WPL 45011 Contact Us For Availability
NI
WIRE,18GA-WHT/BLU xREPLACE WPL 45015 Contact Us For Availability
NI
WIRE,18GA-BLK/PNK xREPLACE WPL 45022 Contact Us For Availability
NI
18 GAUGE WIRE, BLACK / YELLOW WPL 45026 Contact Us For Availability
NI
18 GAUGE WIRE, RED / BLACK WPL 45029 Contact Us For Availability
NI
WIRE,18GA-RED/YEL WPL 45035 Contact Us For Availability
NI
18 GAUGE WIRE, BROWN / RED WPL 45039 Contact Us For Availability
NI
18 GAUGE WIRE, BROWN / YELLOW WPL 45044 Contact Us For Availability
NI
18 GAUGE WIRE, PINK / BLUE WPL 45051 Contact Us For Availability
NI
18 G WPL 45053 Contact Us For Availability
NI
WPL 45060 WPL 45060 Contact Us For Availability
NI
WPL 45061 WPL 45061 Contact Us For Availability
NI
WPL 45064 WPL 45064 Contact Us For Availability
NI
WPL 45065 WPL 45065 Contact Us For Availability
NI
WPL 45066 WPL 45066 Contact Us For Availability
NI
WPL 45074 WPL 45074 Contact Us For Availability
NI
WPL 45080 WPL 45080 Contact Us For Availability
NI
WPL 45083 WPL 45083 Contact Us For Availability
NI
WPL 45088 WPL 45088 Contact Us For Availability
NI
WPL 45100 WPL 45100 Contact Us For Availability
NI
WPL 45103 WPL 45103 Contact Us For Availability
NI
WPL 45104 WPL 45104 Contact Us For Availability
NI
WPL 45250 WPL 45250 Contact Us For Availability
NI
WPL 45251 WPL 45251 Contact Us For Availability
NI
WPL 45255 WPL 45255 Contact Us For Availability
NI
WPL 45256 WPL 45256 Contact Us For Availability
NI
WPL 45333 WPL 45333 Contact Us For Availability
NI
WPL 45350 WPL 45350 Contact Us For Availability
NI
WPL 45375 WPL 45375 Contact Us For Availability
NI
WPL 45376 WPL 45376 Contact Us For Availability
NI
WPL 45377 WPL 45377 Contact Us For Availability
NI
WPL 45378 WPL 45378 Contact Us For Availability
NI
WPL 45380 WPL 45380 Contact Us For Availability
NI
WPL 45381 WPL 45381 Contact Us For Availability
NI
WPL 45383 WPL 45383 Contact Us For Availability
NI
WPL 45422 WPL 45422 Contact Us For Availability
NI
WPL 45431 WPL 45431 Contact Us For Availability
NI
WPL Y0045009 WPL Y0045009 Contact Us For Availability
NI
WPL Y0045012 WPL Y0045012 Contact Us For Availability
NI
WPL Y0045016 WPL Y0045016 Contact Us For Availability
NI
WPL Y0045047 WPL Y0045047 Contact Us For Availability
NI
WPL Y0045258 WPL Y0045258 Contact Us For Availability
NI
WPL Y0045404 WPL Y0045404 Contact Us For Availability
NI
WPL Y45005 WPL Y45005 Contact Us For Availability
NI
WPL Y45037 WPL Y45037 Contact Us For Availability
× ![]()
Login and Registration Form
