Model Whirlpool AEM427L2 WASHER – Common Parts & Diagrams

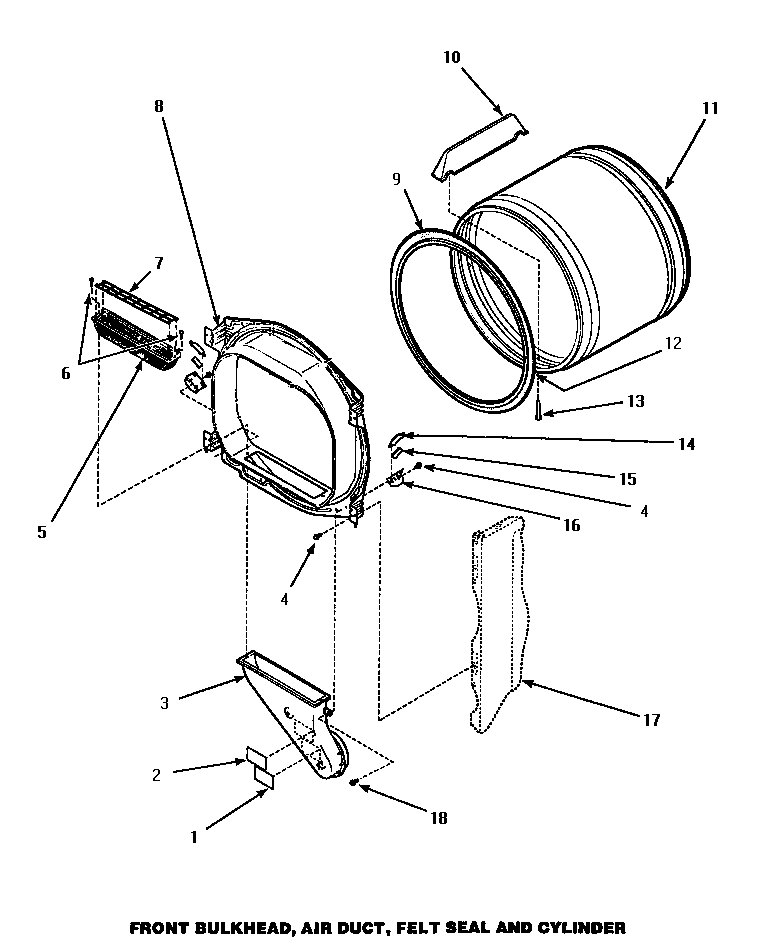

04 - FR BLKHD, AIR DUCT, FELT SEAL & CYLINDER
11 - MTR CONN BLOCK/TERM & EXTRACTOR TOOL
02 - CABINET TOP AND CONTROL HOOD REAR PANEL
01 - BULKHEAD/FELT SEAL/CYL ROLLER & TERM BLK
07 - HEATER BOX ASSY, ORIGINAL
08 - LOADING DOOR
09 - LOWER ACCESS PANEL, FRONT PANEL & SEAL
10 - MOTOR, EXHAUST FAN & BELT
03 - CABINET, EXHAUST DUCT & BASE
05 - GRAPHIC PANEL, CONTROL HOOD & CONTROLS
12 - POWER CORD
06 - HEATER BOX ASSY REPLACEMENT
13 - TERMINALS
Common parts from model Whirlpool AEM427L2 WASHER
NOTE: IF DRYER IS INSTALLED IN A MANUFACTURED WPL NOTE Contact Us For Availability
1
HOUSING, 10 POSITION WPL 500338 Contact Us For Availability
1
PANEL,TOP-HOME WPL 500085LP Contact Us For Availability
1
CABINET TOP, WHITE WPL 500085WP Contact Us For Availability
1
SCREW, 8B-16X5/8 TAP WPL 500226 Contact Us For Availability
1
PANEL, ACCESS (ALMOND) WPL 500044L Contact Us For Availability
1
PANEL, ACCESS (COMML) WPL 500044W Contact Us For Availability
1
BASE, DRYER WPL 500070 Contact Us For Availability
1
CAP,END-L.H.-CHROME WPL 31249 Contact Us For Availability
1
CORD,LEAD-IN WPL Y56222 Contact Us For Availability
1
HEATER BOX ASSEMBLY WPL 500179P Contact Us For Availability
1
CLIP,WIRE WPL 61510 Contact Us For Availability
2
ADHESIVE,3M-1300-5 OZ. WPL 22506P Contact Us For Availability
2
TERMINAL,FEMALE 1/4 WPL 00255 Contact Us For Availability
2
TERMINAL,FEMALE 1/4 WPL Y00256 Contact Us For Availability
2
STICKER,DISCONNECT POW WPL 24903 Contact Us For Availability
2
ASSY, DOOR-HOME WPL 500040L Contact Us For Availability
2
ASSY,DOOR-HOME WPL 500040W Contact Us For Availability
2
THERMOSTAT HEATER WPL 61401 Contact Us For Availability
2
STICKER WPL 61294 Contact Us For Availability
2
SCREW,No.8ABX3/4 POZIDRI WPL 31752 Contact Us For Availability
2
COVER,OUTLET-HEAT DUCT WPL 500820 Contact Us For Availability
2
TERMINAL,SPADE-1/4 FEM WPL Y00237 Contact Us For Availability
3
SEAL,BLOWER HSG WPL 500313 Contact Us For Availability
3
TERMINAL,FEMALE-MOLEX- WPL Y00188 Contact Us For Availability
3
PANEL,BACK(HOME HOOD) WPL 500343 Contact Us For Availability
3
HEATER ASSEMBLY 208V WPL 61928 Contact Us For Availability
3
BRACKE, DOOR STRIKE WPL 500223 Contact Us For Availability
3
ASSY, HOOD MTG WPL 59937 Contact Us For Availability
3
ASSY,HOOD & MTG PLATE WPL 62745 Contact Us For Availability
3
INSULATOR SLEEVE WPL Y21365 Contact Us For Availability
4
TERMINAL EXTRACTOR TOOL WPL 283P4 Contact Us For Availability
4
BULKHEAD, REAR WPL 500356W Contact Us For Availability
4
STRIKE, DOOR (METAL) WPL 500039 Contact Us For Availability
4
SCREW, No.8 X 3/8 IND H WPL 31260 Contact Us For Availability
4
PAD, BUMPER WPL Y56128 Contact Us For Availability
4
TIMER WPL 501881 Contact Us For Availability
4
FEMALE SOCKET TERMINAL WPL Y00117 Contact Us For Availability
5
SEE NOTE CABINET TOP -- (SEE CABINET TOP PAGE WPL Y00000000 Contact Us For Availability
5
TOOL,EXTRACTOR HT2066A WPL 190P4 Contact Us For Availability
5
SCREW, No.12 X 9/16 WPL 501285 Contact Us For Availability
5
SEAL,DOOR WPL 500200 Contact Us For Availability
5
LOCATER, PANEL WPL 56079 Contact Us For Availability
5
COVER, BLOWER HOUSING WPL 500078 Contact Us For Availability
5
RECEPTACLE,3 CIRCUIT WPL 23039 Contact Us For Availability
6
TERMINAL BLOCK WPL 61923P Contact Us For Availability
6
SHIELD,HEAT DUCT WPL 60952 Contact Us For Availability
6
ASSY,LINER & SEAL WPL 500199 Contact Us For Availability
6
STICKER WPL 500281 Contact Us For Availability
6
CAP,END-R.H.-CHROME WPL 31248 Contact Us For Availability
6
PLUG, 3 CIRCUIT WPL 23040 Contact Us For Availability
7
HINGE, TOP WPL 500003 Contact Us For Availability
7
CLIP,DOOR HINGE MOUNT WPL 500236 Contact Us For Availability
7
HOUSING, BLOWER WPL 56020 Contact Us For Availability
7
PANEL, GRAPHICS BLACK WPL 502202 Contact Us For Availability
7
PANEL, GRAPHICS GRAY WPL 502204 Contact Us For Availability
7
RECEPTACLE,2 CIRCUIT WPL 56451 Contact Us For Availability
8
BRACKET, L-TOP WPL 500084 Contact Us For Availability
8
KIT, SWITCH MOTOR WPL 501218 Contact Us For Availability
8
ASSY,TIMER KNOB & SKIR WPL 62176 Contact Us For Availability
8
ASSY,TIMER KNOB & SKIRT WHITE WPL 62234 Contact Us For Availability
8
PLUG 2 CIRCUIT WPL 56448 Contact Us For Availability
9
HINGE,DOOR WPL 500041 Contact Us For Availability
9
SEAL,FRONT PANEL WPL 500034 Contact Us For Availability
9
PANEL, ACCESS COVER WPL 500114 Contact Us For Availability
9
TRIM, CONT PNL TOP WPL 61849R Contact Us For Availability
9
TERMINAL,PIN-MALE WPL Y00116 Contact Us For Availability
10
BAFFLE,CYLINDER-WHT-SHORT WPL 500022 Contact Us For Availability
10
PANEL, FRONT (ALMOND) WPL 500033L Contact Us For Availability
10
PANEL, FRONT WPL 500033W Contact Us For Availability
10
STICKER WPL 501289 Contact Us For Availability
10
TERMINAL,PIN-1/8 FEMAL WPL 00130 Contact Us For Availability
11
ASSY,CYLINDER-HOME- WPL 500013WP Contact Us For Availability
11
WASHER,13/64IDX1/2ODX. WPL 51474 Contact Us For Availability
11
PULL,DOOR WPL 500042L Contact Us For Availability
11
PULL,DOOR WPL 500042W Contact Us For Availability
11
EXHAUST DUCT WPL 500064 Contact Us For Availability
11
RECEPTACLE,2 CIRCUIT WPL 56265 Contact Us For Availability
12
PULLEY,MOTOR WPL 500011 Contact Us For Availability
12
PLUG WPL 56266 Contact Us For Availability
13
SCREW, 10BT-12 X 1 TAP WPL Y62588 Contact Us For Availability
13
KIT, MTR HUB RING WPL 590P3 Contact Us For Availability
13
ASSY, CAB (HOME) WPL 500001LP Contact Us For Availability
13
CABINET, DRYER & WASHER (WHT) WPL 500001WP Contact Us For Availability
13
GROUND CLIP WPL Y00161 Contact Us For Availability
14
LEG, LEVELING (PLASTIC) WPL Y500101 Contact Us For Availability
14
TERMINAL,SPADE WPL Y00189 Contact Us For Availability
15
PAD, FELT-COIN WPL 500121 Contact Us For Availability
15
CONNECTOR,RECEPTACLE WPL Y00190 Contact Us For Availability
16
CONNECTOR,2 CIRCUIT WPL 58799 Contact Us For Availability
17
TERMINAL,PIN-1/8 MALE WPL Y00127 Contact Us For Availability
18
CONNECTOR,3 CIRCUIT WPL 58800 Contact Us For Availability
19
NUT, 3/8-16 SERRATED WPL 56156 Contact Us For Availability
19
STRAIN RELIEF WPL 21903 Contact Us For Availability
20
SPADE TERMINAL(18 GAUGE) WPL Y00119 Contact Us For Availability
20
SPADE TERMINAL(12 GAUGE) WPL Y00121 Contact Us For Availability
20
SPADE TERMINAL(22 GAUGE) WPL Y00245 Contact Us For Availability
21
TERMINAL,SPADE 3/16 WPL 00156 Contact Us For Availability
21
TERMINAL,SPADE-3/16 FE WPL Y00124 Contact Us For Availability
21
TERMINAL,3/16 SPADE WPL Y00209 Contact Us For Availability
22
TERMINAL,SPADE-1/4 FEM WPL Y00115 Contact Us For Availability
23
CONNECTOR WPL 90789 Contact Us For Availability
25
SCREW, 1/4-20 UNC HEX WPL 500824 Contact Us For Availability
25
TERMINAL,1/4 SPADE PRE WPL Y00214 Contact Us For Availability
25
TERMINAL,1/4 SPADE PRE WPL Y00215 Contact Us For Availability
26
TERMINAL,RING-10 STUD WPL 00110 Contact Us For Availability
26
TERMINAL,RING-10 STUD WPL Y00111 Contact Us For Availability
27
TERMINAL,SPADE-1/4 FEM WPL Y00114 Contact Us For Availability
28
TERMINAL,TAB 1/4 MALE WPL Y00138 Contact Us For Availability
28
MALE TAB TERMINAL(12 GAUGE) WPL Y00139 Contact Us For Availability
29
MOUNT, MOTOR WPL 500822 Contact Us For Availability
NI
ASSY,DOOR-HOME WPL 500035L Contact Us For Availability
NI
ASSY,DOOR-HOME WPL 500035W Contact Us For Availability
NI
KIT,FLEX VENT-DISPLAY WPL 521P3 Contact Us For Availability
× ![]()
