Model Whirlpool ADB2500AWS37 DISHWASHER – Common Parts & Diagrams

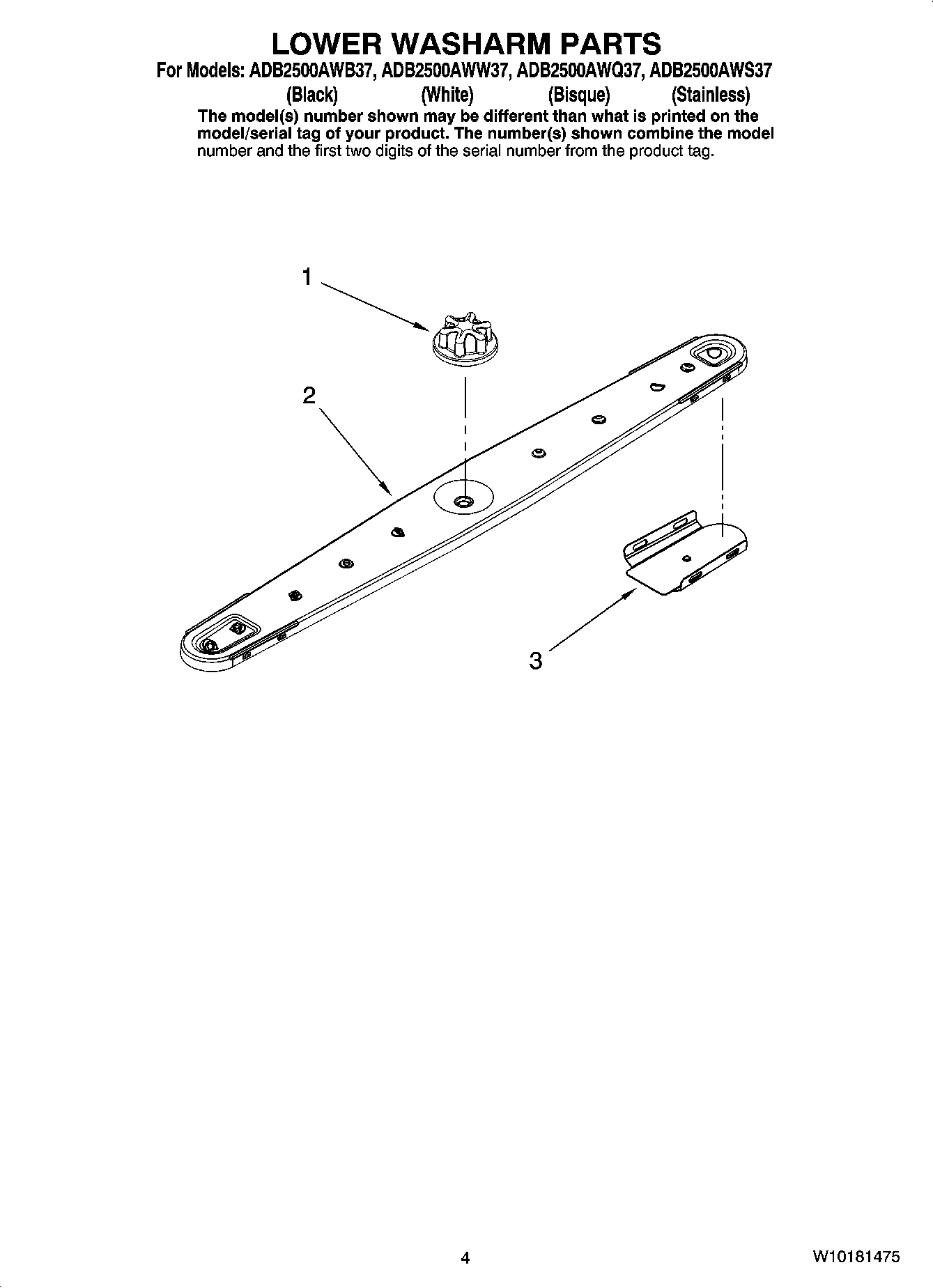

04 - LOWER WASHARM PARTS

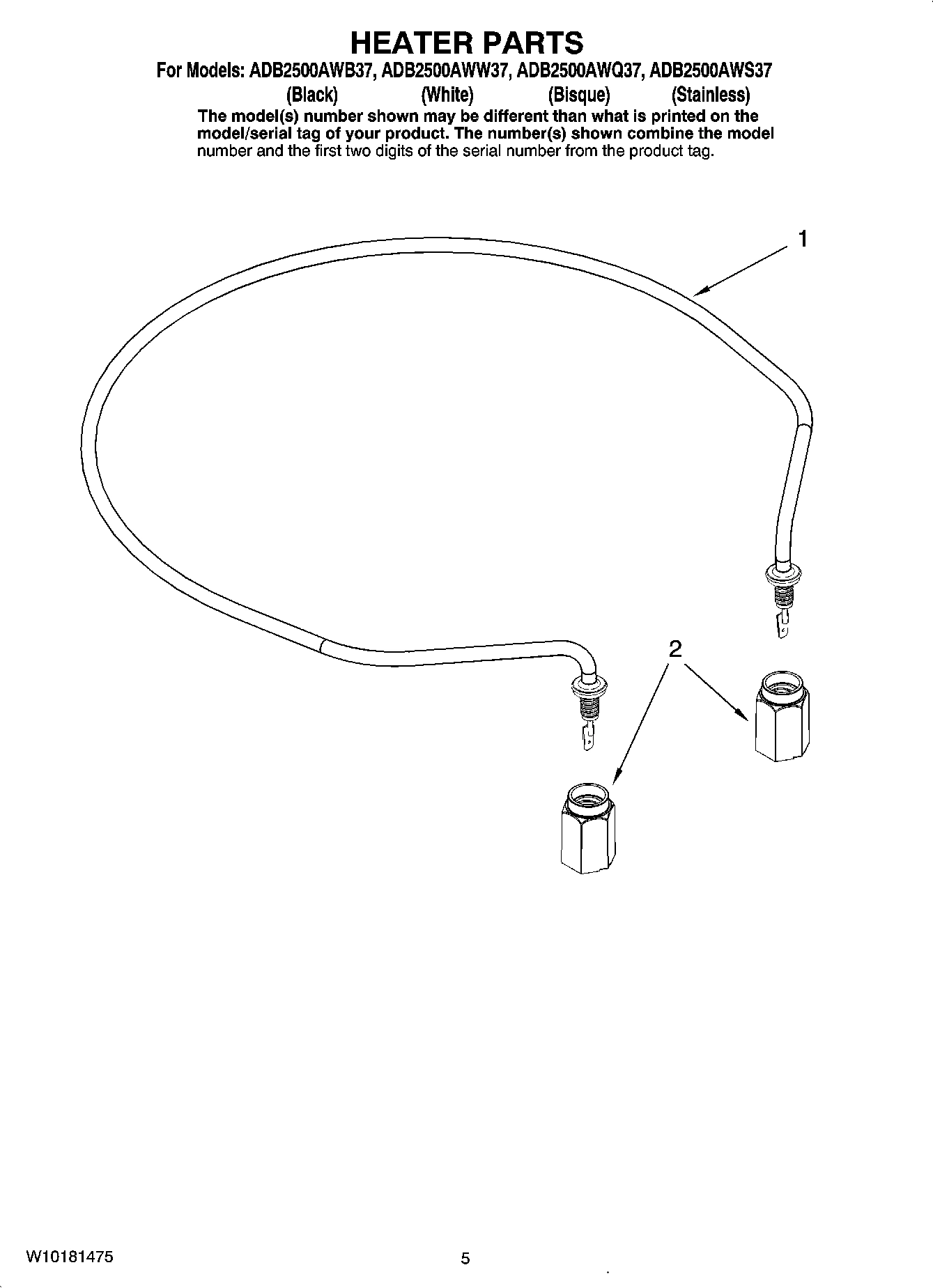

05 - HEATER PARTS

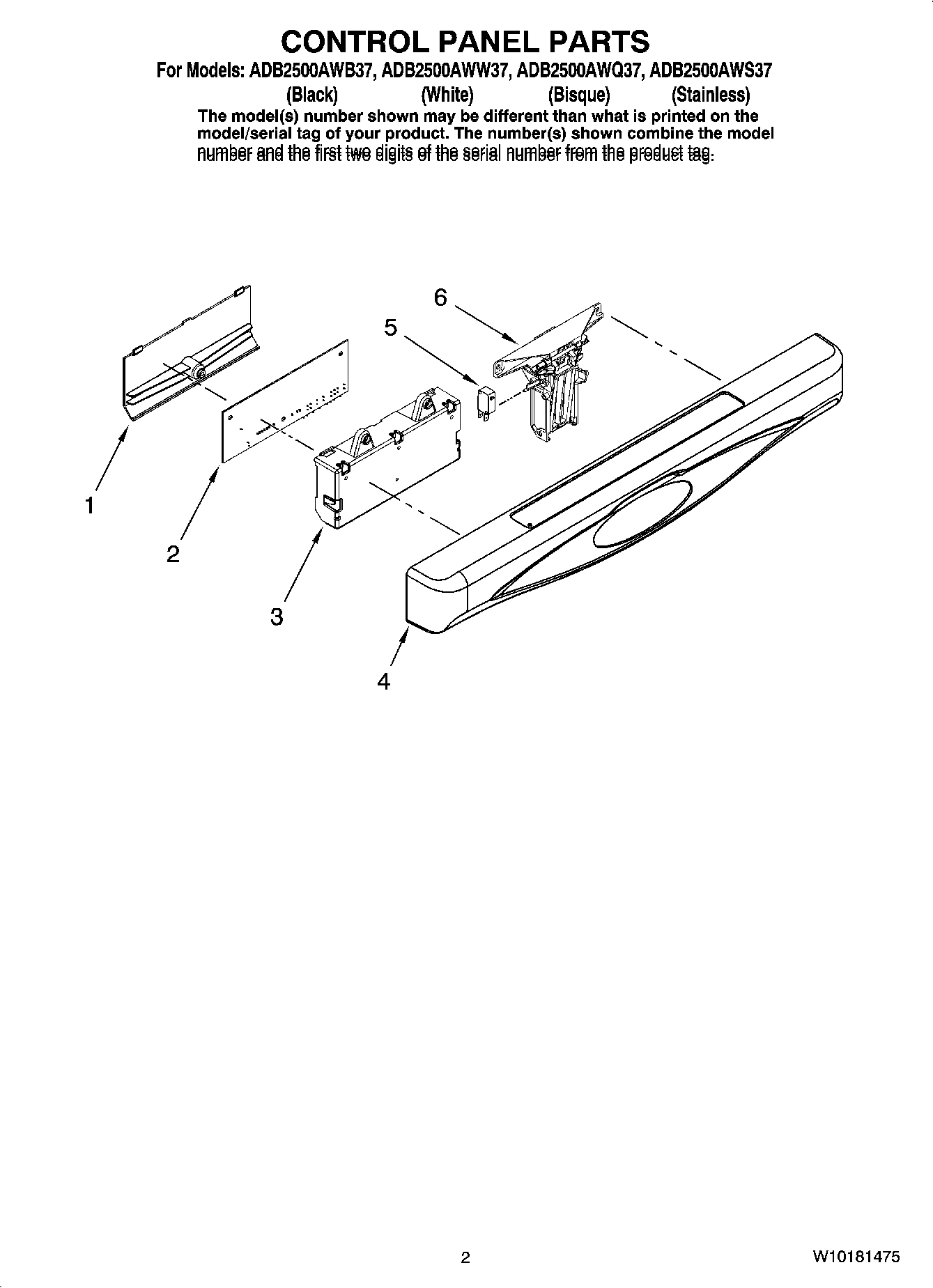

02 - CONTROL PANEL PARTS

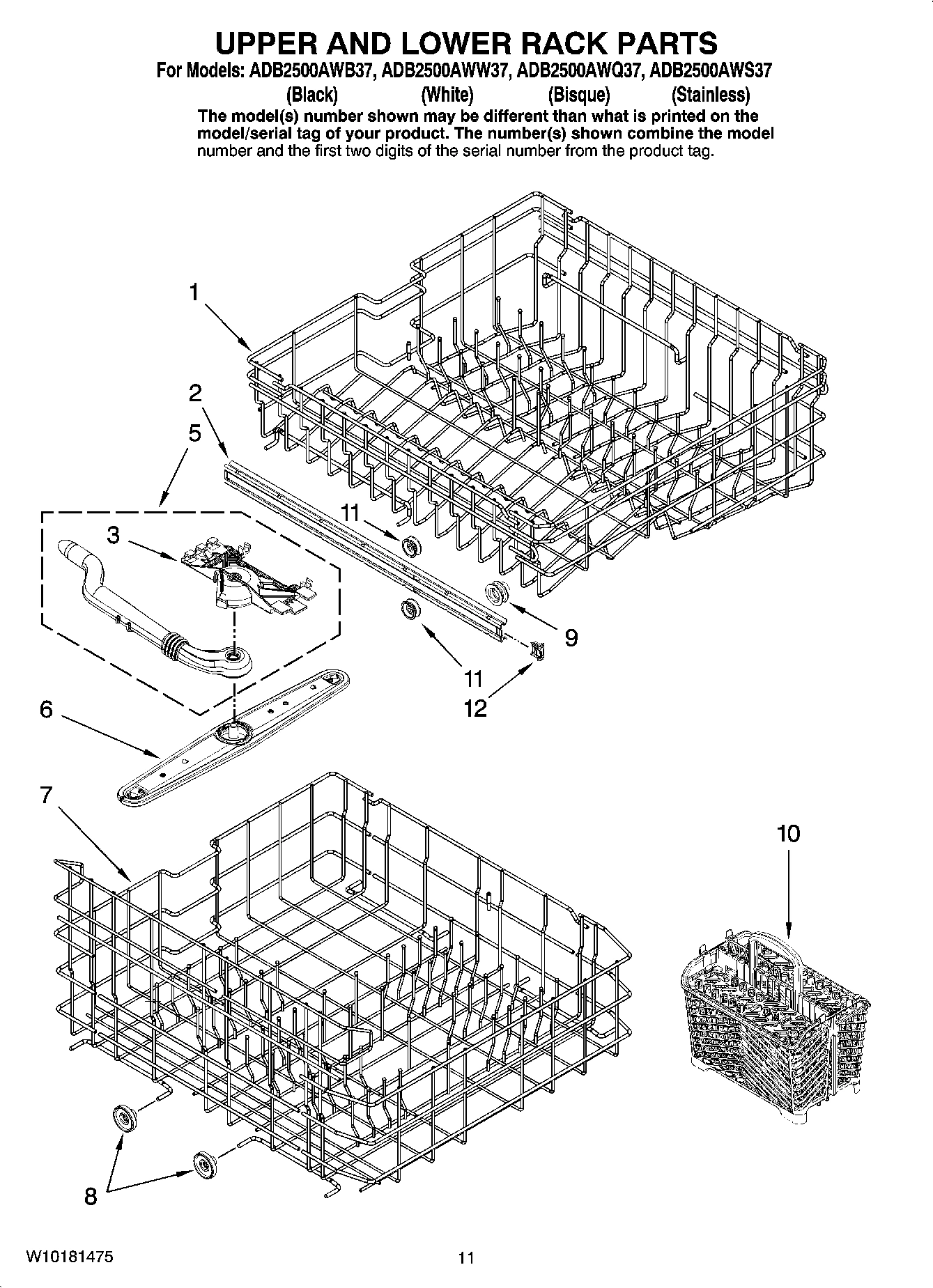

09 - UPPER AND LOWER RACK PARTS

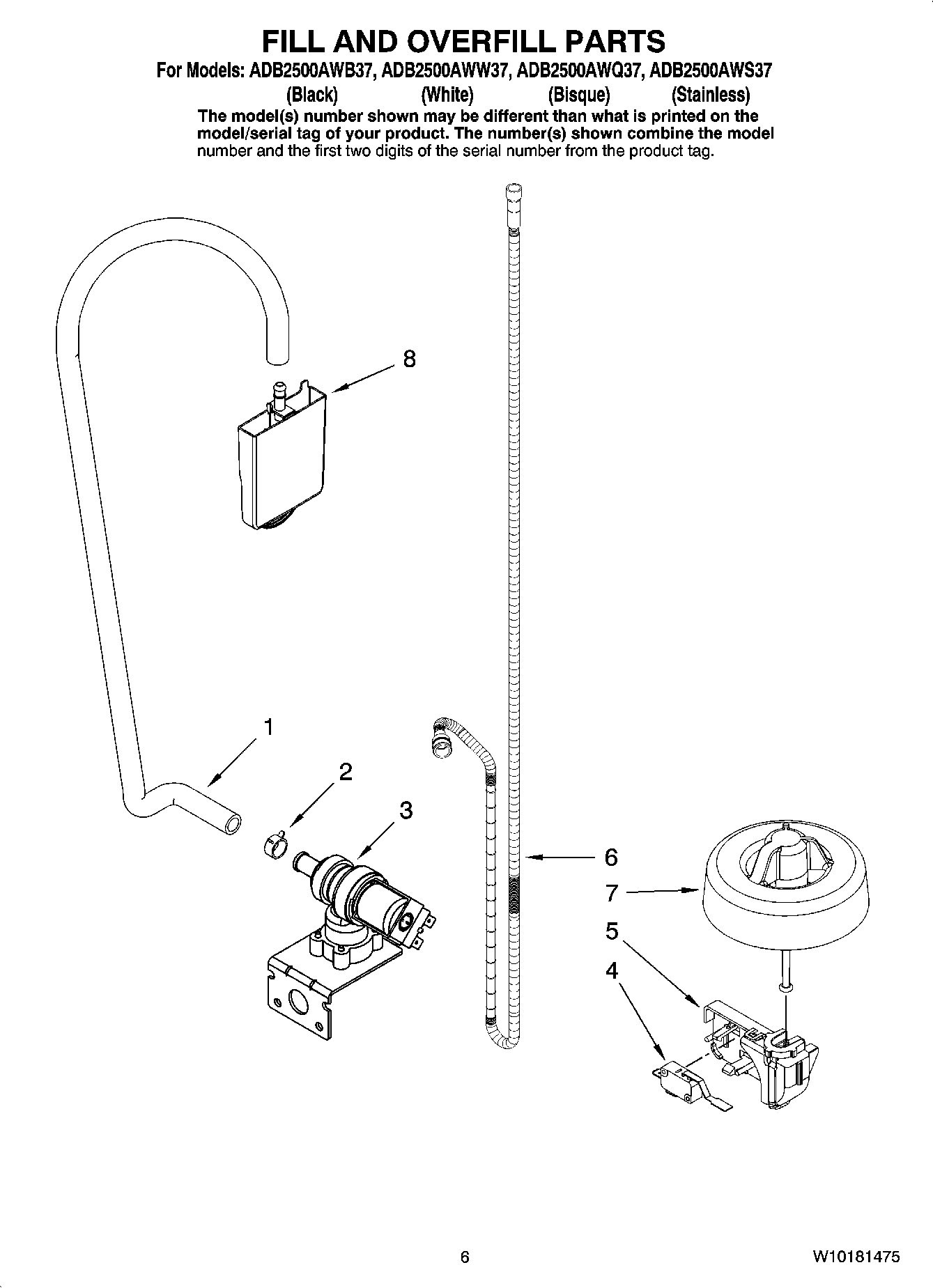

06 - FILL AND OVERFILL PARTS

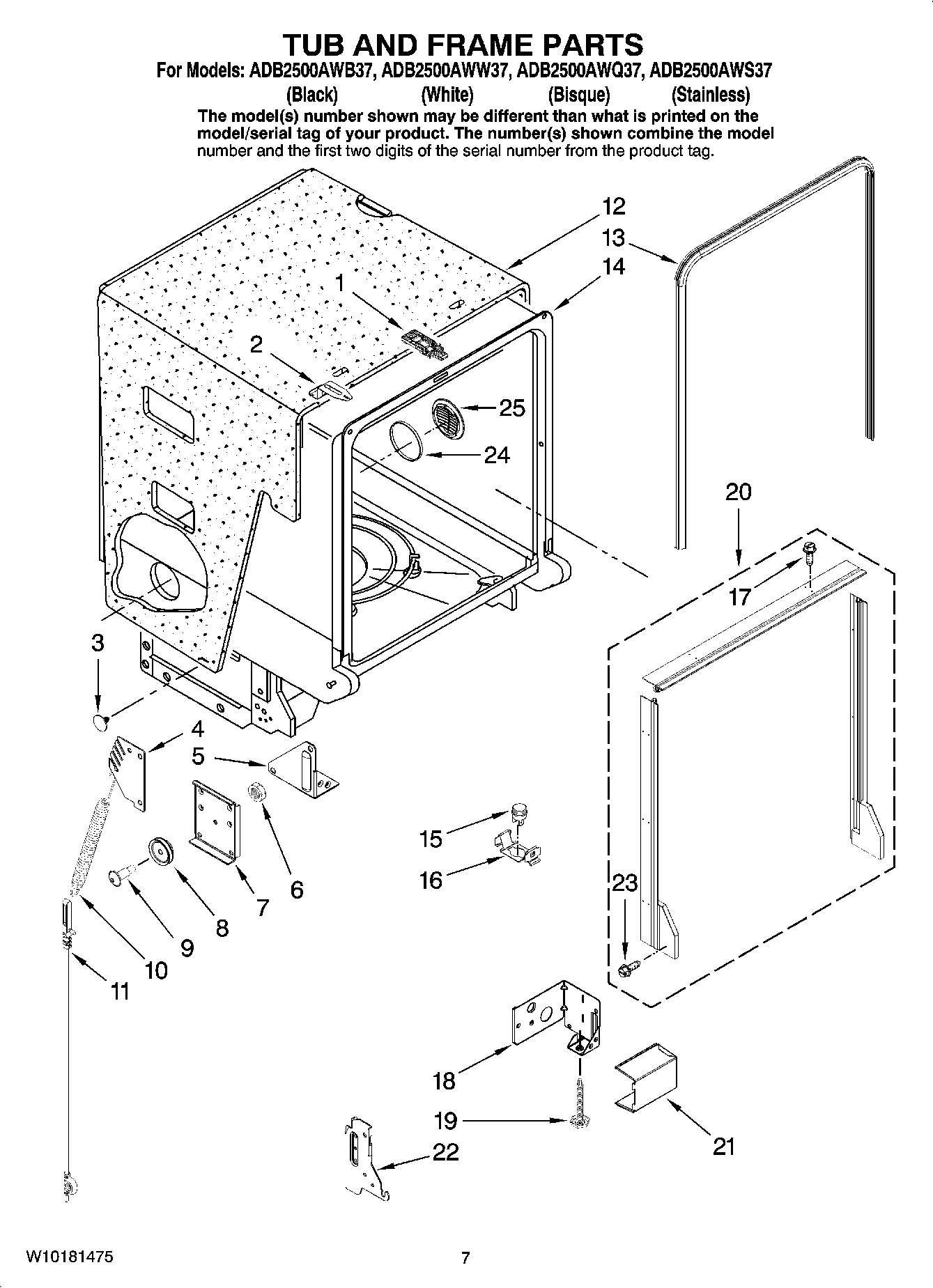

07 - TUB AND FRAME PARTS

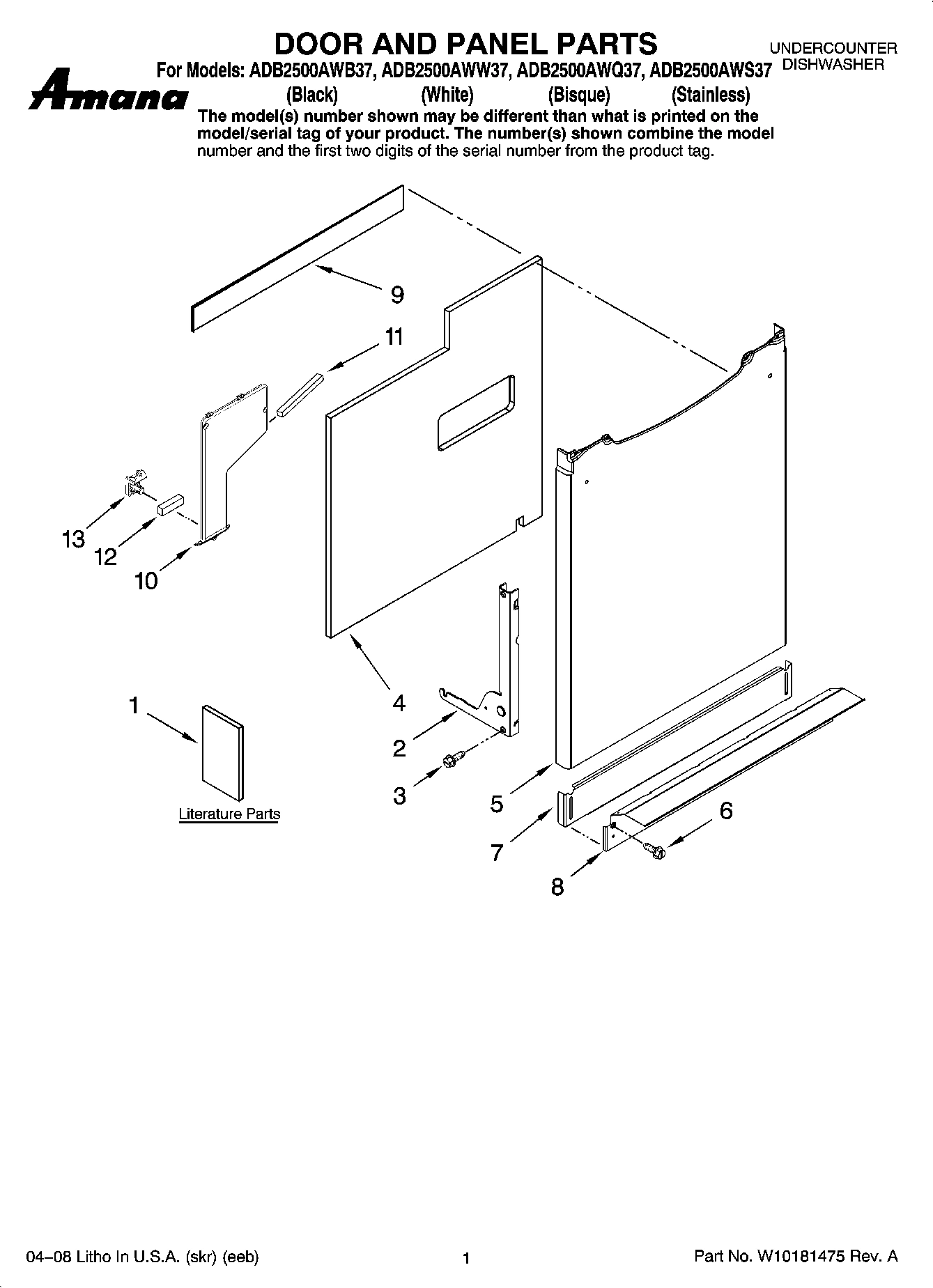

01 - DOOR AND PANEL PARTS

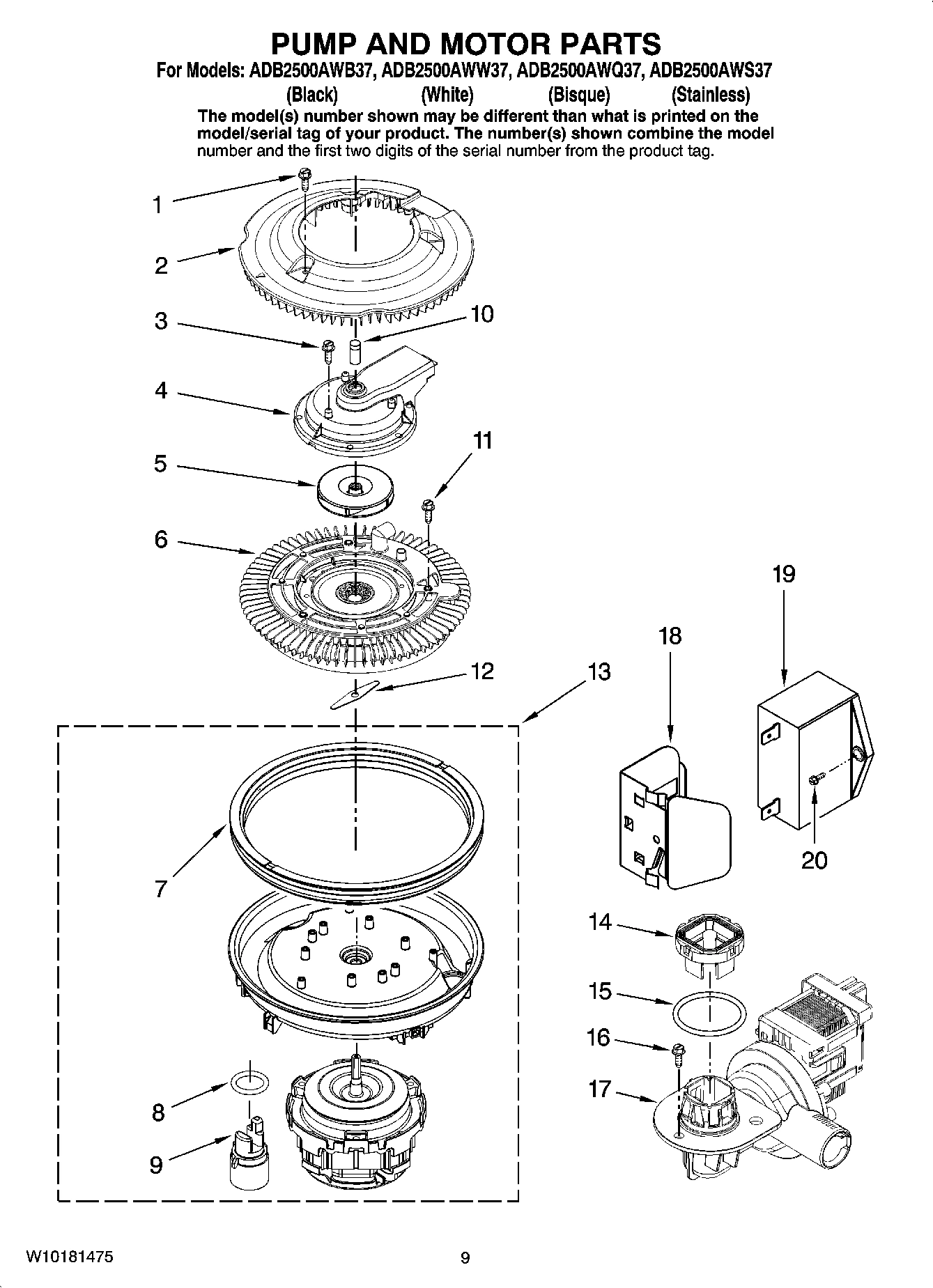

08 - PUMP AND MOTOR PARTS

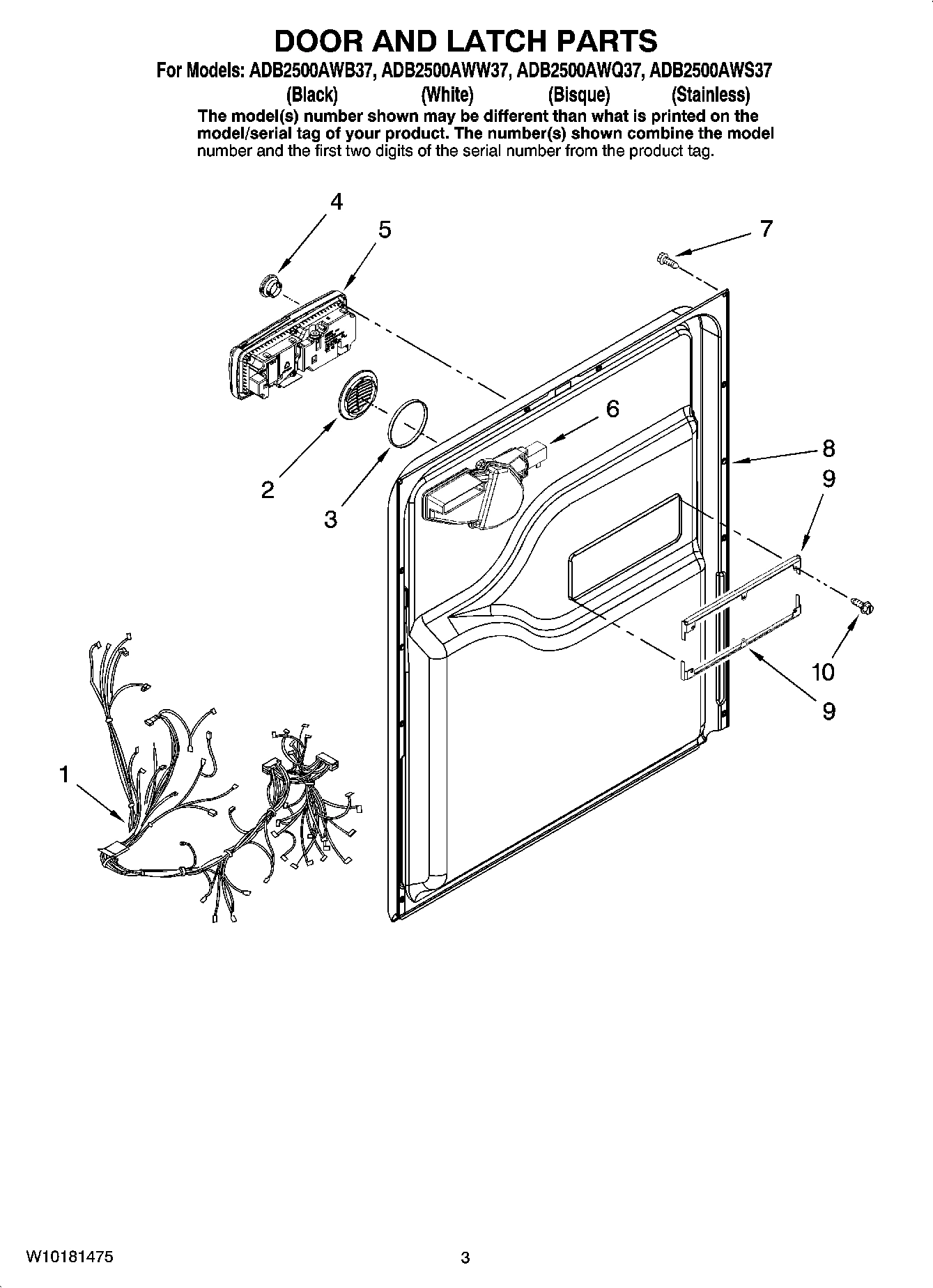

03 - DOOR AND LATCH PARTS

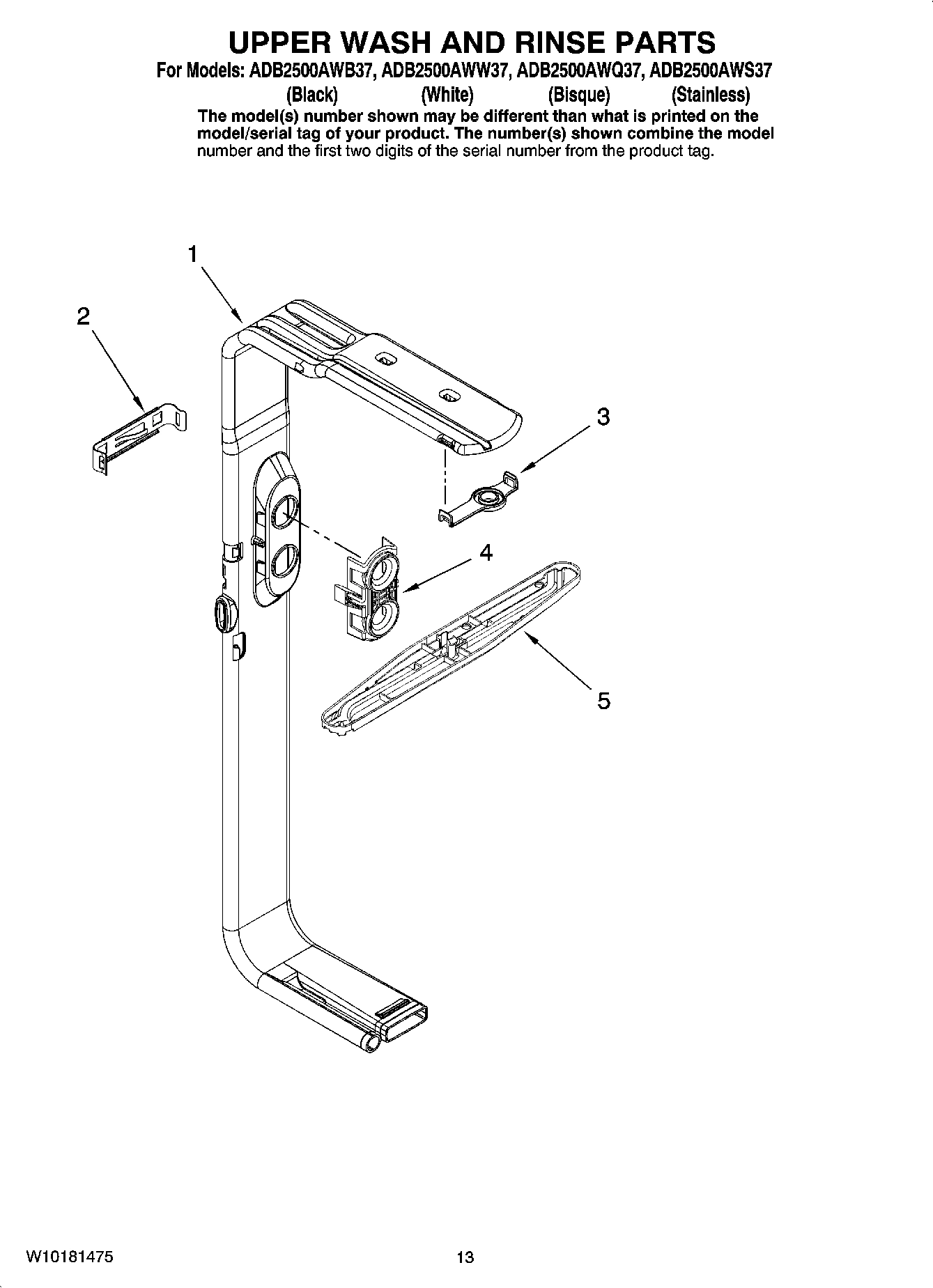

10 - UPPER WASH AND RINSE PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool ADB2500AWS37 DISHWASHER
1
Strike, Door WPL W10119337 Contact Us For Availability
1
Energy Guide WPL W10114399 Contact Us For Availability
1
Instructions, Installation WPL W10158012 Contact Us For Availability
1
Guide, Use & Care WPL Y6920184 Contact Us For Availability
1
SCREW WPL 99002666 Contact Us For Availability
1
Harness, Wiring WPL 99003537 Contact Us For Availability
2
Bracket, Hinge (Left) WPL W10118638 Contact Us For Availability
2
BRACKET, CABINET MOUNTING WPL 99002648 Contact Us For Availability
2
BEZEL, DOOR VENT WPL 99002590 Contact Us For Availability
3
Fastener WPL 99002640 Contact Us For Availability
3
SCREW WPL 99001075 Contact Us For Availability
3
Screw WPL 99002668 Contact Us For Availability
3
SEAL, DOOR VENT WPL 99002186 Contact Us For Availability
4
SWITCH, FLOAT WPL 99002631 Contact Us For Availability
4
Pad, Foam WPL Y99002587 Contact Us For Availability
4
Discharge, Housing Assembly WPL 99002677 Contact Us For Availability
4
Cap, Rinse Aid WPL 99002992 Contact Us For Availability
4
Station, Docking (with Flapper) WPL 99002674 Contact Us For Availability
5
PLATE, SWITCH MOUNTING WPL 99002943 Contact Us For Availability
5
Wash Manifold Assy, (Upper) WPL 99002679 Contact Us For Availability
5
Bracket, Support (Left) WPL 99002636 Contact Us For Availability
5
Panel, Front (Black) WPL 99002768 Contact Us For Availability
5
Panel, Front (Bisque) WPL 99002769 Contact Us For Availability
5
Panel, Front (White) WPL 99002770 Contact Us For Availability
5
Panel, Front (Stainless) WPL 99002771 Contact Us For Availability
5
Dispenser, Rinse Aid WPL 99003321 Contact Us For Availability
5
Wash Arm, Top (with Retainer) WPL 99002676 Contact Us For Availability
6
Arm, Wash (Upper) WPL 99002624 Contact Us For Availability
6
Nut WPL 99003688 Contact Us For Availability
6
Screw (White) WPL 99001194 Contact Us For Availability
6
Screw (Bisque) WPL 99002114 Contact Us For Availability
6
Housing, Vent Assy WPL 99002673 Contact Us For Availability
7
Dishrack, Lower WPL W10120547 Contact Us For Availability
7
FLOAT WPL 99002630 Contact Us For Availability
7
BRACKET, CABLE WPL 99003686 Contact Us For Availability
7
Panel, Toe (Black) WPL 99002765 Contact Us For Availability
7
Panel, Toe (White) WPL 99002766 Contact Us For Availability
7
Panel, Toe (Bisque) WPL 99002767 Contact Us For Availability
7
Gasket, Motor Mount WPL 99002663 Contact Us For Availability
8
INLET, AIR/WATER WPL 99002645 Contact Us For Availability
8
Support, Front (Black) WPL 99002859 Contact Us For Availability
8
Support, Front (White) WPL 99002860 Contact Us For Availability
8
Support, Front (Bisque) WPL 99002861 Contact Us For Availability
8
Inner Door W/ Damper WPL 99003424 Contact Us For Availability
9
Insulation, Door WPL W10117748 Contact Us For Availability
9
Bolt, Shoulder WPL 99003687 Contact Us For Availability
10
Basket, Silverware WPL 99003429 Contact Us For Availability
10
SPRING, DOOR WPL 99002598 Contact Us For Availability
10
Liner, Door Secondary WPL 99003540 Contact Us For Availability
10
Pivot, Wash Arm WPL 99003697 Contact Us For Availability
11
Screw WPL 99002664 Contact Us For Availability
11
Strip, Foam (Short) WPL 99003481 Contact Us For Availability
12
Strip, Foam (Long) WPL 99003482 Contact Us For Availability
12
CHOPPER WPL 99003427 Contact Us For Availability
13
SEAL, DOOR WPL 99002588 Contact Us For Availability
13
BRACKET, SECONDARY DOOR LINER WPL 99003541 Contact Us For Availability
13
Wash Motor Assy. WPL 99003430 Contact Us For Availability
14
Tub Assembly WPL W10142297 Contact Us For Availability
14
FLAPPER, DRAIN PUMP INLET WPL 99003309 Contact Us For Availability
15
THERMOSTAT, LIMITING WPL 99002633 Contact Us For Availability
15
O-RING, DRAIN PUMP WPL 99002857 Contact Us For Availability
16
CLIP, THERMOSTAT WPL 99002634 Contact Us For Availability
16
Screw WPL 99002740 Contact Us For Availability
17
SCREW, TRIM MOUNTING WPL 99002692 Contact Us For Availability
17
Drain Pump Assy. WPL 99003141 Contact Us For Availability
18
Bracket, Junction Box WPL 99002637 Contact Us For Availability
18
Shield, Capacitor WPL W10167912 Contact Us For Availability
19
Capacitor WPL 99002665 Contact Us For Availability
20
Strip, Trim Assy. (White) WPL W10189262 Contact Us For Availability
20
Strip, Trim Assy. (Bisque) WPL W10189264 Contact Us For Availability
20
Strip, Trim Assy. (Black) WPL W10189265 Contact Us For Availability
20
Screw WPL 99002601 Contact Us For Availability
21
COVER, JUNCTION BOX WPL 99002638 Contact Us For Availability
22
Support, Hinge (Right) WPL W10117484 Contact Us For Availability
22
Support, Hinge (Left) WPL W10117485 Contact Us For Availability
25
Grill,Air/Water Inlet WPL 99002948 Contact Us For Availability
NI
INSTALLATION KIT WPL ARI1490A78 Contact Us For Availability
× ![]()
