Model Whirlpool ADB1500AWW0 DISHWASHER – Common Parts &amp; Diagrams

1

WP99002654 Whirlpool Nut Backorder WPL WP99002654 $5.86

1

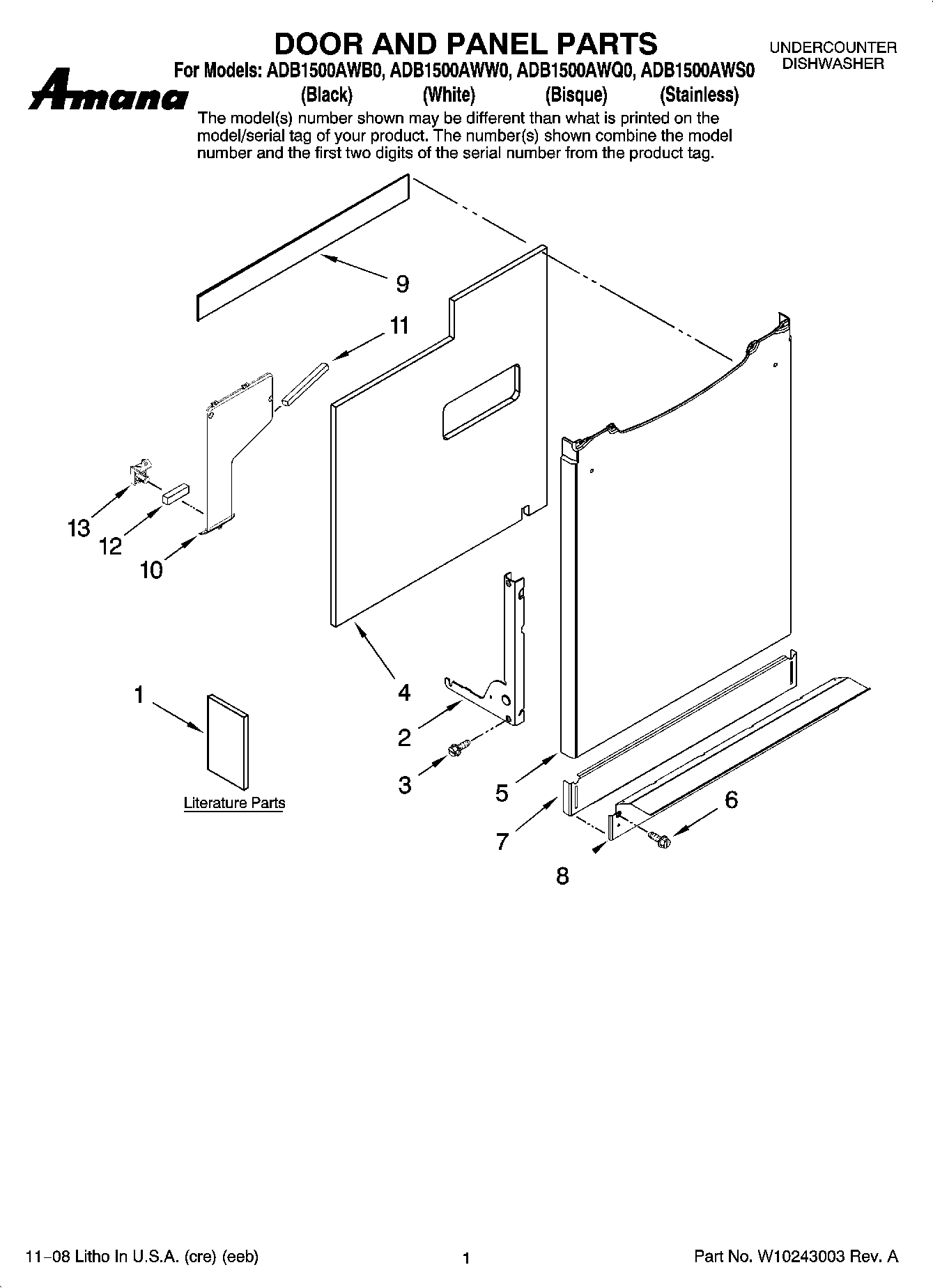

Strike, Door WPL W10119337 Contact Us For Availability

1

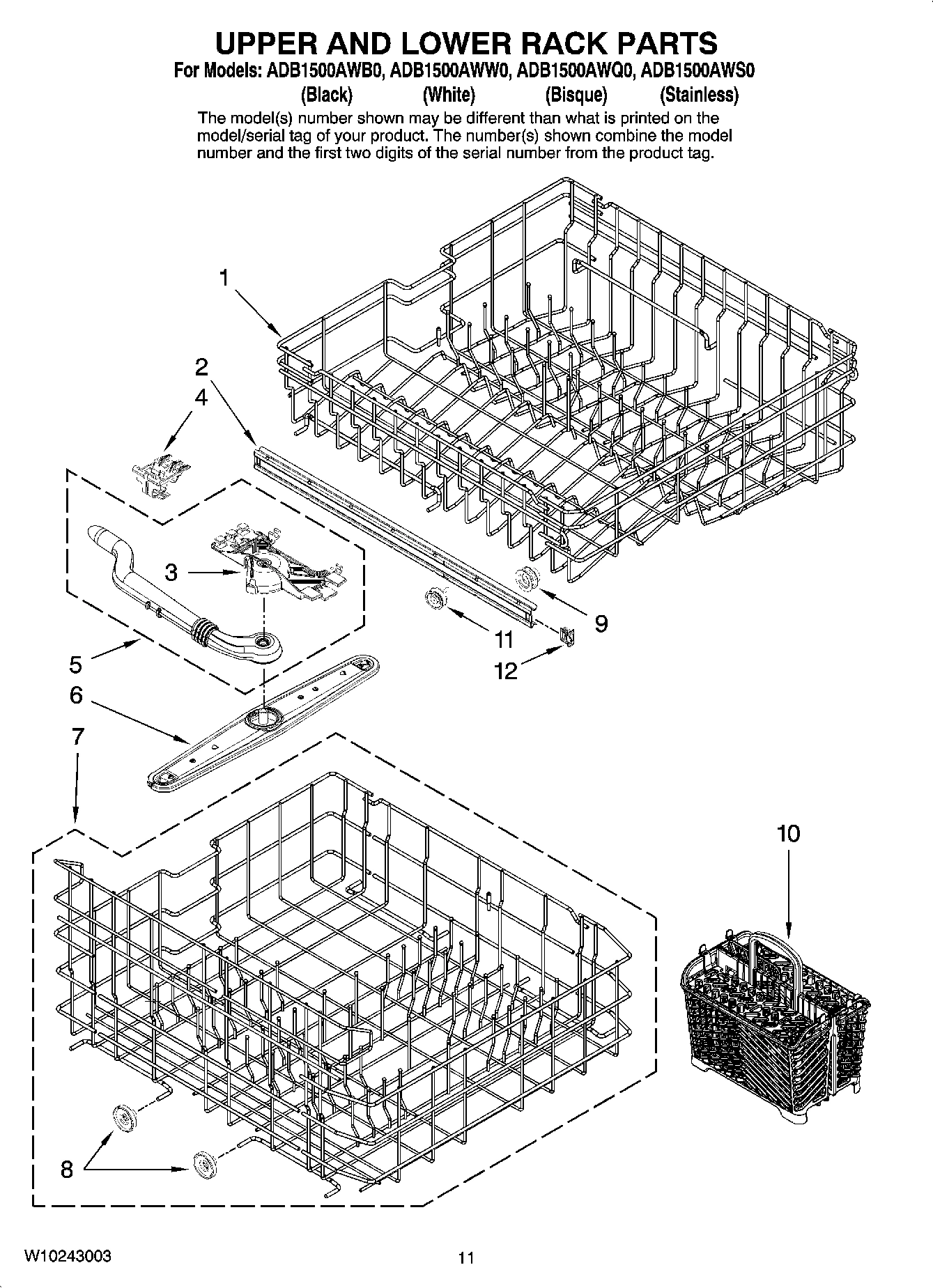

Dishrack, Upper WPL W10203876 Contact Us For Availability

1

Instructions, Installation WPL W10158012 Contact Us For Availability

1

Energy Guide WPL W10208025 Contact Us For Availability

1

Guide, Use & Care WPL Y6920185 Contact Us For Availability

1

SCREW WPL 99002666 Contact Us For Availability

2

WPW10118637 Whirlpool Dishwasher Bracket Backorder WPL WPW10118637 $186.41

2

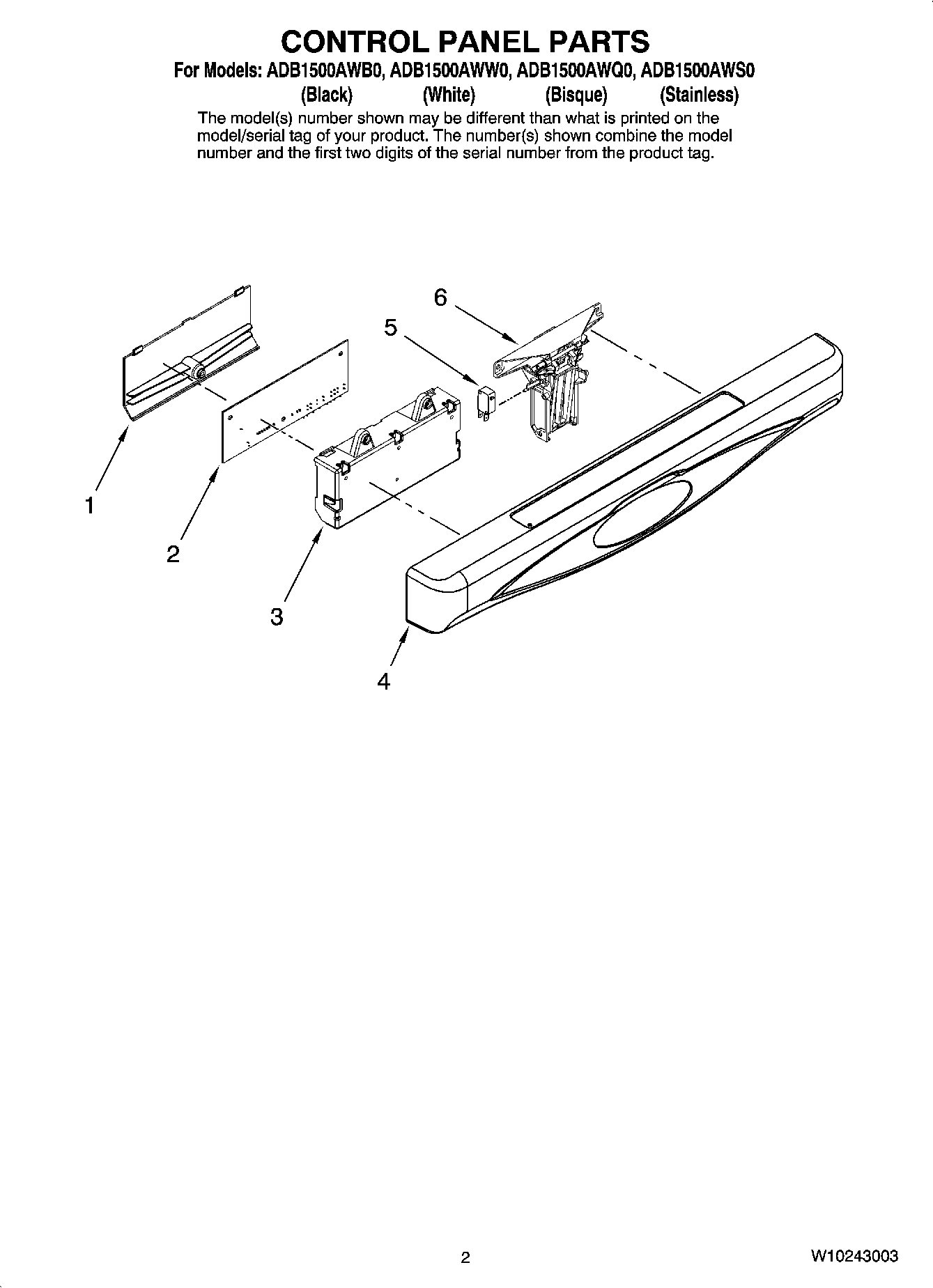

Board, Control WPL W10218832 Contact Us For Availability

2

Guard, Filter WPL W10166788 Contact Us For Availability

2

Rail, Inner Slide WPL 99002621 Contact Us For Availability

2

NUT, HEATER WPL 99002972 Contact Us For Availability

2

Bracket, Hinge (Left) WPL W10202226 Contact Us For Availability

3

WP6-917262 Whirlpool Dishwasher Heater Bracke Backorder WPL WP6-917262 $104.46

3

Fastener WPL 99002640 Contact Us For Availability

3

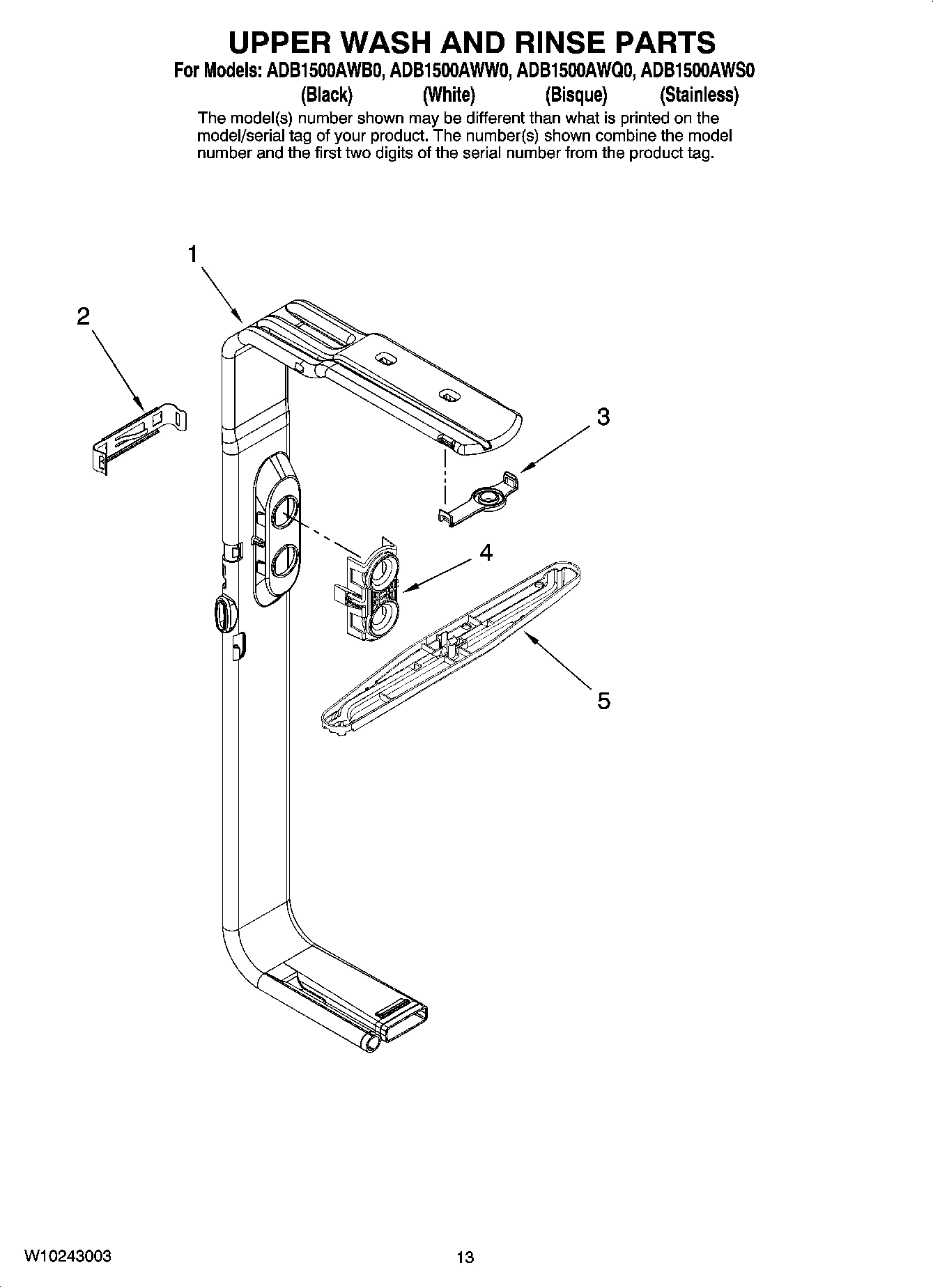

Clip, Upper Wash Manifold (Front) WPL 99002669 Contact Us For Availability

3

Shield, Radiant WPL W10218606 Contact Us For Availability

3

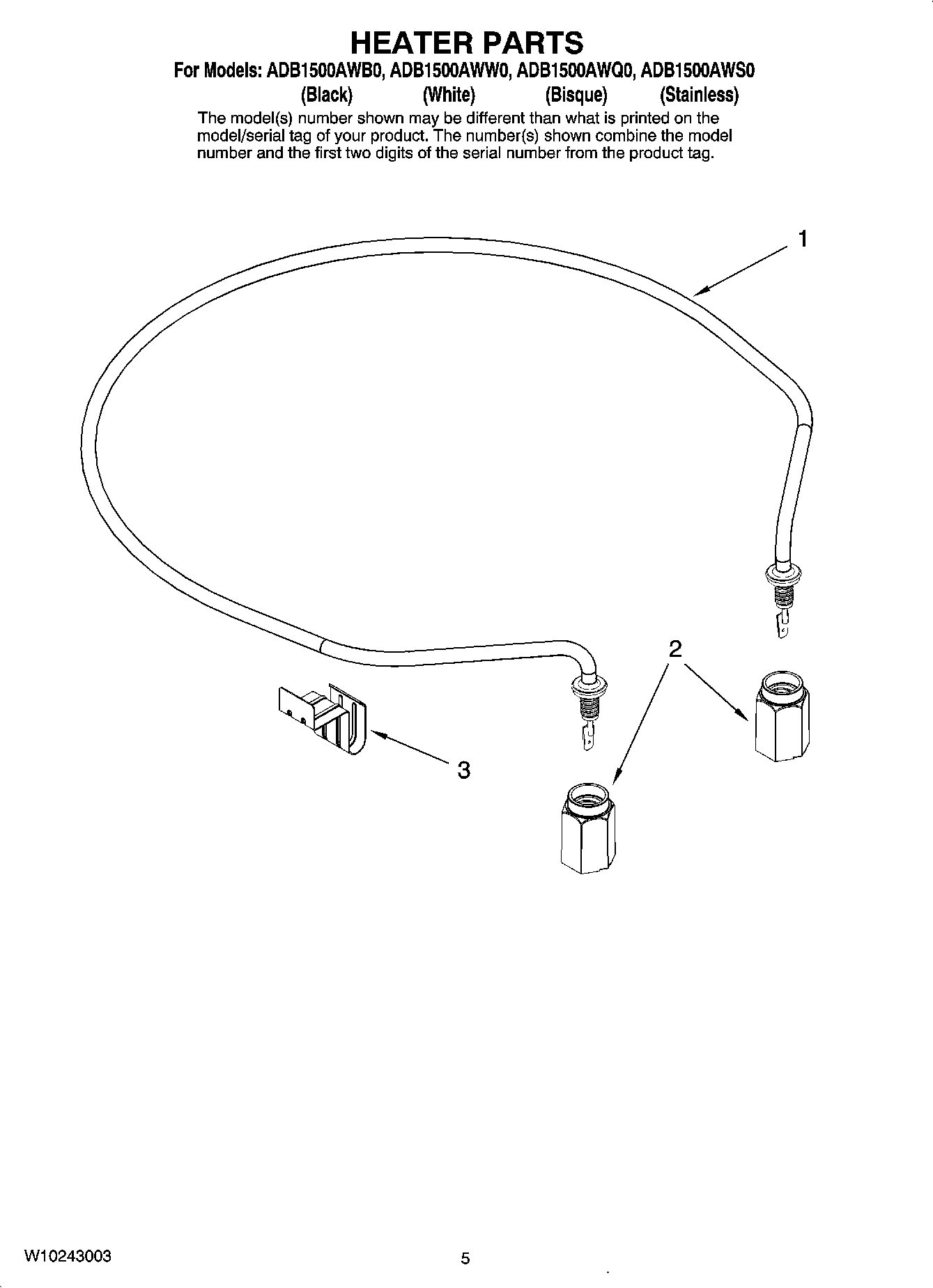

NOTE: If heater element is removed, it must b WPL ARI1457A62 Contact Us For Availability

3

SCREW WPL 99001075 Contact Us For Availability

3

Screw WPL 99002668 Contact Us For Availability

4

Housing, Float Switch WPL W10205539 Contact Us For Availability

4

Clip, Upper Wash Manifold (Back) WPL 99002945 Contact Us For Availability

4

Station, Docking (with Flapper) WPL 99002674 Contact Us For Availability

4

Pad, Foam WPL Y99002587 Contact Us For Availability

4

Discharge, Housing Assembly WPL 99002677 Contact Us For Availability

5

WP99002659 Whirlpool Impeller Backorder WPL WP99002659 $46.21

5

Bracket, Support (Left) WPL 99002636 Contact Us For Availability

5

Wash Manifold Assy, (Upper) WPL 99002679 Contact Us For Availability

5

Wash Arm, Top (with Retainer) WPL 99002676 Contact Us For Availability

5

Panel, Front (Bisque) WPL 99002769 Contact Us For Availability

5

Panel, Front (Black) WPL 99003299 Contact Us For Availability

5

Panel, Front (White) WPL 99003300 Contact Us For Availability

5

Panel, Front (Stainless) WPL 99003302 Contact Us For Availability

6

WP6-912366 Whirlpool Dishwasher Screw Backorder WPL WP6-912366 $4.82

6

WPW10192799 Whirlpool Dishwasher Accumulator In Stock WPL WPW10192799 $144.02

6

Housing, Vent Assy WPL W10190890 Contact Us For Availability

6

Nut WPL 99003688 Contact Us For Availability

6

Arm, Wash (Upper) WPL 99002624 Contact Us For Availability

6

Screw (White) WPL 99001194 Contact Us For Availability

6

Screw (Bisque) WPL 99002114 Contact Us For Availability

7

Bracket, Cable WPL W10173920 Contact Us For Availability

7

Dishrack, Lower WPL W10203921 Contact Us For Availability

7

Panel, Toe (Black) WPL 99002765 Contact Us For Availability

7

Panel, Toe (White) WPL 99002766 Contact Us For Availability

7

Panel, Toe (Bisque) WPL 99002767 Contact Us For Availability

7

Gasket, Motor Mount WPL 99002663 Contact Us For Availability

8

99002651 Whirlpool Dishwasher Turbidity Senso Backorder WPL 99002651 $14.02

8

WP99002780 Whirlpool Lower Wheel Assembly In Stock WPL WP99002780 $9.74

8

Support, Front (Black) WPL 99002591 Contact Us For Availability

8

Support, Front (Bisque) WPL 99002592 Contact Us For Availability

8

Support, Front (White) WPL 99002593 Contact Us For Availability

9

WP99002781 Whirlpool Dishwasher Wheel In Stock WPL WP99002781 $7.92

9

WPW10120019 Whirlpool Dishwasher Sensor Backorder WPL WPW10120019 $146.08

9

Insulation, Door WPL W10117748 Contact Us For Availability

9

Bolt, Shoulder WPL 99003687 Contact Us For Availability

SPRING, DOOR WPL 99002598 Contact Us For Availability

Basket, Silverware WPL 99003429 Contact Us For Availability

Liner, Door Secondary WPL W10185633 Contact Us For Availability

Pivot, Wash Arm WPL 99003697 Contact Us For Availability

WP99002947 Whirlpool Tub Wheel In Stock WPL WP99002947 $7.80

WP99003446 Whirlpool Door Cable In Stock WPL WP99003446 $5.30

Screw WPL 99002664 Contact Us For Availability

Foam Strip (Short) WPL 99003481 Contact Us For Availability

WPW10261227 Whirlpool Dishwasher Stop Assembl Backorder WPL WPW10261227 $4.82

Foam Strip (Long) WPL 99003482 Contact Us For Availability

INSULATION, TUB WPL 99002639 Contact Us For Availability

CHOPPER WPL 99003427 Contact Us For Availability

13

SEAL, DOOR WPL 99002588 Contact Us For Availability

13

BRACKET, SECONDARY DOOR LINER WPL 99003541 Contact Us For Availability

13

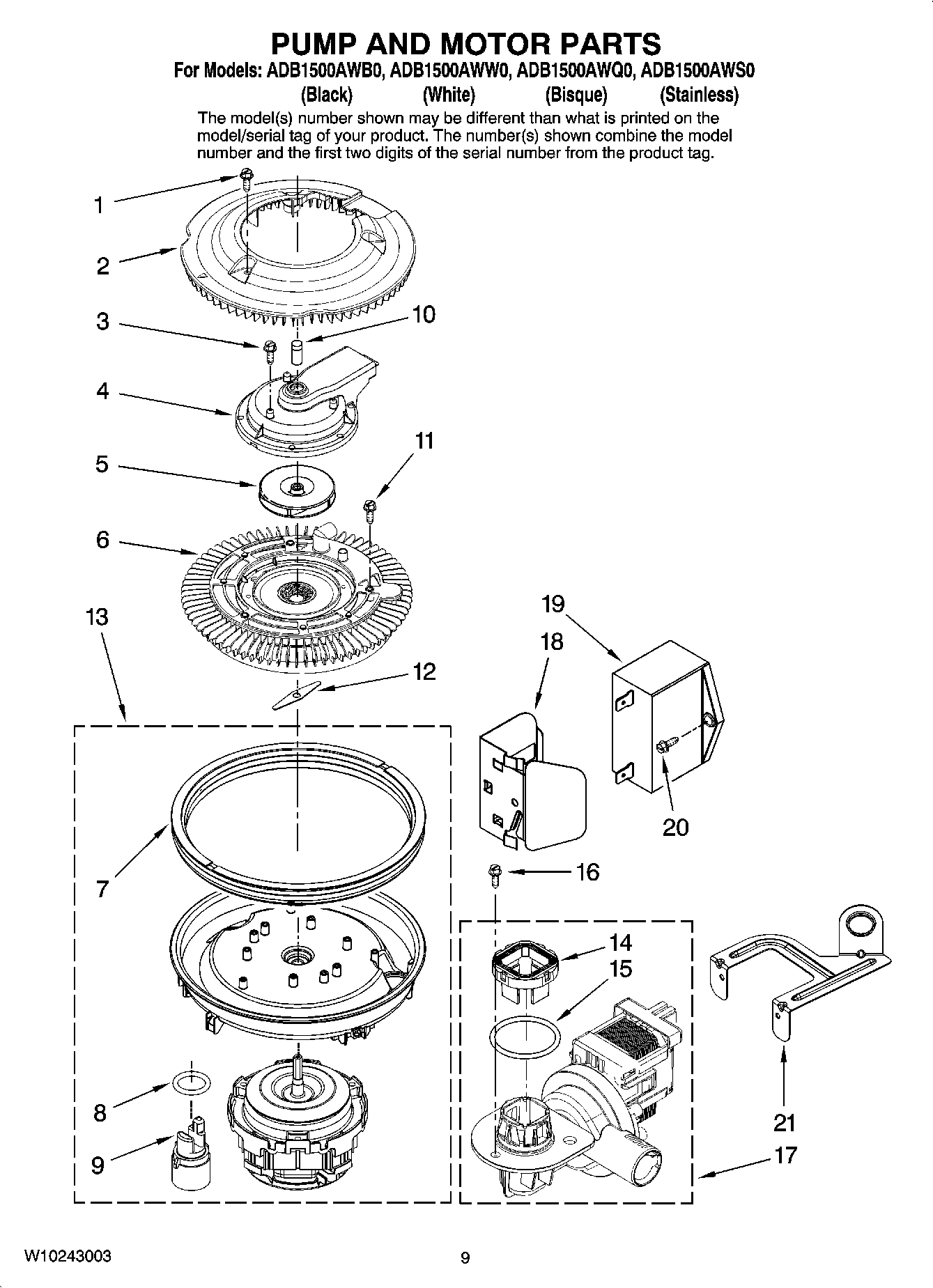

WASH MOTOR WPL 6919922 Contact Us For Availability

14

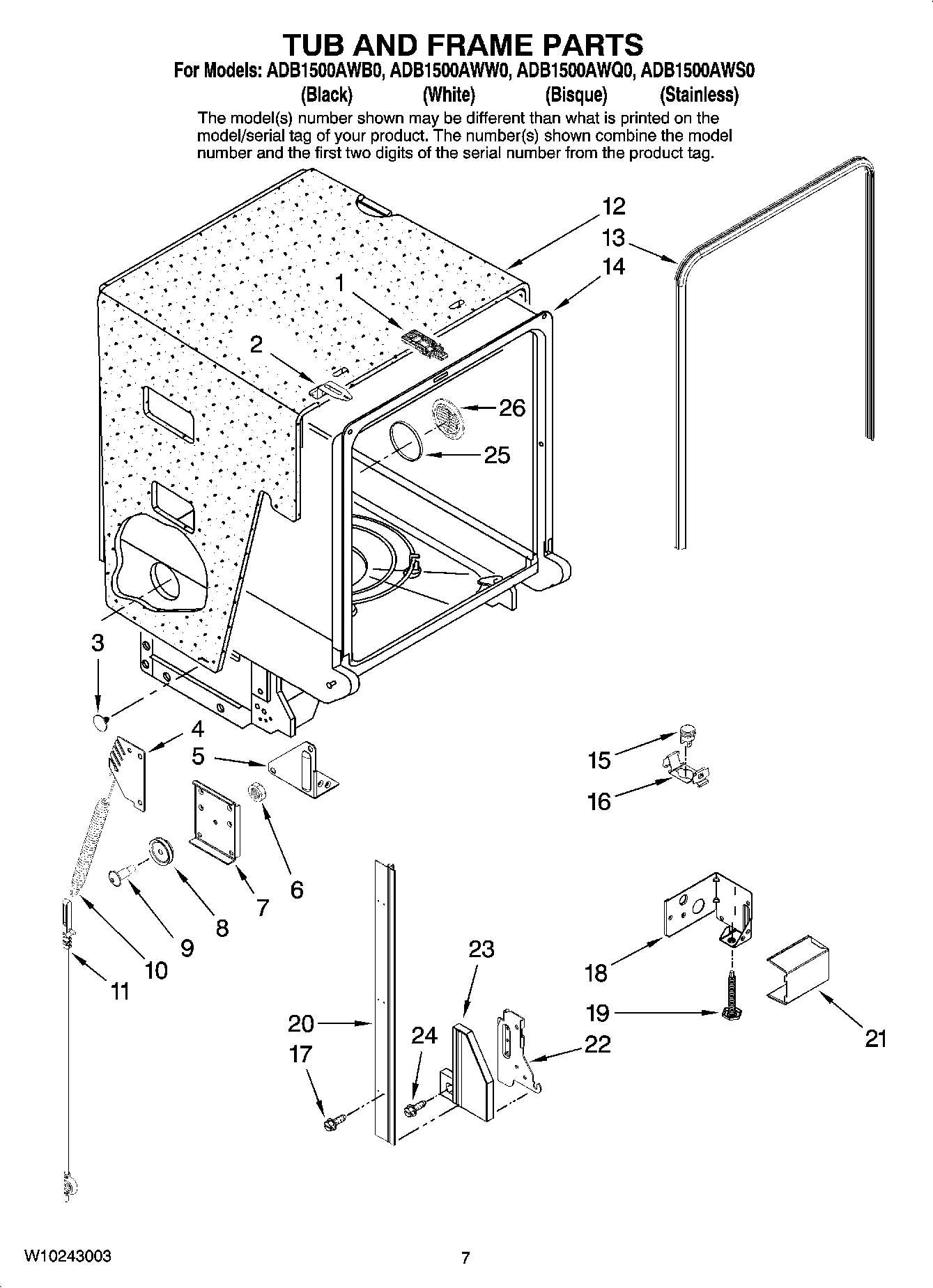

Tub Assembly WPL W10142297 Contact Us For Availability

14

FLAPPER, DRAIN PUMP INLET WPL 99003309 Contact Us For Availability

15

THERMOSTAT, LIMITING WPL 99002633 Contact Us For Availability

15

O-RING, DRAIN PUMP WPL 99002857 Contact Us For Availability

16

CLIP, THERMOSTAT WPL 99002634 Contact Us For Availability

16

Screw WPL 99002740 Contact Us For Availability

17

SCREW, TRIM MOUNTING WPL 99002692 Contact Us For Availability

17

Drain Pump Assy. WPL W10200518 Contact Us For Availability

18

Bracket, Junction Box WPL 99002637 Contact Us For Availability

18

Shield, Capacitor WPL W10167912 Contact Us For Availability

19

WPW10143258 Whirlpool Dishwasher Leg Leveler Backorder WPL WPW10143258 $9.90

19

Capacitor WPL 99002665 Contact Us For Availability

20

STRIP, TRIM WPL 99002649 Contact Us For Availability

20

Screw WPL 99002601 Contact Us For Availability

21

COVER, JUNCTION BOX WPL 99002638 Contact Us For Availability

21

Bracket, Drain Pump Mounting WPL 99002752 Contact Us For Availability

22

Support, Hinge (Right) WPL W10137495 Contact Us For Availability

22

Support, Hinge (Left) WPL W10137496 Contact Us For Availability

23

Backer, Hinge Seal (Left) WPL 99003306 Contact Us For Availability

23

Backer, Hinge Seal (Right) WPL 99003307 Contact Us For Availability

26

Grill,Air/Water Inlet WPL 99002948 Contact Us For Availability

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $20.75

4396277 Whirlpool Barrier Assembly Backorder WPL 4396277 $23.09

4396897RW Whirlpool Dishwasher Fill Hose In Stock WPL 4396897RW $25.16

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $19.58

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $21.50

8212486 Whirlpool Hose Assembly In Stock WPL 8212486 $39.62

8212488RC Whirlpool Dishwasher Installation K Backorder WPL 8212488RC $56.69

W10278635RP Whirlpool Dishwasher Fill Hose In Stock WPL W10278635RP $39.89

INSTALLATION KIT WPL ARI1458A50 Contact Us For Availability
