Model Whirlpool 9ED20TKXDN00 REFRIGERATOR – Common Parts & Diagrams
08 - CONTROL, LIT/OPTIONAL
06 - REFRIGERATOR DOOR
04 - AIR FLOW

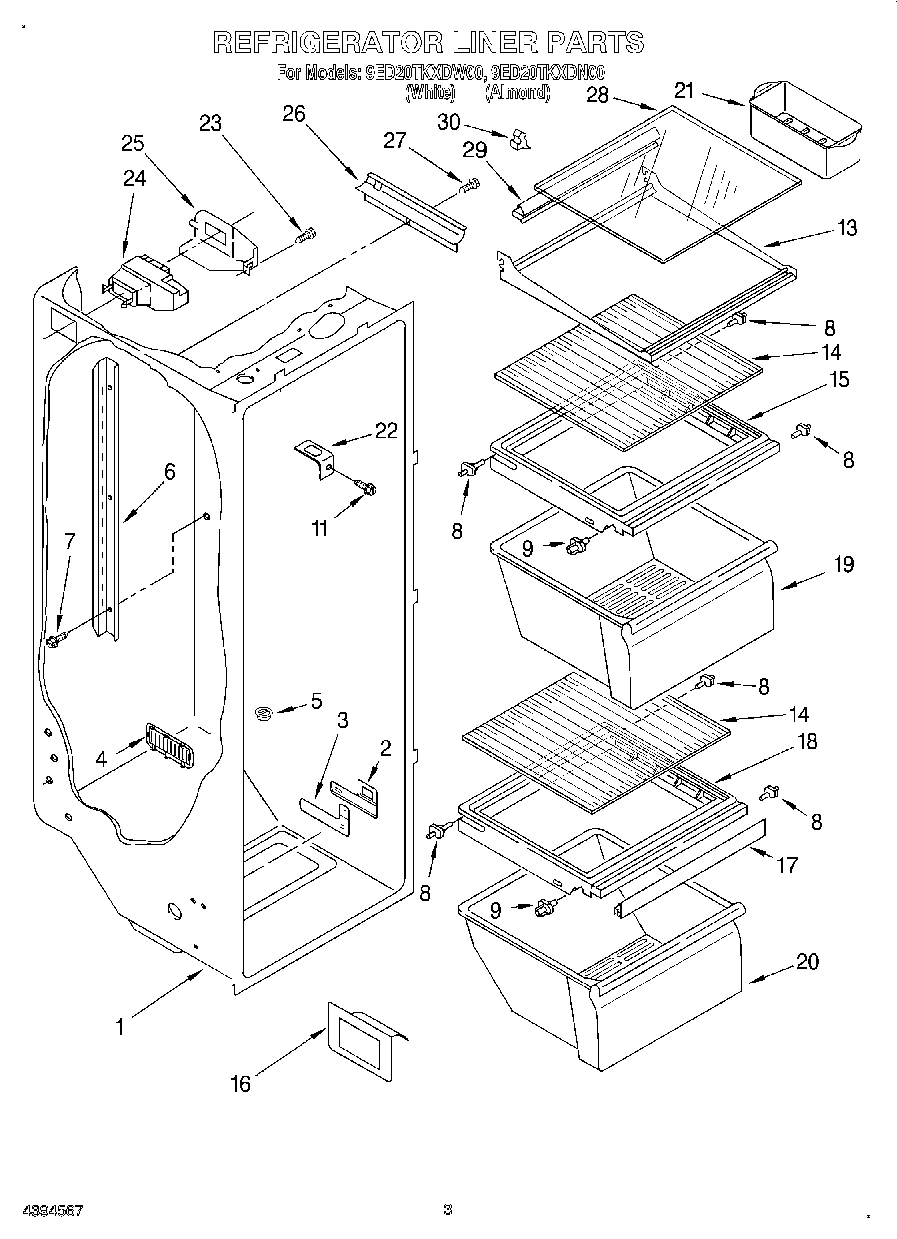

02 - REFRIGERATOR LINER

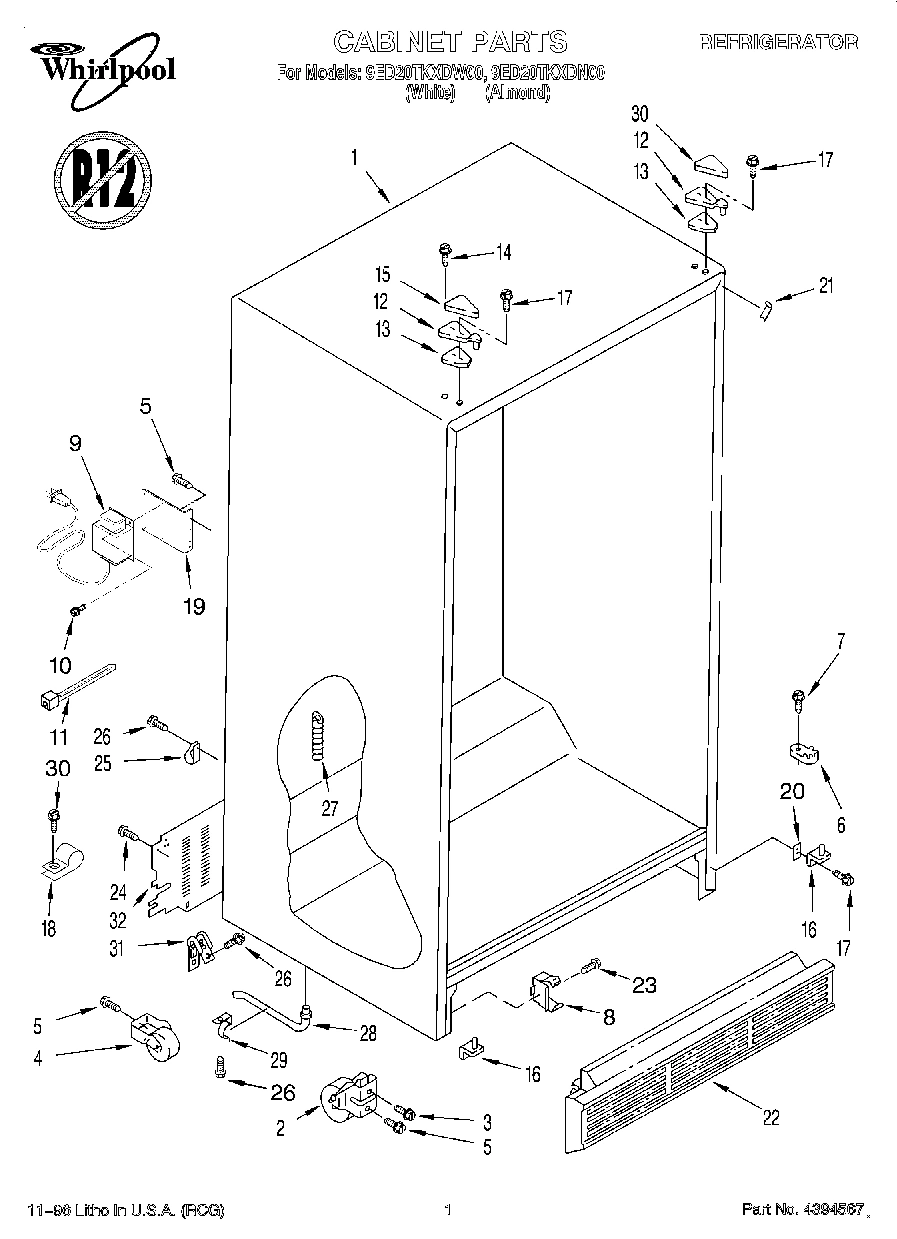

01 - CABINET

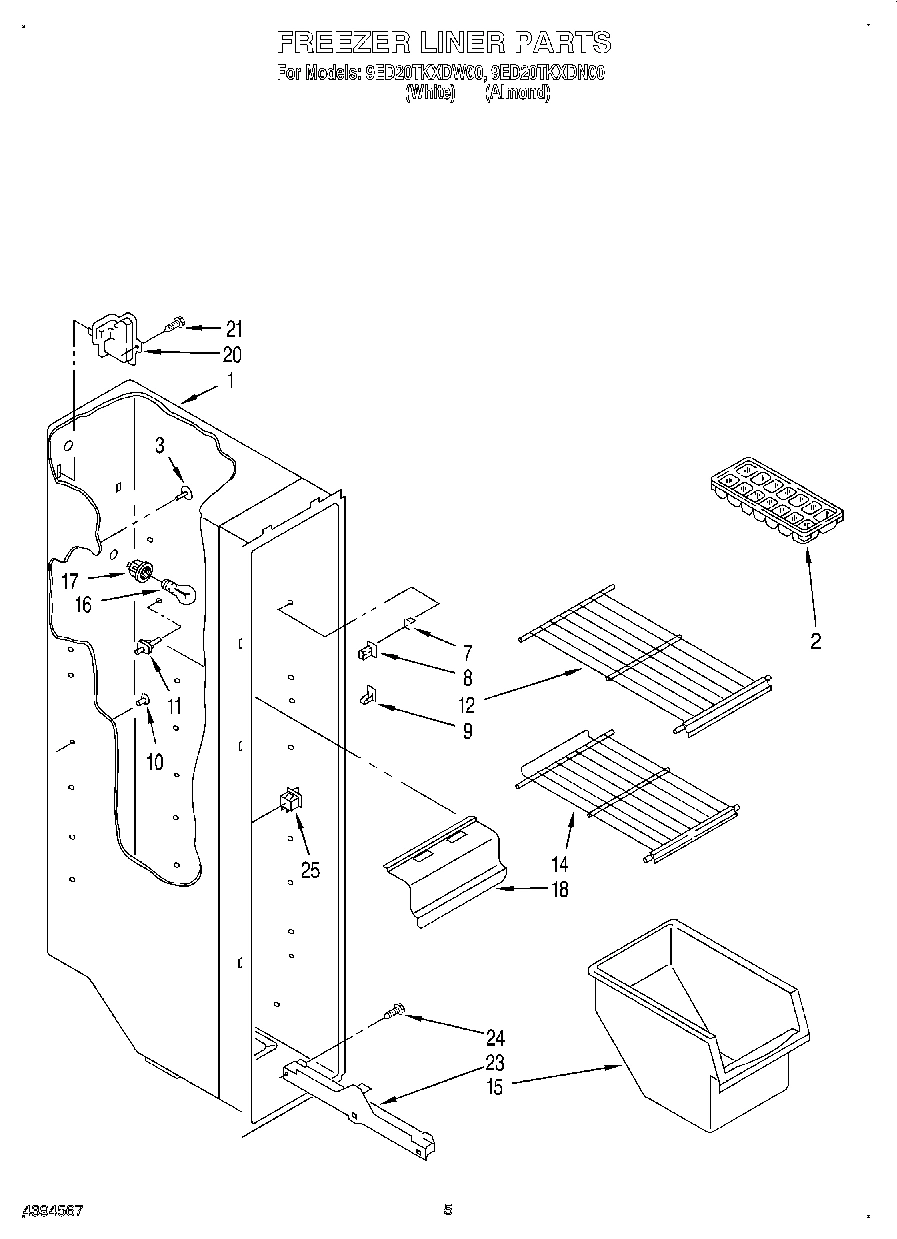

03 - FREEZER LINER

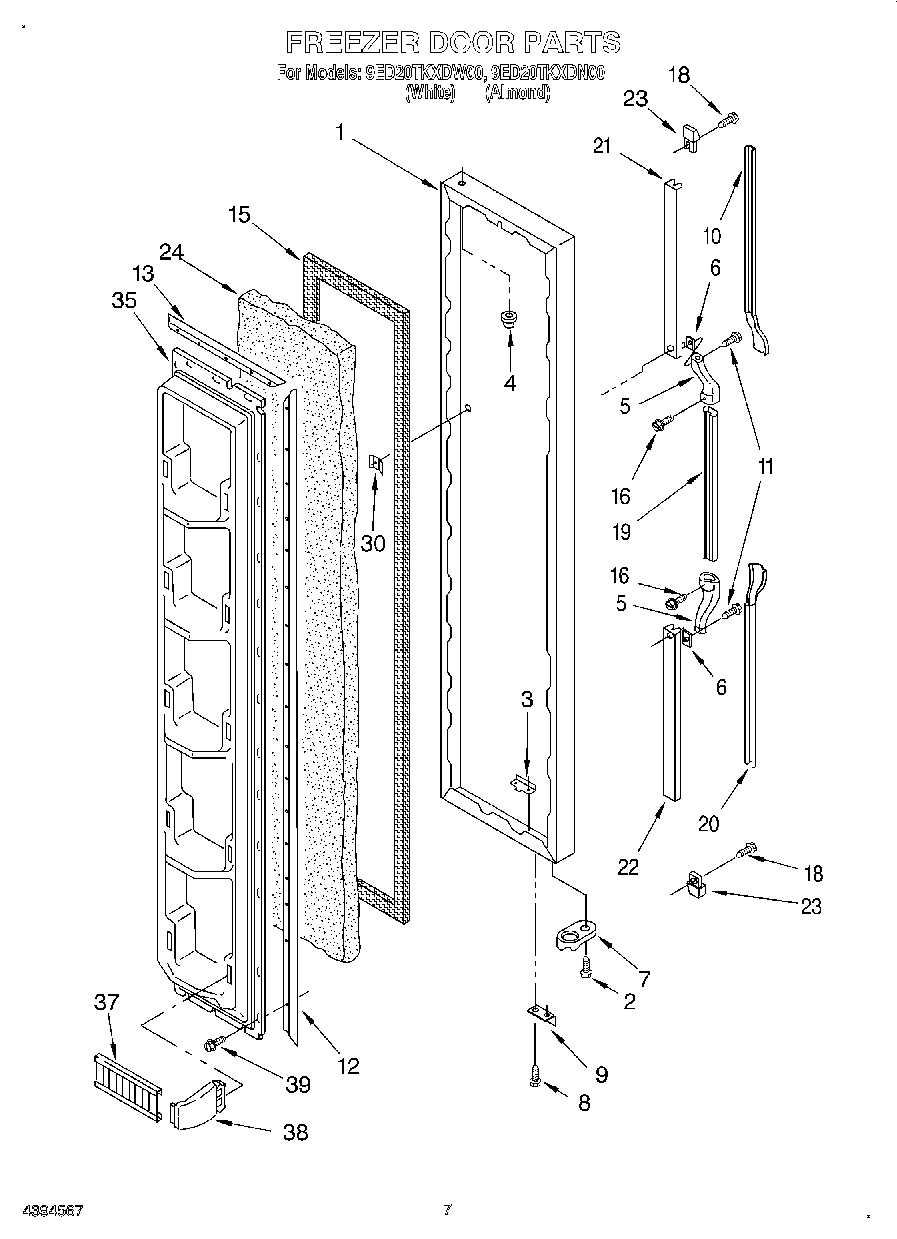

05 - FREEZER DOOR

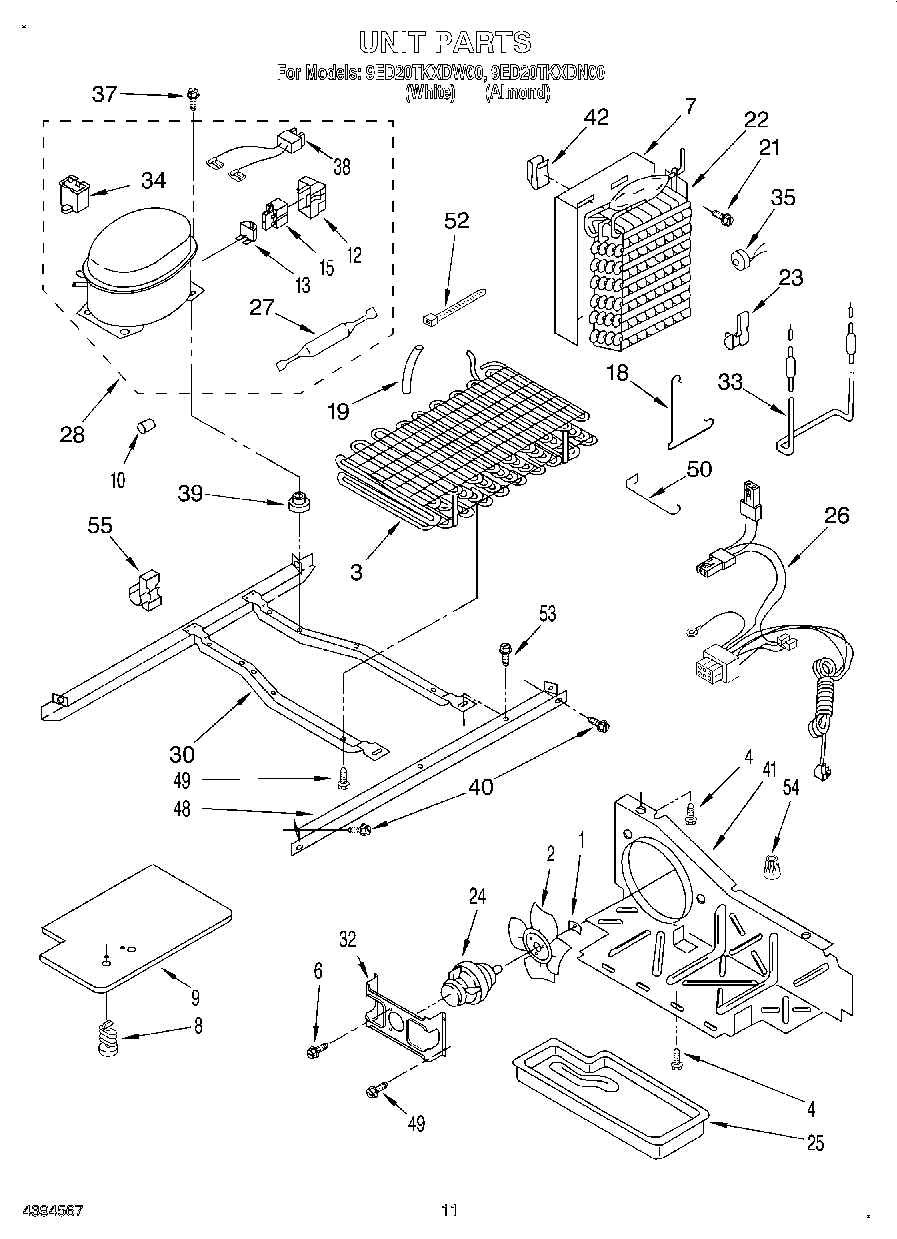

07 - UNIT
Common parts from model Whirlpool 9ED20TKXDN00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI19791A7 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI19790A4 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI19792A5 Contact Us For Availability
1
Freezer, Door Panel (White) WPL 4362049 Contact Us For Availability
1
Freezer, Door Panel (Almond (Also Order Item WPL 4362050 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Tap, Plate WPL 2155335 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
4
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
5
End Cap (2) WPL 1119359 Contact Us For Availability
6
Shelf Ladder (2) WPL 2181796 Contact Us For Availability
6
Shim WPL 935075 Contact Us For Availability
7
Support, Stud (10) WPL 946355 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
8
Stud, Front (4) WPL 946356 Contact Us For Availability
9
Cover, Unit Compartment WPL 2182057 Contact Us For Availability
9
Transformer WPL 2195326 Contact Us For Availability
9
Stud R.S. Rear (4) WPL 1106982 Contact Us For Availability
9
Bracket, Door Stop WPL 2155332 Contact Us For Availability
10
Grommet (10) WPL 2176134 Contact Us For Availability
10
Screw (4) WPL 487347 Contact Us For Availability
10
Insert, Top (White) WPL 1119367 Contact Us For Availability
10
Insert, Top (Almond) WPL 1119369 Contact Us For Availability
12
Shelf WPL 2163612 Contact Us For Availability
12
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
13
Shelf, Cantilever WPL 2173178 Contact Us For Availability
13
Shim, Hinge (2) WPL 2171868 Contact Us For Availability
13
Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Shelf (1) WPL 2174269 Contact Us For Availability
14
Shelf (2) WPL 2174270 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Bin, Freezer WPL 2171707 Contact Us For Availability
15
Relay (See Overload) WPL ARI19793A3 Contact Us For Availability
16
Screw WPL 489022 Contact Us For Availability
17
Extension, Cover WPL 2179561 Contact Us For Availability
18
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
18
Screw WPL 489075 Contact Us For Availability
19
Bracket WPL 2195006 Contact Us For Availability
19
Handle, Center (White) WPL 1124713 Contact Us For Availability
19
Handle, Center (Almond) WPL 943079 Contact Us For Availability
20
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
20
Cover, Wiring WPL 2155401 Contact Us For Availability
20
Insert, Bottom (White) WPL 1119361 Contact Us For Availability
20
Insert, Bottom (Almond) WPL 1119363 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Insert Retainer (Top) WPL 1119366 Contact Us For Availability
22
Grille (White) WPL 2155477 Contact Us For Availability
22
Grille (Almond) WPL 2155478 Contact Us For Availability
22
Insert Retainer (Bottom) WPL 1119360 Contact Us For Availability
23
Slide, Freezer Bin (Left Side) WPL 1115383 Contact Us For Availability
23
End Cap (2) WPL 2156220 Contact Us For Availability
23
Clip, Heater (2) WPL 2161330 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
26
Cover, Conduit WPL 2150330 Contact Us For Availability
26
Harness, Intermediate WPL 2194747 Contact Us For Availability
28
Glass, Shelf WPL 2175955 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
29
Reflector WPL 2170621 Contact Us For Availability
30
Screw Anchor WPL 941242 Contact Us For Availability
30
Unit Mounting Frame WPL 2160498 Contact Us For Availability
34
Capacitor (Service Compressor Only) WPL 2169137 Contact Us For Availability
35
Panel, Interior Door WPL 1129241 Contact Us For Availability
37
Trim, Door Shelf WPL 2170585 Contact Us For Availability
41
Air Baffle WPL 2155301 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
55
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
55
Clip, Wire And Water Tube WPL 2155658 Contact Us For Availability
55
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
