Model Whirlpool 6ET18ZKXAN01 REFRIGERATOR – Common Parts & Diagrams

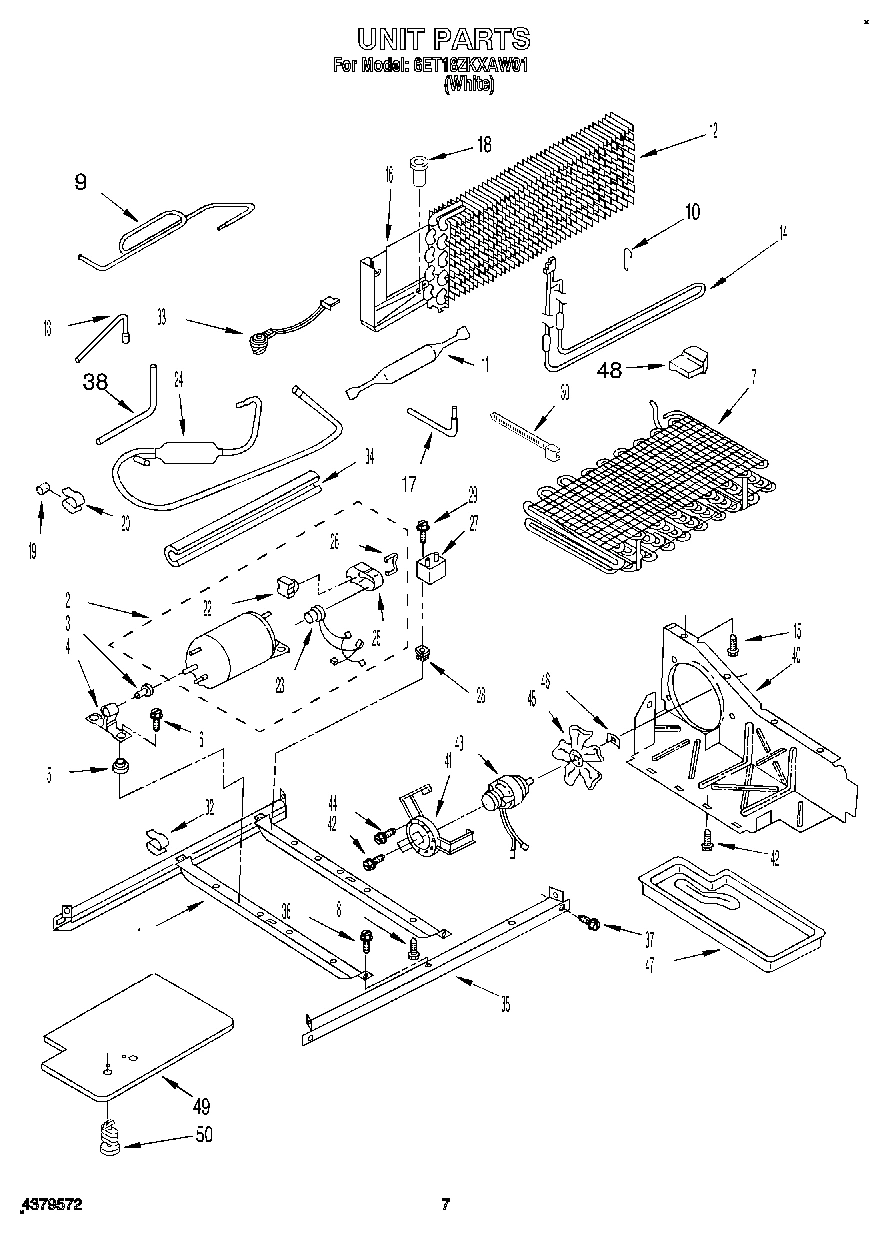

06 - UNIT

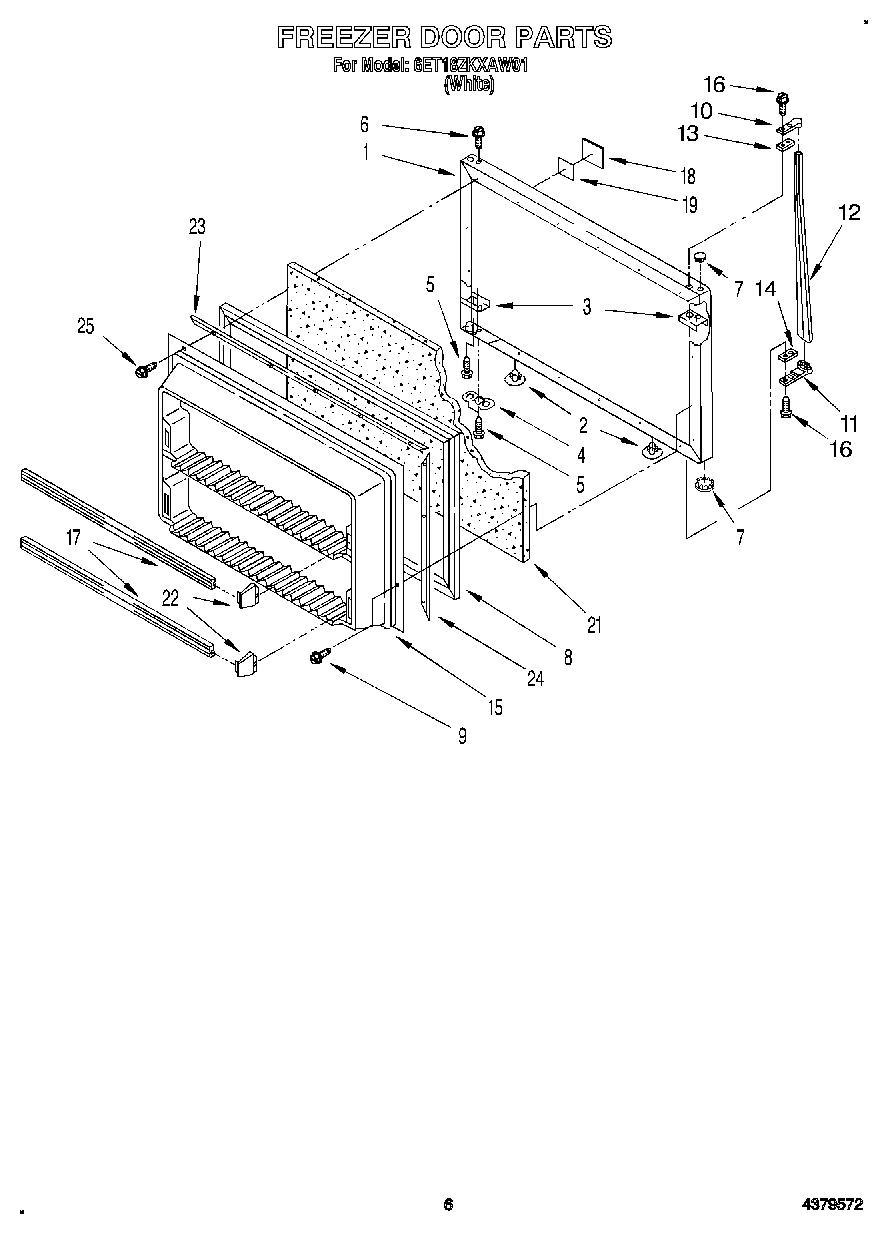

05 - FREEZER DOOR

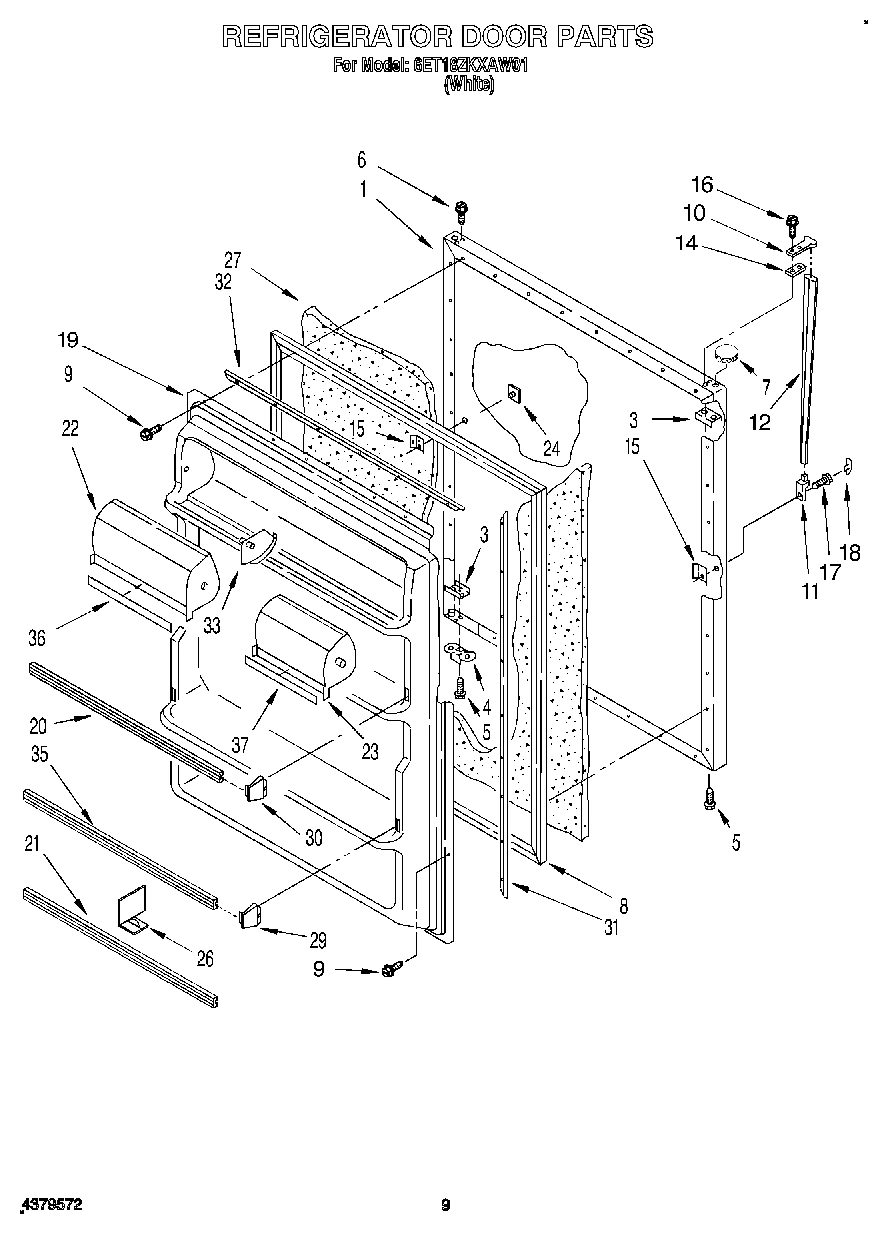

07 - REFRIGERATOR DOOR, LIT/OPTIONAL

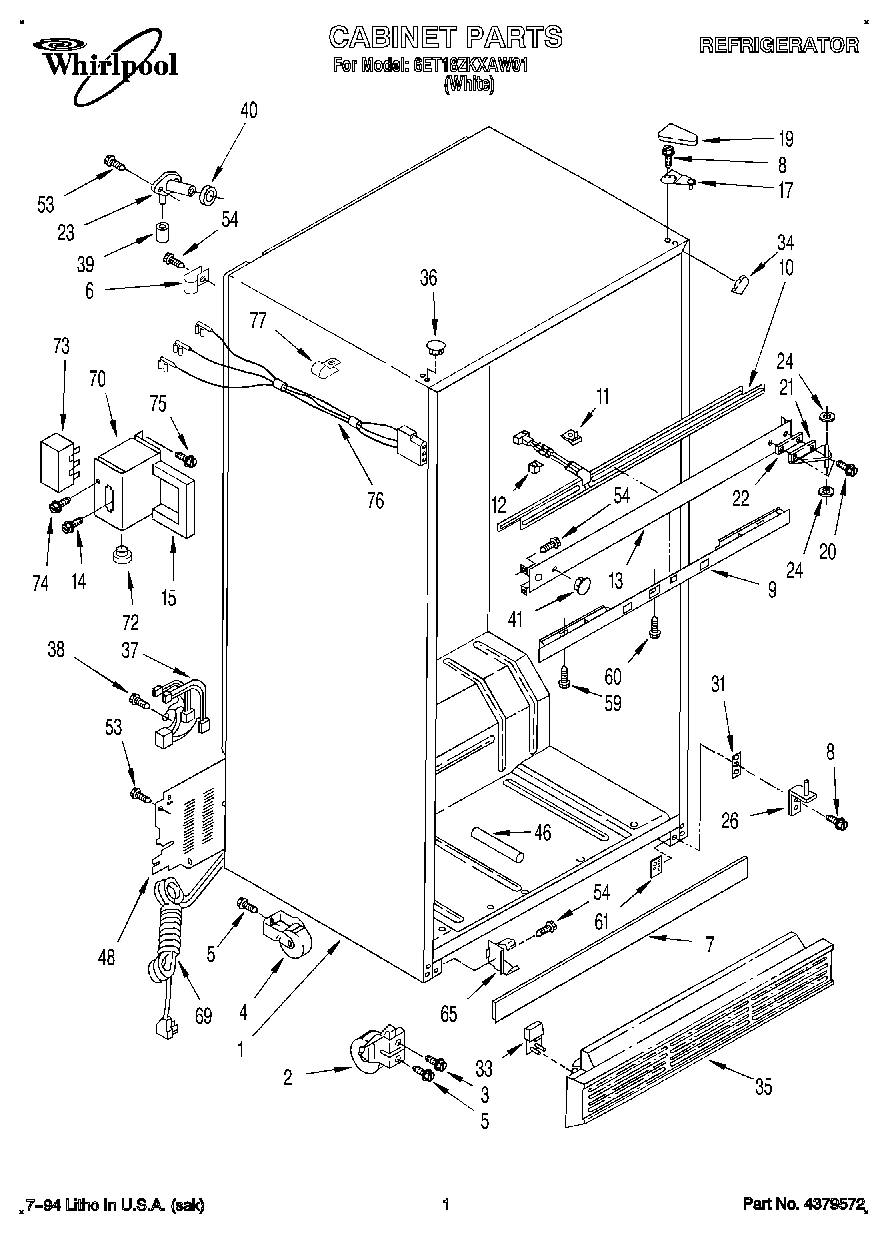

01 - CABINET

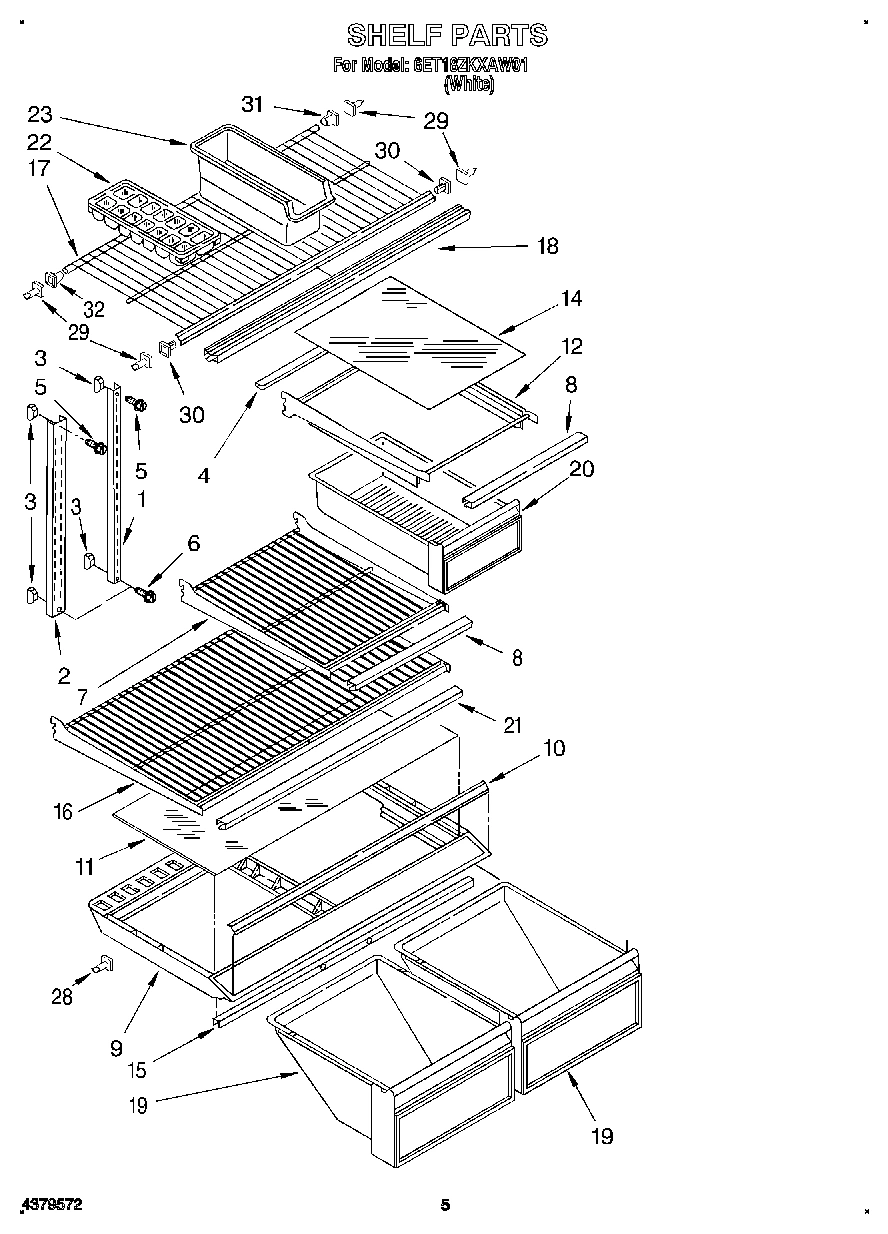

04 - SHELF

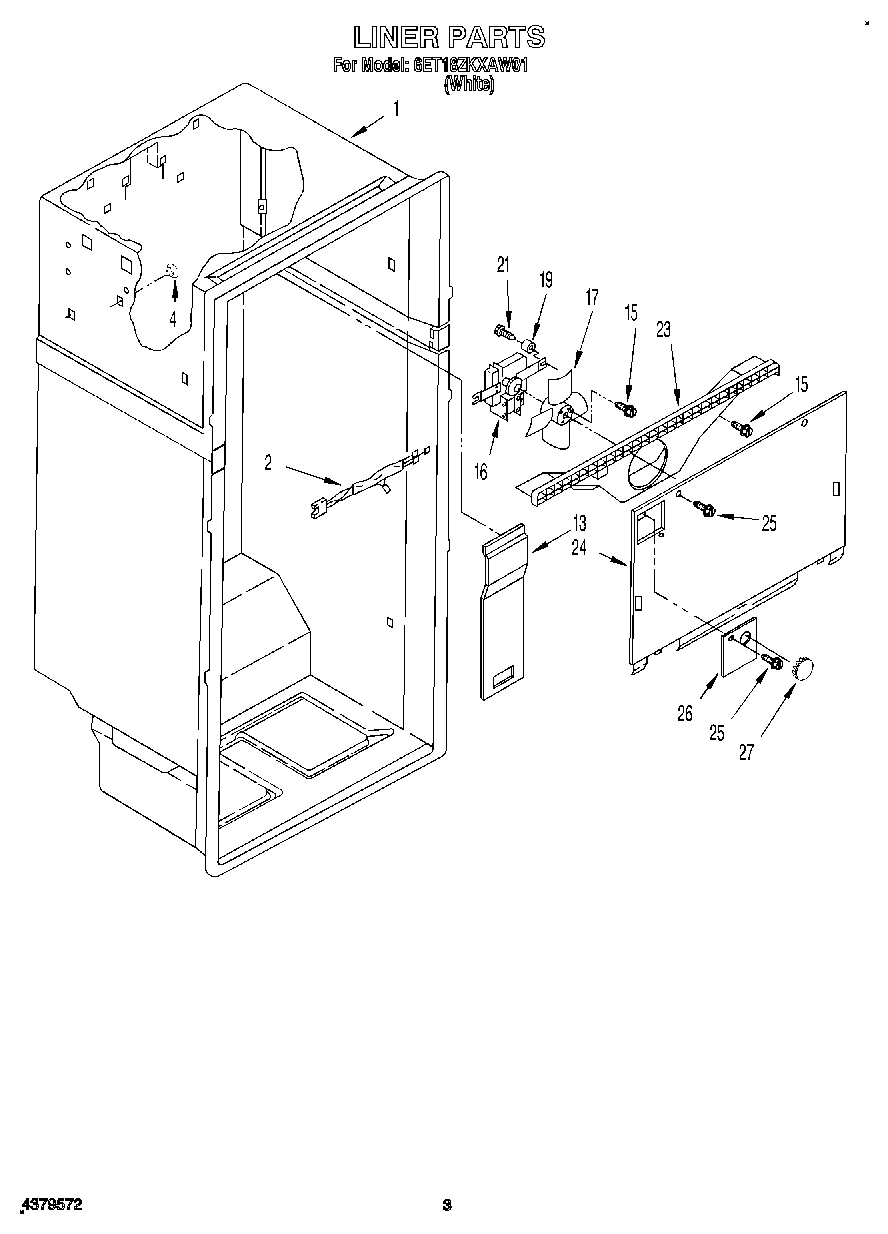

02 - LINER

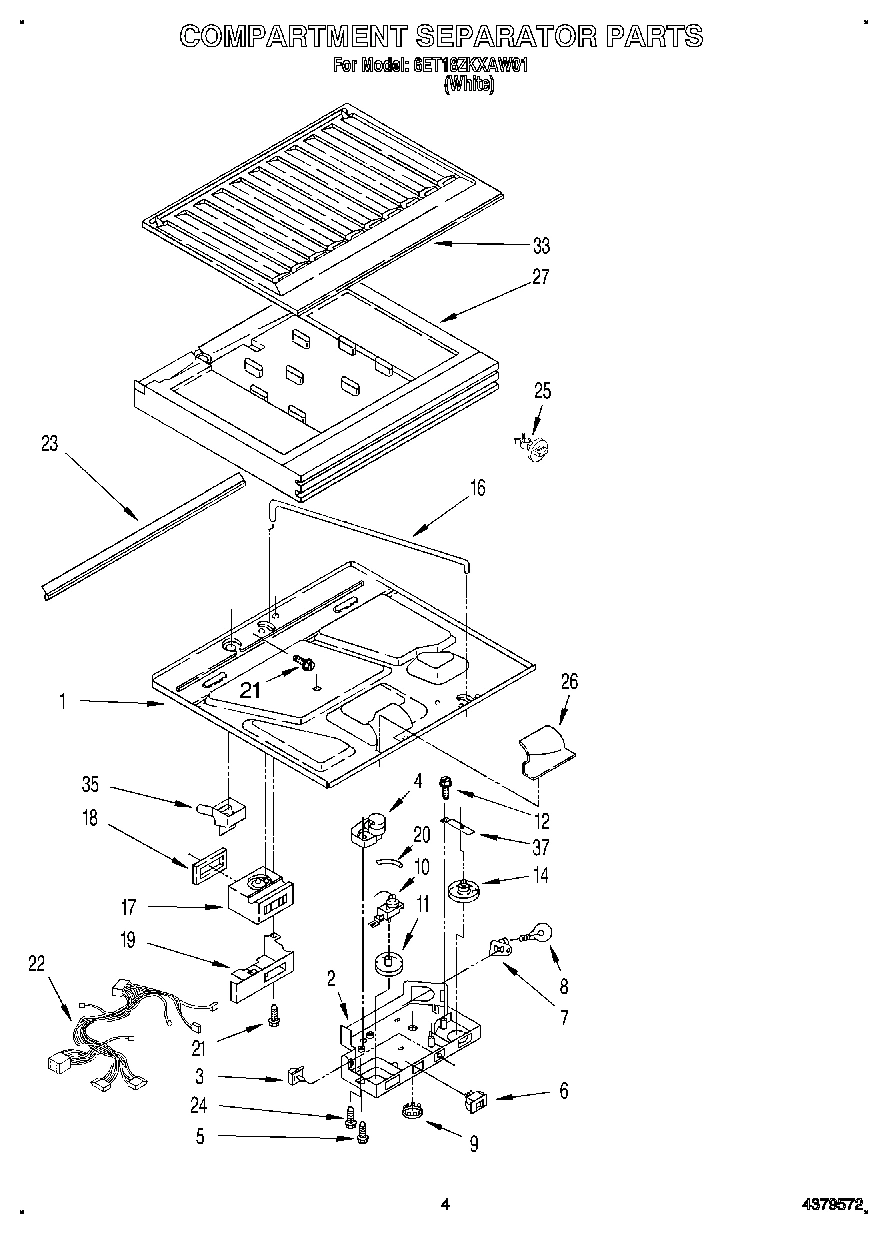

03 - COMPARTMENT SEPARATOR
Common parts from model Whirlpool 6ET18ZKXAN01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2158656 WPL LIT2158656 Contact Us For Availability
WPL LIT2165191 WPL LIT2165191 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2157708 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1116575 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI16009A3 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI16010A8 Contact Us For Availability
1
Bottom, Compartment Separator WPL 2172814 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Box, Control WPL 2151992 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Door Stop WPL 944036 Contact Us For Availability
4
Retainer, Shelf WPL 1118119 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 WPL 489345 Contact Us For Availability
7
Deck Rail Cover WPL 2172703 Contact Us For Availability
7
Shelf, Cantilever (2) WPL 2163920 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1125888 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1125889 Contact Us For Availability
8
Trim, Shelf WPL 2148575 Contact Us For Availability
9
Control, Front Cover WPL 2148582 Contact Us For Availability
9
Crisper Cover WPL 2157828 Contact Us For Availability
10
Heater, Mullion WPL 2158623 Contact Us For Availability
10
Trim, Crisper Cover WPL 2172715 Contact Us For Availability
11
Clip, Center Rail (6) WPL 1129018 Contact Us For Availability
11
Glass, Crisper Cover WPL 1116715 Contact Us For Availability
11
Knob, Thermostat WPL 1114315 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 1116703 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Center Rail WPL 2172701 Contact Us For Availability
13
Cover, Air Duct WPL 2153966 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Glass, Meat Cover WPL 1116699 Contact Us For Availability
14
Knob, Air Control WPL 1114314 Contact Us For Availability
15
Interior Door Panel WPL 1116610 Contact Us For Availability
15
Gasket WPL 2167227 Contact Us For Availability
16
Shelf, Full Cantilever WPL 2160873 Contact Us For Availability
16
Motor, Fan WPL 2169115 Contact Us For Availability
16
Rod, Connecting WPL 1116565 Contact Us For Availability
17
Shelf, Freezer WPL 1116722 Contact Us For Availability
17
Air Diffuser Assembly WPL 2160771 Contact Us For Availability
18
Nameplate (White) WPL 2165148 Contact Us For Availability
18
Trim, Shelf Front WPL 2148584 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Interior Door Panel WPL 1118123 Contact Us For Availability
19
Pan, Crisper WPL 2165231 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
20
Trim, Door Shelf WPL 2157810 Contact Us For Availability
20
Pan, Meat WPL 2165230 Contact Us For Availability
21
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
21
Trim, Door Shelf WPL 2157812 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
21
Trim, Shelf Front WPL 2148578 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
22
Compartment Door (L.S.) WPL 2160252 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2158621 Contact Us For Availability
23
Compartment, Door (R.S.) WPL 2160253 Contact Us For Availability
23
Scroll, Fan WPL 1116598 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159733 Contact Us For Availability
24
Retainer, Gasket Side (2) WPL 1115138 Contact Us For Availability
24
Evaporator Cover WPL 2151668 Contact Us For Availability
25
Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability
26
Divider, Door Shelf WPL 2160050 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1116569 Contact Us For Availability
28
Shelf Stud (2) WPL 1106612 Contact Us For Availability
29
Support Stud (4) WPL 946355 Contact Us For Availability
30
Shelf Stud (2) WPL 946356 Contact Us For Availability
31
Retainer, Gasket Side (2) WPL 1115136 Contact Us For Availability
31
Spacer WPL 2172745 Contact Us For Availability
32
Retainer, Gasket Top & Bottom (2) WPL 1115137 Contact Us For Availability
33
Corner Filler, Grille WPL 1125665 Contact Us For Availability
33
Separator, Compartment (Top) WPL 2157398 Contact Us For Availability
34
Filler, Wrapper Corner (2) (White) WPL 1118058 Contact Us For Availability
35
Trim, Door Shelf WPL 2157811 Contact Us For Availability
35
Grille WPL 1125664 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
36
Trim, Compartment Door (L.S.) WPL 2157839 Contact Us For Availability
37
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
37
WPL 799344 WPL 799344 Contact Us For Availability
37
Trim, Compartment Door (R.S.) WPL 2157836 Contact Us For Availability
37
Door Reversal Instructions WPL 2172761 Contact Us For Availability
37
WPL 542639 WPL 542639 Contact Us For Availability
37
WPL 799833 WPL 799833 Contact Us For Availability
37
WPL 978883 WPL 978883 Contact Us For Availability
37
Wiring Assy. Intermediate WPL 2165296 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
41
Hole Plug WPL 1129062 Contact Us For Availability
46
Fitting, Drain WPL 2172888 Contact Us For Availability
48
Cover, Unit WPL 2160519 Contact Us For Availability
50
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
69
Service Cord WPL 1129331 Contact Us For Availability
70
Enclosure, Term. WPL 2158579 Contact Us For Availability
72
Bushing WPL 1129449 Contact Us For Availability
73
Terminal Block WPL 1129346 Contact Us For Availability
74
Screw WPL 489346 Contact Us For Availability
76
Wiring Assy. WPL 2165297 Contact Us For Availability
× ![]()
