Model Whirlpool 665.75974300 Gas Range (Kenmore 66575974300) – Common Parts & Diagrams

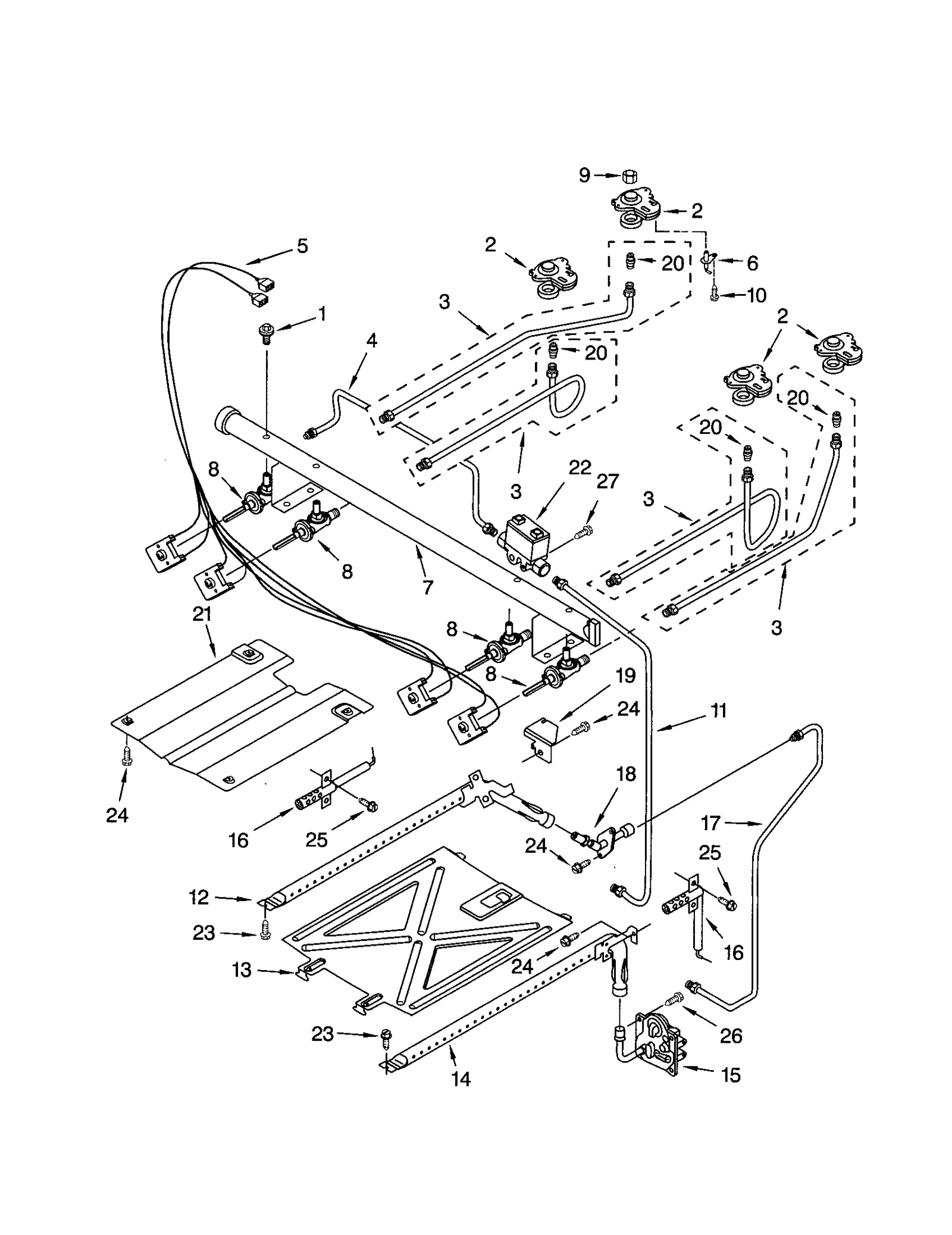

MANIFOLD
BAKE DRAWER AND BROILER
All Parts
CONTROL PANEL
COOKTOP
CHASSIS
DOOR
Common parts from model Whirlpool 665.75974300 Gas Range (Kenmore 66575974300)
1
Screw WPL 8273096 Contact Us For Availability
1
Range Oven Rack WPL 8522738 Contact Us For Availability
1
Installation Instructions WPL LIT8273772 Contact Us For Availability
1
Flue Oven WPL 8523261 Contact Us For Availability
1
Door Trim WPL 9755785 Contact Us For Availability
1A
Installation Instructions WPL LIT8523048 Contact Us For Availability
1A
Door Trim WPL 9755786 Contact Us For Availability
1B
Owner's Manual WPL LIT9756925 Contact Us For Availability
1B
Door Trim WPL 9755801 Contact Us For Availability
1C
Technical Sheet WPL LIT4454294 Contact Us For Availability
1C
Door Trim, Upper WPL 9755802 Contact Us For Availability
1D
Operating Instructions WPL LIT8522695 Contact Us For Availability
1E
Parts List WPL LIT9756279 Contact Us For Availability
1F
INSER, MANDATE WPL 3980219 Contact Us For Availability
1G
Installation Instructions WPL LIT8273410 Contact Us For Availability
1H
Cook Guide WPL 9756114 Contact Us For Availability
1I
Operating Instructions WPL 8522695 Contact Us For Availability
2
Range Surface Burner Cap WPL 8523361 Contact Us For Availability
2A
Support WPL 3194268 Contact Us For Availability
3
Tubing W/orf WPL 8273693 Contact Us For Availability
3
PANEL, BACKGUARD WHITE WPL 9755698 Contact Us For Availability
3
Burner Grate WPL 8523705 Contact Us For Availability
3
Door Handle (White) WPL 8523360 Contact Us For Availability
3A
PANEL, BACKGUARD BISCUIT WPL 9755700 Contact Us For Availability
3A
Grate WPL 8273346 Contact Us For Availability
3A
Door Handle WPL 9755518 Contact Us For Availability
3B
PANEL, BACKGUARD BLACK WPL 9755699 Contact Us For Availability
3B
Burner Grate WPL 8272417 Contact Us For Availability
3B
Door Handle WPL 9755519 Contact Us For Availability
3C
Gas Tubing WPL 8273697 Contact Us For Availability
3C
PANEL, BACKGUARD STAINLESS WPL 9756290 Contact Us For Availability
3C
Door Handle WPL 3194351 Contact Us For Availability
4
Oven Door Liner WPL 3186292 Contact Us For Availability
4B
Range Surface Burner Head, Right WPL 4455979 Contact Us For Availability
5
Cktop-wh WPL 8272251 Contact Us For Availability
5
Heat Shield WPL 8524111 Contact Us For Availability
6
Manifold Panel WPL 9755722 Contact Us For Availability
6A
Manifold Panel WPL 9755724 Contact Us For Availability
6B
Manifold Panel WPL 9755723 Contact Us For Availability
7
Range Control Knob (White) WPL 8524330 Contact Us For Availability
7
Shield WPL 3196136 Contact Us For Availability
7A
Range Surface Burner Knob WPL 4453593 Contact Us For Availability
7B
Range Surface Burner Knob WPL 4453617 Contact Us For Availability
8
Range Surface Burner Knob WPL 3194436 Contact Us For Availability
8
Rear Cover WPL 9756301 Contact Us For Availability
8
(LEFT W/DUAL) WPL N/P Contact Us For Availability
8A
Range Surface Burner Valve WPL 8273004 Contact Us For Availability
8A
Range Surface Burner Knob WPL 3194437 Contact Us For Availability
8B
Range Surface Burner Knob WPL 3194438 Contact Us For Availability
9
Nut WPL 8273060 Contact Us For Availability
9
Range Surface Burner Knob WPL 3194439 Contact Us For Availability
9
Shield WPL 8053910 Contact Us For Availability
9A
Range Surface Burner Knob WPL 3194440 Contact Us For Availability
9B
Range Surface Burner Knob WPL 3194441 Contact Us For Availability
10
Rear Cover WPL 8273132 Contact Us For Availability
10
Knob WPL 8523899 Contact Us For Availability
10A
Knob WPL 4453583 Contact Us For Availability
10B
Knob WPL 4453584 Contact Us For Availability
11
Range Surface Burner Grate (Dark Gray) WPL 8523364 Contact Us For Availability
11A
Range Surface Burner Grate (Espressor) WPL 8273348 Contact Us For Availability
11A
Oven Door Glass WPL 3194427 Contact Us For Availability
11B
Range Surface Burner Grate (Black) WPL 8053905 Contact Us For Availability
12
Range Oven Control Board WPL 8523876 Contact Us For Availability
13
Oven Baffle WPL 8053970 Contact Us For Availability
13
Heat Shield WPL 9757321 Contact Us For Availability
14
Oven Thermostat WPL 9755636 Contact Us For Availability
15
Oven Door Clip WPL 3196925 Contact Us For Availability
15
Mounting Bracket WPL 8272629 Contact Us For Availability
16
Switch WPL 8523892 Contact Us For Availability
16A
Switch WPL 8523893 Contact Us For Availability
16B
Switch WPL 8523894 Contact Us For Availability
17
Gas Tubing WPL 8272222 Contact Us For Availability
17
Electronic Control WPL 8524352 Contact Us For Availability
17
Oven Seal WPL 9756323 Contact Us For Availability
18
Oven Seal WPL 8524109 Contact Us For Availability
18
Range Broil Burner Fitting WPL 3186489 Contact Us For Availability
18
Filter WPL 8524370 Contact Us For Availability
19
Light Socket WPL 9756490 Contact Us For Availability
19
Range Clip WPL 3196025 Contact Us For Availability
20
Lamp Starter WPL 8273635 Contact Us For Availability
20
Rear Cover WPL 8523814 Contact Us For Availability
21
Lens-bklgt WPL 8272446 Contact Us For Availability
21
Glass Bracket WPL 3196794 Contact Us For Availability
21A
Lens-bklgt WPL 8273405 Contact Us For Availability
22
Lamp WPL 8273636 Contact Us For Availability
22
Brace WPL 8053971 Contact Us For Availability
23
Thermostat WPL 4454335 Contact Us For Availability
23
Retainer WPL 3196523 Contact Us For Availability
23A
Retainer WPL 3195726 Contact Us For Availability
24
Range Broil Drawer Outer Panel Trim, Lower WPL 8053950 Contact Us For Availability
24
Mounting Bracket WPL 4454336 Contact Us For Availability
24
Range Body Side Panel Clip WPL 3196576 Contact Us For Availability
25
Power Cord WPL 9756488 Contact Us For Availability
26
Range Thermal Fuse WPL 9756299 Contact Us For Availability
33
Suppressor WPL 9756911 Contact Us For Availability
34
Retainer WPL 3194290 Contact Us For Availability
35
Cover (Black) WPL 9756319 Contact Us For Availability
36
Button Plug WPL 3196439 Contact Us For Availability
38
Screw WPL 3196152 Contact Us For Availability
41
Spacer WPL 9757273 Contact Us For Availability
42
Screw WPL 3196179 Contact Us For Availability
43
Strike-dr WPL 9757274 Contact Us For Availability
48
Screw WPL 8533955 Contact Us For Availability
49
Vent Tube WPL 4450969 Contact Us For Availability
NI31
Paint 1qt WPL 799344 Contact Us For Availability
NI34
Aluminum Foil WPL 241430 Contact Us For Availability
× ![]()
