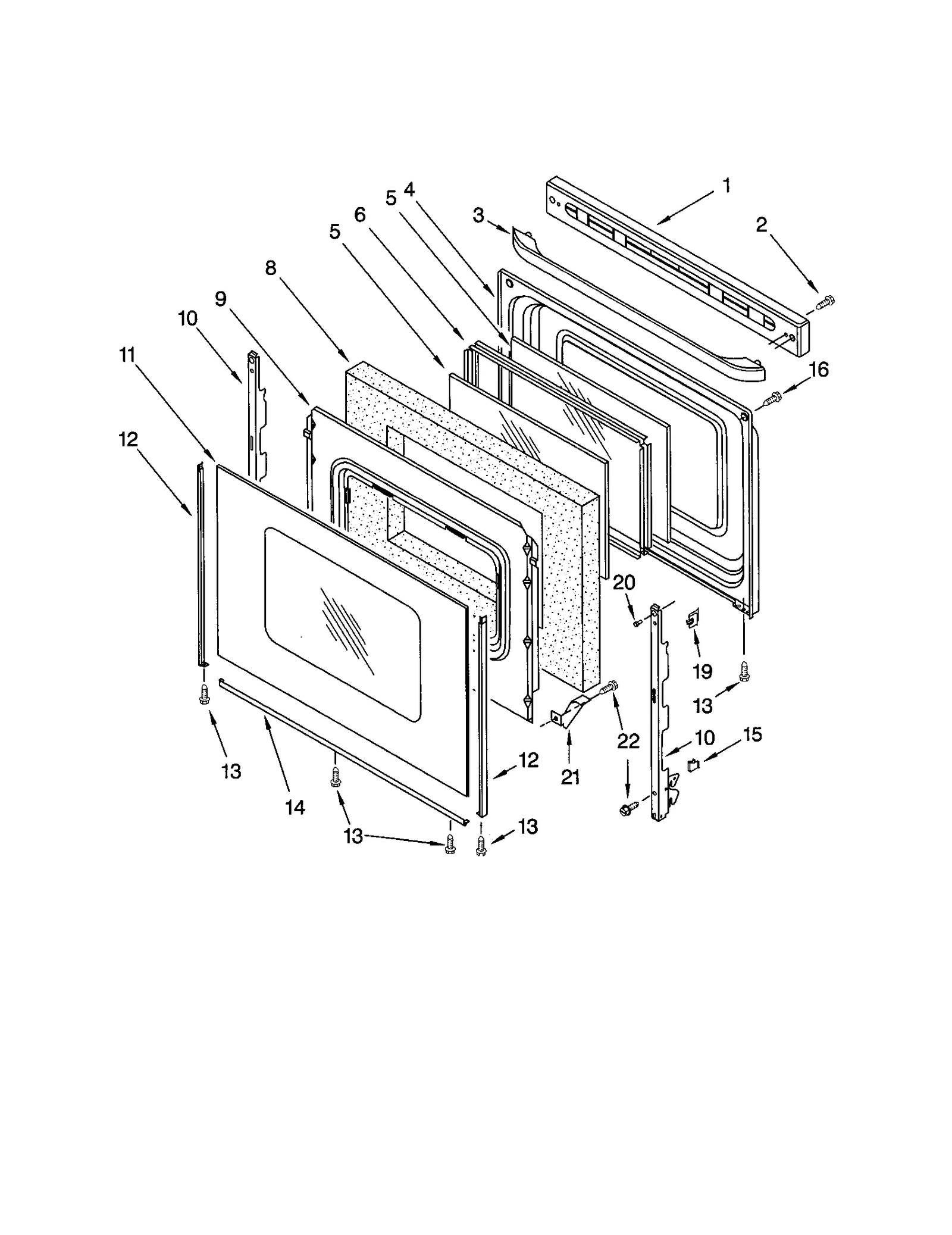

Model Whirlpool 665.75004103 Range (Kenmore 66575004103) – Common Parts &amp; Diagrams

1

Screw WPL 8273096 Contact Us For Availability

2

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $62.36

2

WP3196164 Whirlpool Screw In Stock WPL WP3196164 $5.30

2

WP8272747 Whirlpool Heat Shield Backorder WPL WP8272747 $50.81

2

WP8273700 Whirlpool Base Burner In Stock WPL WP8273700 $79.62

3

W11379351 Whirlpool Burner Box Backorder WPL W11379351 $42.97

3

WP3196076 Whirlpool Broil Pan Backorder WPL WP3196076 $213.57

3

Tubing W/orf WPL 8273693 Contact Us For Availability

3A

Gas Tubing WPL 8273694 Contact Us For Availability

3B

Range Surface Burner Tube and Orifice, Right WPL 8273695 Contact Us For Availability

3C

Gas Tubing WPL 8273697 Contact Us For Availability

4

WP4455981 Whirlpool Burner Head Backorder WPL WP4455981 $64.63

4

WPW10575396 Whirlpool Side Panel Backorder WPL WPW10575396 $128.14

4

Gas Tubing WPL 8272685 Contact Us For Availability

4A

W10162246 Whirlpool Side Panel Backorder WPL W10162246 $139.13

4A

WP4455980 Whirlpool Burner Head In Stock WPL WP4455980 $45.85

4B

Range Surface Burner Head, Right WPL 4455979 Contact Us For Availability

5

WP8053948 Whirlpool Door Glass In Stock WPL WP8053948 $107.21

5

WPW10295998 Whirlpool Wire Harness Backorder WPL WPW10295998 $159.08

5

Shield WPL 3196137 Contact Us For Availability

6

8053505 Whirlpool Range Shield Backorder WPL 8053505 $114.33

6

8523249 Whirlpool Range Support Bracket Backorder WPL 8523249 $55.16

6

WP3196814 Whirlpool Rivet Backorder WPL WP3196814 $6.64

6

WP8523793 Whirlpool Oven Surface Igniter In Stock WPL WP8523793 $23.35

7

Shield WPL 3196136 Contact Us For Availability

7

Manifold Pipe WPL 8523407 Contact Us For Availability

7A

Range Surface Burner Knob WPL 8273565 Contact Us For Availability

8

WP9757218 Whirlpool Burner Valve In Stock WPL WP9757218 $214.83

8

(LEFT W/DUAL) WPL N/P Contact Us For Availability

8A

Range Surface Burner Valve WPL 8273004 Contact Us For Availability

9

8272766 Whirlpool Range Knob Backorder WPL 8272766 $13.92

9

WP3196037 Whirlpool Leveling Foot Backorder WPL WP3196037 $57.82

9

WP8053334 Whirlpool Drawer Glide In Stock WPL WP8053334 $5.30

9

Nut WPL 8273060 Contact Us For Availability

10

WP8053807 Whirlpool Range Door Hinge In Stock WPL WP8053807 $64.87

10

WP8273062 Whirlpool Screw In Stock WPL WP8273062 $5.30

10

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $4.53

11

WP3195097 Whirlpool Range Bottom In Stock WPL WP3195097 $102.29

11

WP8053834 Whirlpool Door Glass Backorder WPL WP8053834 $189.01

WP3195060 Whirlpool Cooktop Pin In Stock WPL WP3195060 $7.88

WP8054078 Whirlpool Broiler Burner In Stock WPL WP8054078 $168.34

WP8523172 Whirlpool Left Door Trim In Stock WPL WP8523172 $58.02

WPW10181986 Whirlpool Range Sensor In Stock WPL WPW10181986 $79.27

12A

WP8523173 Whirlpool Door Trim Backorder WPL WP8523173 $78.31

12B

WP8523166 Whirlpool Door Trim In Stock WPL WP8523166 $58.03

12C

WP8523167 Whirlpool Door Trim Assembly Backorder WPL WP8523167 $78.14

13

8053967 Whirlpool Range Heat Baffle Backorder WPL 8053967 $215.43

13

Oven Baffle WPL 8053970 Contact Us For Availability

14

8053969 Whirlpool Heat Shield Backorder WPL 8053969 $74.13

14

8190618 Whirlpool Gas Range Oven Burner Assem In Stock WPL 8190618 $149.77

14

W11594186 Whirlpool Door Trim In Stock WPL W11594186 $38.40

14A

WP8523178 Whirlpool Door Trim Backorder WPL WP8523178 $110.38

8053968 Whirlpool Range Heat Shield Backorder WPL 8053968 $61.59

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $5.30

WPW10293048 Whirlpool Gas Valve In Stock WPL WPW10293048 $410.28

Oven Door Clip WPL 3196925 Contact Us For Availability

16

WP8054129 Whirlpool Range Igniter In Stock WPL WP8054129 $88.31

16

WPW10306546 Whirlpool Base Rail In Stock WPL WPW10306546 $93.00

16

Range Membrane Switch (White) WPL 8272997 Contact Us For Availability

17

Gas Tubing WPL 8272222 Contact Us For Availability

18

Range Broil Burner Fitting WPL 3186489 Contact Us For Availability

18

Oven Seal WPL 3195737 Contact Us For Availability

19

W10877054 Whirlpool Spacer Assembly Backorder WPL W10877054 $37.66

19

Cover Plate WPL 8272403 Contact Us For Availability

20

WP8273064 Whirlpool Orifice Backorder WPL WP8273064 $69.23

20

Rear Cover WPL 8274179 Contact Us For Availability

20A

WP8273065 Whirlpool Orifice Backorder WPL WP8273065 $69.23

20B

WP8273067 Whirlpool Orifice Backorder WPL WP8273067 $69.45

21

W10137062 Whirlpool Burner Baffle Backorder WPL W10137062 $177.71

21

W11542153 Whirlpool Door Gasket In Stock WPL W11542153 $39.38

22

Brace WPL 8053971 Contact Us For Availability

23

3196265 Whirlpool Range Screw Backorder WPL 3196265 $8.89

23

Retainer WPL 3196523 Contact Us For Availability

23A

Retainer WPL 3195726 Contact Us For Availability

24

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

24

Range Body Side Panel Clip WPL 3196576 Contact Us For Availability

25

W11684507 Whirlpool Screw In Stock WPL W11684507 $12.99

25

WP9757891 Whirlpool Power Cord Backorder WPL WP9757891 $90.38

26

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91

26

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $4.82

27

WP3196262 Whirlpool Light Switch Backorder WPL WP3196262 $112.89

28

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $61.44

29

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $17.42

30

WP9761013 Whirlpool Door Latch Backorder WPL WP9761013 $180.29

31

W10078370 Whirlpool Latch Rod Backorder WPL W10078370 $64.29

32

WPW10107820 Whirlpool Door Latch In Stock WPL WPW10107820 $138.48

33

WP3195546 Whirlpool Drawer Glide In Stock WPL WP3195546 $5.30

36

Button Plug WPL 3196439 Contact Us For Availability

38

Screw WPL 3196152 Contact Us For Availability

39

3196166 Whirlpool Screw Backorder WPL 3196166 $4.67

39A

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $4.27

41

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $4.99

42

Screw WPL 3196179 Contact Us For Availability

44

WP7101P246-60 Whirlpool Screw Backorder WPL WP7101P246-60 $4.82

46

W11244557 Whirlpool Screw Backorder WPL W11244557 $8.89

47

W10491985 Whirlpool Screw Backorder WPL W10491985 $4.93

NI06

Wire (Blue) WPL 242821 Contact Us For Availability

NI07

Wire (Brown) WPL 242822 Contact Us For Availability

NI08

Wire (Brown) WPL 242830 Contact Us For Availability

NI09

Wire (Green) WPL 242823 Contact Us For Availability

NI10

Wire (Orange) WPL 242824 Contact Us For Availability

NI11

Wire WPL 242829 Contact Us For Availability

NI12

Wire (Red) WPL 242825 Contact Us For Availability

NI13

Cooking Appliance 14-gauge Splicing Wire, 200 WPL 242831 Contact Us For Availability

NI14

Wire (White) WPL 242826 Contact Us For Availability

NI15

Appliance Splicing Wire, 25-ft, 14-gauge (Yel WPL 242827 Contact Us For Availability

NI16

Wire (Yellow) WPL 242832 Contact Us For Availability

NI17

Epoxy WPL 799832 Contact Us For Availability

NI18

8212471 Whirlpool Oven Paint Backorder WPL 8212471 $46.71

NI19

Grease WPL 261582 Contact Us For Availability

NI21

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $60.66

NI22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $9.04

NI23

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

NI24

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

NI25

350930 Whirlpool White Spray Paint In Stock WPL 350930 $26.50

NI26

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

NI27

Spray Pl WPL 285366 Contact Us For Availability

NI28

285006 Whirlpool Spray In Stock WPL 285006 $52.65

NI29

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

NI30

Paint 1qt WPL 799344 Contact Us For Availability

NI31

Paint-al WPL 978883 Contact Us For Availability

NI32

Aluminum Foil WPL 241430 Contact Us For Availability

NI33

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $20.57

NI34

Wire Harness WPL 8523294 Contact Us For Availability

NI35

Ground Wire WPL 8523600 Contact Us For Availability

NI36

Range Wire Harness WPL 8273901 Contact Us For Availability

NI37

8523599 Whirlpool Range Wire Harness Backorder WPL 8523599 $101.79

NI38

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $4.82

NI39

3196896 Whirlpool Clip Backorder WPL 3196896 $7.69

NI40

16515 Whirlpool Clip Backorder WPL 16515 $12.46

NI41

3400964 Whirlpool Range Clip Backorder WPL 3400964 $62.15

NI42

3196696 Whirlpool Clip Backorder WPL 3196696 $8.41

NI43

Wire Clip WPL 805327 Contact Us For Availability

NI44

814381 Whirlpool Pin Backorder WPL 814381 $4.82
