Model Whirlpool 665.68601992 Microwave (Kenmore 66568601992) – Common Parts & Diagrams
All Parts

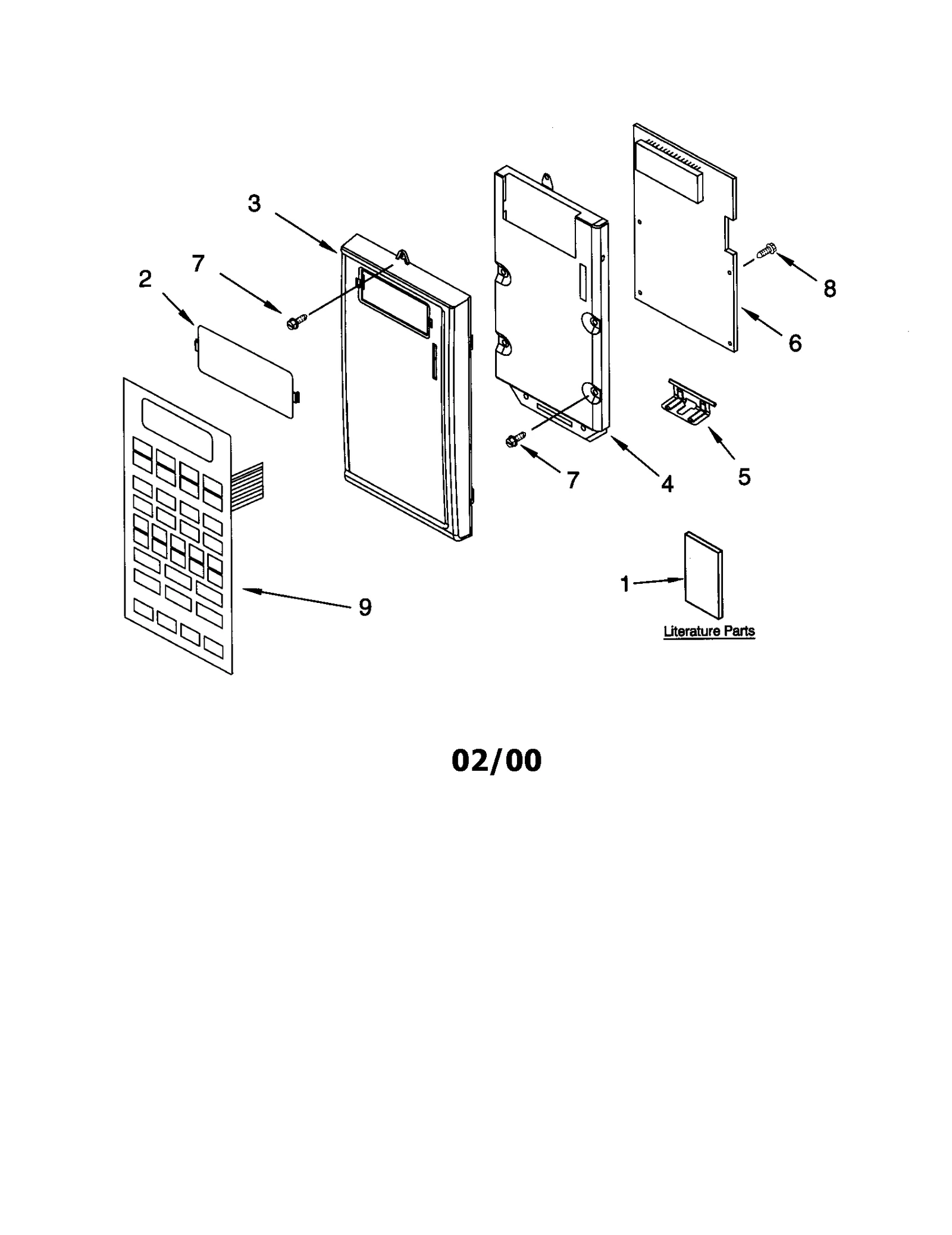

CONTROL PANEL

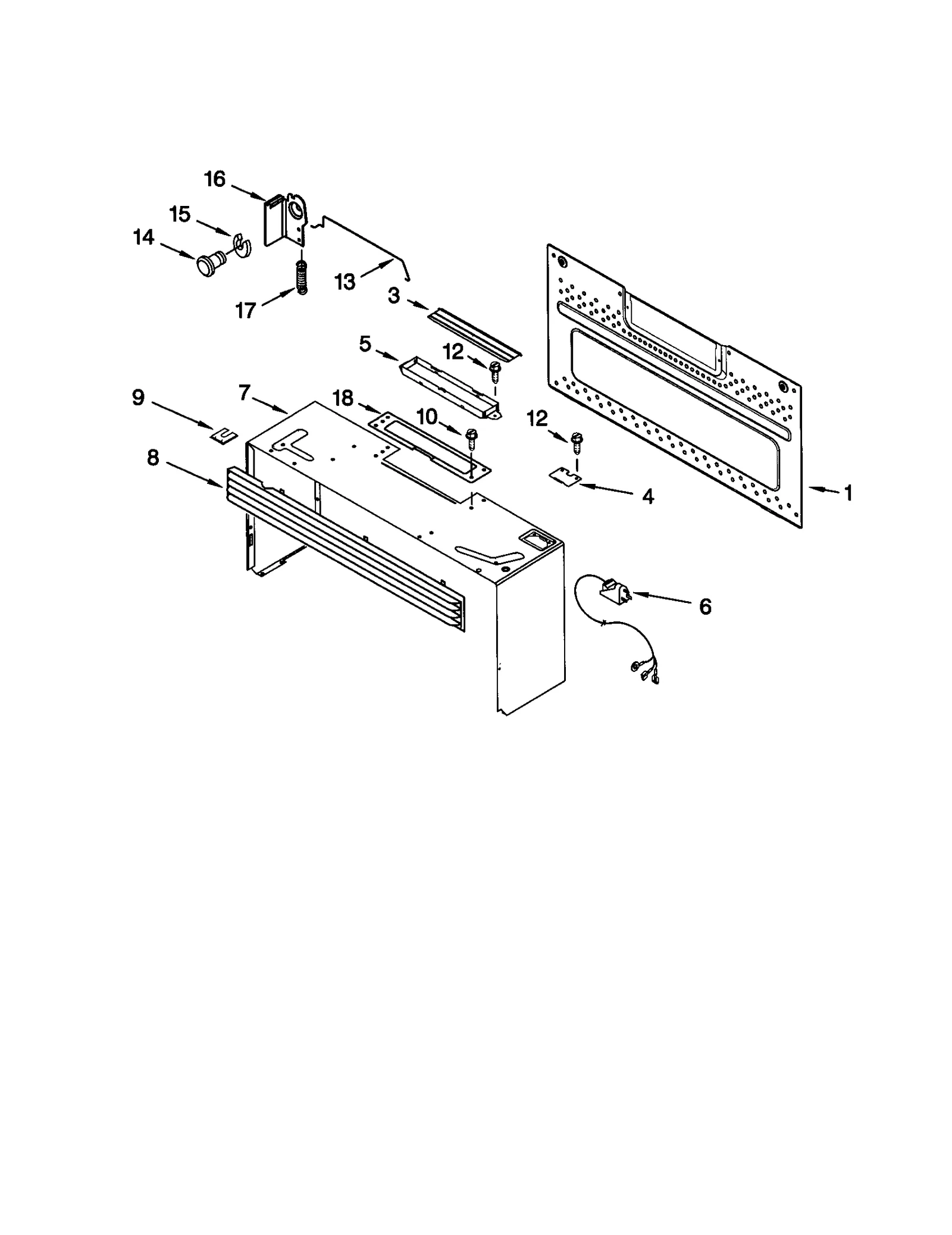

CABINET AND INSTALLATION

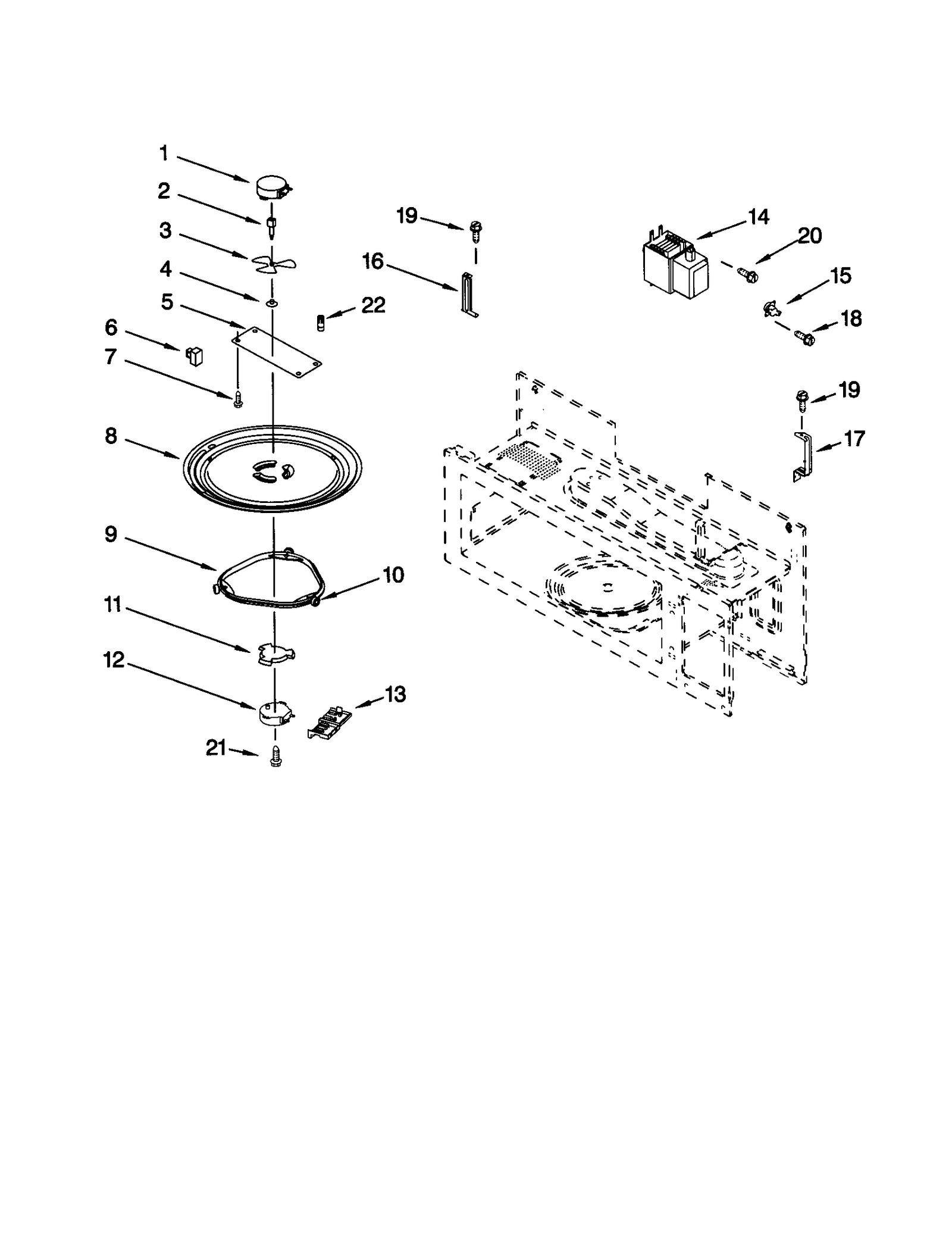

MAGNETRON AND TURNTABLE

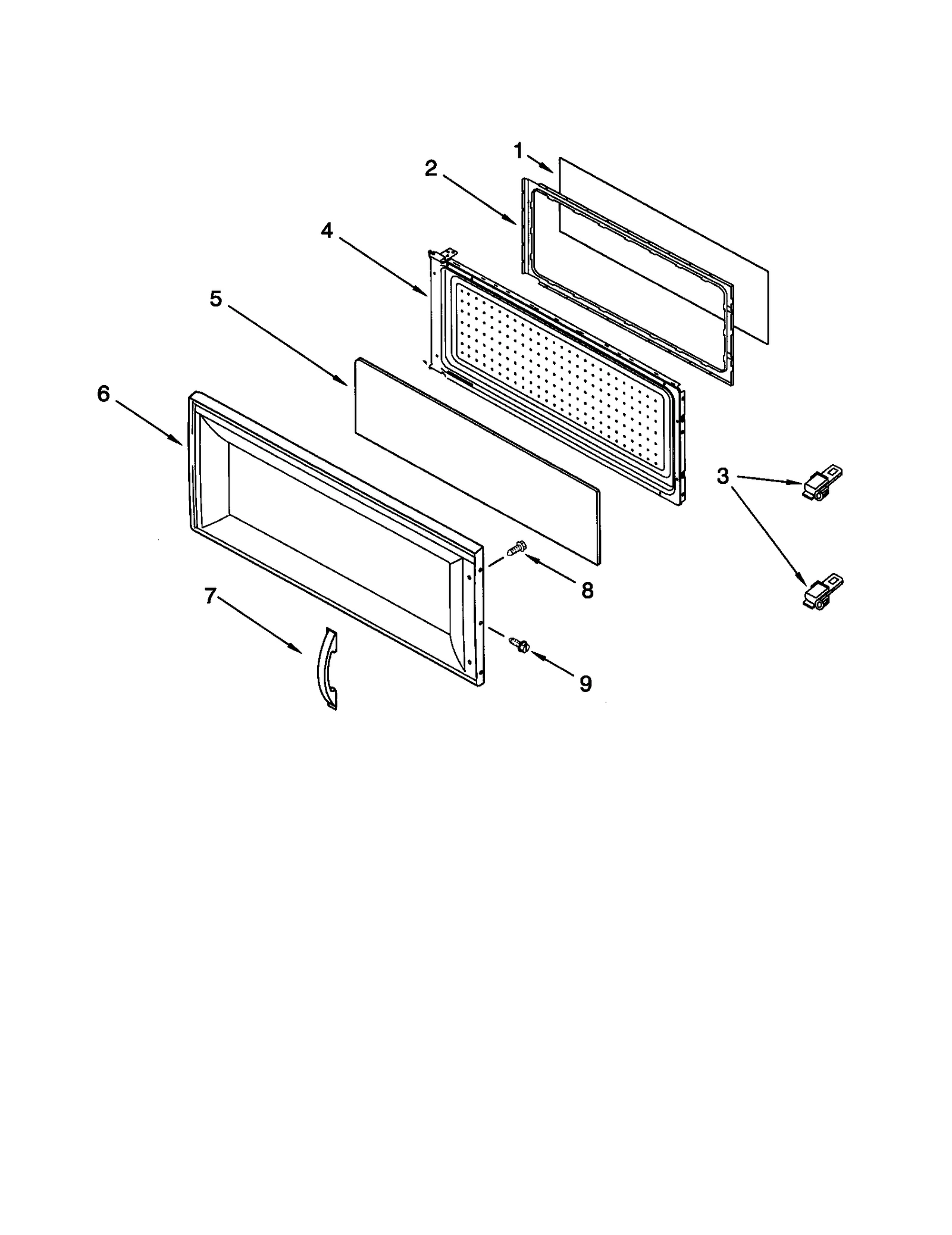

DOOR

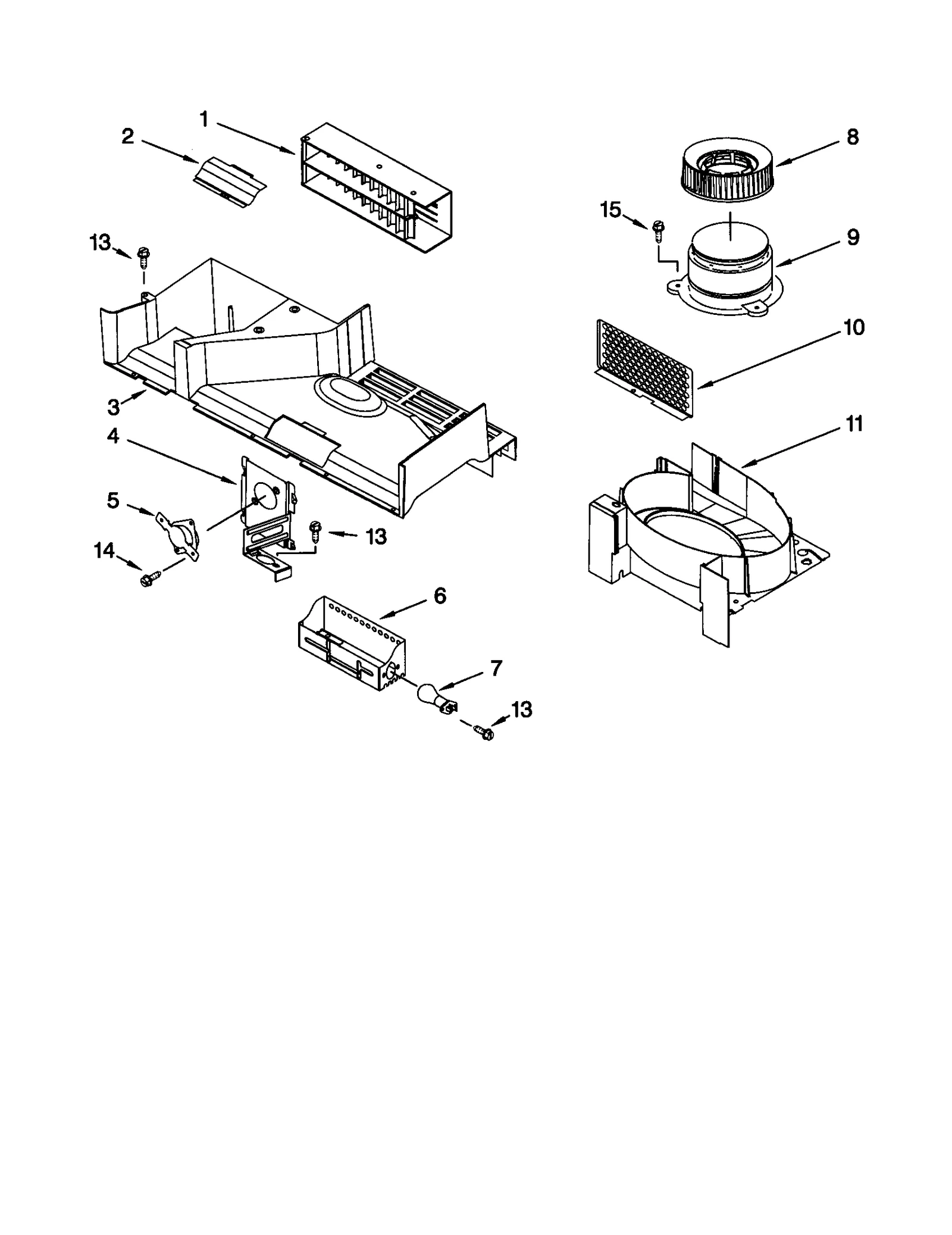

AIR FLOW

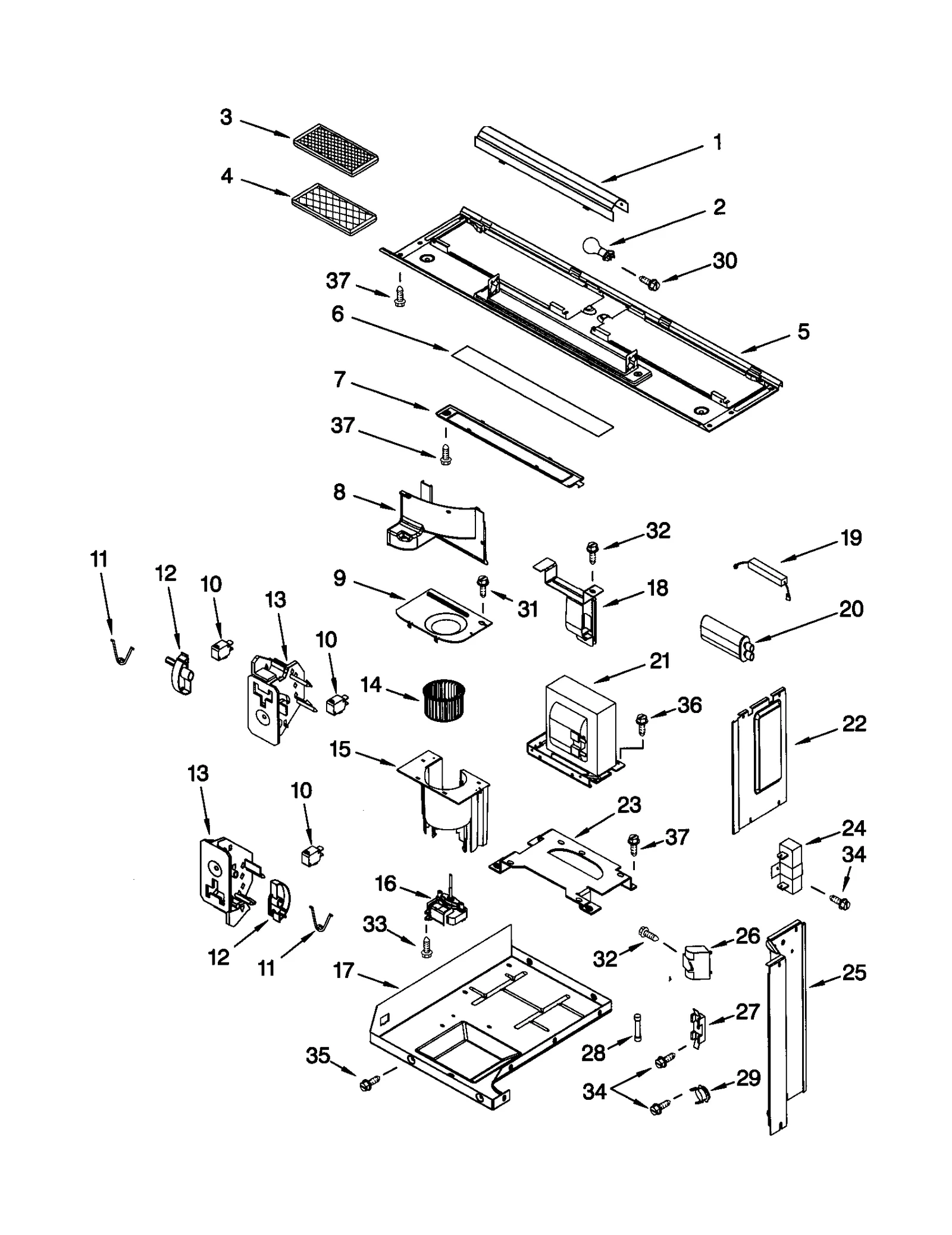

INTERIOR AND VENTILATION
Common parts from model Whirlpool 665.68601992 Microwave (Kenmore 66568601992)
0
Microwave Door WPL 8169396 Contact Us For Availability
0
Microwave Door WPL 8169397 Contact Us For Availability
0
Microwave Door WPL 8169398 Contact Us For Availability
1
Stirrer Motor WPL 4393746 Contact Us For Availability
1
Microwave Door Film WPL 4393870 Contact Us For Availability
1
Deflector Arm WPL 8169651 Contact Us For Availability
1
Reflector WPL 4393688 Contact Us For Availability
2
Microwave Door Choke WPL 8169545 Contact Us For Availability
2
Stirrer Shaft WPL 4393794 Contact Us For Availability
2
Reflector WPL 8169557 Contact Us For Availability
3
Microwave Door Latch WPL 4393913 Contact Us For Availability
3
Stirrer Blade WPL 4393748 Contact Us For Availability
3
Air Duct WPL 8169465 Contact Us For Availability
4
Microwave Door (White) WPL 8169653 Contact Us For Availability
4
Coverplate WPL 4393714 Contact Us For Availability
4
Disk Holder WPL 4393749 Contact Us For Availability
4
Thermostat Bracket WPL 8169558 Contact Us For Availability
4A
Microwave Door WPL 8169460 Contact Us For Availability
4B
Microwave Door WPL 8169429 Contact Us For Availability
5
Door Glass (Black) WPL 4393725 Contact Us For Availability
5
Stirrer Cover WPL 4393750 Contact Us For Availability
5
Thermostat WPL 4393945 Contact Us For Availability
5
Base WPL 8169407 Contact Us For Availability
5A
Door Glass WPL 8169548 Contact Us For Availability
6
Power Cord WPL 4393793 Contact Us For Availability
6
Cover WPL 8169448 Contact Us For Availability
6
Housing WPL 4393680 Contact Us For Availability
6
Lamp Glass WPL 8169564 Contact Us For Availability
6B
Panel WPL 8169336 Contact Us For Availability
7
Wrapper Cabinet WPL 8169660 Contact Us For Availability
7
Nail WPL 4393291 Contact Us For Availability
7
Light Cover WPL 8169316 Contact Us For Availability
7A
Wrapper Cabinet WPL 8169661 Contact Us For Availability
7B
Microwave Door Handle WPL 4393783 Contact Us For Availability
7B
Wrapper Cabinet WPL 8169662 Contact Us For Availability
8
Microwave Turntable Tray WPL 4393799 No Longer Available
8
Fan Wheel WPL 4393682 Contact Us For Availability
8
Air Guide WPL 8169467 Contact Us For Availability
8B
Microwave Vent Grille Assembly (Almond) WPL 8169334 Contact Us For Availability
9
Fan Motor WPL 4393763 Contact Us For Availability
9
Lid Fan WPL 8169541 Contact Us For Availability
10
Microwave Turntable Tray Support Wheel WPL 4393861 Contact Us For Availability
10
Shield WPL 8169559 Contact Us For Availability
11
Microwave Door Interlock Spring WPL 8169438 Contact Us For Availability
11
Switch WPL 8169472 Contact Us For Availability
11
Housng-blw WPL 8169668 Contact Us For Availability
12
Screw WPL 4393828 Contact Us For Availability
12
Cam Plate WPL 8169469 Contact Us For Availability
13
Release Rod WPL 8169318 Contact Us For Availability
13
Terminal Cover WPL 4393756 Contact Us For Availability
14
Latch WPL 8169319 Contact Us For Availability
14
Fan Wheel WPL 8169317 Contact Us For Availability
15
Microwave Thermal Cut-Off WPL 4393943 Contact Us For Availability
15
E-Ring WPL 8169320 Contact Us For Availability
15
Screw WPL 4393830 Contact Us For Availability
15
Housing WPL 8169542 Contact Us For Availability
16
Catch WPL 8169321 Contact Us For Availability
16
Connector WPL 8169540 Contact Us For Availability
16
Fan Motor WPL 4393700 Contact Us For Availability
17
Spring WPL 8169374 Contact Us For Availability
17
Connector WPL 8169705 Contact Us For Availability
17
Base WPL 8169565 Contact Us For Availability
18
Adapter WPL 8169697 Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
18
Capacitor Bracket WPL 4393702 Contact Us For Availability
21
Transformer WPL 4393809 Contact Us For Availability
22
Bushing WPL 8169630 Contact Us For Availability
22
Plate WPL 4393705 Contact Us For Availability
23
Mounting Plate WPL 4393706 Contact Us For Availability
24
Resistor WPL 4393707 Contact Us For Availability
25
Plate WPL 8169470 Contact Us For Availability
26
Microwave Vent Motor Capacitor WPL 4393709 Contact Us For Availability
27
Fuse Block WPL 4393538 Contact Us For Availability
29
Thermostat WPL 4393710 Contact Us For Availability
30
Microwave Screw WPL 8169474 Contact Us For Availability
33
Microwave Screw WPL 4393833 Contact Us For Availability
34
Screw WPL 8169478 Contact Us For Availability
37
Screw WPL 4393839 Contact Us For Availability
× ![]()
