Model Whirlpool 596.69989000 Refrigerator (Kenmore 59669989000) – Common Parts &amp; Diagrams

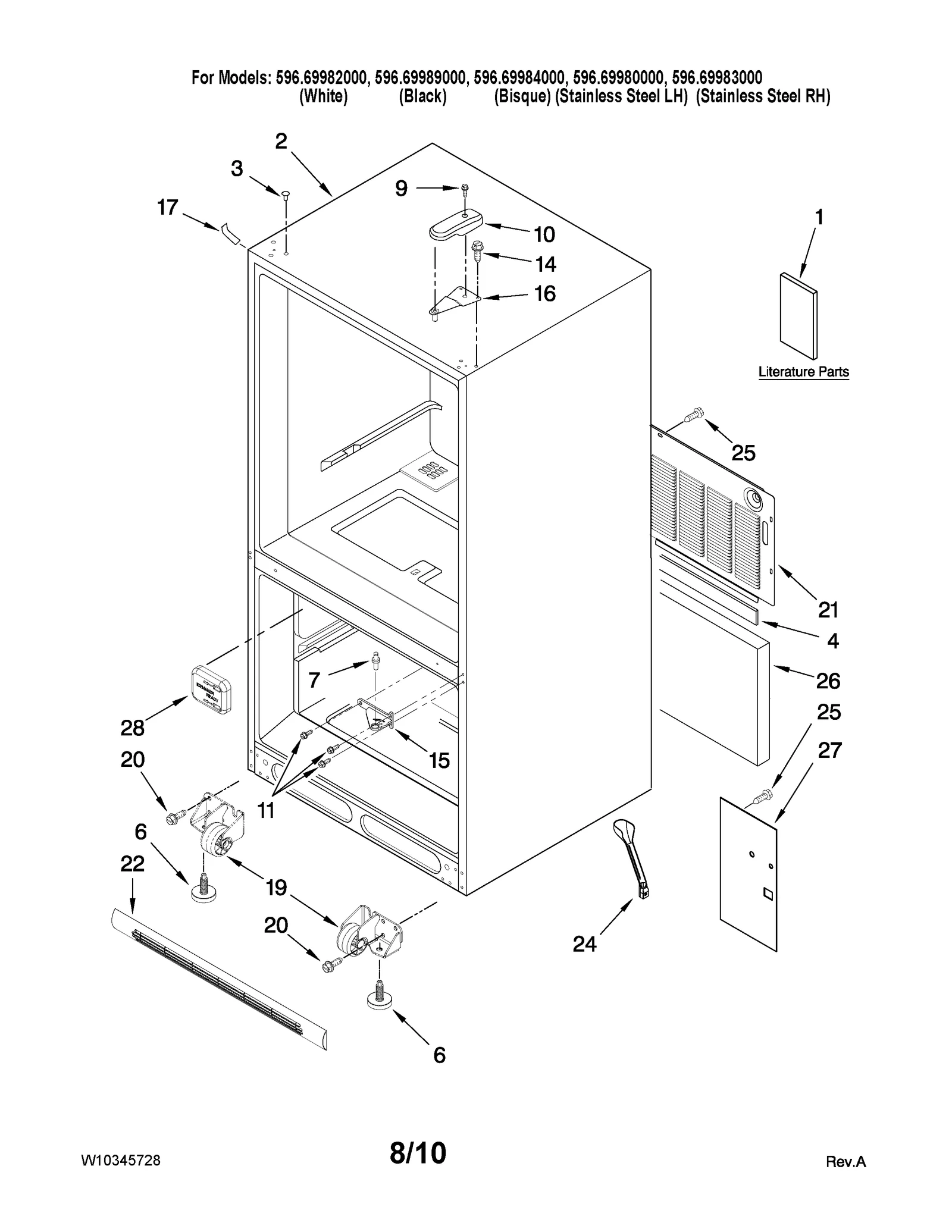

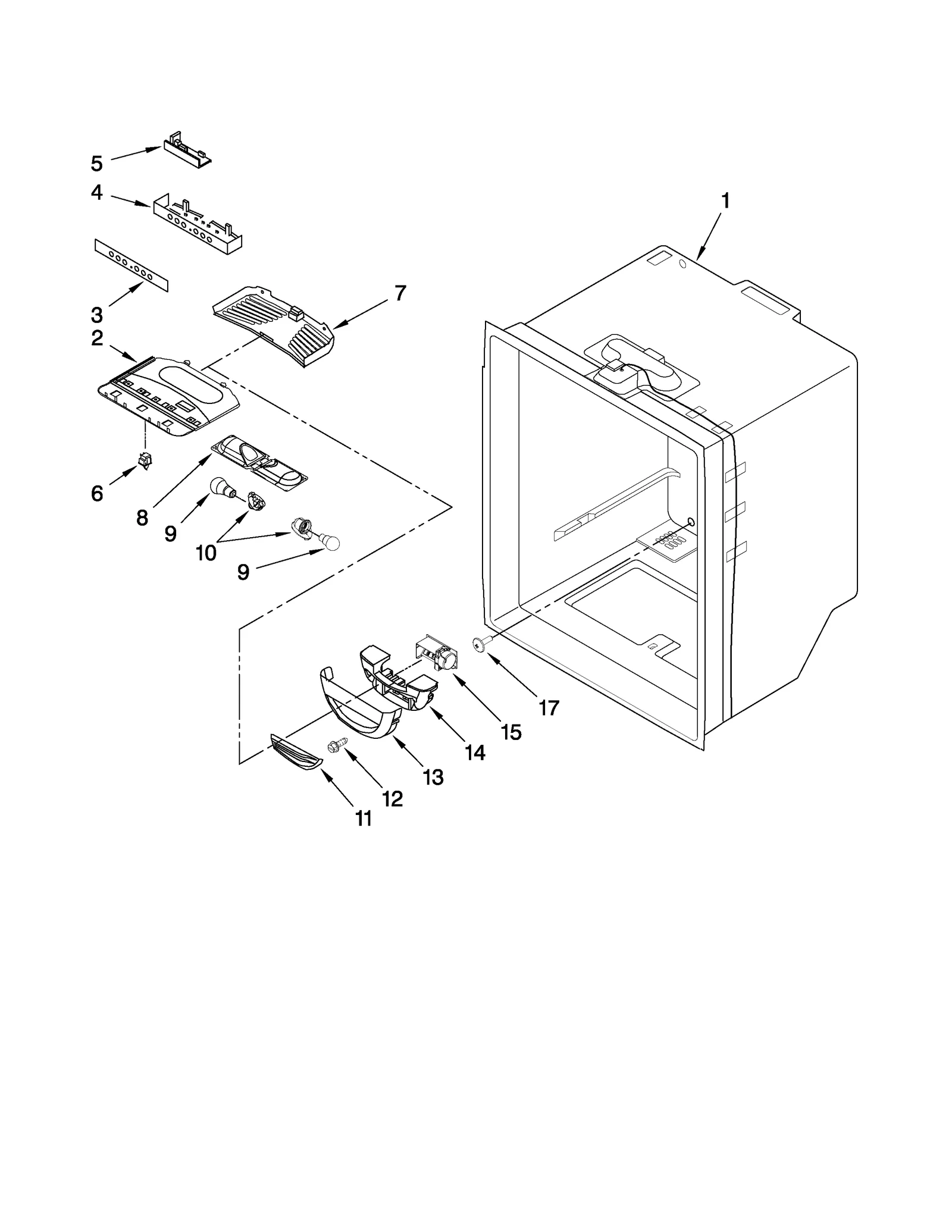

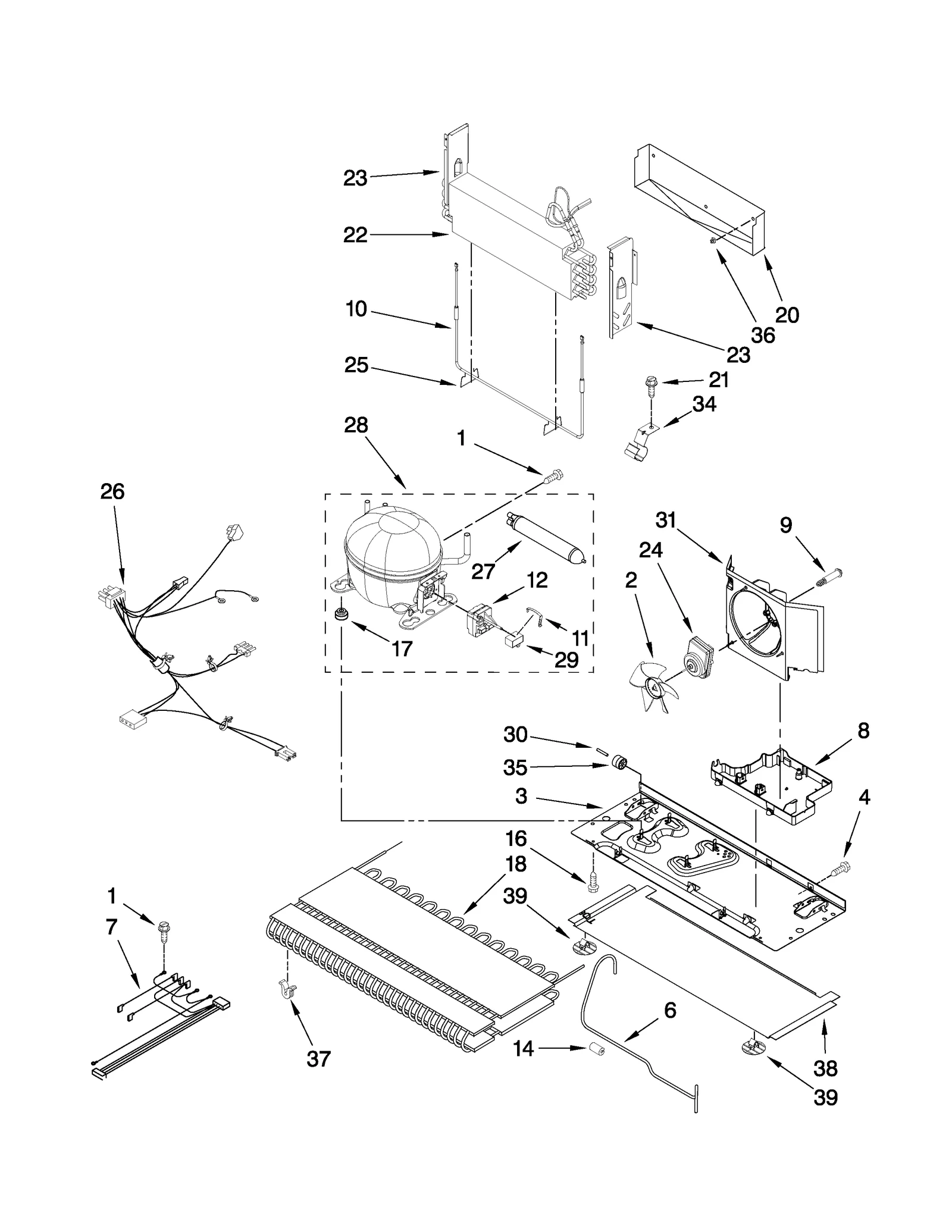

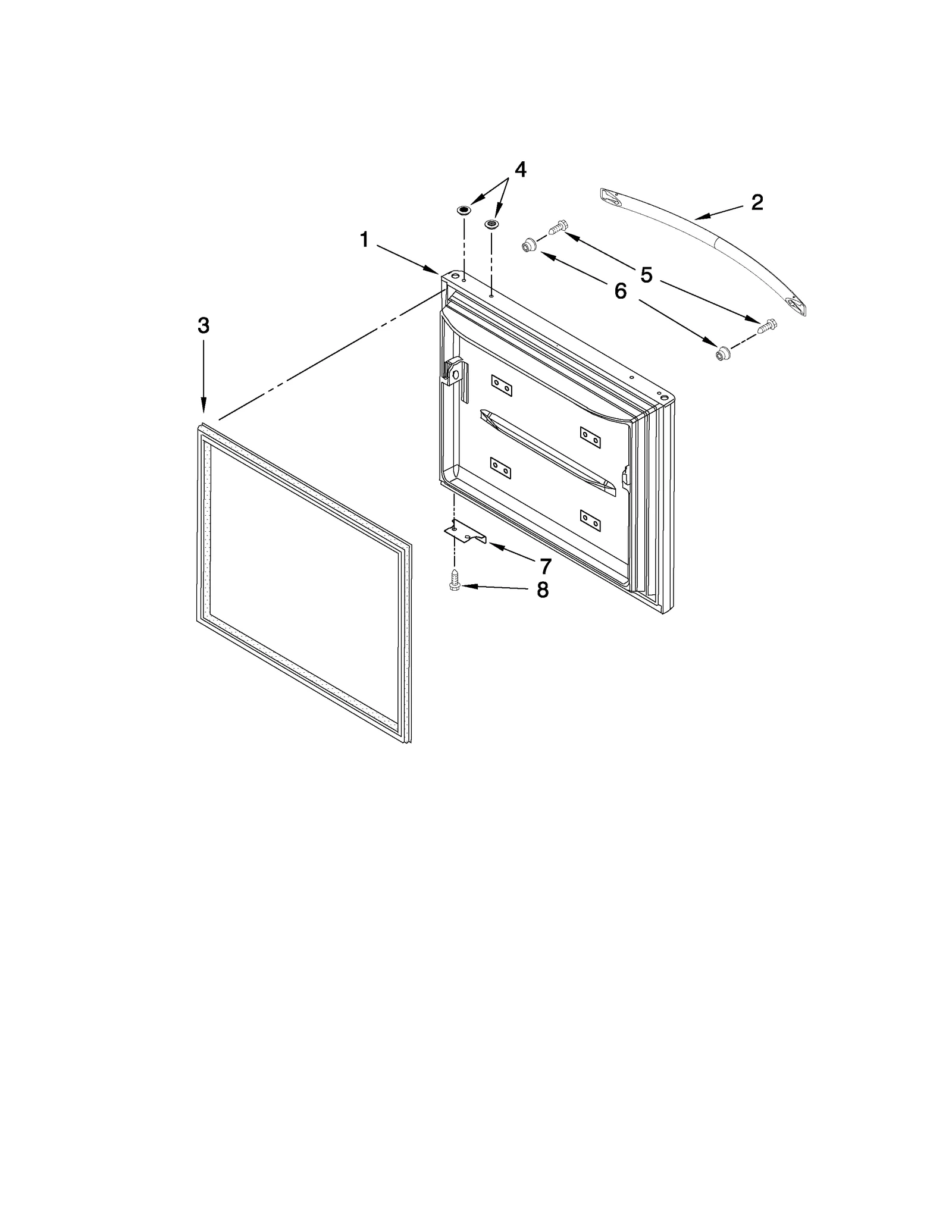

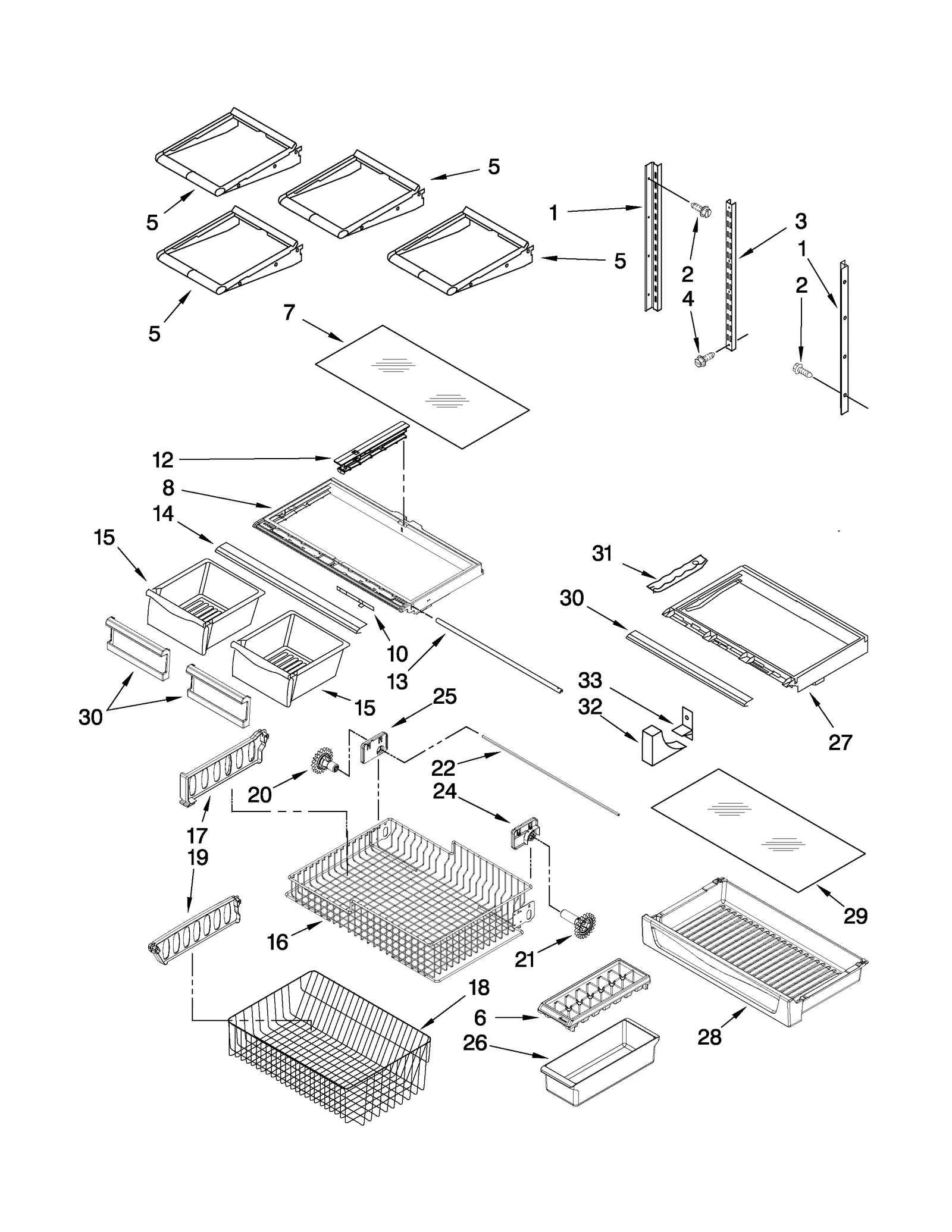

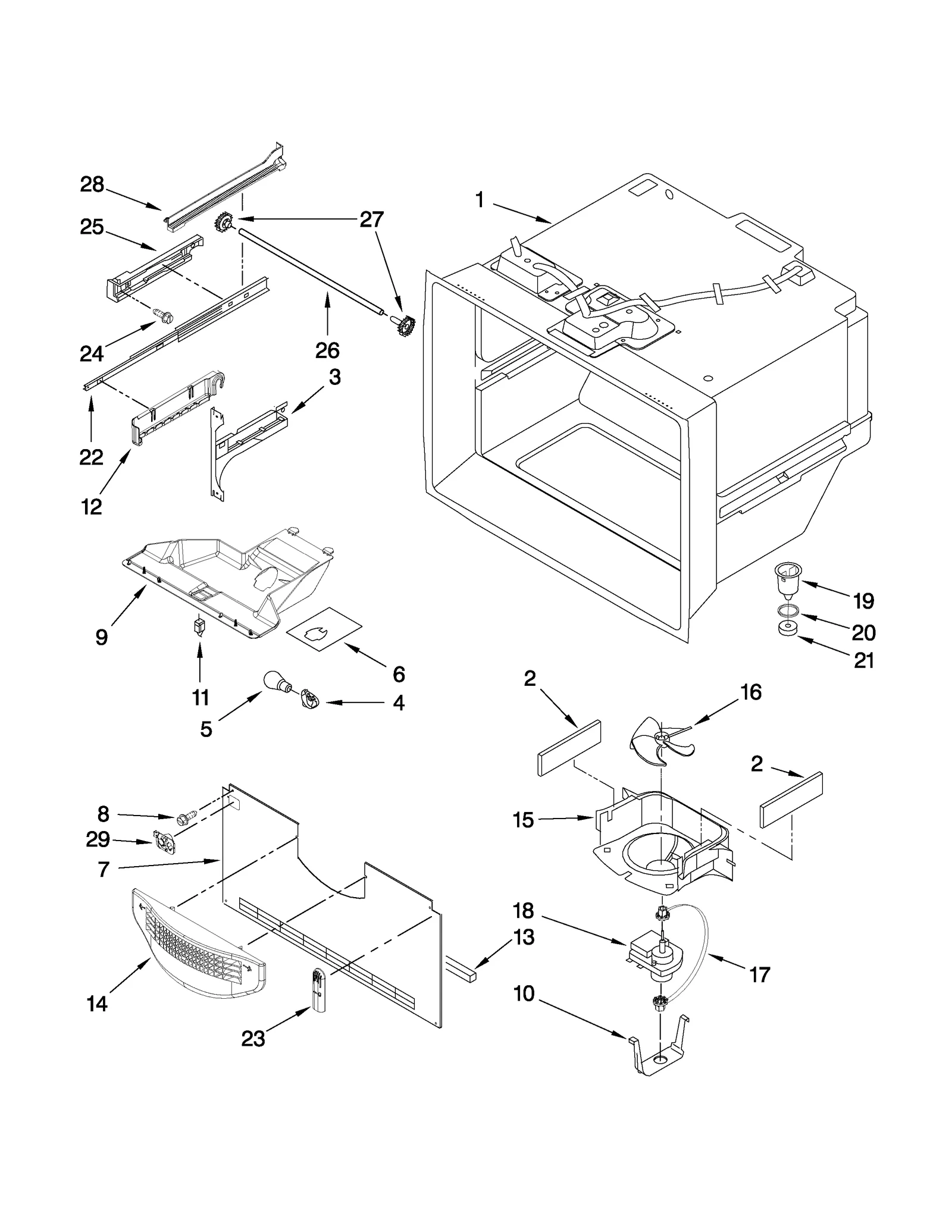

1

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $20.12

1

W10251970 Whirlpool Refrigerator Ladder Backorder WPL W10251970 $19.74

1A

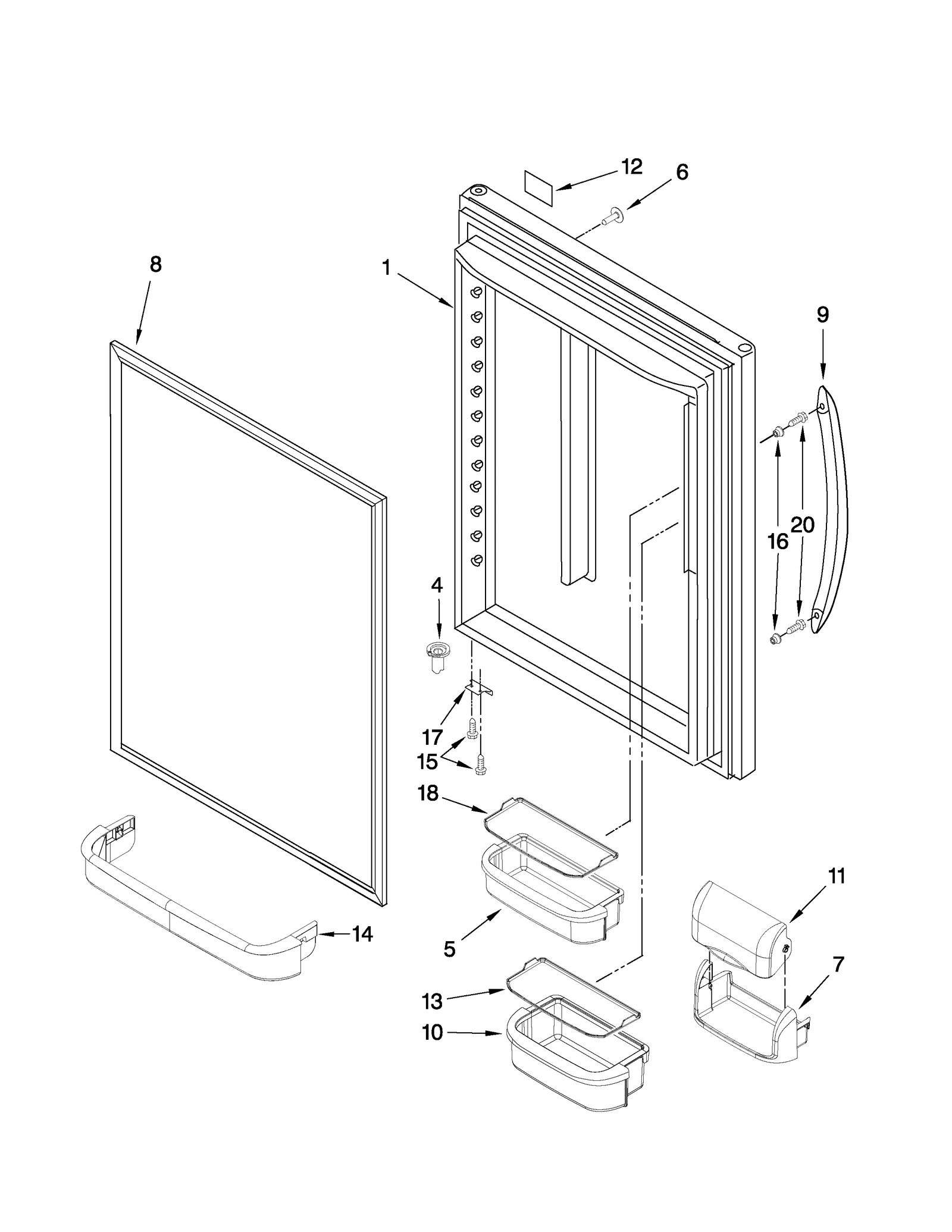

Refrigerator Door Assembly (Bisque) WPL 12658573Q Contact Us For Availability

1B

Refrigerator Door Assembly (Black) WPL 12658573B Contact Us For Availability

1C

Refrigerator Door Panel WPL 13107509S Contact Us For Availability

1D

13107540SQ Whirlpool Refrigerator Foam In Pla Backorder WPL 13107540SQ $574.82

2

W10856123 Whirlpool Refrigerator Gasket In Stock WPL W10856123 $4.82

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $52.44

3

W10273463 Whirlpool Refrigerator Ladder Backorder WPL W10273463 $18.89

3

W10480107 Whirlpool Refrigerator Plate Backorder WPL W10480107 $99.74

3

WPW10330991 Whirlpool Refrigerator Bracket In Stock WPL WPW10330991 $102.22

3A

WPW10330993 Whirlpool Refrigerator Bracket In Stock WPL WPW10330993 $103.73

4

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $4.99

4

B5759655 Whirlpool Refrigerator Gasket In Stock WPL B5759655 $8.23

4

W10215666 Whirlpool Refrigerator Screw Backorder WPL W10215666 $5.85

4

W11447232 Whirlpool Refrigerator Socket Backorder WPL W11447232 $8.33

4

WP67003638 Whirlpool Closing Cam In Stock WPL WP67003638 $5.30

4A

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $43.23

5

W11402522 Whirlpool Refrigerator Glass Shelf Backorder WPL W11402522 $150.81

5

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $6.08

5

WPW10371193 Whirlpool Refrigerator Door Bin Backorder WPL WPW10371193 $62.74

6

W11469652 Whirlpool Refrigerator Shield Backorder WPL W11469652 $14.02

6

WP67001130 Whirlpool Refrigerator White Butto Backorder WPL WP67001130 $4.82

6

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $5.30

6

Refrigerator Discharge Tube WPL W10217749 Contact Us For Availability

6A

WP12246608 Whirlpool Refrigerator Button In Stock WPL WP12246608 $5.99

6B

WP12246610 Whirlpool Refrigerator Handle Plug In Stock WPL WP12246610 $5.30

7

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $57.50

7

WP67006642 Whirlpool Refrigerator Pin Backorder WPL WP67006642 $4.82

7

WPW10290745 Whirlpool Refrigerator Wire Harne In Stock WPL WPW10290745 $120.70

7

WPW10308414 Whirlpool Refrigerator Evaporator Backorder WPL WPW10308414 $162.93

8

W10675752 Whirlpool Refrigerator Frame Backorder WPL W10675752 $132.27

8

WPW10443309 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10443309 $142.47

8

WPW10655367 Whirlpool Refrigerator Drip Pan In Stock WPL WPW10655367 $60.16

8A

WPW10436245 Whirlpool Refrigerator FIP Gasket Backorder WPL WPW10436245 $227.22

9

W10829281 Whirlpool Refrigerator Screw Backorder WPL W10829281 $7.98

9

WPW10277025 Whirlpool Refrigerator Housing In Stock WPL WPW10277025 $87.52

9

WPW10642944 Whirlpool Refrigerator Handle Backorder WPL WPW10642944 $166.53

9A

Refrigerator Handle WPL W10169571N Contact Us For Availability

9B

Refrigerator Handle WPL W10169572N Contact Us For Availability

9C

WPW10642946 Whirlpool Refrigerator Handle Backorder WPL WPW10642946 $123.99

10

WP12729127 Whirlpool Refrigerator Heater In Stock WPL WP12729127 $126.57

10

Refrigerator Evaporator Fan Motor Clip WPL 13058002 Contact Us For Availability

10

Refrigerator Cantilever Bin WPL 12849101 Contact Us For Availability

67003900 Whirlpool Refrigerator Insert Damper Backorder WPL 67003900 $5.99

W10204187 Whirlpool Refrigerator Retainer Backorder WPL W10204187 $5.90

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $27.54

WP67003637 Whirlpool Dairy Door Backorder WPL WP67003637 $54.67

12

W11772394 Whirlpool Screw In Stock WPL W11772394 $8.39

12

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $60.60

12

Refrigerator Nameplate WPL W10292348 Contact Us For Availability

12A

W10830979 Whirlpool Refrigerator Nameplate Backorder WPL W10830979 $29.63

12A

WPW10197428 Whirlpool Start Device In Stock WPL WPW10197428 $39.32

12A

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $60.60

12B

Refrigerator Nameplate WPL W10292349 Contact Us For Availability

W11451451 Whirlpool Refrigerator Gasket Backorder WPL W11451451 $8.01

WP12227302WD Whirlpool Refrigerator Shelf Sup Backorder WPL WP12227302WD $70.60

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $76.89

Refrigerator Mat WPL W10311293 Contact Us For Availability

67001139 Whirlpool Refrigerator Shelf Trim Backorder WPL 67001139 $69.91

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $5.99

W11750607 Whirlpool Insulation Backorder WPL W11750607 $32.09

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $35.95

W11689473 Whirlpool Door Hinge Backorder WPL W11689473 $44.94

WP98165 Whirlpool Screw Backorder WPL WP98165 $4.82

WPW10167023 Whirlpool Refrigerator Shroud In Stock WPL WPW10167023 $67.69

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $102.24

15A

WP12607104ED Whirlpool Refrigerator Door Hing Backorder WPL WP12607104ED $101.60

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $30.88

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $22.25

WP67006113 Whirlpool Stud Bolt In Stock WPL WP67006113 $6.12

Refrigerator Screw WPL 12992101 Contact Us For Availability

12587703W Whirlpool Refrigerator Cover Backorder WPL 12587703W $14.02

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $46.55

M0310343 Whirlpool Button Plug Backorder WPL M0310343 $7.10

W10241046 Whirlpool Refrigerator Divider Backorder WPL W10241046 $17.48

W11690160 Whirlpool Grommet Backorder WPL W11690160 $4.99

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $5.99

17A

67003781 Whirlpool Refrigerator Door Stop (BS Backorder WPL 67003781 $57.93

17A

Corner Cover WPL 12587703C Contact Us For Availability

17B

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $8.39

18

W10346423 Whirlpool Refrigerator Condenser Backorder WPL W10346423 $168.29

18

W11024089 Whirlpool Refrigerator Evaporator F In Stock WPL W11024089 $31.21

18

Refrigerator Mat WPL 12567314SP Contact Us For Availability

19

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $33.98

20

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $7.11

20

Refrigerator Screw WPL W10290759 Contact Us For Availability

20

Refrigerator Evaporator Drip Pan WPL W10292801 Contact Us For Availability

21

W10210978 Whirlpool Refrigerator Back Cover Backorder WPL W10210978 $134.45

21

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $5.99

22

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $87.28

22

WPW10534166 Whirlpool Refrigerator Front Gril Backorder WPL WPW10534166 $76.18

22

Refrigerator Evaporator WPL 12726401 Contact Us For Availability

23

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $4.82

23

Refrigerator Support Evaporator WPL 12225702 Contact Us For Availability

23A

Refrigerator Support Evaporator WPL 12225602 Contact Us For Availability

24

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $60.95

24

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $4.92

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $99.38

25

WPW10284684 Whirlpool Refrigerator Bracket In Stock WPL WPW10284684 $19.87

25A

WPW10284685 Whirlpool Refrigerator Bracket In Stock WPL WPW10284685 $20.00

26

W10802329 Whirlpool Refrigerator Shaft Backorder WPL W10802329 $77.39

26

WPW10234024 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10234024 $224.45

26

Refrigerator Sound Dampening Pad WPL 12820505 Contact Us For Availability

27

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $10.50

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $21.00

28

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $379.31

28

W10328331 Whirlpool Refrigerator Utility Pan Backorder WPL W10328331 $97.72

28

W11489993 Whirlpool Refrigerator Rail In Stock WPL W11489993 $13.79

28A

W11489994 Whirlpool Refrigerator Rail In Stock WPL W11489994 $13.79

29

W11448709 Whirlpool Refrigerator Bracket Backorder WPL W11448709 $16.36

29

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $45.27

30

67006434 Whirlpool Axle Pin In Stock WPL 67006434 $4.82

31

W11556315 Whirlpool Shroud In Stock WPL W11556315 $47.99

34

W10281329 Whirlpool Clamp In Stock WPL W10281329 $8.39

35

WP67005149 Whirlpool Roller In Stock WPL WP67005149 $14.02

36

CLIP EVAPORATOR WPL 10623002 Contact Us For Availability

37

WPW10137529 Whirlpool Refrigerator Grommet Backorder WPL WPW10137529 $4.82

38

W10206336 Whirlpool Refrigerator Extension Backorder WPL W10206336 $53.08

39

W10206339 Whirlpool Fastener Backorder WPL W10206339 $7.09

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $34.42

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $52.10

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $12.67

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $29.55

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

W11619328 Whirlpool Wire Harness Backorder WPL W11619328 $51.96

W11762633 Whirlpool Icemaker In Stock WPL W11762633 $152.88

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $39.72

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

Refrigerator Service Valve WPL 978029 Contact Us For Availability

Refrigerator Vinyl Tape WPL 479502 Contact Us For Availability

Appliance Porcelain Touch-Up Paint, 1-qt (Whi WPL 799344 Contact Us For Availability

Refrigerator Ice Maker Torx Key Wrench WPL 1117510 Contact Us For Availability

FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS L WPL N/P Contact Us For Availability

Refrigerator Service Valve WPL 978028 Contact Us For Availability
