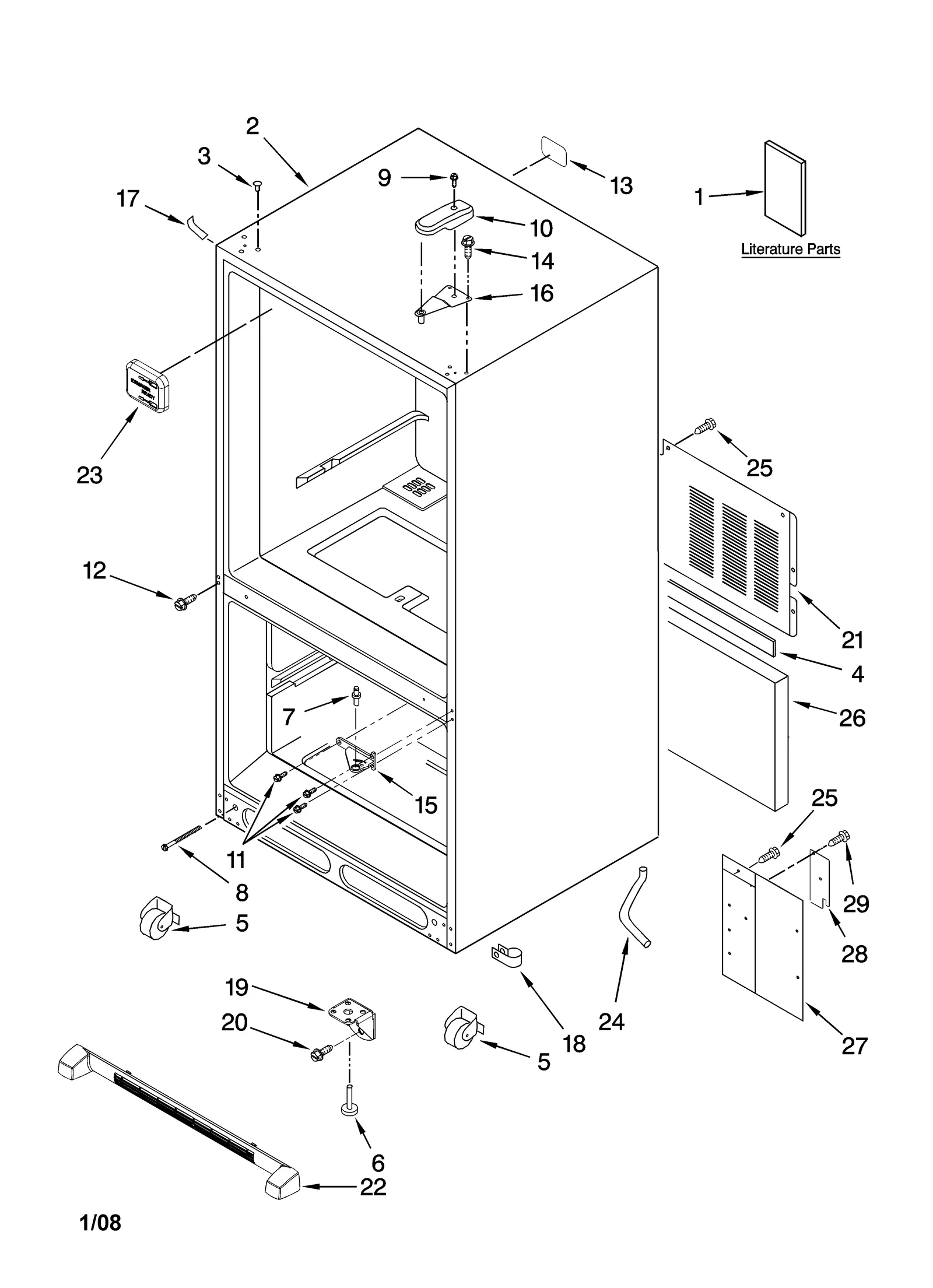

Model Whirlpool 596.66133701 Bottom-Mount Refrigerator (Kenmore 59666133701) – Common Parts &amp; Diagrams

1

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $67.88

1

WPW10671238 Whirlpool Drawer Slide Rail In Stock WPL WPW10671238 $43.72

1

FREEZER DOOR (W/ INSULATION) (WHITE) WPL W10175629 Contact Us For Availability

1

REFRIGERATOR DOOR (W/LINER) (WHITE) WPL 67001213 Contact Us For Availability

1A

FREEZER DOOR (W/ INSULATION) (STAINLESS STEEL WPL W10178335 Contact Us For Availability

1A

REFRIGERATOR DOOR (W/LINER) (STAINLESS STEEL) WPL W10178338 Contact Us For Availability

2

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $47.66

2

W11240743 Whirlpool Refrigerator Screw Backorder WPL W11240743 $8.89

2

WPB5705307 Whirlpool Refrigerator Tube In Stock WPL WPB5705307 $6.80

2

WPW10231481 Whirlpool Refrigerator Shelf Trim In Stock WPL WPW10231481 $82.58

2

Refrigerator Handle (White) WPL 67001236 Contact Us For Availability

2A

Refrigerator Freezer Door Handle WPL 67001237 Contact Us For Availability

3

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $10.50

3

WP12744905 Whirlpool Refrigerator Compressor Backorder WPL WP12744905 $74.69

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

3

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $5.30

3

WPW10443311 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10443311 $143.88

3

Basepan WPL 67006914 Contact Us For Availability

3A

WP12246608 Whirlpool Refrigerator Button In Stock WPL WP12246608 $5.99

3A

WPW10436247 Whirlpool Refrigerator FIP Gasket Backorder WPL WPW10436247 $224.68

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $57.50

4

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.46

4

Refrigerator Freezer Basket, Upper WPL 67004985 Contact Us For Availability

5

W10503182 Whirlpool Refrigerator Freezer Bask Backorder WPL W10503182 $162.75

5

WP67003753 Whirlpool Refrigerator Inlet Valve In Stock WPL WP67003753 $70.72

5

Block, Eps C WPL 67005491 Contact Us For Availability

5

Bucket, Sm R WPL 67006991 Contact Us For Availability

6

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $37.31

6

WP67006908 Whirlpool Refrigerator Screw In Stock WPL WP67006908 $4.99

6

Refrigerator Tube WPL W10174591 Contact Us For Availability

6

SCREW (4) (WHITE) WPL 12991103 Contact Us For Availability

6A

12991101 Whirlpool Refrigerator Screw Backorder WPL 12991101 $8.89

7

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $8.70

7

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

7

HARNESS, EVAP HEATER WPL W10119856 Contact Us For Availability

7

PLUG BUTTON (2) (WHITE) WPL 10712401 Contact Us For Availability

7A

67004838 Whirlpool Refrigerator Button Vent P Backorder WPL 67004838 $7.10

8

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $4.82

8

WPW10443309 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10443309 $142.47

8

Refrigerator Drain Pan WPL 67004713 Contact Us For Availability

8

DIVIDER, BASKET (LOWER) WPL 67006644 Contact Us For Availability

8A

WPW10436245 Whirlpool Refrigerator FIP Gasket Backorder WPL WPW10436245 $227.22

9

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

9

Grommet Bracket WPL 61004743 Contact Us For Availability

9

Refrigerator Door Handle (White) WPL 67001217 Contact Us For Availability

9

MOLD & HEATER ASSEMBLY (ALSO ORDER 542638) WPL 6282280 Contact Us For Availability

9A

DOOR HANDLE (STAINLESS STEEL) WPL 67001216 Contact Us For Availability

67001014 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001014 $14.02

W10122561 Whirlpool Refrigerator Cup Fill In Stock WPL W10122561 $17.79

WP67002135 Whirlpool Refrigerator Defrost Hea Backorder WPL WP67002135 $112.64

Refrigerator Freezer Ice Bin WPL 10423131 Contact Us For Availability

DIVIDER, BASKET (UPPER) WPL 67004127 Contact Us For Availability

67003900 Whirlpool Refrigerator Insert Damper Backorder WPL 67003900 $5.99

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $4.99

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $63.89

WP67003638 Whirlpool Closing Cam In Stock WPL WP67003638 $5.30

Refrigerator Capacitor Clip WPL W10131991 Contact Us For Availability

11A

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $43.23

8201769 Whirlpool Refrigerator Compressor Rel In Stock WPL 8201769 $132.34

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $59.60

Refrigerator Fixed Shelf WPL 67001149 Contact Us For Availability

Nameplate-ke WPL 13056602 Contact Us For Availability

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $73.20

WP67001054 Whirlpool Left Glide In Stock WPL WP67001054 $4.82

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $8.27

Refrigerator Bucket WPL 67001140 Contact Us For Availability

13A

WP67001053 Whirlpool Drawer Glide In Stock WPL WP67001053 $4.53

67001139 Whirlpool Refrigerator Shelf Trim Backorder WPL 67001139 $69.91

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

WP67001308 Whirlpool Deli Drawer Backorder WPL WP67001308 $107.16

WPW10165425 Whirlpool Bimetal Defrost Thermos In Stock WPL WPW10165425 $48.68

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $52.34

WP98165 Whirlpool Screw Backorder WPL WP98165 $4.82

WPW10137529 Whirlpool Refrigerator Grommet Backorder WPL WPW10137529 $4.82

Refrigerator Screw WPL 67006608 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

W10833528 Whirlpool Whirlpool Refrigerator Cr In Stock WPL W10833528 $93.93

WP67004977 Whirlpool Refrigerator Door Hinge Backorder WPL WP67004977 $4.82

Refrigerator Screw WPL 67006573 Contact Us For Availability

16A

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $14.02

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $46.55

WP12227302WD Whirlpool Refrigerator Shelf Sup Backorder WPL WP12227302WD $70.60

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $5.99

17A

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $8.39

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $34.18

WPW10671240 Whirlpool Refrigerator Frame In Stock WPL WPW10671240 $91.92

Refrigerator Condenser Coil WPL 67006133 Contact Us For Availability

Refrigerator Egg Bin Cover WPL 10436404 Contact Us For Availability

12846902 Whirlpool Refrigerator Screw Backorder WPL 12846902 $8.39

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $87.28

WP67006877 Whirlpool Refrigerator Glass Shelf Backorder WPL WP67006877 $201.23

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $6.89

Refrigerator Egg Bin WPL 10436506 Contact Us For Availability

67001073 Whirlpool Refrigerator Center Ladder Backorder WPL 67001073 $37.25

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $94.12

W11337775 Whirlpool Drip Tray Backorder WPL W11337775 $68.10

W11451451 Whirlpool Refrigerator Gasket Backorder WPL W11451451 $8.01

Refrigerator Short Bucket WPL 67004270 Contact Us For Availability

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $62.13

WP33001882 Whirlpool Screw Backorder WPL WP33001882 $60.93

Cover Unit WPL 67006101 Contact Us For Availability

Tall Bucket WPL 67003889 Contact Us For Availability

Refrigerator Ladder WPL 67001302 Contact Us For Availability

21A

ADAPTER, SLIDE (RIGHT) WPL W10128119 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $26.05

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $35.95

Inglis Refrigerator Evaporator WPL 12002051 Contact Us For Availability

Refrigerator Tilt-Out Bin Bracket WPL 67004107 Contact Us For Availability

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $54.88

WPW10167023 Whirlpool Refrigerator Shroud In Stock WPL WPW10167023 $67.69

Refrigerator Shelf WPL 67001151 Contact Us For Availability

DAM (RIGHT SIDE) WPL 67001084 Contact Us For Availability

Refrigerator Rack WPL 10448903 Contact Us For Availability

23A

DAM (LEFT SIDE) WPL 67001083 Contact Us For Availability

12918001 Whirlpool Refrigerator Funnel Backorder WPL 12918001 $8.23

W10164397 Whirlpool Refrigerator Drain Tube Backorder WPL W10164397 $9.35

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $22.25

Refrigerator Condenser Fan Motor WPL 67004432 Contact Us For Availability

W10121318 Whirlpool Refrigerator Grommet Backorder WPL W10121318 $34.13

W11673433 Whirlpool Clip Backorder WPL W11673433 $99.38

WP67001255 Whirlpool Ice Bucket Backorder WPL WP67001255 $140.55

RACK, ICE WPL 12646501 Contact Us For Availability

26

13060302 Whirlpool Refrigerator Wire Harness Backorder WPL 13060302 $236.52

26

67003796 Whirlpool Refrigerator Fiber Acousti Backorder WPL 67003796 $14.02

26

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $52.18

27

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $33.98

27

WPB2150504 Whirlpool Refrigerator Dryer Backorder WPL WPB2150504 $96.34

28

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $7.11

28

Refrigerator Compressor WPL W10130129 Contact Us For Availability

29

W10613606 Whirlpool Refrigerator Start Device In Stock WPL W10613606 $53.27

29

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $5.99

30

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $26.77

30

67006434 Whirlpool Axle Pin In Stock WPL 67006434 $4.82

31

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $4.82

31

Refrigerator Shroud WPL W10158508 Contact Us For Availability

32

67006564 Whirlpool Refrigerator Screw Backorder WPL 67006564 $4.99

32

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $49.60

33

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $4.82

34

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $6.89

35

WP67005149 Whirlpool Roller In Stock WPL WP67005149 $14.02

36

CLIP EVAPORATOR WPL 10623002 Contact Us For Availability

37

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $14.02

100

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $100.10

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $34.42

285006 Whirlpool Spray In Stock WPL 285006 $52.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $52.10

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $12.67

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $29.55

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $39.72

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

Refrigerator Service Valve WPL 978029 Contact Us For Availability

Refrigerator Vinyl Tape WPL 479502 Contact Us For Availability

Appliance Porcelain Touch-Up Paint, 1-qt (Whi WPL 799344 Contact Us For Availability

Refrigerator Ice Maker Torx Key Wrench WPL 1117510 Contact Us For Availability

HARNESS, CONTROLS (REFRIGERATOR) (INCLUDES 1 WPL 67006095 Contact Us For Availability

Refrigerator Service Valve WPL 978028 Contact Us For Availability

Refrigerator Cleaner WPL 2217192 Contact Us For Availability

Paint, Bsq WPL 4392900 Contact Us For Availability

Adhesive WPL 542639 Contact Us For Availability

Epoxy WPL 799833 Contact Us For Availability
