Model Whirlpool 4YED20TKDW01 REFRIGERATOR – Common Parts & Diagrams

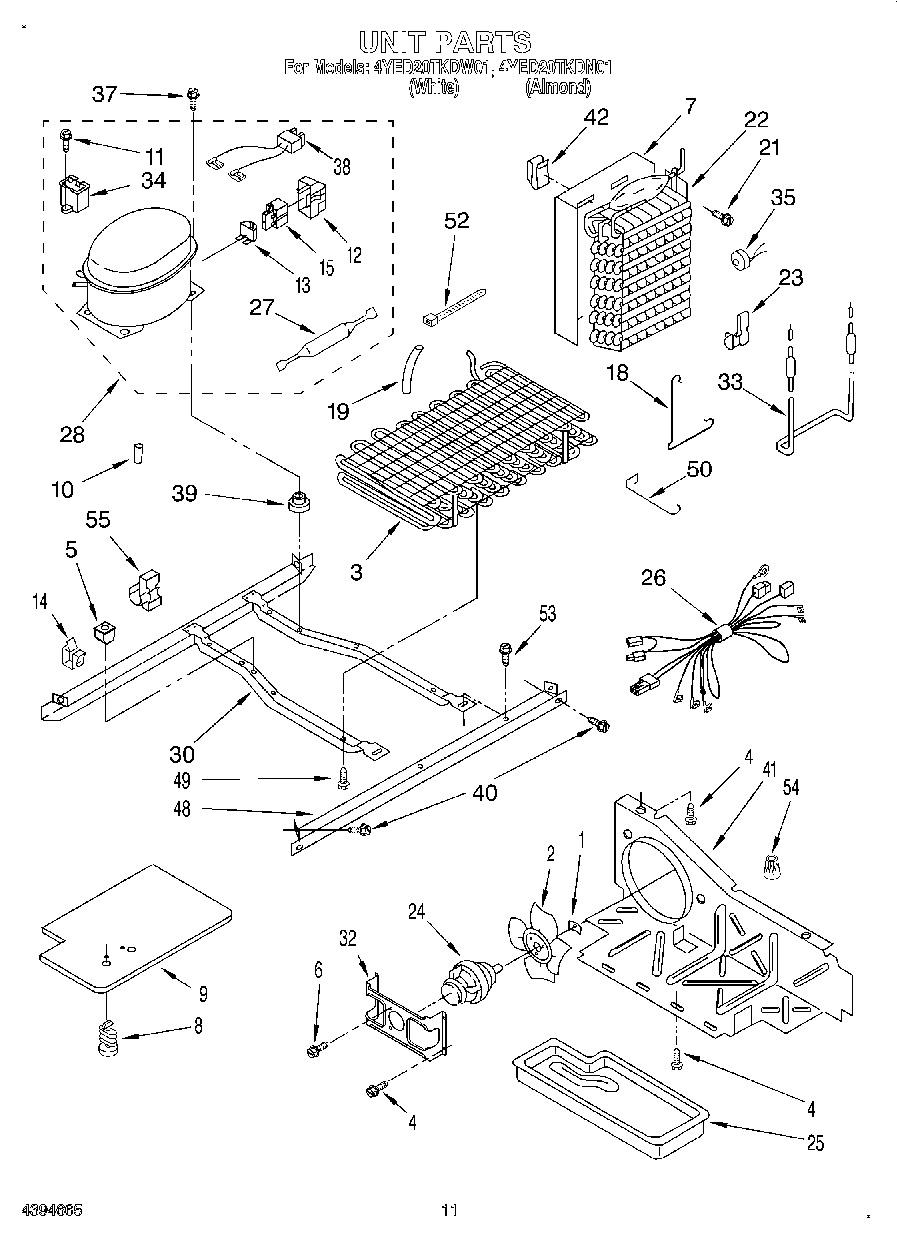

07 - UNIT
04 - AIR FLOW

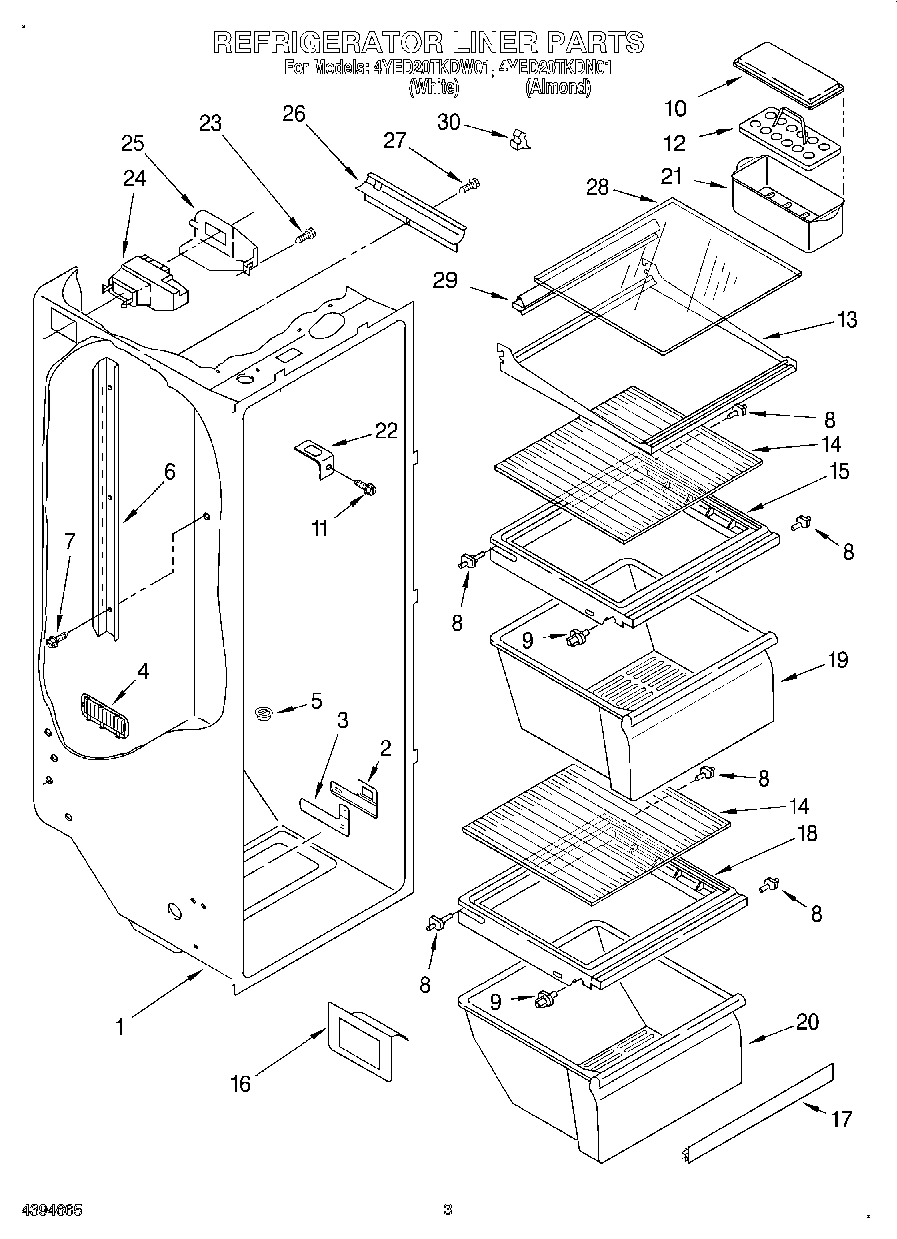

02 - REFRIGERATOR LINER

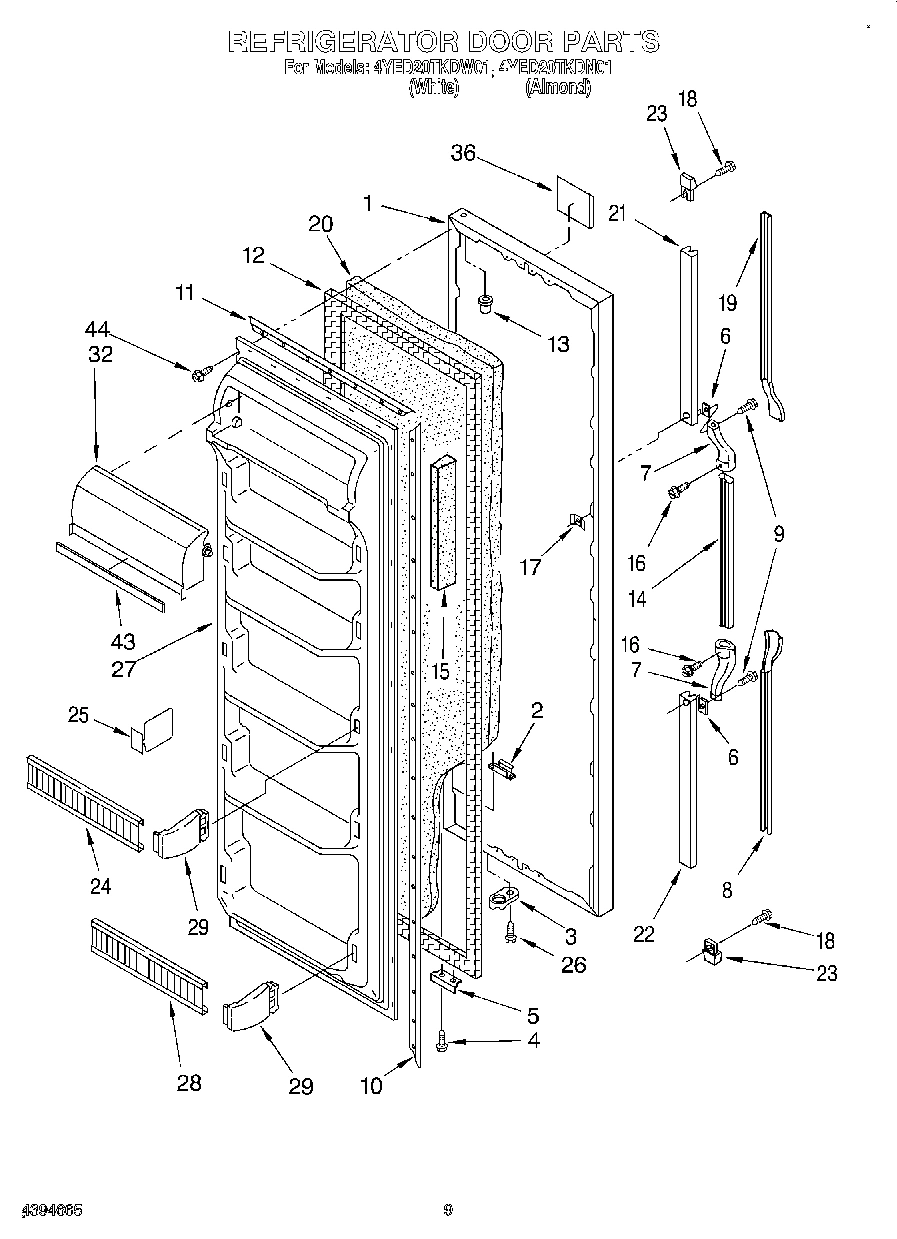

06 - REFRIGERATOR DOOR

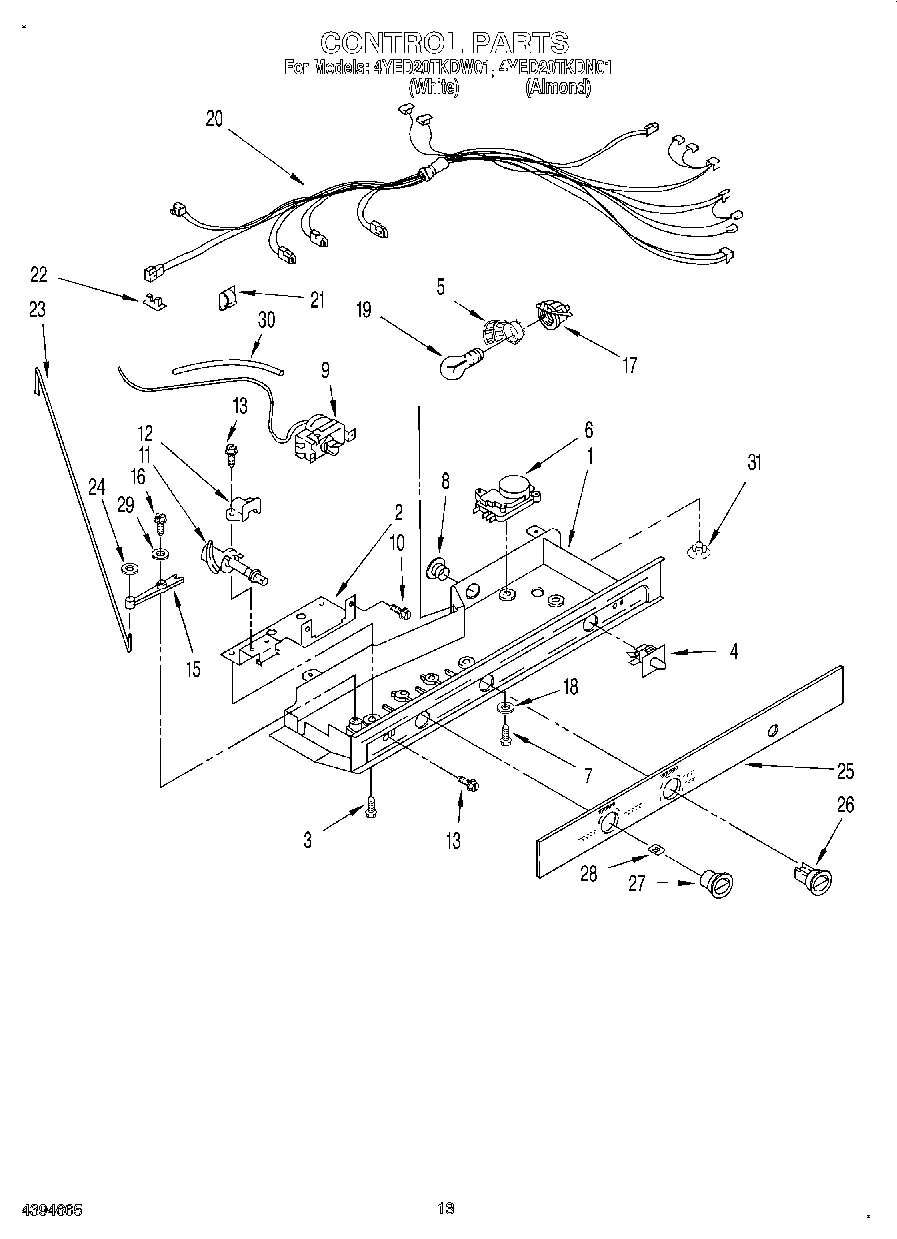

08 - CONTROL, LIT/OPTIONAL

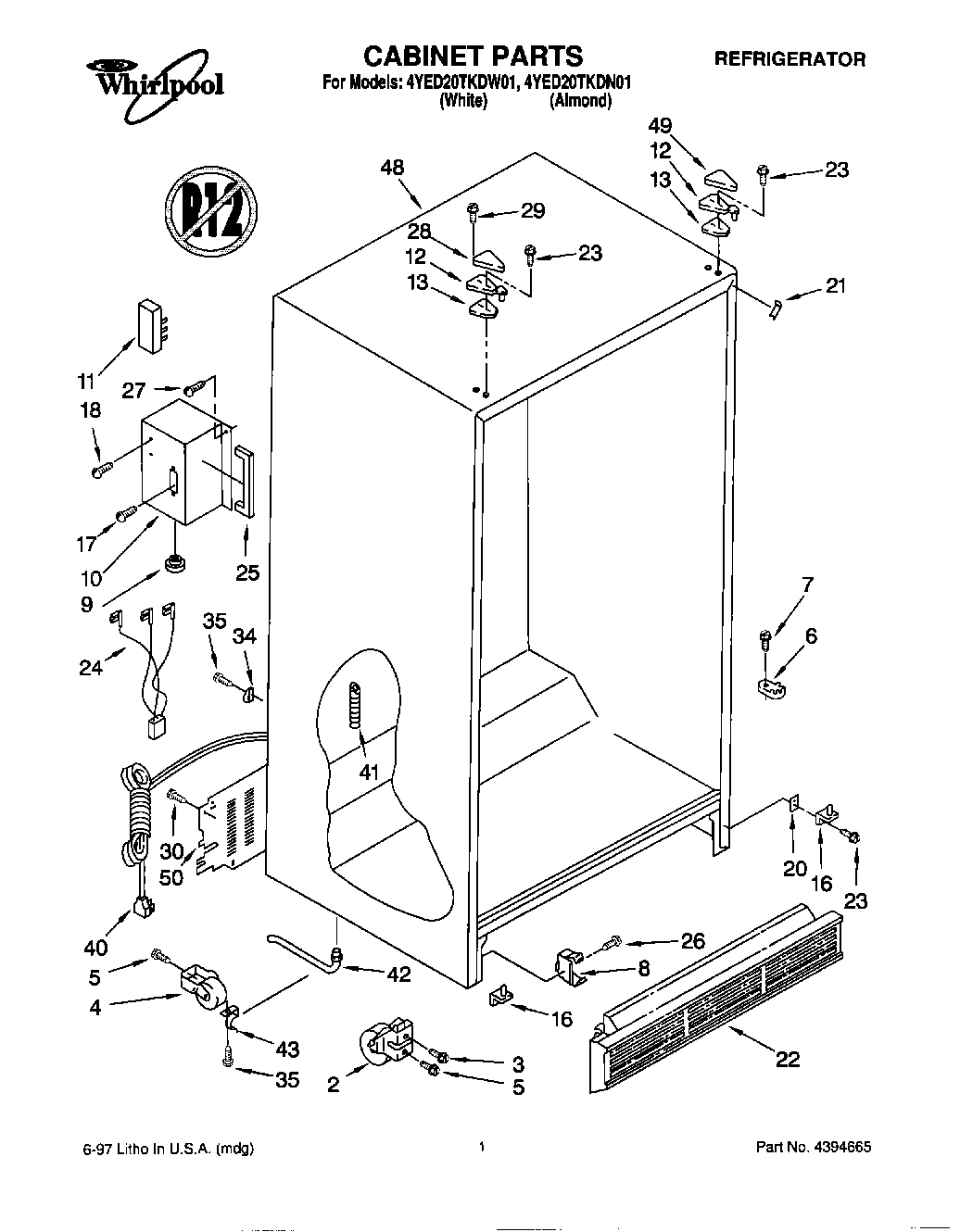

01 - CABINET

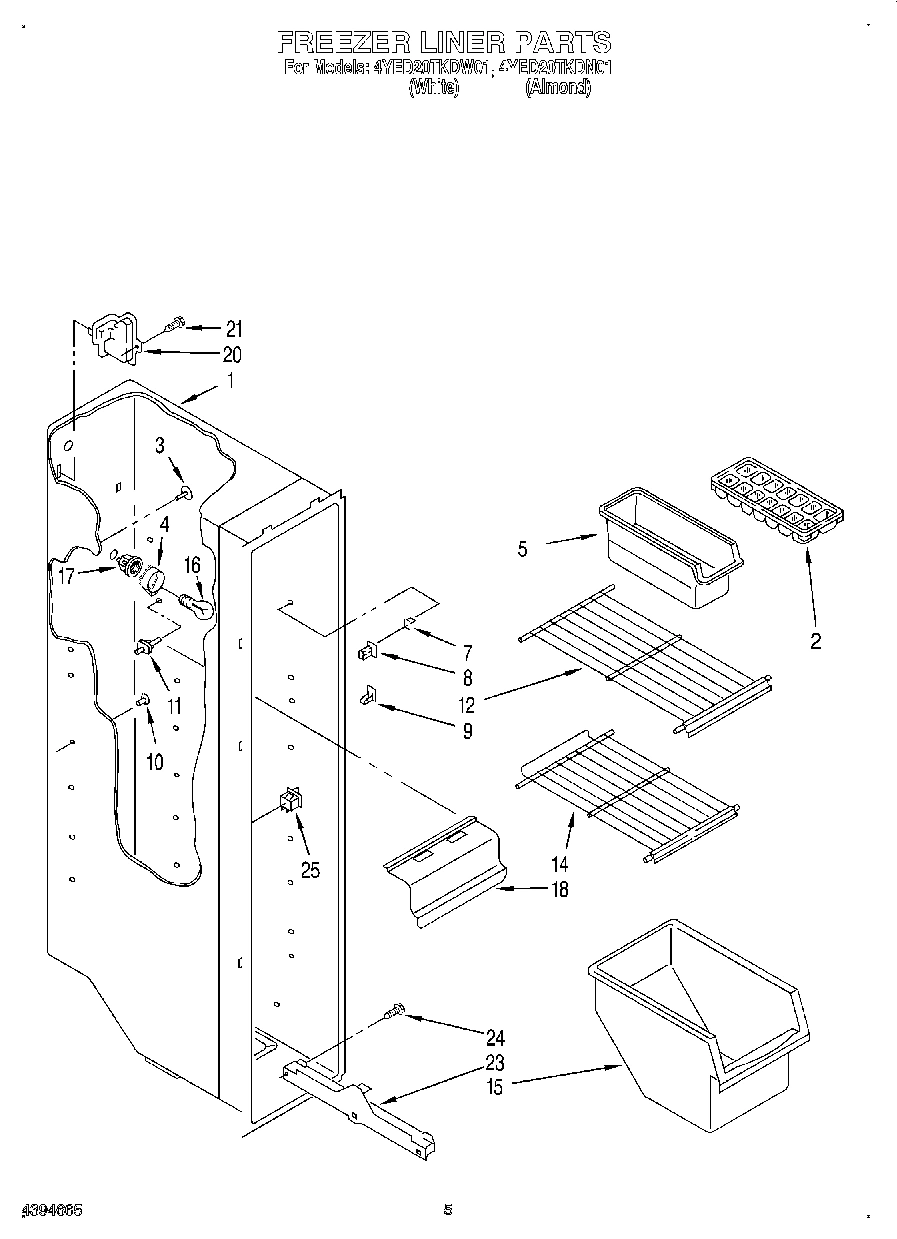

03 - FREEZER LINER

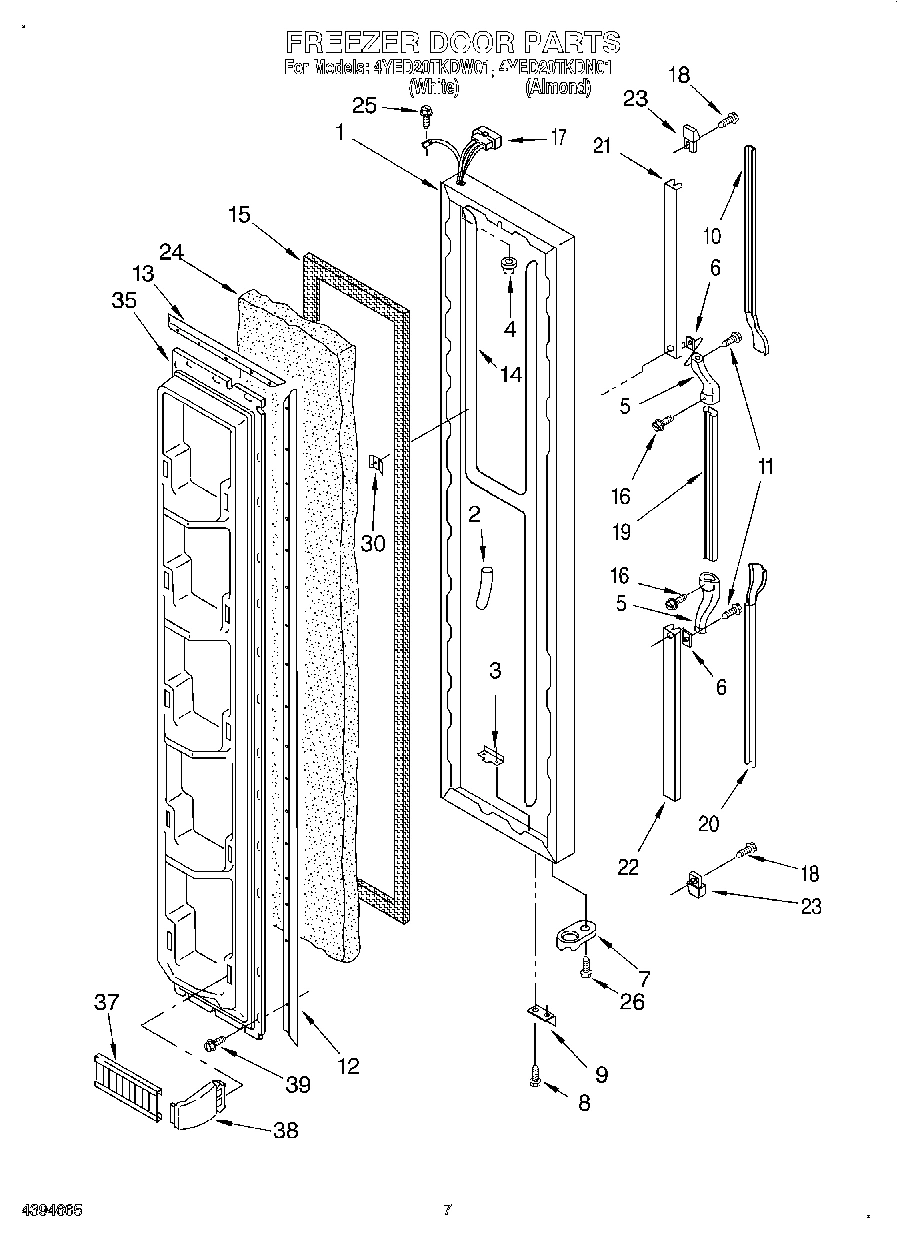

05 - FREEZER DOOR
Common parts from model Whirlpool 4YED20TKDW01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2175117 WPL LIT2175117 Contact Us For Availability
WPL LIT2175221 WPL LIT2175221 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI14657A5 Contact Us For Availability
1
Freezer Door Panel (Also Order Item No.24) (A WPL 2194997N Contact Us For Availability
1
Freezer Door Panel (Also Order Item No.24) (W WPL 2194997W Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Tube, Door Wiring WPL 1119059 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Tap, Plate WPL 2155335 Contact Us For Availability
4
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
4
Shroud, Light WPL 2167012 Contact Us For Availability
5
End Cap (2) WPL 1119359 Contact Us For Availability
6
Shim WPL 935075 Contact Us For Availability
7
Support, Stud (10) WPL 946355 Contact Us For Availability
8
Stud, Front (4) WPL 946356 Contact Us For Availability
9
Bracket, Door Stop WPL 2195950 Contact Us For Availability
9
Cover, Unit Compartment WPL 2182057 Contact Us For Availability
9
Bushing WPL 1129449 Contact Us For Availability
9
Stud R.S. Rear (4) WPL 1106982 Contact Us For Availability
10
Grommet (10) WPL 2176134 Contact Us For Availability
10
Insert, Top (Almond) WPL 2194774N Contact Us For Availability
10
Insert, Top (White) WPL 2194774W Contact Us For Availability
10
Enclosure, Terminal Block WPL 2158579 Contact Us For Availability
11
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
11
Cam Assembly WPL 2182008 Contact Us For Availability
11
Terminal Block WPL 1129346 Contact Us For Availability
12
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
12
Shelf WPL 2163612 Contact Us For Availability
13
Shim, Hinge (2) WPL 2171868 Contact Us For Availability
13
Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability
14
Shelf (1) WPL 2174269 Contact Us For Availability
14
Shelf (2) WPL 2174270 Contact Us For Availability
14
Heater, Door WPL 2165272 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Reinforcement, Shelf WPL 2152266 Contact Us For Availability
15
Bin, Freezer WPL 2171707 Contact Us For Availability
16
Screw WPL 489022 Contact Us For Availability
17
Connector WPL 2154491 Contact Us For Availability
18
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
18
Screw WPL 489075 Contact Us For Availability
18
Washer WPL 486632 Contact Us For Availability
19
Handle, Center (Almond) WPL 2194767N Contact Us For Availability
19
Handle, Center (White) WPL 2194767W Contact Us For Availability
20
Insert, Bottom (White) WPL 2194773W Contact Us For Availability
20
Control Box Harness WPL 2189578 Contact Us For Availability
20
Cover, Wiring WPL 2155571 Contact Us For Availability
20
Insert, Bottom (Almond) WPL 2194773N Contact Us For Availability
21
Insert Retainer (Top) WPL 2194771 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
Insert Retainer (Bottom) WPL 2194770 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Grille (White) WPL 2155477 Contact Us For Availability
22
Grille (Almond) WPL 2155478 Contact Us For Availability
23
End Cap (2) WPL 2156220 Contact Us For Availability
23
Connecting Rod WPL 1123959 Contact Us For Availability
23
Slide, Freezer Bin (Left Side) WPL 1115383 Contact Us For Availability
24
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Wiring Assembly WPL 2165297 Contact Us For Availability
25
Divider, Shelf WPL 2160050 Contact Us For Availability
25
Escutcheon, Control Box WPL 2167397 Contact Us For Availability
25
Gasket WPL 2167227 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Interior Door Panel (Also Order Item No.15) WPL 1124961 Contact Us For Availability
28
Trim, Door Shelf (2) WPL 2182188 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Screw WPL 489284 Contact Us For Availability
30
Screw Anchor WPL 941242 Contact Us For Availability
31
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
31
PAINT, BULK (1 Q WPL 799344 Contact Us For Availability
31
Hole Plug WPL 2166844 Contact Us For Availability
31
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
31
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
31
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
31
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
31
WPL 799833 WPL 799833 Contact Us For Availability
31
WPL 978883 WPL 978883 Contact Us For Availability
32
Compartment Door WPL 2148289 Contact Us For Availability
35
Panel, Interior Door WPL 1129241 Contact Us For Availability
36
Nameplate (White) WPL 2195063 Contact Us For Availability
36
Nameplate (Almond) WPL 2195064 Contact Us For Availability
37
Trim, Door Shelf WPL 2195922 Contact Us For Availability
40
Service Cord WPL 1129332 Contact Us For Availability
43
Trim, Door Compartment WPL 2162896 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI14655A6 Contact Us For Availability
49
Hinge Cover (White) WPL 1129262 Contact Us For Availability
49
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
50
Cover, Unit WPL 2189681 Contact Us For Availability
55
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
