Model Whirlpool 4KSRF42DTX2 REFRIGERATOR – Common Parts & Diagrams

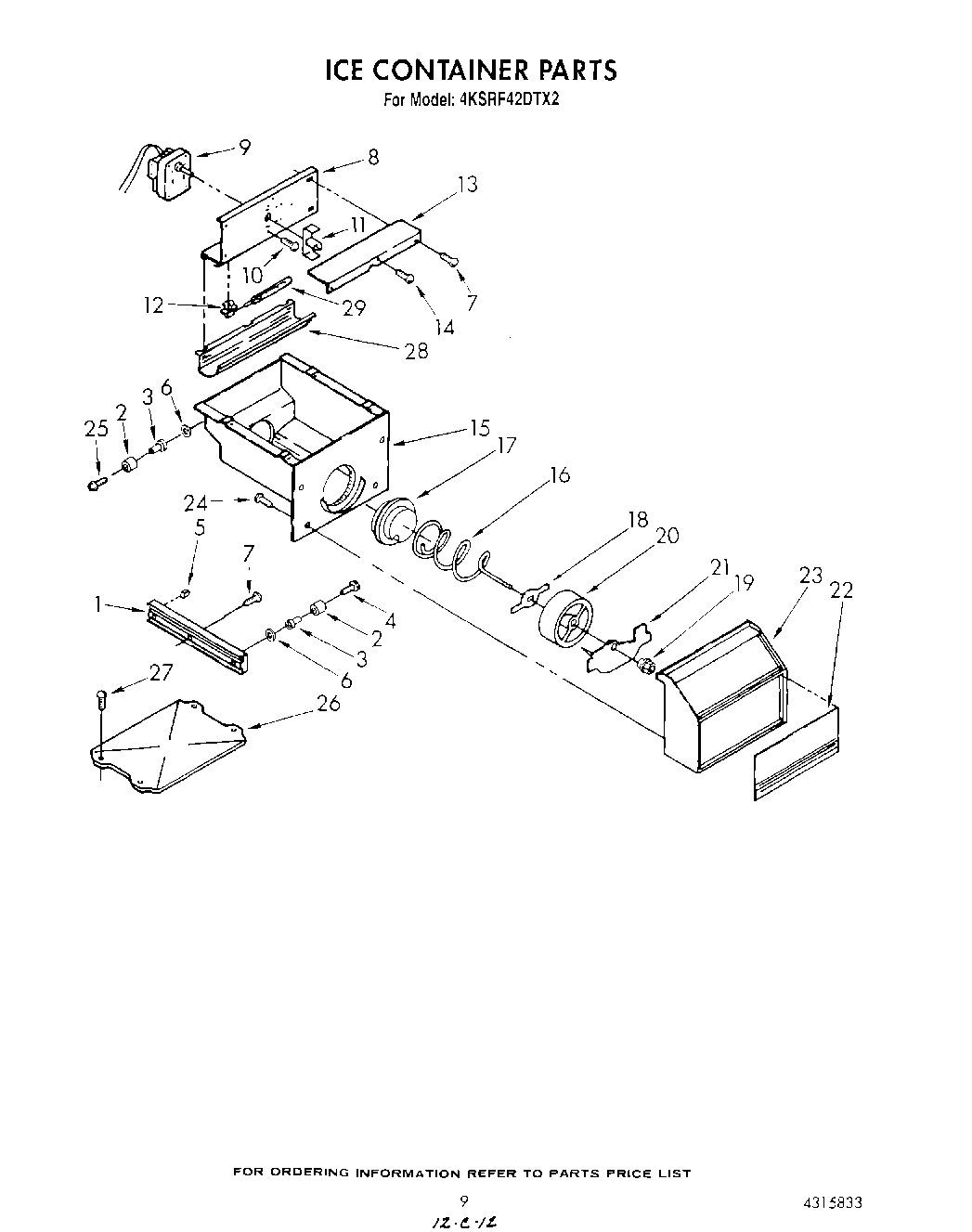

06 - ICE CONTAINER

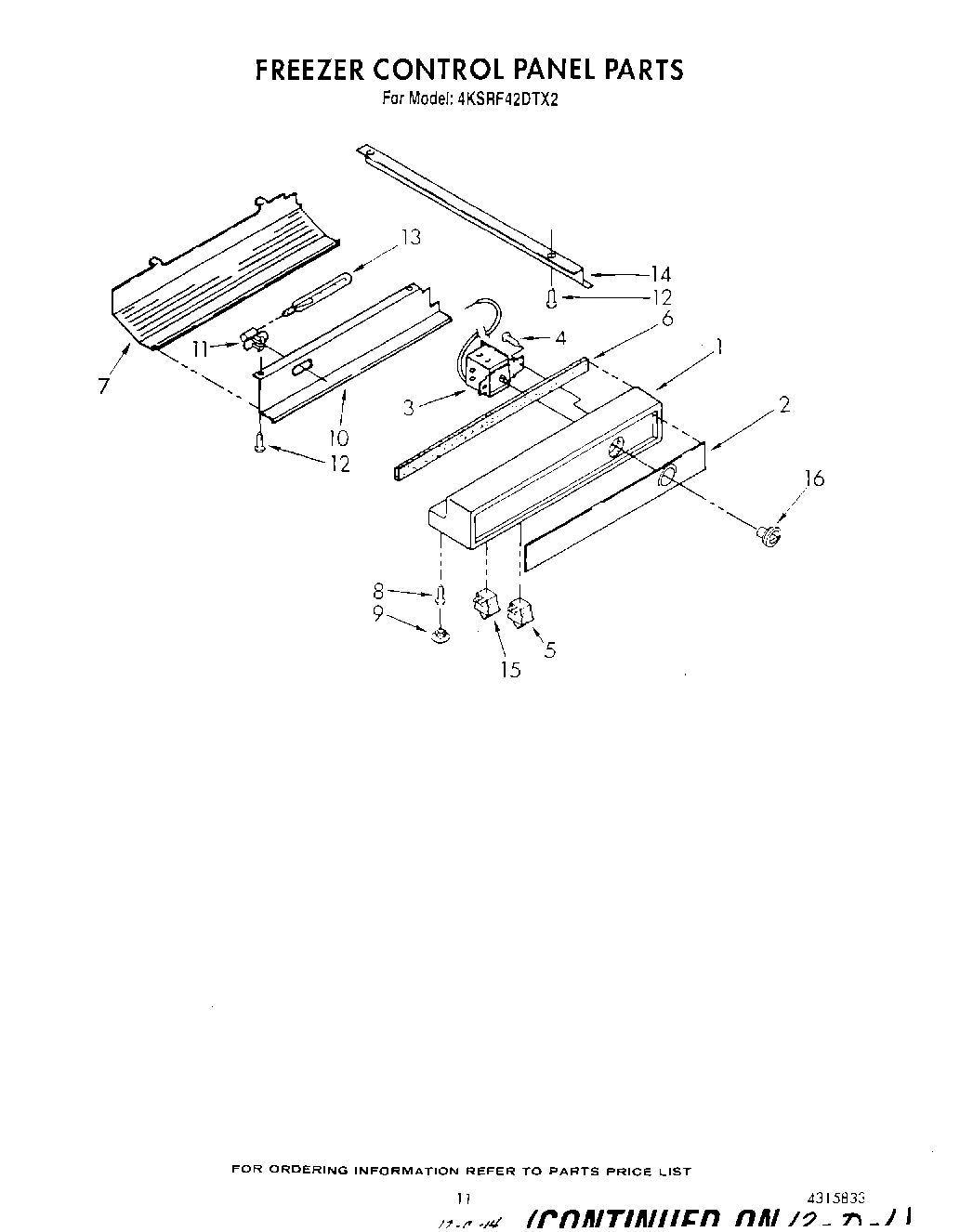

08 - FREEZER CONTROL PANEL

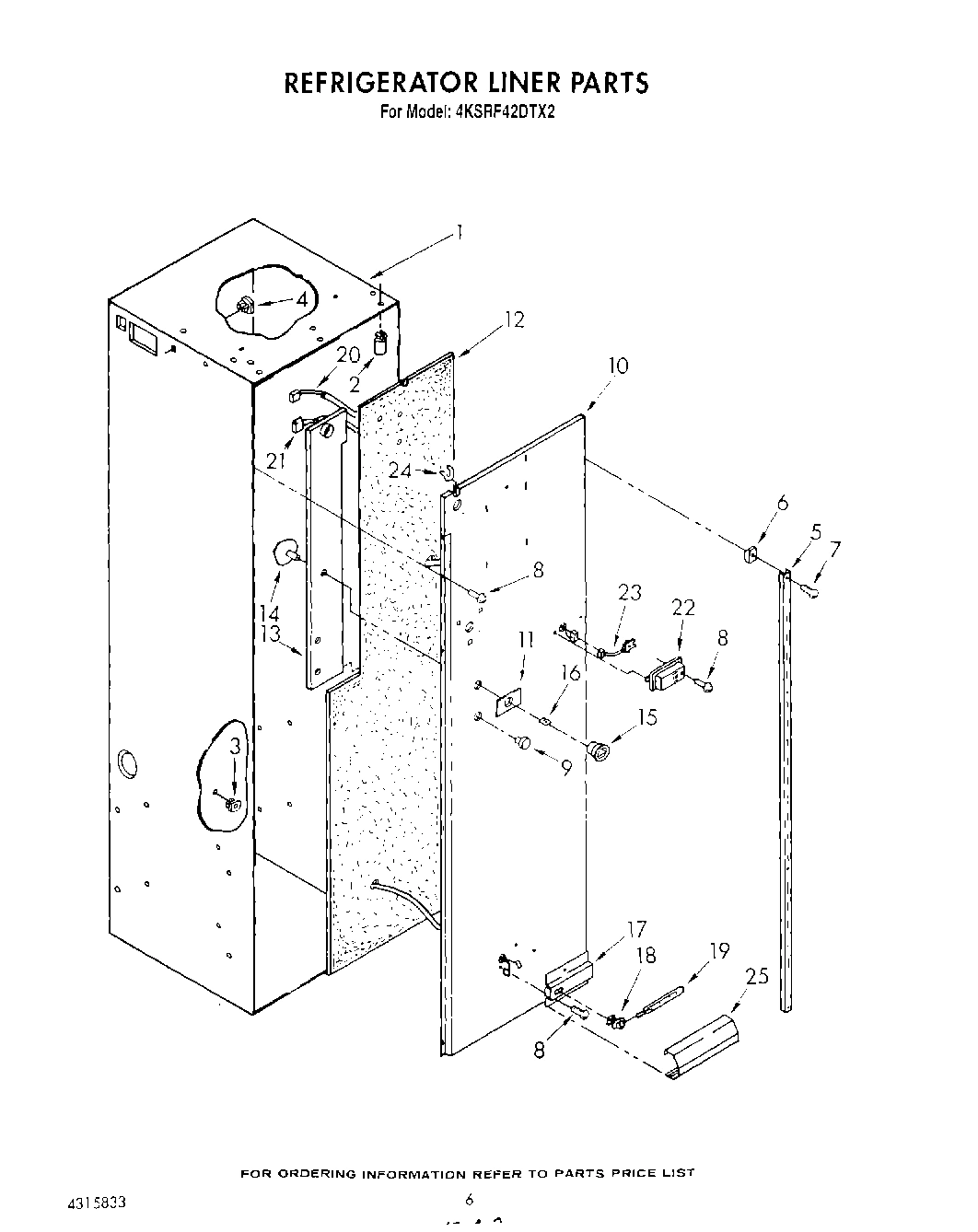

04 - REFRIGERATOR LINER

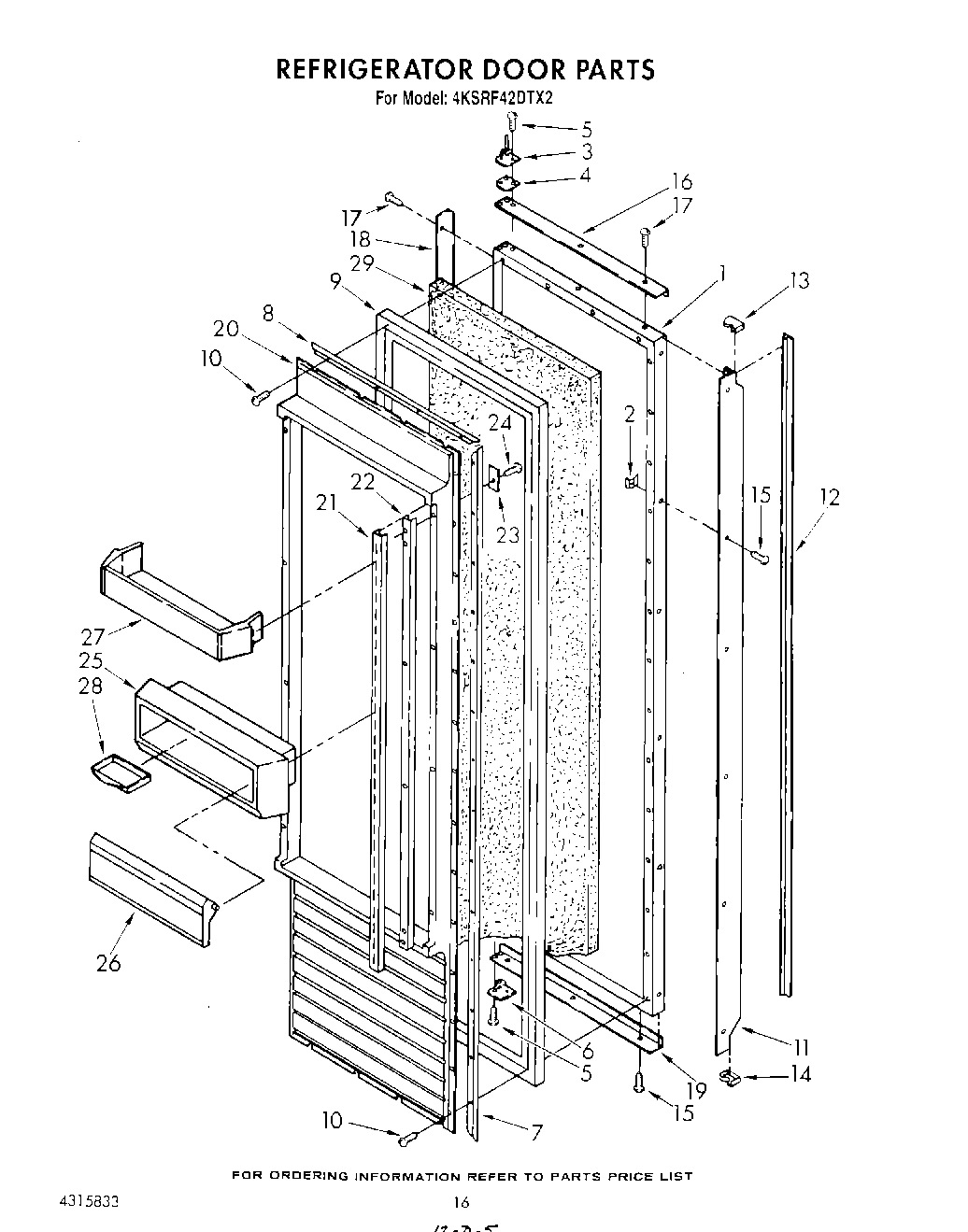

11 - REFRIGERATOR DOOR , LIT/OPTIONAL

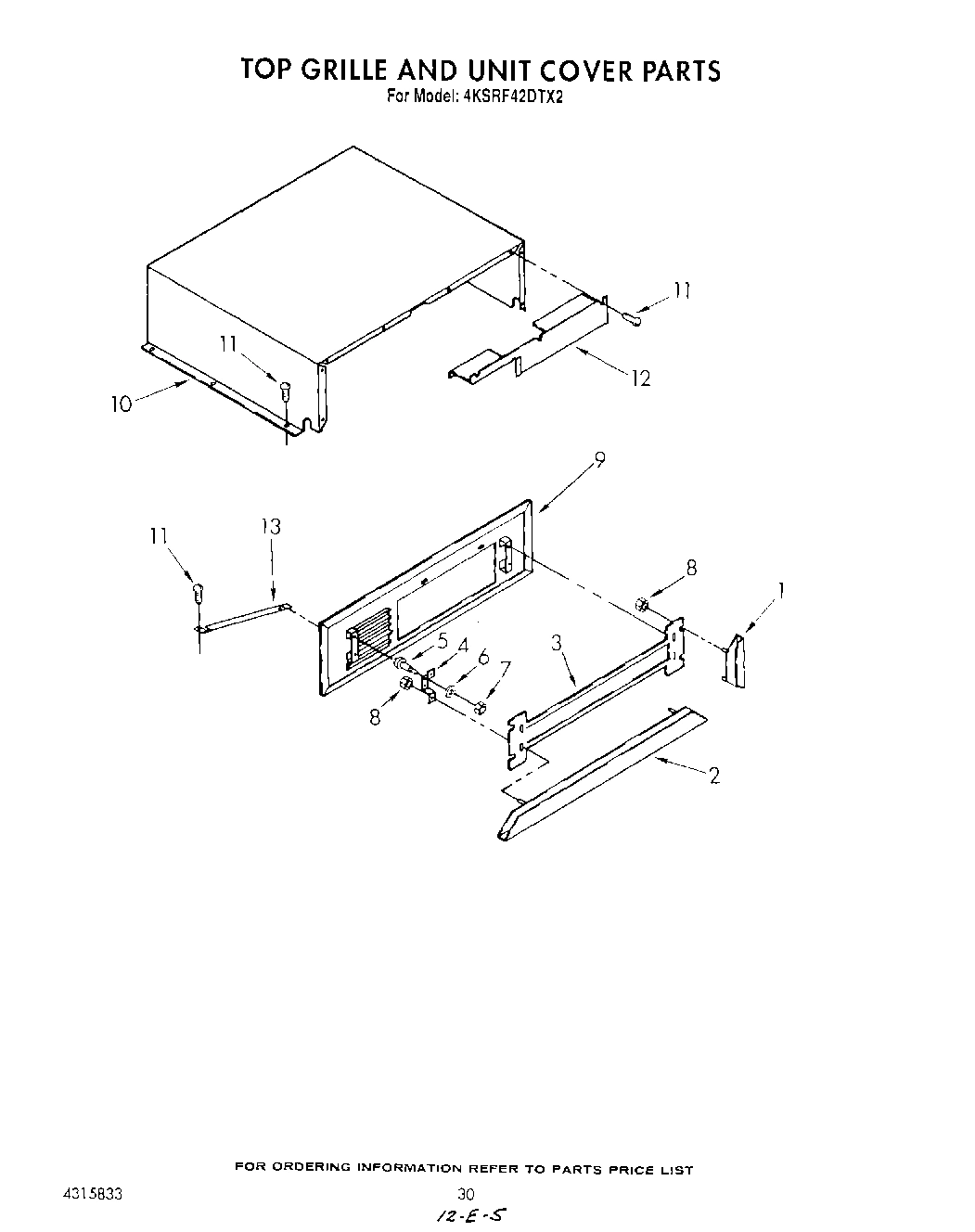

18 - TOP GRILLE AND UNIT COVER

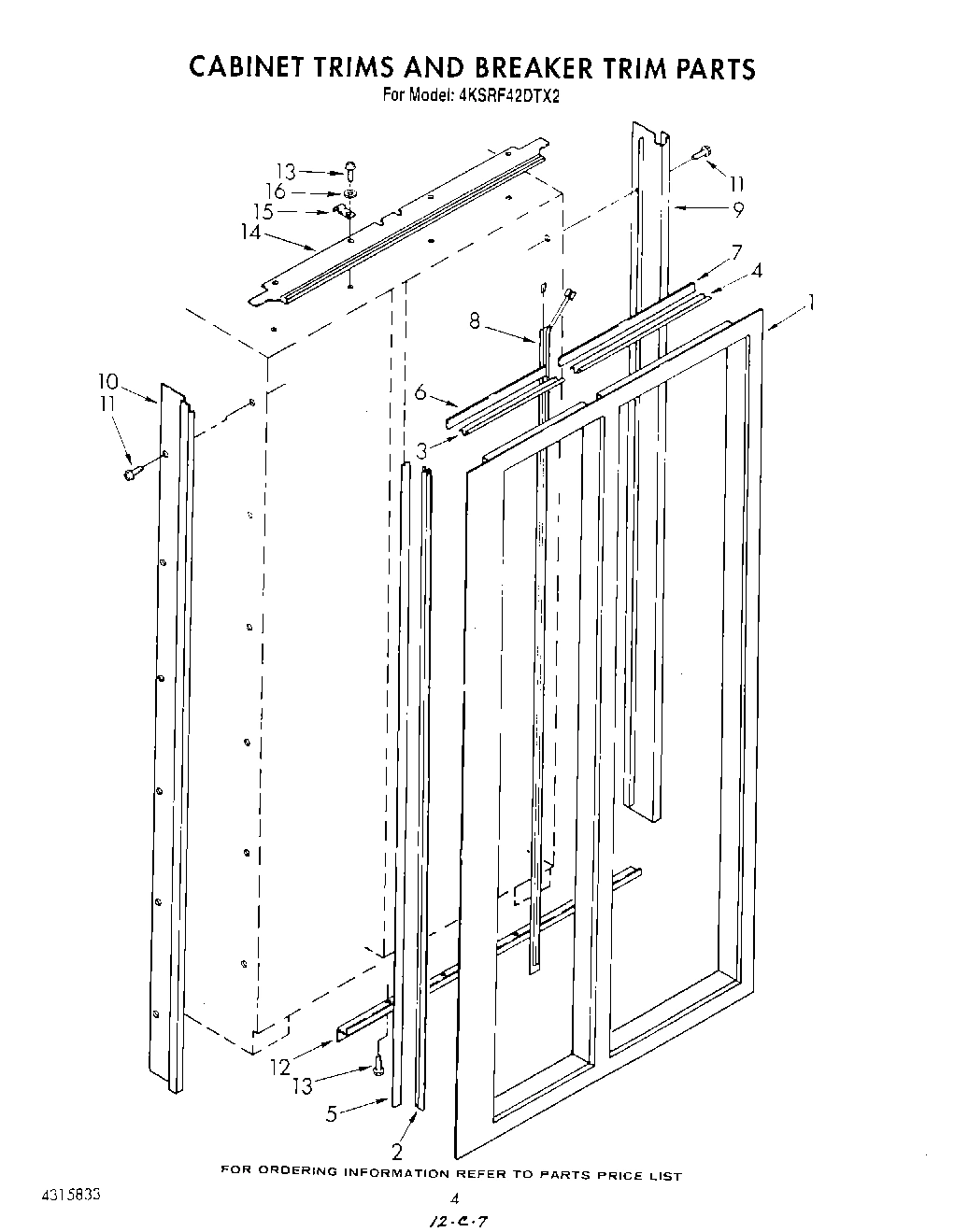

03 - CABINET TRIMS AND BREAKER TRIM

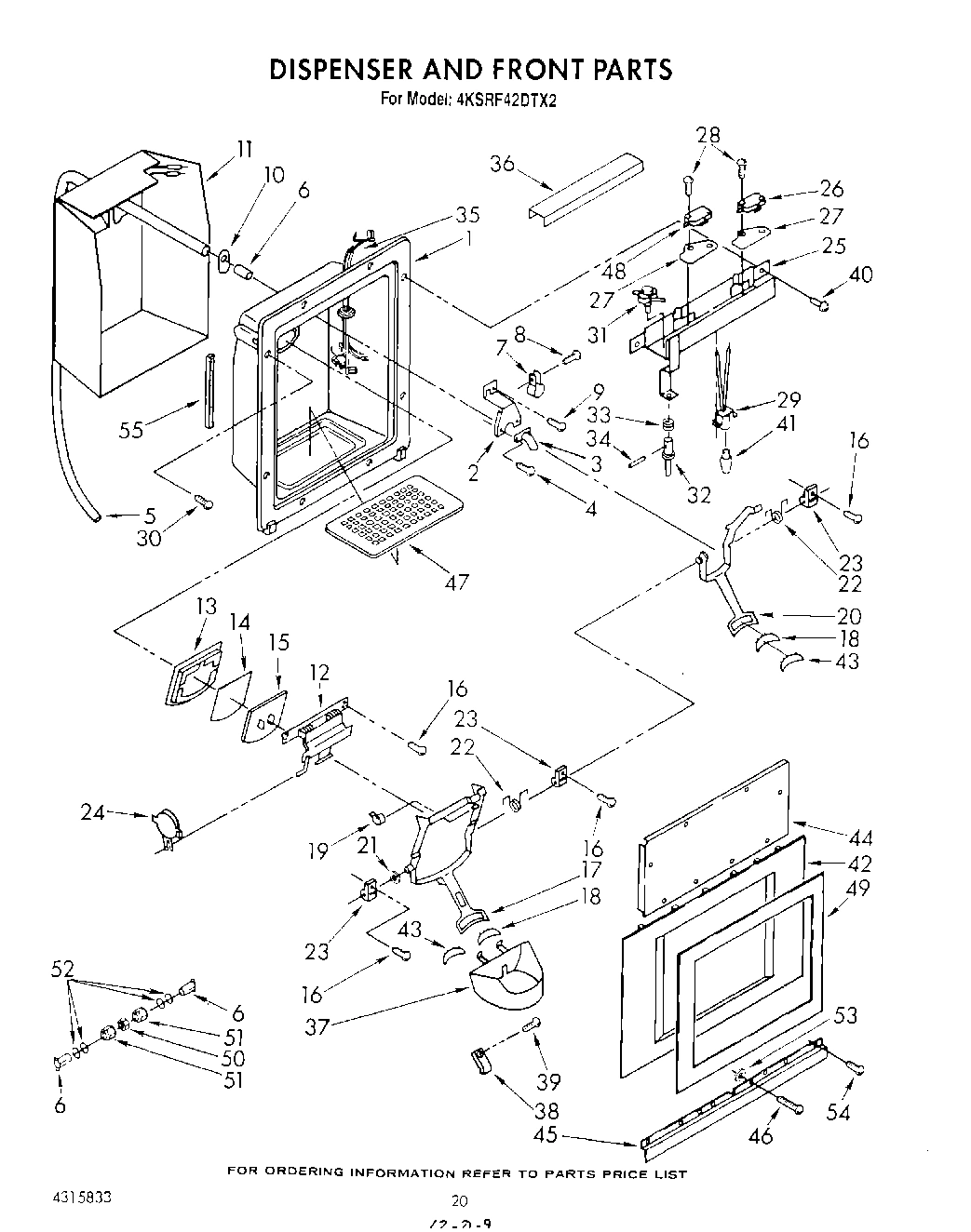

13 - DISPENSER AND FRONT

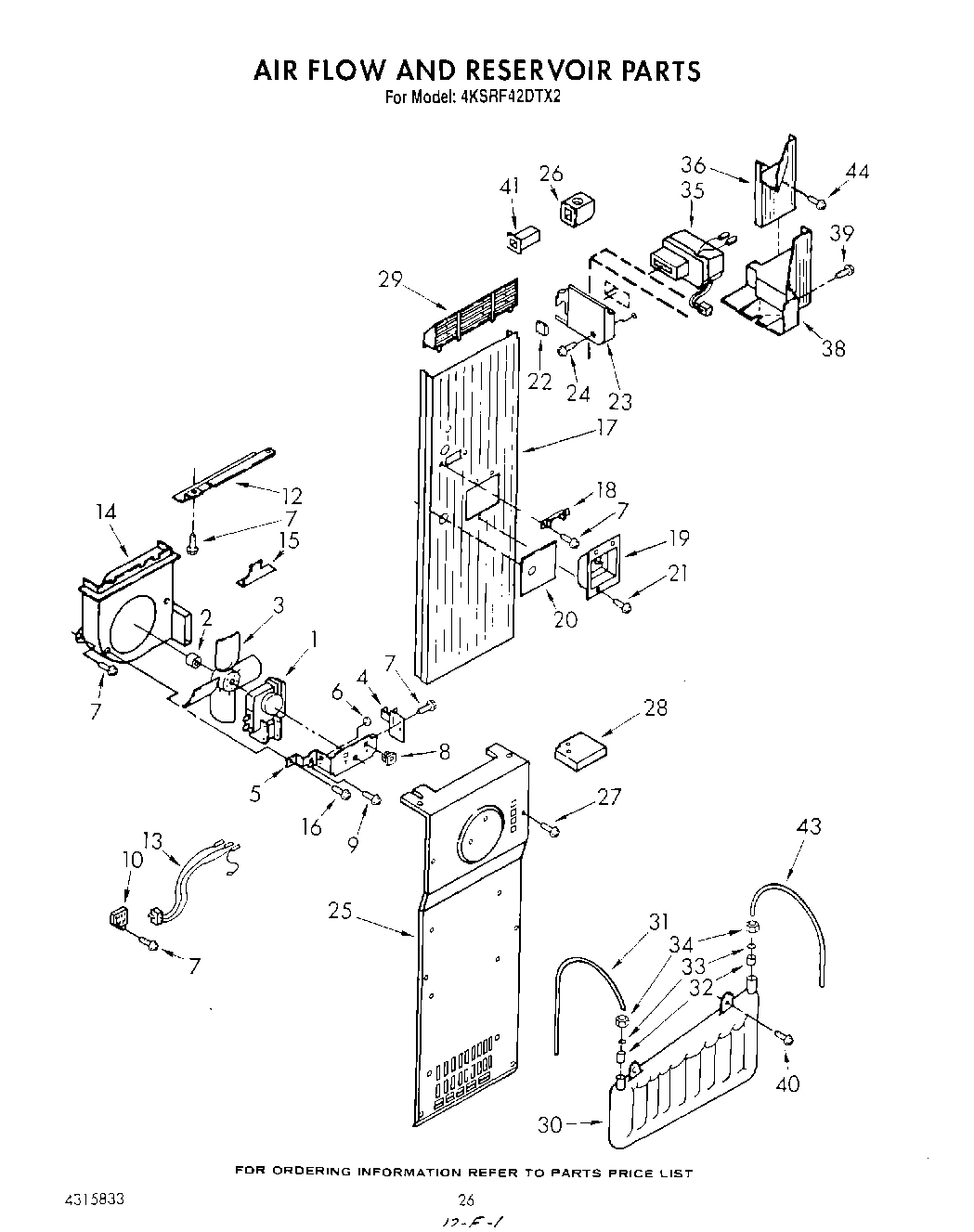

16 - AIR FLOW AND RESERVOIR

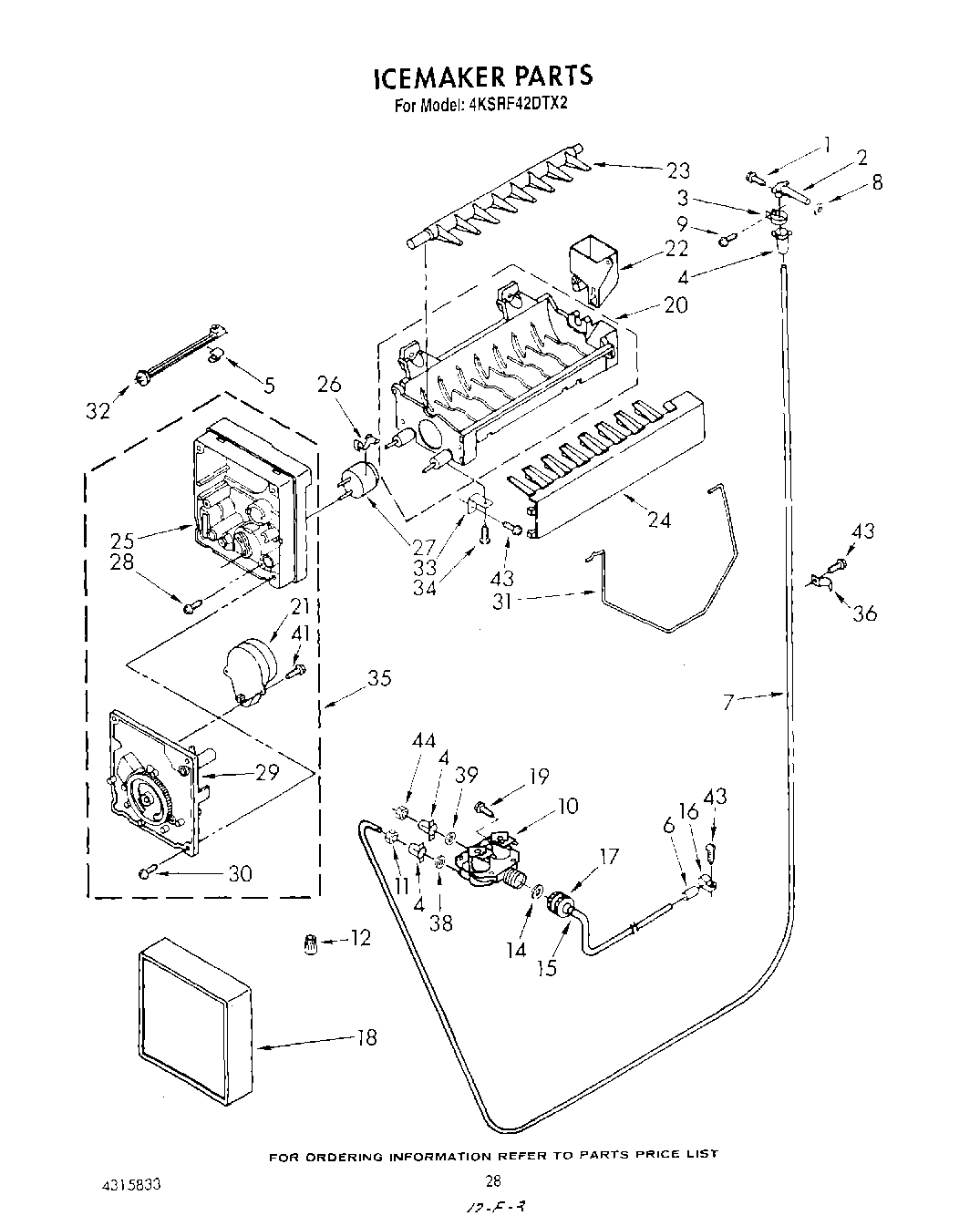

17 - ICE MAKER

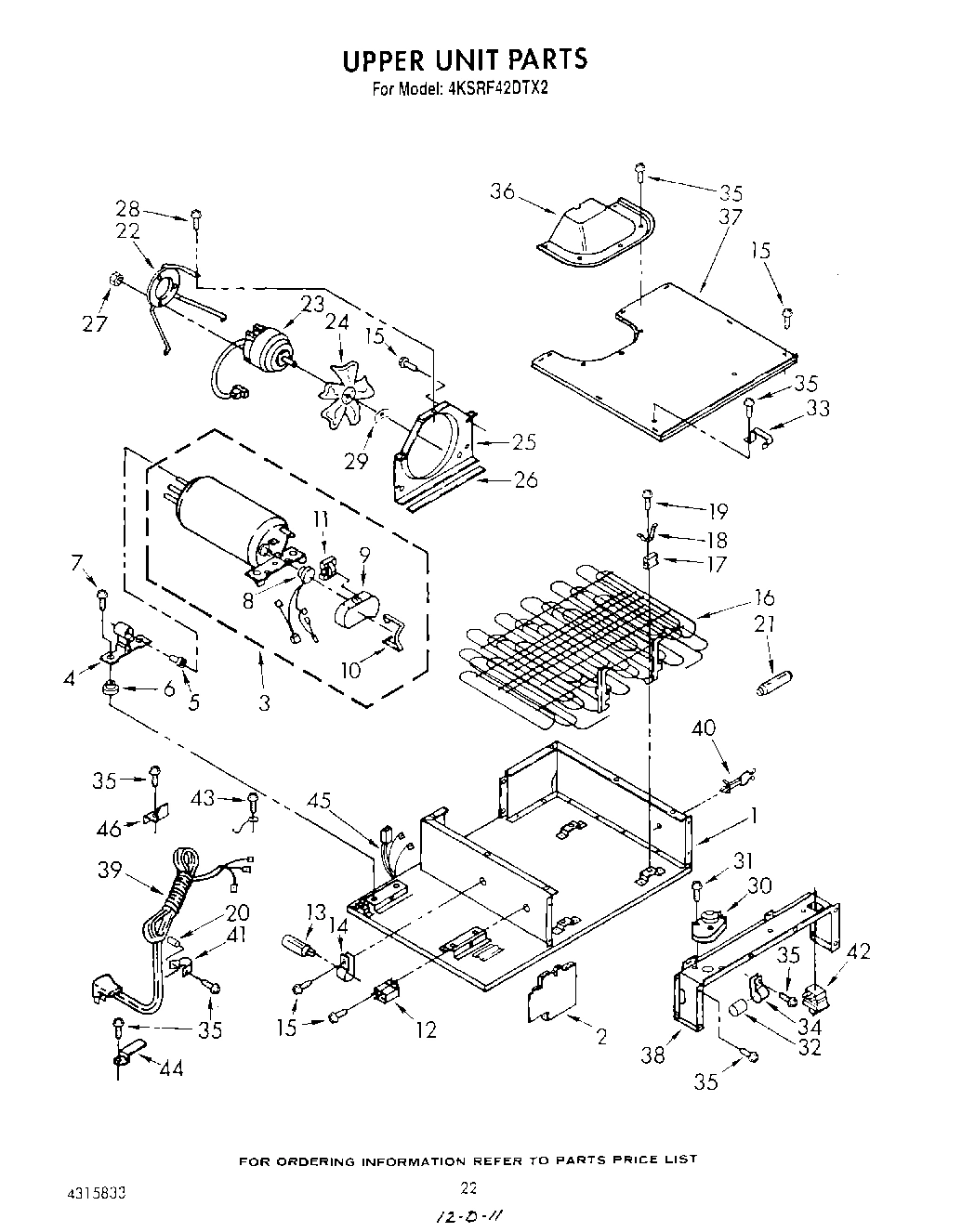

14 - UPPER UNIT

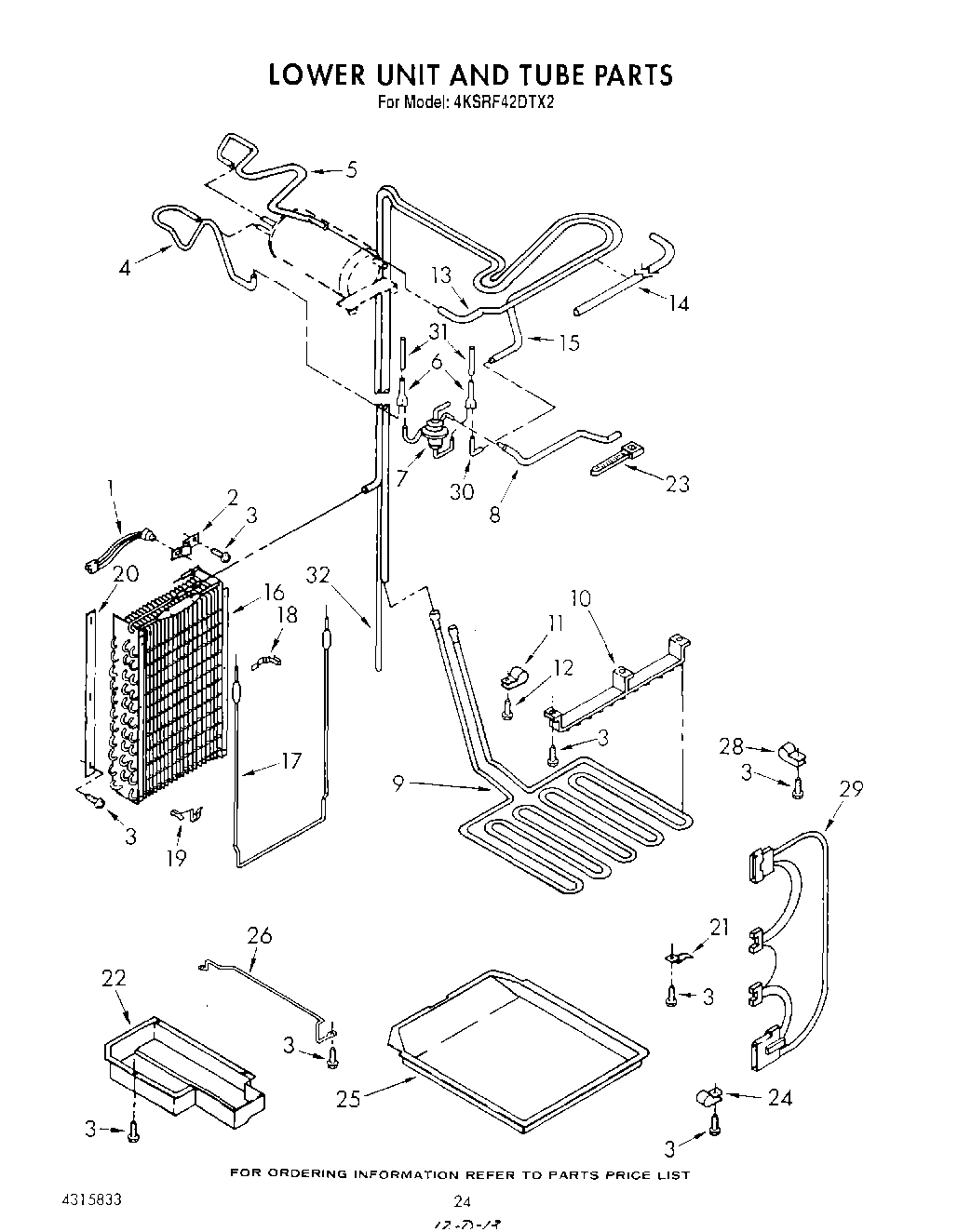

15 - LOWER UNIT AND TUBE

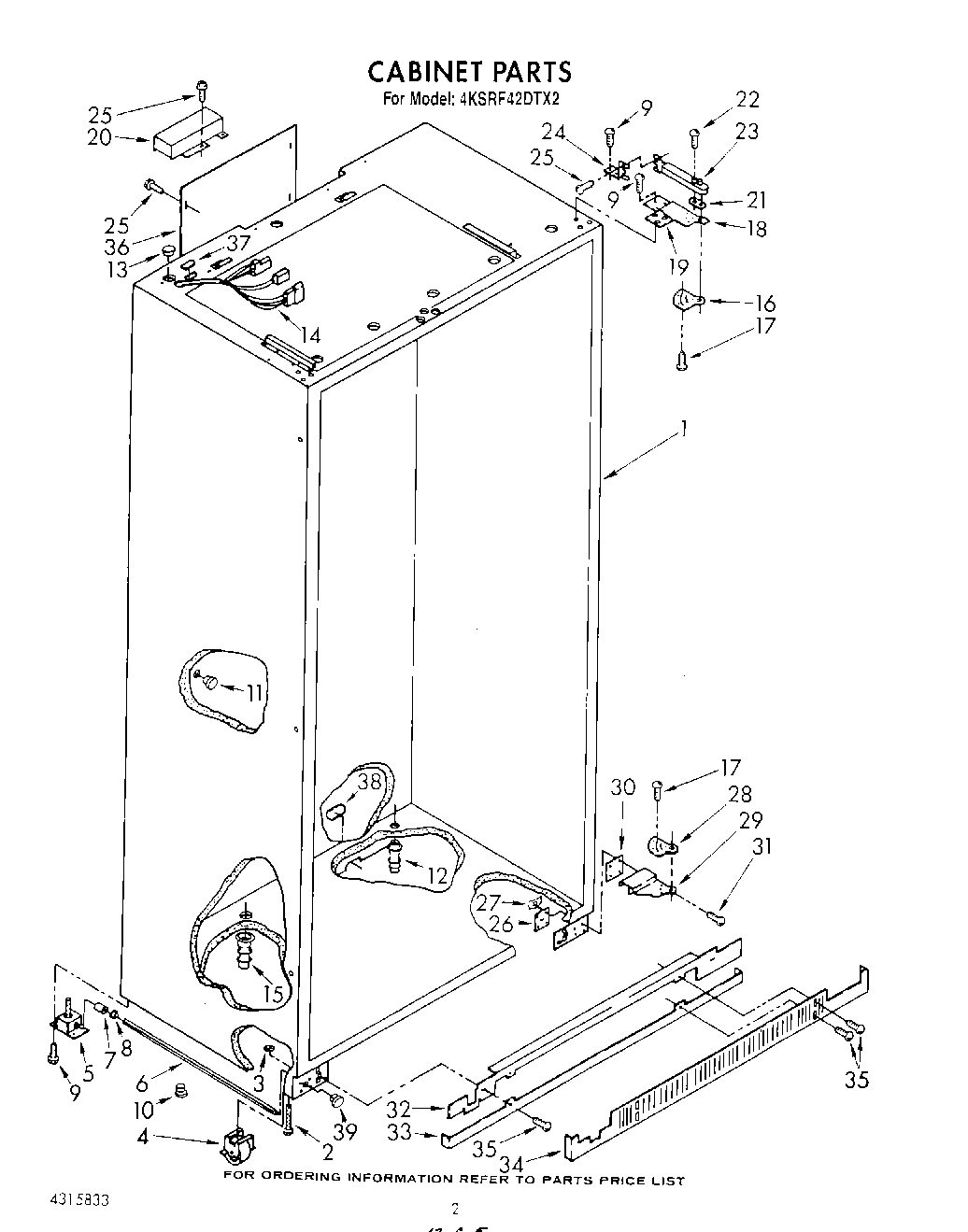

02 - CABINET

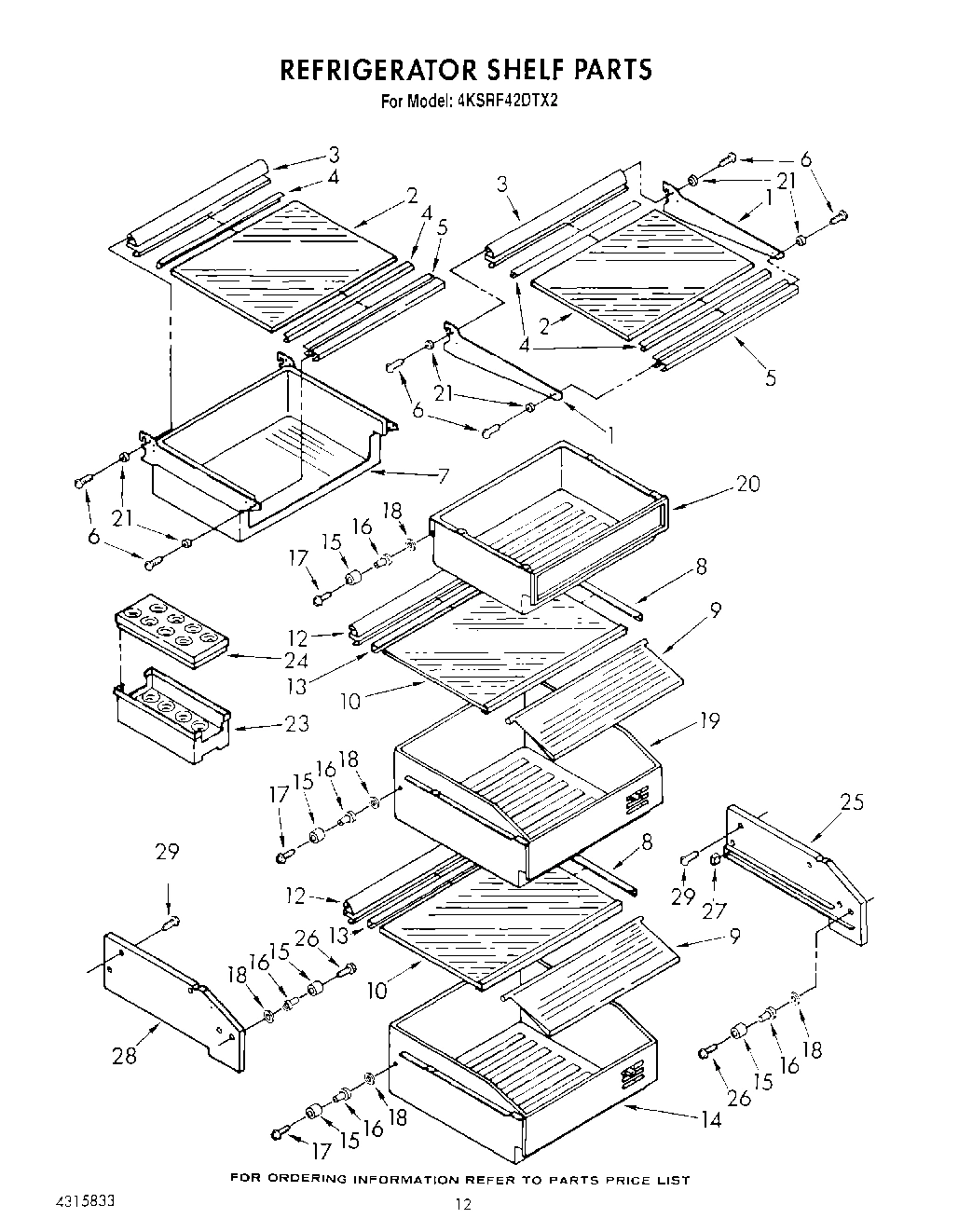

09 - REFRIGERATOR SHELF

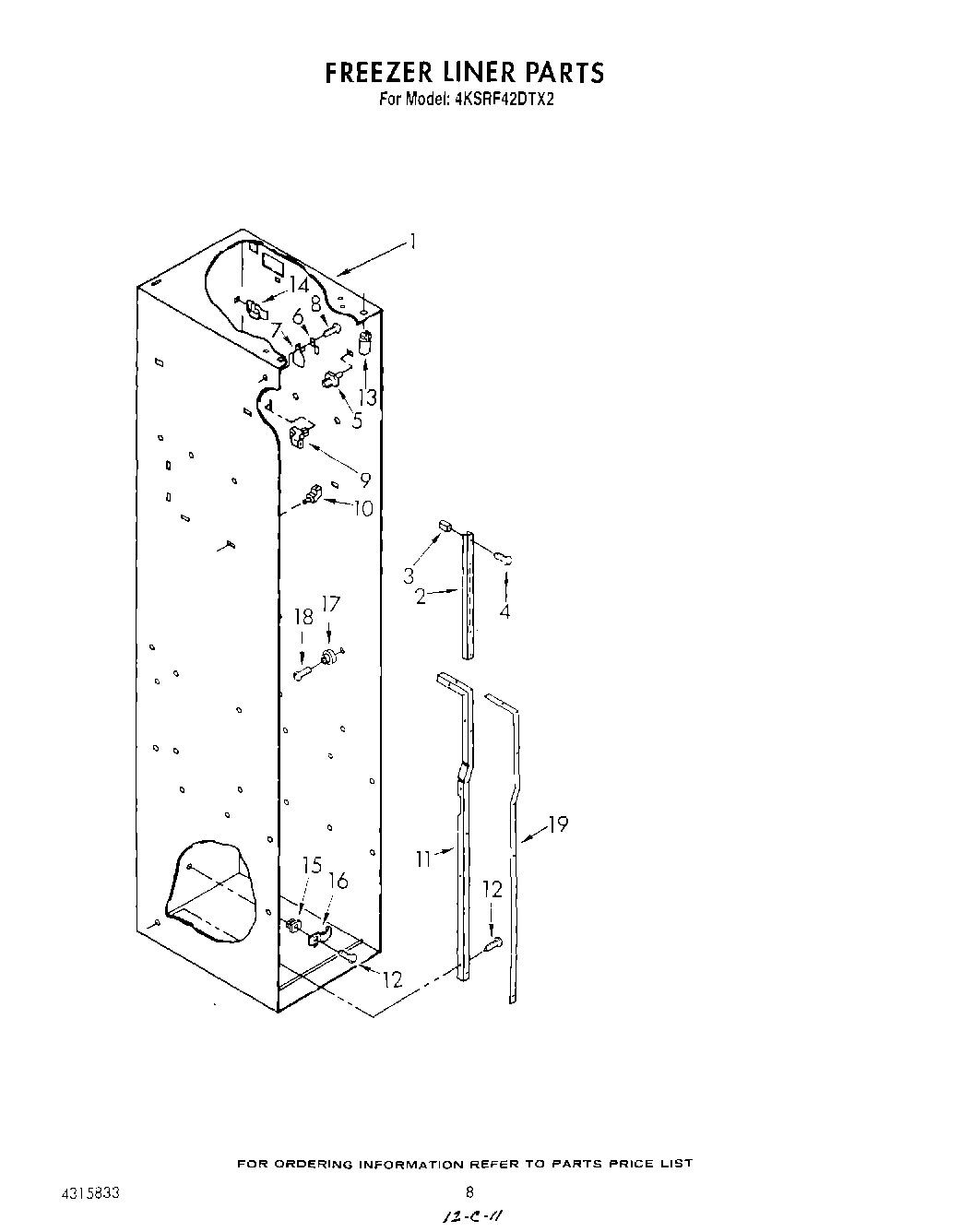

05 - FREEZER LINER

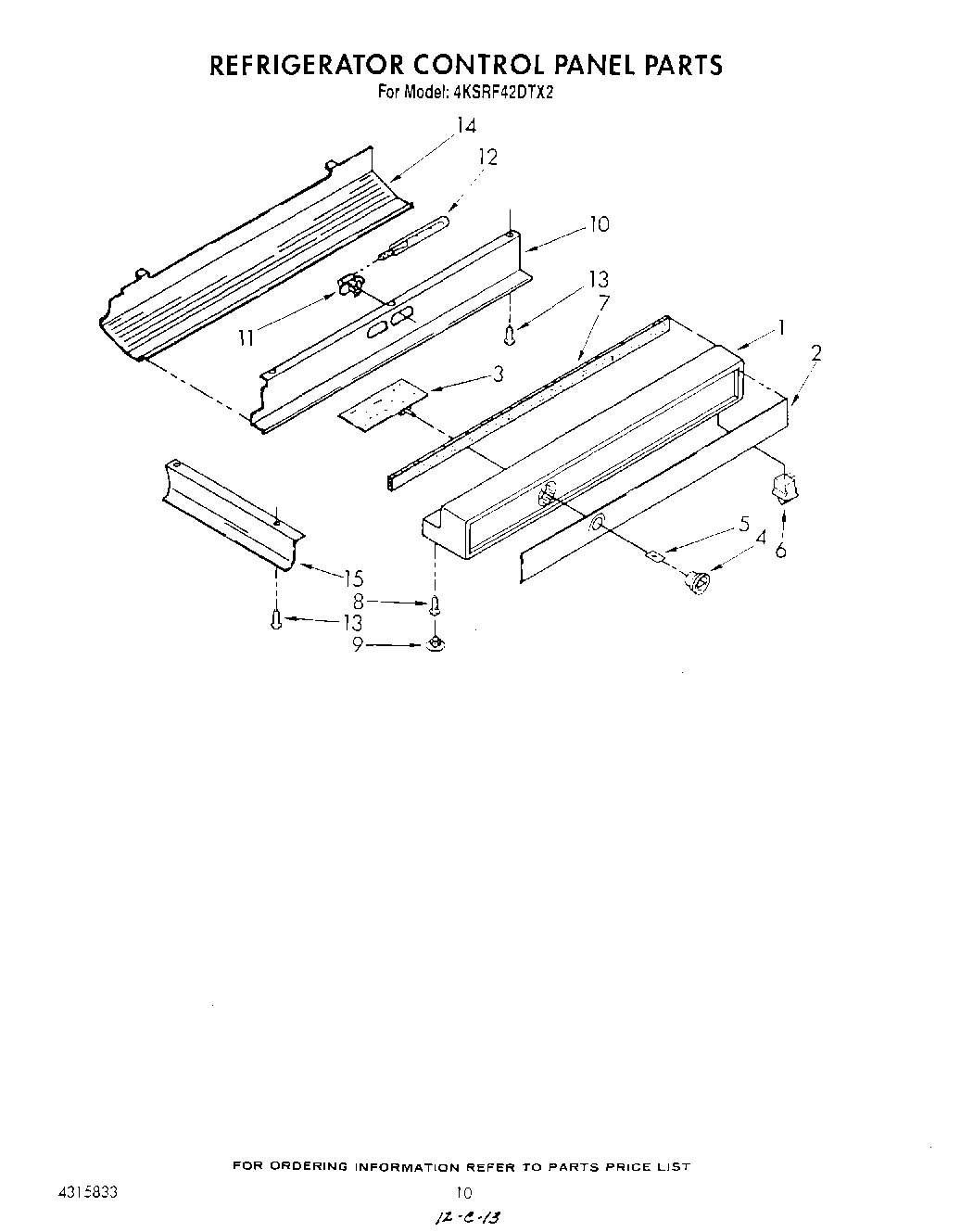

07 - REFRIGERATOR CONTROL PANEL

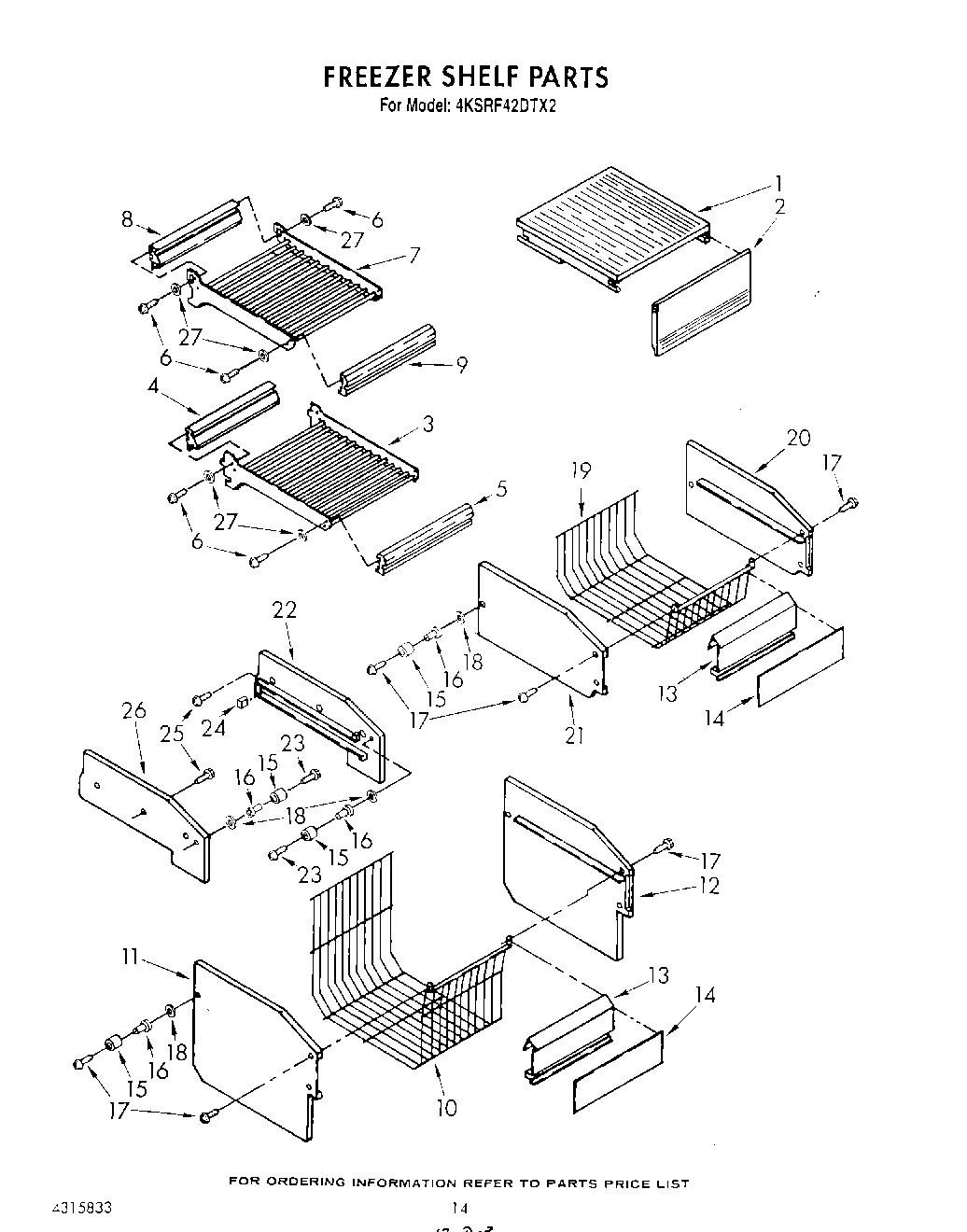

10 - FREEZER SHELF

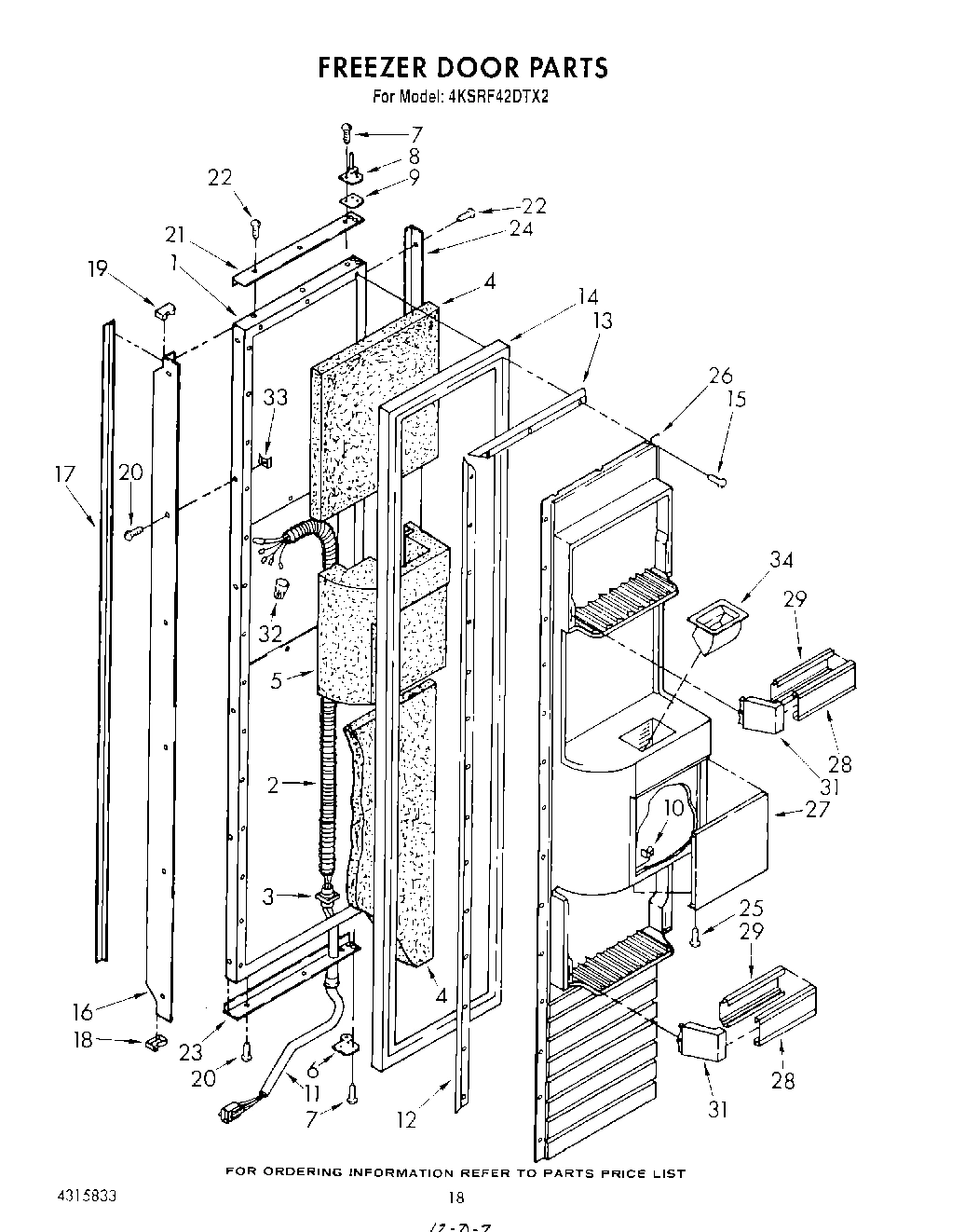

12 - FREEZER DOOR
Common parts from model Whirlpool 4KSRF42DTX2 REFRIGERATOR
Black Acrylic Static Cleaner Part WPL 978849 Contact Us For Availability
Energy Label WPL LIT1113416 Contact Us For Availability
Use & Care Guide WPL LIT1113440 Contact Us For Availability
Service & Wiring Sheet WPL LIT1113447 Contact Us For Availability
Parts List WPL LIT4315833 Contact Us For Availability
Modular Icemaker Service Sheet WPL LIT628107 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI14165A2 Contact Us For Availability
1
Door Panel, Refrigerator (Also Order Item 29) WPL 1112426 Contact Us For Availability
1
Panel Frame, Side (2) WPL 1113311 Contact Us For Availability
1
Breaker Trim, One Piece WPL 1112676 Contact Us For Availability
1
Housing, Dispenser WPL 1107943 Contact Us For Availability
1
Assembly, Unit Base WPL 1113022 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI14164A6 Contact Us For Availability
1
Side Arm, Cantilever Shelf WPL 1112244 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI14166A3 Contact Us For Availability
1
Control Panel WPL 1112641 Contact Us For Availability
1
Solid Shelf WPL 1112366 Contact Us For Availability
1
Exterior Door Panel, Freezer (Also Order Item WPL 1112433 Contact Us For Availability
2
Panel Frame, Top & Bottom WPL 1113345 Contact Us For Availability
2
Retainer, Side (4) WPL 1113277 Contact Us For Availability
2
Bracket, Water Fitting WPL 987049 Contact Us For Availability
2
Ring, Compression WPL 992953 Contact Us For Availability
2
Assembly, Sound Barrier WPL 1113115 Contact Us For Availability
2
Clamp, Bi-Metal WPL 1113043 Contact Us For Availability
2
Leveler, Front (2) WPL 1112019 Contact Us For Availability
2
Glass, Shelf WPL 1112156 Contact Us For Availability
2
Ladder, Shelf (2) WPL 1112272 Contact Us For Availability
2
Inlay, Control Panel WPL 1113379 Contact Us For Availability
2
Front, Ice Compartment WPL 1112394 Contact Us For Availability
2
Tube, Wiring WPL 1112997 Contact Us For Availability
3
Blade, Fan WPL 992920 Contact Us For Availability
3
Grommet, Screw (3) WPL 843436 Contact Us For Availability
3
Hinge Assembly, Top WPL 1112945 Contact Us For Availability
3
Back Up Panel WPL 1113355 Contact Us For Availability
3
Retainer, Freezer (2) WPL 1112690 Contact Us For Availability
3
Compressor (Includes Items 8, 9, 10 & 11) (Al WPL 4210577 Contact Us For Availability
3
Retainer (2) WPL 1113249 Contact Us For Availability
3
Reflector, Shelf WPL 1112161 Contact Us For Availability
3
Spacer, Ladder (4) WPL 1112271 Contact Us For Availability
3
Circuit Board WPL 1113390 Contact Us For Availability
3
Shelf, Fixed (2) WPL 1112341 Contact Us For Availability
3
Retainer, Tube WPL 1112928 Contact Us For Availability
4
Bracket, Keyhole Mounting (2) WPL 1113324 Contact Us For Availability
4
Retainer, Refrigerator (2) WPL 1112686 Contact Us For Availability
4
Bracket (Double) WPL 548263 Contact Us For Availability
4
Bracket, Mounting WPL 1105220 Contact Us For Availability
4
Tube, Connect (Suction) WPL 1113293 Contact Us For Availability
4
Gasket, Glass (2) WPL 1112599 Contact Us For Availability
4
Knob, Air Control WPL 1116853 Contact Us For Availability
4
Reflector, Shelf WPL 1112349 Contact Us For Availability
5
Ladder, Shelf (2) WPL 1112115 Contact Us For Availability
5
Knob, Retainer WPL 837444 Contact Us For Availability
5
Shoulder Screw (4) WPL 1113326 Contact Us For Availability
5
Magnet, Side (4) WPL 1112682 Contact Us For Availability
5
Bracket (Single) WPL 938224 Contact Us For Availability
5
Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability
5
Tube, Connect (Discharge) WPL 1113209 Contact Us For Availability
5
Trim, Shelf Front WPL 1112171 Contact Us For Availability
5
Stud, Shelf (4) WPL 521516 Contact Us For Availability
5
Trim, Shelf WPL 1112359 Contact Us For Availability
5
Insulation, Dispenser WPL 1112978 Contact Us For Availability
6
Hinge Assembly, Bottom WPL 1112921 Contact Us For Availability
6
Spring Washer (4) WPL 489232 Contact Us For Availability
6
Magnet, Freezer (2) WPL 1112684 Contact Us For Availability
6
Grommet WPL 548268 Contact Us For Availability
6
Grommet, Mounting WPL 1105200 Contact Us For Availability
6
Tube, Flow Divider (2) WPL 1113296 Contact Us For Availability
6
Adjusting Rod (2) WPL 1112936 Contact Us For Availability
6
Screw, 6-32 x 1/2 WPL 489210 Contact Us For Availability
6
Support Clip, Icemaker (2) WPL 538533 Contact Us For Availability
6
Hinge, Bottom WPL 1112916 Contact Us For Availability
7
Screw, 8 x 1-1/4 (8) WPL 488357 Contact Us For Availability
7
Magnet, Refrigerator (2) WPL 1112680 Contact Us For Availability
7
Screw WPL 489139 Contact Us For Availability
7
Valve, Fluid Control WPL 1113292 Contact Us For Availability
7
Sleeve, Retainer (2) WPL 1113250 Contact Us For Availability
7
Frame & Housing, Meat Pan WPL 1124007 Contact Us For Availability
7
Grommet, Screw (2) WPL 538532 Contact Us For Availability
7
Seal, Control Panel WPL 1113135 Contact Us For Availability
7
Shelf, Cantilever WPL 1112361 Contact Us For Availability
8
Gasket Retainer, Top & Bottom WPL 1112541 Contact Us For Availability
8
Nut (8) WPL 489172 Contact Us For Availability
8
Heater, Mullion WPL 1112711 Contact Us For Availability
8
Grommet, Screw WPL 538449 Contact Us For Availability
8
Overload WPL 1113273 Contact Us For Availability
8
Tube, Connect (Drier) WPL 1113294 Contact Us For Availability
8
Bushing, Rod (2) WPL 1112937 Contact Us For Availability
8
Retainer, Glass WPL 1112324 Contact Us For Availability
8
Screw (3) WPL 489260 Contact Us For Availability
8
Reflector, Shelf WPL 1112346 Contact Us For Availability
8
Hinge, Top WPL 1112944 Contact Us For Availability
9
Hole Plug WPL 1112257 Contact Us For Availability
9
Spacer Plate WPL 1112940 Contact Us For Availability
9
Door Gasket, Magnetic WPL 1112548 Contact Us For Availability
9
Top Grille Assembly WPL 1113448 Contact Us For Availability
9
Trim (R.S.) WPL 1112792 Contact Us For Availability
9
Screw, 8-18 x 3/4 WPL 488316 Contact Us For Availability
9
Terminal Cover WPL 1105221 Contact Us For Availability
9
Heater, Drain Pan WPL 1113061 Contact Us For Availability
9
Screw, 10-32 x 5/8 WPL 488115 Contact Us For Availability
9
Screw (Repair) WPL 489266 Contact Us For Availability
9
Stud, Support (4) WPL 992720 Contact Us For Availability
9
Hole Plug (3) WPL 534927 Contact Us For Availability
9
Trim, Shelf WPL 1112351 Contact Us For Availability
10
Cover, Liner Back WPL 1112127 Contact Us For Availability
10
Cover, Unit WPL 1113490 Contact Us For Availability
10
Trim (L.S.) WPL 1112790 Contact Us For Availability
10
Grommet WPL 987048 Contact Us For Availability
10
Terminal Block WPL 942842 Contact Us For Availability
10
Valve, Solenoid WPL 1113103 Contact Us For Availability
10
Strap, Cover WPL 1105222 Contact Us For Availability
10
Hanger, Heater WPL 1113062 Contact Us For Availability
10
Hole Plug, Leveler WPL 1112939 Contact Us For Availability
10
Glass, Crisper WPL 1112251 Contact Us For Availability
10
Stud, Retainer (4) WPL 836374 Contact Us For Availability
10
Shield, Control Panel WPL 1112656 Contact Us For Availability
10
Basket (Large) WPL 1112306 Contact Us For Availability
10
Clip, Expansion (2) WPL 537095 Contact Us For Availability
11
Control Panel Assembly (Meat) WPL 1112219 Contact Us For Availability
11
Socket, Light (2) WPL 1112613 Contact Us For Availability
11
Screw, (Repair) WPL 487246 Contact Us For Availability
11
Heater, Ice Dispenser WPL 938107 Contact Us For Availability
11
Relay WPL 1108066 Contact Us For Availability
11
Bracket, Heater WPL 1113105 Contact Us For Availability
11
Cap, Grommet WPL 1112849 Contact Us For Availability
11
Rail, Evaporator Cover (Left Side) WPL 1112841 Contact Us For Availability
11
Rail, Evaporator Cover (Right Side) WPL 1112842 Contact Us For Availability
11
Side, Basket (Left Side) WPL 1112310 Contact Us For Availability
11
Wiring Harness, Freezer Door WPL 1112951 Contact Us For Availability
12
Insulation, Liner Back Cover WPL 1112134 Contact Us For Availability
12
Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability
12
Cover, Component Assembly WPL 1113300 Contact Us For Availability
12
Trim (Bottom) WPL 1112801 Contact Us For Availability
12
Ice Door Mechanism WPL 938669 Contact Us For Availability
12
Channel, Wiring WPL 1112734 Contact Us For Availability
12
Grommet, Water Tube WPL 1112970 Contact Us For Availability
12
Reflector, Glass WPL 1112263 Contact Us For Availability
12
Side, Basket (Right Side) WPL 1112311 Contact Us For Availability
13
Gasket, Ice Door WPL 983691 Contact Us For Availability
13
Spacer, Control Panel (3) WPL 1112591 Contact Us For Availability
13
Duct, Meat Pan WPL 1112132 Contact Us For Availability
13
Brace, Panel (2) WPL 1113317 Contact Us For Availability
13
Wiring Harness, Fan Motor WPL 1112703 Contact Us For Availability
13
Capacitor, Start WPL 1108065 Contact Us For Availability
13
Tube, Discharge WPL 1113256 Contact Us For Availability
13
Grommet, Wiring WPL 1113122 Contact Us For Availability
13
Gasket, Crisper WPL 1112634 Contact Us For Availability
13
Front, Basket WPL 1112316 Contact Us For Availability
13
Gasket Retainer, Top & Bottom WPL 1112540 Contact Us For Availability
14
Shield, Impact WPL 987121 Contact Us For Availability
14
Damper Control, Meat Pan WPL 1112218 Contact Us For Availability
14
Spacer Trim, Grille WPL 1113347 Contact Us For Availability
14
Scroll, Fan (Also Order Item 15) WPL 1111212 Contact Us For Availability
14
Clamp WPL 1108033 Contact Us For Availability
14
Wiring Harness, Cabinet WPL 1113460 Contact Us For Availability
14
Pan, Crisper WPL 1112221 Contact Us For Availability
14
Lens WPL 1112661 Contact Us For Availability
14
Overlay, Front WPL 1112321 Contact Us For Availability
15
Door, Ice WPL 983690 Contact Us For Availability
15
Grommet (15) WPL 842339 Contact Us For Availability
15
Control Knob, Meat Pan WPL 1112258 Contact Us For Availability
15
Retainer, Unit Base (2) WPL 1113604 Contact Us For Availability
15
Shield, Scroll WPL 1112976 Contact Us For Availability
15
Tube, Inlet Valve WPL 1113106 Contact Us For Availability
15
Heat Exchanger WPL 1113109 Contact Us For Availability
15
Drain Fitting WPL 1112848 Contact Us For Availability
15
Roller WPL 1112638 Contact Us For Availability
15
Channel, Wiring WPL 1112708 Contact Us For Availability
16
Handle, Door WPL 1112508 Contact Us For Availability
16
Trim (Top) WPL 1112490 Contact Us For Availability
16
Condenser WPL 1113015 Contact Us For Availability
16
Gap, Cover Assembly (Top) (Right Side) WPL 1113214 Contact Us For Availability
16
Gap, Cover Assembly (Top) (Left Side) WPL 1113215 Contact Us For Availability
16
Eyelet, Roller WPL 1112639 Contact Us For Availability
17
Bracket, Light WPL 1112789 Contact Us For Availability
17
Insert, Handle WPL 1112510 Contact Us For Availability
17
Lever, Ice Dispenser WPL 1115309 Contact Us For Availability
17
Assembly, Air Duct WPL 1112856 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
17
Grommet (4) WPL 943447 Contact Us For Availability
17
Heater, Defrost WPL 1113409 Contact Us For Availability
17
Shoulder, Screw WPL 1112906 Contact Us For Availability
17
Stud, Shelf (8) WPL 658944 Contact Us For Availability
18
End Cap, Bottom WPL 1107844 Contact Us For Availability
18
Pad, Lever WPL 1115310 Contact Us For Availability
18
Washer WPL 488307 Contact Us For Availability
18
Air Deflector, Icemaker WPL 1112868 Contact Us For Availability
18
Cover WPL 627356 Contact Us For Availability
18
Clamp (4) WPL 1113019 Contact Us For Availability
18
Hinge (Top) (Left Side) WPL 1112901 Contact Us For Availability
18
Hinge (Top) (Right Side) WPL 1112912 Contact Us For Availability
18
Screw, 8-15 x 1-1/4 (8) WPL 487559 Contact Us For Availability
19
Screw, 8-32 x 5/8 (4) WPL 487522 Contact Us For Availability
19
End Cap, Top WPL 1107849 Contact Us For Availability
19
Trim (Bottom) WPL 1112499 Contact Us For Availability
19
Bearing, Clip WPL 987917 Contact Us For Availability
19
Cup, Motor WPL 1112870 Contact Us For Availability
19
Clamp, Heater (2) WPL 549419 Contact Us For Availability
19
Shim, Hinge Top (4) WPL 1112988 Contact Us For Availability
19
Utility Pan WPL 1113243 Contact Us For Availability
19
Gasket, Evaporator Cover (2) WPL 1112843 Contact Us For Availability
19
Basket (Small) WPL 1112336 Contact Us For Availability
20
Wiring Harness, Air Baffle WPL 1112994 Contact Us For Availability
20
Panel, Interior Door WPL 1112516 Contact Us For Availability
20
Lever, Water Dispenser WPL 1115308 Contact Us For Availability
20
Shield WPL 1112883 Contact Us For Availability
20
Cap, Thread Cover WPL 998869 Contact Us For Availability
20
Gasket, Evaporator WPL 1112844 Contact Us For Availability
20
Guard, Wiring WPL 1112805 Contact Us For Availability
20
Meat Pan WPL 1112196 Contact Us For Availability
20
Side, Basket (Left Side) WPL 1112312 Contact Us For Availability
21
Wiring Harness, Light Socket WPL 1112709 Contact Us For Availability
21
Ladder, Shelf (2) WPL 1112527 Contact Us For Availability
21
Fastener (3) WPL 1112871 Contact Us For Availability
21
Drier WPL 1108023 Contact Us For Availability
21
Clip, Connector WPL 1112713 Contact Us For Availability
21
Door Closer, Fixed Cam WPL 1112907 Contact Us For Availability
21
Side, Basket (Right Side) WPL 1112313 Contact Us For Availability
21
Trim (Top) WPL 1112485 Contact Us For Availability
22
Spring, Lever WPL 983696 Contact Us For Availability
22
Screw, 6-32 x 1/2 WPL 489112 Contact Us For Availability
22
Retainer, Shelf Ladder (2) WPL 1112530 Contact Us For Availability
22
Gasket, Air Baffle WPL 1112869 Contact Us For Availability
22
Mounting Bracket, Motor WPL 1113083 Contact Us For Availability
22
Guard, Hook-Up WPL 1113070 Contact Us For Availability
22
Basket Spacer, Right Side (2) WPL 1112296 Contact Us For Availability
23
Thermistor WPL 1116959 Contact Us For Availability
23
Back Up Plate (8) WPL 1112514 Contact Us For Availability
23
Bearing, Lever WPL 983697 Contact Us For Availability
23
Cover, Air Outlet WPL 1112850 Contact Us For Availability
23
Motor, Fan WPL 1113081 Contact Us For Availability
23
Strap (7) WPL 851095 Contact Us For Availability
23
Door Closer Assembly (2) WPL 1112992 Contact Us For Availability
23
Egg Container, Bottom WPL 1107384 Contact Us For Availability
23
Trim (Bottom) WPL 1112494 Contact Us For Availability
24
Flexible Grommet WPL 1113078 Contact Us For Availability
24
Trim (Side) WPL 1112480 Contact Us For Availability
24
Screw, 8-32 x 1-1/2 WPL 488748 Contact Us For Availability
24
Blade, Fan WPL 1113082 Contact Us For Availability
24
Bracket, Door Closer (Left Side) WPL 1112947 Contact Us For Availability
24
Bracket, Door Closer (Right Side) WPL 1112948 Contact Us For Availability
24
Egg Container, Top WPL 1107388 Contact Us For Availability
25
Shield, Light WPL 1112788 Contact Us For Availability
25
Bin, Utility WPL 1112721 Contact Us For Availability
25
Bracket, Control WPL 1107454 Contact Us For Availability
25
Cover, Evaporator WPL 1112276 Contact Us For Availability
25
Orifice, Fan WPL 1113011 Contact Us For Availability
25
Crisper Spacer, Right Side (2) WPL 1112165 Contact Us For Availability
26
Door, Utility Bin WPL 1112736 Contact Us For Availability
26
Switch WPL 841336 Contact Us For Availability
26
Connector, Meat Pan Duct WPL 1112565 Contact Us For Availability
26
Gasket, Orifice WPL 1113303 Contact Us For Availability
26
Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability
26
Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability
26
Tap Plate, Hinge Butt (2) WPL 1112973 Contact Us For Availability
26
Basket Spacer, Left Side (2) WPL 1112295 Contact Us For Availability
26
Panel, Interior Door WPL 1112523 Contact Us For Availability
27
Stop, Roller WPL 1113169 Contact Us For Availability
27
Door Shelf (4) WPL 1112741 Contact Us For Availability
27
Insulation, Switch WPL 984683 Contact Us For Availability
27
Speed Nut (2) WPL 488885 Contact Us For Availability
27
Spacer, Shelf WPL 1113286 Contact Us For Availability
27
Overlay, Panel WPL 1113171 Contact Us For Availability
28
Screw, 4-40 x 1 WPL 488361 Contact Us For Availability
28
Baffle, Evaporator WPL 1112840 Contact Us For Availability
28
Screw, 10-32 x 49/64 WPL 489258 Contact Us For Availability
28
Clip, Water Tube WPL 934011 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) (Right Side) WPL 1113216 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) (Left Side) WPL 1113217 Contact Us For Availability
28
Crisper Spacer, Left Side (2) WPL 1112141 Contact Us For Availability
29
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
29
Top Grille Trim Kit (8``) WPL 4210545 Contact Us For Availability
29
Top Grille Trim Kit (7-1/2``) WPL 4210546 Contact Us For Availability
29
Front Panel Kit (Almond) WPL 4210568 Contact Us For Availability
29
Front Panel Kit (Black) WPL 4210569 Contact Us For Availability
29
Front Panel Kit (White) WPL 4210570 Contact Us For Availability
29
Lamp Holder WPL 987265 Contact Us For Availability
29
Diffuser, Air Duct WPL 1112851 Contact Us For Availability
29
Wiring Harness, Water Valve WPL 1112702 Contact Us For Availability
29
Hinge (Bottom) (Left Side) WPL 1112919 Contact Us For Availability
29
Hinge (Bottom) (Right Side) WPL 1112923 Contact Us For Availability
29
Door Shelf, Inner Trim WPL 1112771 Contact Us For Availability
30
Defrost Timer (10 Hour) WPL 1113225 Contact Us For Availability
30
Tube, Connect (Suction) WPL 1113384 Contact Us For Availability
30
Shim, Hinge Bottom (4) WPL 1112942 Contact Us For Availability
31
Support, Trim Ends WPL 1112763 Contact Us For Availability
31
Light Switch WPL 851386 Contact Us For Availability
31
Tube (2) WPL 1113297 Contact Us For Availability
31
Screw, 1/4-28 x 3/4 WPL 489237 Contact Us For Availability
32
Plunger, Extension WPL 1107457 Contact Us For Availability
32
Wire Connector WPL 227991 Contact Us For Availability
32
Harness, Wiring WPL 1113403 Contact Us For Availability
32
Tube, Condenser Inlet WPL 1113096 Contact Us For Availability
32
Grille Base, Top WPL 1112831 Contact Us For Availability
33
Spring, Plunger WPL 983986 Contact Us For Availability
33
Clamp, Tube (2) WPL 1113066 Contact Us For Availability
33
Grille Base, Bottom WPL 1113151 Contact Us For Availability
34
Retainer, Pin WPL 983987 Contact Us For Availability
34
Compression Nut WPL 488795 Contact Us For Availability
34
Clamp, Tube WPL 1113067 Contact Us For Availability
34
Grille Base, Front WPL 1113261 Contact Us For Availability
34
Ice Chute WPL 1112554 Contact Us For Availability
35
Screw (6) WPL 489238 Contact Us For Availability
35
Wiring Harness, Door WPL 934302 Contact Us For Availability
35
Assembly, Air Baffle WPL 1112875 Contact Us For Availability
36
Shield, Wiring WPL 984494 Contact Us For Availability
36
Insulation, Air Diffuser WPL 1113147 Contact Us For Availability
36
Tube Clamp (4) WPL 1112847 Contact Us For Availability
36
Cover, Fan WPL 1113075 Contact Us For Availability
36
Cover, Rear WPL 1112835 Contact Us For Availability
37
Guiding, Ice WPL 1118269 Contact Us For Availability
37
Cover, Condenser WPL 1113027 Contact Us For Availability
37
Grommet, Wiring WPL 1113123 Contact Us For Availability
38
Glass Top WPL 1119056 Contact Us For Availability
38
``O`` Ring WPL 488794 Contact Us For Availability
38
Cover, Air Diffuser WPL 1112878 Contact Us For Availability
38
Extension, Housing WPL 1113076 Contact Us For Availability
38
Grommet, Flexible WPL 1113079 Contact Us For Availability
39
Screw WPL 489197 Contact Us For Availability
39
``O`` Ring WPL 488819 Contact Us For Availability
39
Cord, Service WPL 937360 Contact Us For Availability
39
Grommet, Tube WPL 1112926 Contact Us For Availability
40
Screw WPL 488775 Contact Us For Availability
40
Wire Tie (2) WPL 1113228 Contact Us For Availability
41
Tube, Meat Pan WPL 1112265 Contact Us For Availability
41
Clamp, Cord (2) WPL 1113162 Contact Us For Availability
42
Front Cover, Housing WPL 1112889 Contact Us For Availability
43
Saddle, Lever WPL 1119000 Contact Us For Availability
44
Cover, Dispenser Opening WPL 1112836 Contact Us For Availability
44
Nut, Compression WPL 1108005 Contact Us For Availability
44
Clip, Cord Plug WPL 653035 Contact Us For Availability
45
Trim, Front (2) WPL 1112838 Contact Us For Availability
45
Wiring Harness, Unit Compartment WPL 1112700 Contact Us For Availability
46
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
46
Stop WPL 1113039 Contact Us For Availability
46
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
47
Grille, Overflow WPL 983900 Contact Us For Availability
48
Switch WPL 934316 Contact Us For Availability
49
Overlay, Cover WPL 1113382 Contact Us For Availability
53
Washer (2) WPL 487944 Contact Us For Availability
55
Seal WPL 482672 Contact Us For Availability
× ![]()
