Model Whirlpool 4ED25DQXFN00 REFRIGERATOR – Common Parts & Diagrams

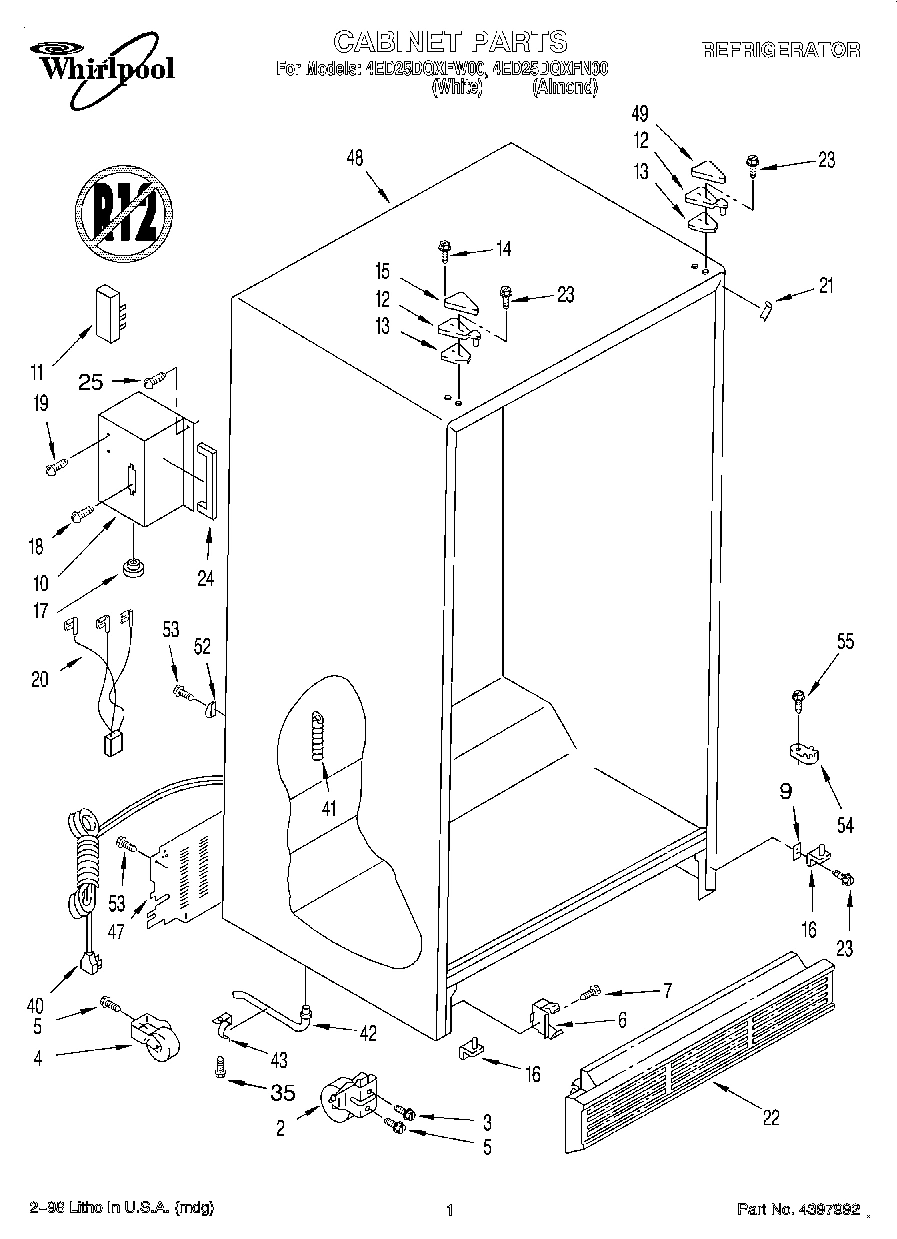

01 - CABINET

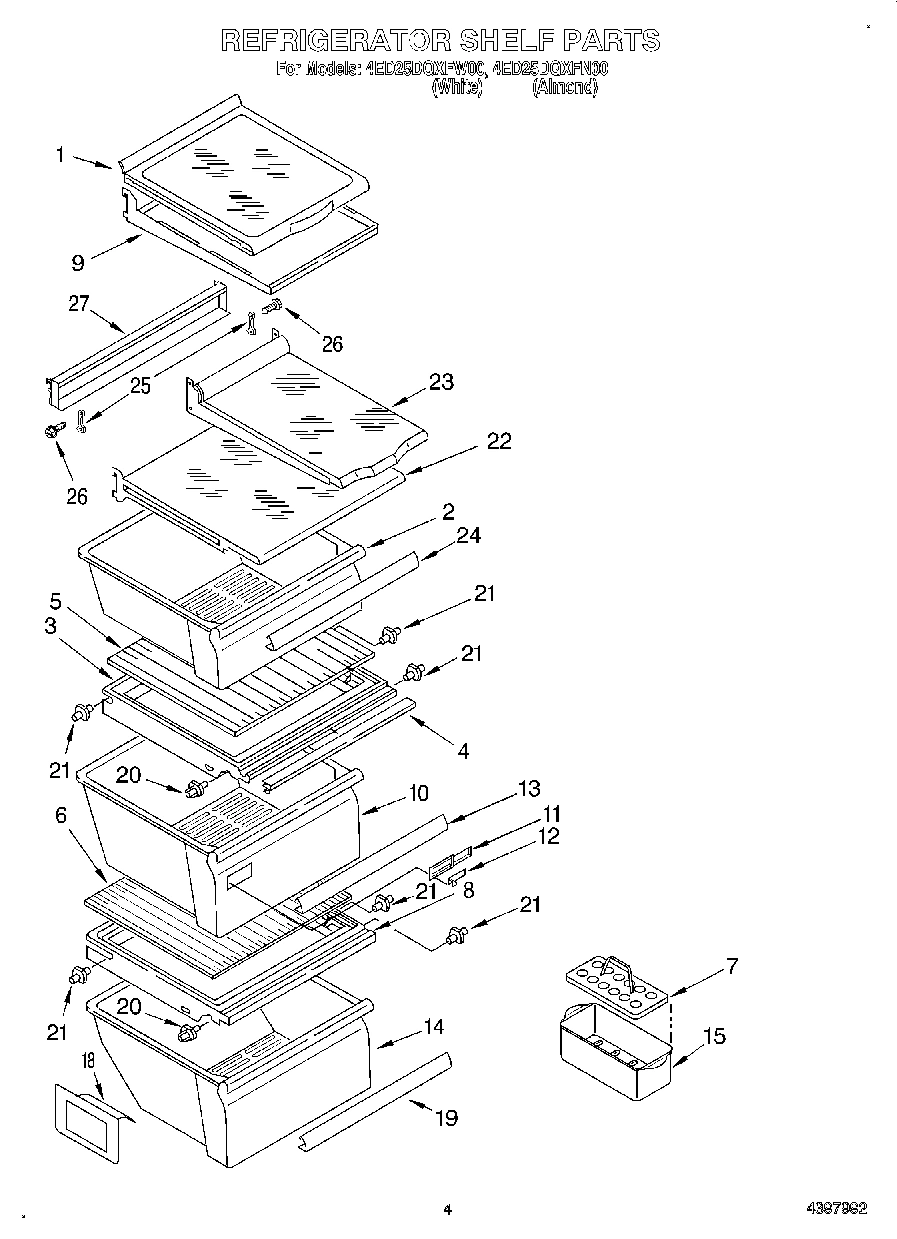

03 - REFRIGERATOR SHELF

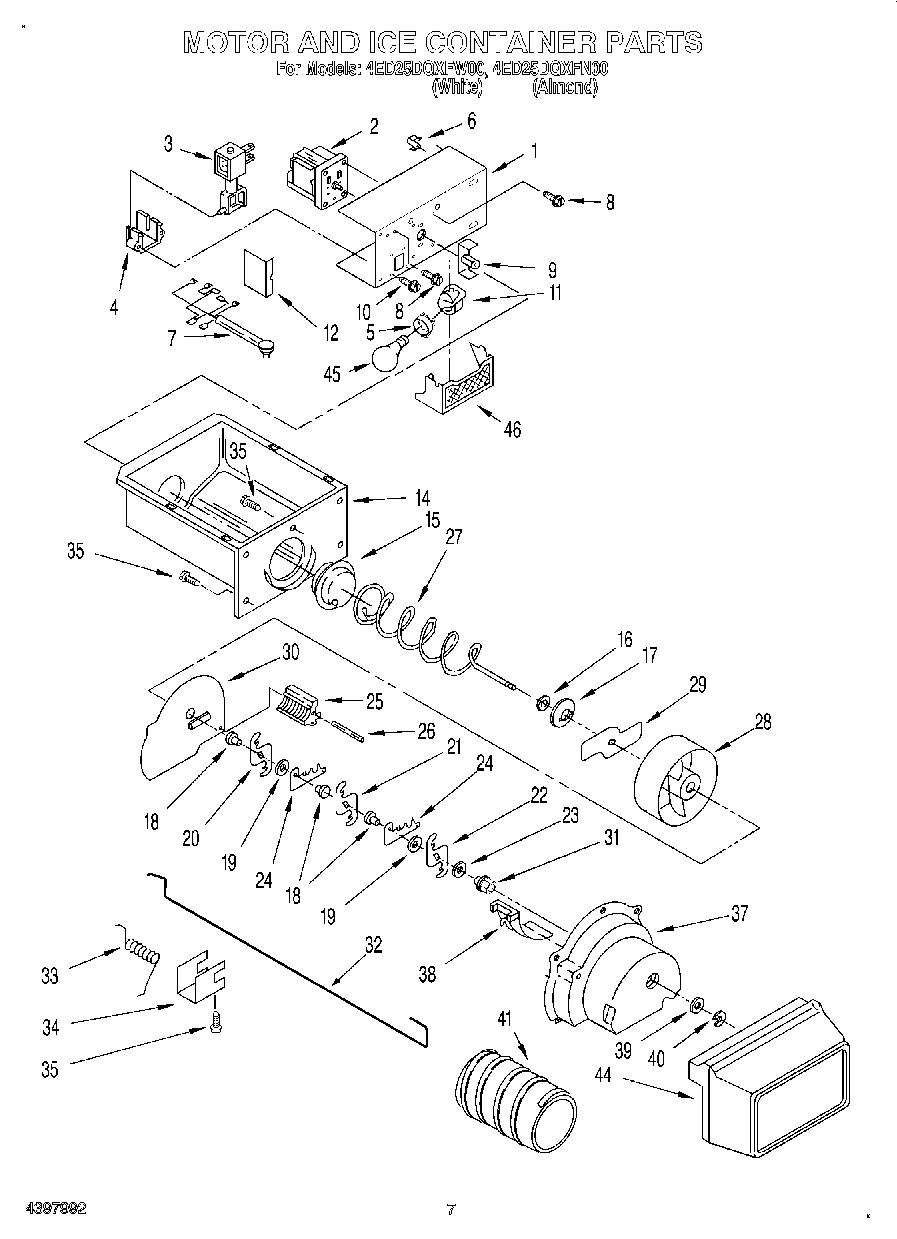

05 - MOTOR AND ICE CONTAINER

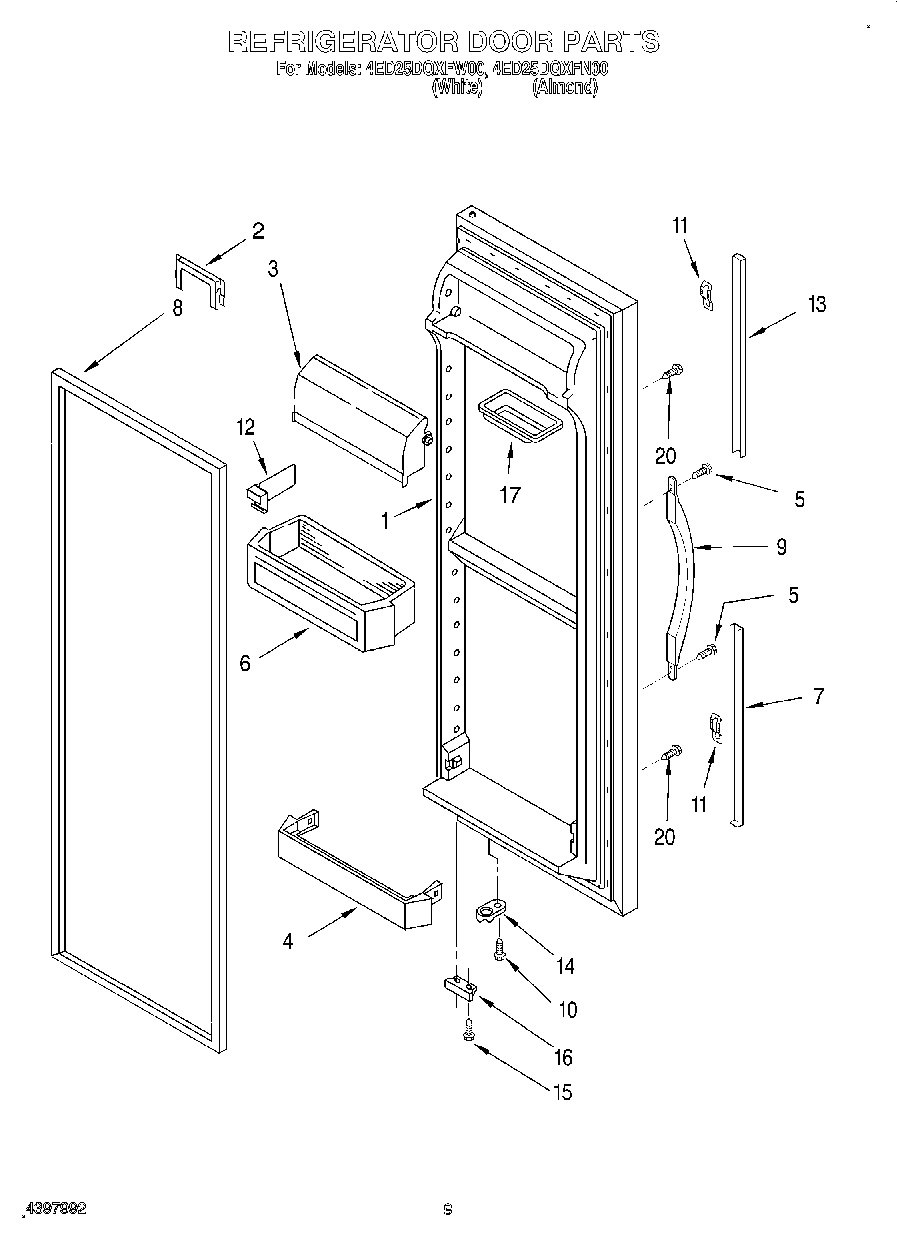

06 - REFRIGERATOR DOOR

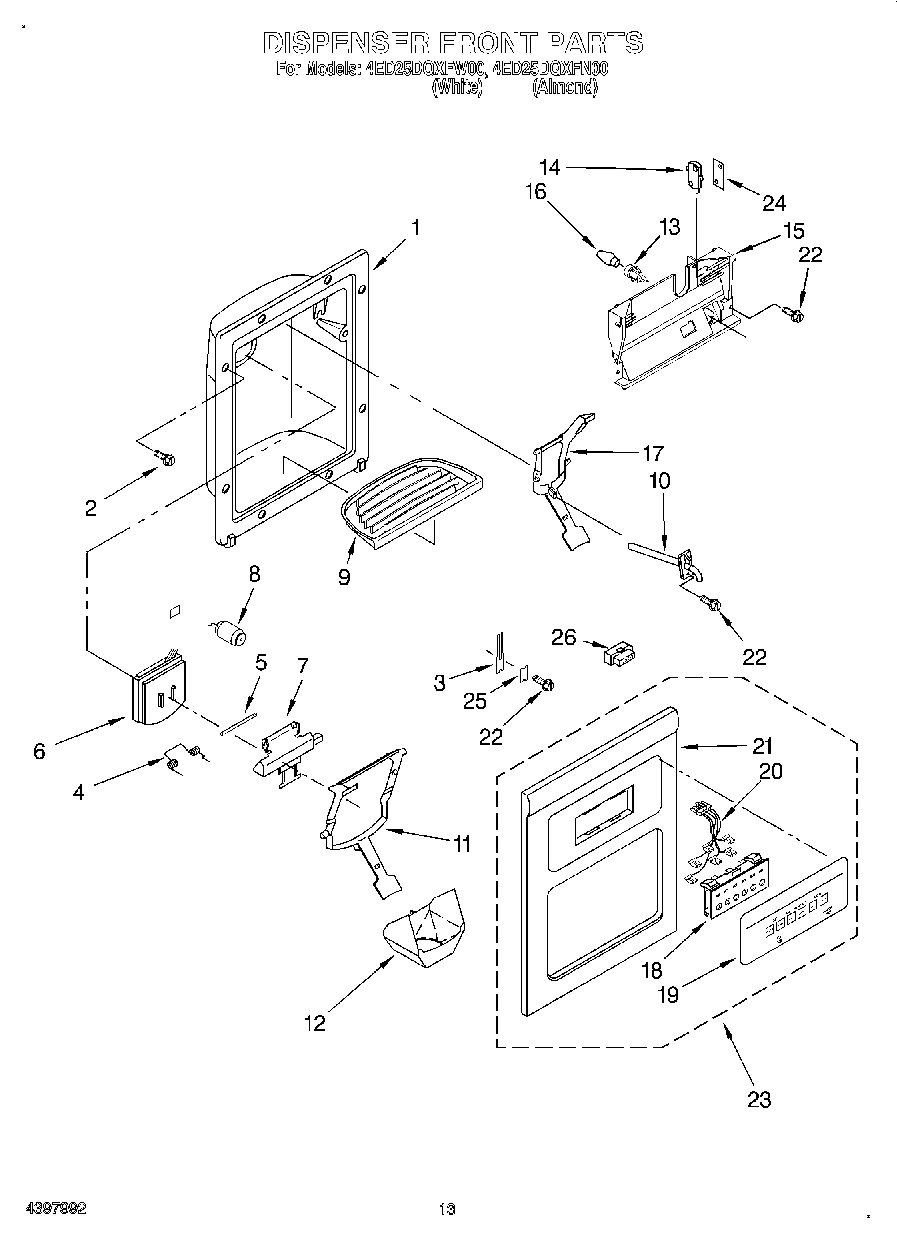

08 - DISPENSER FRONT

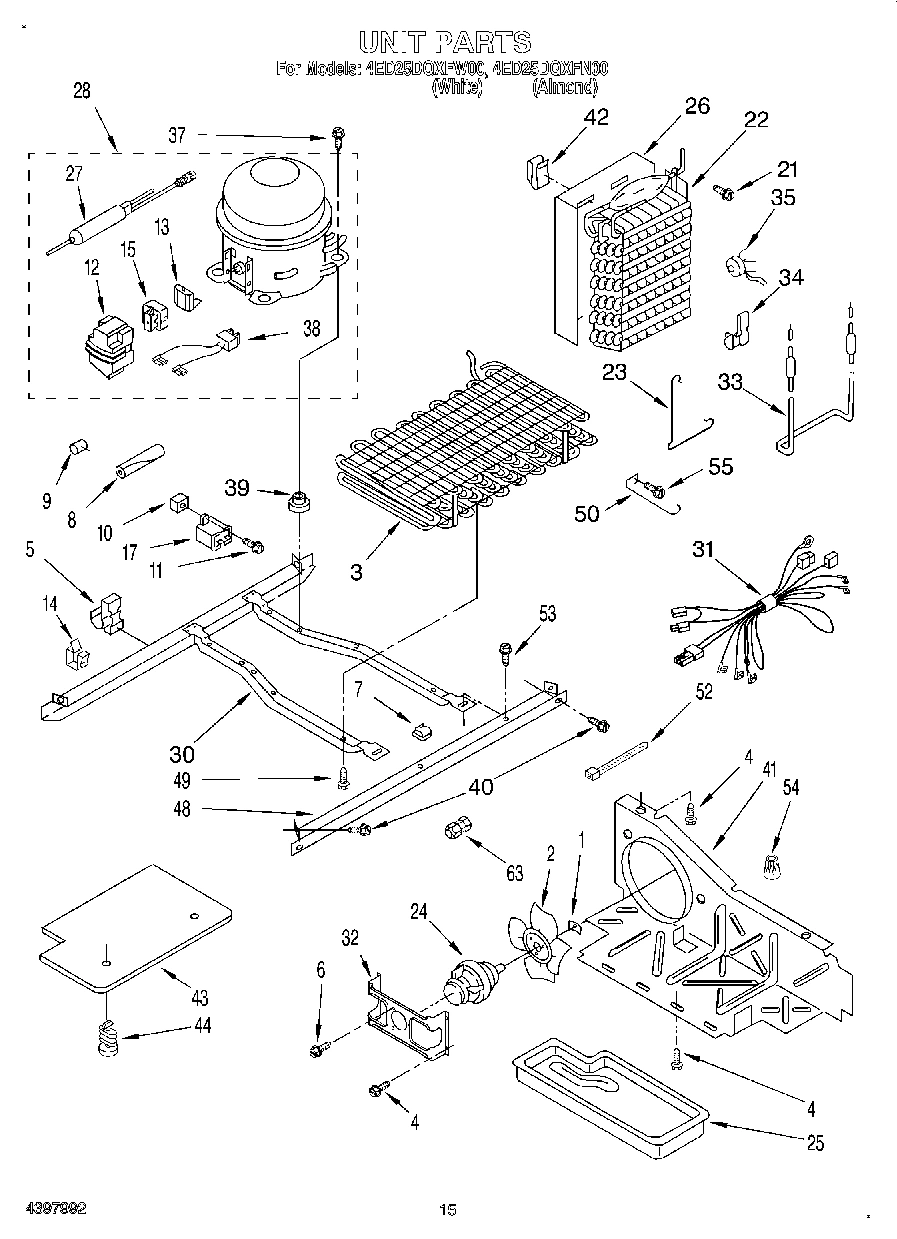

09 - UNIT

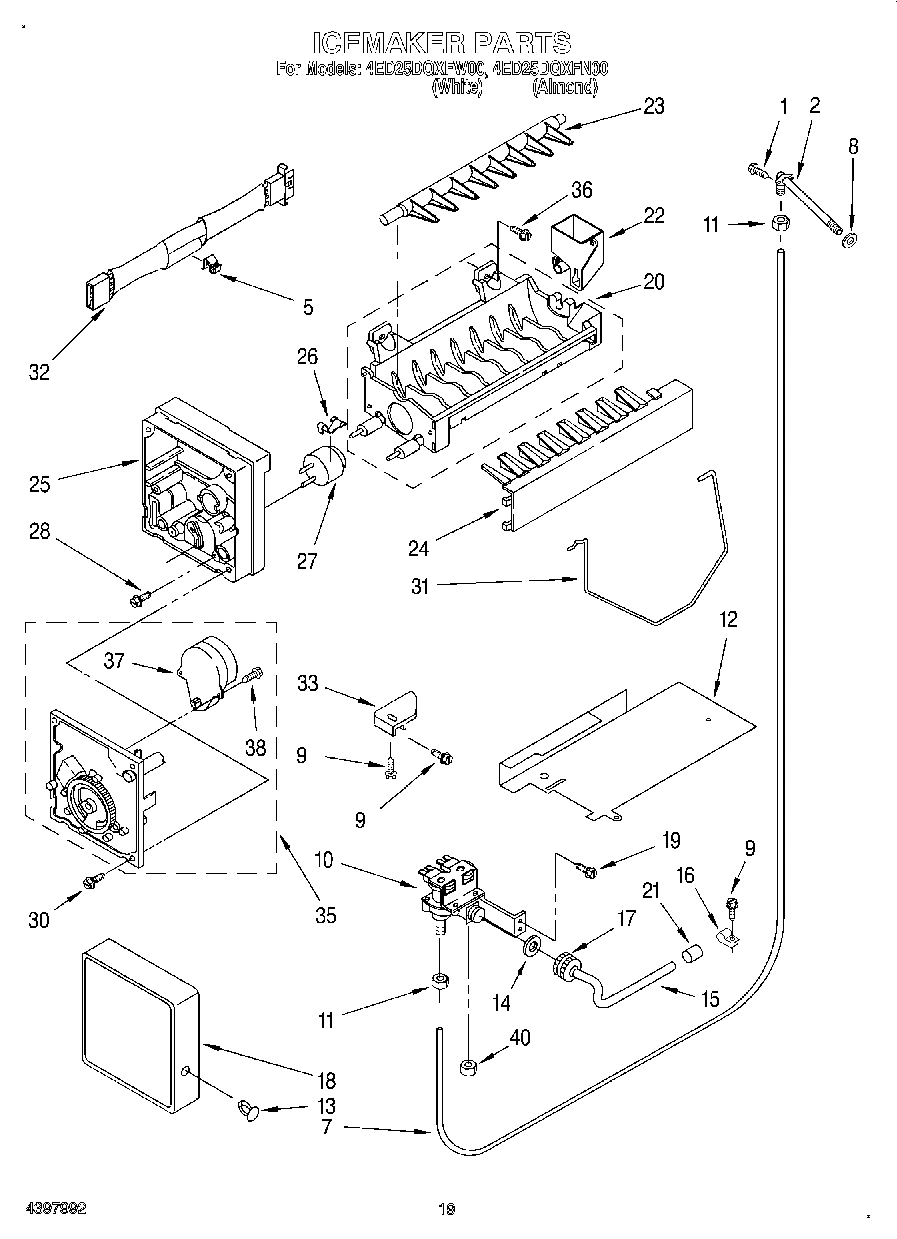

12 - ICEMAKER, LIT/OPTIONAL

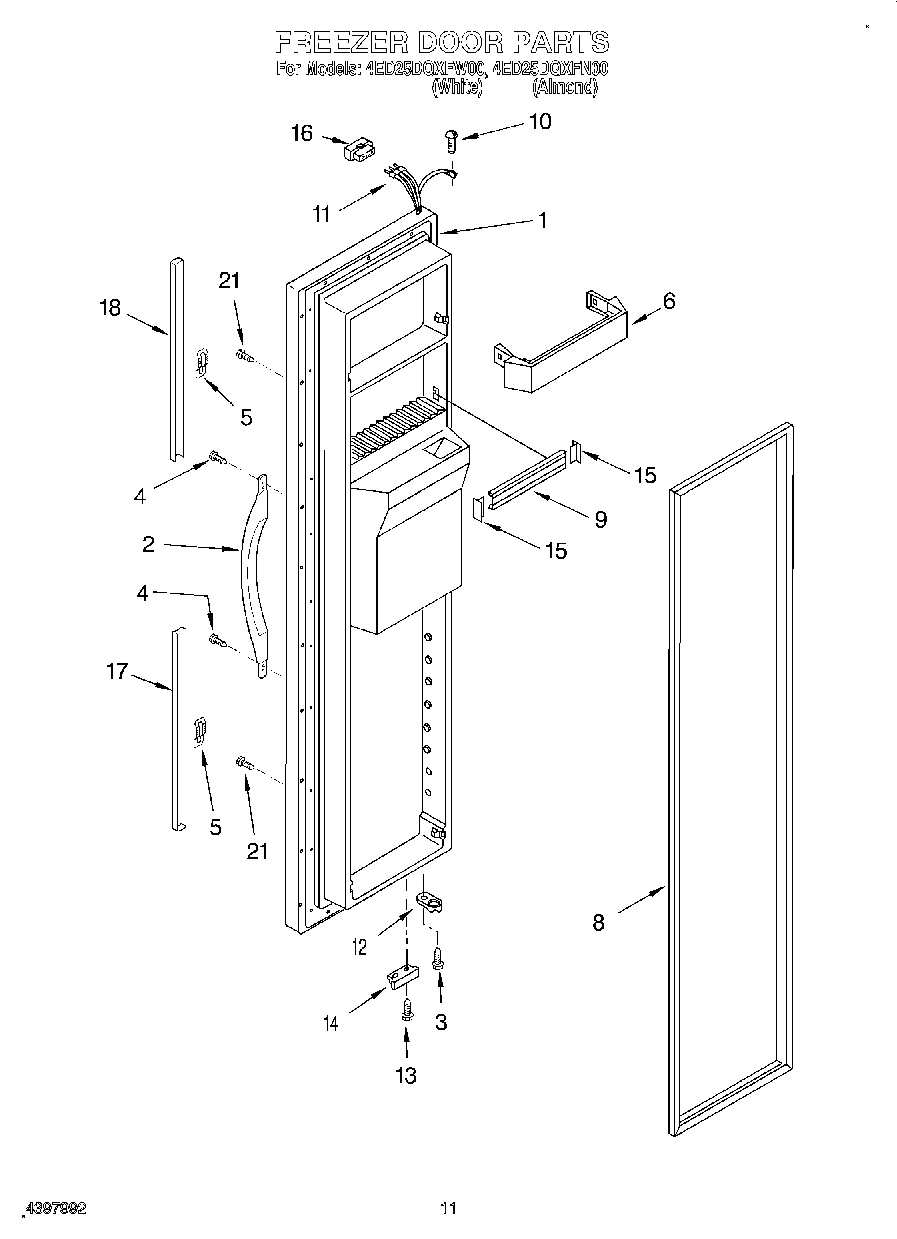

07 - FREEZER DOOR
10 - AIR FLOW

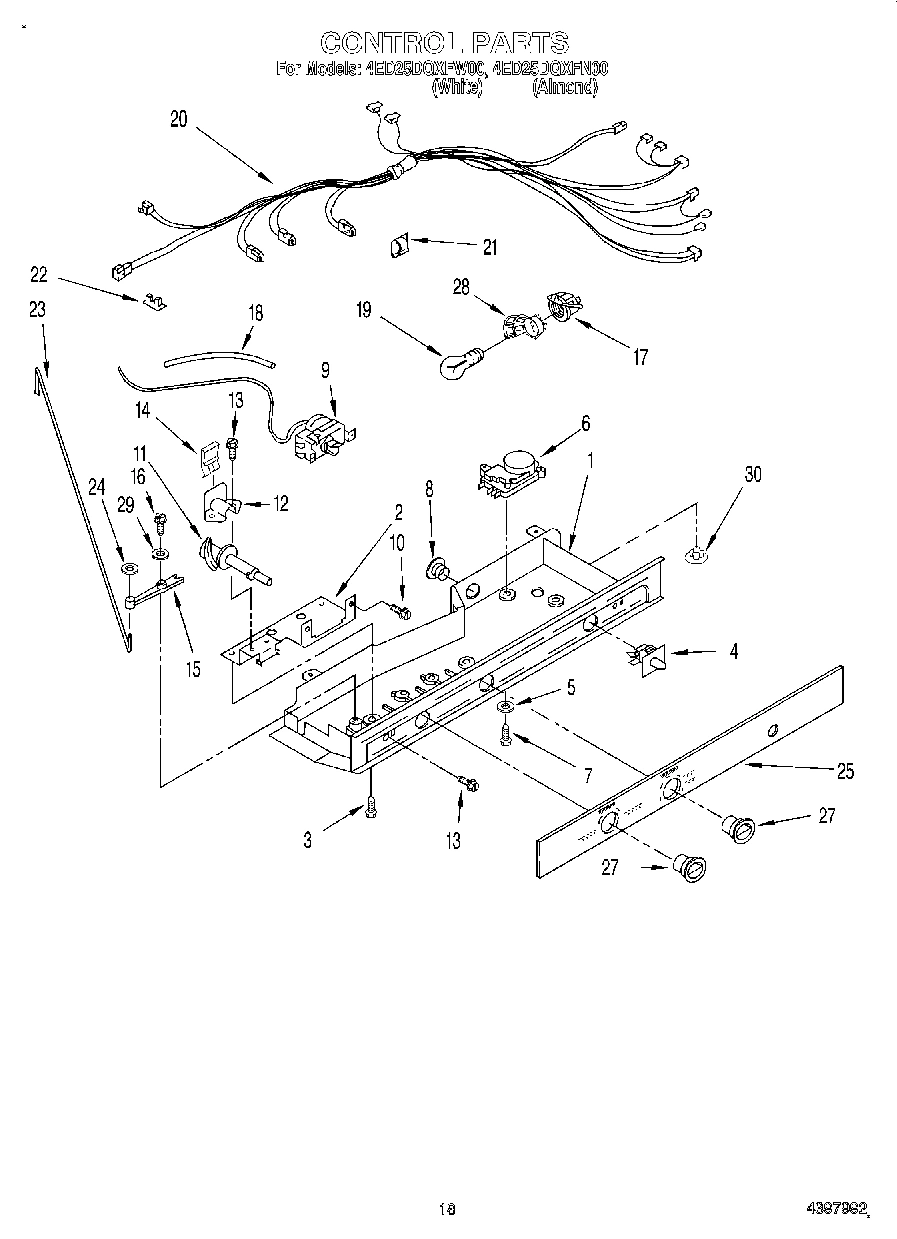

11 - CONTROL

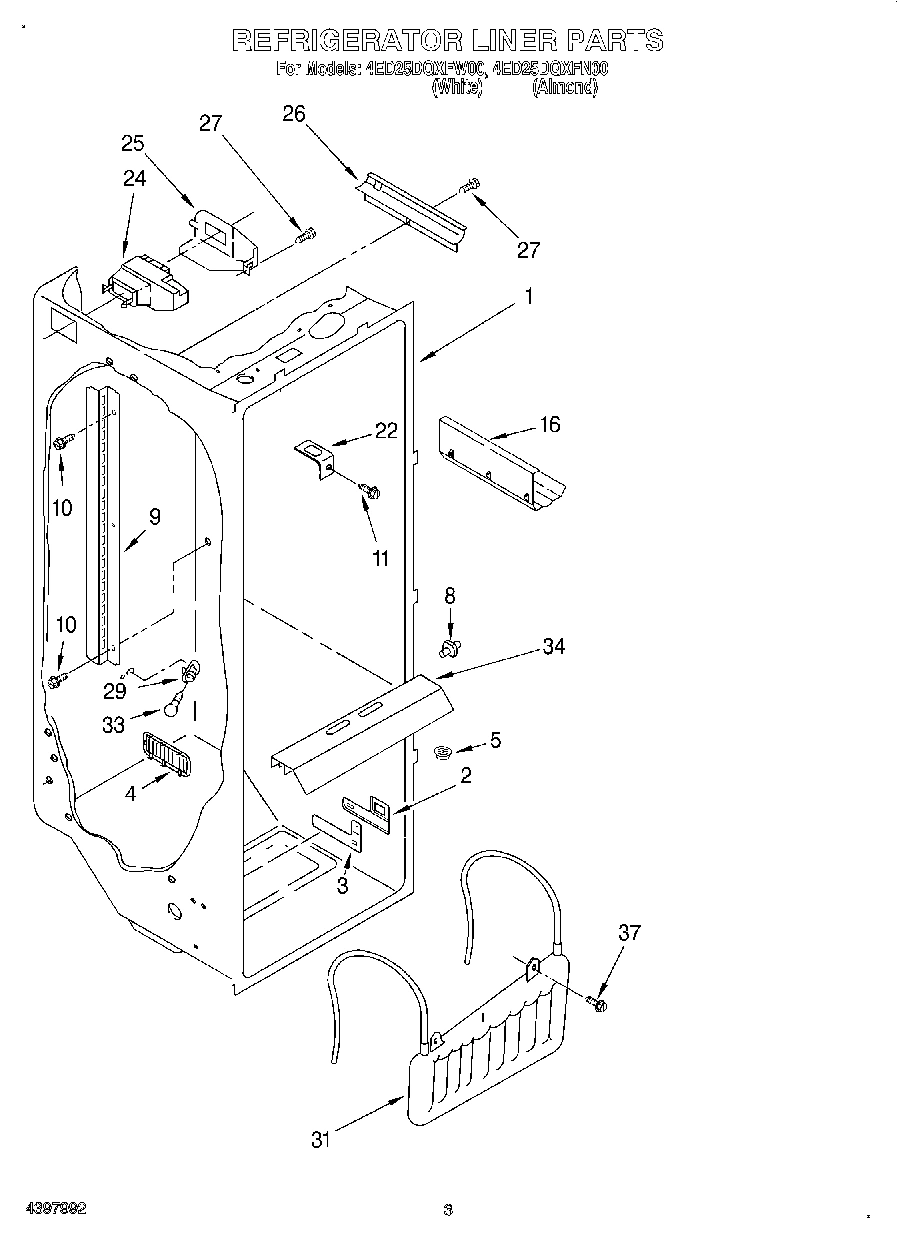

02 - REFRIGERATOR LINER

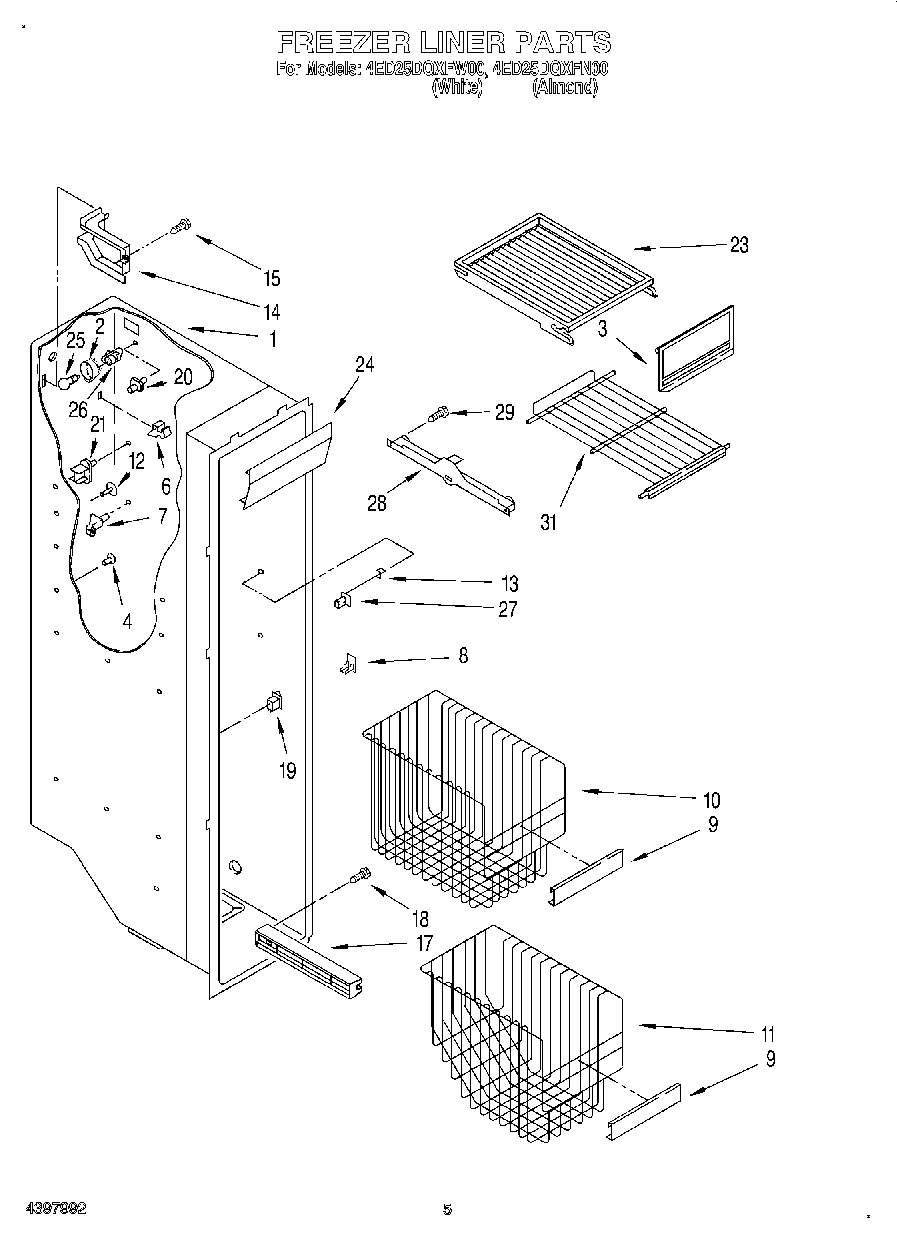

04 - FREEZER LINER
Common parts from model Whirlpool 4ED25DQXFN00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2186937 WPL LIT2186937 Contact Us For Availability
WPL LIT2195167 WPL LIT2195167 Contact Us For Availability
WPL LIT628371 WPL LIT628371 Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2197744N Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2197744W Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI13469A7 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI13470A4 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Handle, Center (Almond) WPL 2186649N Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
4
Grommet WPL 2176134 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
5
Air Duct Freezer WPL 2182063 Contact Us For Availability
5
Washer WPL 486632 Contact Us For Availability
6
Defrost Timer WPL 2176651 Contact Us For Availability
7
Extension, Bottom (White) WPL 2194969W Contact Us For Availability
7
Fan Motor WPL 2154986 Contact Us For Availability
9
Grille, Overflow (White) WPL 2180241 Contact Us For Availability
9
Handle, Center (White) WPL 2186649W Contact Us For Availability
9
Ladder, Shelf WPL 2181796 Contact Us For Availability
9
Trim, Basket WPL 2195905 Contact Us For Availability
10
Valve, Solenoid WPL 2175056 Contact Us For Availability
10
Basket, Tall WPL 2181765 Contact Us For Availability
11
Wiring Harness WPL 2183713 Contact Us For Availability
11
Basket, Slope WPL 2181764 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2189564 Contact Us For Availability
13
Stud, Support WPL 946355 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Tube, Inlet Valve WPL 627861 Contact Us For Availability
16
Bracket, Door Stop (Chrome) WPL 2195950 Contact Us For Availability
16
Clamp Tube WPL 510716 Contact Us For Availability
17
Nut WPL 537588 Contact Us For Availability
17
Extension, Bottom (Almond) WPL 2194969N Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Slide, Basket (Left Side (2)) WPL 2181759 Contact Us For Availability
17
Slide, Basket (Right Side (2)) WPL 2181760 Contact Us For Availability
18
Extension, Top (Almond) WPL 2194973N Contact Us For Availability
20
Control Box Harness WPL 2198306 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Shelf, Top Compartment WPL 2194297 Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
25
Escutcheon, Control Box WPL 2194977 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Stud, Rear R.S. WPL 1106982 Contact Us For Availability
27
Stud, Front R.S. WPL 946356 Contact Us For Availability
30
Hole Plug WPL 2166844 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
40
WPL 876029 WPL 876029 Contact Us For Availability
40
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
40
PAINT, BULK WPL 799344 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
40
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
40
WPL 799833 WPL 799833 Contact Us For Availability
40
WPL 978883 WPL 978883 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
