Model Whirlpool 3VET23DKDW00 REFRIGERATOR – Common Parts & Diagrams

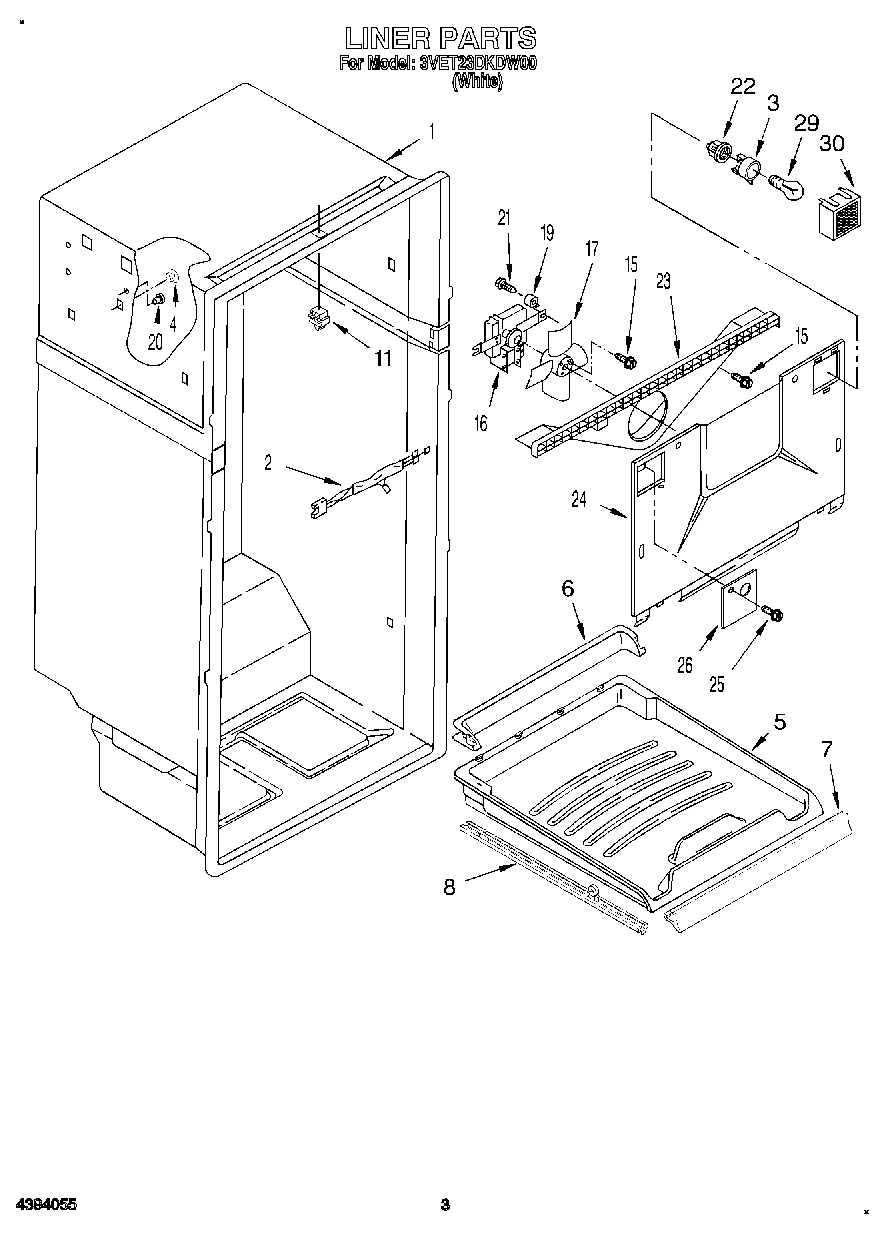

02 - LINER

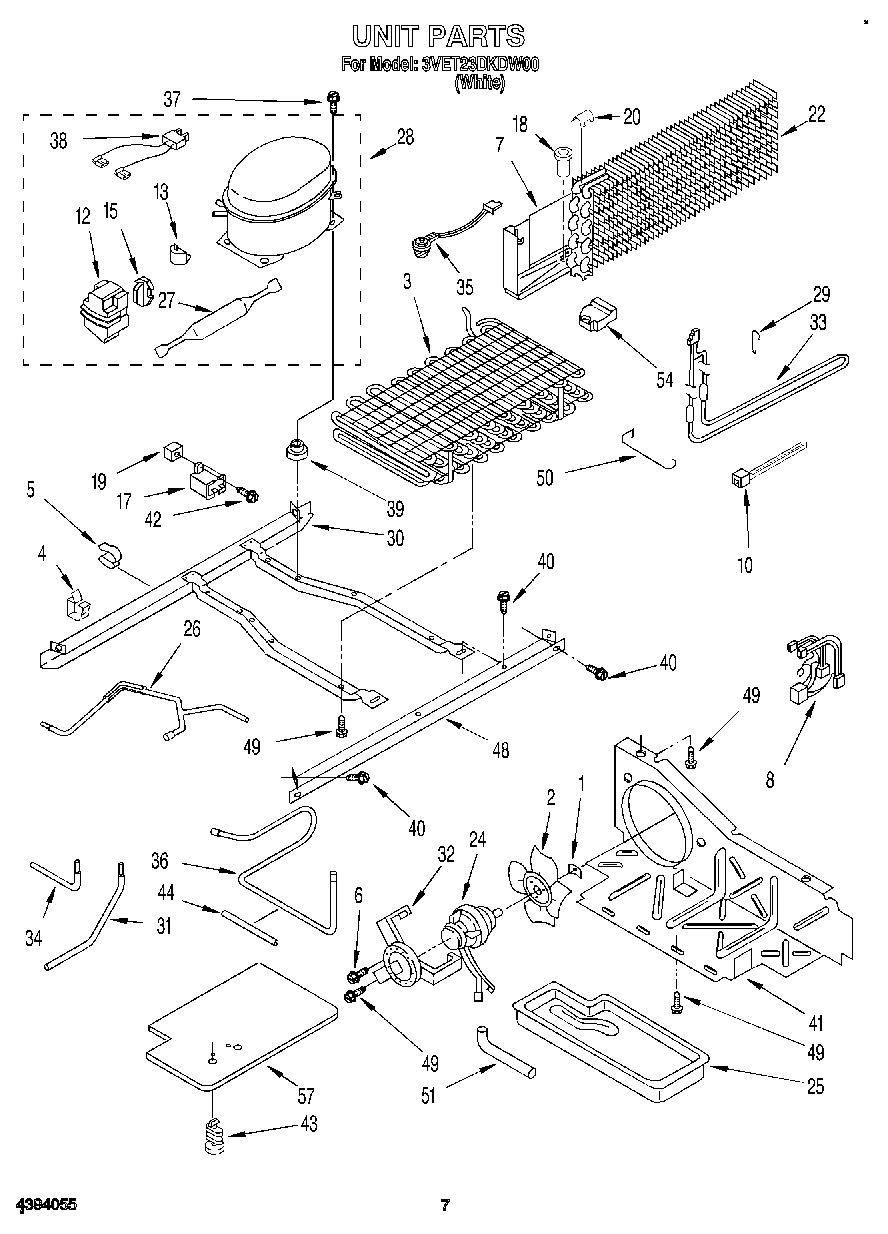

05 - UNIT

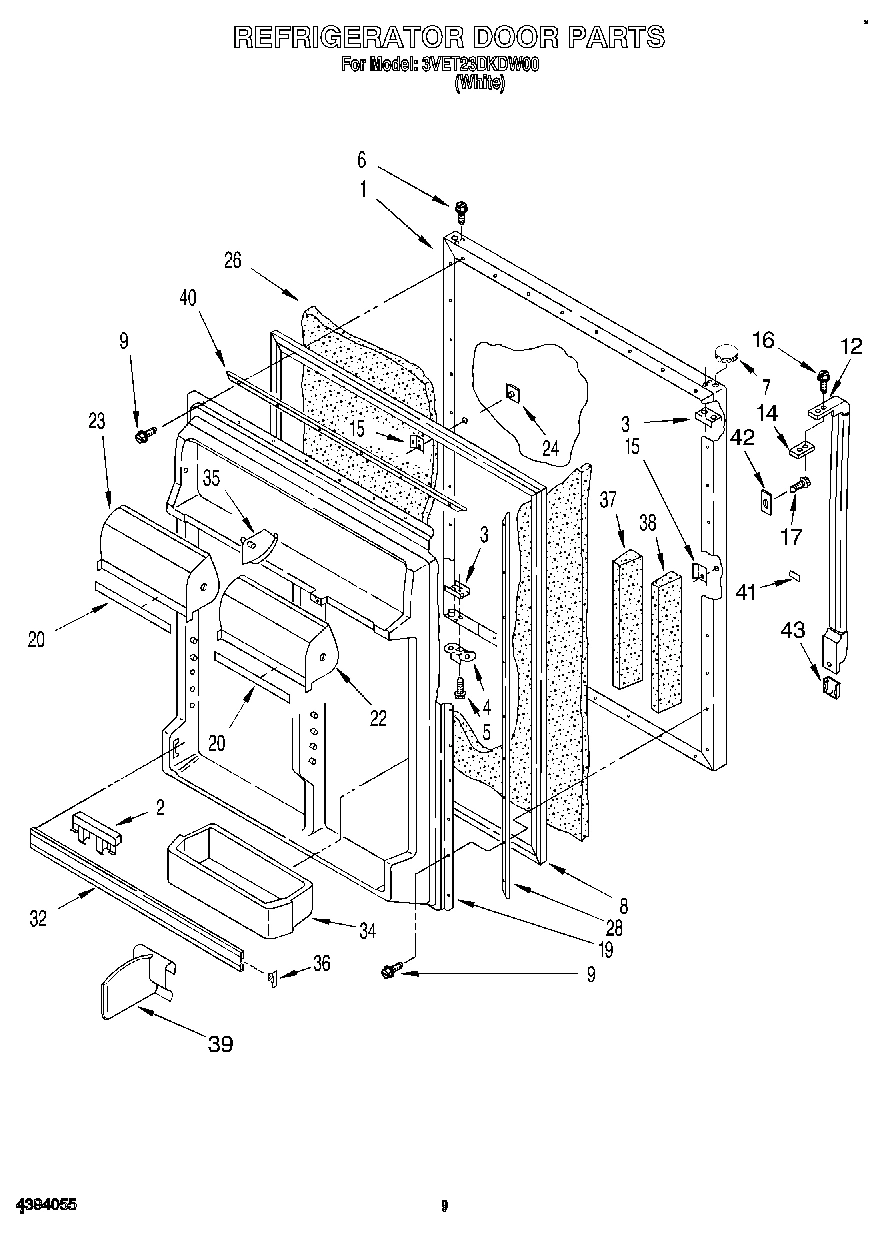

06 - REFRIGERATOR DOOR

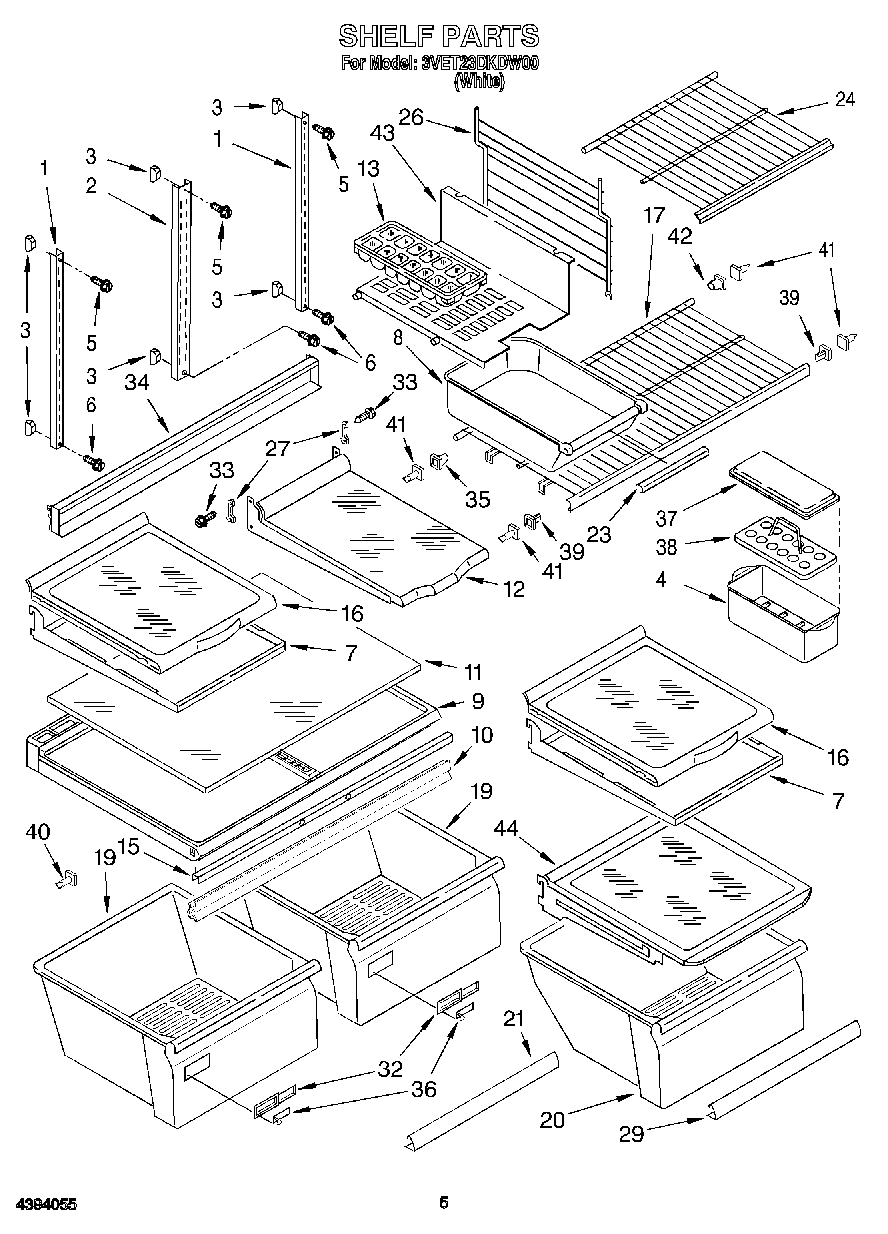

04 - SHELF

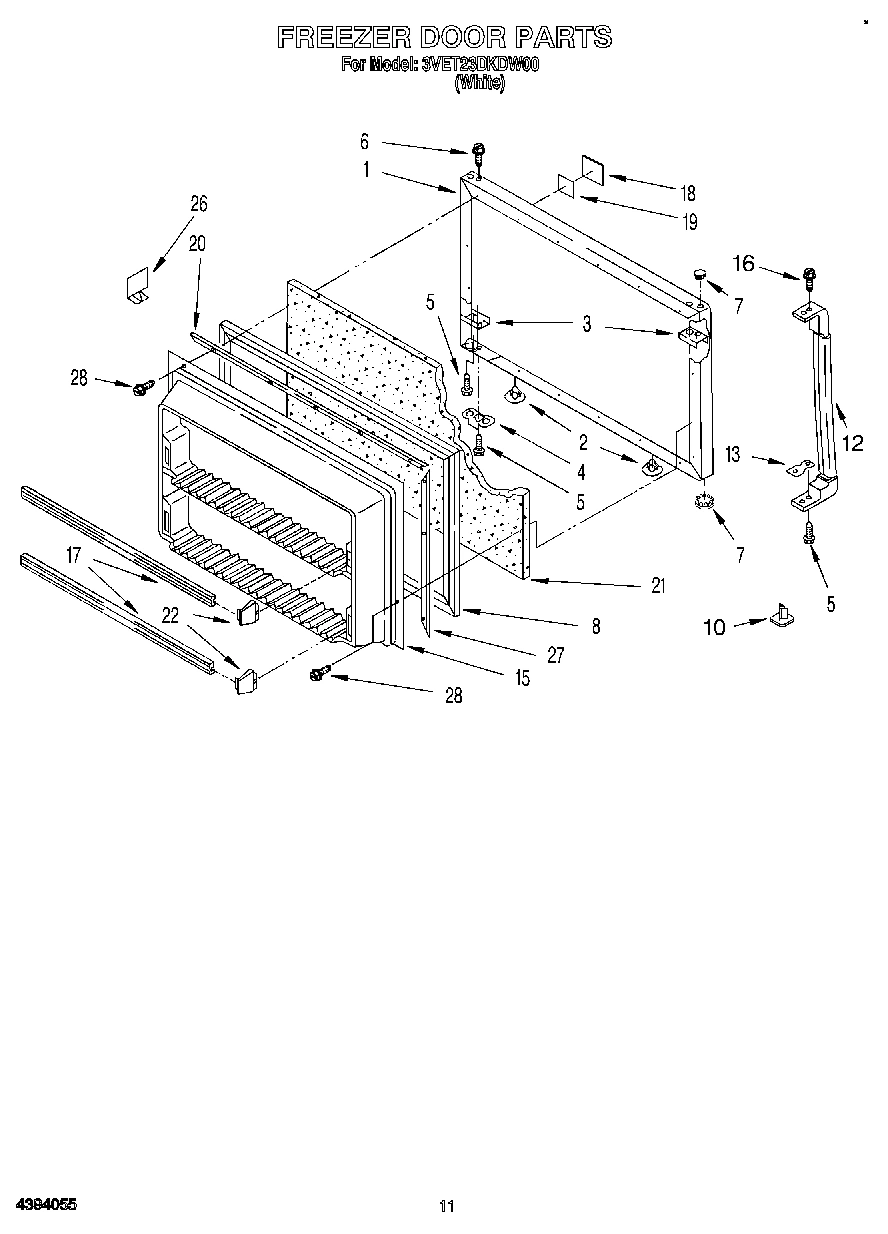

07 - FREEZER DOOR, LIT/OPTIONAL

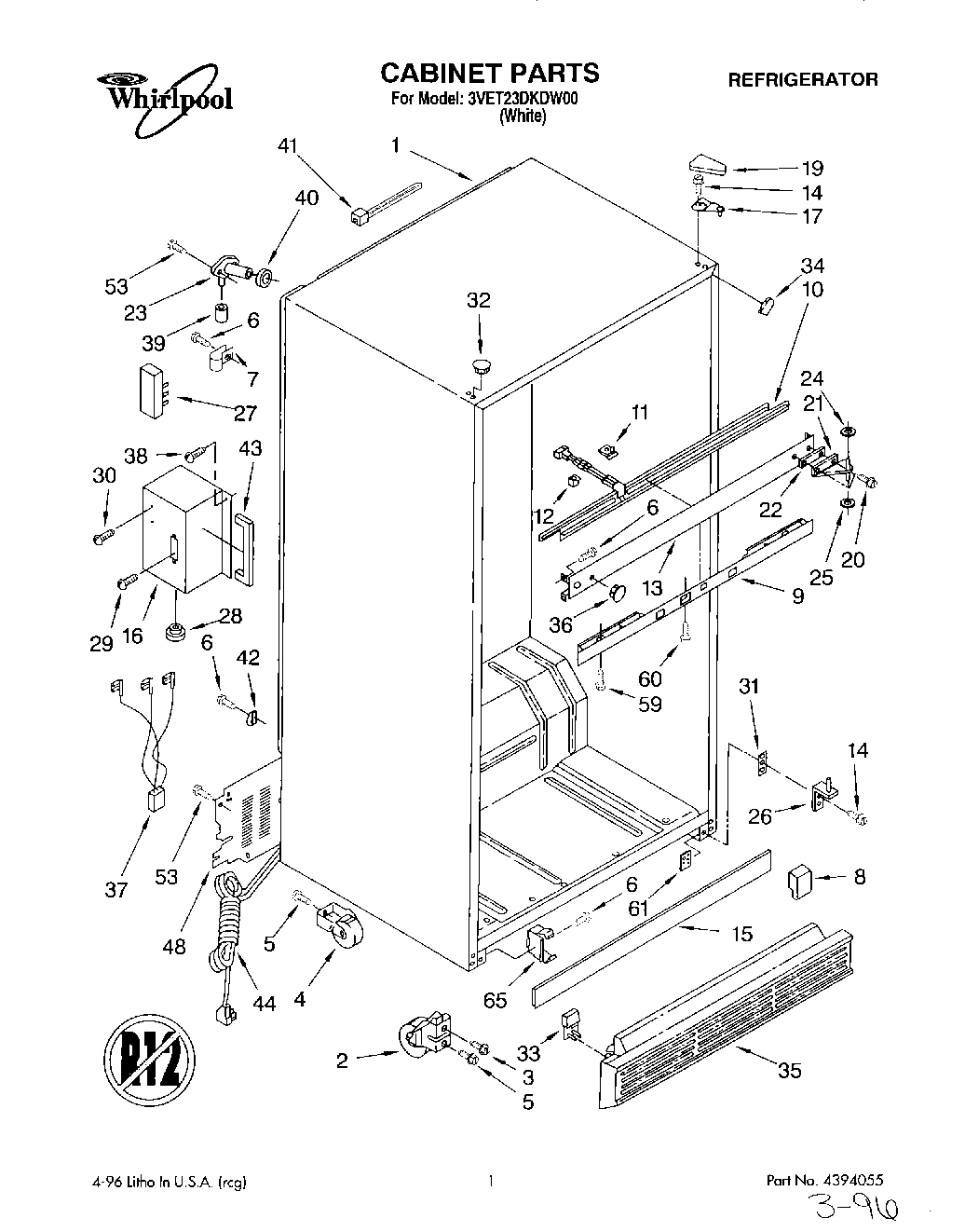

01 - CABINET

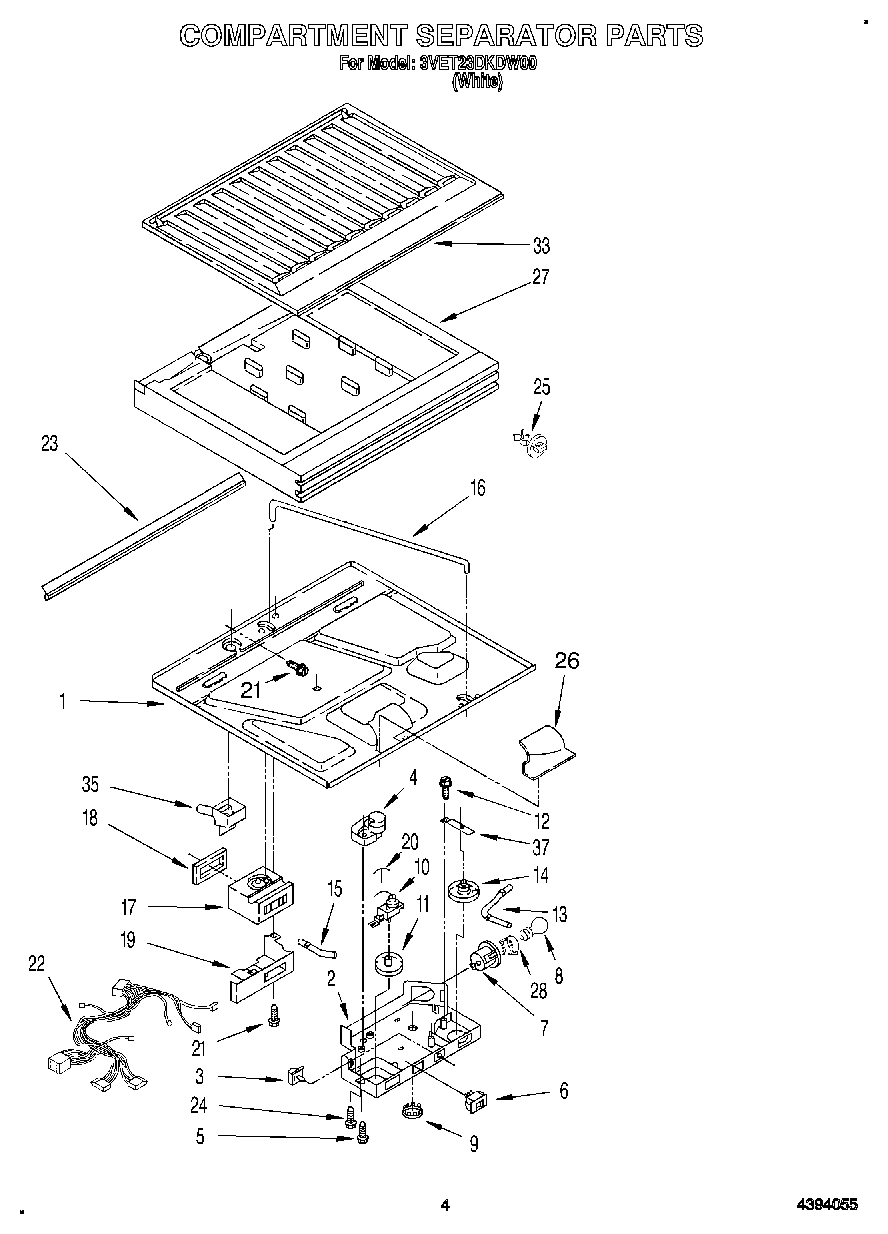

03 - COMPARTMENT SEPARATOR
Common parts from model Whirlpool 3VET23DKDW00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2170418 WPL LIT2170418 Contact Us For Availability
WPL LIT2174840 WPL LIT2174840 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 26) WPL 1122549 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Freezer Door Panel (Also Order Item 21) WPL 2159160 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI12636A9 Contact Us For Availability
1
Bottom, Compartment Separator WPL 2174810 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Retainer, Bottle WPL 2173643 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Roller, Front WPL 2174748 Contact Us For Availability
2
Box, Control WPL 2174824 Contact Us For Availability
4
Bracket, Door Stop WPL 944036 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
5
Screw, WPL 489345 Contact Us For Availability
7
Shelf, Cantilever (2) WPL 2174036 Contact Us For Availability
8
Bucket, Ice WPL 2174616 Contact Us For Availability
8
Insert, Air Baffle WPL 2176796 Contact Us For Availability
9
Crisper Cover WPL 2174134 Contact Us For Availability
9
Control, Front Cover WPL 2166843 Contact Us For Availability
10
Gasket, Crisper Cover WPL 2179392 Contact Us For Availability
10
Plug, Hole WPL 2174433 Contact Us For Availability
10
Heater, Mullion WPL 2158635 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174143 Contact Us For Availability
11
Clip, Rail (4) WPL 1129018 Contact Us For Availability
11
Knob, Thermostat WPL 2182423 Contact Us For Availability
12
Handle, Door WPL 2174003 Contact Us For Availability
12
Shelf, Slide (Side to Side) WPL 2174224 Contact Us For Availability
12
Handle, Door WPL 2174405 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
13
Shim, Handle WPL 2151813 Contact Us For Availability
13
Center Rail WPL 2179453 Contact Us For Availability
13
Light, Bar WPL 2160639 Contact Us For Availability
14
Knob, Air Control WPL 2174827 Contact Us For Availability
15
Interior Door Panel WPL 1122575 Contact Us For Availability
15
Deck Rail Cover WPL 2172708 Contact Us For Availability
15
Light, Bar WPL 2160638 Contact Us For Availability
16
Shelf Assembly, Spillguard WPL 2174035 Contact Us For Availability
16
Enclosure, Terminal Block WPL 2158579 Contact Us For Availability
16
Rod, Connecting WPL 1105460 Contact Us For Availability
17
Shelf, Freezer WPL 1125540 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2171403 Contact Us For Availability
17
Air Diffuser Assembly WPL 2160771 Contact Us For Availability
18
Nameplate WPL 2175380 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
19
Interior Door Panel WPL 2177226 Contact Us For Availability
19
Pan, Crisper WPL 2179411 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
20
Trim, Door Compartment WPL 2164839 Contact Us For Availability
20
Retainer, Gasket WPL 1122552 Contact Us For Availability
20
Pan, Meat WPL 2179412 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
22
Compartment Door, Right Side WPL 2163942 Contact Us For Availability
22
Shim, Hinge Center WPL 836194 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2174839 Contact Us For Availability
23
Compartment Door, Left Side WPL 2163945 Contact Us For Availability
23
Trim, Ice Bucket WPL 2176360 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159684 Contact Us For Availability
24
Shelf, Freezer (Top) WPL 2179445 Contact Us For Availability
25
Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability
26
Divider WPL 2179446 Contact Us For Availability
26
Divider, Door Shelf (2) WPL 1123293 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
27
Retainer, Gasket WPL 1122553 Contact Us For Availability
27
Hook, Shelf WPL 2169608 Contact Us For Availability
27
Terminal Block WPL 1129346 Contact Us For Availability
27
Insulation, Compartment Separator WPL 2174366 Contact Us For Availability
28
KIT, FOAM SLAB (30`` X 32 1/2 WPL 876029 Contact Us For Availability
28
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
28
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
28
Retainer, Gasket WPL 1122551 Contact Us For Availability
28
Door Reversal Instructions WPL 2172761 Contact Us For Availability
28
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
28
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
28
WPL 978883 WPL 978883 Contact Us For Availability
28
Bushing WPL 1129449 Contact Us For Availability
28
Shroud, Light WPL 2167012 Contact Us For Availability
30
Screw WPL 489346 Contact Us For Availability
31
Spacer WPL 2172744 Contact Us For Availability
32
Trim, Door Shelf WPL 2177228 Contact Us For Availability
33
Screw WPL 489419 Contact Us For Availability
33
Corner Filler, Grille WPL 1125665 Contact Us For Availability
33
Separator, Compartment (Top) WPL 2174367 Contact Us For Availability
34
Bin, Door Shelf (4) WPL 2179604 Contact Us For Availability
34
Slide Track Assy., Shelf WPL 2169793 Contact Us For Availability
34
Filler, Wrap Corner WPL 1118058 Contact Us For Availability
35
Grille WPL 1125663 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
36
Plug-Trim WPL 2159300 Contact Us For Availability
36
Hole Plug WPL 1129062 Contact Us For Availability
37
Door Dike, Center WPL 2174751 Contact Us For Availability
37
Cover WPL 2169935 Contact Us For Availability
37
Wiring Assembly, Terminal Block WPL 2165297 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
38
Door Dike, Side (2) WPL 1122709 Contact Us For Availability
39
Divider, Bin WPL 2171284 Contact Us For Availability
39
Shelf Stud WPL 946356 Contact Us For Availability
40
Shelf Stud (2) WPL 1106612 Contact Us For Availability
41
Shim, Handle WPL 2179398 Contact Us For Availability
41
Support, Stud WPL 946355 Contact Us For Availability
42
Shim, Handle WPL 2183124 Contact Us For Availability
43
Cover, End Cap WPL 2174006 Contact Us For Availability
43
Shelf, Ice Compartment WPL 1125543 Contact Us For Availability
43
Gasket WPL 2167227 Contact Us For Availability
44
Shelf, Meat Pan WPL 2174043 Contact Us For Availability
44
Service Cord WPL 1129332 Contact Us For Availability
48
Cover, Unit WPL 2160521 Contact Us For Availability
51
Tube, Drain WPL 2183033 Contact Us For Availability
54
Support, Evap. (Right Side) WPL 2174769 Contact Us For Availability
54
Support, Evap. (Left Side) WPL 2174770 Contact Us For Availability
57
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
57
Cover, Unit Bottom WPL 2160505 Contact Us For Availability
57
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
× ![]()
