Model Whirlpool 3VED29DQDW00 REFRIGERATOR – Common Parts & Diagrams
09 - UNIT

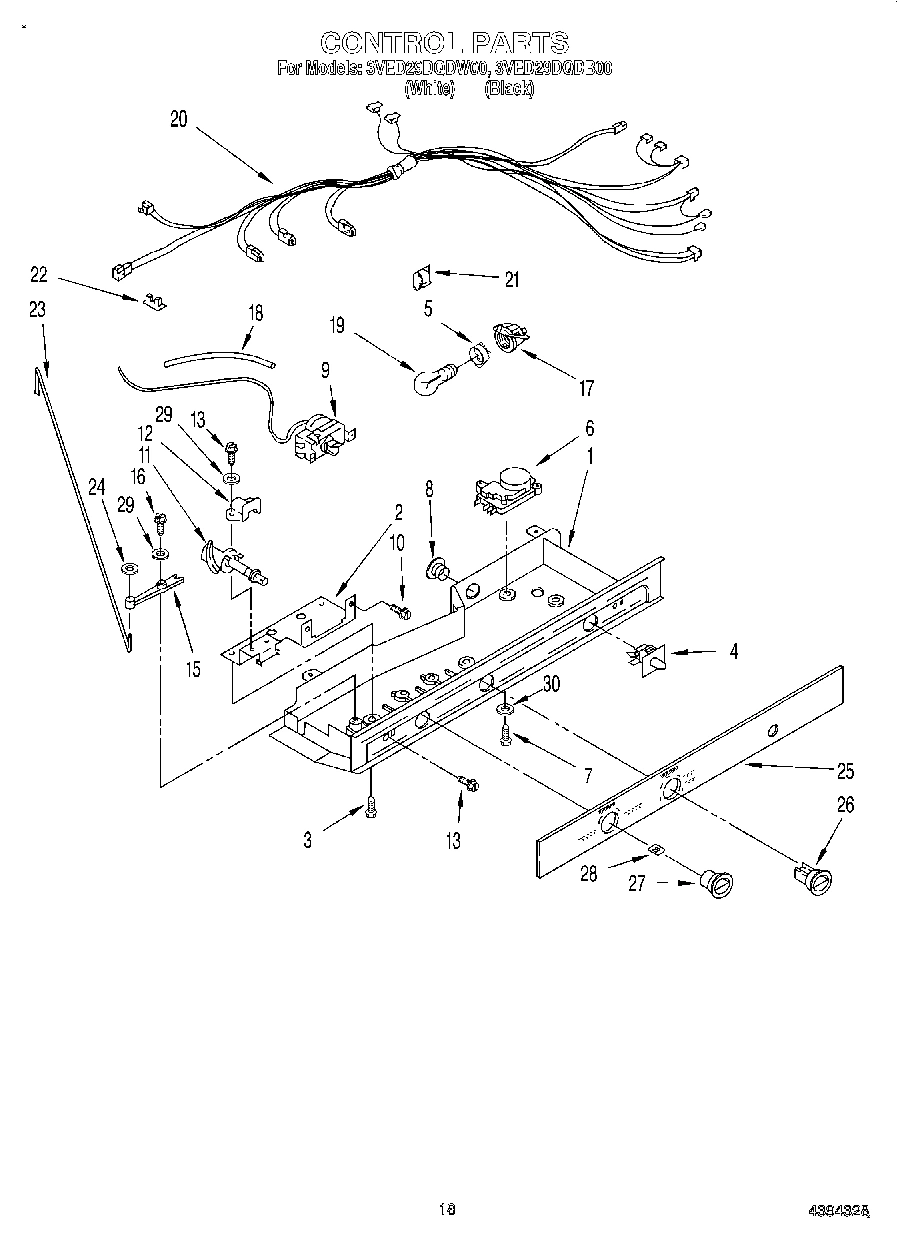

11 - CONTROL

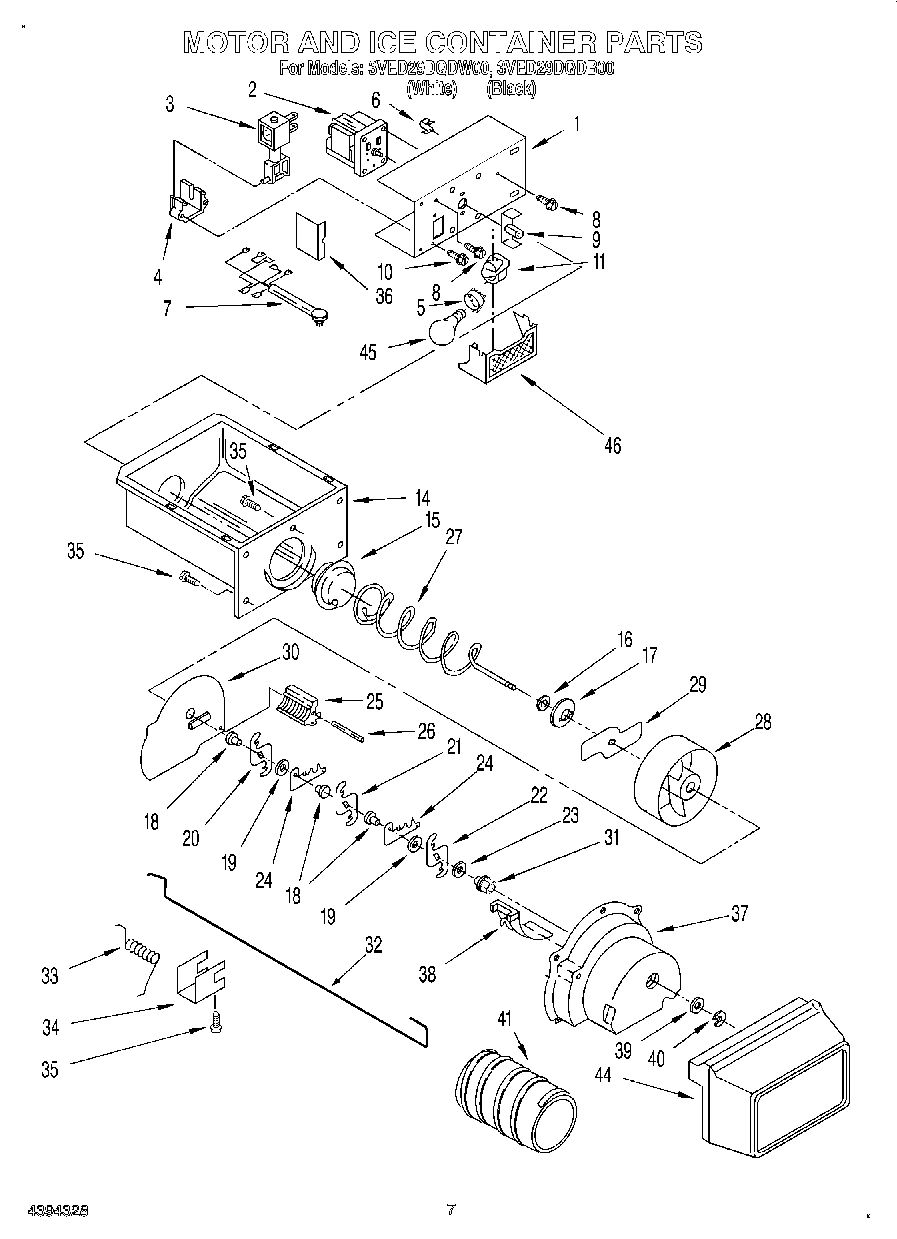

05 - MOTOR AND ICE CONTAINER

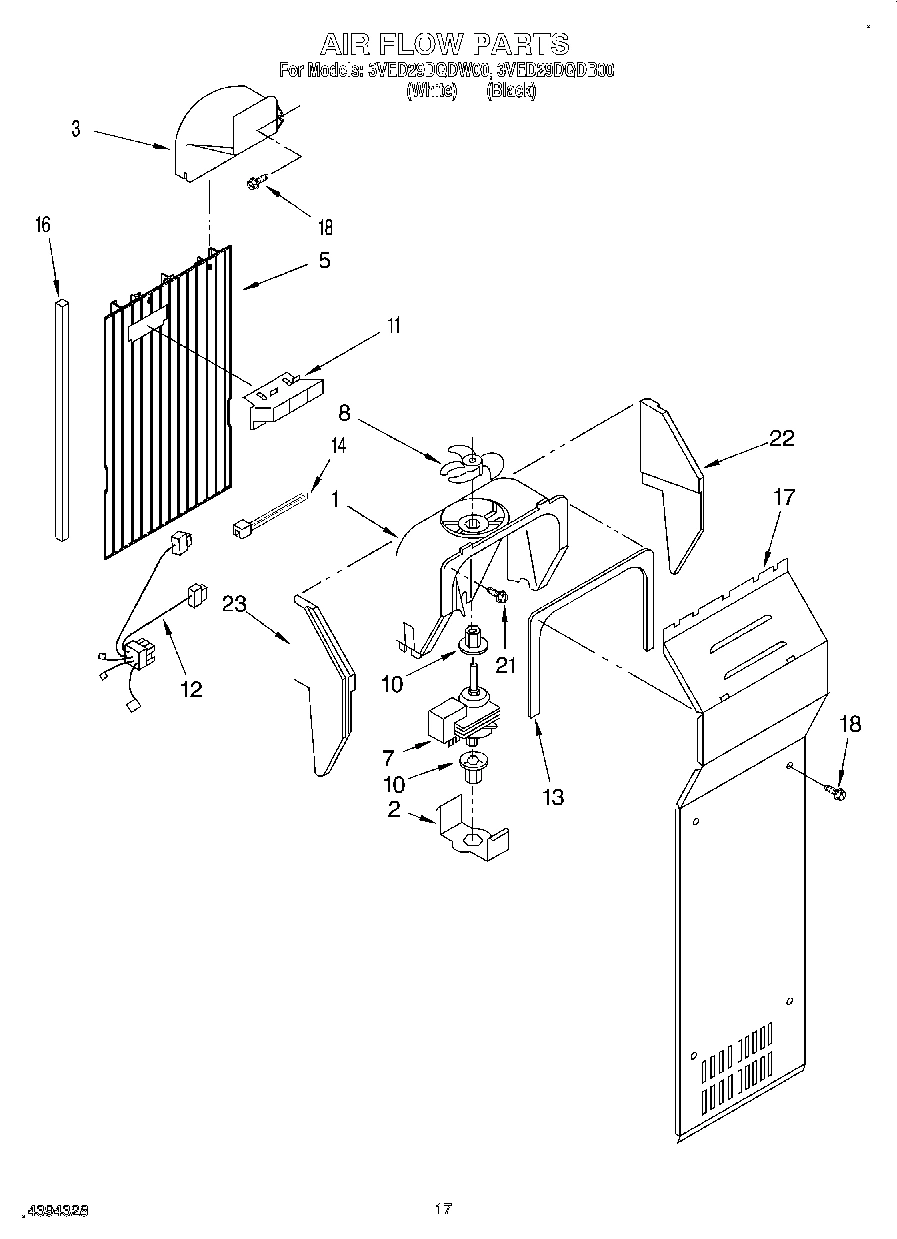

10 - AIRFLOW

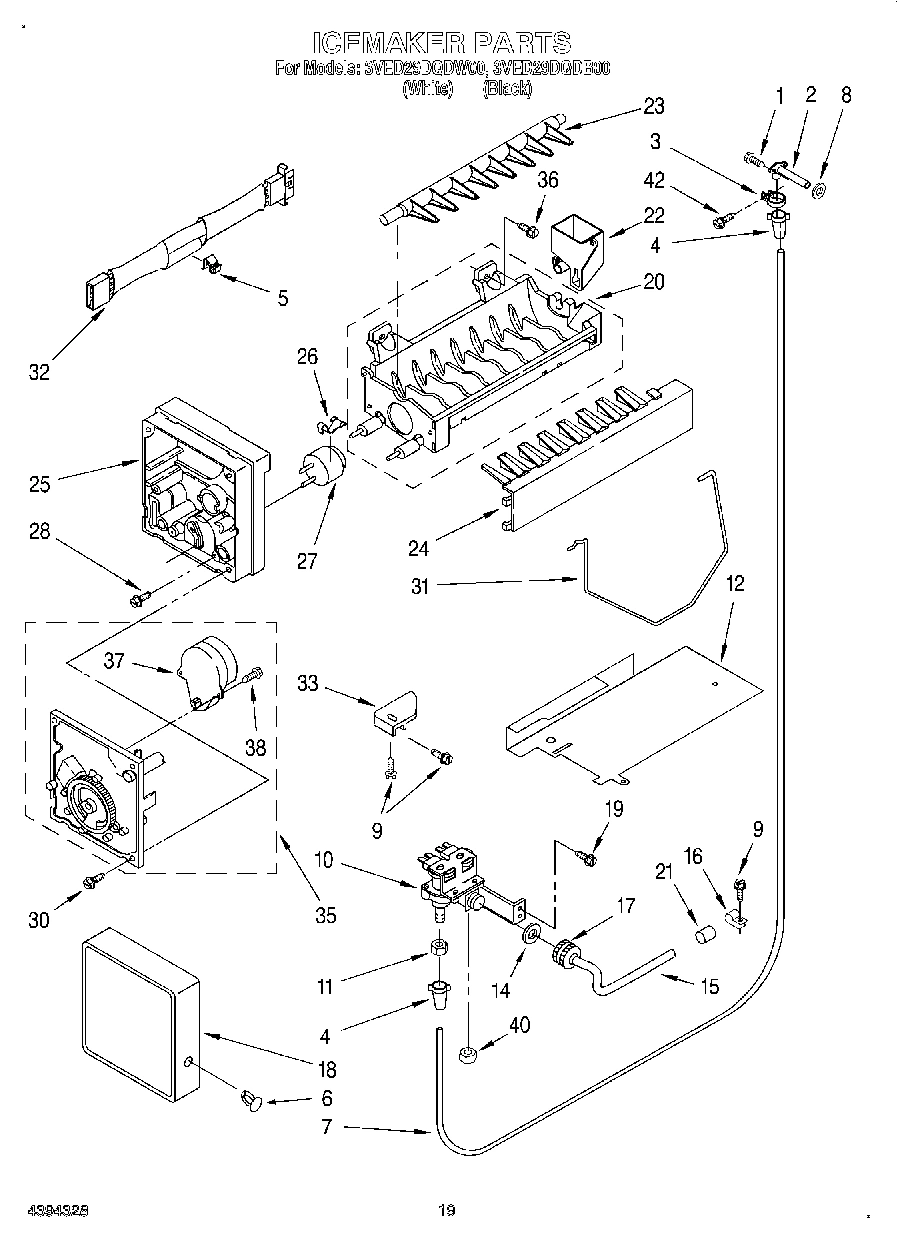

12 - ICEMAKER, LIT/OPTIONAL

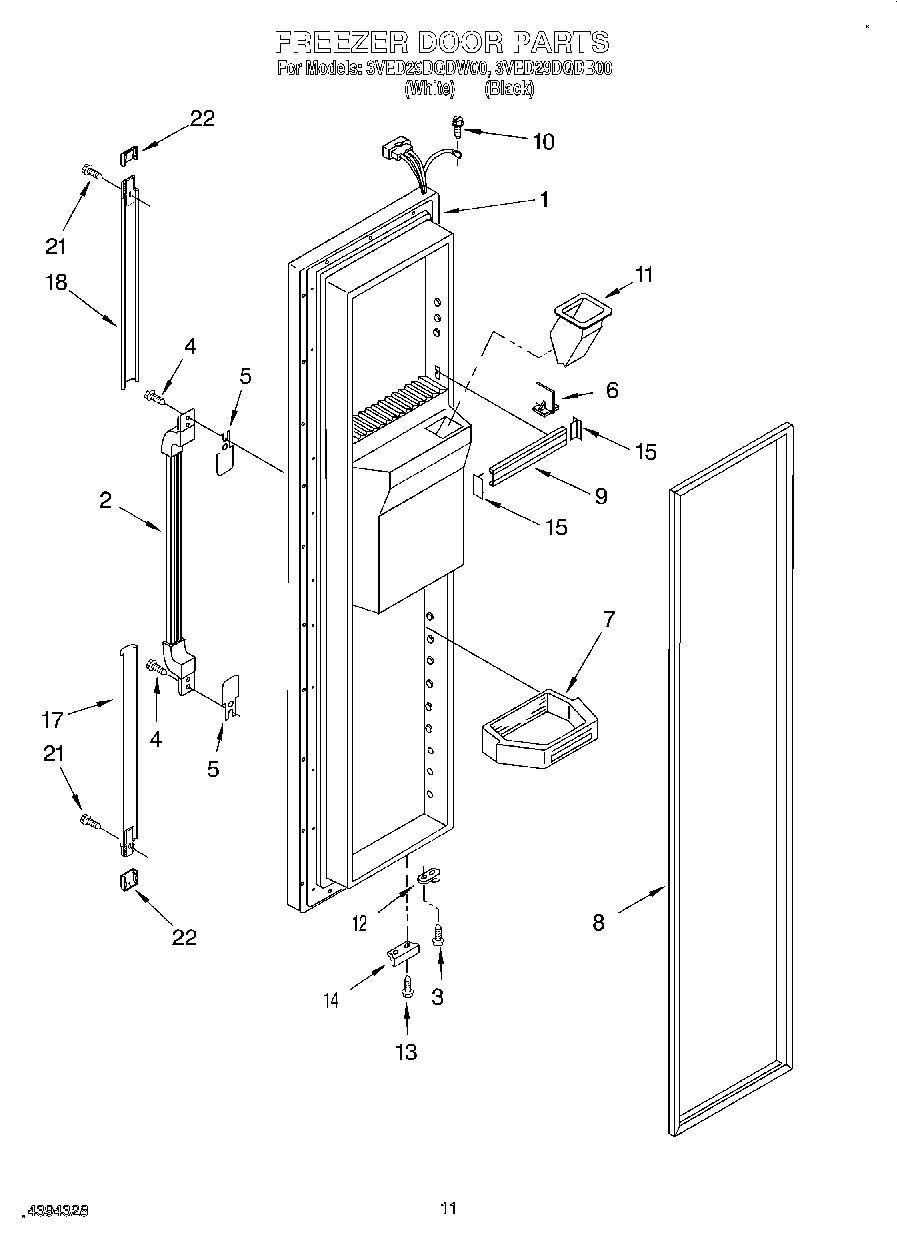

07 - FREEZER DOOR

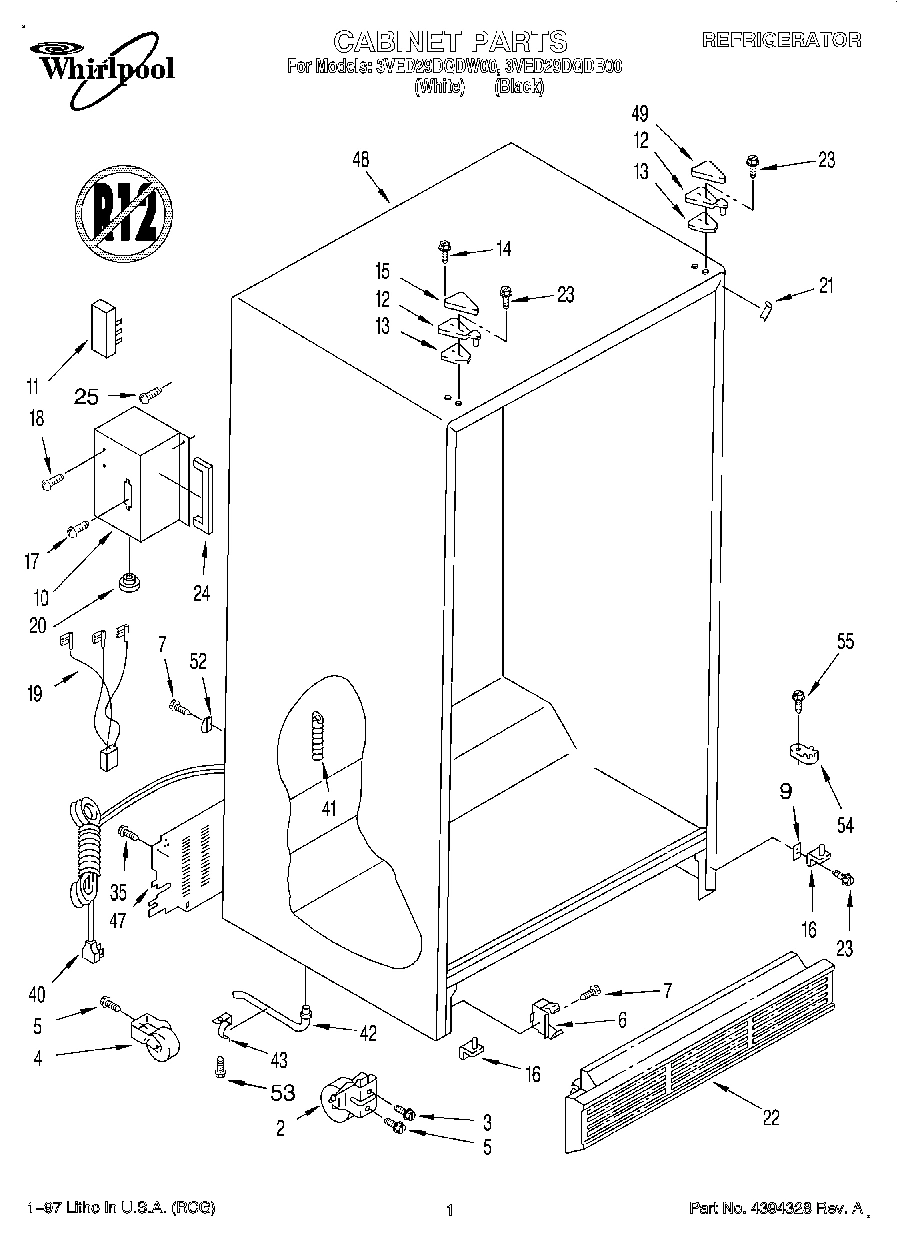

01 - CABINET

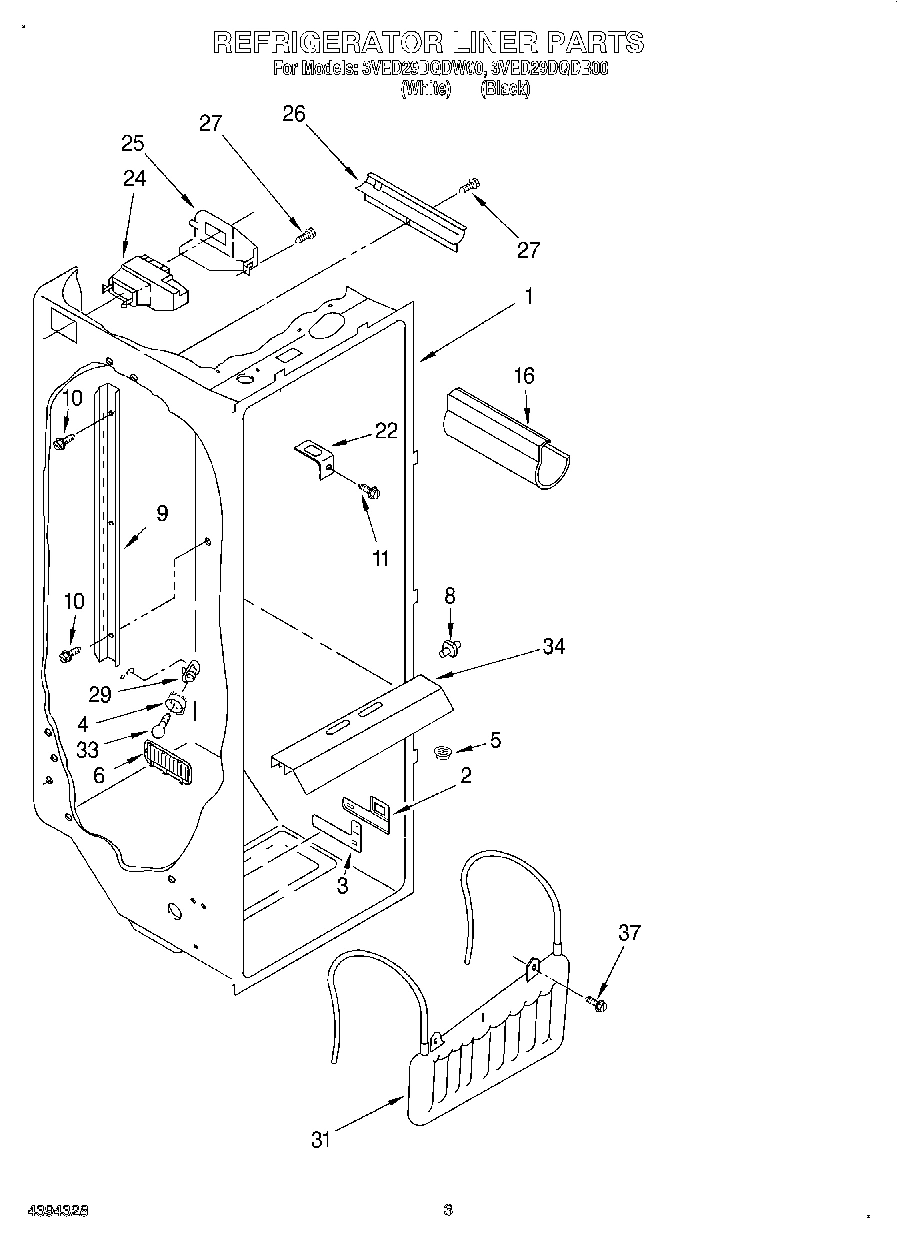

02 - REFRIGERATOR LINER

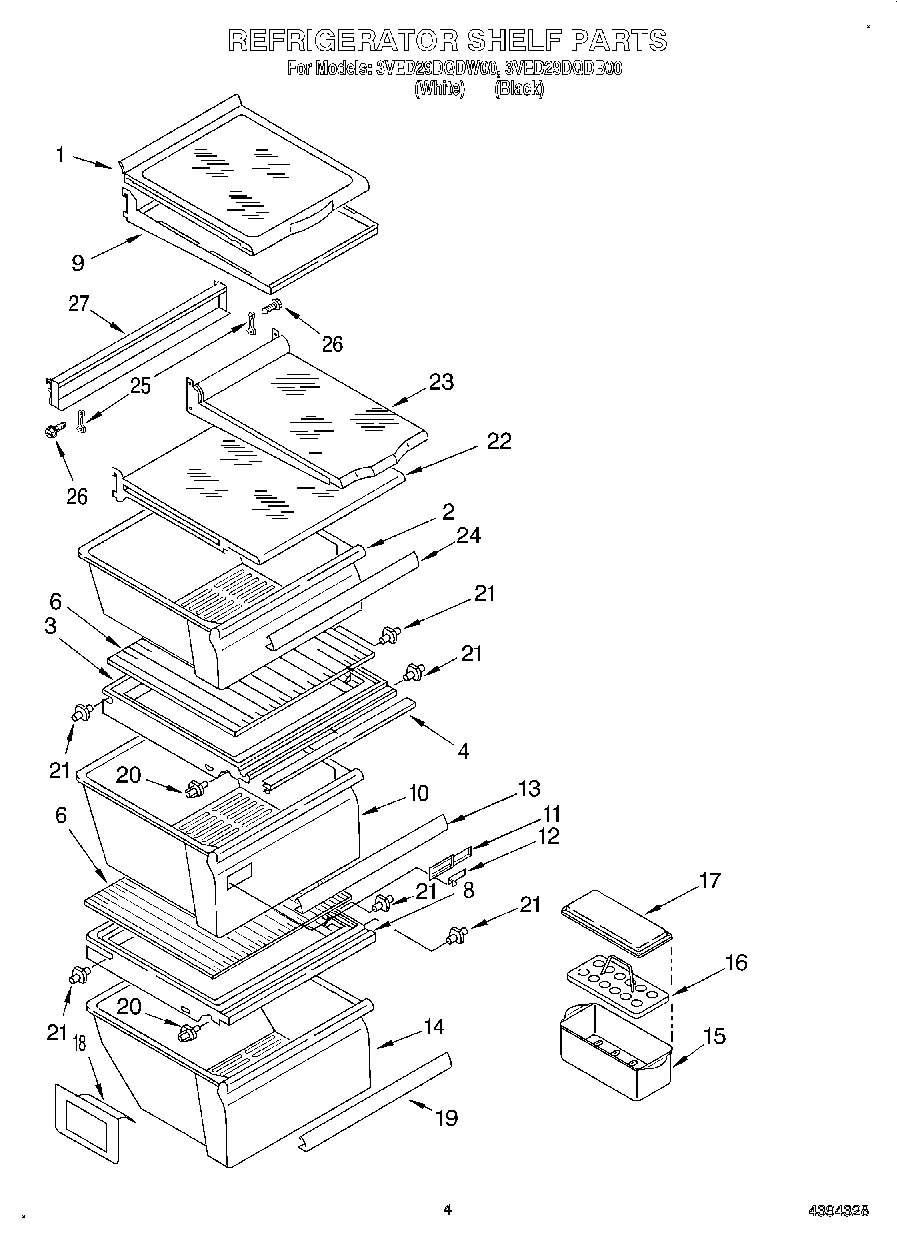

03 - REFRIGERATOR SHELF

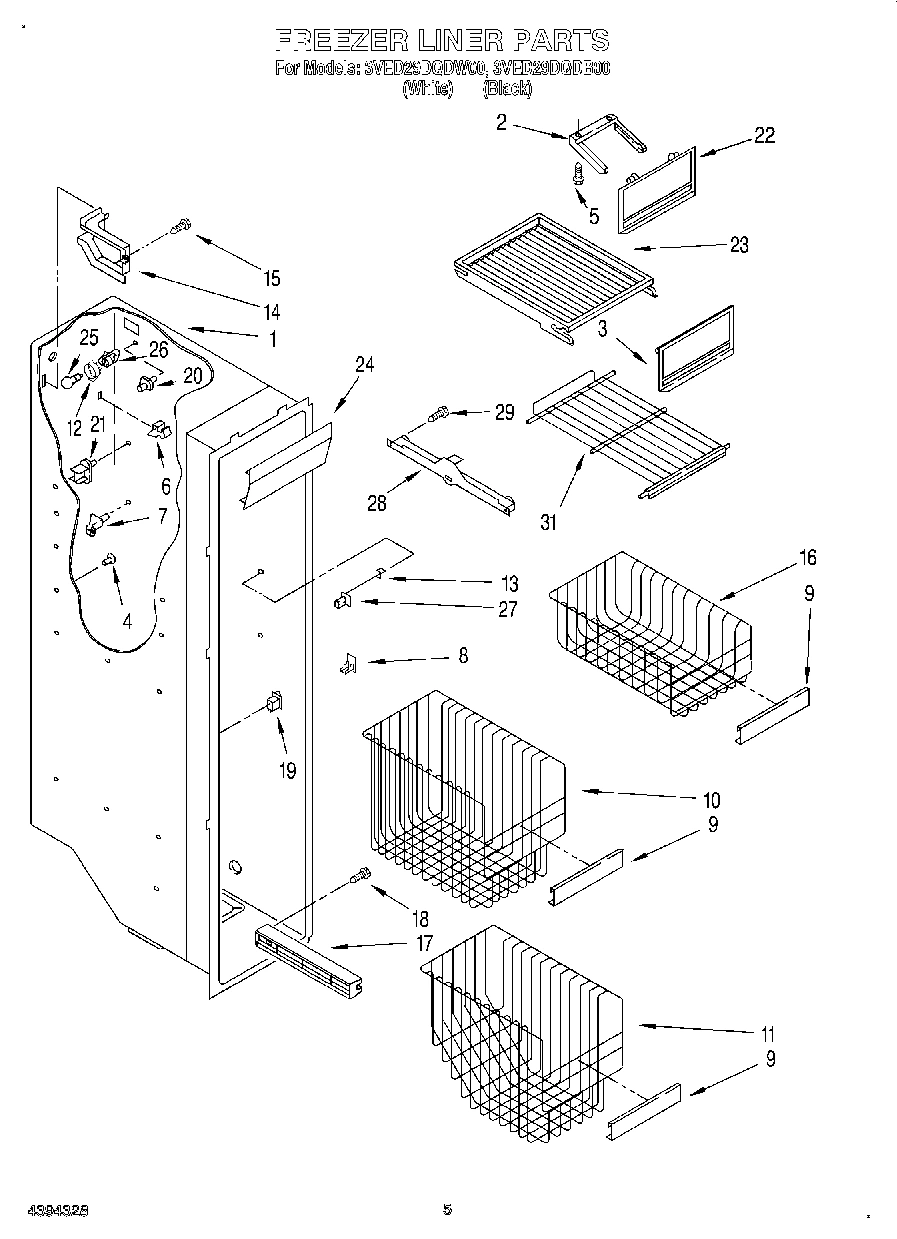

04 - FREEZER LINER

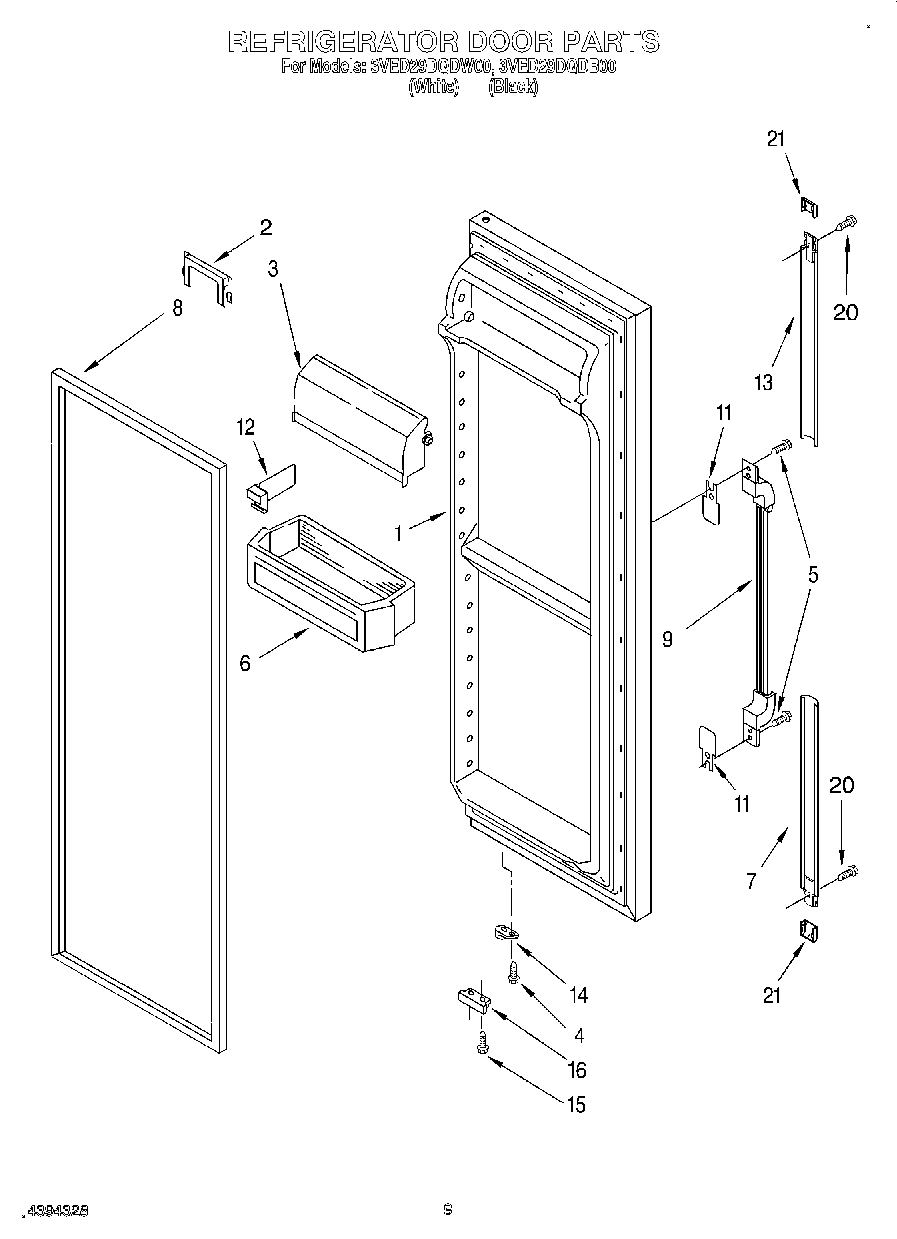

06 - REFRIGERATOR DOOR

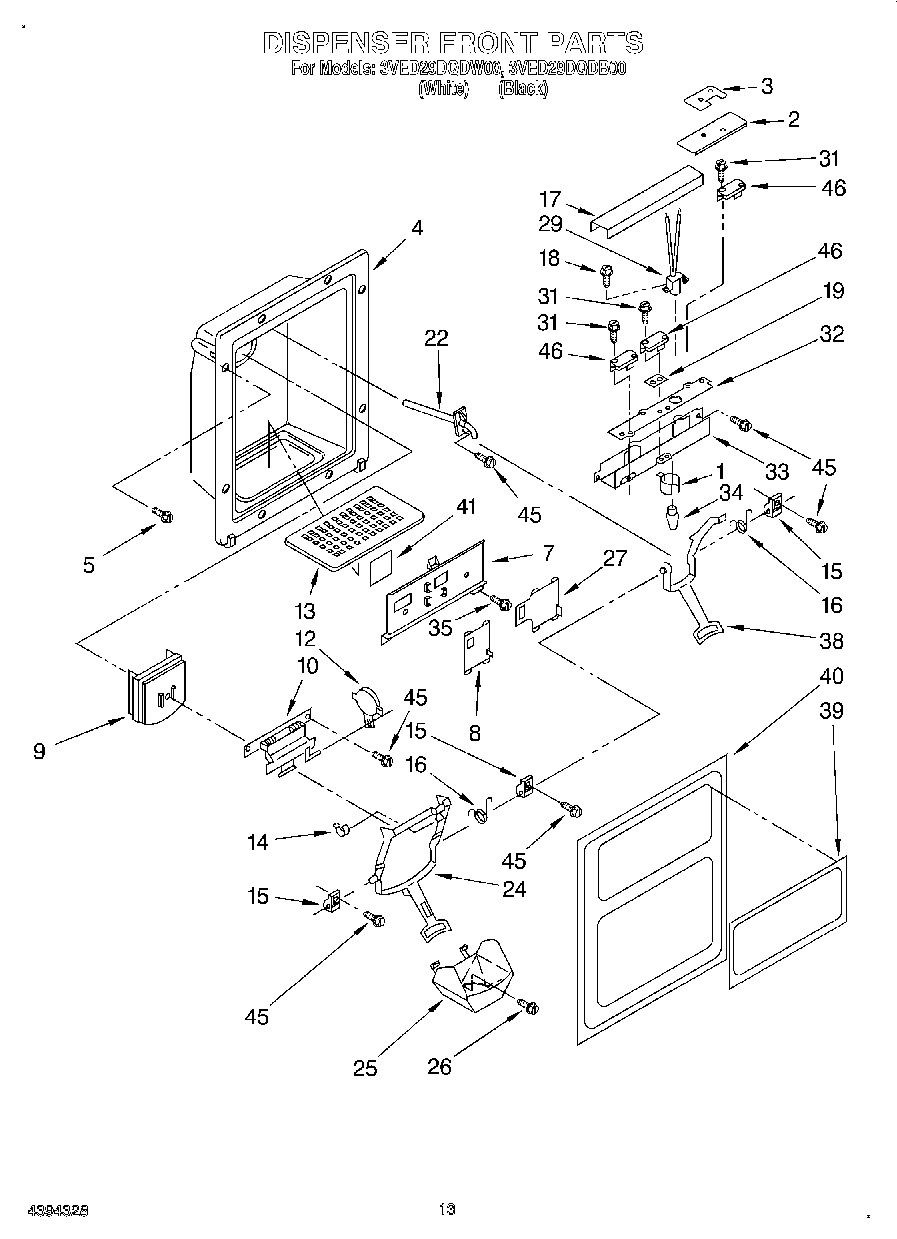

08 - DISPENSER FRONT
Common parts from model Whirlpool 3VED29DQDW00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI12431A1 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI12432A6 Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Black WPL 2170605 Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (White WPL 2177112 Contact Us For Availability
1
Shroud, Bracket WPL 2166858 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Retainer, Bottle WPL 2173643 Contact Us For Availability
2
Guard, Switch WPL 2175226 Contact Us For Availability
3
Guard, Switch WPL 2175227 Contact Us For Availability
4
Grommet WPL 2176134 Contact Us For Availability
4
Gasket, Cover (Front) WPL 2174442 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI12433A4 Contact Us For Availability
6
Divider WPL 1123293 Contact Us For Availability
6
Louver WPL 2182147 Contact Us For Availability
7
Shelf Bin (4) WPL 2179580 Contact Us For Availability
7
Extension, Bottom (White) WPL 2174282 Contact Us For Availability
7
Extension, Bottom (Black) WPL 2174284 Contact Us For Availability
7
Frame, Slides (Black) WPL 2152716 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
8
Slide, Cube/Crush Switch (Black) WPL 2152719 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
9
Handle, Center (Black) WPL 2194699 Contact Us For Availability
9
Ladder, Shelf WPL 2181796 Contact Us For Availability
9
Frame, Shelf (2) WPL 2174042 Contact Us For Availability
9
Trim, Basket WPL 2195903 Contact Us For Availability
9
Handle, Center (White) WPL 2194697 Contact Us For Availability
10
Valve, Solenoid WPL 2175056 Contact Us For Availability
10
Enclosure, Terminal Block WPL 2158579 Contact Us For Availability
10
Basket WPL 2181765 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2157650 Contact Us For Availability
11
Shim WPL 2179399 Contact Us For Availability
11
Chute, Ice WPL 2156145 Contact Us For Availability
11
Terminal Block WPL 1129346 Contact Us For Availability
11
Basket, Slope WPL 2181764 Contact Us For Availability
12
Divider, Bin WPL 2171284 Contact Us For Availability
13
Extension, Top (White) WPL 2174279 Contact Us For Availability
13
Extension, Top (Black) WPL 2174281 Contact Us For Availability
13
Shim, Hinge Top WPL 2171868 Contact Us For Availability
13
Stud, Support WPL 946355 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Black) WPL 2152678 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Bracket, Door Stop WPL 2155331 Contact Us For Availability
16
Basket, Shallow WPL 2181763 Contact Us For Availability
17
Cover WPL 2169935 Contact Us For Availability
17
Slide, Basket (Left Side (2)) WPL 2181759 Contact Us For Availability
17
Slide, Basket (Right Side (2)) WPL 2181760 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
19
Wiring Assembly, Terminal Block WPL 2165297 Contact Us For Availability
20
Bushing WPL 1129449 Contact Us For Availability
21
Cover, Endcap (White) WPL 2174006 Contact Us For Availability
21
Cover, Endcap (Black) WPL 2174008 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Black) WPL 1127272 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
22
Grille (Black) WPL 2155485 Contact Us For Availability
22
Grille (White) WPL 2155486 Contact Us For Availability
22
Shelf, Snack Bin WPL 2174045 Contact Us For Availability
22
Door, Top Compartment WPL 2194090 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Shelf, Slide (Side To Side) WPL 2174468 Contact Us For Availability
23
Shelf, Top Compartment WPL 2171714 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Gasket WPL 2167227 Contact Us For Availability
24
Trim, Handle WPL 2189620 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Black) WPL 2177143 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Hook, Shelf WPL 2169608 Contact Us For Availability
25
Guide, Ice (Black) WPL 1119035 Contact Us For Availability
26
Screw WPL 489419 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Track, Shelf WPL 2174422 Contact Us For Availability
27
Stud, Rear R.S. WPL 1106982 Contact Us For Availability
27
Stud, Front R.S. WPL 946356 Contact Us For Availability
27
Slide, Light Switch (Black) WPL 2152724 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
29
Lamp Holder WPL 2166862 Contact Us For Availability
31
Screw WPL 488361 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Bulb, Light WPL 989331 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2177149 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Black) WPL 2177148 Contact Us For Availability
39
Plaque, Front Cover (White) WPL 2174331 Contact Us For Availability
39
Plaque, Front Cover (Black) WPL 2179203 Contact Us For Availability
40
Service Cord WPL 1129332 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Whit WPL 2174310 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Blac WPL 2179207 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
42
WPL 876029 WPL 876029 Contact Us For Availability
42
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
47
Cover, Unit WPL 2189570 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI12430A1 Contact Us For Availability
49
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
