Model Whirlpool 3CA2100XMW0 WASHER – Common Parts & Diagrams
02 - TOP, LID AND CONTROL BOX

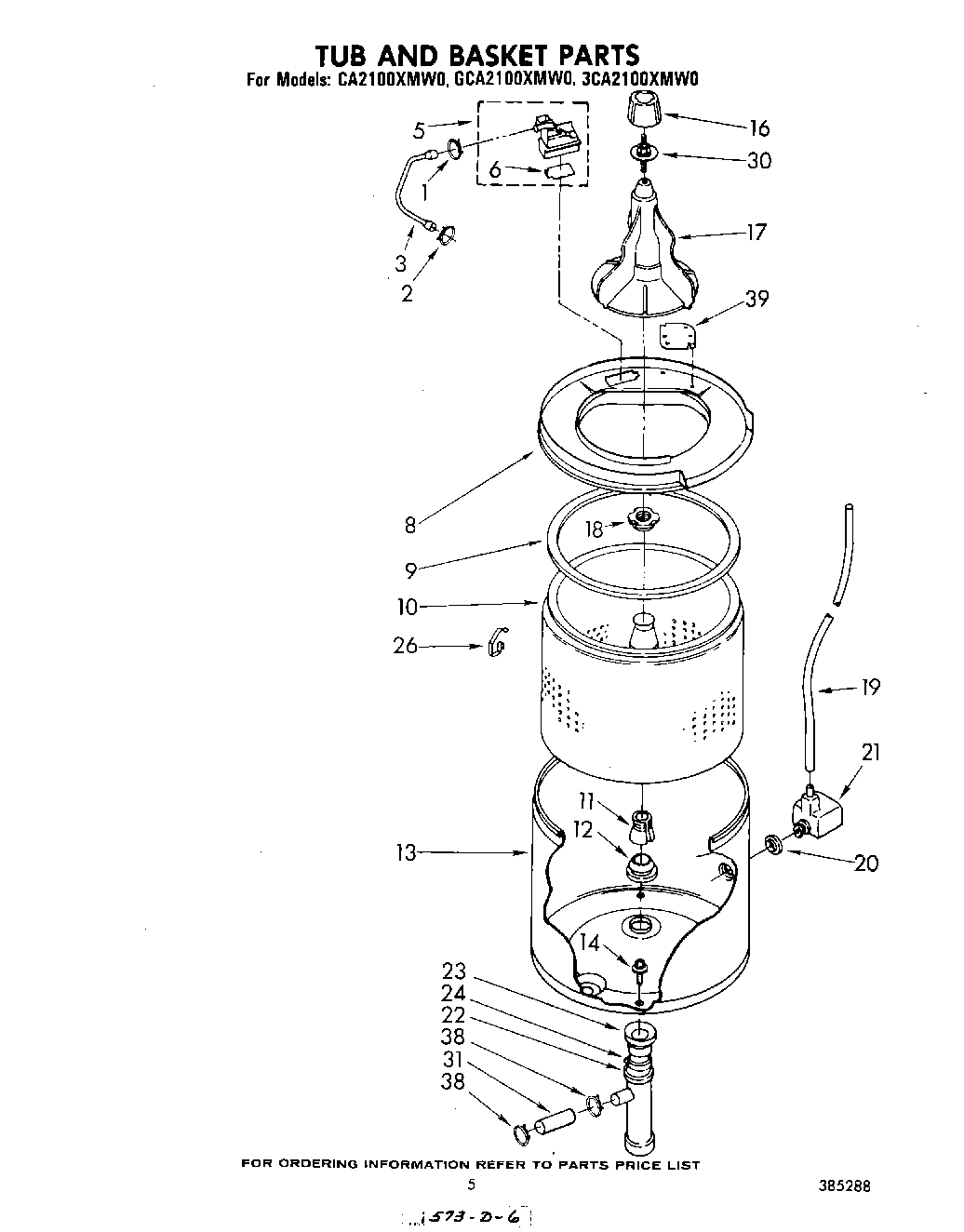

04 - TUB AND BASKET

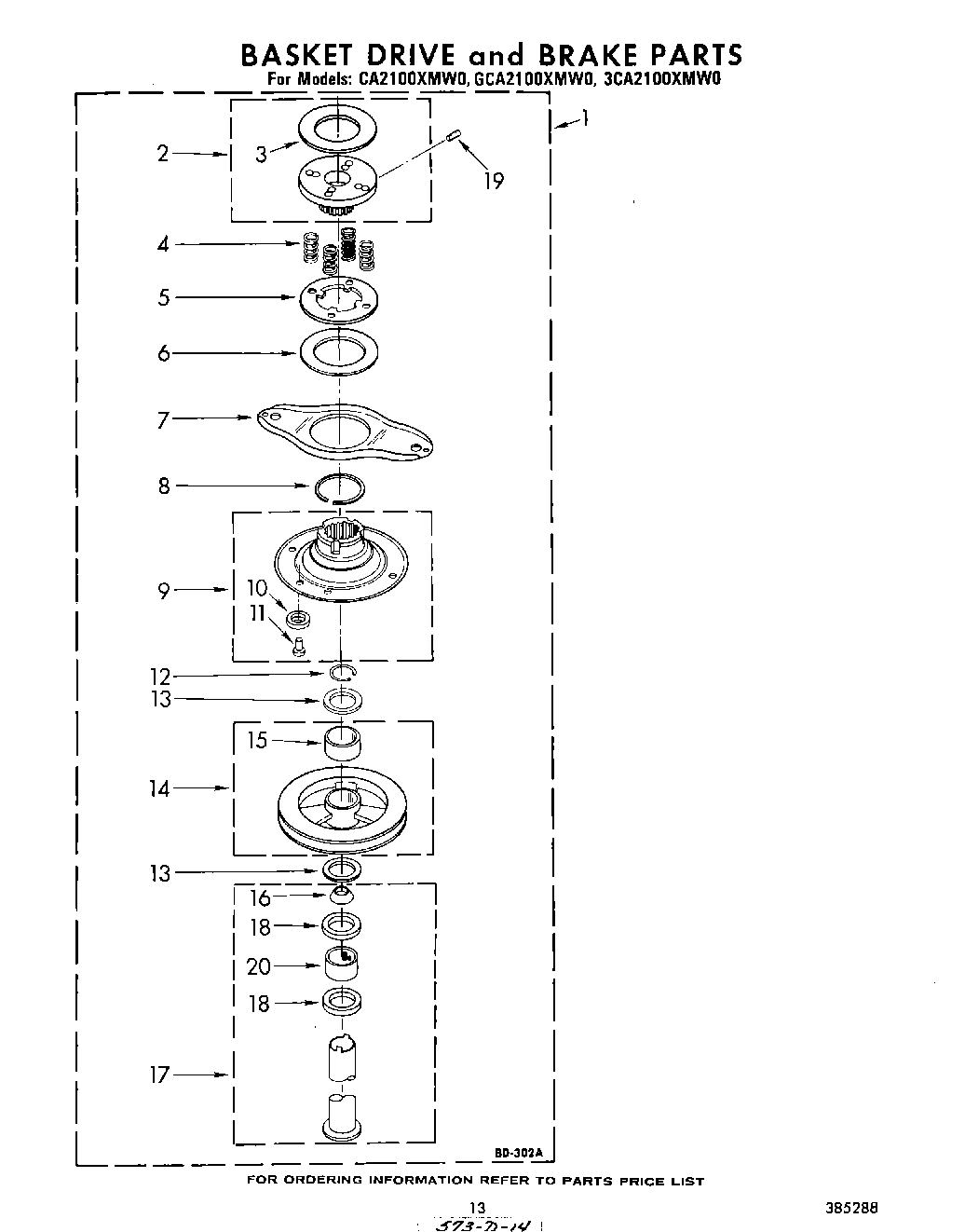

11 - BASKET DRIVE AND BRAKE

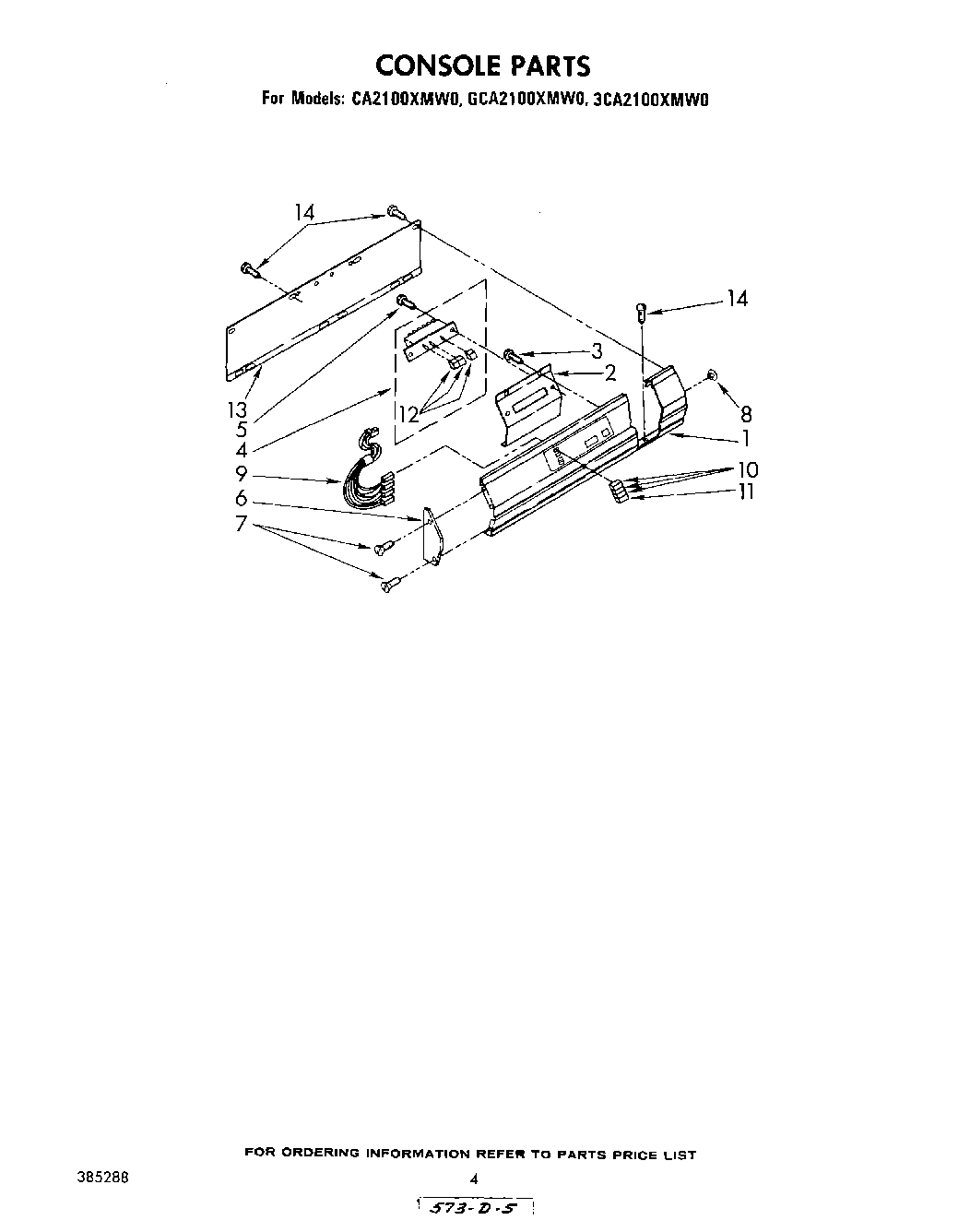

03 - CONSOLE

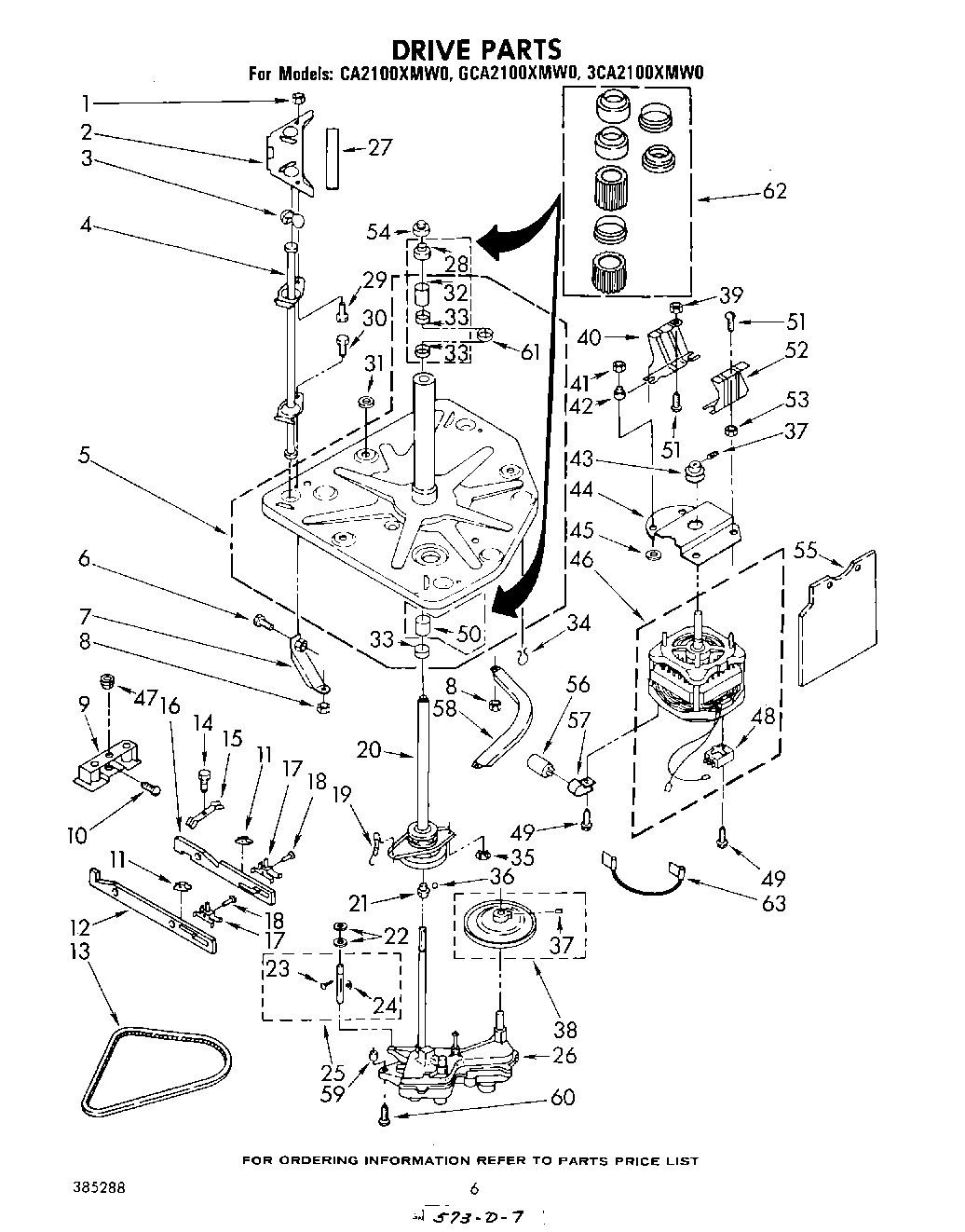

05 - DRIVE

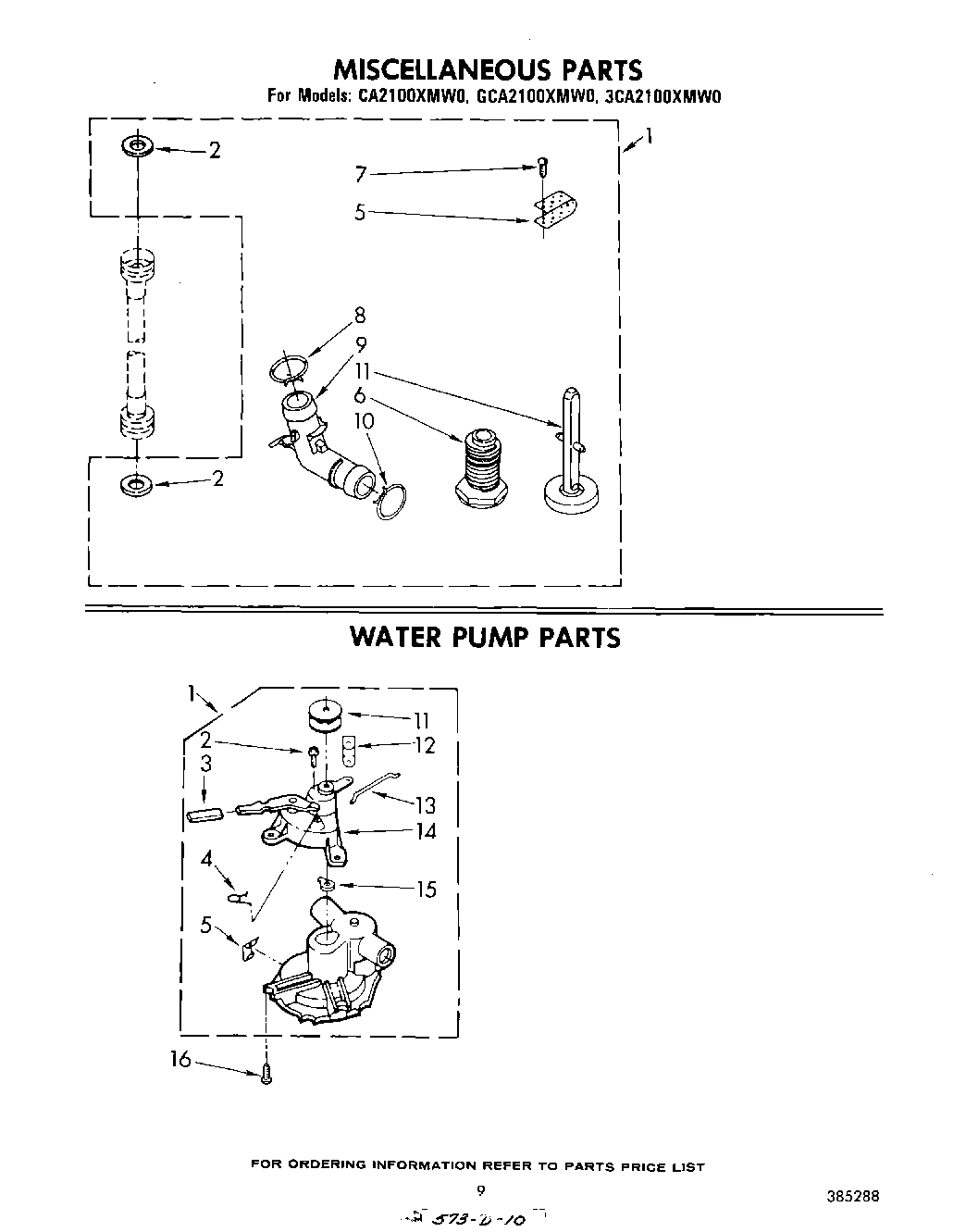

07 - MISCELLANEOUS , WATER PUMP

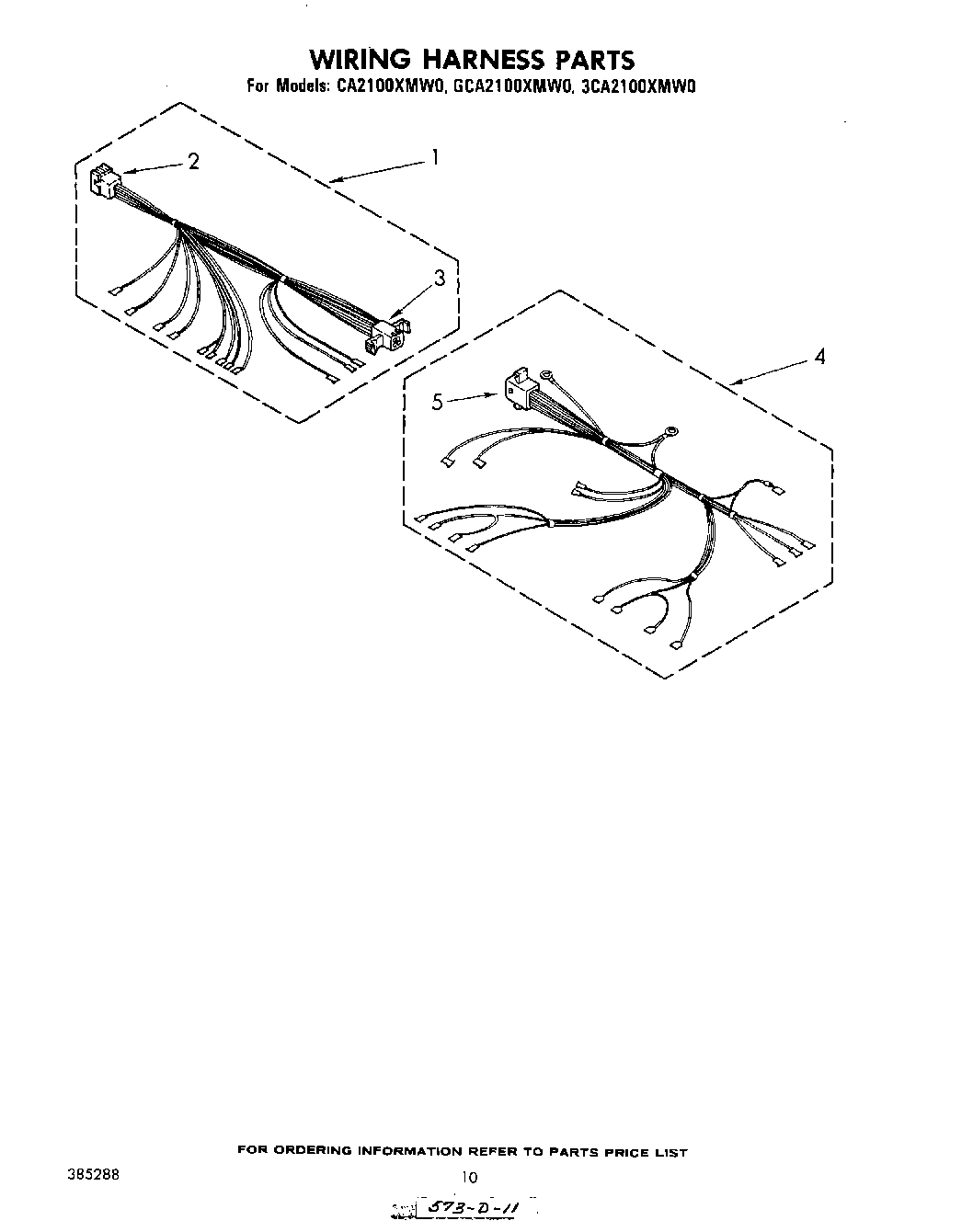

08 - WIRING HARNESS , LITERATURE AND OPTIONAL

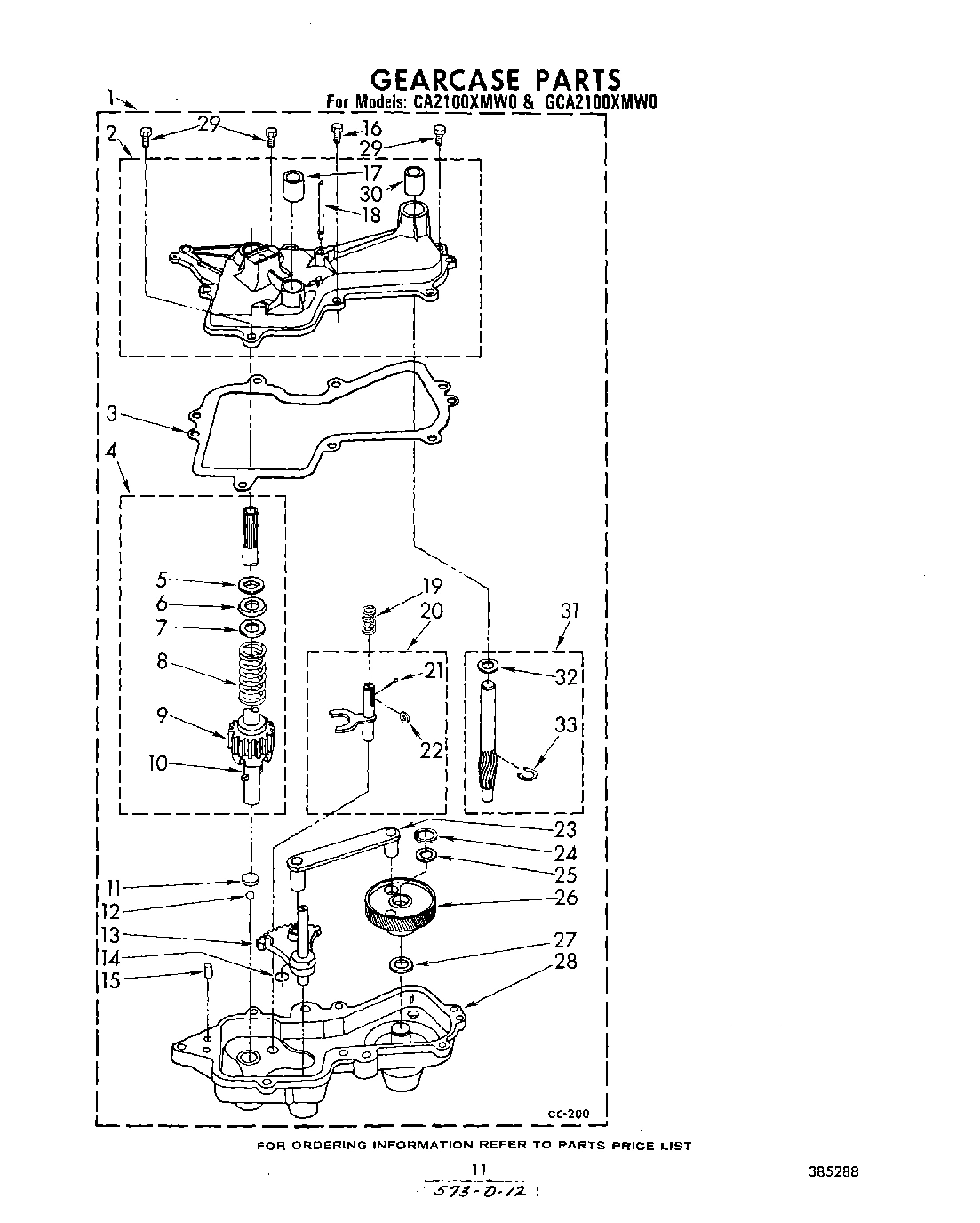

09 - CA2100XMWO AND GCA2100XMWO

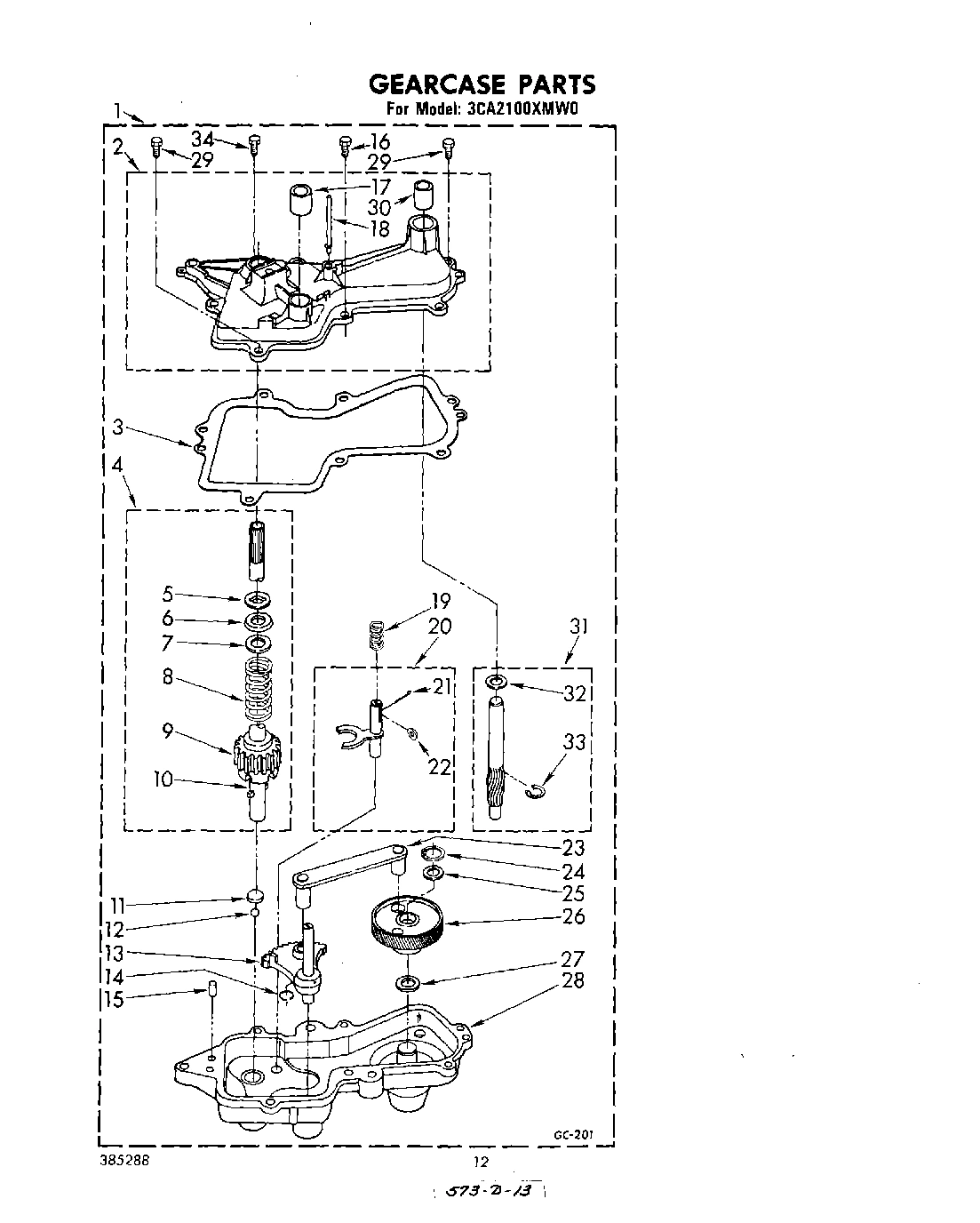

10 - 3CA2100XMWO

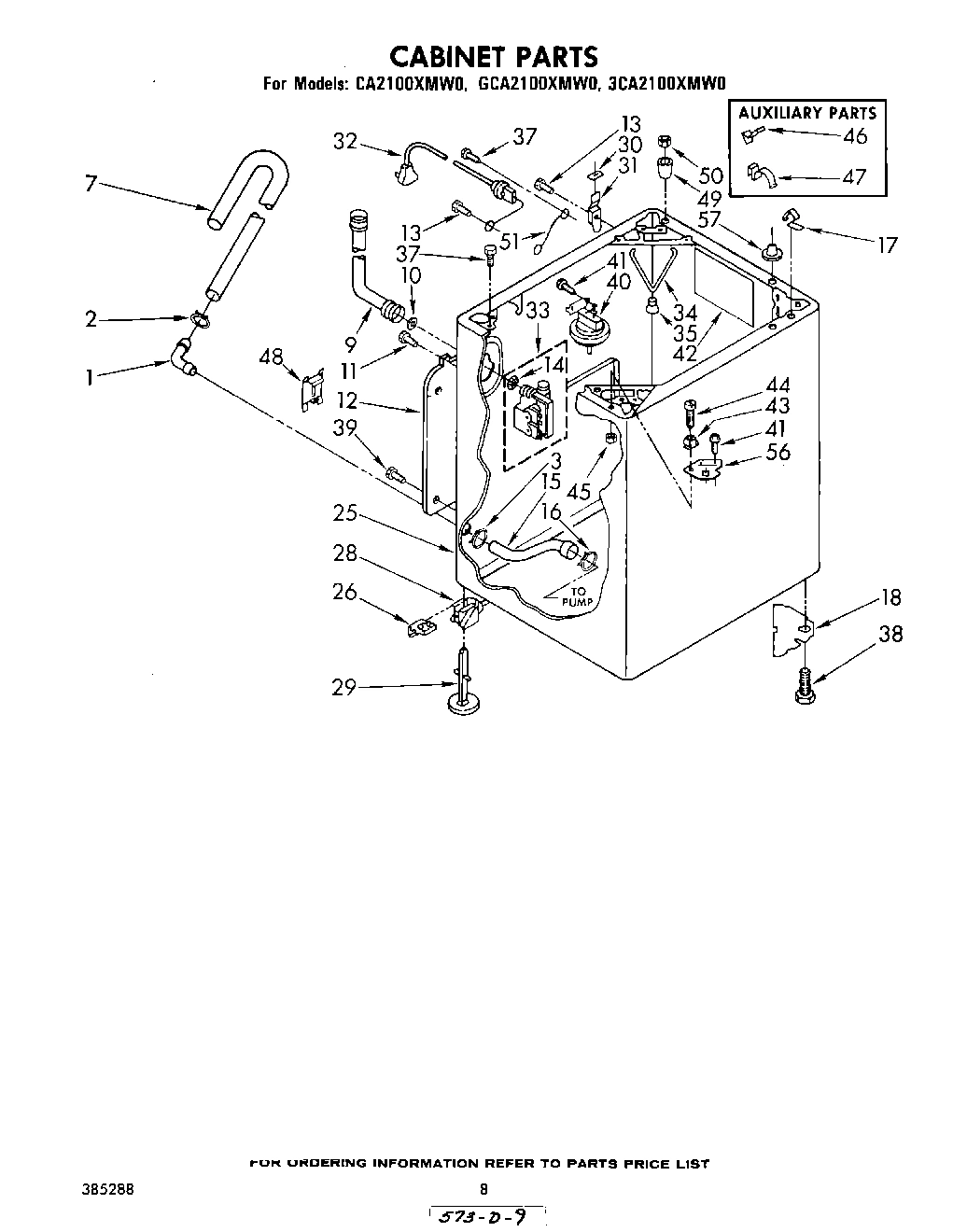

06 - CABINET
Common parts from model Whirlpool 3CA2100XMW0 WASHER
WPL 357282 WPL 357282 Contact Us For Availability
1
Billboard, Console WPL 386369 Contact Us For Availability
1
Gearcase (Complete) WPL 358483 Contact Us For Availability
1
Gearcase (Complete) WPL 362901 Contact Us For Availability
1
Pump Assembly WPL 359131 Contact Us For Availability
1
Miscellaneous Parts Bag WPL 375976 Contact Us For Availability
1
Harness, Console WPL 385811 Contact Us For Availability
2
Drum, Brake (Upper) WPL 350522 Contact Us For Availability
2
Bracket, Control WPL 386567 Contact Us For Availability
2
Cover, Gusset (L.R. & L.F.) WPL 352143 Contact Us For Availability
2
COVER, GUSSET (R.R.) WPL 94114 Contact Us For Availability
2
Cap, Terminal (9 Way) (Uses Terminal 94613) WPL 94612 Contact Us For Availability
2
Cover, Gearcase WPL 367552 Contact Us For Availability
3
Gasket, Gearcase WPL 95089 Contact Us For Availability
3
Lining, Basket Brake (Upper) WPL 354550 Contact Us For Availability
3
Ball, Suspension (6) WPL 91073 Contact Us For Availability
3
Sleeve WPL 96175 Contact Us For Availability
3
Cap, Terminal (6-Way) (Uses Terminal 94614) WPL 352458 Contact Us For Availability
4
Spring, Basket Drive (Orange) (4) WPL 381046 Contact Us For Availability
4
Switch, Cycle Selector WPL 385749 Contact Us For Availability
4
Rod, Suspension (3) WPL 82584 Contact Us For Availability
4
Spring, Toggle WPL 96266 Contact Us For Availability
4
Harness, Cabinet WPL 385812 Contact Us For Availability
4
Shaft, Agitator WPL 362642 Contact Us For Availability
5
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
5
Drum, Brake (Lower) WPL 97664 Contact Us For Availability
5
Baseplate & Centerpost WPL 359430 Contact Us For Availability
5
Strap, Ground WPL 22965 Contact Us For Availability
5
Clip, Retainer WPL 96262 Contact Us For Availability
5
New Avocado WPL 261888 Contact Us For Availability
5
New Avocado (Uncut) WPL 261889 Contact Us For Availability
5
Golden Harvest WPL 261890 Contact Us For Availability
5
Golden Harvest (Uncut) WPL 261891 Contact Us For Availability
5
Leveler (Thinner) WPL 350941 Contact Us For Availability
5
Sheet, Top Lock Instructions WPL 356506 Contact Us For Availability
5
Sheet, Installation Instructions (Use W/Model WPL 372073 Contact Us For Availability
5
Sheet, Installation Instructions (Use W/Model WPL 372074 Contact Us For Availability
5
List, Repair Parts WPL 385288 Contact Us For Availability
5
Thinner (1 Gal.) WPL 799351 Contact Us For Availability
5
Plug, Terminal (12 Way) (Uses Terminal 94614) WPL 94696 Contact Us For Availability
5
Almond (Uncut) WPL 978883 Contact Us For Availability
5
Ring, Retainer WPL 352430 Contact Us For Availability
6
Lining, Basket Brake (Lower) WPL 354244 Contact Us For Availability
6
Cap, End (L.H.) WPL 385799 Contact Us For Availability
6
Seal, Agitator Shaft WPL 92814 Contact Us For Availability
7
Yoke, Brake WPL 92903 Contact Us For Availability
7
Brace, Baseplate WPL 353301 Contact Us For Availability
7
Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability
7
Shield, Agitator Spring WPL 94276 Contact Us For Availability
8
Ring, Snap WPL 16049 Contact Us For Availability
8
Plug, Button WPL 54690 Contact Us For Availability
8
Nut, 5/16-24 WPL 96101 Contact Us For Availability
8
Spring, Agitator Shaft WPL 92815 Contact Us For Availability
9
Connector, Hose WPL 95440 Contact Us For Availability
9
Plate & Lining, Basket Drive WPL 357155 Contact Us For Availability
9
Lights, Indicator (120 Volt) (Use W\/\C\A\2\1 WPL 385704 Contact Us For Availability
9
Lights, Indicator (240 Volt) (Use W/3CA2100XM WPL 385755 Contact Us For Availability
9
Magnet, 120V 50/60 Hz. (Use With Models CA210 WPL 359997 Contact Us For Availability
9
Magnet, 240V 50/60 Hz. (Use W/Model 3CA2100XM WPL 386050 Contact Us For Availability
9
Gear, Agitator Shaft WPL 355469 Contact Us For Availability
10
Lining, Basket Drive (Set of 3) WPL 354243 Contact Us For Availability
10
Lens, Amber (3) WPL 301006 Contact Us For Availability
10
Screw, Taper End WPL 16135 Contact Us For Availability
10
Shaft, Agitator WPL 362098 Contact Us For Availability
11
Block, Drive WPL 96384 Contact Us For Availability
11
Eyelet (3) WPL 98281 Contact Us For Availability
11
Lens, Yellow (11) WPL 358741 Contact Us For Availability
11
Guide, Cam Bar WPL 95462 Contact Us For Availability
11
Pulley WPL 359630 Contact Us For Availability
12
Pushbutton (3) WPL 385798 Contact Us For Availability
12
Cam, Bar Spin WPL 354838 Contact Us For Availability
12
Lever, Valve WPL 355538 Contact Us For Availability
12
Panel, Rear WPL 85279 Contact Us For Availability
13
Washer, Thrust (2) WPL 353320 Contact Us For Availability
13
Panel, Rear Billboard WPL 386370 Contact Us For Availability
13
Rod, Connecting WPL 96264 Contact Us For Availability
13
Gear, Sector WPL 75073 Contact Us For Availability
14
Pulley, Basket Drive WPL 364032 Contact Us For Availability
14
Screw, 1/4-28 x 1/2 WPL 98001 Contact Us For Availability
14
Bearing Block Assembly WPL 383750 Contact Us For Availability
14
Ring, Retainer WPL 52083 Contact Us For Availability
15
Spring, Brake WPL 94726 Contact Us For Availability
15
Bearing, Drive Pulley WPL 16033 Contact Us For Availability
15
Wick, Oil WPL 96265 Contact Us For Availability
15
Pin, Dowel WPL 5018 Contact Us For Availability
15
Hose, Pump Discharge WPL 21114 Contact Us For Availability
16
Cam, Agitator & Pump WPL 18642 Contact Us For Availability
16
Bolt, 5/16-24 x 3/4 (4) WPL 356599 Contact Us For Availability
17
Drive Tube & Bearing, Basket WPL 357965 Contact Us For Availability
17
Plunger WPL 84866 Contact Us For Availability
17
Bearing, Gear Fork WPL 96853 Contact Us For Availability
18
Rivet WPL 354959 Contact Us For Availability
18
Support, Brake Shoe Yoke WPL 356445 Contact Us For Availability
18
Plate, Gusset (2) WPL 356459 Contact Us For Availability
19
Set Screw, 5/16-18X 13/16 WPL 356057 Contact Us For Availability
19
Spring, Brake Yoke WPL 17261 Contact Us For Availability
19
Spring, Gear Fork Shaft WPL 16015 Contact Us For Availability
20
Seal WPL 351830 Contact Us For Availability
20
Basket Drive & Brake (For Further Breakdown R WPL 358364 Contact Us For Availability
20
Spacer, Agitator Shaft WPL 356937 Contact Us For Availability
20
Fork, Agitator Gear WPL 80398 Contact Us For Availability
21
Support, Spin Tube WPL 358586 Contact Us For Availability
21
Pin, Gear Fork Shaft WPL 90532 Contact Us For Availability
22
BUMPER WPL 356908 Contact Us For Availability
22
Roller, Gear Fork Shaft WPL 92119 Contact Us For Availability
23
Rod, Connecting WPL 76577 Contact Us For Availability
24
Bumper, Lid Hinge WPL 19119 Contact Us For Availability
24
Ring, Retaining WPL 95082 Contact Us For Availability
25
Shaft, Basket Clutch WPL 359460 Contact Us For Availability
25
Washer, Retainer WPL 95083 Contact Us For Availability
25
Cabinet (White) WPL 384793 Contact Us For Availability
25
Cabinet (Almond) WPL 384794 Contact Us For Availability
25
Cabinet (New Avocado) WPL 384796 Contact Us For Availability
25
Cabinet (Golden Harvest) WPL 384797 Contact Us For Availability
26
Clip, Tub Ring (4) WPL 359763 Contact Us For Availability
26
Gear, Main Drive WPL 353397 Contact Us For Availability
27
Pad, Gusset Cover (4) WPL 352434 Contact Us For Availability
27
Washer, Thrust WPL 363362 Contact Us For Availability
28
Gearcase WPL 362906 Contact Us For Availability
28
Leveling Link Assembly WPL 359059 Contact Us For Availability
29
Bolt, 5/16 x 5/8 (2) WPL 126211 Contact Us For Availability
29
Bolt, 5/16 x 1 (2) WPL 126358 Contact Us For Availability
29
Bolt, Snubber (1) WPL 353770 Contact Us For Availability
29
Bolt, 5/16-18 x 2-3/4 (1) WPL 354730 Contact Us For Availability
29
Bolt, 5/16-24 x 1-1/8 (2) WPL 356512 Contact Us For Availability
30
Screw & Seal Assembly WPL 359192 Contact Us For Availability
30
Bolt, 5/16-24 WPL 98048 Contact Us For Availability
30
Bearing, Drive Pinion WPL 354513 Contact Us For Availability
31
Hose WPL 92231 Contact Us For Availability
31
Gasket, Tub (7) WPL 17235 Contact Us For Availability
31
Pinion, Drive WPL 84467 Contact Us For Availability
31
Hinge, R.H. WPL 18775 Contact Us For Availability
31
Hinge, L.H. WPL 92657 Contact Us For Availability
32
Washer, Drive Pinion WPL 16024 Contact Us For Availability
32
Cord, Power (Use W/Models CA2100XMW0 & GCA210 WPL 354837 Contact Us For Availability
32
Cord, Power (Use W/Model 3CA2100XMW0) WPL 83742 Contact Us For Availability
33
Valve, Mixing (Serviced Only As A Complete Va WPL 358277 Contact Us For Availability
33
Ring, Retainer WPL 90094 Contact Us For Availability
34
Actuator, Lid Switch WPL 370959 Contact Us For Availability
34
Screw, 5/16-24 x 1-3/4 (1) WPL 355613 Contact Us For Availability
34
Spring, Snubber WPL 357977 Contact Us For Availability
35
Snubber WPL 358336 Contact Us For Availability
35
Retainer, Brake Yoke WPL 356444 Contact Us For Availability
36
WPL 358585 WPL 358585 Contact Us For Availability
37
WPL 355345 WPL 355345 Contact Us For Availability
38
WPL 360840 WPL 360840 Contact Us For Availability
39
Plate, Snubber WPL 355852 Contact Us For Availability
40
WPL 85286 WPL 85286 Contact Us For Availability
40
Switch, Water Level WPL 359361 Contact Us For Availability
41
WPL 98023 WPL 98023 Contact Us For Availability
42
WPL 19138 WPL 19138 Contact Us For Availability
42
Barrier, Splash WPL 353885 Contact Us For Availability
43
WPL 357514 WPL 357514 Contact Us For Availability
43
WPL 92216 WPL 92216 Contact Us For Availability
43
WPL 93219 WPL 93219 Contact Us For Availability
43
Locator, Top Lock WPL 356837 Contact Us For Availability
44
WPL 356217 WPL 356217 Contact Us For Availability
44
Screw, 1/4-20 x 7/8 WPL 427190 Contact Us For Availability
45
WPL 92217 WPL 92217 Contact Us For Availability
46
WPL 358589 WPL 358589 Contact Us For Availability
46
WPL 362857 WPL 362857 Contact Us For Availability
46
WPL 660303 WPL 660303 Contact Us For Availability
48
WPL 359642 WPL 359642 Contact Us For Availability
48
WPL 362738 WPL 362738 Contact Us For Availability
48
Plug, Cabinet (1) WPL 354179 Contact Us For Availability
49
Wedge, Cone WPL 356674 Contact Us For Availability
50
WPL 354195 WPL 354195 Contact Us For Availability
51
WPL 98537 WPL 98537 Contact Us For Availability
51
Ground Wire WPL 364089 Contact Us For Availability
52
WPL 93549 WPL 93549 Contact Us For Availability
53
WPL 95721 WPL 95721 Contact Us For Availability
54
WPL 359190 WPL 359190 Contact Us For Availability
55
WPL 357571 WPL 357571 Contact Us For Availability
56
Bracket, Top Lock WPL 357024 Contact Us For Availability
57
Locator, Top Lock (2) WPL 98669 Contact Us For Availability
58
WPL 351499 WPL 351499 Contact Us For Availability
58
WPL 351500 WPL 351500 Contact Us For Availability
59
WPL 16062 WPL 16062 Contact Us For Availability
60
WPL 90877 WPL 90877 Contact Us For Availability
61
WPL 358804 WPL 358804 Contact Us For Availability
62
WPL 285134 WPL 285134 Contact Us For Availability
63
WPL 370950 WPL 370950 Contact Us For Availability
× ![]()
