Model Whirlpool 110.73520600 Washer (Kenmore 11073520600) – Common Parts & Diagrams
All Parts

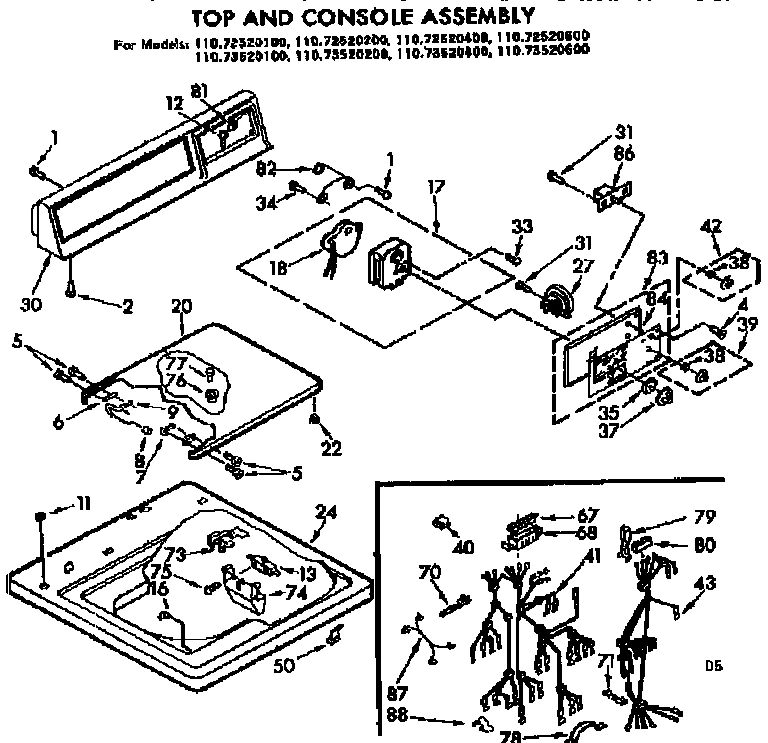

TOP AND CONTROL ASSEMBLY

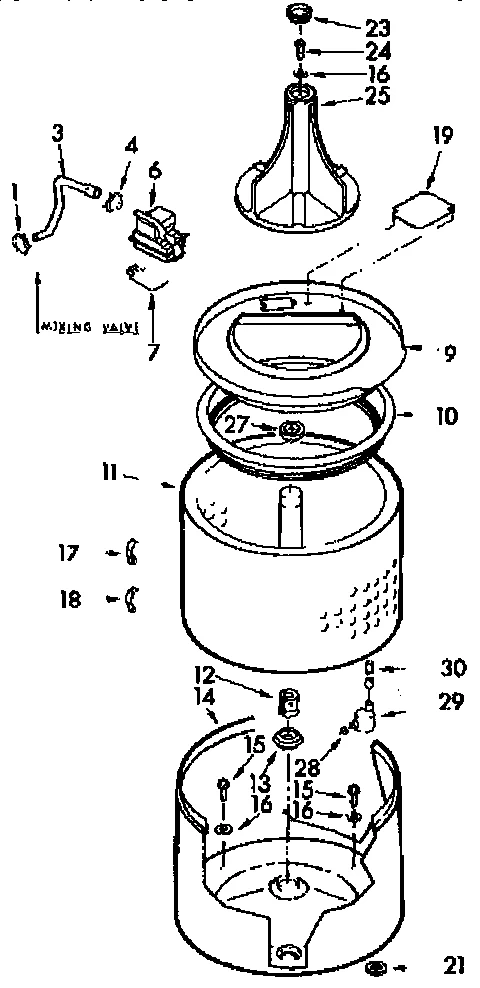

TUB AND BASKET ASSEMBLY

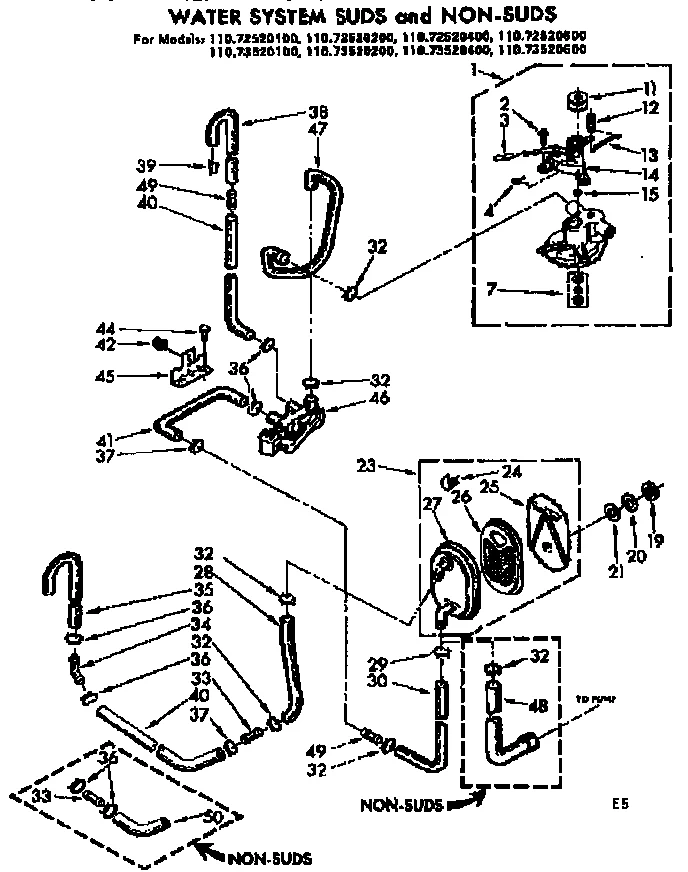

WATER SYSTEM

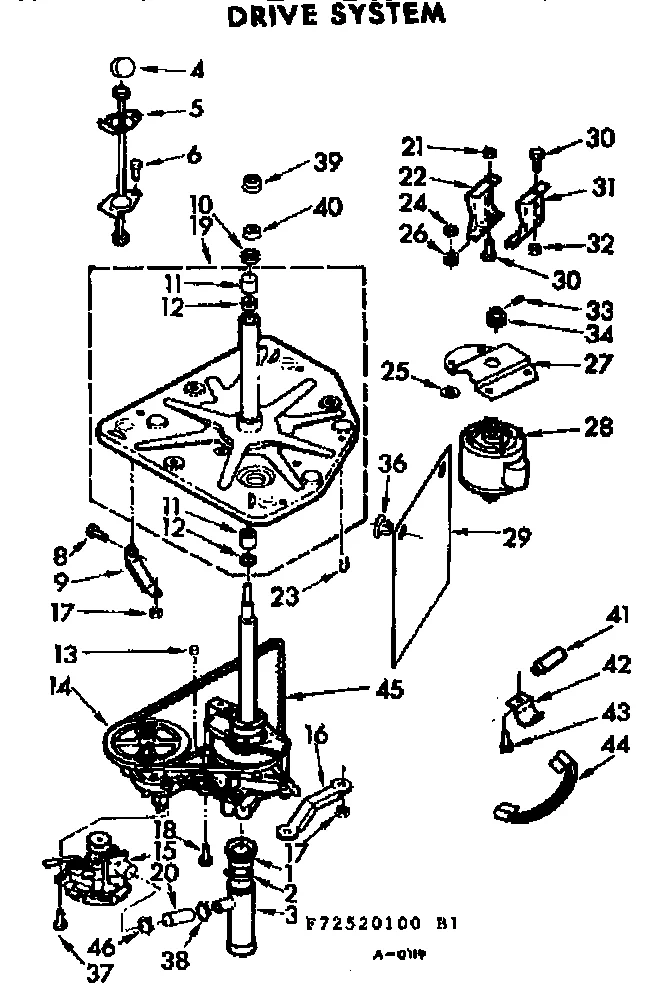

DRIVE SYSTEM

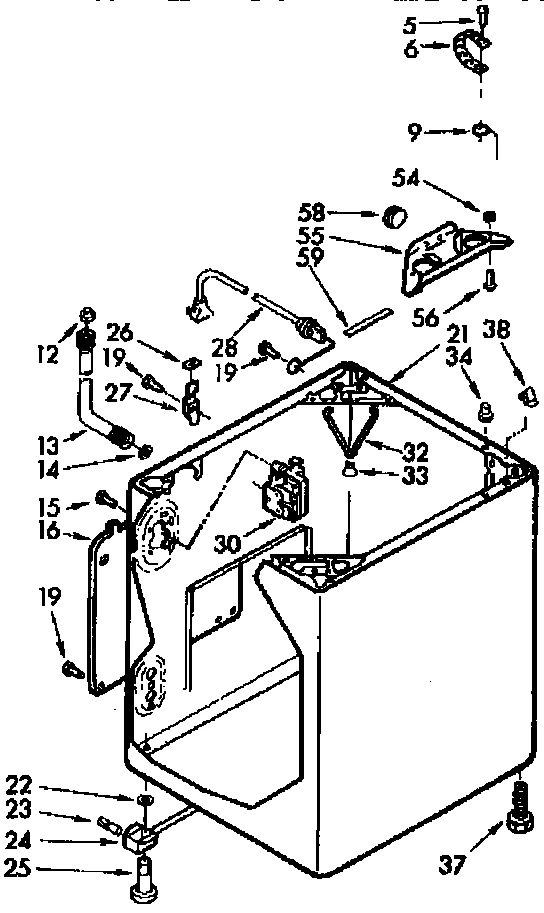

CABINET PARTS
All Parts

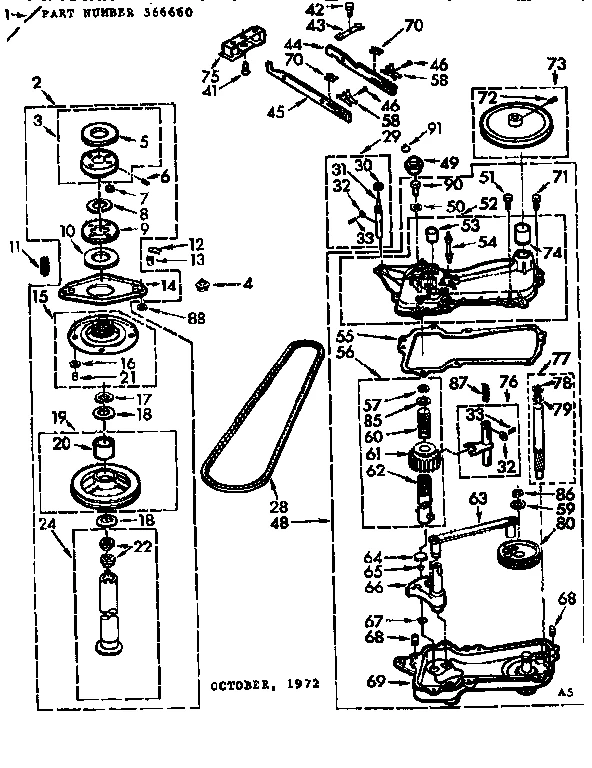

GEARCASE/TRANSMISSION
Common parts from model Whirlpool 110.73520600 Washer (Kenmore 11073520600)
1
Washer Outer Tub Grommet WPL 96386 Contact Us For Availability
1
Gear Case WPL 366660 Contact Us For Availability
2
Clamp WPL 9421321 Contact Us For Availability
2
Basket WPL 366659 Contact Us For Availability
3
Hose WPL 356349 Contact Us For Availability
3
Sleeve WPL 96175 Contact Us For Availability
3
Manifold WPL 84091 Contact Us For Availability
3
Washer Gear Case Brake Line and Guide WPL 350522 Contact Us For Availability
4
Spring WPL 96266 Contact Us For Availability
4
Washer Basket Drive Spring Retainer WPL 356444 Contact Us For Availability
5
Rod WPL 87270 Contact Us For Availability
5
Screw WPL 132848 Contact Us For Availability
5
Lining WPL 354550 Contact Us For Availability
6
Water Inlet WPL 355583 Contact Us For Availability
6
Ground Strap WPL 22965 Contact Us For Availability
6
Screw WPL 356057 Contact Us For Availability
7
Flapper WPL 355584 Contact Us For Availability
7
Seal WPL 87394 Contact Us For Availability
7
Brake Spring WPL 354275 Contact Us For Availability
8
Bumper, Lid Hinge WPL 19119 Contact Us For Availability
8
Ring WPL 16049 Contact Us For Availability
9
Ring WPL 355846 Contact Us For Availability
9
Brace WPL 353301 Contact Us For Availability
9
Ground Wire WPL 364089 Contact Us For Availability
9
Drum WPL 97664 Contact Us For Availability
10
Washer Seal WPL 356584 Contact Us For Availability
10
Lining WPL 354244 Contact Us For Availability
11
Basket WPL 369315 Contact Us For Availability
11
Pump Pulley WPL 96245 Contact Us For Availability
11
Spring WPL 17261 Contact Us For Availability
11B
Bearing WPL 354195 Contact Us For Availability
12
Lever WPL 355538 Contact Us For Availability
12
Seal WPL 54209 Contact Us For Availability
12
Spring WPL 52097 Contact Us For Availability
13
Rod WPL 96264 Contact Us For Availability
13
Spacer WPL 16062 Contact Us For Availability
13
Spring WPL 52446 Contact Us For Availability
14
Tub WPL 360787 Contact Us For Availability
14
Bearng Blck WPL 87290 Contact Us For Availability
14
Brake Yoke WPL 92903 Contact Us For Availability
15
Screw WPL 356973 Contact Us For Availability
15
Wick Oil WPL 96265 Contact Us For Availability
15
Plate WPL 364441 Contact Us For Availability
16
Panel WPL 85279 Contact Us For Availability
16
Lining WPL 354243 Contact Us For Availability
16A
Brace WPL 351500 Contact Us For Availability
16A
Panel WPL 357335 Contact Us For Availability
16B
Brace WPL 351499 Contact Us For Availability
17
Clip WPL 356701 Contact Us For Availability
17
Nut WPL 96101 Contact Us For Availability
18
Clip WPL 356700 Contact Us For Availability
18
Hex Screw WPL 90877 Contact Us For Availability
18
Washer WPL 353320 Contact Us For Availability
19
Washer Snubber Plate WPL 355852 Contact Us For Availability
19
Nut WPL 92229 Contact Us For Availability
19
Base WPL 366664 Contact Us For Availability
19
Pulley WPL 364032 Contact Us For Availability
20
Washer WPL 92232 Contact Us For Availability
20
Hose WPL 96251 Contact Us For Availability
20
Bearing WPL 16033 Contact Us For Availability
21
Gasket WPL 17235 Contact Us For Availability
21
Washer WPL 92235 Contact Us For Availability
21
(338471) (ALT.) WPL N/P Contact Us For Availability
21
Eyelet WPL 98281 Contact Us For Availability
21A
Cabinet (White) WPL 367815 Contact Us For Availability
21B
Cabinet WPL 357570 Contact Us For Availability
21C
Cabinet WPL 370024 Contact Us For Availability
21D
Cabinet (Gold) WPL 370025 Contact Us For Availability
22
Bracket WPL 85286 Contact Us For Availability
22
Washer WPL 98411 Contact Us For Availability
23
Cap WPL 356880 Contact Us For Availability
23
Washer Lint Filter WPL 368772 Contact Us For Availability
24
Retainer Clip WPL 96262 Contact Us For Availability
24
Nut WPL 98023 Contact Us For Availability
24
Lev Link Asy WPL 75587 Contact Us For Availability
24
Spin Tube WPL 366658 Contact Us For Availability
25
Agitator WPL 369492 Contact Us For Availability
25
Filter WPL 356643 Contact Us For Availability
25
Washer WPL 92217 Contact Us For Availability
25
Foot WPL 95879 Contact Us For Availability
26
Grommet, Motor Bracket WPL 19138 Contact Us For Availability
26
Diagram WPL 356644 Contact Us For Availability
27
Filter Body WPL 368771 Contact Us For Availability
27
Shield WPL 356217 Contact Us For Availability
27A
Hinge WPL 92657 Contact Us For Availability
27B
Hinge WPL 18775 Contact Us For Availability
28
Washer Seal WPL 351830 Contact Us For Availability
28
Hose WPL 357018 Contact Us For Availability
28A
Drive Motor WPL 370652 Contact Us For Availability
28A
Power Cord WPL 92667 Contact Us For Availability
28B
Motor WPL 82052 Contact Us For Availability
28B
Power Cord WPL 83742 Contact Us For Availability
29
Hose WPL 356645 Contact Us For Availability
29
Air Dome WPL 360804 Contact Us For Availability
29
Shield WPL 356246 Contact Us For Availability
29
Clutch Shaft WPL 76220 Contact Us For Availability
30
Bolt WPL 98537 Contact Us For Availability
30
Valve WPL 363425 Contact Us For Availability
30
Nut WPL 90715 Contact Us For Availability
31
Bracket WPL 93549 Contact Us For Availability
31
Shaft WPL 18930 Contact Us For Availability
32
Clamp WPL 353096 Contact Us For Availability
32
Nut WPL 95721 Contact Us For Availability
32
Spring WPL 355853 Contact Us For Availability
32
Roller WPL 92119 Contact Us For Availability
33
Pad WPL 363635 Contact Us For Availability
33
Pin WPL 90532 Contact Us For Availability
34
Connector WPL 357334 Contact Us For Availability
34
Dryer Cabinet Panel Guide Pin WPL 98669 Contact Us For Availability
34A
Pulley WPL 357514 Contact Us For Availability
34B
Pully 50 Cy WPL 93219 Contact Us For Availability
35
Dial WPL 365559 Contact Us For Availability
36
Clip WPL 356288 Contact Us For Availability
37
Washer Timer Knob WPL 355519 Contact Us For Availability
38
Compression Ring WPL 90015 Contact Us For Availability
38
Discharge Hose WPL 91273 Contact Us For Availability
39
Knob WPL 369153 Contact Us For Availability
39
Strainer WPL 352833 Contact Us For Availability
39
Shield WPL 355842 Contact Us For Availability
40
Hose WPL 357593 Contact Us For Availability
40
Retainer WPL 356899 Contact Us For Availability
41
Harness WPL 357525 Contact Us For Availability
41
Hose WPL 97784 Contact Us For Availability
41
Tap End Scr WPL 16135 Contact Us For Availability
42
Knob WPL 365952 Contact Us For Availability
42
Screw WPL 190575 Contact Us For Availability
42
Bolt WPL 98001 Contact Us For Availability
43
Washer Brake Pad Retainer WPL 94726 Contact Us For Availability
43
Harness WPL 357524 Contact Us For Availability
43
Tap Screw WPL 90723 Contact Us For Availability
44
Wire WPL 370950 Contact Us For Availability
44
Bar Cam WPL 18642 Contact Us For Availability
45
Bracket WPL 357191 Contact Us For Availability
45
Cam Bar WPL 354838 Contact Us For Availability
46
Valve WPL 360168 Contact Us For Availability
46
Rivet WPL 354959 Contact Us For Availability
47
Hose WPL 357189 Contact Us For Availability
48
Gear Case WPL 362901 Contact Us For Availability
49
Bearing WPL 358586 Contact Us For Availability
50
Clip WPL 351482 Contact Us For Availability
50
Ring WPL 352430 Contact Us For Availability
51
Screw WPL 120741 Contact Us For Availability
52
Gr Cse Cover WPL 87889 Contact Us For Availability
53
Bearing WPL 96853 Contact Us For Availability
54
Support Yoke WPL 93850 Contact Us For Availability
55
Washer Gear Case Cover Seal WPL 95089 Contact Us For Availability
55
Cover WPL 352143 Contact Us For Availability
56
Shaft WPL 362642 Contact Us For Availability
56A
Bolt WPL 126358 Contact Us For Availability
56B
Carriage Bolt WPL 126211 Contact Us For Availability
56C
Bolt WPL 353770 Contact Us For Availability
57
Shaft Seal WPL 92814 Contact Us For Availability
58
Ball WPL 91073 Contact Us For Availability
58
Plunger WPL 84866 Contact Us For Availability
59
Pad WPL 352434 Contact Us For Availability
59
Washer WPL 95083 Contact Us For Availability
60
Spring WPL 92815 Contact Us For Availability
61
Drive Gear WPL 17553 Contact Us For Availability
62
Shaft WPL 362098 Contact Us For Availability
63
Cnnctng Rod WPL 76577 Contact Us For Availability
66
Gr Sec/shaft WPL 75073 Contact Us For Availability
67
Connector WPL 94612 Contact Us For Availability
67
Ring WPL 52083 Contact Us For Availability
68
Plug WPL 94611 Contact Us For Availability
68
Pin WPL 5018 Contact Us For Availability
69
Gear Case WPL 362906 Contact Us For Availability
70
Cam Bar Guide WPL 95462 Contact Us For Availability
71
Screw WPL 98048 Contact Us For Availability
72
Screw WPL 355345 Contact Us For Availability
73
Actuator WPL 370959 Contact Us For Availability
73
Washer Transmission Pulley WPL 360840 Contact Us For Availability
74
Bearing WPL 17250 Contact Us For Availability
75
Washer Lid Switch Screw WPL 354764 Contact Us For Availability
75
Wig Way Ay WPL 365998 Contact Us For Availability
76
Fork Gear WPL 80398 Contact Us For Availability
77
Strike WPL 357141 Contact Us For Availability
77
Drive Pinion WPL 84467 Contact Us For Availability
78
Clip WPL 357469 Contact Us For Availability
78
Washer WPL 16024 Contact Us For Availability
79
Terminal WPL 352088 Contact Us For Availability
79
Ring WPL 90094 Contact Us For Availability
80
Drive Gear WPL 353397 Contact Us For Availability
81
Clip WPL 98084 Contact Us For Availability
82
Wiring Harness WPL 365968 Contact Us For Availability
83
Bezel WPL 357522 Contact Us For Availability
83A
Bezel WPL 357751 Contact Us For Availability
84
Insert WPL 357523 Contact Us For Availability
84A
Insert WPL 357750 Contact Us For Availability
85
Insert WPL 357561 Contact Us For Availability
85
Shield WPL 94276 Contact Us For Availability
86
Switch WPL 357480 Contact Us For Availability
86
Ring WPL 95082 Contact Us For Availability
87
Harness Valve WPL 362828 Contact Us For Availability
87
Spring WPL 16015 Contact Us For Availability
88
Washer WPL 52073 Contact Us For Availability
90
Screw WPL 355613 Contact Us For Availability
91
Ball WPL 358585 Contact Us For Availability
NI
Instruction Book WPL 352853 Contact Us For Availability
NI
Ldry Guide WPL 355979 Contact Us For Availability
NI
Bag WPL 369747 Contact Us For Availability
NI
Bag WPL 369761 Contact Us For Availability
NI
Bracket WPL 85502 Contact Us For Availability
NI
Trans Shield WPL 94291 Contact Us For Availability
NI
Transformer WPL 94368 Contact Us For Availability
NI
Label WPL LIT368532 Contact Us For Availability
NI
Instructions WPL LIT371514 Contact Us For Availability
NI
Ownr Suppl WPL LIT371614 Contact Us For Availability
NI
Parts List WPL LIT371962 Contact Us For Availability
NI
Service Manual WPL LIT821462 Contact Us For Availability
× ![]()
Login and Registration Form
