Model Whirlpool 110.72408100 Washer (Kenmore 11072408100) – Common Parts & Diagrams
TUB AND BASKET ASSEMBLY
All Parts

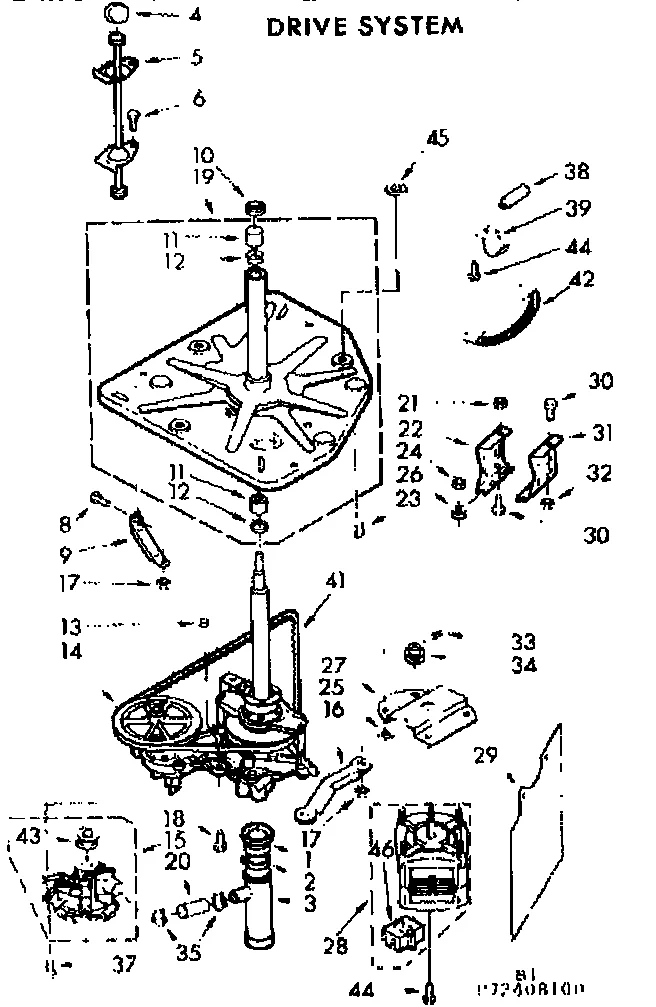

DRIVE SYSTEM

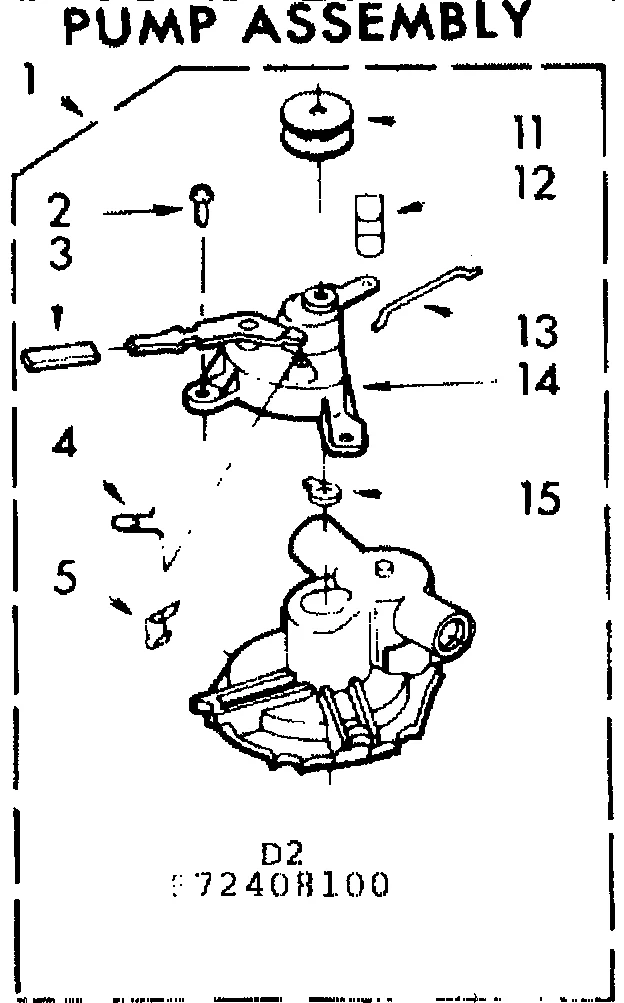

PUMP ASSEMBLY

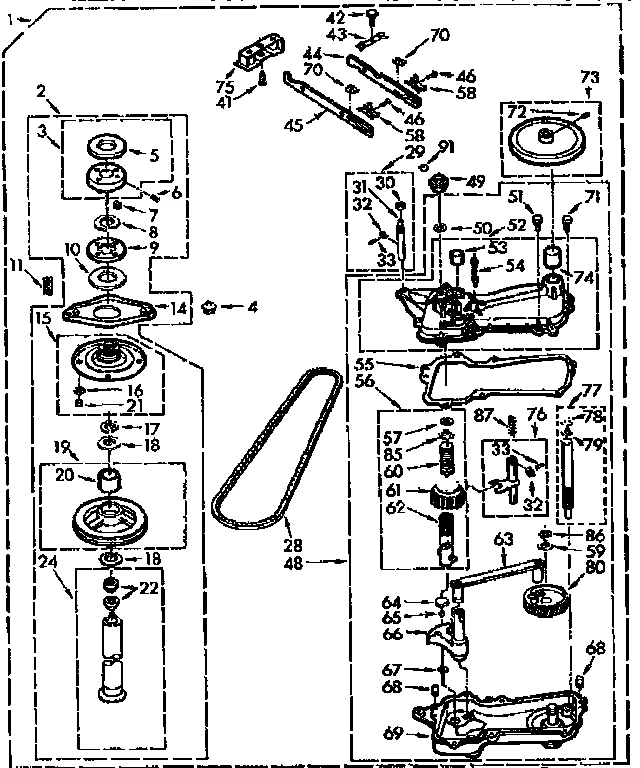

GEARCASE/TRANSMISSION

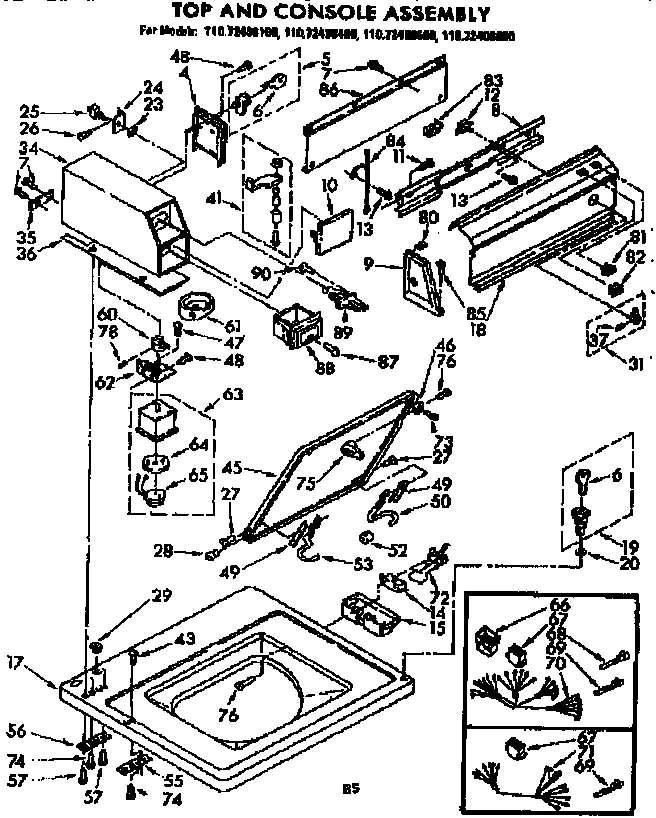

TOP AND CONSOLE PARTS
All Parts

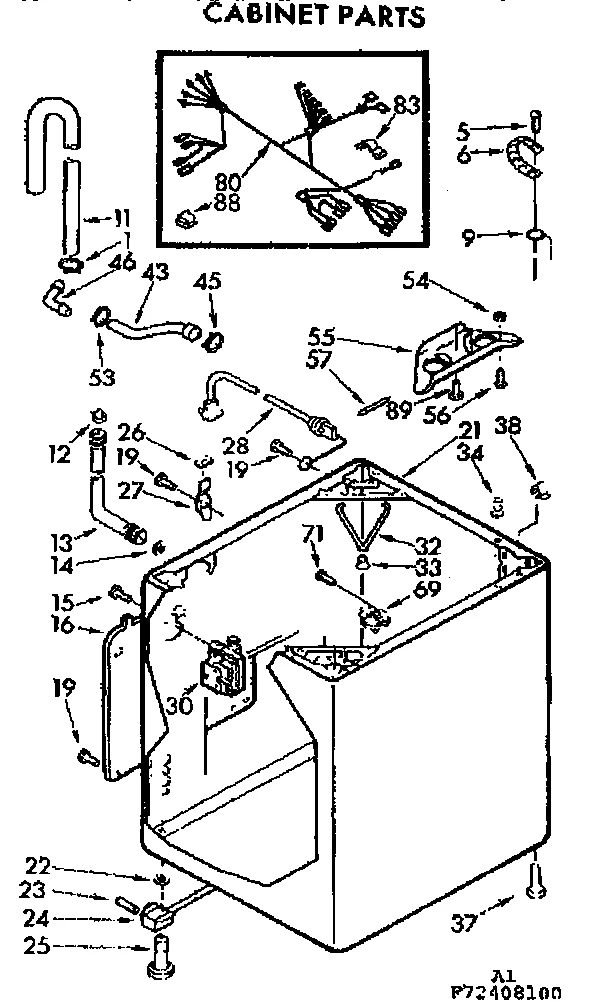

CABINET PARTS
Common parts from model Whirlpool 110.72408100 Washer (Kenmore 11072408100)
1
Pump WPL 359131 Contact Us For Availability
1
Case WPL 358487 Contact Us For Availability
2
Drive Assembly WPL 364444 Contact Us For Availability
3
Sleeve WPL 96175 Contact Us For Availability
3
Washer Gear Case Brake Line and Guide WPL 350522 Contact Us For Availability
4
Spring WPL 96266 Contact Us For Availability
4
Washer Basket Drive Spring Retainer WPL 356444 Contact Us For Availability
4A
Door (White) WPL 358239 Contact Us For Availability
4B
Door (Almond) WPL 689732 Contact Us For Availability
4C
Door WPL 689680 Contact Us For Availability
4D
Door WPL 689681 Contact Us For Availability
5
Retainer Clip WPL 96262 Contact Us For Availability
5
Lining WPL 354550 Contact Us For Availability
5
Screw WPL 132848 Contact Us For Availability
6
Screw WPL 356057 Contact Us For Availability
6
Ground Strap WPL 22965 Contact Us For Availability
7
Spring WPL 354276 Contact Us For Availability
8
Ring WPL 16049 Contact Us For Availability
8
Bracket WPL 358329 Contact Us For Availability
9
Drum WPL 97664 Contact Us For Availability
9
Ground Wire WPL 364089 Contact Us For Availability
9A
Cap WPL 358268 Contact Us For Availability
9B
Cap WPL 358267 Contact Us For Availability
10
Lining WPL 354244 Contact Us For Availability
10
Plate WPL 358973 Contact Us For Availability
11
Pump Pulley WPL 16113 Contact Us For Availability
11
Spring WPL 17261 Contact Us For Availability
11
Screw WPL 355326 Contact Us For Availability
12
Washer Drive Block WPL 96384 Contact Us For Availability
12
Lever WPL 355538 Contact Us For Availability
12
Switch WPL 358280 Contact Us For Availability
13
Rod WPL 96264 Contact Us For Availability
14
Bearng Blck WPL 87290 Contact Us For Availability
14
Brake Yoke WPL 92903 Contact Us For Availability
15
Wick Oil WPL 96265 Contact Us For Availability
15
Plate WPL 357155 Contact Us For Availability
16
Lining WPL 354243 Contact Us For Availability
16
Panel WPL 85279 Contact Us For Availability
17A
Top (White) WPL 375033 Contact Us For Availability
17B
Top (Almond) WPL 378053 Contact Us For Availability
17C
Top WPL 378040 Contact Us For Availability
17D
Top WPL 378041 Contact Us For Availability
18
Washer WPL 353320 Contact Us For Availability
18
Panel WPL 358326 Contact Us For Availability
19
Commercial Dryer Top Panel Lock WPL 358290 Contact Us For Availability
19
Pulley WPL 364032 Contact Us For Availability
20
Bearing WPL 16033 Contact Us For Availability
20
Washer WPL 98400 Contact Us For Availability
21
Eyelet WPL 98281 Contact Us For Availability
21
(338471) (ALT.) WPL N/P Contact Us For Availability
21A
Cabinet (White) WPL 375510 Contact Us For Availability
21B
Cabinet (Almond) WPL 378054 Contact Us For Availability
21C
Cabinet WPL 378036 Contact Us For Availability
21D
Cabinet WPL 378037 Contact Us For Availability
22
Washer WPL 98411 Contact Us For Availability
23
Hex Nut WPL 90825 Contact Us For Availability
24
Spin Tube WPL 366658 Contact Us For Availability
24
Bracket WPL 358321 Contact Us For Availability
24
Lev Link Asy WPL 75587 Contact Us For Availability
25
Switch WPL 358322 Contact Us For Availability
25
Foot WPL 95879 Contact Us For Availability
26
Grommet, Motor Bracket WPL 19138 Contact Us For Availability
27
Shield WPL 357589 Contact Us For Availability
27A
Hinge WPL 92657 Contact Us For Availability
27B
Hinge WPL 18775 Contact Us For Availability
28
Washer Seal WPL 351830 Contact Us For Availability
28
Motor WPL 357822 Contact Us For Availability
28
Cord WPL 354837 Contact Us For Availability
29
Shield WPL 357571 Contact Us For Availability
29
Clutch Shaft WPL 76220 Contact Us For Availability
30
Washer Water Inlet Valve Assembly WPL 358277 Contact Us For Availability
30
Bolt WPL 98537 Contact Us For Availability
30
Nut WPL 90715 Contact Us For Availability
31
Bracket WPL 93549 Contact Us For Availability
31
Shaft WPL 18930 Contact Us For Availability
31
Knob WPL 362647 Contact Us For Availability
32
Nut WPL 95721 Contact Us For Availability
32
Roller WPL 92119 Contact Us For Availability
32
Spring WPL 357977 Contact Us For Availability
33
Washer Snubber Pad WPL 358336 Contact Us For Availability
33
Pin WPL 90532 Contact Us For Availability
34
Pulley WPL 357514 Contact Us For Availability
34
Dryer Cabinet Panel Guide Pin WPL 98669 Contact Us For Availability
34C
Case WPL 689686 Contact Us For Availability
34D
Case WPL 689687 Contact Us For Availability
35
Strap WPL 357856 Contact Us For Availability
36
Cushion (White) WPL 358264 Contact Us For Availability
41
Tap End Scr WPL 16135 Contact Us For Availability
41
Extension Slide WPL 358309 Contact Us For Availability
42
Wire WPL 370950 Contact Us For Availability
42
Bolt WPL 98001 Contact Us For Availability
43
Washer Brake Pad Retainer WPL 94726 Contact Us For Availability
43
Screw WPL 98048 Contact Us For Availability
43
Pump Hose WPL 21114 Contact Us For Availability
44
Bar Cam WPL 18642 Contact Us For Availability
45
Gasket WPL 17235 Contact Us For Availability
45
Cam Bar WPL 354838 Contact Us For Availability
45A
Lid (White) WPL 373833 Contact Us For Availability
45B
Lid (Almond) WPL 375998 Contact Us For Availability
45C
Lid WPL 358932 Contact Us For Availability
45D
Lid WPL 358933 Contact Us For Availability
46
Lid Bumper WPL 356908 Contact Us For Availability
46
Washer Drain Hose Connector WPL 95440 Contact Us For Availability
46
Motor Switch WPL 362738 Contact Us For Availability
46
Rivet WPL 354959 Contact Us For Availability
48
Case WPL 358483 Contact Us For Availability
49
Bearing WPL 358586 Contact Us For Availability
50
Ring WPL 352430 Contact Us For Availability
52
Cover WPL 367552 Contact Us For Availability
52
Bumper WPL 91605 Contact Us For Availability
53
Bearing WPL 96853 Contact Us For Availability
53
Hinge WPL 95531 Contact Us For Availability
54
Support WPL 356445 Contact Us For Availability
55
Washer Gear Case Cover Seal WPL 95089 Contact Us For Availability
55
Housng Strap WPL 83701 Contact Us For Availability
55A
Basic Cover WPL 94114 Contact Us For Availability
55B
Cover WPL 352143 Contact Us For Availability
56
Shaft WPL 362642 Contact Us For Availability
56
Plate WPL 351562 Contact Us For Availability
56A
Bolt WPL 126358 Contact Us For Availability
56B
Carriage Bolt WPL 126211 Contact Us For Availability
56C
Bolt WPL 353770 Contact Us For Availability
57
Bolt WPL 356599 Contact Us For Availability
57
Shaft Seal WPL 92814 Contact Us For Availability
57
Pad WPL 352434 Contact Us For Availability
58
Plunger WPL 84866 Contact Us For Availability
59
Washer WPL 95083 Contact Us For Availability
60
Spring WPL 92815 Contact Us For Availability
60
Clutch WPL 365173 Contact Us For Availability
61
Funnel WPL 355446 Contact Us For Availability
61
Gear WPL 355469 Contact Us For Availability
62
Shaft WPL 362098 Contact Us For Availability
62
Bracket WPL 358282 Contact Us For Availability
63
Cnnctng Rod WPL 76577 Contact Us For Availability
63
Timer WPL 358324 Contact Us For Availability
64
Escapement WPL 369257 Contact Us For Availability
65
Motor WPL 372178 Contact Us For Availability
66
Gr Sec/shaft WPL 75073 Contact Us For Availability
66
Cap WPL 94697 Contact Us For Availability
67
Ring WPL 52083 Contact Us For Availability
67
Plug WPL 94696 Contact Us For Availability
68
Pin WPL 5018 Contact Us For Availability
69
Gear Case WPL 362906 Contact Us For Availability
69
Wtr Lv Swtch WPL 361511 Contact Us For Availability
70
Cam Bar Guide WPL 95462 Contact Us For Availability
70
Harness WPL 358341 Contact Us For Availability
71
Screw WPL 356512 Contact Us For Availability
71
Harness WPL 358340 Contact Us For Availability
72
Actuator WPL 370959 Contact Us For Availability
72
Screw WPL 355345 Contact Us For Availability
73
Washer Transmission Pulley WPL 360840 Contact Us For Availability
74
Bearing WPL 17250 Contact Us For Availability
74
Screw WPL 90057 Contact Us For Availability
75
Wig Way Ay WPL 365998 Contact Us For Availability
76
Fork Gear WPL 80398 Contact Us For Availability
76
Washer Lid Switch Screw WPL 354764 Contact Us For Availability
77
Drive Pinion WPL 84467 Contact Us For Availability
78
Washer WPL 16024 Contact Us For Availability
78
Screw WPL 98654 Contact Us For Availability
79
Ring WPL 90094 Contact Us For Availability
80
Drive Gear WPL 353397 Contact Us For Availability
80
Clip WPL 98084 Contact Us For Availability
80
Harness WPL 358342 Contact Us For Availability
81
Light WPL 360398 Contact Us For Availability
82
Light WPL 360402 Contact Us For Availability
84
Wire WPL 357535 Contact Us For Availability
85
Shield WPL 94276 Contact Us For Availability
85
Screw WPL 358225 Contact Us For Availability
86
Ring WPL 95082 Contact Us For Availability
86
Panel WPL 356712 Contact Us For Availability
87
Spring WPL 16015 Contact Us For Availability
89
Bolt WPL 354730 Contact Us For Availability
91
Ball WPL 358585 Contact Us For Availability
NI
Paint (White) WPL 799344 Contact Us For Availability
NI
Spray (Avocado) WPL 261888 Contact Us For Availability
NI
Paint Na WPL 261889 Contact Us For Availability
NI
Spray (Golden Harvest) WPL 261890 Contact Us For Availability
NI
Natural Gas Paint WPL 261891 Contact Us For Availability
NI
Spray Th WPL 350941 Contact Us For Availability
NI
Parts Bag WPL 369780 Contact Us For Availability
NI
Thinnr 1 Gal WPL 799351 Contact Us For Availability
NI
Paint (Almond) WPL 978883 Contact Us For Availability
NI
Installation Instructions WPL LIT375049 Contact Us For Availability
NI
Parts List WPL LIT378167 Contact Us For Availability
NI
Label WPL LIT380082 Contact Us For Availability
NI
Service Manual WPL LIT821462 Contact Us For Availability
× ![]()
