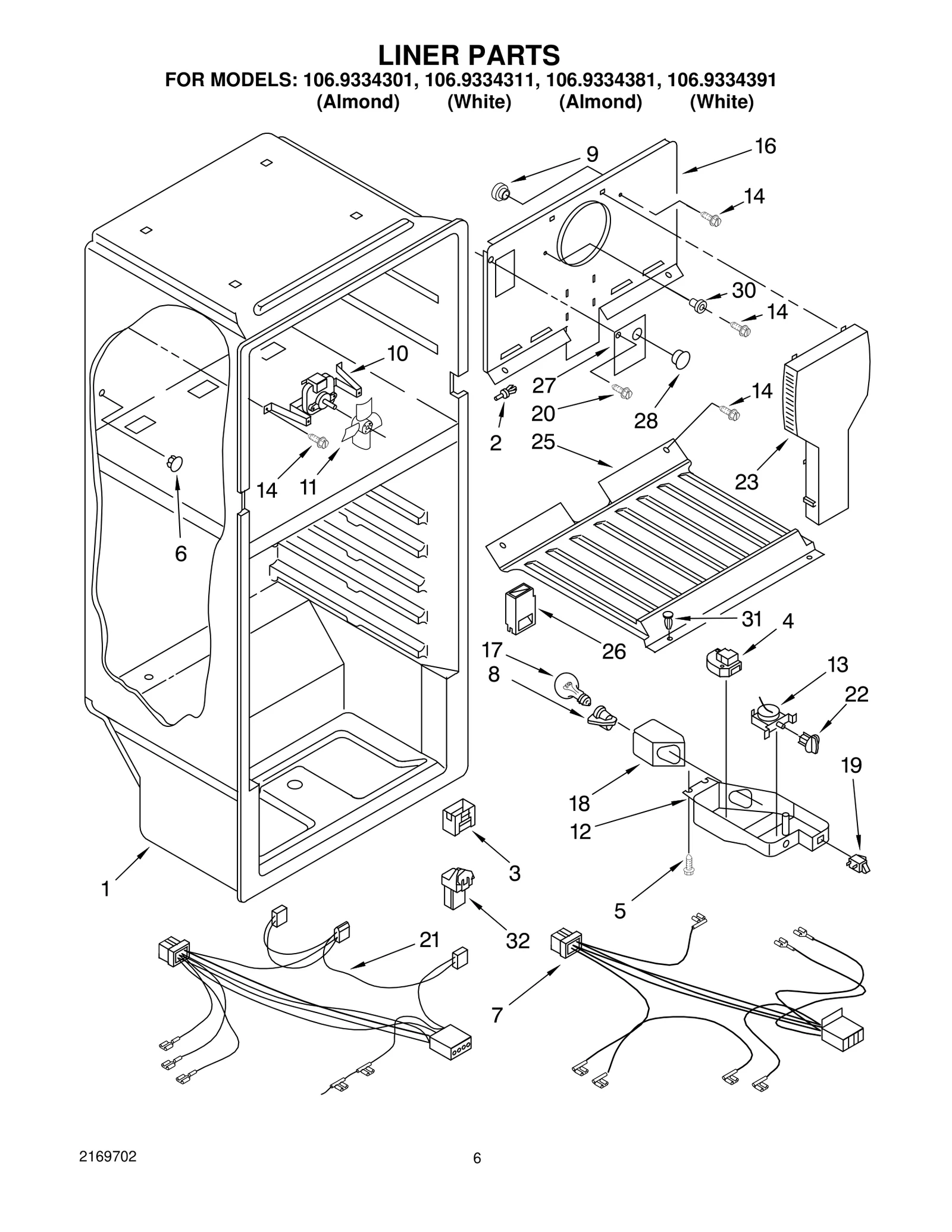

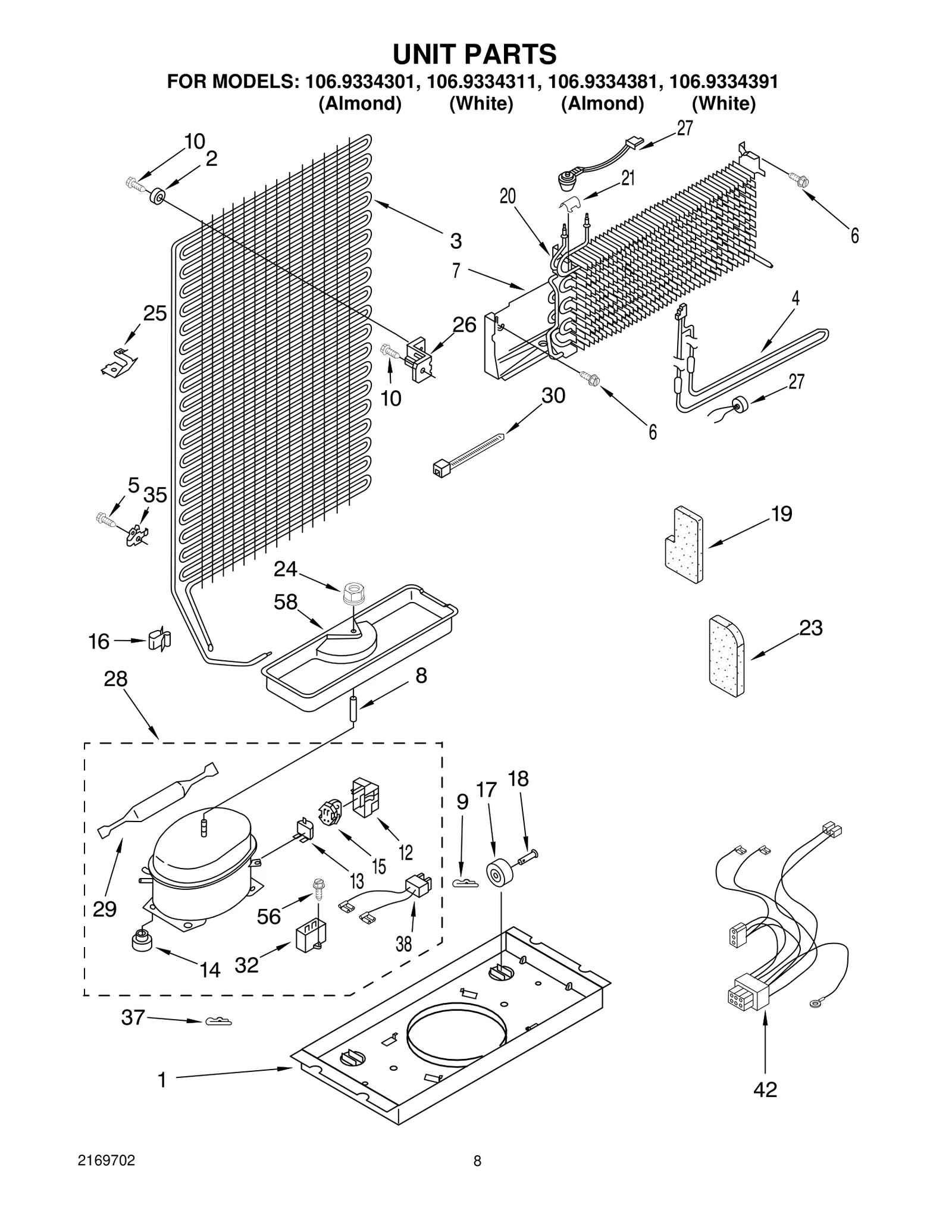

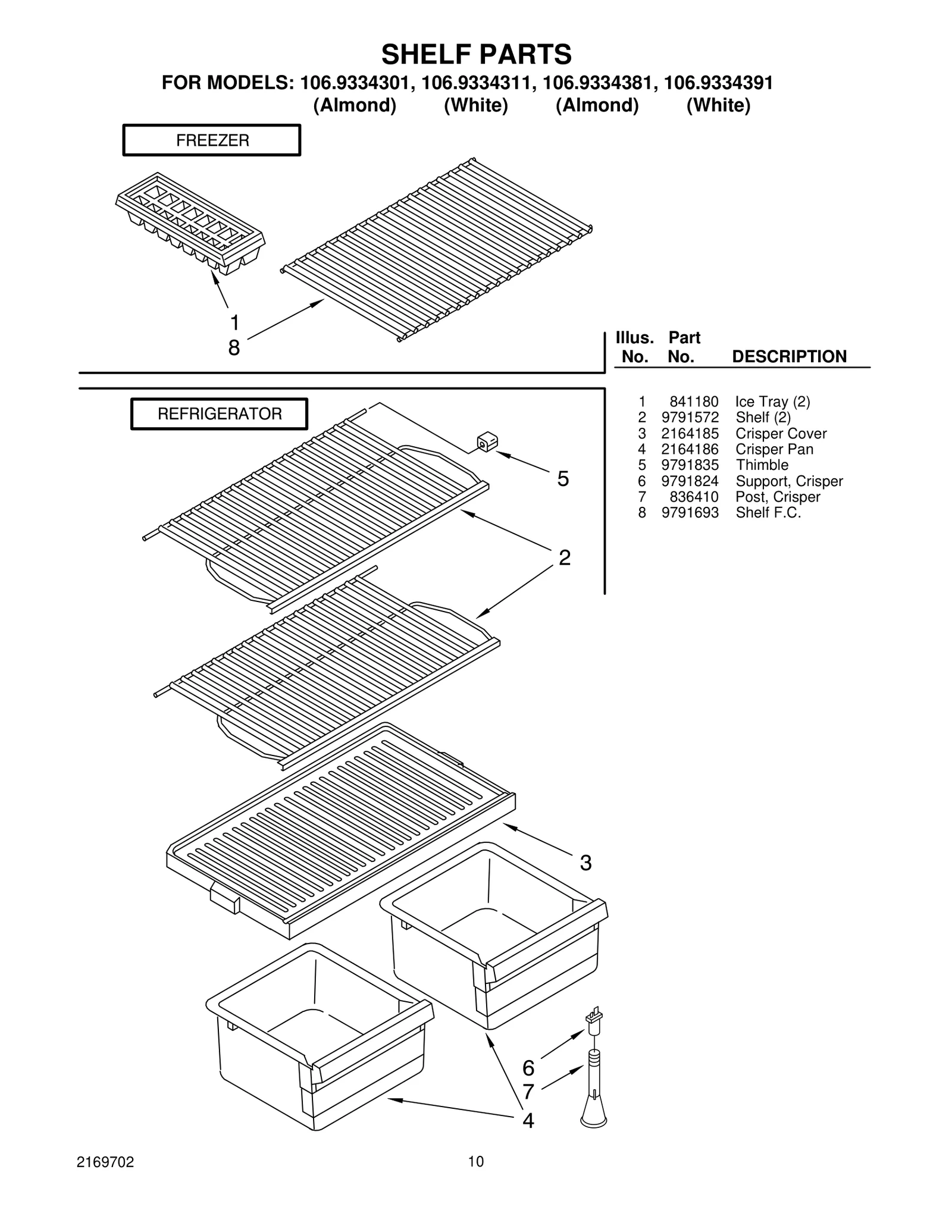

Model Whirlpool 106.9334301 Refrigerator – Common Parts &amp; Diagrams

2

939962 Whirlpool Refrigerator Rivet Backorder WPL 939962 $7.67

2

WP2192515 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2192515 $91.63

2

Bumper (2) WPL 944772 Contact Us For Availability

3

COVER In Stock WPL WP9791600 $117.69

3

Cover, Diffuser WPL 9791377 Contact Us For Availability

3

Condenser WPL 9790413 Contact Us For Availability

4

WP2164186 Whirlpool Crisper Pan In Stock WPL WP2164186 $92.83

4

WP2183400 Whirlpool Defrost Timer In Stock WPL WP2183400 $60.76

4

WP2263749 Whirlpool Defrost Heater Assembly In Stock WPL WP2263749 $36.50

5

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

5

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $4.82

5

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

5

Thimble WPL 9791835 Contact Us For Availability

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

6

Support, Crisper WPL 9791824 Contact Us For Availability

7

2176927 Whirlpool Refrigerator Wire Harness Backorder WPL 2176927 $104.72

7

Spacer WPL 943188 Contact Us For Availability

7

Post, Crisper WPL 836410 Contact Us For Availability

7

Heat Shield WPL 2166097 Contact Us For Availability

8

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $47.85

8

WP2192514 Whirlpool Refrigerator Wire Shelf In Stock WPL WP2192514 $78.71

8

Spacer 9 20150912 Clip−Pin WPL 2154438 Contact Us For Availability

9

Grommet WPL 531933 Contact Us For Availability

10

FOR MODELS: 106.9334301, 106.9334311, 106.933 WPL N/S Contact Us For Availability

10

Fan Motor & Bracket Assy. WPL 2166013 Contact Us For Availability

11

Fan Blade WPL 2169141 Contact Us For Availability

12

2215213 Whirlpool Refrigerator Control Box Backorder WPL 2215213 $79.18

12

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $69.36

13

4387913 Whirlpool Refrigerator Primary Overlo In Stock WPL 4387913 $34.39

13

Thermostat WPL 9790409 Contact Us For Availability

14

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

14

WP2163786 Whirlpool Refrigerator Grommet Backorder WPL WP2163786 $4.82

14

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

16

W10812038 Whirlpool Refrigerator Clip Backorder WPL W10812038 $6.42

16

WP2166037 Whirlpool Refrigerator Door Hinge In Stock WPL WP2166037 $65.17

16

Cover−Evaporator WPL 9790382 Contact Us For Availability

17

2166043 Whirlpool Refrigerator Shim Backorder WPL 2166043 $48.75

17

4388239 Whirlpool Refrigerator Primary Cabine Backorder WPL 4388239 $48.16

17

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $6.08

18

W11034434 Whirlpool Refrigerator Light Lens Backorder WPL W11034434 $79.29

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $23.68

19

Freezer Door Panel (Also Order Item 11) — A WPL 9791627 Contact Us For Availability

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $4.82

WP2263919 Whirlpool Refrigerator Evaporator Backorder WPL WP2263919 $229.39

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $5.30

Hole Plug — Almond WPL 1122654 Contact Us For Availability

9791833 Whirlpool Refrigerator Clip Backorder WPL 9791833 $6.49

Hinge−Pin Bott. WPL 9791682 Contact Us For Availability

Retainer, Gasket WPL 1122551 Contact Us For Availability

Wire Assy. Fzr. WPL 9791403 Contact Us For Availability

22

WP2202885 Whirlpool Refrigerator Thermal Knob Backorder WPL WP2202885 $17.67

22

Screw WPL 488714 Contact Us For Availability

22

Retainer, Gasket WPL 1120614 Contact Us For Availability

23

2188462A Whirlpool Refrigerator Door Gasket In Stock WPL 2188462A $63.27

23

Air Tower WPL 2166065 Contact Us For Availability

24

285002 Whirlpool Nut Backorder WPL 285002 $8.13

24

Interior Door Panel (Freezer) WPL 9790358 Contact Us For Availability

25

4386951 Whirlpool Refrigerator Clip In Stock WPL 4386951 $4.55

25

Trim, Door Shelf WPL 2164191 Contact Us For Availability

25

Freezer Floor WPL 2166077 Contact Us For Availability

26

Stop, Door WPL 1115910 Contact Us For Availability

26

Air Diffuser WPL 9790402 Contact Us For Availability

26

Bracket, Condenser WPL 944791 Contact Us For Availability

WP2151652 Whirlpool Refrigerator Button Plug In Stock WPL WP2151652 $14.52

WP2217784 Whirlpool Refrigerator Cover Backorder WPL WP2217784 $34.37

WP4387490 Whirlpool Refrigerator Bi-Metal Def In Stock WPL WP4387490 $32.12

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $4.82

W10309988 Whirlpool Refrigerator Compressor In Stock WPL W10309988 $331.47

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $4.82

Installation Kit & 876765 Tube Kit) WPL 482801 Contact Us For Availability

Hole Plug — Almond WPL 989196 Contact Us For Availability

Hole Plug WPL 1103725 Contact Us For Availability

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $29.43

29

WP2156007 Whirlpool Refrigerator Endcap Trim In Stock WPL WP2156007 $4.08

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $6.17

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $7.04

Sleeve WPL 2166010 Contact Us For Availability

Clamp WPL 851095 Contact Us For Availability

31

Fastener WPL 489115 Contact Us For Availability

31

Door−Compt. WPL 2164192 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $34.42

285006 Whirlpool Spray In Stock WPL 285006 $52.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $56.74

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $12.67

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $151.82

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $39.72

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

Kit, Foam Slab (30" x 32−1/2" x 1−1/2") WPL 876029 Contact Us For Availability

Enamel, White WPL 799344 Contact Us For Availability

Tape, Vinyl WPL 479502 Contact Us For Availability

Hood And Foil Assembly Parts Not Illustrated WPL 2166082 Contact Us For Availability

Leveler, Enamel WPL 350941 Contact Us For Availability

Enamel, Almond WPL 978883 Contact Us For Availability

Cement, Alumilastic WPL 542639 Contact Us For Availability

Kit, Evaporator Repair WPL 799833 Contact Us For Availability

Kit, Porcelain Repair (White) WPL 799832 Contact Us For Availability

Door Reversal Instructions FIELD INSTALLABLE WPL 2172763 Contact Us For Availability

Run Capacitor WPL 2154565 Contact Us For Availability

33

Handle, F.C. WPL 2164196 Contact Us For Availability

34

Retainer, Gasket WPL 1122553 Contact Us For Availability

35

Tube Clip 37 24364001 Clip, Compressor WPL 1105406 Contact Us For Availability

36

Stop−Door WPL 944035 Contact Us For Availability

37

Trim−Door (2) WPL 2164197 Contact Us For Availability

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $4.82

38

Shim WPL 935076 Contact Us For Availability

41

WP487576 Whirlpool Washer In Stock WPL WP487576 $7.54

41

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $4.99

42

Wire Assy. Unit WPL 9790416 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $29.55

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

Valve, Access WPL 978029 Contact Us For Availability

Evap. Tray Following Parts Not Illustrated an WPL 1101002 Contact Us For Availability

Valve, Access WPL 978028 Contact Us For Availability

Start Kit 3.75 Ozs. REFRIGERANT CHARGE Produc WPL 482278 Contact Us For Availability
