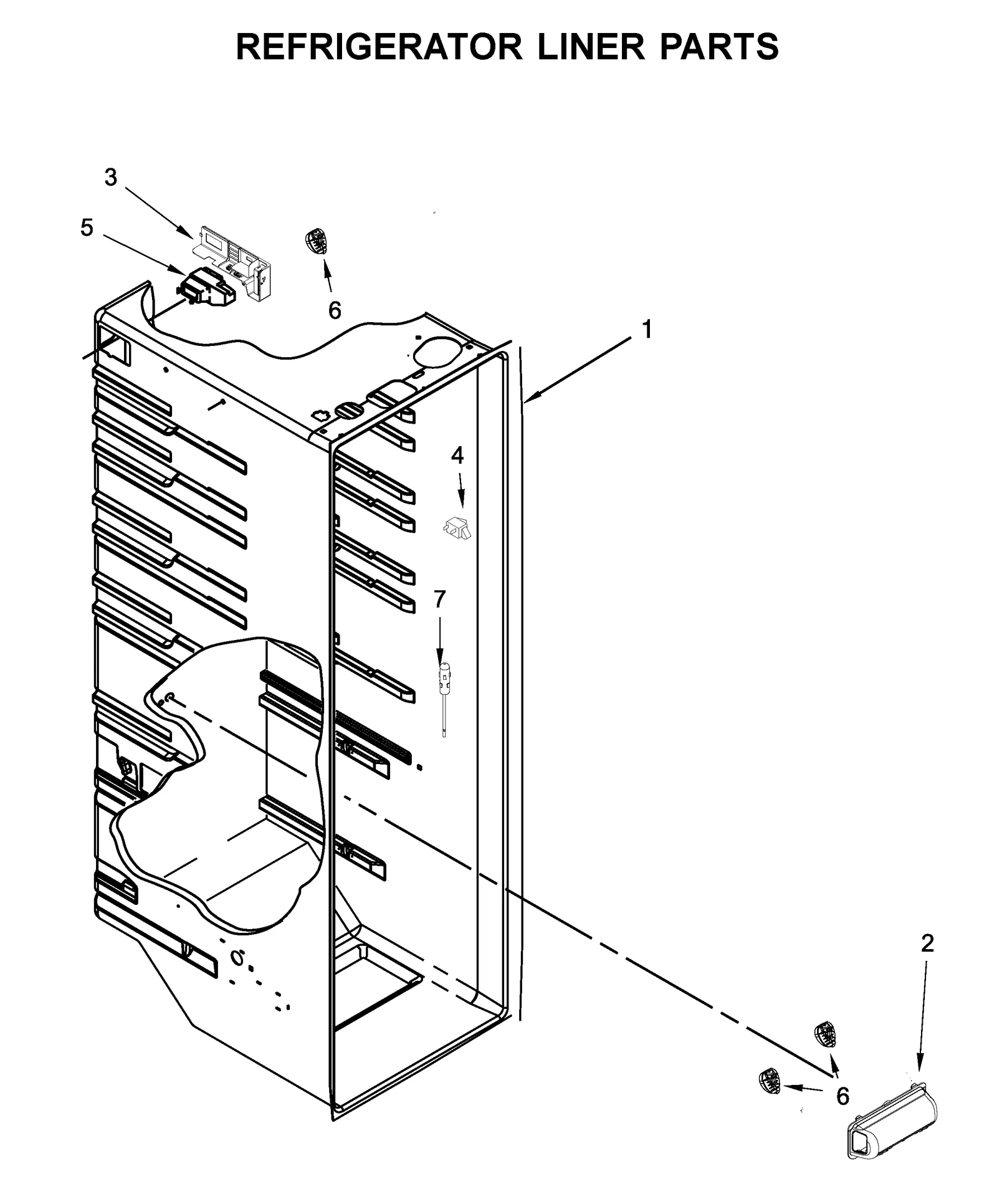

Model Whirlpool 106.41133712 REFRIGERATOR (Kenmore 10641133712) – Common Parts &amp; Diagrams

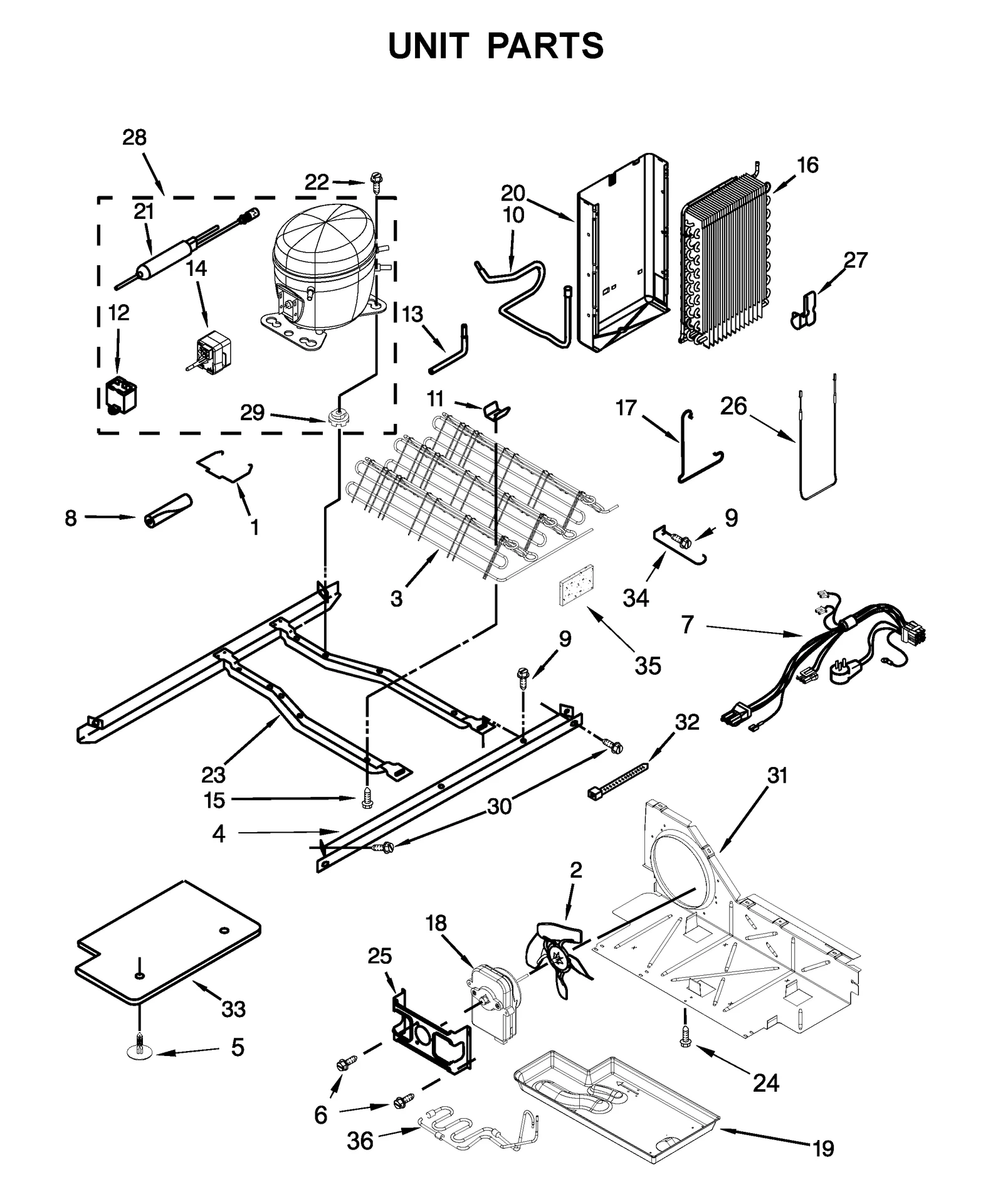

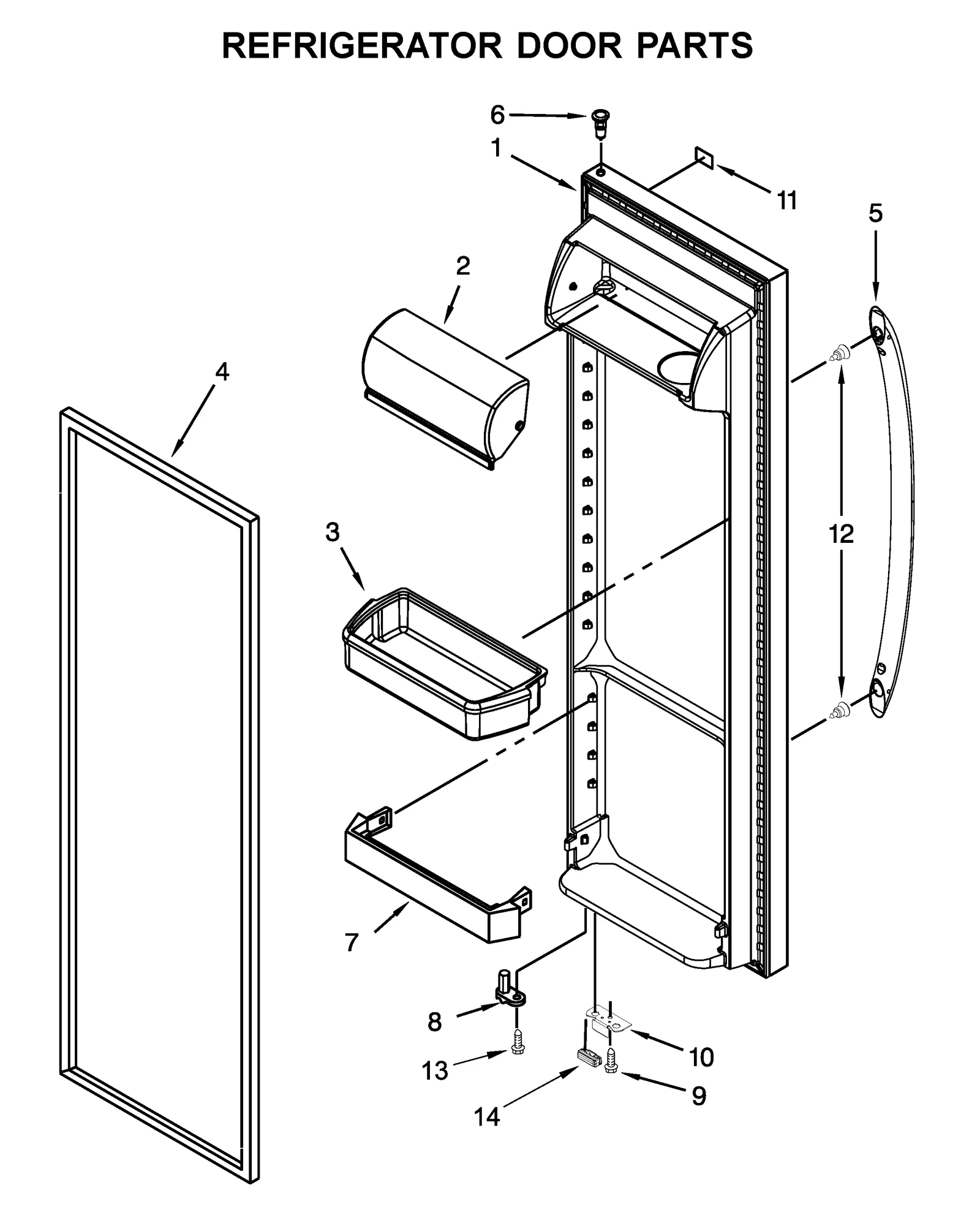

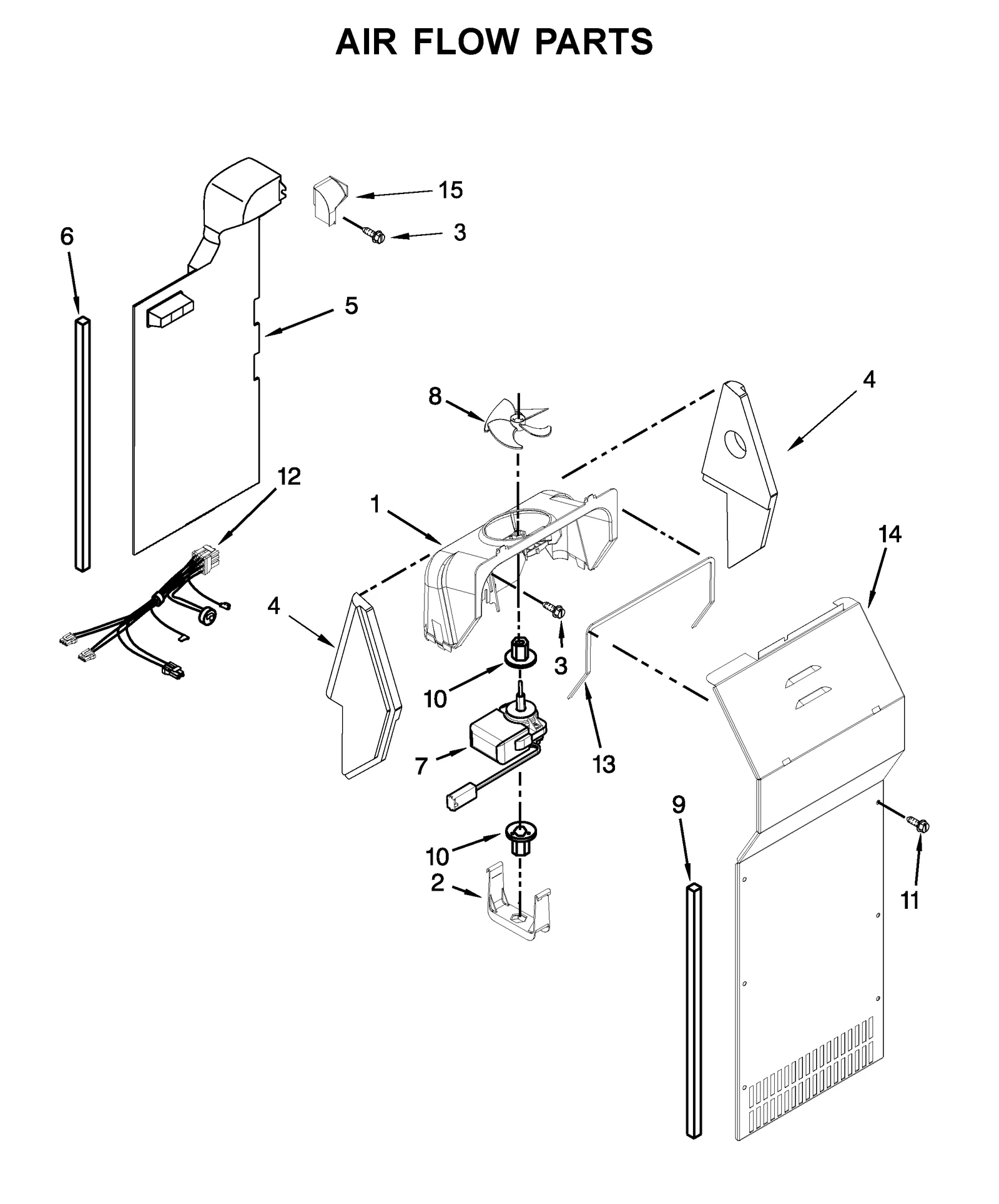

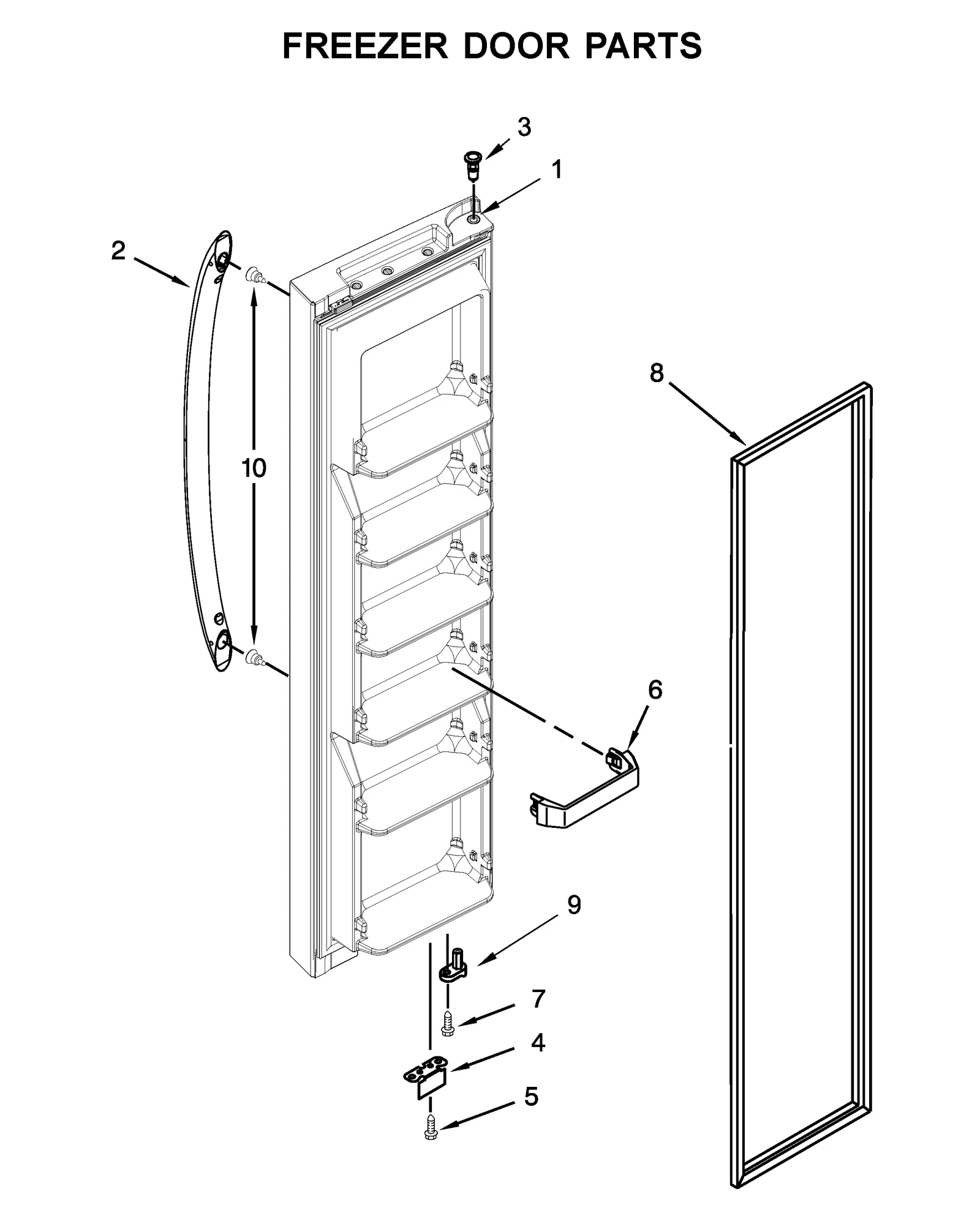

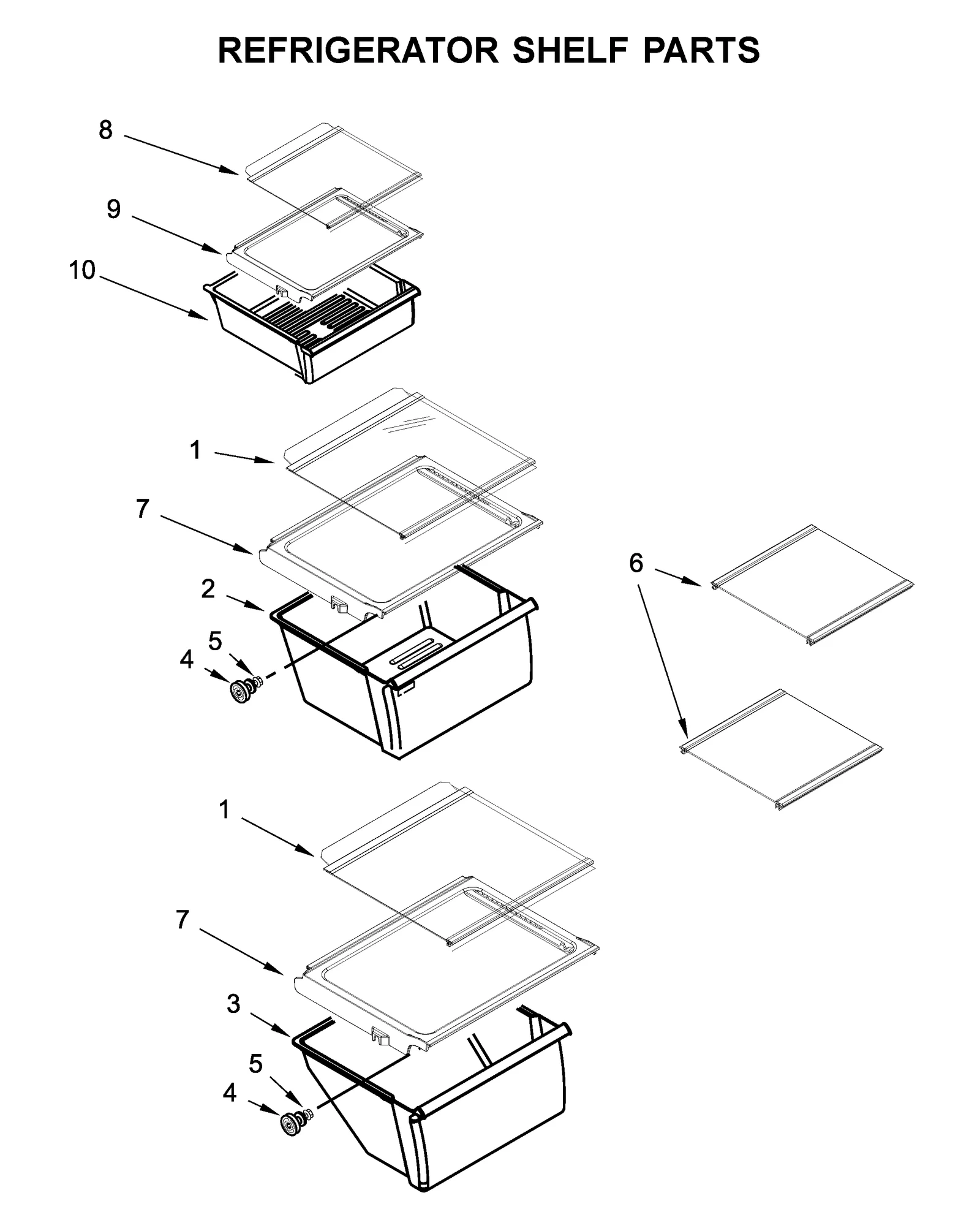

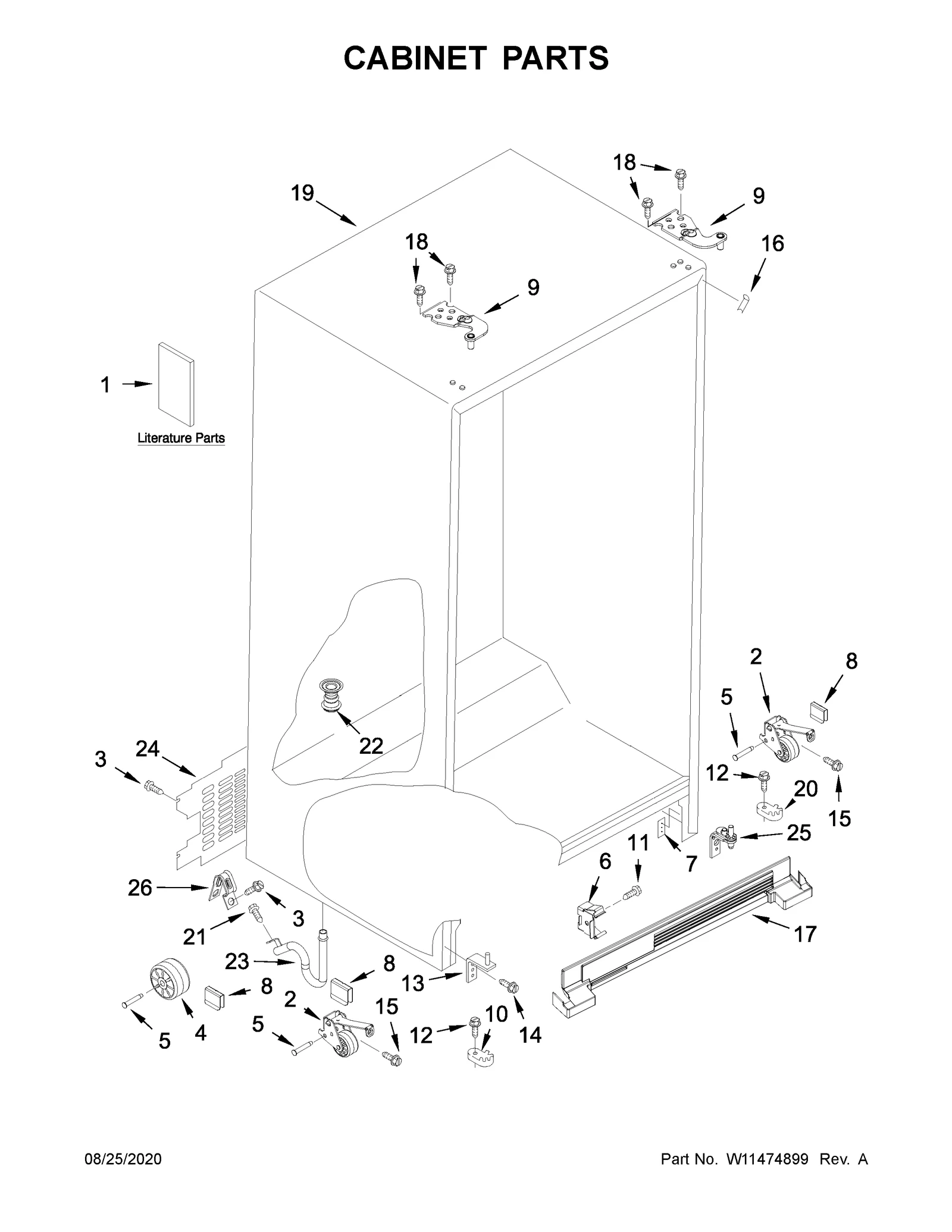

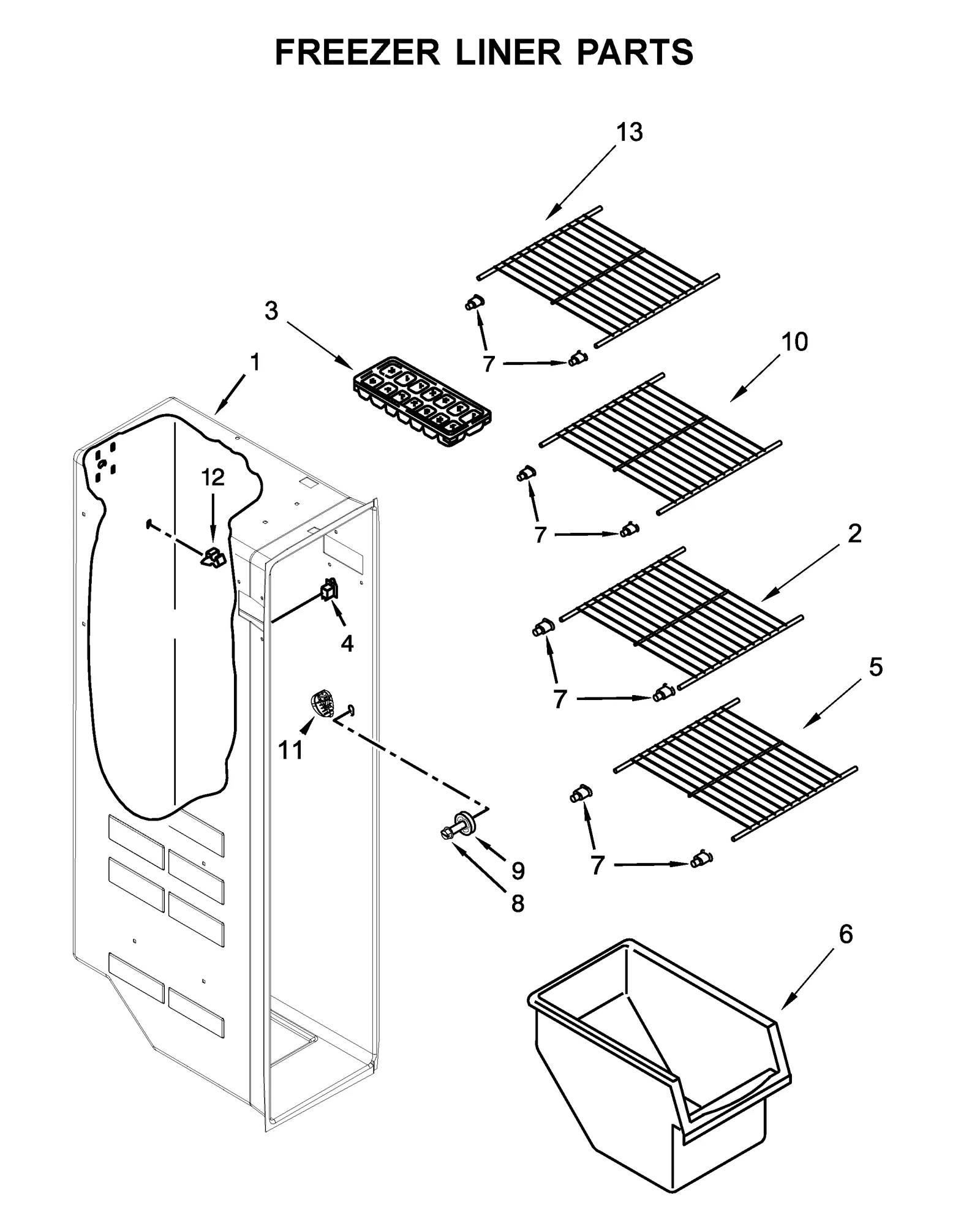

1

FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS L WPL N/P Contact Us For Availability

2

W11239891 Whirlpool Refrigerator Light Lens Backorder WPL W11239891 $69.33

2

W11700295 Whirlpool Refrigerator Retainer Backorder WPL W11700295 $13.99

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $66.67

2

WPW10304660 Whirlpool Wheel Assembly In Stock WPL WPW10304660 $52.72

2

WPW10318953 Whirlpool Wire Shelf Backorder WPL WPW10318953 $61.72

2A

WPW10304659 Whirlpool Wheel Assembly In Stock WPL WPW10304659 $40.06

3

W11183307-includeCORE Whirlpool W11183307 Ref Backorder WPL W11183307-includeCORE $321.93

3

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

4

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $23.68

5

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

5

W11380595 Whirlpool Refrigerator Diffuser In Stock WPL W11380595 $40.71

5

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $4.82

5

WPW10318952 Whirlpool Wire Shelf Backorder WPL WPW10318952 $65.05

6

W11174625 Whirlpool Glass Shelf Backorder WPL W11174625 $191.11

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP2309717 Whirlpool Refrigerator Door Trim Backorder WPL WP2309717 $41.24

6

WP2309758 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2309758 $93.28

7

W11036715 Whirlpool Refrigerator Plate Backorder WPL W11036715 $17.20

7

W11368751 Whirlpool Shelf Frame In Stock WPL W11368751 $74.88

7

W11673314 Whirlpool Wire Harness Backorder WPL W11673314 $67.66

7

WP2309941 Whirlpool Refrigerator Door Bar Tri In Stock WPL WP2309941 $56.40

7

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $145.73

7

WPW10130299 Whirlpool Refrigerator Cup In Stock WPL WPW10130299 $9.70

7

WPW10384183 Whirlpool Thermistor In Stock WPL WPW10384183 $48.50

8

W11221931 Whirlpool Refrigerator Glass Shelf Backorder WPL W11221931 $165.48

8

W11397972 Whirlpool Refrigerator Door Cam In Stock WPL W11397972 $8.92

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $22.25

9

W11371713 Whirlpool Shelf Frame Backorder WPL W11371713 $86.95

9

W11505709 Whirlpool Refrigerator Door Hinge In Stock WPL W11505709 $44.00

9

W11661926 Whirlpool Refrigerator Door Cam Backorder WPL W11661926 $8.48

9

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

9A

W11505710 Whirlpool Refrigerator Door Hinge Backorder WPL W11505710 $44.00

W11174621 Whirlpool Refrigerator Snack Pan Backorder WPL W11174621 $100.24

W11557261 Whirlpool Refrigerator Bracket Asse Backorder WPL W11557261 $11.96

W11679635 Whirlpool Door Cam In Stock WPL W11679635 $8.11

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $5.30

WPW10318960 Whirlpool Wire Shelf In Stock WPL WPW10318960 $66.56

11

W11602886 Whirlpool Refrigerator LED Light Mo In Stock WPL W11602886 $30.20

11A

Refrigerator Nameplate WPL W10337741 Contact Us For Availability

12

W11545823 Whirlpool Refrigerator Wire Harness In Stock WPL W11545823 $52.18

12

WPW10350564 Whirlpool Refrigerator Freezer Ca In Stock WPL WPW10350564 $79.20

13

W11687636 Whirlpool Refrigerator Door Hinge Backorder WPL W11687636 $48.29

13

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $7.55

13B

WPW10308489 Whirlpool Refrigerator Screw Backorder WPL WPW10308489 $4.90

14

WPW10197428 Whirlpool Start Device In Stock WPL WPW10197428 $39.32

14

Bumper-dor WPL W10407175 Contact Us For Availability

14A

W10407187 Whirlpool Refrigerator Door Bumper Backorder WPL W10407187 $32.45

14B

W11573367 Whirlpool Refrigerator Door Bumper Backorder WPL W11573367 $14.02

15

W10803534 Whirlpool Screw In Stock WPL W10803534 $7.98

15

W10803597 Whirlpool Refrigerator Air Scoop Backorder WPL W10803597 $62.69

15

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

16

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $203.37

16A

W11219641 Whirlpool Refrigerator Filler Backorder WPL W11219641 $7.84

16B

W11219642 Whirlpool Refrigerator Filler Backorder WPL W11219642 $7.84

17

Refrigerator Defrost Clip WPL 2161324 Contact Us For Availability

20

W11398787 Whirlpool Refrigerator Door Cam In Stock WPL W11398787 $8.92

20

WPW10194474 Whirlpool Refrigerator Shield Backorder WPL WPW10194474 $91.35

21

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $21.00

22

W11566763 Whirlpool Fitting In Stock WPL W11566763 $31.99

23

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $23.69

24

W11613262 Whirlpool Unit Cover Backorder WPL W11613262 $34.92

24

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

25

W11399415 Whirlpool Refrigerator Door Hinge In Stock WPL W11399415 $48.29

25

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

26

W11234470 Whirlpool Refrigerator Clamp Backorder WPL W11234470 $14.02

26

WPW10495967 Whirlpool Refrigerator Heater In Stock WPL WPW10495967 $75.30

29

W10836504 Whirlpool Refrigerator Grommet Backorder WPL W10836504 $11.14

36

W11678305 Whirlpool Tube In Stock WPL W11678305 $31.89

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $34.42

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $13.08

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $52.10

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $12.67

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $33.13

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $29.55

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

W10134625 Whirlpool Refrigerator Touch-Up Pai In Stock WPL W10134625 $10.73

W11729596 Whirlpool Ice Maker Field Install K In Stock WPL W11729596 $103.56

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $39.72

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

Refrigerator Service Valve WPL 978029 Contact Us For Availability

Refrigerator Vinyl Tape WPL 479502 Contact Us For Availability

Appliance Porcelain Touch-Up Paint, 1-qt (Whi WPL 799344 Contact Us For Availability

Refrigerator Ice Maker Torx Key Wrench WPL 1117510 Contact Us For Availability
