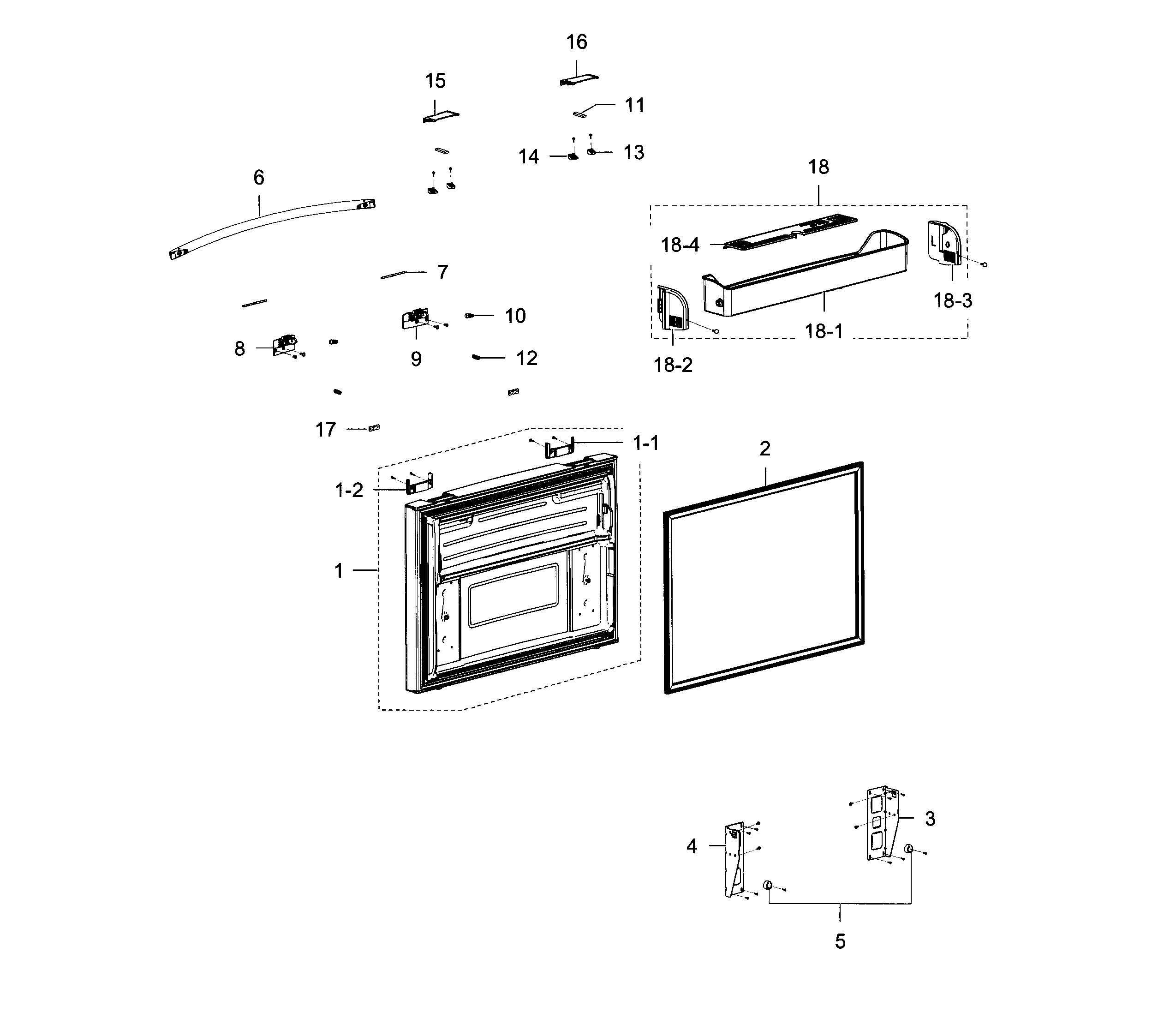

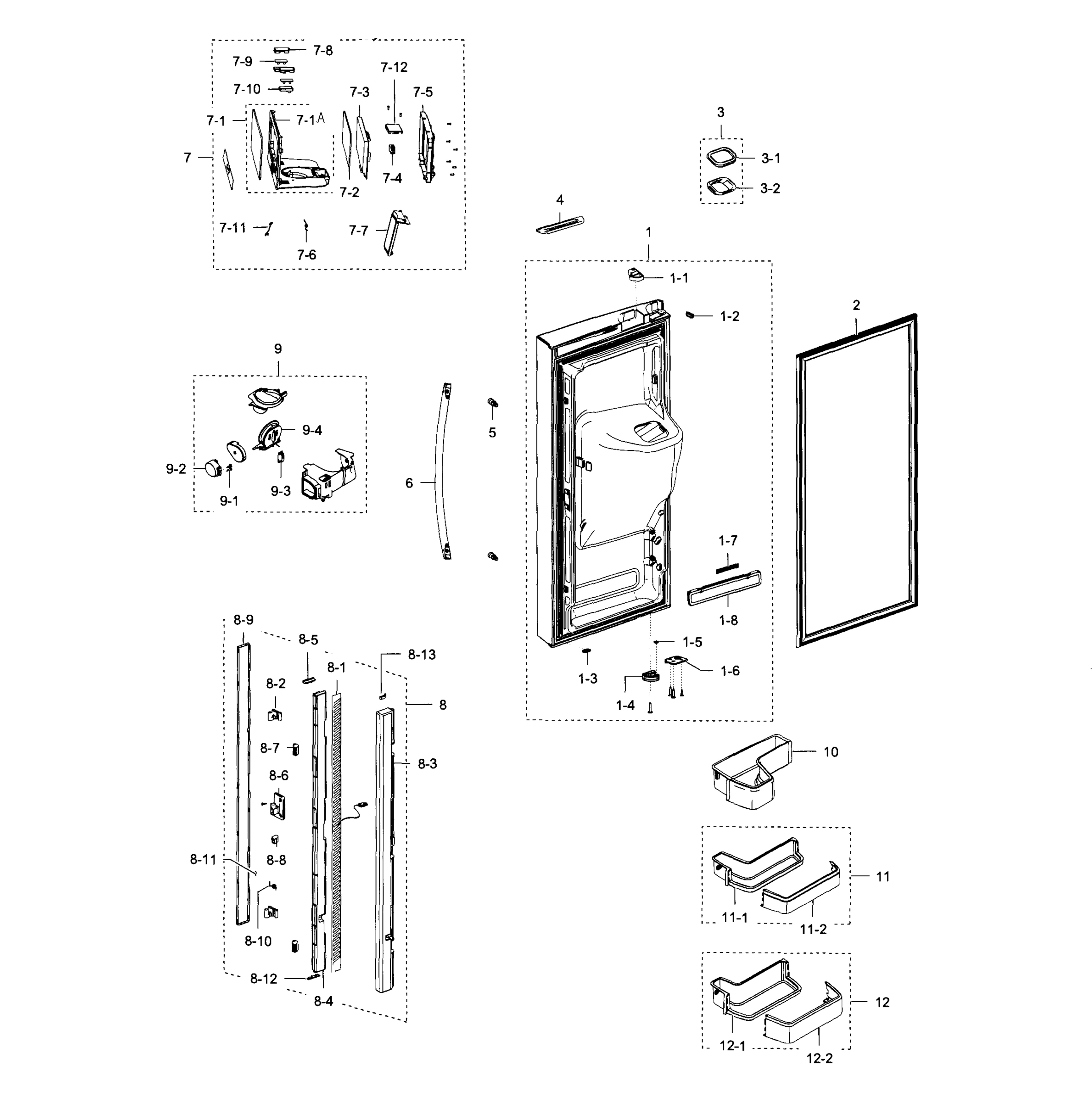

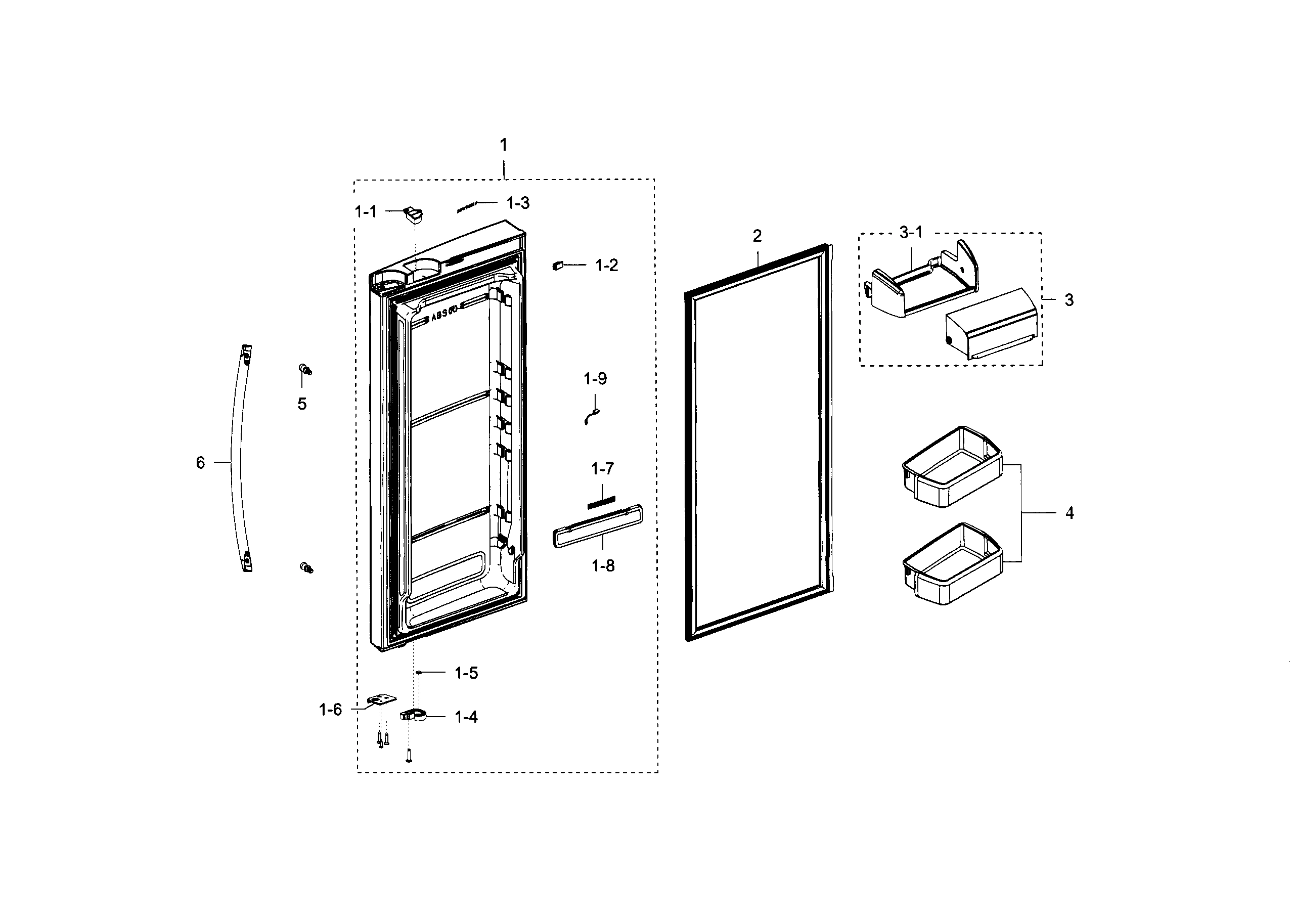

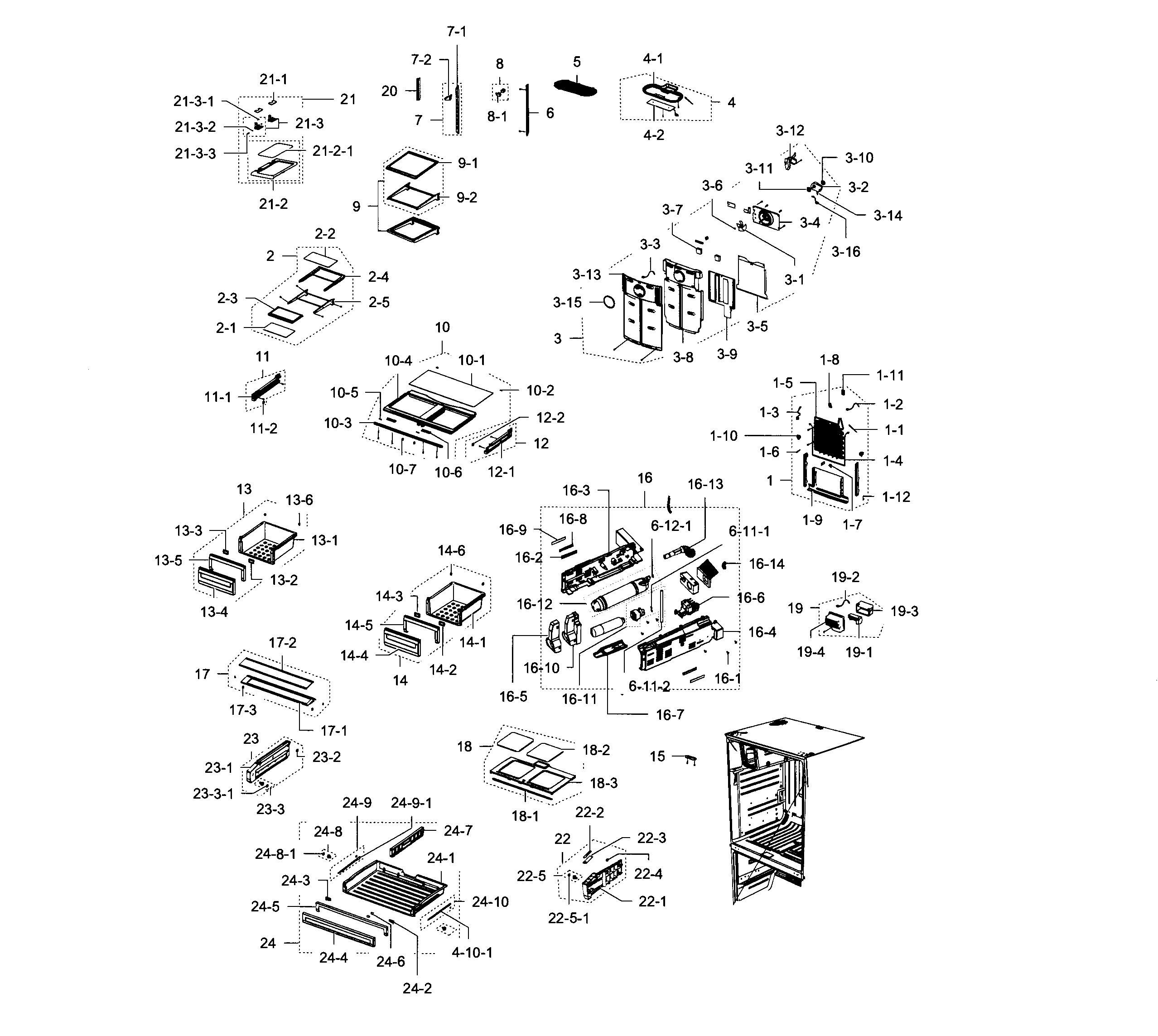

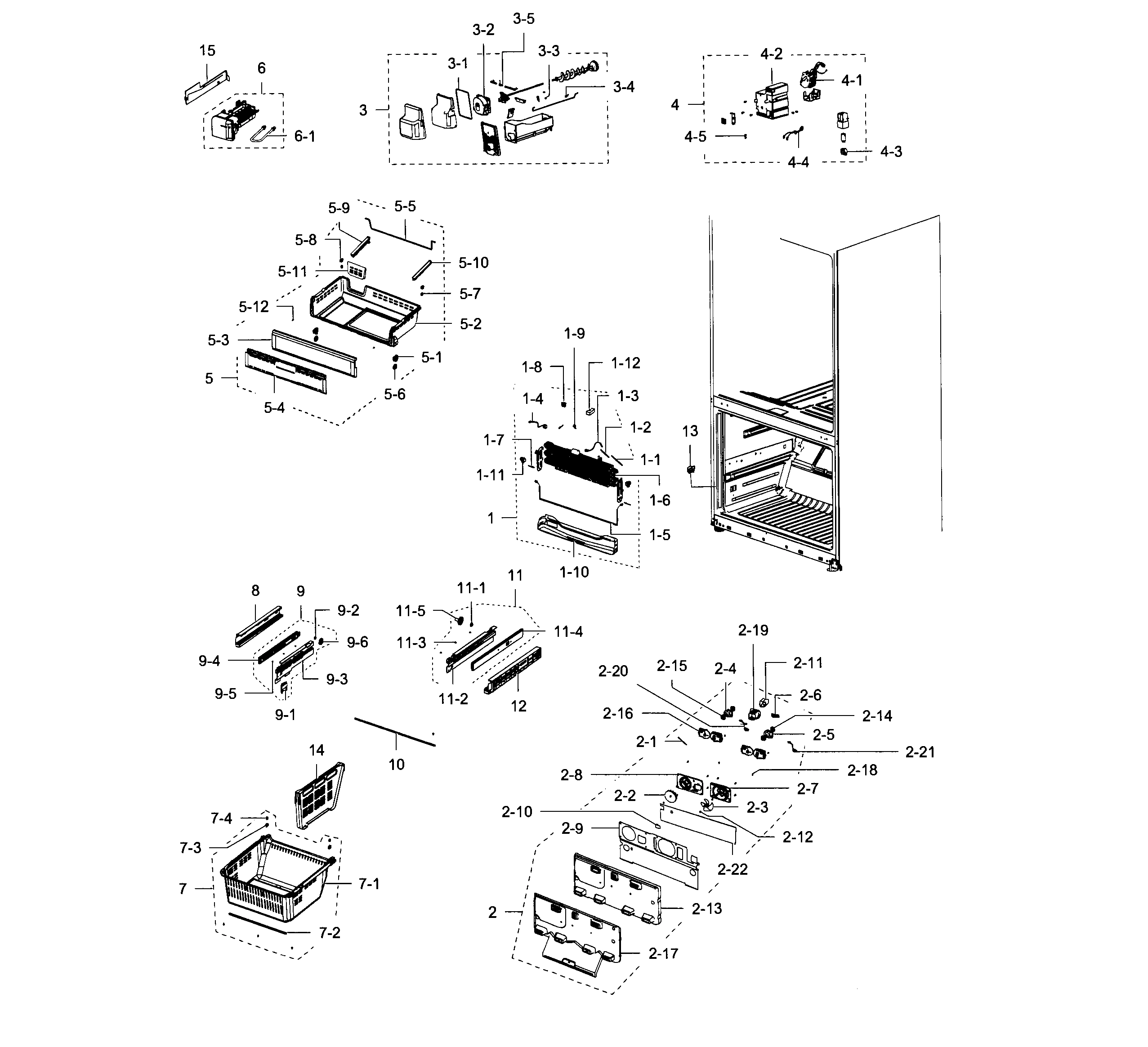

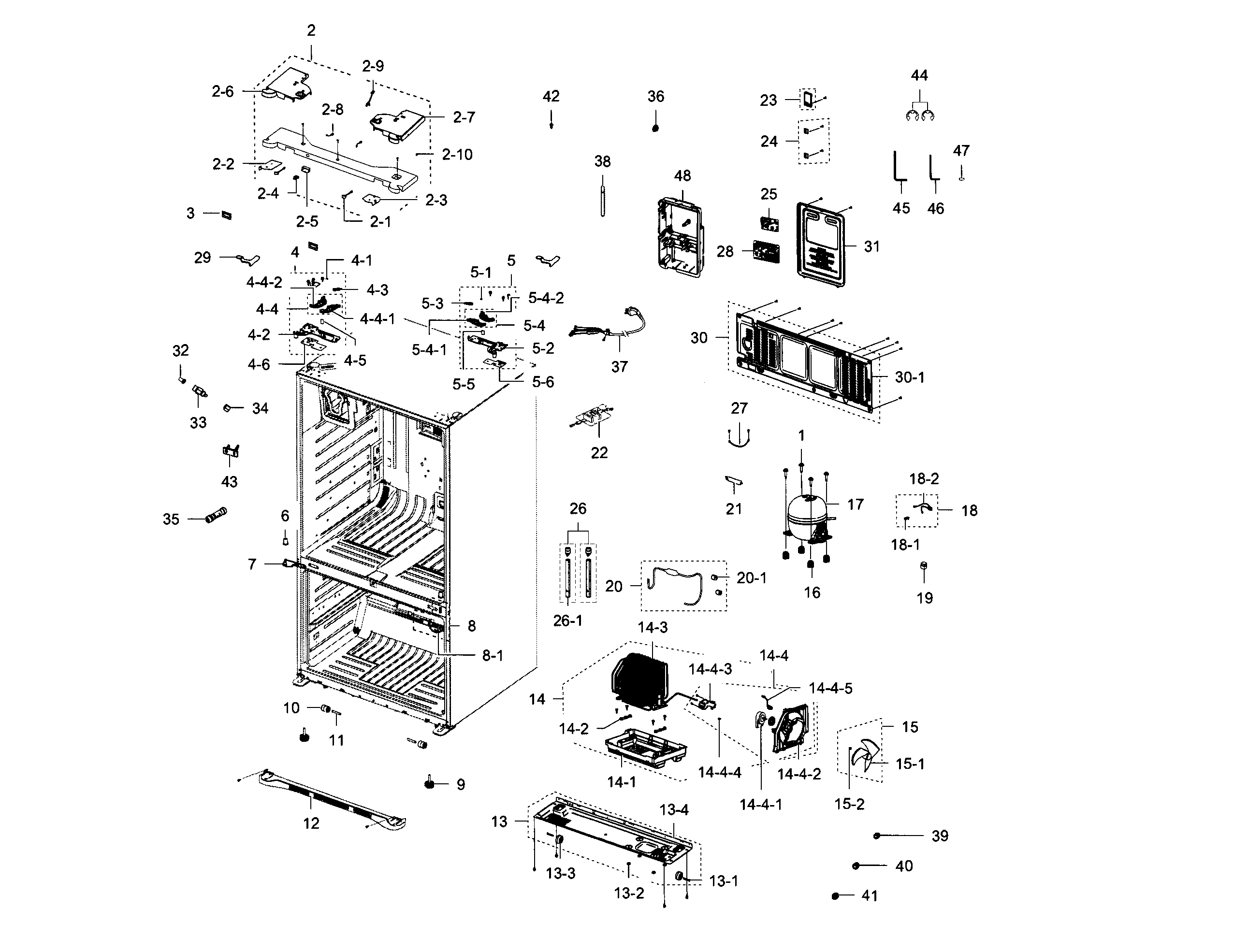

Model Samsung RFG297HDWP/XAA-05 Refrigerator – Common Parts &amp; Diagrams

1

DA96-00762L Samsung Refrigerator Evaporator A In Stock SMG DA96-00762L $177.53

1-2

DA61-02738A Samsung Refrigerator Magnet-Assem Backorder SMG DA61-02738A $7.55

1-3

DA32-00006S Samsung Refrigerator Freezer Defr In Stock SMG DA32-00006S $37.26

1-3

DA63-04825A Samsung Refrigerator Grommet Chas Backorder SMG DA63-04825A $3.24

1-3

DA64-04021C Samsung Refrigerator Mascot Assem Backorder SMG DA64-04021C $30.23

1-4

DA61-02383C Samsung Refrigerator Door Support Backorder SMG DA61-02383C $5.93

1-4

Refrigerator defrost heater SMG DA47-00424N Contact Us For Availability

1-5

DA47-00424M Samsung Refrigerator Metal Sheath In Stock SMG DA47-00424M $84.79

1-5

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $1.69

1-6

DA61-03211A Samsung Refrigerator Door Stopper Backorder SMG DA61-03211A $30.23

1-6

DA61-03212A Samsung Refrigerator Door Stopper Backorder SMG DA61-03212A $31.23

1-8

DA61-02901A Samsung Refrigerator Evaporator S In Stock SMG DA61-02901A $1.69

1-8

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.69

1-8

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $39.63

1-9

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $10.26

1-9

DA61-06186B Samsung Refrigerator Drain Plate In Stock SMG DA61-06186B $51.41

1-10

DA61-05835B Samsung Refrigerator Heater Fixer Backorder SMG DA61-05835B $6.47

1-11

DA61-05160A Samsung Refrigerator Fuse Holder In Stock SMG DA61-05160A $1.69

1-11

DA61-05689A Samsung Refrigerator Heater Fixer Backorder SMG DA61-05689A $2.59

2

DA97-05253E Samsung Refrigerator Door Gasket In Stock SMG DA97-05253E $184.08

2

DA97-05557Y Samsung Freezer Door Gasket Assem In Stock SMG DA97-05557Y $184.08

2

DA97-07818A Samsung Refrigerator Ice Evaporat Backorder SMG DA97-07818A $251.25

2-1

DA34-00043B Samsung Refrigerator Reed Switch Backorder SMG DA34-00043B $30.74

2-3

Refrigerator evaporator fan blade SMG DA31-00124A Contact Us For Availability

2-4

DA34-00066A Samsung Refrigerator Door Interlo Backorder SMG DA34-00066A $36.03

2-5

DA31-00146E Samsung Refrigerator Evaporator F In Stock SMG DA31-00146E $144.08

2-5

DA61-05274A Samsung Refrigerator Door Switch Backorder SMG DA61-05274A $11.34

2-8

DA32-00034B Samsung Refrigerator Humidity Sen Backorder SMG DA32-00034B $73.53

2-20

DA96-00042D Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042D $21.60

2-21

DA96-00042N Samsung Refrigerator Motor Wire H Backorder SMG DA96-00042N $17.27

3

DA61-03153B Samsung Refrigerator Front Hanger Backorder SMG DA61-03153B $100.06

3

DA97-05353A Samsung Refrigerator Ice Chute Ca Backorder SMG DA97-05353A $55.67

3

DA97-06426B Samsung Refrigerator Dairy Bin As Backorder SMG DA97-06426B $84.67

3

DA97-11117A Samsung Refrigerator Freezer Ice In Stock SMG DA97-11117A $202.16

3

DA97-11772B Samsung Refrigerator Evaporator C In Stock SMG DA97-11772B $215.76

3-1

DA63-03698A Samsung Refrigerator Ice Chute Ca Backorder SMG DA63-03698A $59.94

3-1

DA63-04319A Samsung Refrigerator Dairy Guard Backorder SMG DA63-04319A $59.94

3-1

Refrigerator ice container front cover gasket SMG DA63-03737A Contact Us For Availability

3-2

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $142.77

3-2

DA67-01729A Samsung Refrigerator Ice Chute Ca Backorder SMG DA67-01729A $7.55

3-3

DA32-10105X Samsung Refrigerator Temperature In Stock SMG DA32-10105X $33.35

3-4

DA61-05890C Samsung Refrigerator Case Motor A Backorder SMG DA61-05890C $19.98

3-4

DA61-20124D Samsung Refrigerator Dispenser Sp Backorder SMG DA61-20124D $6.47

3-5

DA61-03186C Samsung Refrigerator Evaporator I In Stock SMG DA61-03186C $36.99

3-10

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $4.87

3-11

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $4.33

3-13

DA63-04218A Samsung Refrigerator Evaporator C Backorder SMG DA63-04218A $90.99

3-16

DA39-00060K Samsung Refrigerator Motor with H Backorder SMG DA39-00060K $160.09

4

DA61-03155B Samsung Refrigerator Hanger Rail Backorder SMG DA61-03155B $111.39

4

DA63-05506C Samsung Refrigerator Dispenser Tr Backorder SMG DA63-05506C $12.96

4

DA97-05246G Samsung Refrigerator Auger Motor In Stock SMG DA97-05246G $266.38

4

DA97-06419C Samsung Refrigerator Door Shelf B In Stock SMG DA97-06419C $83.28

4-1

DA31-00105G Samsung Refrigerator Geared Auger Backorder SMG DA31-00105G $222.50

4-2

DA96-00398J Samsung Refrigerator Led Lamp Ass Backorder SMG DA96-00398J $154.21

4-3

DA61-60001A Samsung Refrigerator Dispenser So Backorder SMG DA61-60001A $1.69

4-4

DA96-00036W Samsung Refrigerator Assembly wit Backorder SMG DA96-00036W $74.63

5

DA97-07638M Samsung Refrigerator Upper Tray A Backorder SMG DA97-07638M $202.80

5-1

DA61-04154A Samsung Refrigerator Upper Freeze Backorder SMG DA61-04154A $9.72

5-3

DA61-03301A Samsung Refrigerator Door Auto Cl Backorder SMG DA61-03301A $7.55

5-5

DA66-00816A Samsung Assembly Refrigerator Sha In Stock SMG DA66-00816A $31.23

5-6

DA66-00554A Samsung Refrigerator Upper Freeze Backorder SMG DA66-00554A $5.93

5-8

DA71-20277A Samsung Refrigerator Fixer-Roller Backorder SMG DA71-20277A $1.69

5-9

DA61-05186A Samsung Refrigerator Upper Tray G Backorder SMG DA61-05186A $19.44

5-12

DA67-02795C Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795C $1.69

6

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $6.05

6

DA97-07365G Samsung Refrigerator Ice Maker As In Stock SMG DA97-07365G $168.74

7

DA66-00579A Samsung Refrigerator Freezer Hand Backorder SMG DA66-00579A $9.18

7

DA97-06276E Samsung Refrigerator Drawer Tray Backorder SMG DA97-06276E $177.62

7

DA97-06372A Samsung Refrigerator Angle Shelf Backorder SMG DA97-06372A $88.67

7

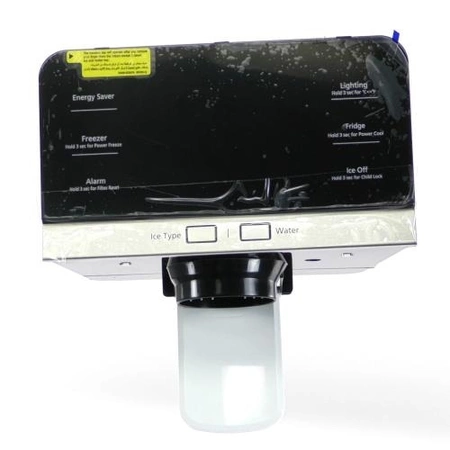

DA97-12088U Samsung Refrigerator Dispenser Co Backorder SMG DA97-12088U $321.62

7-1

DA97-12275A Samsung Refrigerator Dispenser Co Backorder SMG DA97-12275A $104.39

7-3

DA92-00153A Samsung Refrigerator PCB Kit for Backorder SMG DA92-00153A $251.96

7-4

DA34-00011B Samsung Refrigerator Micro Switch Backorder SMG DA34-00011B $15.67

7-5

DA63-06377A Samsung Refrigerator Rear PCB Cov Backorder SMG DA63-06377A $11.88

7-6

DA61-06033B Samsung Refrigerator Ice Dispense Backorder SMG DA61-06033B $4.87

7-7

DA66-00866A Samsung Refrigerator Dispenser Le Backorder SMG DA66-00866A $19.98

7-9

DA41-00217A Samsung Refrigerator Printed Circ In Stock SMG DA41-00217A $47.08

7-11

DA96-00106G Samsung Refrigerator Dispenser Wi Backorder SMG DA96-00106G $54.77

8

DA63-03414A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03414A $44.68

8

DA97-06417R Samsung Refrigerator French Assem Backorder SMG DA97-06417R $178.68

8-1

DA67-01688A Samsung Refrigerator Angle Cap As Backorder SMG DA67-01688A $1.69

8-2

DA61-03230B Samsung Refrigerator French Door In Stock SMG DA61-03230B $6.87

8-3

DA61-04286A Samsung Refrigerator French Case In Stock SMG DA61-04286A $55.25

8-6

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $8.10

8-7

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $5.41

8-8

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $5.41

8-10

DA81-01345B Samsung Refrigerator Door Spring In Stock SMG DA81-01345B $3.20

8-11

DA81-01346A Samsung Refrigerator French Sprin In Stock SMG DA81-01346A $1.69

8-13

DA67-02306A Samsung Refrigerator French Door Backorder SMG DA67-02306A $1.69

9

DA61-00805F Samsung Refrigerator Black Front Backorder SMG DA61-00805F $7.55

9

DA97-08680C Samsung Refrigerator Ice Dispense In Stock SMG DA97-08680C $48.72

9

DA97-10634A Samsung Refrigerator Slide Shelf Backorder SMG DA97-10634A $164.03

9

DA97-13661C Samsung Refrigerator Left Rail As In Stock SMG DA97-13661C $184.65

9-1

DA34-00047B Samsung Refrigerator Pressure Coo Backorder SMG DA34-00047B $4.33

9-2

DA31-00079D Samsung Refrigerator Geared Dispe In Stock SMG DA31-00079D $104.59

9-4

DA97-05368A Samsung Refrigerator Ice Route Co Backorder SMG DA97-05368A $53.52

9-4

Refrigerator freezer basket slide rail assemb SMG DA61-09087A Contact Us For Availability

9-6

Refrigerator freezer drawer gear SMG DA66-00751A Contact Us For Availability

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $15.67

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $9.78

DA66-00437B Samsung Refrigerator Gear Shaft Backorder SMG DA66-00437B $38.92

DA97-06425C Samsung Refrigerator Freezer Uppe Backorder SMG DA97-06425C $67.65

10-2

DA61-03166A Samsung Refrigerator Vegetable Co In Stock SMG DA61-03166A $1.69

10-3

DA61-04292A Samsung Refrigerator Vegetable Re Backorder SMG DA61-04292A $158.35

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $7.46

DA61-04258A Samsung Refrigerator Handle Slide Backorder SMG DA61-04258A $2.00

DA97-04839A Samsung Refrigerator Vegetable Dr Backorder SMG DA97-04839A $29.30

DA97-11478A Samsung Refrigerator Shelf Bin Do In Stock SMG DA97-11478A $79.34

DA97-13662A Samsung Refrigerator Lower Slide Backorder SMG DA97-13662A $171.86

11-1

DA61-03172A Samsung Refrigerator Crisper Draw Backorder SMG DA61-03172A $27.01

11-4

DA61-09088A Samsung Refrigerator Slide Rail L Backorder SMG DA61-09088A $209.51

11-5

Refrigerator gear rail SMG DA66-00750A Contact Us For Availability

DA61-04335B Samsung E Assembly Handle Spring Backorder SMG DA61-04335B $2.70

DA63-03415A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03415A $55.74

DA97-04840A Samsung Refrigerator Vegetable Dr Backorder SMG DA97-04840A $28.61

DA97-11483A Samsung Refrigerator Door Shelf B Backorder SMG DA97-11483A $90.69

12-1

DA61-03177A Samsung Refrigerator Vegetable Cr Backorder SMG DA61-03177A $28.61

12-2

DA63-06472A Samsung Refrigerator Door Bin She In Stock SMG DA63-06472A $52.24

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $36.52

DA97-07547A Samsung Refrigerator Compressor C Backorder SMG DA97-07547A $147.84

DA97-08438D Samsung Refrigerator Vegetable Cr Backorder SMG DA97-08438D $213.85

Refrigerator freezer door handle mounting blo SMG DA61-04254A Contact Us For Availability

13-1

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $8.27

13-3

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $12.73

14

DA61-04255A Samsung Refrigerator Handle Shaft Backorder SMG DA61-04255A $1.18

14

DA97-07756F Samsung Refrigerator Water Drain Backorder SMG DA97-07756F $209.08

14

DA97-08437D Samsung Refrigerator Vegetable Dr Backorder SMG DA97-08437D $157.29

14-3

DA97-05093E Samsung Refrigerator Assembly Spi Backorder SMG DA97-05093E $186.07

14-4

DA97-07754D Samsung Refrigerator Motor Suppor Backorder SMG DA97-07754D $169.30

15

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $7.55

15

DA63-03691A Samsung Refrigerator Ice Room Har Backorder SMG DA63-03691A $11.88

15

Refrigerator freezer handle cover, right SMG DA63-04248C Contact Us For Availability

16

DA97-11433A Samsung Refrigerator Water Filter In Stock SMG DA97-11433A $293.70

16-2

DA41-00519S Samsung Refrigerator LED Lamp PCB Backorder SMG DA41-00519S $64.66

16-4

DA61-07497A Samsung Refrigerator Case Filter Backorder SMG DA61-07497A $43.25

16-5

DA67-02505B Samsung Refrigerator Tank Filter Backorder SMG DA67-02505B $10.26

17

DA61-05215A Samsung Refrigerator Freezer Door Backorder SMG DA61-05215A $4.87

17

MKV190CL2J/E01 Samsung Refrigerator 9.08CC BL Backorder SMG MKV190CL2J/E01 $309.92

17

Refrigerator drawer cover SMG DA97-06327A Contact Us For Availability

18

DA97-08310E Samsung Refrigerator Compressor A In Stock SMG DA97-08310E $86.27

18

DA97-08417A Samsung Refrigerator Pantry Shelf Backorder SMG DA97-08417A $202.80

18-1

DA34-00004D Samsung Refrigerator Compressor O In Stock SMG DA34-00004D $40.19

18-1

DA63-05162A Samsung Refrigerator White Cool G Backorder SMG DA63-05162A $87.37

18-2

DA39-00154D Samsung Refrigerator Wire Harness In Stock SMG DA39-00154D $57.17

18-2

DA64-02235A Samsung Refrigerator Pantry Shelf Backorder SMG DA64-02235A $49.01

18-3

DA67-02519A Samsung Refrigerator Pantry Shelf Backorder SMG DA67-02519A $118.30

19

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $15.13

19

DA97-06324C Samsung Refrigerator Motor Damper In Stock SMG DA97-06324C $127.14

19-1

DA31-00071G Samsung Refrigerator DC Motor Dam Backorder SMG DA31-00071G $183.59

19-2

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $35.34

21-1

DA61-03571A Samsung Refrigerator Upper Shelf Backorder SMG DA61-03571A $3.79

21-3

DA97-05251B Samsung Refrigerator Shelf Hinge Backorder SMG DA97-05251B $32.19

22

DA27-00019K Samsung Refrigerator Coil Filter Backorder SMG DA27-00019K $101.28

22

DA97-11542A Samsung Refrigerator Pantry Rail Backorder SMG DA97-11542A $116.22

22-1

DA63-06520A Samsung Refrigerator Right Pantry Backorder SMG DA63-06520A $76.64

22-2

DA92-00151A Samsung Refrigerator Printed Circ Backorder SMG DA92-00151A $50.45

23

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $22.68

23

DA97-11541A Samsung Refrigerator Pantry Rail Backorder SMG DA97-11541A $54.43

24-4

DA63-04275B Samsung Refrigerator Pantry Front Backorder SMG DA63-04275B $61.23

24-5

DA63-04276B Samsung Refrigerator Pantry Trim Backorder SMG DA63-04276B $43.72

24-7

DA61-04290A Samsung Refrigerator Pantry Guide Backorder SMG DA61-04290A $136.59

24-8

DA97-05931A Samsung Refrigerator Freezer Shel Backorder SMG DA97-05931A $14.58

24-9

DA97-11538A Samsung Refrigerator Left Pantry Backorder SMG DA97-11538A $72.64

25

DA92-00215B Samsung Refrigerator Inverter Pri In Stock SMG DA92-00215B $286.61

26

DA97-04049H Samsung Refrigerator Drain Cap As Backorder SMG DA97-04049H $15.91

26-1

DA62-01266D Samsung Refrigerator PVC Tube Backorder SMG DA62-01266D $4.87

28

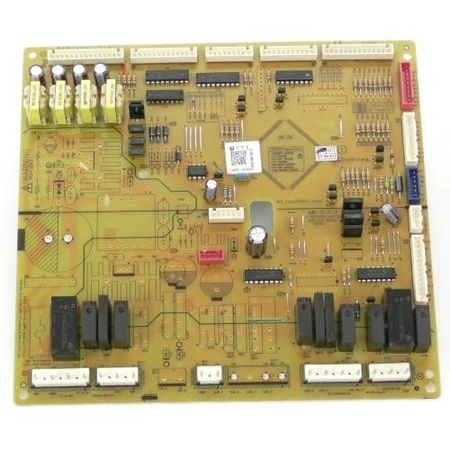

DA92-00356B Samsung Refrigerator PCB Backorder SMG DA92-00356B $310.98

29

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $8.46

31

DA97-08442A Samsung Refrigerator Printed Circ Backorder SMG DA97-08442A $50.01

32

DA71-20207A Samsung Refrigerator Water Valve Backorder SMG DA71-20207A $1.69

33

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $23.76

34

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $8.64

35

DA62-03914A Samsung Refrigerator Water Tube F In Stock SMG DA62-03914A $47.62

37

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $71.04

40

DA60-00280A Samsung Refrigerator Fitting-Lokr Backorder SMG DA60-00280A $7.01

44

DA60-00143B Samsung Refrigerator Housing Reta In Stock SMG DA60-00143B $1.69

1441

DA31-00146B Samsung Refrigerator Condenser Fa In Stock SMG DA31-00146B $142.77

1610

DA63-05406B Samsung Refrigerator Cover Filter Backorder SMG DA63-05406B $22.14

1611

DA97-08006D Samsung Refrigerator White Case F In Stock SMG DA97-08006D $116.92

2410

DA97-11539A Samsung Refrigerator Right Pantry Backorder SMG DA97-11539A $59.10

6112

DA62-02429G Samsung Refrigerator Water Line P Backorder SMG DA62-02429G $8.10

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.69

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $1.69

DA97-05932A Samsung Refrigerator Roller Assem Backorder SMG DA97-05932A $16.21

DA97-14447A Samsung Refrigerator Roller Assem Backorder SMG DA97-14447A $20.52
