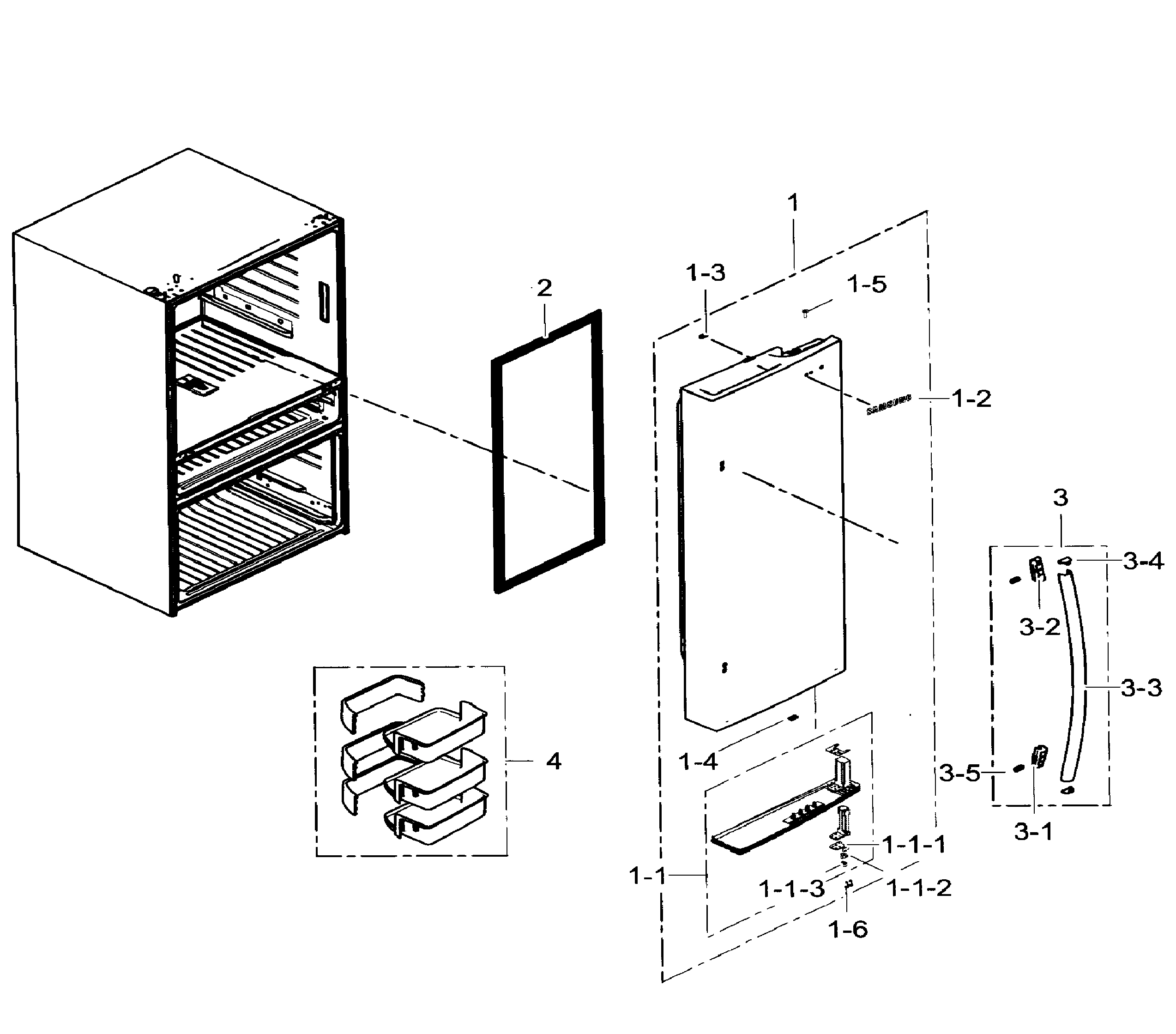

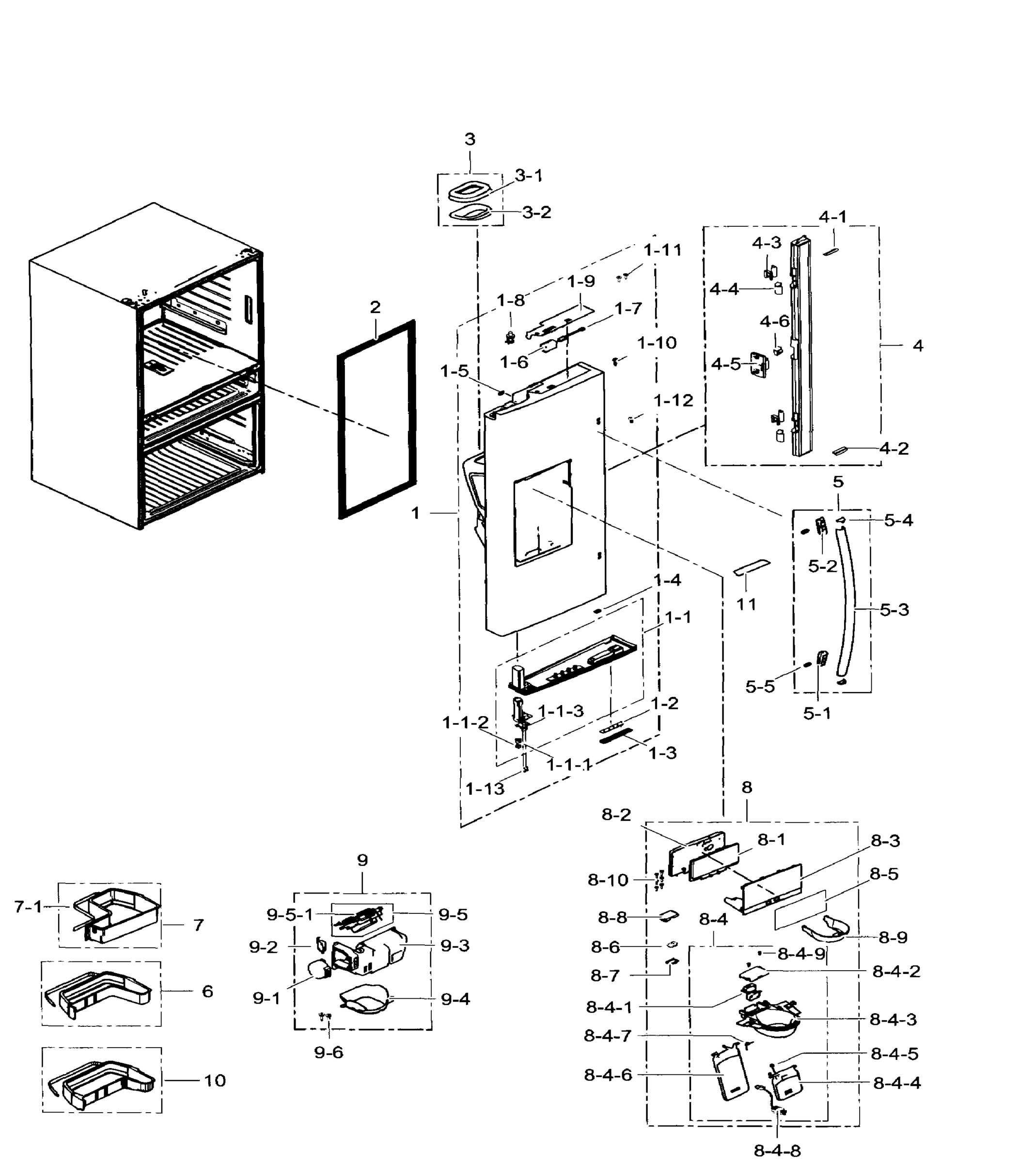

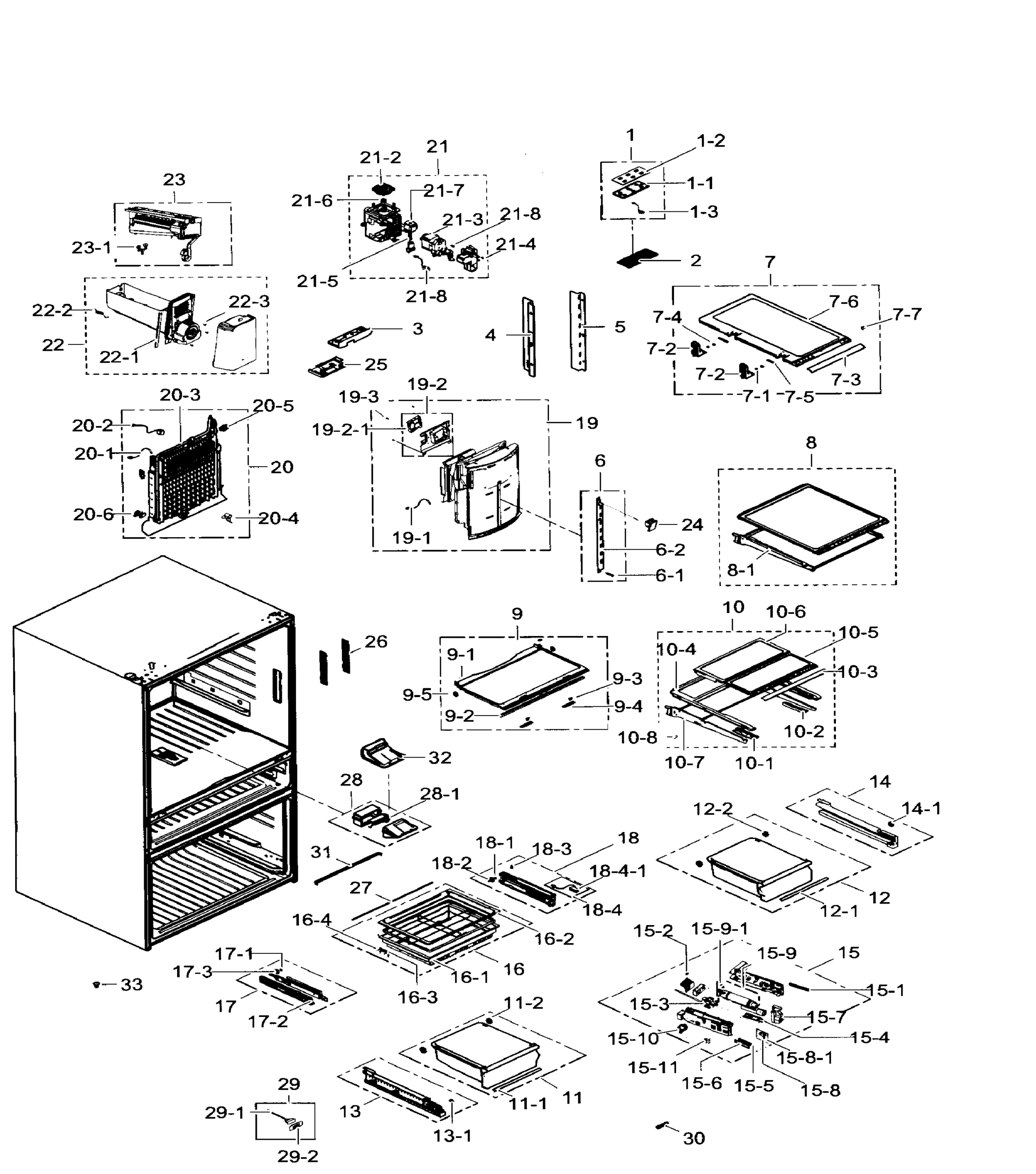

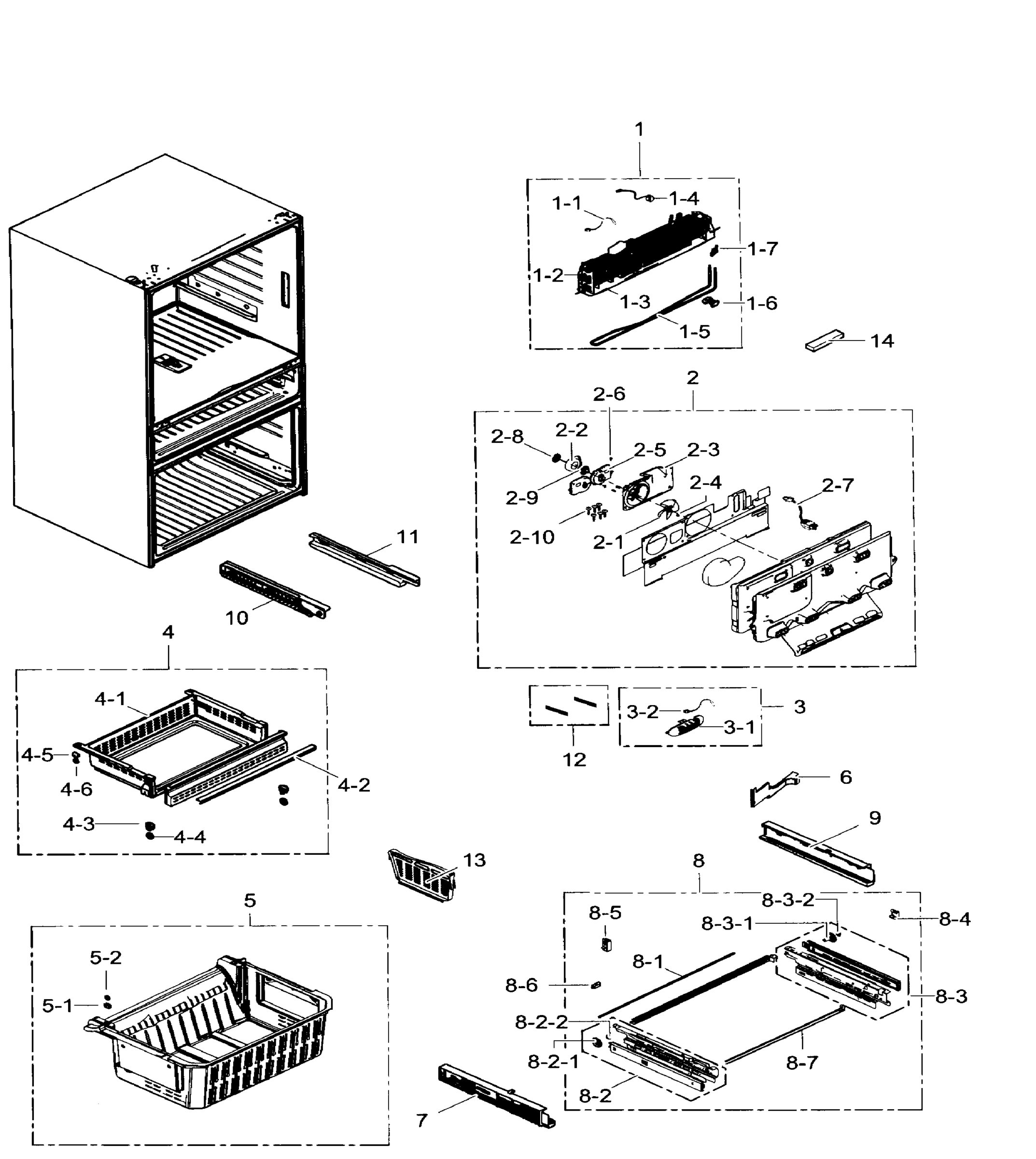

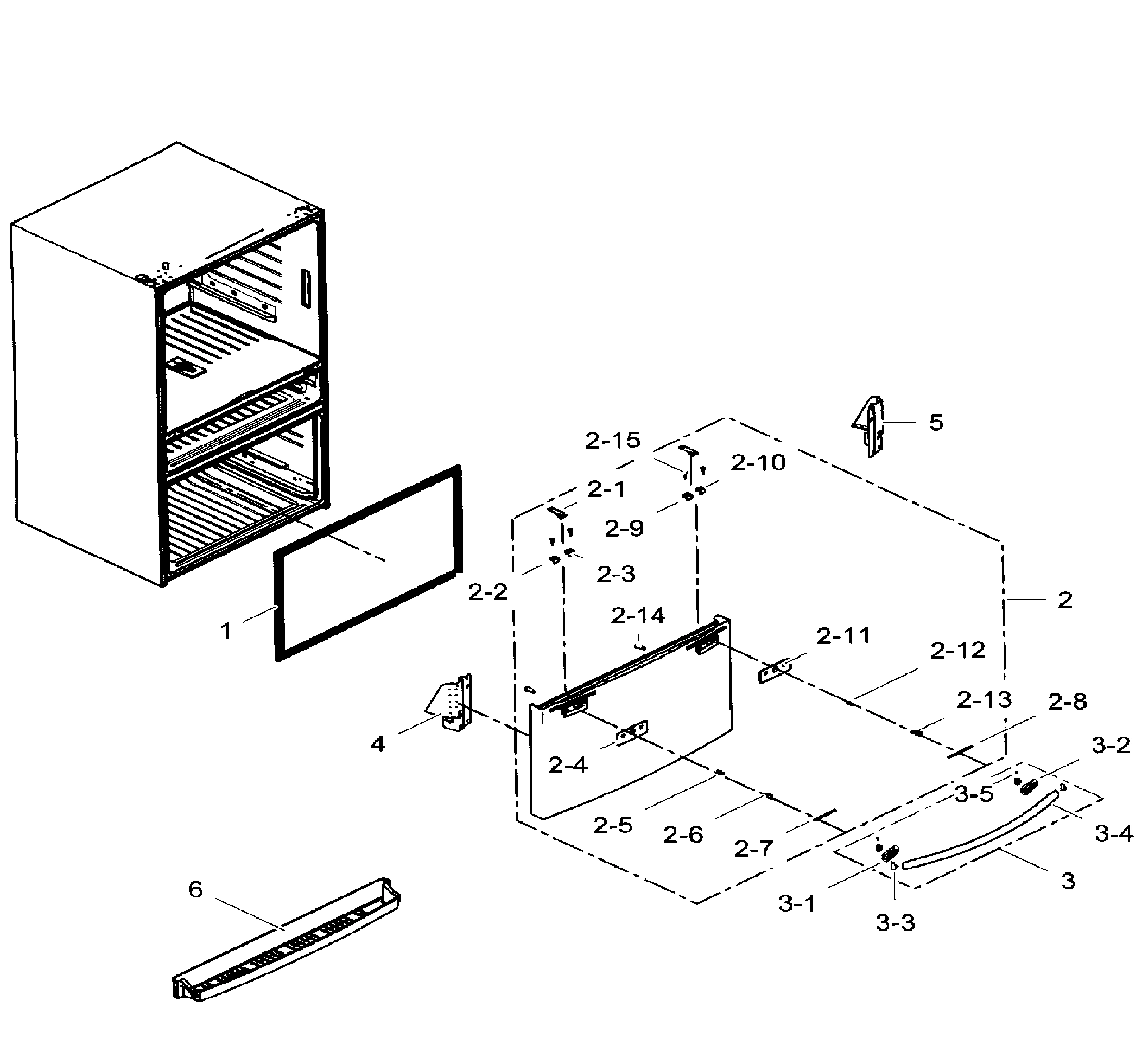

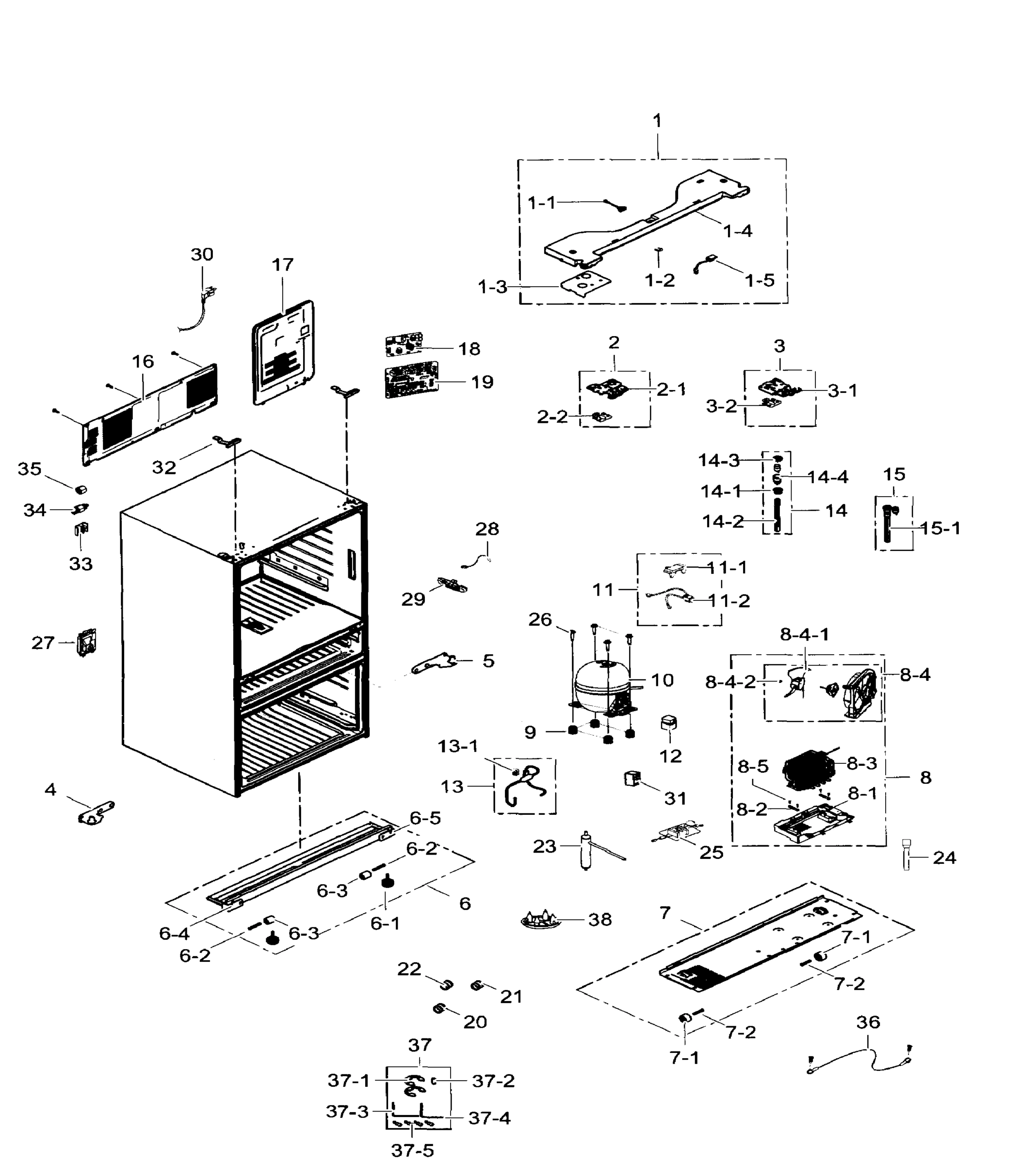

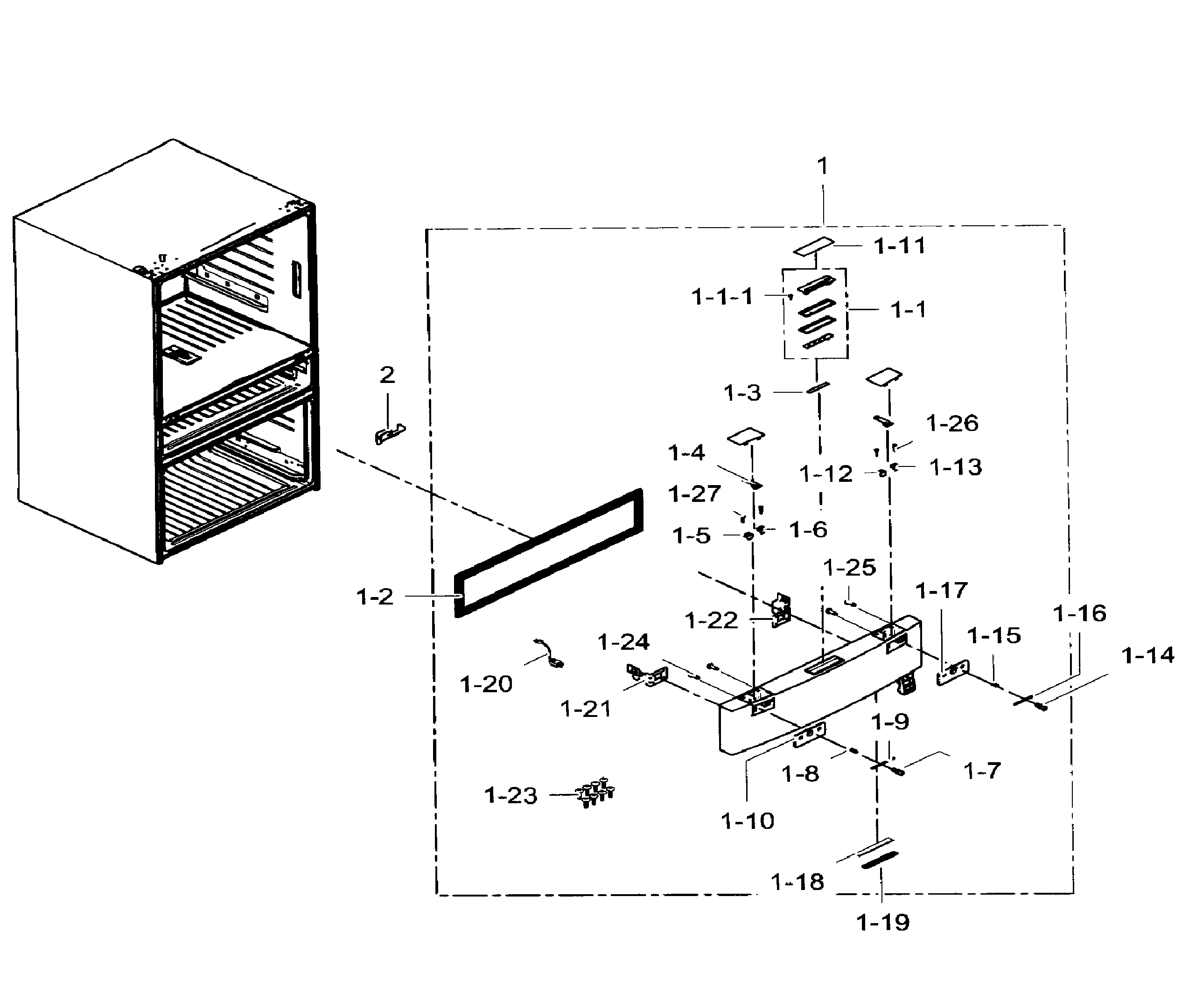

Model Samsung RF31FMEDBWW/AA-04 Refrigerator – Common Parts &amp; Diagrams

1

DA97-12522S Samsung Refrigerator Gasket Assem Backorder SMG DA97-12522S $155.80

DA34-00043A Samsung Refrigerator Switch Reed- Backorder SMG DA34-00043A $31.86

DA97-10605C Samsung Refrigerator Cover Contro Backorder SMG DA97-10605C $165.48

Refrigerator door hinge, right SMG DA97-13828A Contact Us For Availability

Refrigerator Door Hinge, Left SMG DA97-13827A Contact Us For Availability

1-2

DA64-04021C Samsung Refrigerator Mascot Assem Backorder SMG DA64-04021C $30.23

1-2

DA97-12522Q Samsung Refrigerator Middle Gaske Backorder SMG DA97-12522Q $139.63

1-2

Refrigerator LED Light SMG DA41-00676G Contact Us For Availability

1-3

DA61-08227A Samsung Refrigerator Hinge Cover Backorder SMG DA61-08227A $18.64

1-3

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $41.02

1-4

DA63-04825A Samsung Refrigerator Grommet Chas Backorder SMG DA63-04825A $3.20

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $1.69

DA47-00318H Samsung Refrigerator Metal Sheath Backorder SMG DA47-00318H $128.19

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $3.07

DA96-00962A Samsung Refrigerator Reed Switch Backorder SMG DA96-00962A $20.23

1-6

DA61-05274A Samsung Refrigerator Door Switch Backorder SMG DA61-05274A $11.73

1-6

DA61-05845A Samsung Refrigerator Heater Fixer Backorder SMG DA61-05845A $9.59

1-7

DA32-00034B Samsung Refrigerator Humidity Sen Backorder SMG DA32-00034B $79.96

1-7

DA61-06182A Samsung Refrigerator Freezer Sens Backorder SMG DA61-06182A $10.11

1-8

DA34-00066A Samsung Refrigerator Door Interlo Backorder SMG DA34-00066A $37.30

1-11

DA61-09173A Samsung Refrigerator Right Door S Backorder SMG DA61-09173A $17.04

1-20

DA96-00641B Samsung Refrigerator Display Wire In Stock SMG DA96-00641B $28.48

1-22

DA61-09249A Samsung Refrigerator Hanger Front Backorder SMG DA61-09249A $40.26

2

DA63-05462C Samsung Refrigerator Convection D Backorder SMG DA63-05462C $100.09

2

DA63-07816A Samsung Refrigerator Lamp Cover O Backorder SMG DA63-07816A $35.04

2

DA97-08434E Samsung Refrigerator Evaporator C Backorder SMG DA97-08434E $184.03

2

DA97-13015C Samsung Refrigerator Gray Door Ga In Stock SMG DA97-13015C $123.55

2-1

DA61-08309A Samsung Refrigerator Door Hinge A Backorder SMG DA61-08309A $59.18

2-1

Refrigerator Evaporator Fan Blade SMG DA31-00124A Contact Us For Availability

2-2

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $133.46

2-2

DA61-05930A Samsung Refrigerator Fixer Shaft In Stock SMG DA61-05930A $2.23

2-2

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.60

2-3

DA61-05899A Samsung Refrigerator Shaft Fixer In Stock SMG DA61-05899A $1.72

2-4

DA61-06658A Samsung Refrigerator Reinforcemen In Stock SMG DA61-06658A $3.74

2-5

DA61-04335A Samsung Refrigerator Handle Sprin Backorder SMG DA61-04335A $1.50

2-7

DA66-00579A Samsung Refrigerator Freezer Hand Backorder SMG DA66-00579A $9.50

2-7

DA96-00042D Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042D $21.29

2-8

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $4.79

2-9

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $4.25

3

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $6.15

3

DA97-08608A Samsung Refrigerator Sensor Cover Backorder SMG DA97-08608A $32.41

3

DA97-12594A Samsung Refrigerator Ice Chute Ca In Stock SMG DA97-12594A $60.04

3

DA97-12712A Samsung Refrigerator Door Handle Backorder SMG DA97-12712A $185.68

3

DA97-12714A Samsung Refrigerator Handle Bar A Backorder SMG DA97-12714A $150.92

3-1

DA61-08229A Samsung Refrigerator Freezer Hand In Stock SMG DA61-08229A $12.29

3-1

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $5.04

3-1

DA63-06945A Samsung Refrigerator Ice Chute Ca Backorder SMG DA63-06945A $70.47

3-2

DA32-00033C Samsung Refrigerator Temperature In Stock SMG DA32-00033C $26.43

3-2

DA61-08247A Samsung Refrigerator Freezer Door In Stock SMG DA61-08247A $27.41

3-2

DA67-03312A Samsung Refrigerator Ice Cap Chut Backorder SMG DA67-03312A $11.73

3-3

DA67-02787C Samsung Refrigerator ABS Handle C Backorder SMG DA67-02787C $2.14

3-5

Refrigerator Door Handle Set Screw SMG 6009-001526 Contact Us For Availability

4

DA97-12627A Samsung Refrigerator Door Bin She In Stock SMG DA97-12627A $124.01

4

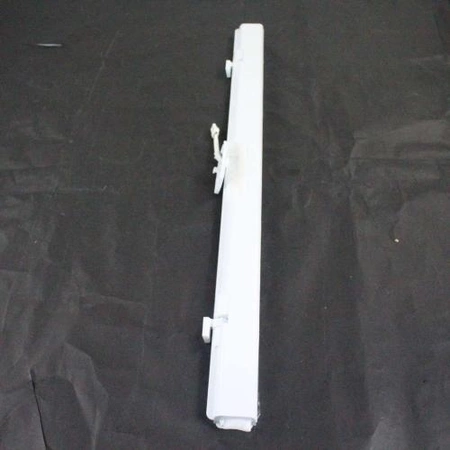

DA97-12684F Samsung Refrigerator French Assem Backorder SMG DA97-12684F $215.19

4

DA97-13947A Samsung Refrigerator Middle Left Backorder SMG DA97-13947A $123.87

4-3

DA61-04154A Samsung Refrigerator Upper Freeze Backorder SMG DA61-04154A $9.50

4-3

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $6.77

4-4

DA66-00554A Samsung Refrigerator Upper Freeze Backorder SMG DA66-00554A $5.59

4-4

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $5.04

4-5

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $8.38

4-5

DA71-20277A Samsung Refrigerator Fixer-Roller Backorder SMG DA71-20277A $1.60

4-6

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $5.33

5

DA61-08294A Samsung Refrigerator Front Hanger Backorder SMG DA61-08294A $98.61

5

DA97-12715A Samsung Refrigerator Handle Bar A Backorder SMG DA97-12715A $154.79

5

DA97-13793A Samsung Refrigerator Middle Right Backorder SMG DA97-13793A $122.51

5

DA97-13821A Samsung Refrigerator Low Tray Ass Backorder SMG DA97-13821A $118.30

5-1

DA61-08228A Samsung Refrigerator Handle Suppo Backorder SMG DA61-08228A $12.30

5-2

DA61-08246A Samsung Refrigerator Upper Handle Backorder SMG DA61-08246A $27.95

6

DA63-06894A Samsung Refrigerator Ice Maker Wi Backorder SMG DA63-06894A $14.58

6

DA63-07512A Samsung Refrigerator Freezer Guar Backorder SMG DA63-07512A $72.69

6

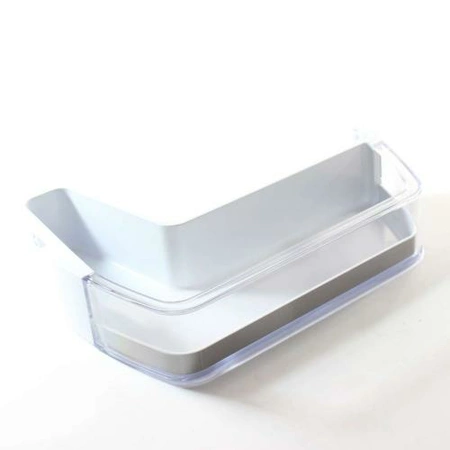

DA97-13802A Samsung Refrigerator Middle Guard Backorder SMG DA97-13802A $155.62

6-1

DA61-00805F Samsung Refrigerator Black Front Backorder SMG DA61-00805F $7.45

6-2

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.07

6-3

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $7.99

7

DA63-06952A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-06952A $45.65

7

DA97-12626A Samsung Refrigerator Dispenser Gu Backorder SMG DA97-12626A $123.30

7

DA97-12682A Samsung Refrigerator Folding Shel Backorder SMG DA97-12682A $134.37

7-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $6.77

7-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $5.54

8

DA97-12861B Samsung Refrigerator Low Hanger Backorder SMG DA97-12861B $278.26

8

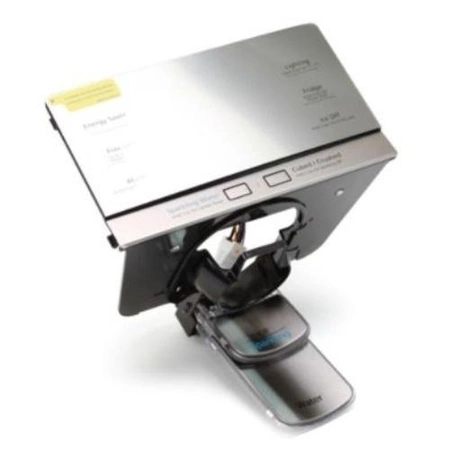

DA97-13809C Samsung Refrigerator AW4_4D Dispe Backorder SMG DA97-13809C $334.76

8-1

DA63-06897A Samsung Refrigerator Drain Water Backorder SMG DA63-06897A $34.57

8-1

DA66-00437F Samsung Gear Shaft Refrigerator Backorder SMG DA66-00437F $64.13

8-1

DA92-00451B Samsung Refrigerator LED Display Backorder SMG DA92-00451B $221.75

8-2

DA63-06377A Samsung Refrigerator Rear PCB Cov Backorder SMG DA63-06377A $11.70

8-3

Refrigerator Condenser Coil SMG DA97-08464F Contact Us For Availability

8-4

DA97-15765C Samsung Refrigerator Circuit Moto In Stock SMG DA97-15765C $201.27

8-6

DA41-00217A Samsung Refrigerator Printed Circ Backorder SMG DA41-00217A $46.41

8-6

DA61-02738A Samsung Refrigerator Magnet-Assem Backorder SMG DA61-02738A $6.71

8-10

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $1.18

8-21

Refrigerator Freezer Drawer Gear SMG DA66-00751A Contact Us For Availability

8-22

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.69

8-31

Refrigerator Gear Rail SMG DA66-00750A Contact Us For Availability

8-41

DA31-00320A Samsung Refrigerator Fan Blade As Backorder SMG DA31-00320A $26.26

8-41

DA34-00011B Samsung Refrigerator Micro Switch Backorder SMG DA34-00011B $17.88

9

DA63-06953A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-06953A $45.65

9

DA97-13829C Samsung Refrigerator Ice Route Gu In Stock SMG DA97-13829C $148.84

9-1

DA31-00079D Samsung Refrigerator Geared Dispe Backorder SMG DA31-00079D $99.68

9-1

DA61-03166A Samsung Refrigerator Vegetable Co In Stock SMG DA61-03166A $1.69

9-2

3405-001117 Samsung Refrigerator Dispenser Sw In Stock SMG 3405-001117 $17.83

9-2

DA61-04292A Samsung Refrigerator Vegetable Re Backorder SMG DA61-04292A $166.73

9-4

DA66-00718A Samsung Refrigerator Humidity Lev Backorder SMG DA66-00718A $6.39

9-5

DA97-05368A Samsung Refrigerator Ice Route Co Backorder SMG DA97-05368A $54.71

9-5

DA97-14447B Samsung Refrigerator Latour Rolle Backorder SMG DA97-14447B $19.69

9-51

DA63-04647A Samsung Refrigerator Ice Route Co Backorder SMG DA63-04647A $21.24

10

DA61-07328A Samsung Refrigerator Freezer Rail Backorder SMG DA61-07328A $227.32

10

DA97-13835A Samsung Refrigerator Folder Shelf Backorder SMG DA97-13835A $254.95

10

MKV190CL2B/ASH Samsung Refrigerator Compresso In Stock SMG MKV190CL2B/ASH $334.64

11

DA61-07329A Samsung Refrigerator Right Hand U Backorder SMG DA61-07329A $227.57

11

DA97-10848N Samsung Refrigerator All Wire Com Backorder SMG DA97-10848N $82.59

11

DA97-12687F Samsung Refrigerator Left Vegetab Backorder SMG DA97-12687F $182.79

11-1

DA34-00004D Samsung Refrigerator Compressor O In Stock SMG DA34-00004D $35.00

11-2

DA39-00154M Samsung Refrigerator Compressor W Backorder SMG DA39-00154M $25.10

12

DA41-00519Q Samsung Refrigerator LED Lamp PBA Backorder SMG DA41-00519Q $26.25

12

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $14.90

12

DA97-12686F Samsung Refrigerator Right Vegeta Backorder SMG DA97-12686F $163.09

13

DA97-11292B Samsung Refrigerator Vegetable Ra Backorder SMG DA97-11292B $40.73

13-1

DA97-13386A Samsung Refrigerator Roller Assem Backorder SMG DA97-13386A $13.11

14

DA72-60040W Samsung Refrigerator Seal-Cutt Ru Backorder SMG DA72-60040W $1.69

14

Refrigerator Drain Tube Kit SMG DA97-04049E No Longer Available

14

DA97-11291B Samsung Refrigerator Right Slide Backorder SMG DA97-11291B $51.07

15

DA97-13850A Samsung Refrigerator Filter Tank In Stock SMG DA97-13850A $235.36

15

Refrigerator Drain Cap SMG DA97-04049J Contact Us For Availability

15-1

DA41-00519S Samsung Refrigerator LED Lamp PCB Backorder SMG DA41-00519S $63.71

15-1

DA62-01266E Samsung Refrigerator PVC Tube Backorder SMG DA62-01266E $4.25

15-2

DA62-03103A Samsung Refrigerator Gray Tube Fi Backorder SMG DA62-03103A $22.92

15-3

DA62-04027A Samsung Refrigerator 2-Way Water In Stock SMG DA62-04027A $175.15

15-8

DA97-08006J Samsung Refrigerator Case Filter Backorder SMG DA97-08006J $112.05

15-9

DA97-11283G Samsung Refrigerator Water Tank A Backorder SMG DA97-11283G $138.78

16

DA97-11930A Samsung Refrigerator Drawer Divid Backorder SMG DA97-11930A $297.36

17

DA97-08442A Samsung Refrigerator Printed Circ Backorder SMG DA97-08442A $50.01

18

DA92-00215C Samsung Refrigerator Inverter Pow In Stock SMG DA92-00215C $255.37

18

Refrigerator Crisper Drawer Slide Rail SMG DA97-13780A Contact Us For Availability

18-4

DA96-00640A Samsung Refrigerator Wire Harness Backorder SMG DA96-00640A $178.74

19

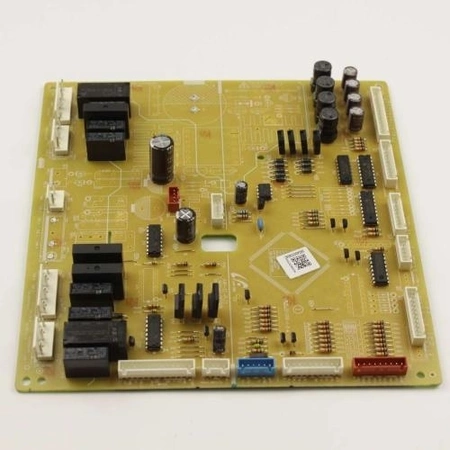

DA92-00484C Samsung Refrigerator Main PCB Backorder SMG DA92-00484C $306.75

19

DA97-13757A Samsung Refrigerator Evaporator C In Stock SMG DA97-13757A $167.08

19-1

DA32-00011D Samsung Refrigerator Temperature In Stock SMG DA32-00011D $13.61

19-2

DA97-13756A Samsung Refrigerator Motor Case A In Stock SMG DA97-13756A $114.12

20

DA60-00280A Samsung Refrigerator Fitting-Lokr Backorder SMG DA60-00280A $6.91

20

DA96-00842A Samsung Refrigerator Evaporator A In Stock SMG DA96-00842A $233.01

20-1

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $24.87

20-3

DA47-00434A Samsung Refrigerator Metal Sheath In Stock SMG DA47-00434A $160.60

20-4

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $10.06

20-5

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.69

20-6

DA61-05835B Samsung Refrigerator Heater Fixer Backorder SMG DA61-05835B $6.39

21

DA97-12540G Samsung Refrigerator Ice Maker Au In Stock SMG DA97-12540G $267.70

21-2

DA31-00070E Samsung Refrigerator DC Motor Box In Stock SMG DA31-00070E $94.45

21-3

DA31-00105M Samsung Refrigerator Geared Auger Backorder SMG DA31-00105M $191.13

21-7

DA74-40151G Samsung Refrigerator Ice Dispense Backorder SMG DA74-40151G $110.76

21-8

DA96-00682D Samsung Refrigerator Auger Motor In Stock SMG DA96-00682D $112.69

22

DA97-14474C Samsung Refrigerator Ice Bucket T In Stock SMG DA97-14474C $182.51

22-1

DA63-07185A Samsung Refrigerator Ice Bucket T Backorder SMG DA63-07185A $3.35

22-2

DA61-20124D Samsung Refrigerator Dispenser Sp Backorder SMG DA61-20124D $7.82

23

DA97-15217D Samsung Refrigerator Ice Maker As In Stock SMG DA97-15217D $129.98

24

DA97-12654A Samsung Refrigerator Cap Angle As Backorder SMG DA97-12654A $7.99

25

DA27-00022B Samsung Refrigerator Coil Filter In Stock SMG DA27-00022B $142.41

25

DA97-14471A Samsung Refrigerator Case Lock As Backorder SMG DA97-14471A $55.20

27

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $17.32

28

DA97-08430A Samsung Refrigerator Convection I Backorder SMG DA97-08430A $237.39

28-1

DA31-00101C Samsung Refrigerator DC Motor Dam Backorder SMG DA31-00101C $186.37

29-1

DA34-00043J Samsung Refrigerator Door Reed Sw In Stock SMG DA34-00043J $30.12

30

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $63.58

30

DA62-03914A Samsung Refrigerator Water Tube F In Stock SMG DA62-03914A $46.24

32

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $8.46

33

DA67-02795C Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795C $1.69

34

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $31.82

35

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $21.80

37-1

DA60-00143B Samsung Refrigerator Housing Reta In Stock SMG DA60-00143B $1.69

37-5

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $6.77

1510

DA62-04258A Samsung Refrigerator Water Valve Backorder SMG DA62-04258A $145.56

1581

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $1.69

1921

DA81-06013A Samsung Refrigerator Evaporator F Backorder SMG DA81-06013A $126.54
