Model Samsung RF28R7201SR/AA-00 Bottom Mount Refrigerator – Common Parts & Diagrams

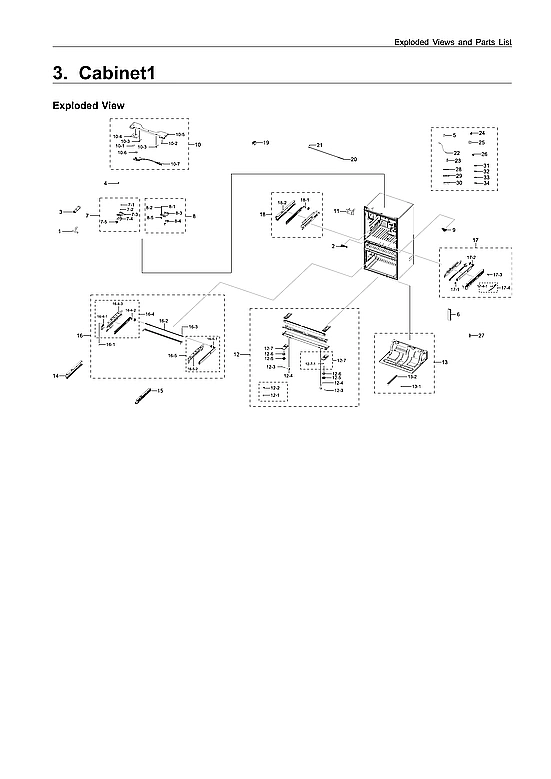

CABINET 1 PARTS

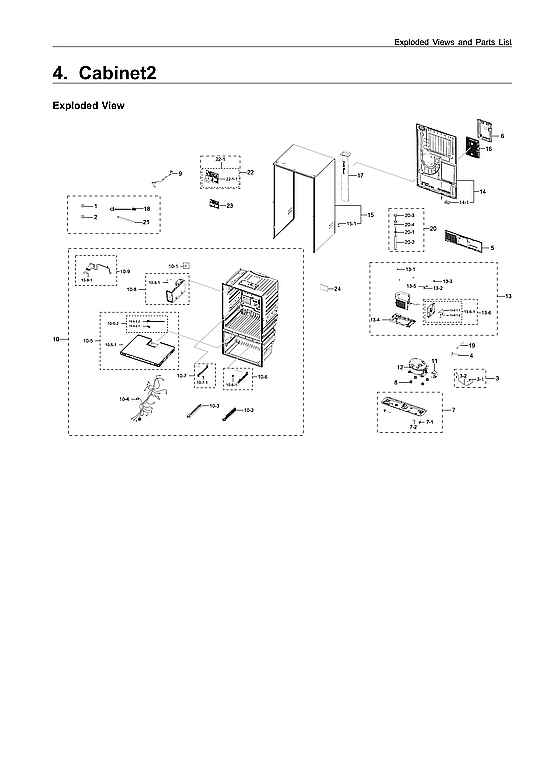

CABINET 2 PARTS

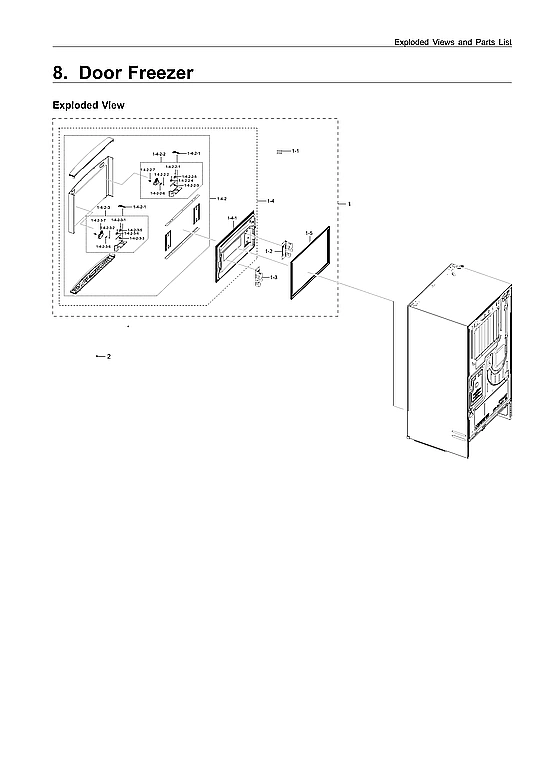

FREEZER DOOR PARTS

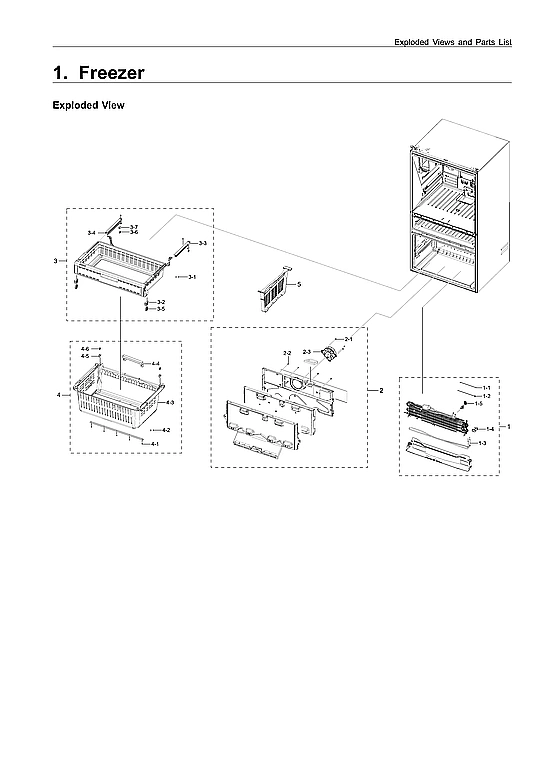

FREEZER PARTS

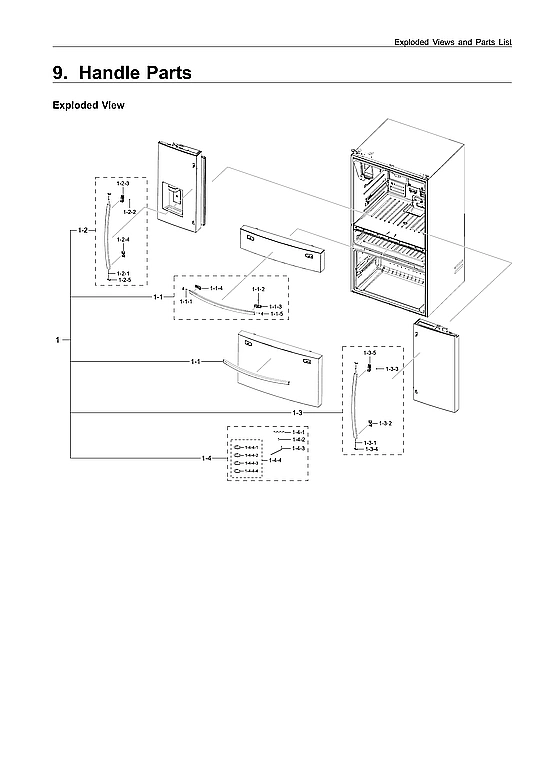

HANDLE PARTS

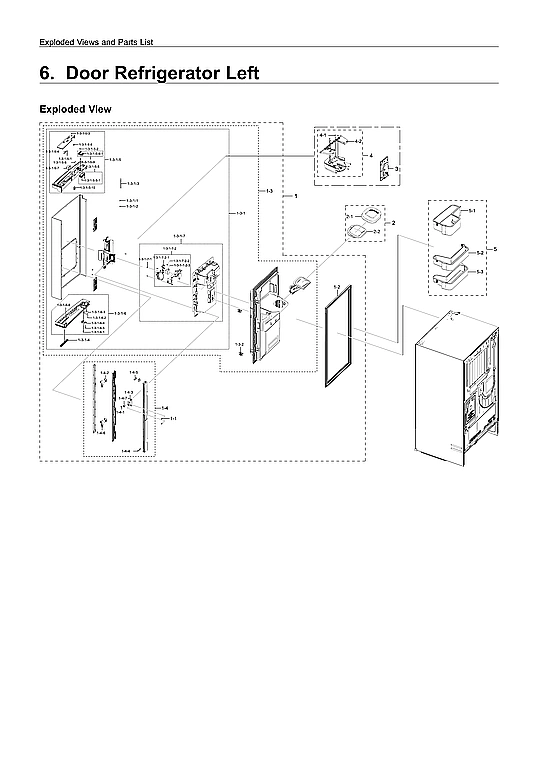

LEFT REFRIGERATOR DOOR PARTS

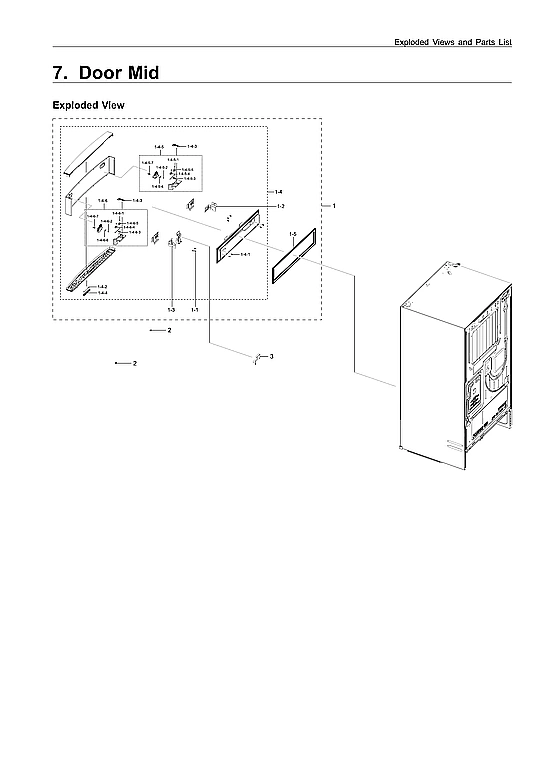

MID DOOR PARTS

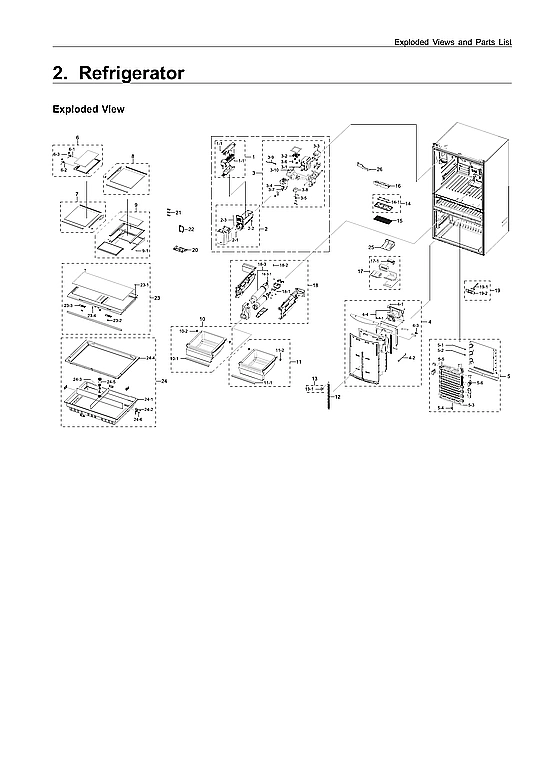

REFRIGERATOR PARTS

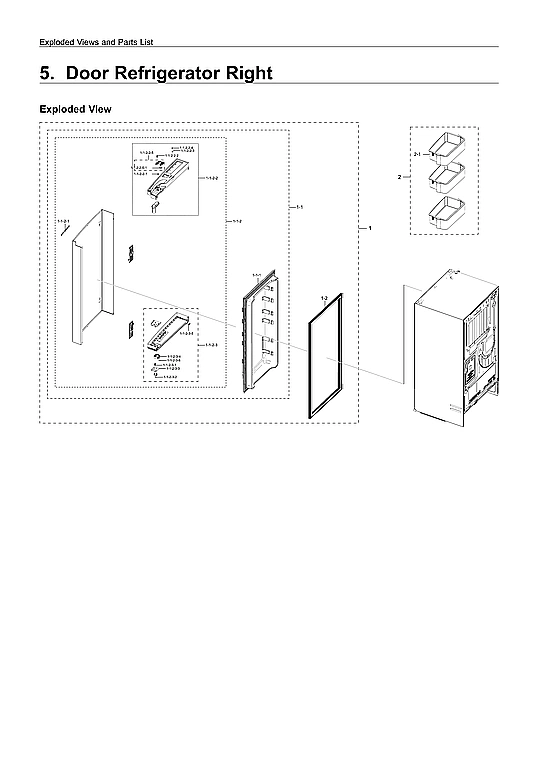

Right Refrigerator Door Parts
Common parts from model Samsung RF28R7201SR/AA-00 Bottom Mount Refrigerator
1-1
Refrigerator Freezer Door Handle Assembly SMG DA97-20017A No Longer Available
1-1-2
Refrigerator Door Handle Set Screw SMG 6009-001526 Contact Us For Availability
1-1-2-3
Non-serviceable part SMG N/P Contact Us For Availability
1-3
Refrigerator Door Handle, Right SMG DA97-20019A Contact Us For Availability
2
Assy guard packing SMG DA97-19985A Contact Us For Availability
20
Refrigerator Drain Tube Kit SMG DA97-04049E No Longer Available
13172
Refrigerator Dispenser Ice Chute Door and Mot SMG DA97-17296A Contact Us For Availability
× ![]()
