Model Samsung RF28HMEDBBC/AA-08 Refrigerator – Common Parts &amp; Diagrams

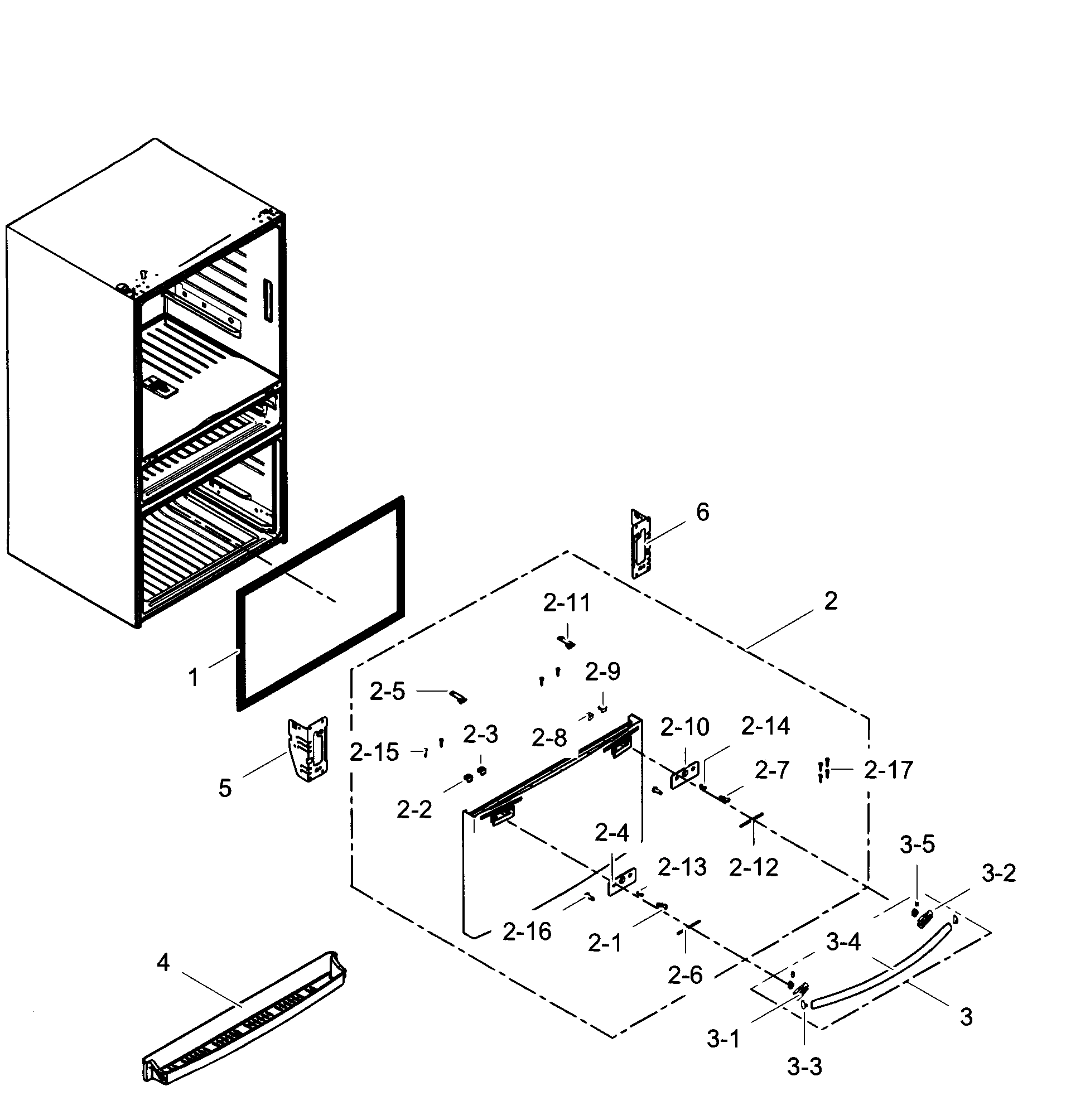

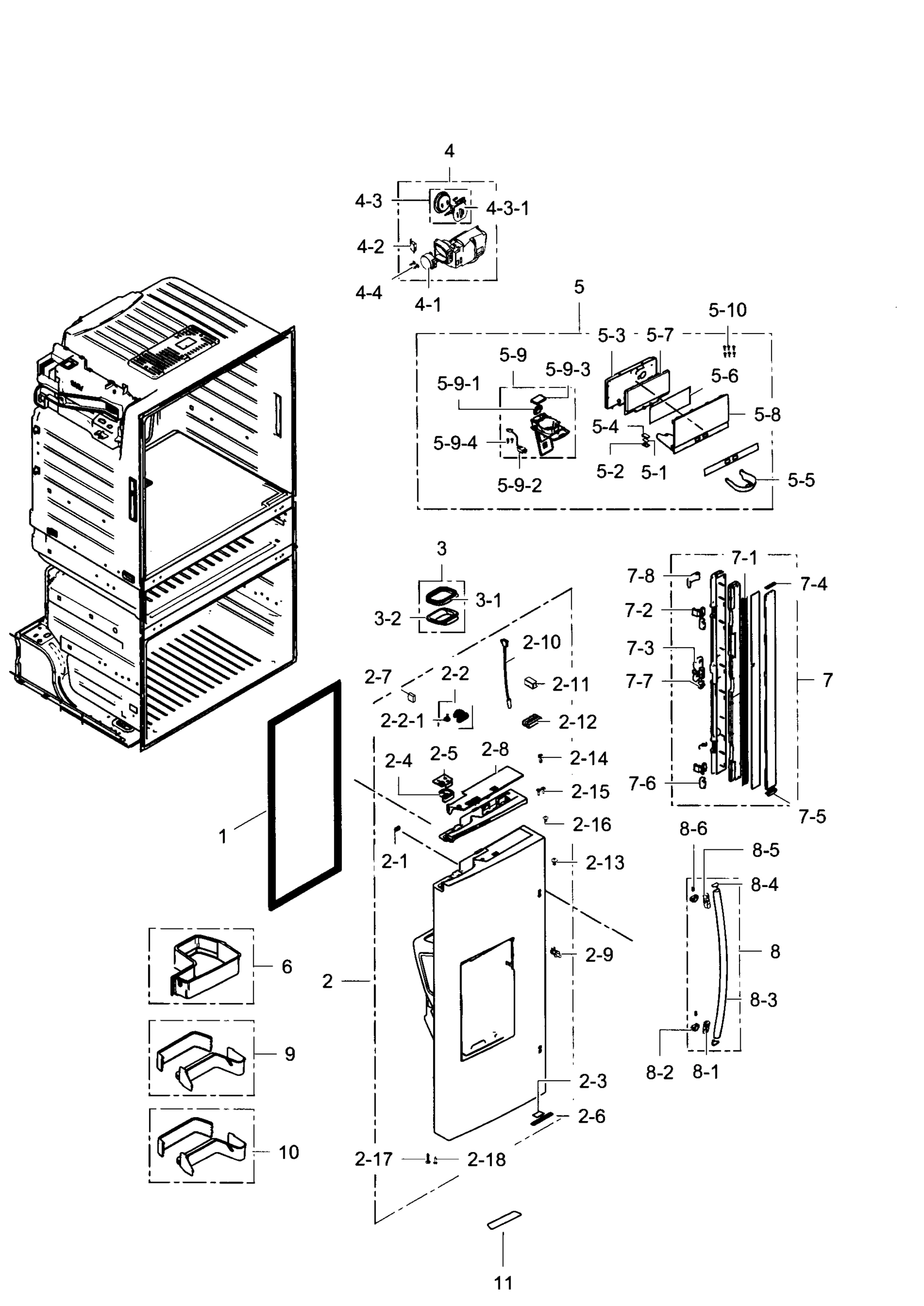

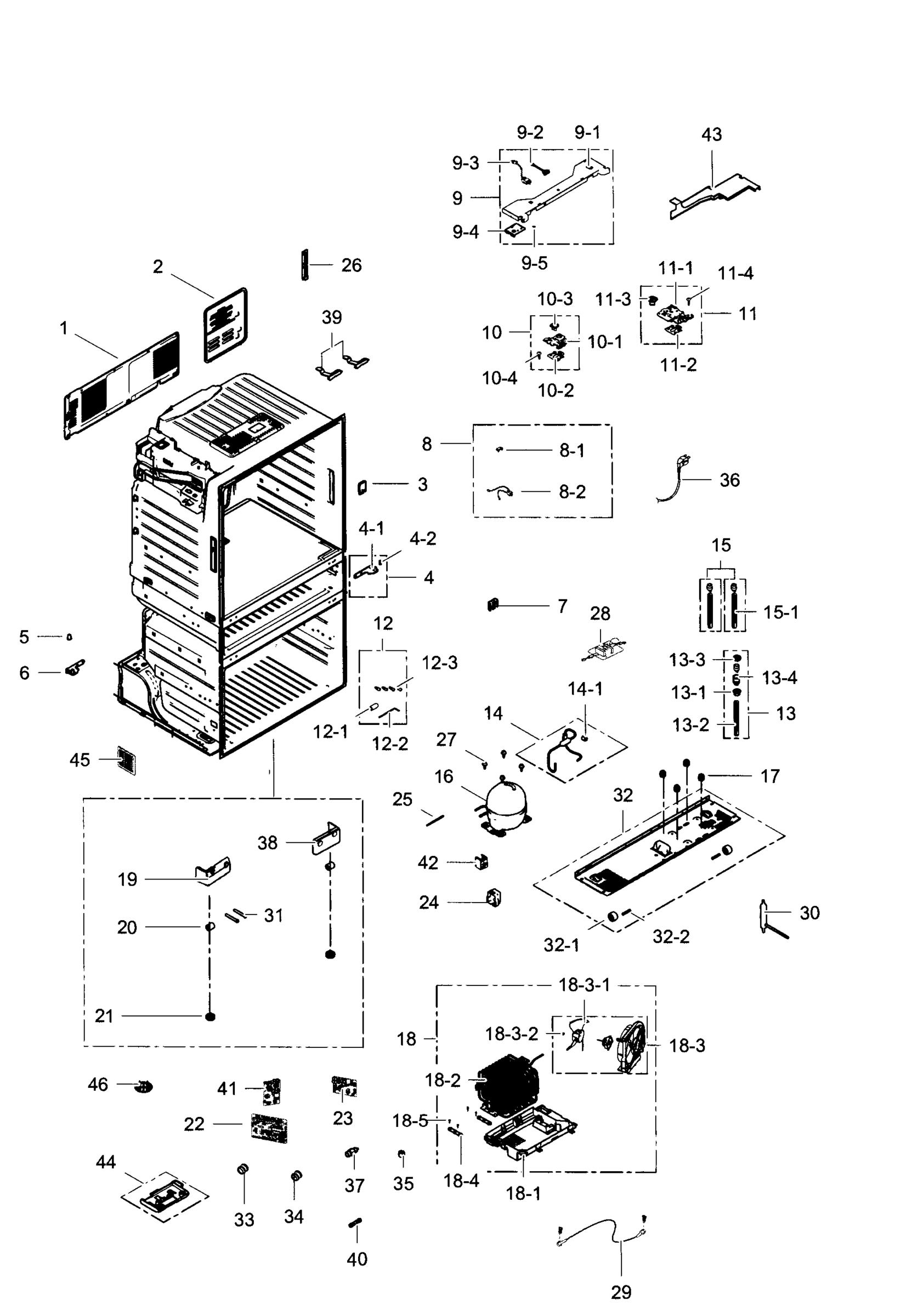

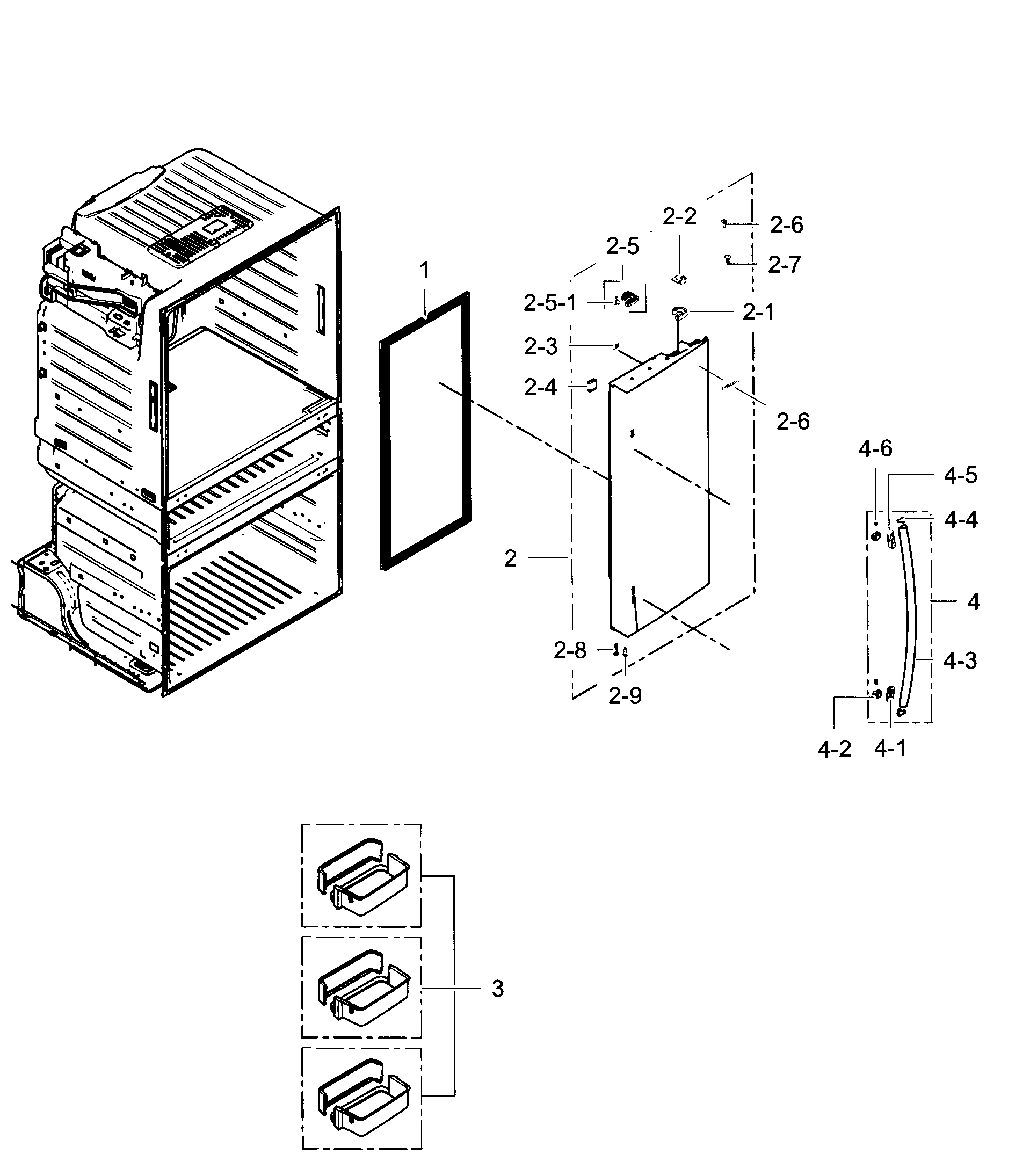

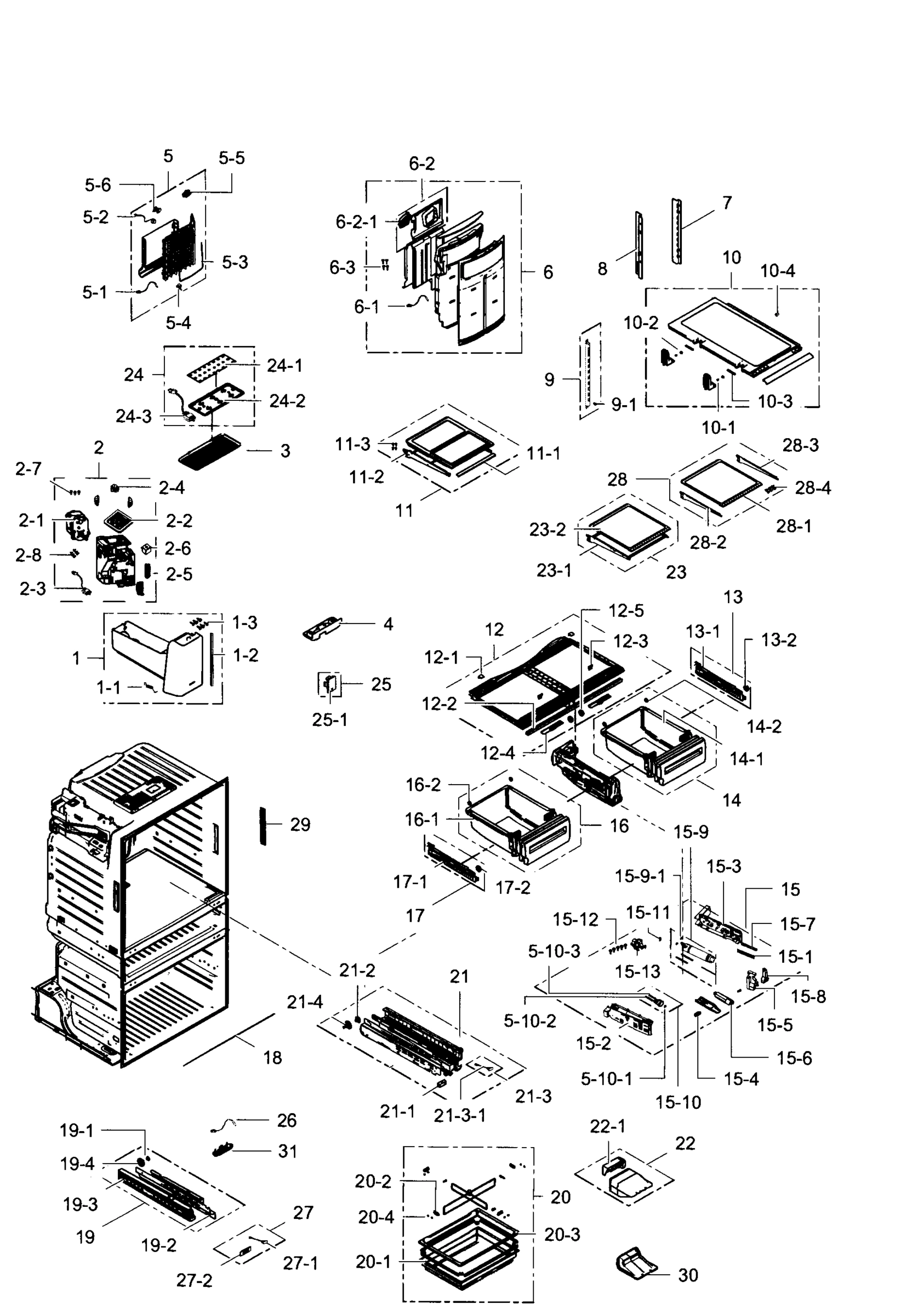

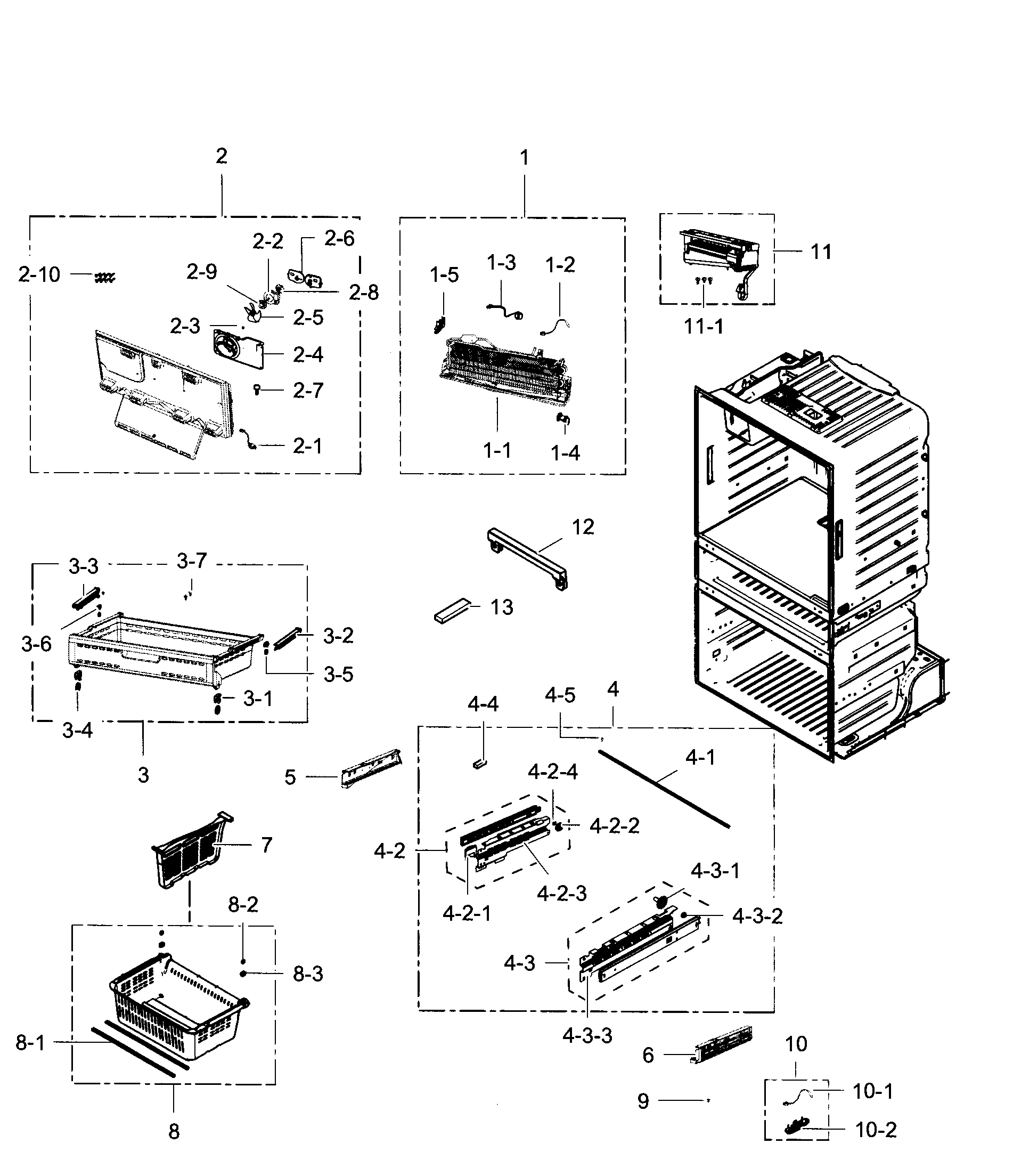

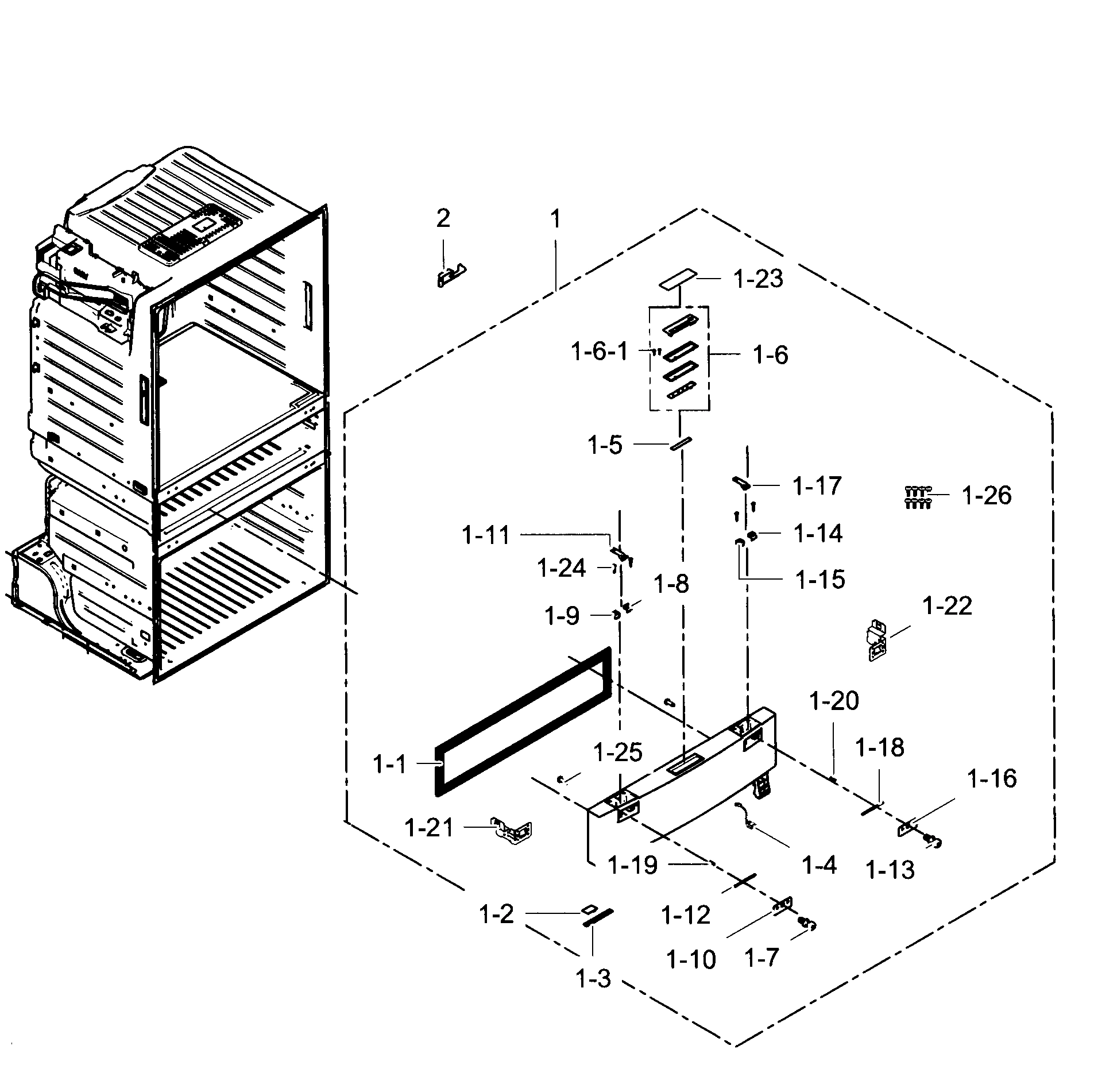

1

DA96-00631D Samsung Refrigerator Evaporator A Backorder SMG DA96-00631D $257.34

1

DA97-12522T Samsung Refrigerator Freezer Door Backorder SMG DA97-12522T $139.97

1

DA97-13015D Samsung Refrigerator Gasket Assem Backorder SMG DA97-13015D $144.51

1

DA97-14474C Samsung Refrigerator Ice Bucket T In Stock SMG DA97-14474C $182.51

1-1

DA47-00318H Samsung Refrigerator Metal Sheath Backorder SMG DA47-00318H $128.19

1-1

DA61-20124D Samsung Refrigerator Dispenser Sp Backorder SMG DA61-20124D $7.82

1-1

DA97-12522R Samsung Refrigerator Middle Gaske Backorder SMG DA97-12522R $119.55

1-2

DA63-07185A Samsung Refrigerator Ice Bucket T Backorder SMG DA63-07185A $3.35

1-4

DA61-05845A Samsung Refrigerator Heater Fixer Backorder SMG DA61-05845A $9.59

1-4

DA96-00641B Samsung Refrigerator Display Wire In Stock SMG DA96-00641B $28.48

1-5

DA61-06182A Samsung Refrigerator Freezer Sens Backorder SMG DA61-06182A $10.11

1-6

DA97-10605C Samsung Refrigerator Cover Contro Backorder SMG DA97-10605C $165.48

1-22

DA61-09249A Samsung Refrigerator Hanger Front Backorder SMG DA61-09249A $40.26

1-23

DA64-04526A Samsung Refrigerator Inlay NLA Backorder SMG DA64-04526A $125.80

2

DA63-05462C Samsung Refrigerator Convection D Backorder SMG DA63-05462C $100.09

2

DA97-08434E Samsung Refrigerator Evaporator C Backorder SMG DA97-08434E $184.03

2

DA97-12540G Samsung Refrigerator Ice Maker Au In Stock SMG DA97-12540G $267.70

2-1

DA31-00105M Samsung Refrigerator Geared Auger Backorder SMG DA31-00105M $191.13

2-1

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $6.77

2-1

DA96-00042D Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042D $21.29

DA31-00070E Samsung Refrigerator DC Motor Box In Stock SMG DA31-00070E $94.45

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $133.46

DA61-05930A Samsung Refrigerator Fixer Shaft In Stock SMG DA61-05930A $2.23

DA61-08196A Samsung Refrigerator Door Stopper Backorder SMG DA61-08196A $25.15

2-3

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $3.07

2-3

DA61-05899A Samsung Refrigerator Shaft Fixer In Stock SMG DA61-05899A $1.72

2-3

DA96-00682D Samsung Refrigerator Auger Motor In Stock SMG DA96-00682D $112.69

2-4

DA61-06658A Samsung Refrigerator Reinforcemen In Stock SMG DA61-06658A $3.74

2-4

DA61-15273A Samsung Refrigerator Door Close S Backorder SMG DA61-15273A $8.38

2-5

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $22.75

2-5

Refrigerator Evaporator Fan Blade SMG DA31-00124A Contact Us For Availability

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $41.02

DA64-04021C Samsung Refrigerator Mascot Assem Backorder SMG DA64-04021C $30.23

DA66-00579A Samsung Refrigerator Freezer Hand Backorder SMG DA66-00579A $9.50

DA74-40151G Samsung Refrigerator Ice Dispense Backorder SMG DA74-40151G $110.76

2-7

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $1.69

2-8

6001-001377 Samsung Refrigerator Machine Scre Backorder SMG 6001-001377 $1.69

2-8

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $4.79

2-9

DA34-00066B Samsung Refrigerator Interlock Do Backorder SMG DA34-00066B $24.61

2-9

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $4.25

2-10

DA32-00034B Samsung Refrigerator Humidity Sen Backorder SMG DA32-00034B $79.96

2-11

DA61-05274A Samsung Refrigerator Door Switch Backorder SMG DA61-05274A $11.73

2-12

DA63-04825A Samsung Refrigerator Grommet Chas Backorder SMG DA63-04825A $3.20

2-13

6002-000217 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000217 $1.18

2-13

DA61-04335A Samsung Refrigerator Handle Sprin Backorder SMG DA61-04335A $1.50

2-15

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $1.69

2-51

DA66-00440A Samsung Refrigerator Auto Close R Backorder SMG DA66-00440A $1.69

3

DA63-07816A Samsung Refrigerator Lamp Cover O Backorder SMG DA63-07816A $35.04

3

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $17.32

3

DA97-08439D Samsung Refrigerator Assembly Tra Backorder SMG DA97-08439D $194.94

3

DA97-12594A Samsung Refrigerator Ice Chute Ca In Stock SMG DA97-12594A $60.04

3

DA97-12712B Samsung Refrigerator Bar Handle A Backorder SMG DA97-12712B $169.20

3

DA97-13805A Samsung Refrigerator Door Shelf B Backorder SMG DA97-13805A $124.24

3-1

DA61-04154A Samsung Refrigerator Upper Freeze Backorder SMG DA61-04154A $9.50

3-1

DA61-08229A Samsung Refrigerator Freezer Hand In Stock SMG DA61-08229A $12.29

3-1

DA63-06945A Samsung Refrigerator Ice Chute Ca Backorder SMG DA63-06945A $70.47

3-2

DA61-08247A Samsung Refrigerator Freezer Door In Stock SMG DA61-08247A $27.41

3-2

DA67-03312A Samsung Refrigerator Ice Cap Chut Backorder SMG DA67-03312A $11.73

3-3

DA61-05186A Samsung Refrigerator Upper Tray G Backorder SMG DA61-05186A $19.18

3-4

DA64-03945D Samsung Refrigerator Handle Bar Backorder SMG DA64-03945D $157.29

3-4

DA66-00554A Samsung Refrigerator Upper Freeze Backorder SMG DA66-00554A $5.59

3-5

Refrigerator Door Handle Set Screw SMG 6009-001526 Contact Us For Availability

3-6

DA71-20277A Samsung Refrigerator Fixer-Roller Backorder SMG DA71-20277A $1.60

4

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $6.15

4

DA63-07512A Samsung Refrigerator Freezer Guar Backorder SMG DA63-07512A $72.69

4

DA97-12612B Samsung Assembly Refrigerator Mid Backorder SMG DA97-12612B $157.85

4

DA97-13829C Samsung Refrigerator Ice Route Gu In Stock SMG DA97-13829C $148.84

4-1

DA31-00079D Samsung Refrigerator Geared Dispe Backorder SMG DA31-00079D $99.68

4-1

DA66-00437B Samsung Refrigerator Gear Shaft Backorder SMG DA66-00437B $38.35

4-2

3405-001117 Samsung Refrigerator Dispenser Sw In Stock SMG 3405-001117 $17.83

4-2

DA97-08803C Samsung Refrigerator Low Slide Ra Backorder SMG DA97-08803C $158.70

4-3

DA97-05368A Samsung Refrigerator Ice Route Co Backorder SMG DA97-05368A $54.71

4-3

DA97-14382A Samsung Refrigerator Hanger Assem Backorder SMG DA97-14382A $297.36

4-5

DA67-02795C Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795C $1.69

4-21

DA34-00047B Samsung Refrigerator Pressure Coo Backorder SMG DA34-00047B $4.48

4-22

Refrigerator Freezer Drawer Gear SMG DA66-00751A Contact Us For Availability

4-24

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.69

4-31

DA63-04647A Samsung Refrigerator Ice Route Co Backorder SMG DA63-04647A $21.24

4-31

Refrigerator Gear Rail SMG DA66-00750A Contact Us For Availability

5

DA63-05400A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-05400A $59.93

5

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.86

5

DA96-00842A Samsung Refrigerator Evaporator A In Stock SMG DA96-00842A $233.01

5

DA97-13809F Samsung Refrigerator Assembly Dis In Stock SMG DA97-13809F $230.22

5-1

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $24.87

5-1

DA41-00217A Samsung Refrigerator Printed Circ Backorder SMG DA41-00217A $46.41

5-3

DA47-00434A Samsung Refrigerator Metal Sheath In Stock SMG DA47-00434A $160.60

5-3

DA63-06377A Samsung Refrigerator Rear PCB Cov Backorder SMG DA63-06377A $11.70

5-4

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $10.06

5-5

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.69

5-6

DA61-05835B Samsung Refrigerator Heater Fixer Backorder SMG DA61-05835B $6.39

5-7

DA92-00596A Samsung Refrigerator Module Assem Backorder SMG DA92-00596A $257.49

5-8

DA97-13808F Samsung Refrigerator Dispenser Co Backorder SMG DA97-13808F $194.28

5-9

Refrigerator Dispenser Lever SMG DA97-12628H Contact Us For Availability

5-10

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $1.18

5-91

DA34-00011B Samsung Refrigerator Micro Switch Backorder SMG DA34-00011B $17.88

5-92

DA96-00106G Samsung Refrigerator Dispenser Wi Backorder SMG DA96-00106G $40.27

6

DA63-05409A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-05409A $53.98

6

DA97-13804A Samsung Refrigerator Guard Assemb Backorder SMG DA97-13804A $136.02

6

DA97-16028B Samsung Refrigerator Evaporator C In Stock SMG DA97-16028B $182.84

6-1

DA32-00011D Samsung Refrigerator Temperature In Stock SMG DA32-00011D $13.61

6-2

DA97-13756A Samsung Refrigerator Motor Case A In Stock SMG DA97-13756A $114.12

6-21

DA81-06013A Samsung Refrigerator Evaporator F Backorder SMG DA81-06013A $126.54

7

DA97-12684E Samsung Refrigerator Black French Backorder SMG DA97-12684E $190.49

7-2

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $6.77

7-3

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $8.38

7-6

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $5.04

7-7

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $5.33

8

DA97-08401C Samsung Refrigerator Drawer Tray Backorder SMG DA97-08401C $122.44

8

DA97-10848N Samsung Refrigerator All Wire Com Backorder SMG DA97-10848N $82.59

8-1

DA34-00004D Samsung Refrigerator Compressor O In Stock SMG DA34-00004D $35.00

8-1

DA61-08228A Samsung Refrigerator Handle Suppo Backorder SMG DA61-08228A $12.30

8-2

DA39-00154M Samsung Refrigerator Compressor W Backorder SMG DA39-00154M $25.10

8-5

DA61-08246A Samsung Refrigerator Upper Handle Backorder SMG DA61-08246A $27.95

9

DA97-13818A Samsung Refrigerator Middle Bin G Backorder SMG DA97-13818A $111.07

9-1

DA64-04477D Samsung Refrigerator Table Top Backorder SMG DA64-04477D $93.77

9-2

DA34-00043A Samsung Refrigerator Switch Reed- Backorder SMG DA34-00043A $31.86

9-3

DA96-00962A Samsung Refrigerator Reed Switch Backorder SMG DA96-00962A $20.23

9-4

DA61-08227A Samsung Refrigerator Hinge Cover Backorder SMG DA61-08227A $18.64

9-5

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $1.69

10

DA97-08608A Samsung Refrigerator Sensor Cover Backorder SMG DA97-08608A $32.41

10

DA97-12573A Samsung Refrigerator Upper Left H In Stock SMG DA97-12573A $77.03

10

DA97-13819A Samsung Refrigerator Lower Door S Backorder SMG DA97-13819A $96.53

10-1

DA32-00033C Samsung Refrigerator Temperature In Stock SMG DA32-00033C $26.43

10-1

DA61-08309A Samsung Refrigerator Door Hinge A Backorder SMG DA61-08309A $59.18

10-2

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.60

10-3

DA66-00950A Samsung Refrigerator Left Auto Cl Backorder SMG DA66-00950A $5.04

11

DA97-08463B Samsung Refrigerator Quick Space Backorder SMG DA97-08463B $195.80

11

DA97-12574A Samsung Refrigerator Upper Right Backorder SMG DA97-12574A $88.64

11

DA97-15217D Samsung Refrigerator Ice Maker As In Stock SMG DA97-15217D $129.98

11-3

DA66-00951A Samsung Refrigerator Auto Close D Backorder SMG DA66-00951A $5.04

12

DA97-08402G Samsung Refrigerator Vegetable Dr Backorder SMG DA97-08402G $187.30

12-1

DA61-03166A Samsung Refrigerator Vegetable Co In Stock SMG DA61-03166A $1.69

12-2

DA61-04292A Samsung Refrigerator Vegetable Re Backorder SMG DA61-04292A $166.73

12-4

DA66-00718A Samsung Refrigerator Humidity Lev Backorder SMG DA66-00718A $6.39

12-5

DA97-14447B Samsung Refrigerator Latour Rolle Backorder SMG DA97-14447B $19.69

13

DA72-60040W Samsung Refrigerator Seal-Cutt Ru Backorder SMG DA72-60040W $1.69

13

Refrigerator Drain Tube Kit SMG DA97-04049E No Longer Available

13

DA97-11291A Samsung Refrigerator Right Vegeta Backorder SMG DA97-11291A $42.61

14

DA97-08437D Samsung Refrigerator Vegetable Dr Backorder SMG DA97-08437D $149.06

14

DA97-08458G Samsung Refrigerator Pipe Connect Backorder SMG DA97-08458G $95.27

15

DA97-14365A Samsung Refrigerator Water Filter Backorder SMG DA97-14365A $275.33

15

Refrigerator Drain Cap SMG DA97-04049J Contact Us For Availability

15-1

DA41-00519S Samsung Refrigerator LED Lamp PCB Backorder SMG DA41-00519S $63.71

15-1

DA62-01266E Samsung Refrigerator PVC Tube Backorder SMG DA62-01266E $4.25

15-5

DA63-05406B Samsung Refrigerator Cover Filter Backorder SMG DA63-05406B $21.83

15-8

DA67-02505B Samsung Refrigerator Tank Filter Backorder SMG DA67-02505B $10.11

15-9

DA97-11283H Samsung Refrigerator Water Reserv Backorder SMG DA97-11283H $139.85

16

DA97-08438D Samsung Refrigerator Vegetable Cr Backorder SMG DA97-08438D $194.28

16

MKV190CL2B/ASH Samsung Refrigerator Compresso In Stock SMG MKV190CL2B/ASH $334.64

18-1

DA63-06897A Samsung Refrigerator Drain Water Backorder SMG DA63-06897A $34.57

18-2

Refrigerator Condenser Coil SMG DA97-08464F Contact Us For Availability

18-3

DA97-15765C Samsung Refrigerator Circuit Moto In Stock SMG DA97-15765C $201.27

20

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $7.99

20

DA97-11930A Samsung Refrigerator Drawer Divid Backorder SMG DA97-11930A $297.36

21

DA61-00805F Samsung Refrigerator Black Front Backorder SMG DA61-00805F $7.45

21

Refrigerator Crisper Drawer Slide Rail SMG DA97-13780A Contact Us For Availability

21-1

DA61-02738A Samsung Refrigerator Magnet-Assem Backorder SMG DA61-02738A $6.71

21-3

DA96-00640A Samsung Refrigerator Wire Harness Backorder SMG DA96-00640A $178.74

22

DA94-02663A Samsung Refrigerator PCB Eeprom In Stock SMG DA94-02663A $86.56

22

DA97-08430A Samsung Refrigerator Convection I Backorder SMG DA97-08430A $237.39

22-1

DA31-00101C Samsung Refrigerator DC Motor Dam Backorder SMG DA31-00101C $186.37

23

DA92-00483B Samsung Refrigerator Inverter PCB In Stock SMG DA92-00483B $235.44

24

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $14.90

24-1

Refrigerator LED Light SMG DA41-00676G Contact Us For Availability

26

DA32-10109B Samsung Refrigerator Temperature Backorder SMG DA32-10109B $30.32

26

DA41-00519Q Samsung Refrigerator LED Lamp PBA Backorder SMG DA41-00519Q $26.25

27-1

DA34-00043J Samsung Refrigerator Door Reed Sw In Stock SMG DA34-00043J $30.12

28

DA27-00043D Samsung Refrigerator Coil Filter Backorder SMG DA27-00043D $107.32

28

DA97-14324A Samsung Refrigerator Fixed Shelf Backorder SMG DA97-14324A $198.69

31

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.07

31

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $5.04

32-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $6.77

32-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $5.54

33

DA60-00280A Samsung Refrigerator Fitting-Lokr Backorder SMG DA60-00280A $6.91

35

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $21.80

36

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $63.58

37

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $31.82

39

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $8.46

40

DA62-03914A Samsung Refrigerator Water Tube F In Stock SMG DA62-03914A $46.24

41

DA92-00486A Samsung Refrigerator Module Assem In Stock SMG DA92-00486A $138.60

43

DA63-06894A Samsung Refrigerator Ice Maker Wi Backorder SMG DA63-06894A $14.58

44

DA97-14471A Samsung Refrigerator Case Lock As Backorder SMG DA97-14471A $55.20

1510

DA97-08006D Samsung Refrigerator White Case F Backorder SMG DA97-08006D $125.94

1511

DA62-03103A Samsung Refrigerator Gray Tube Fi Backorder SMG DA62-03103A $22.92

1513

DA62-04027A Samsung Refrigerator 2-Way Water In Stock SMG DA62-04027A $175.15

1831

DA31-00320A Samsung Refrigerator Fan Blade As Backorder SMG DA31-00320A $26.26

5102

DA62-02429G Samsung Refrigerator Water Line P Backorder SMG DA62-02429G $7.99
