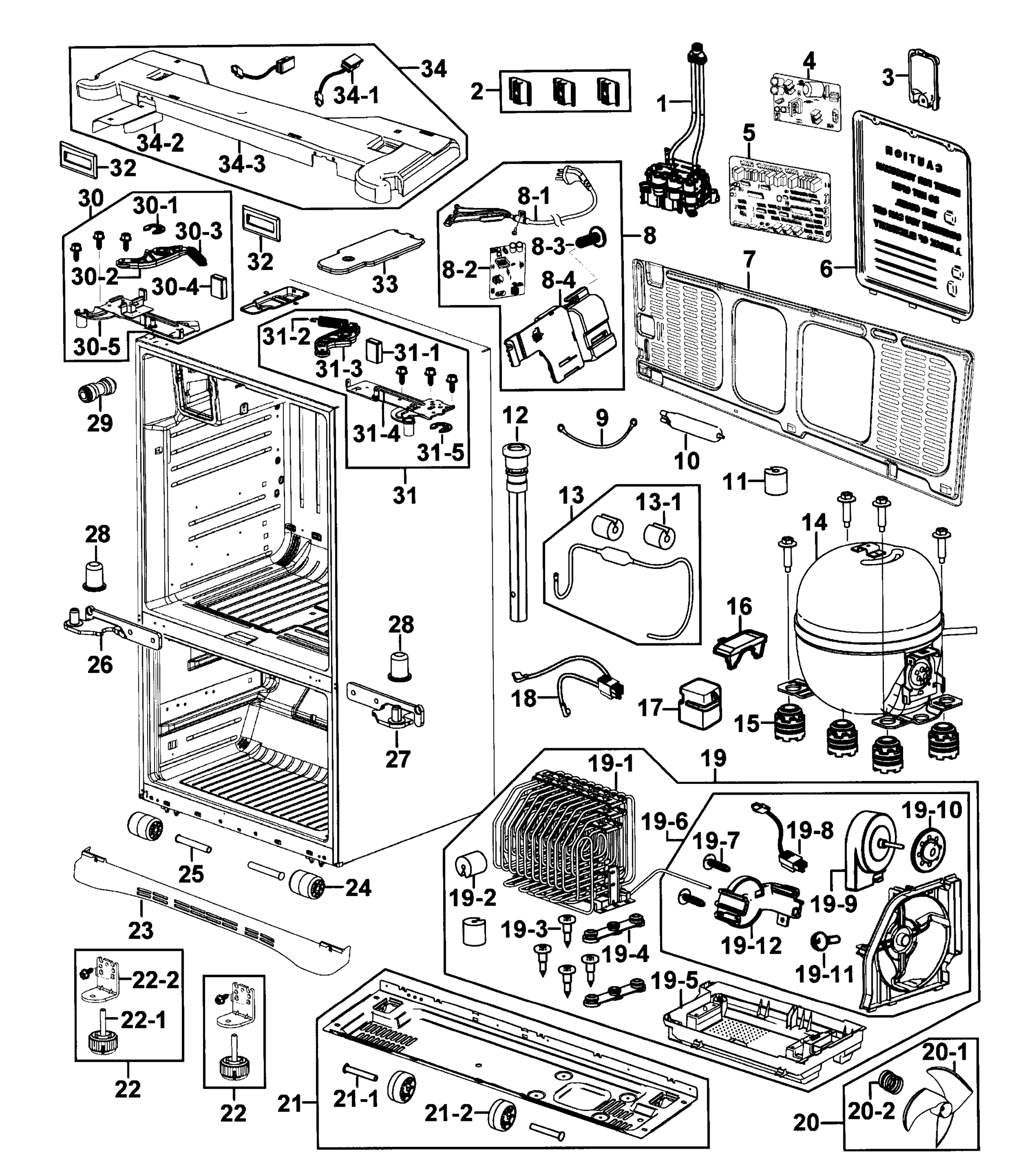

Model Samsung RF268ABPN/XAA-00 Refrigerator – Common Parts &amp; Diagrams

1

Refrigerator Water Inlet Valve SMG DA97-07695A Contact Us For Availability

1

Refrigerator dispenser control panel SMG DA97-05401Q Contact Us For Availability

1

Refrigerator Freezer Handle Cover, Left SMG DA63-04247B Contact Us For Availability

1-2

DA63-04139B Samsung Refrigerator Evaporator C Backorder SMG DA63-04139B $81.36

1-2

Refrigerator Dairy Bin Cover SMG DA63-03462A Contact Us For Availability

1-3

DA61-04154A Samsung Refrigerator Upper Freeze Backorder SMG DA61-04154A $9.50

1-3

Refrigerator Evaporator Insulation SMG DA62-01382A Contact Us For Availability

1-4

DA61-03186C Samsung Refrigerator Evaporator I Backorder SMG DA61-03186C $36.45

1-5

DA66-00554A Samsung Refrigerator Upper Freeze Backorder SMG DA66-00554A $5.59

1-7

DA61-05300A Samsung Refrigerator Ice Cube Cas Backorder SMG DA61-05300A $68.26

1-11

DA61-03599A Samsung Refrigerator Galvanized H Backorder SMG DA61-03599A $2.16

1-13

DA61-03181A Samsung Refrigerator Bubble Pjt A Backorder SMG DA61-03181A $15.44

1-17

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $133.46

1-20

DA39-00060K Samsung Refrigerator Motor with H Backorder SMG DA39-00060K $157.57

2

DA97-07361R Samsung Refrigerator Assembly Cas Backorder SMG DA97-07361R $156.92

2

Refrigerator Freezer Handle Cover, Right SMG DA63-04248B Contact Us For Availability

2-1

DA96-00398J Samsung Refrigerator Led Lamp Ass Backorder SMG DA96-00398J $154.21

3

DA63-03695B Samsung Refrigerator Dispenser Tr In Stock SMG DA63-03695B $22.38

3

DA64-03945C Samsung Refrigerator Freezer Door Backorder SMG DA64-03945C $159.19

4

DA66-00579A Samsung Refrigerator Freezer Hand Backorder SMG DA66-00579A $9.50

4

DA67-01688A Samsung Refrigerator Angle Cap As Backorder SMG DA67-01688A $1.18

4

Refrigerator Inverter SMG DA41-00614F Contact Us For Availability

4-1

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $3.07

4-2

DA32-10105X Samsung Refrigerator Temperature In Stock SMG DA32-10105X $20.09

5

DA41-00620C Samsung Refrigerator Main PCB Ass In Stock SMG DA41-00620C $307.84

5

DA61-04108A Samsung Refrigerator Upper Slide Backorder SMG DA61-04108A $143.00

5

DA67-02292A Samsung Refrigerator Freezer Door Backorder SMG DA67-02292A $31.86

6

DA63-03414A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03414A $44.04

6

DA67-02291A Samsung Refrigerator Left Freezer Backorder SMG DA67-02291A $32.41

6

DA97-05242A Samsung Refrigerator Assembly Dis Backorder SMG DA97-05242A $56.00

7

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $6.77

7

DA97-04878D Samsung Refrigerator Door Bin Gua Backorder SMG DA97-04878D $75.59

7

DA97-08805B Samsung Refrigerator Low Slide Ra Backorder SMG DA97-08805B $219.06

7-1

DA34-00047B Samsung Refrigerator Pressure Coo Backorder SMG DA34-00047B $4.48

7-1

DA63-03456A Samsung Refrigerator Guard Backorder SMG DA63-03456A $45.26

7-4

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.69

7-5

Refrigerator Freezer Drawer Gear SMG DA66-00751A Contact Us For Availability

8

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $34.81

8

DA61-04255A Samsung Refrigerator Handle Shaft Backorder SMG DA61-04255A $1.18

8

DA97-04957F Samsung Refrigerator Noise Filter Backorder SMG DA97-04957F $142.08

8

DA97-05240E Samsung Refrigerator Shelf Folder Backorder SMG DA97-05240E $128.34

8

DA97-11081C Samsung Refrigerator Handle Bar A Backorder SMG DA97-11081C $183.45

8

Refrigerator door bin, left SMG DA97-05241A Contact Us For Availability

8-1

3903-000400 Samsung Power Cord Refrigerator In Stock SMG 3903-000400 $88.60

8-1

Refrigerator Door Handle Set Screw SMG 6009-001526 Contact Us For Availability

8-2

DA27-00019D Samsung Refrigerator EMI Coil Fil Backorder SMG DA27-00019D $111.25

8-3

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $1.69

9

DA97-05253B Samsung Refrigerator Door Gasket In Stock SMG DA97-05253B $116.58

9

DA97-08806B Samsung Refrigerator Low Slide Ra Backorder SMG DA97-08806B $194.43

9

Refrigerator Freezer Door Handle Mounting Blo SMG DA61-04254A Contact Us For Availability

9-3

Refrigerator Gear Rail SMG DA66-00750A Contact Us For Availability

DA61-02738F Samsung Refrigerator Magnet Assem Backorder SMG DA61-02738F $5.33

DA61-04335B Samsung E Assembly Handle Spring In Stock SMG DA61-04335B $2.66

DA63-03415A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03415A $54.92

DA97-04839A Samsung Refrigerator Vegetable Dr Backorder SMG DA97-04839A $30.34

10-1

DA61-03172A Samsung Refrigerator Crisper Draw Backorder SMG DA61-03172A $27.95

11

DA61-04109A Samsung Refrigerator Upper Slide Backorder SMG DA61-04109A $144.67

11

DA97-04840A Samsung Refrigerator Vegetable Dr Backorder SMG DA97-04840A $28.51

11-1

DA61-03177A Samsung Refrigerator Vegetable Cr Backorder SMG DA61-03177A $29.63

DA66-00437A Samsung Refrigerator Gear Shaft A Backorder SMG DA66-00437A $37.79

DA66-00442B Samsung Refrigerator Auto Close C Backorder SMG DA66-00442B $4.79

DA97-04049H Samsung Refrigerator Drain Cap As Backorder SMG DA97-04049H $15.91

DA97-04846A Samsung Refrigerator Vegetable Ca Backorder SMG DA97-04846A $154.47

13

DA97-00918E Samsung Refrigerator Connection P Backorder SMG DA97-00918E $63.50

13

DA97-05353A Samsung Refrigerator Ice Chute Ca Backorder SMG DA97-05353A $54.85

13-1

DA63-03698A Samsung Refrigerator Ice Chute Ca Backorder SMG DA63-03698A $58.68

13-2

DA67-01729A Samsung Refrigerator Ice Chute Ca Backorder SMG DA67-01729A $7.45

14

Refrigerator Compressor SMG BK190CL2C/E02 Contact Us For Availability

14

Refrigerator flipper assembly SMG DA97-07244J Contact Us For Availability

14-1

DA61-03234A Samsung Refrigerator French Door Backorder SMG DA61-03234A $58.66

14-5

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $5.04

14-6

DA61-03230B Samsung Refrigerator French Door In Stock SMG DA61-03230B $3.68

14-7

DA81-01345B Samsung Refrigerator Door Spring In Stock SMG DA81-01345B $4.93

14-8

DA81-01346A Samsung Refrigerator French Sprin In Stock SMG DA81-01346A $1.69

14-9

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $5.33

15

Refrigerator Drawer Cover SMG DA97-07019A Contact Us For Availability

15

Refrigerator Freezer Door Shelf Rail End Cap SMG DA61-03763A Contact Us For Availability

15-1

DA61-03166A Samsung Refrigerator Vegetable Co In Stock SMG DA61-03166A $1.69

15-4

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $1.32

DA34-00004D Samsung Refrigerator Compressor O In Stock SMG DA34-00004D $35.00

DA61-03762A Samsung Refrigerator Left Side Su In Stock SMG DA61-03762A $18.10

DA96-00459L Samsung Refrigerator Evaporator A Backorder SMG DA96-00459L $248.47

DA97-11117A Samsung Refrigerator Freezer Ice In Stock SMG DA97-11117A $194.82

16-1

DA61-02901A Samsung Refrigerator Evaporator S In Stock SMG DA61-02901A $1.72

16-1

Refrigerator Ice Container Front Cover Gasket SMG DA63-03737A Contact Us For Availability

16-3

DA61-20124D Samsung Refrigerator Dispenser Sp Backorder SMG DA61-20124D $7.82

17

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $14.90

17

DA97-05246G Samsung Refrigerator Auger Motor In Stock SMG DA97-05246G $228.74

17

DA97-05557Y Samsung Freezer Door Gasket Assem In Stock SMG DA97-05557Y $198.91

17-2

Refrigerator Ice Dispenser Auger Drive Plate SMG DA61-01659B Contact Us For Availability

17-3

DA31-00105G Samsung Refrigerator Geared Auger Backorder SMG DA31-00105G $211.21

17-5

DA74-40151G Samsung Refrigerator Ice Dispense Backorder SMG DA74-40151G $110.76

17-7

DA66-90003A Samsung Refrigerator Solenoid Gea Backorder SMG DA66-90003A $1.18

17-8

DA61-60001A Samsung Refrigerator Dispenser So Backorder SMG DA61-60001A $1.18

17-9

DA96-00036W Samsung Refrigerator Assembly wit Backorder SMG DA96-00036W $73.46

DA39-00154D Samsung Refrigerator Wire Harness Backorder SMG DA39-00154D $58.68

DA61-03155B Samsung Refrigerator Hanger Rail Backorder SMG DA61-03155B $109.77

DA97-07365G Samsung Refrigerator Ice Maker As In Stock SMG DA97-07365G $174.64

DA97-07906B Samsung Refrigerator Evaporator I Backorder SMG DA97-07906B $260.94

18-5

Refrigerator Evaporator Fan Blade SMG DA31-00124A Contact Us For Availability

19

DA61-03153B Samsung Refrigerator Front Hanger Backorder SMG DA61-03153B $98.61

19

DA63-03691A Samsung Refrigerator Ice Room Har Backorder SMG DA63-03691A $11.70

19

DA97-07756F Samsung Refrigerator Water Drain Backorder SMG DA97-07756F $209.08

19-1

DA97-05093E Samsung Refrigerator Assembly Spi Backorder SMG DA97-05093E $186.07

19-3

6009-001475 Samsung Refrigerator Special Scre Backorder SMG 6009-001475 $1.18

19-6

DA97-07754D Samsung Refrigerator Motor Suppor Backorder SMG DA97-07754D $172.30

19-9

DA31-00146B Samsung Refrigerator Condenser Fa In Stock SMG DA31-00146B $137.35

20

DA31-00010D Samsung Refrigerator Fan Blade In Stock SMG DA31-00010D $19.08

20

DA96-00762R Samsung Refrigerator Evaporator A Backorder SMG DA96-00762R $217.56

20-2

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.69

20-3

DA32-00006S Samsung Refrigerator Freezer Defr In Stock SMG DA32-00006S $29.50

20-5

DA47-00424B Samsung Refrigerator Metal Sheath Backorder SMG DA47-00424B $111.77

20-6

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $10.06

20-7

DA61-06186B Samsung Refrigerator Drain Plate Backorder SMG DA61-06186B $55.84

21-1

DA66-00649A Samsung Refrigerator Caster Shaft Backorder SMG DA66-00649A $3.97

21-1

DA67-02055B Samsung Refrigerator Freezer Left Backorder SMG DA67-02055B $6.39

21-2

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $6.77

21-2

DA67-02054B Samsung Right Refrigerator Door C Backorder SMG DA67-02054B $9.59

24

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $7.99

25

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.07

25

DA97-06324C Samsung Refrigerator Motor Damper Backorder SMG DA97-06324C $137.66

25-1

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $23.97

25-4

DA31-00071G Samsung Refrigerator DC Motor Dam Backorder SMG DA31-00071G $188.79

26

DA97-07129A Samsung Refrigerator T/Water Cove Backorder SMG DA97-07129A $164.75

26-3

DA97-07150A Samsung Refrigerator Water Tank A Backorder SMG DA97-07150A $155.70

26-5

DA47-00295A Samsung Refrigerator Water Tank H Backorder SMG DA47-00295A $60.72

27

DA97-05370A Samsung Assembly Refrigerator Cri Backorder SMG DA97-05370A $126.10

27-3

DA64-02235A Samsung Refrigerator Pantry Shelf Backorder SMG DA64-02235A $50.72

28

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $1.86

28-2

DA63-03764A Samsung Refrigerator Pantry Drawe Backorder SMG DA63-03764A $40.78

29

DA60-00259B Samsung Refrigerator Tube Fitting Backorder SMG DA60-00259B $30.34

29

DA97-05371B Samsung Refrigerator Left Pantry Backorder SMG DA97-05371B $65.52

29-3

DA97-05931A Samsung Refrigerator Freezer Shel Backorder SMG DA97-05931A $15.09

30

DA97-07822F Samsung Refrigerator Upper Hinge Backorder SMG DA97-07822F $107.49

30-2

DA97-04903B Samsung Refrigerator Auto Close L Backorder SMG DA97-04903B $25.03

31-2

DA61-03301A Samsung Refrigerator Door Auto Cl Backorder SMG DA61-03301A $7.82

31-4

DA97-05932A Samsung Refrigerator Roller Assem Backorder SMG DA97-05932A $20.13

32

DA67-01613B Samsung Refrigerator Top Cap Tabl Backorder SMG DA67-01613B $1.60

33

Refrigerator Pantry Drawer Slide Cover Assemb SMG DA97-05384C Contact Us For Availability

33-2

DA41-00423C Samsung Refrigerator Printed Circ Backorder SMG DA41-00423C $37.41

33-3

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $1.18

34

DA34-00033B Samsung Refrigerator Door Switch Backorder SMG DA34-00033B $60.72

34

DA97-05390L Samsung Refrigerator Top Table As Backorder SMG DA97-05390L $105.05

34-1

DA34-00043B Samsung Refrigerator Reed Switch Backorder SMG DA34-00043B $32.41

34-3

DA64-02256B Samsung Refrigerator Best Abs Top Backorder SMG DA64-02256B $66.43

1411

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $8.38

1811

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $4.25

1813

DA31-00146E Samsung Refrigerator Evaporator F In Stock SMG DA31-00146E $146.83

1818

DA96-00042N Samsung Refrigerator Motor Wire H Backorder SMG DA96-00042N $17.04

1819

DA96-00042D Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042D $21.29

1910

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $4.79

NI

DA67-02270A Samsung Refrigerator Water Filter In Stock SMG DA67-02270A $2.49
