Model Whirlpool YMH7155XMB1 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams

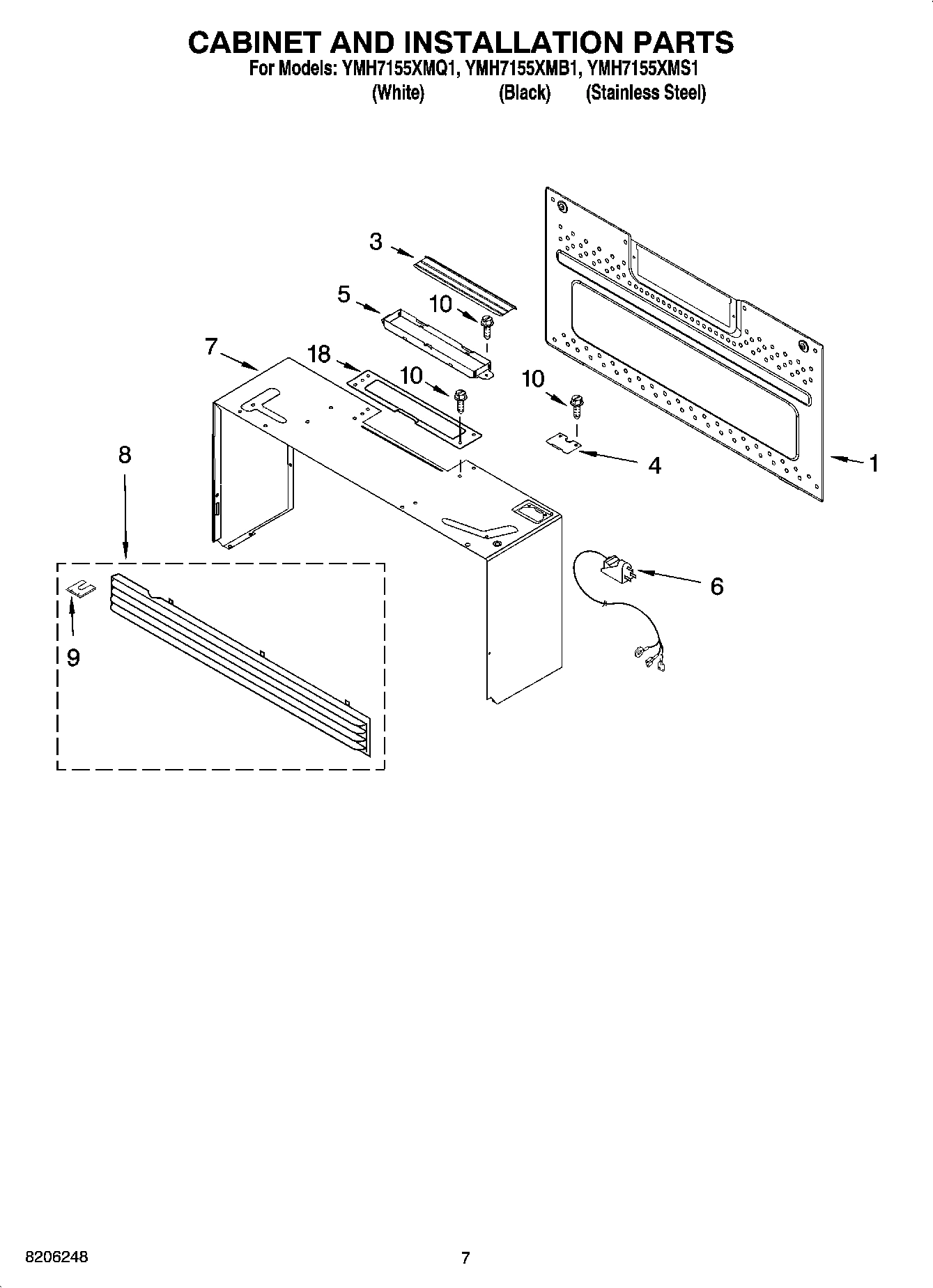

06 - CABINET AND INSTALLATION PARTS

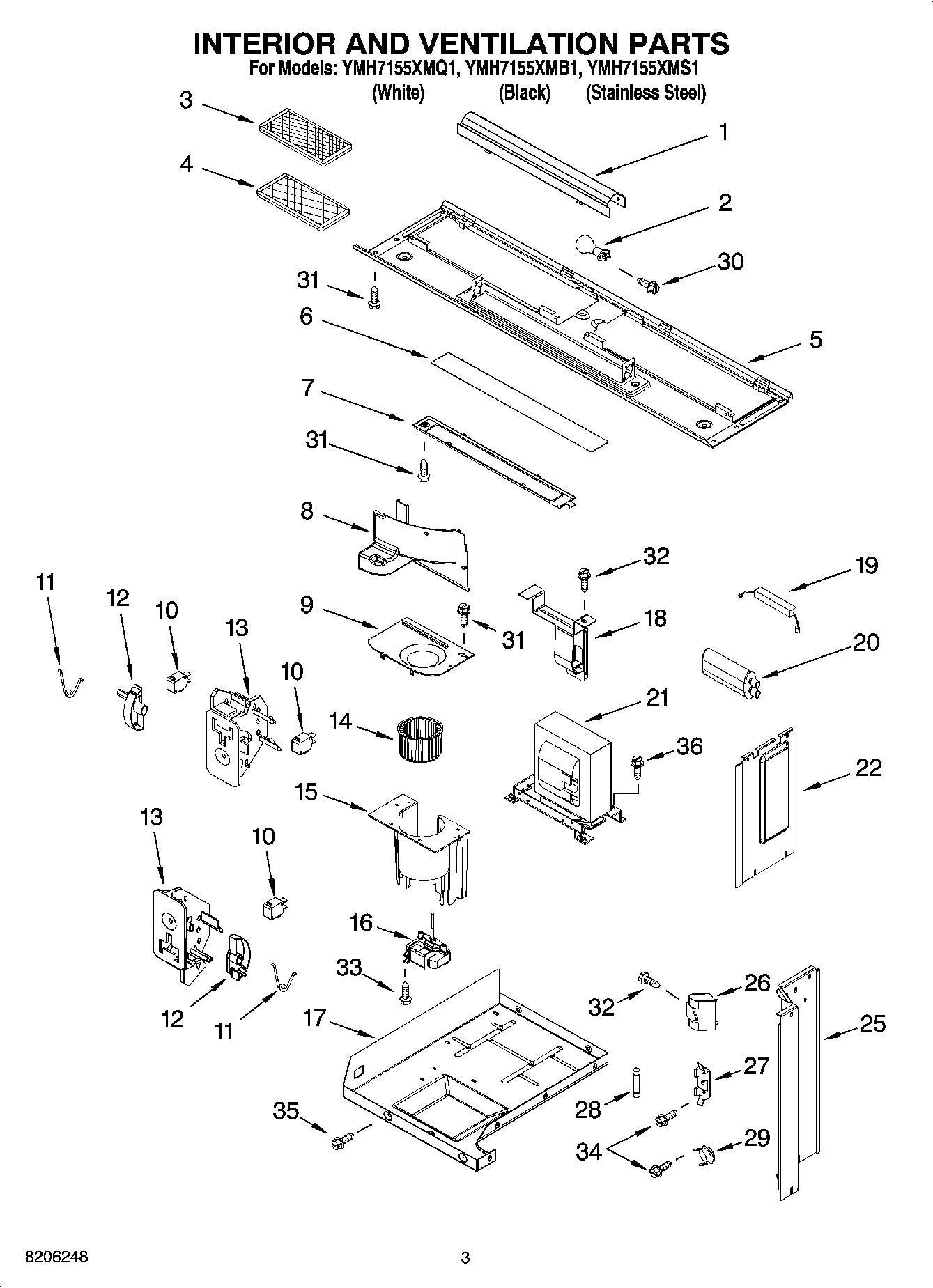

03 - INTERIOR AND VENTILATION PARTS

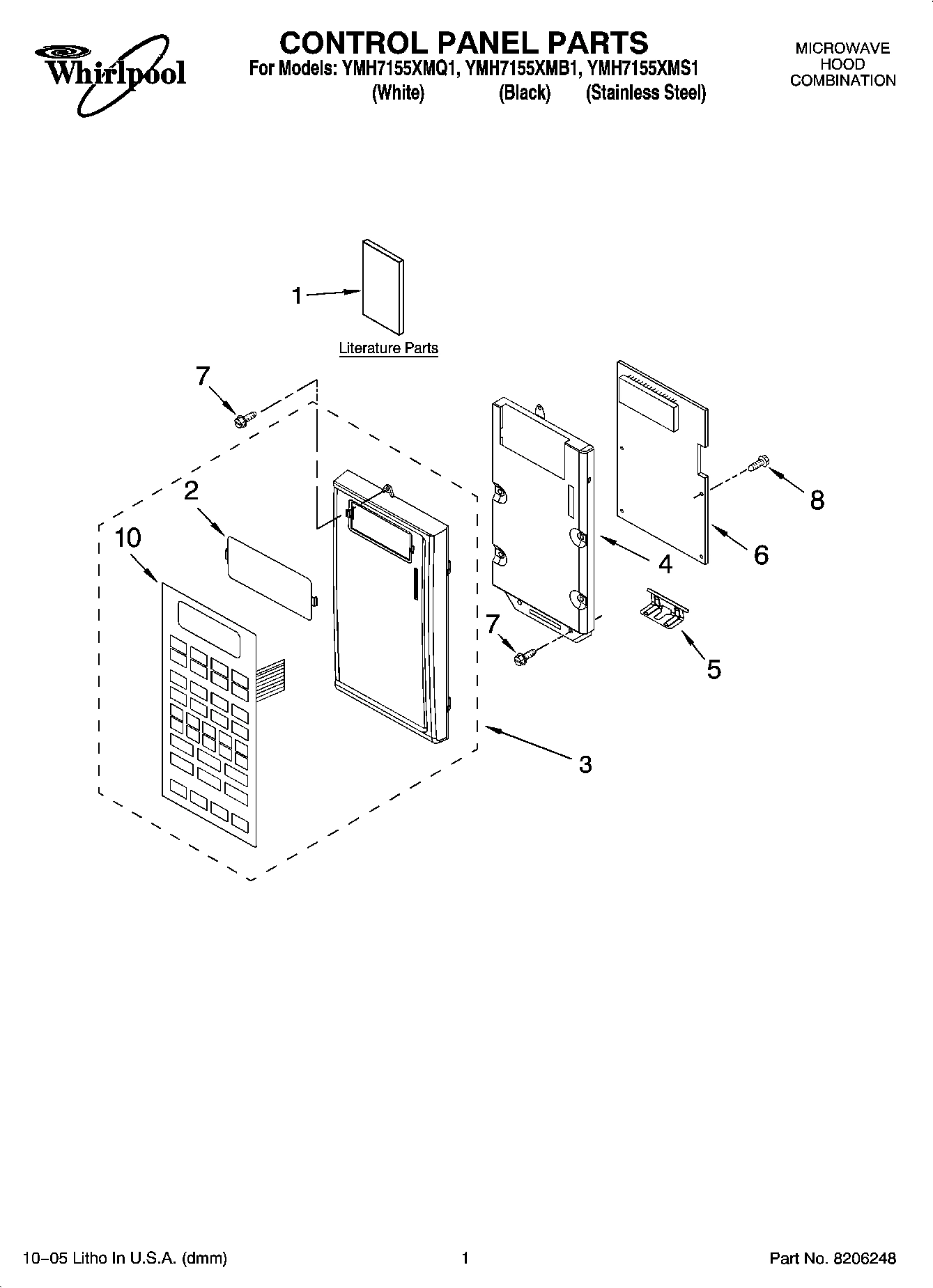

01 - CONTROL PANEL PARTS

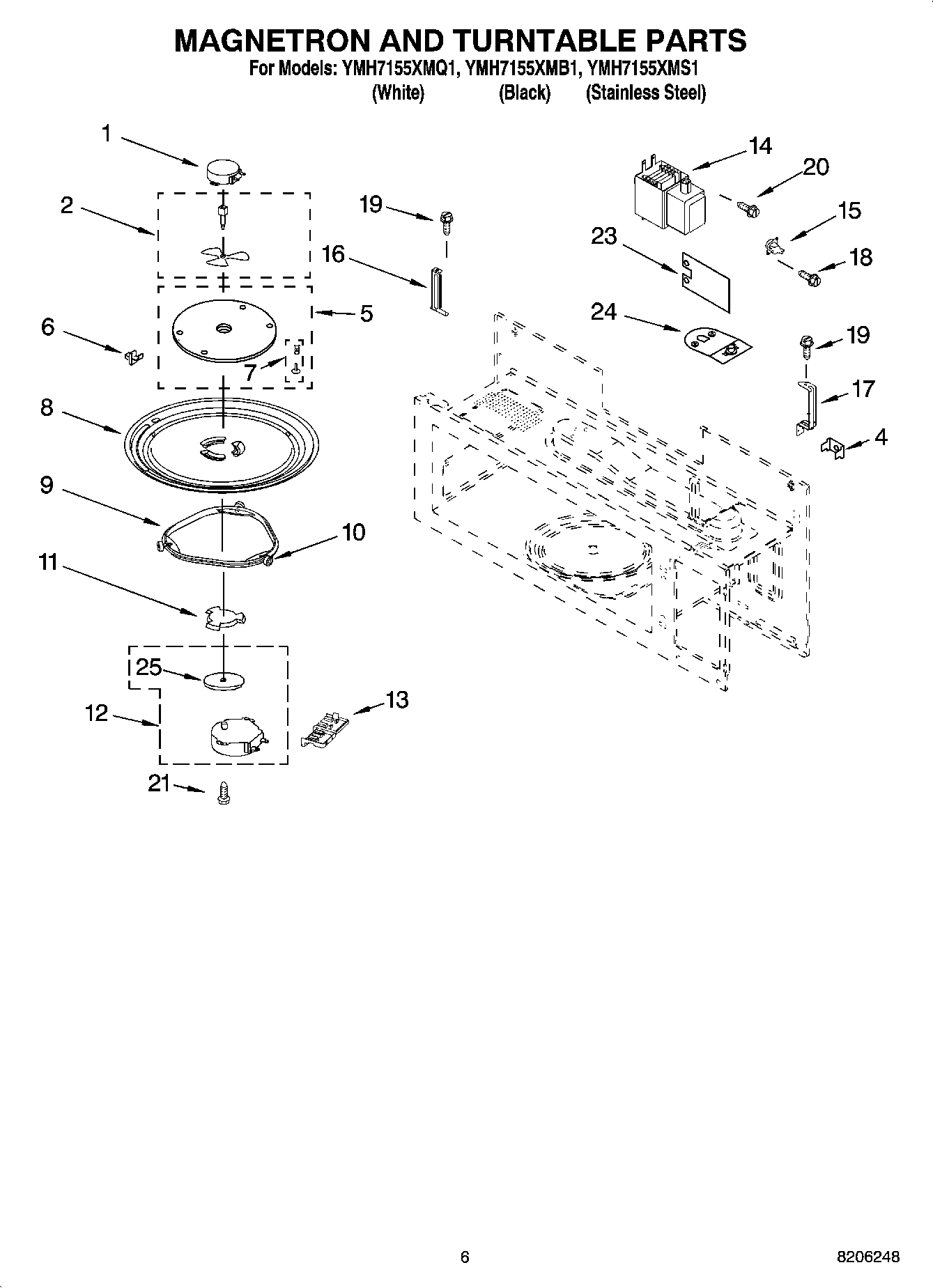

05 - MAGNETRON AND TURNTABLE PARTS

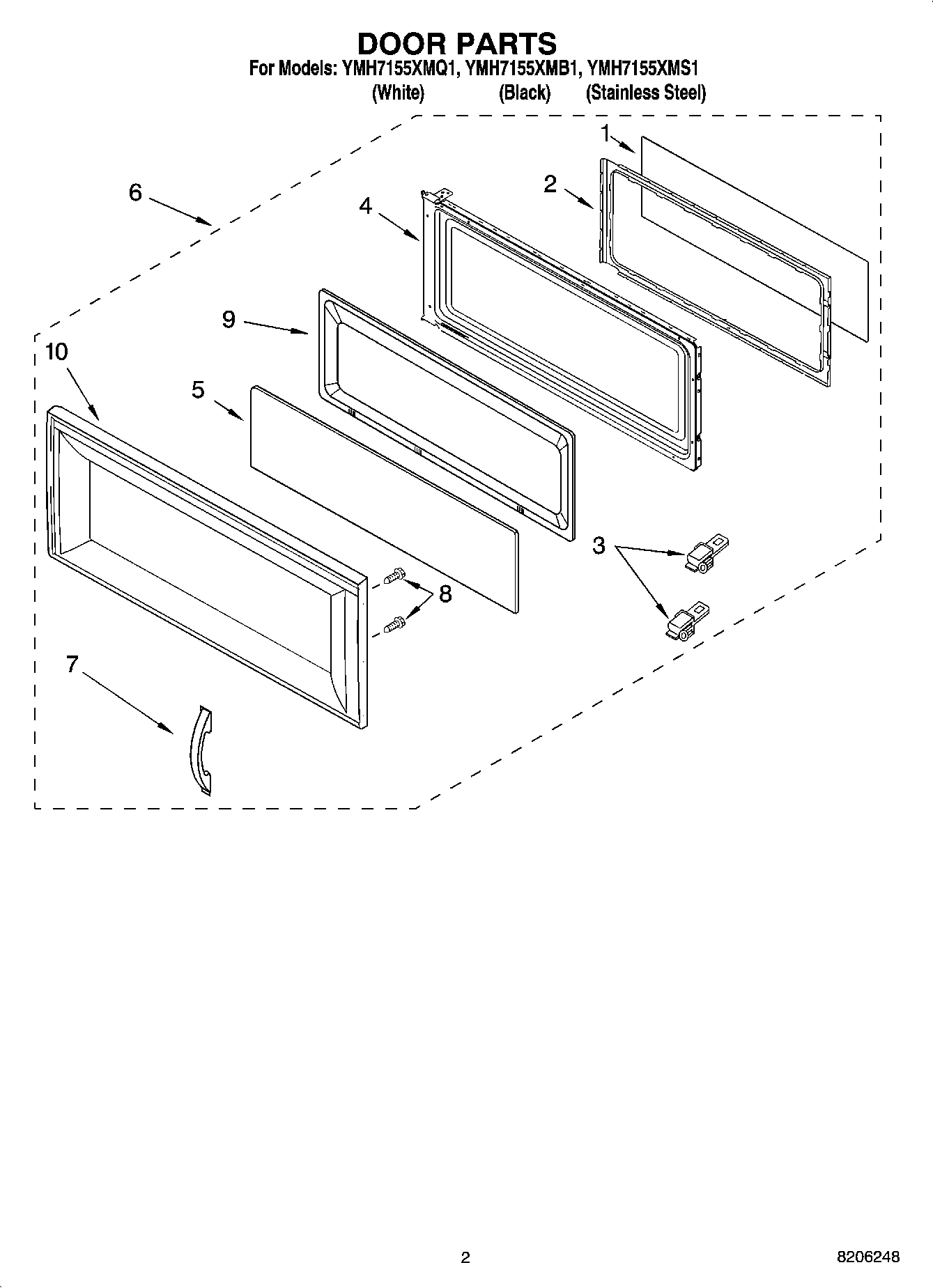

02 - DOOR PARTS

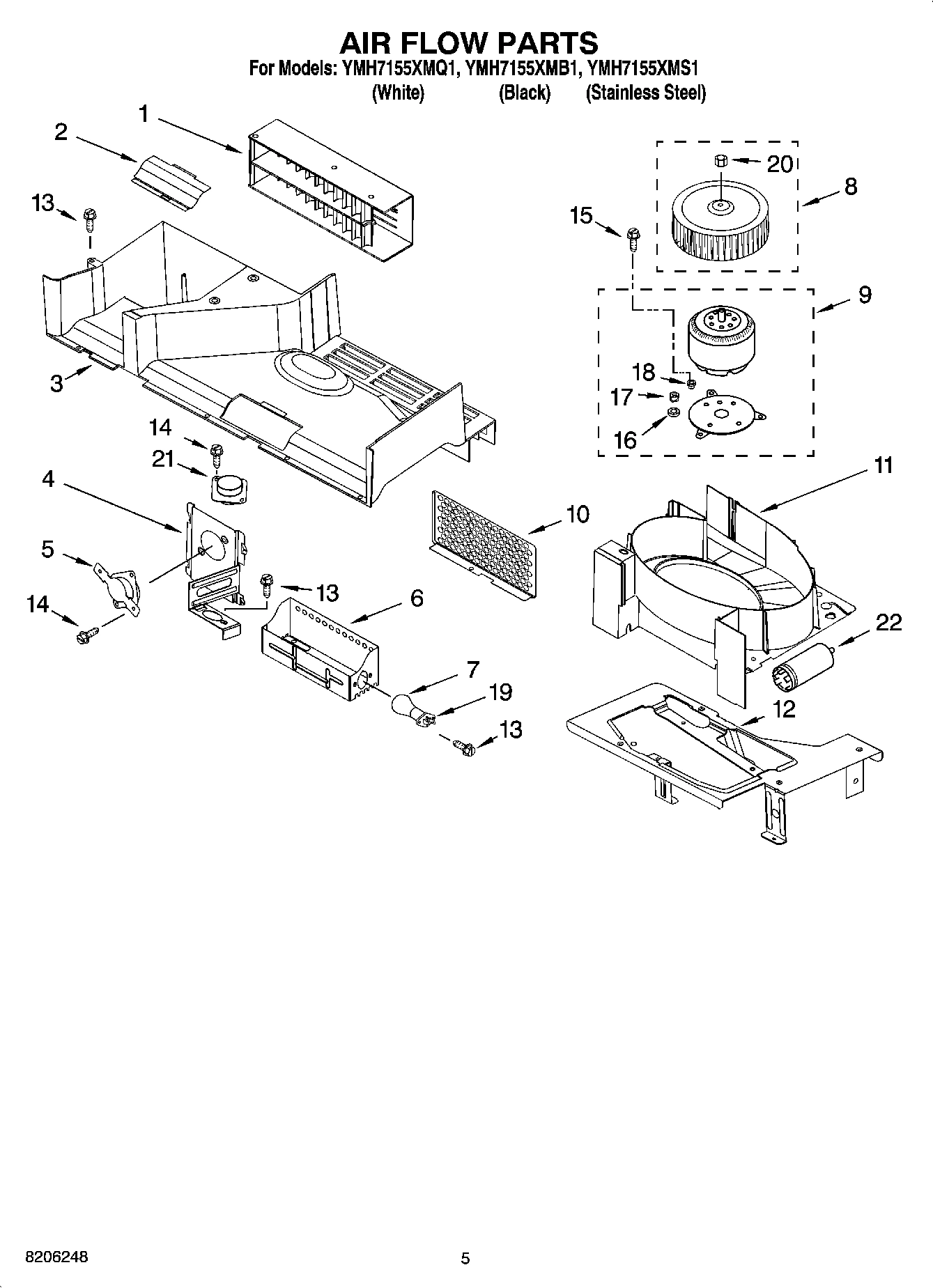

04 - AIR FLOW PARTS
Common parts from model Whirlpool YMH7155XMB1 MICROWAVE HOOD COMBINATION
Filler Kit (Black) WPL 8171337 Contact Us For Availability
Filler Kit (White) WPL 8171336 Contact Us For Availability
Hardware, Installation WPL 8205947 Contact Us For Availability
1
Installation Instructions WPL 8183879 Contact Us For Availability
1
Use & Care Guide WPL 8185483 Contact Us For Availability
1
Cook Guide Label (English) WPL 8185484 Contact Us For Availability
1
Tech Sheet WPL 8185485 Contact Us For Availability
1
Cook Guide Label (French) WPL 8204746 Contact Us For Availability
1
Motor, Stirrer WPL 4393746 Contact Us For Availability
1
Film, Back WPL 4393870 Contact Us For Availability
1
Deflector, Air WPL 8184638 Contact Us For Availability
2
Frame, Inner WPL 8169545 Contact Us For Availability
2
Lens (Not Serviced On Stainless) WPL 8183708 Contact Us For Availability
2
Stirrer Shaft/Blade WPL 8184633 Contact Us For Availability
2
Reflector, Air WPL 8169557 Contact Us For Availability
3
Latch, Door WPL 4393913 Contact Us For Availability
3
Panel, Control (White) WPL 8205065 Contact Us For Availability
3
Panel, Control (Black) WPL 8205066 Contact Us For Availability
3
Panel, Control (Stainless Steel) WPL 8205067 Contact Us For Availability
3
Duct, Air WPL 8185083 Contact Us For Availability
4
Body, Door (White) WPL 8169653 Contact Us For Availability
4
Bracket, Control WPL 8183821 Contact Us For Availability
4
Bracket, Support WPL 8183832 Contact Us For Availability
4
Body, Door (Black) WPL 8169460 Contact Us For Availability
4
Bracket, Thermostat WPL 8204653 Contact Us For Availability
5
Thermostat WPL 8183697 Contact Us For Availability
5
Plate, Hinge WPL 4393744 Contact Us For Availability
5
Cover, Inlet WPL 8184476 Contact Us For Availability
5
Glass, Outer (White Model) WPL 8204767 Contact Us For Availability
5
Glass, Outer (Black Model) WPL 8204768 Contact Us For Availability
5
Glass, Outer (Stainless Model) WPL 8205071 Contact Us For Availability
6
Hook, Rack (4) WPL 8204662 Contact Us For Availability
6
Microcomputer WPL 8204859 Contact Us For Availability
6
Complete Door (Stainless Steel) WPL 8204830 Contact Us For Availability
6
Complete Door (White) WPL 8204875 Contact Us For Availability
6
Complete Door (Black) WPL 8204876 Contact Us For Availability
6
Housing, Lamp WPL 8184745 Contact Us For Availability
7
Screw WPL 4393828 Contact Us For Availability
7
Nails/Bushings (5 of each) WPL 8184549 Contact Us For Availability
8
Turntable WPL 4393799 No Longer Available
8
Screw WPL 4393346 Contact Us For Availability
8
Wheel, Fan WPL 8204694 Contact Us For Availability
9
Panel Door (Only Stainless Model) WPL 8185349 Contact Us For Availability
9
Motor, Fan WPL 8204751 Contact Us For Availability
10
Screw WPL 4393833 Contact Us For Availability
10
Wheel, Plastic WPL 4393861 Contact Us For Availability
10
Switch, Membrane (White) WPL 8204770 Contact Us For Availability
10
Switch, Membrane (Black) WPL 8204771 Contact Us For Availability
10
Switch, Membrane (Stainless Steel) (Not Servi WPL ARI138957A Contact Us For Availability
10
Frame, Outer (Stainless Steel) WPL 8204829 Contact Us For Availability
10
Shield WPL 8204754 Contact Us For Availability
11
Spring, Interlock (2) WPL 8169438 Contact Us For Availability
11
Housing, Fan WPL 8184624 Contact Us For Availability
12
Plate, Cam (2) WPL 8183824 Contact Us For Availability
12
Bracket, Fan (Not Serviced) WPL ARI138958A Contact Us For Availability
13
Cover, Terminal WPL 4393756 Contact Us For Availability
14
Screw WPL 8169478 Contact Us For Availability
15
Thermostat WPL 8183698 Contact Us For Availability
15
Screw WPL 4393830 Contact Us For Availability
16
Holder, Connector (L) WPL 8169540 Contact Us For Availability
16
Plate, Damper WPL 4393874 Contact Us For Availability
17
Spacer, Copper Pipe WPL 8184129 Contact Us For Availability
17
Holder, Connector (R) WPL 8169705 Contact Us For Availability
18
Cushion, Mtr WPL 8169635 Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
19
Screw WPL 8169474 Contact Us For Availability
20
Nut WPL 8184404 Contact Us For Availability
21
Humidity, Sensor WPL 4393808 Contact Us For Availability
22
Filter WPL 8169561 Contact Us For Availability
24
Thermostat And Bracket WPL 8184585 Contact Us For Availability
26
Capacitor WPL 4393709 Contact Us For Availability
29
Thermostat WPL 8183703 Contact Us For Availability
36
Screw WPL 4393839 Contact Us For Availability
× ![]()
