Model Whirlpool YMH1150XMS3 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams

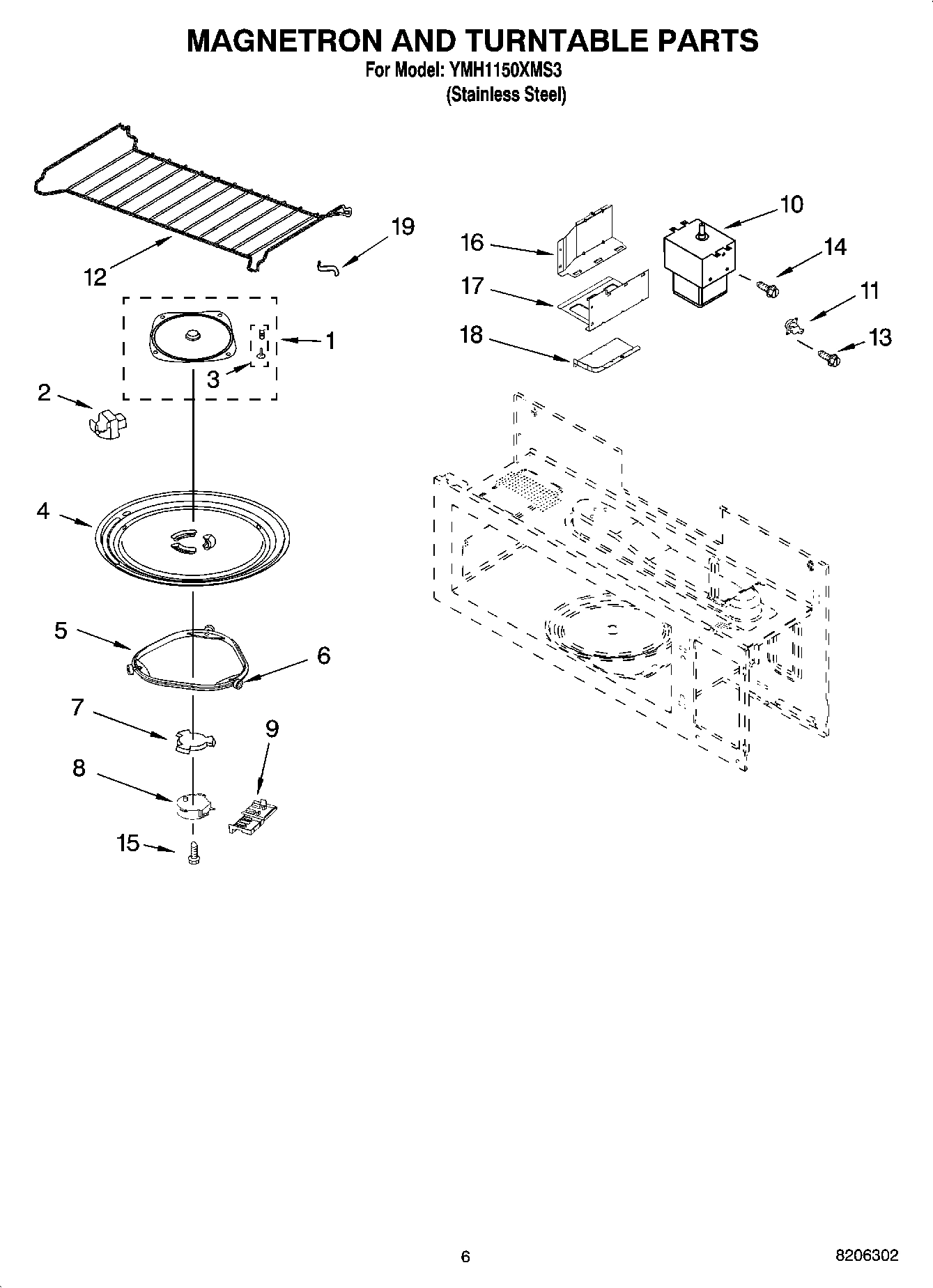

05 - MAGNETRON AND TURNTABLE PARTS

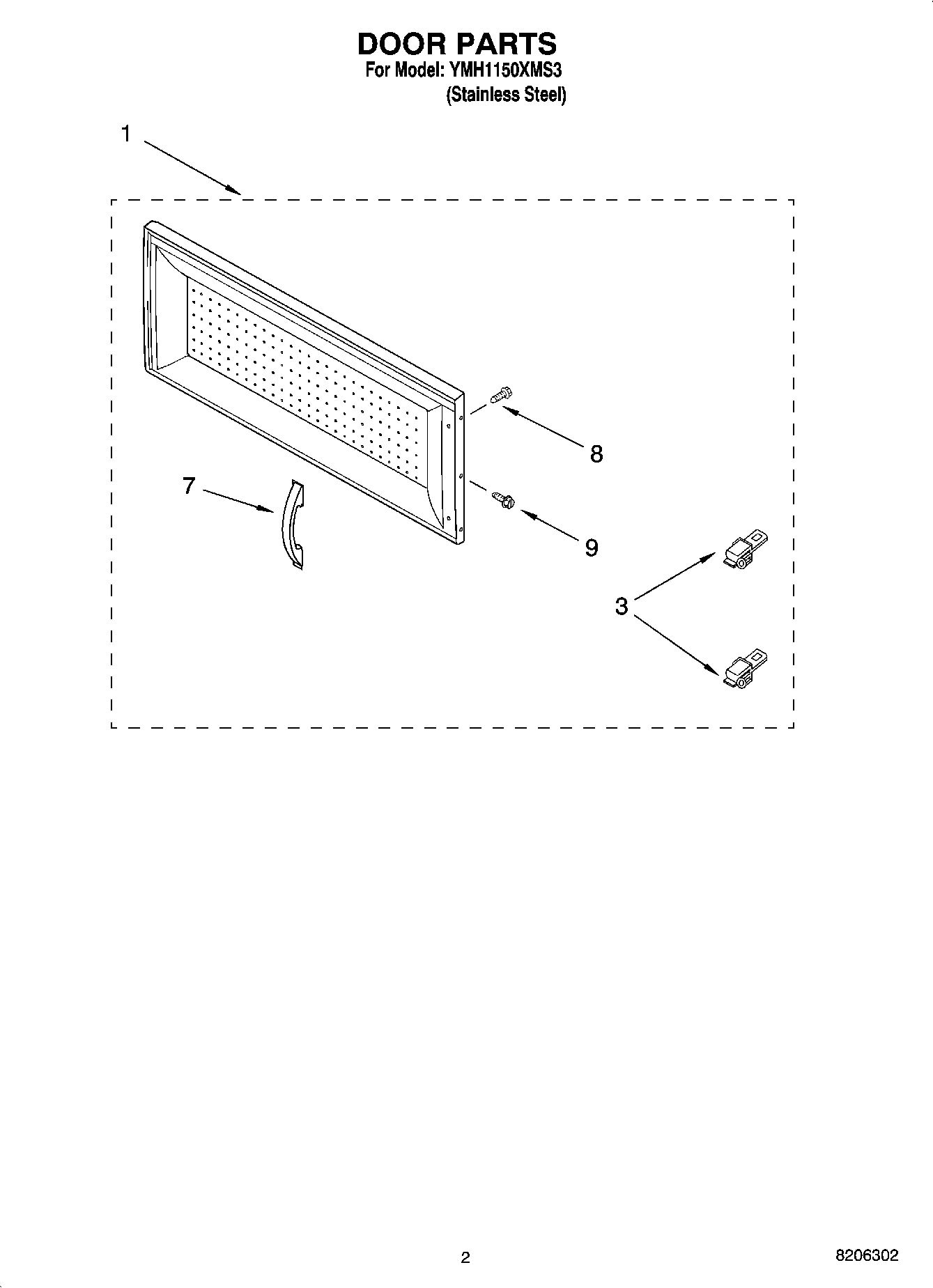

02 - DOOR PARTS

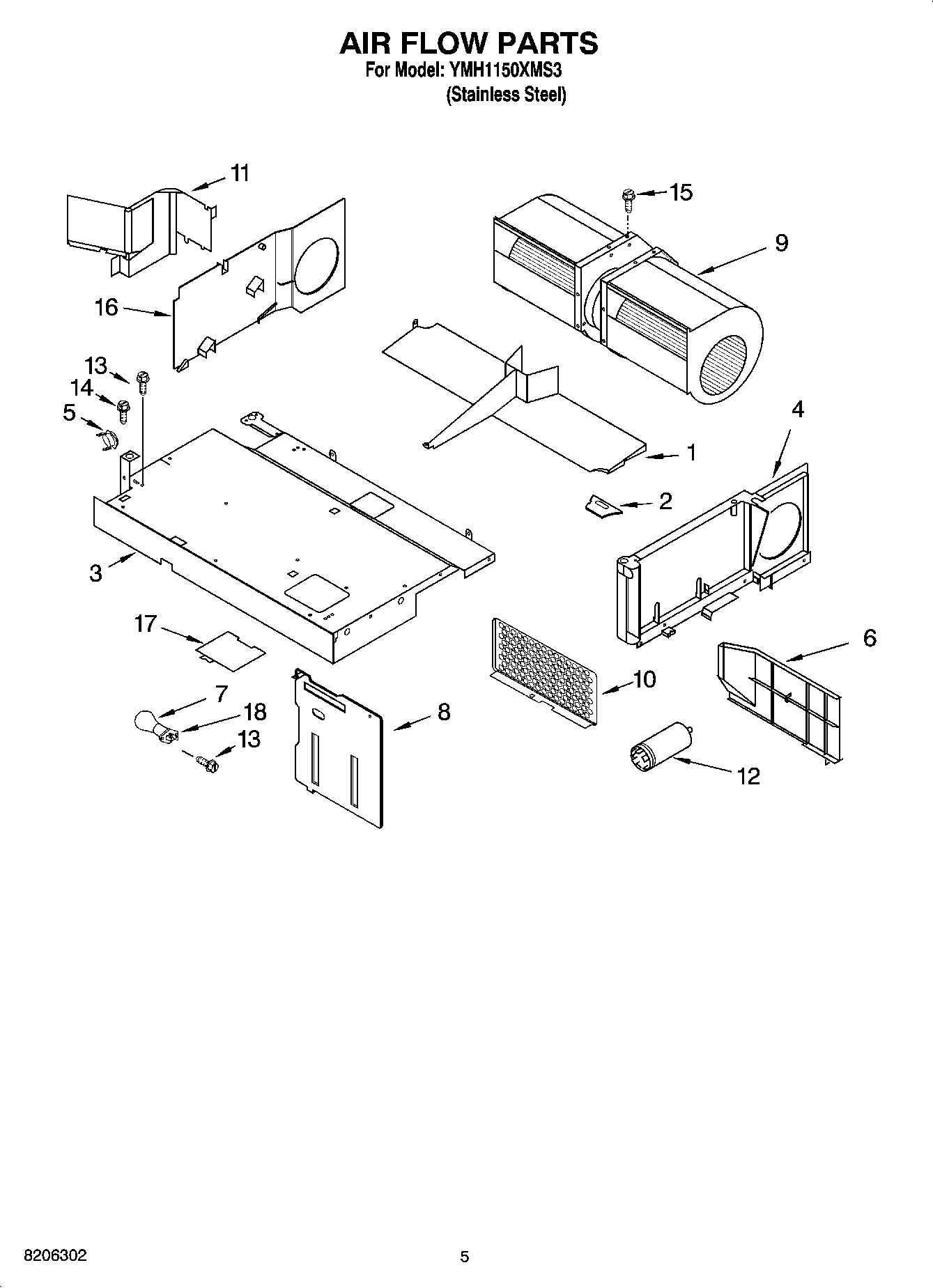

04 - AIR FLOW PARTS

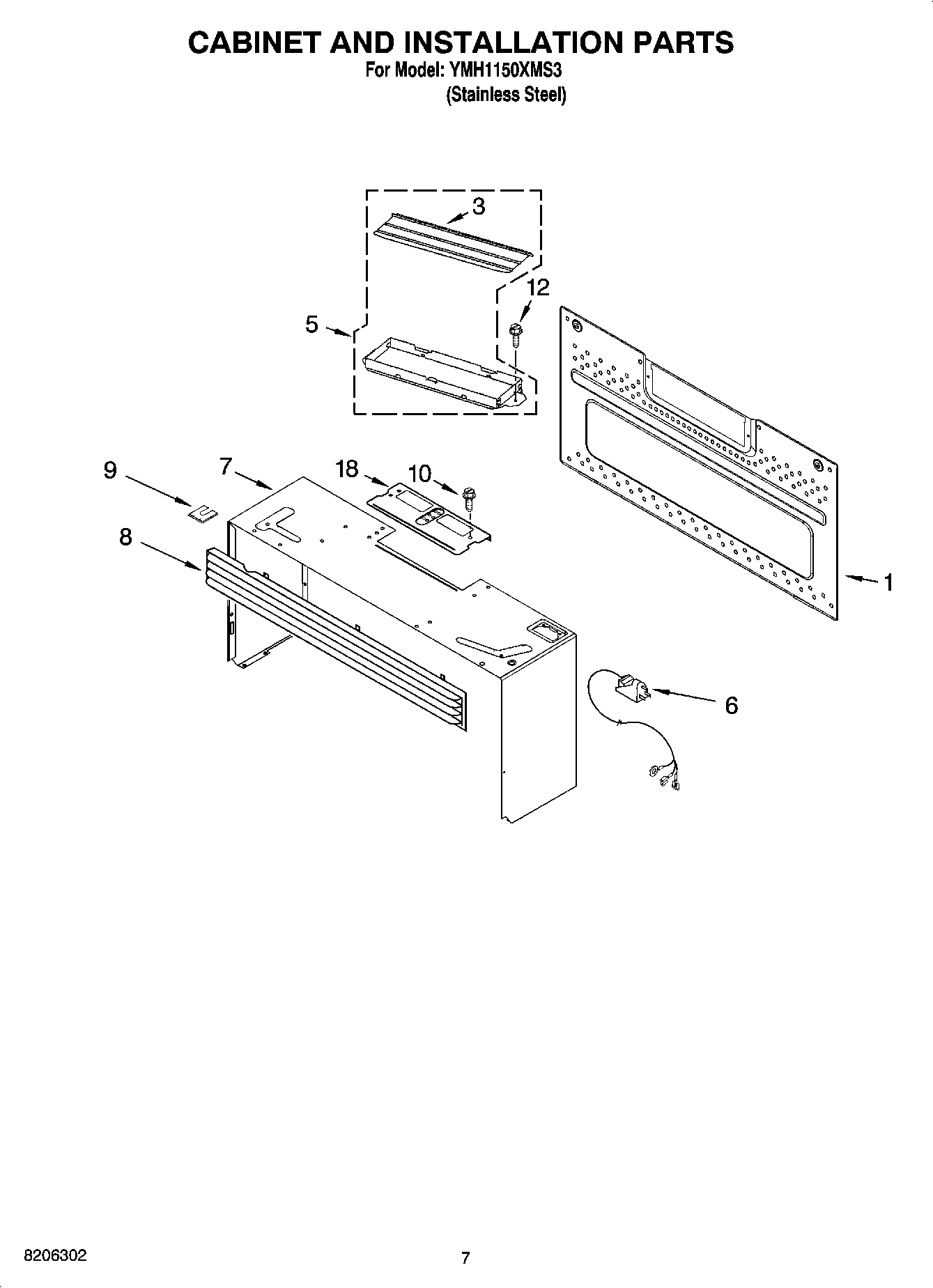

06 - CABINET AND INSTALLATION PARTS

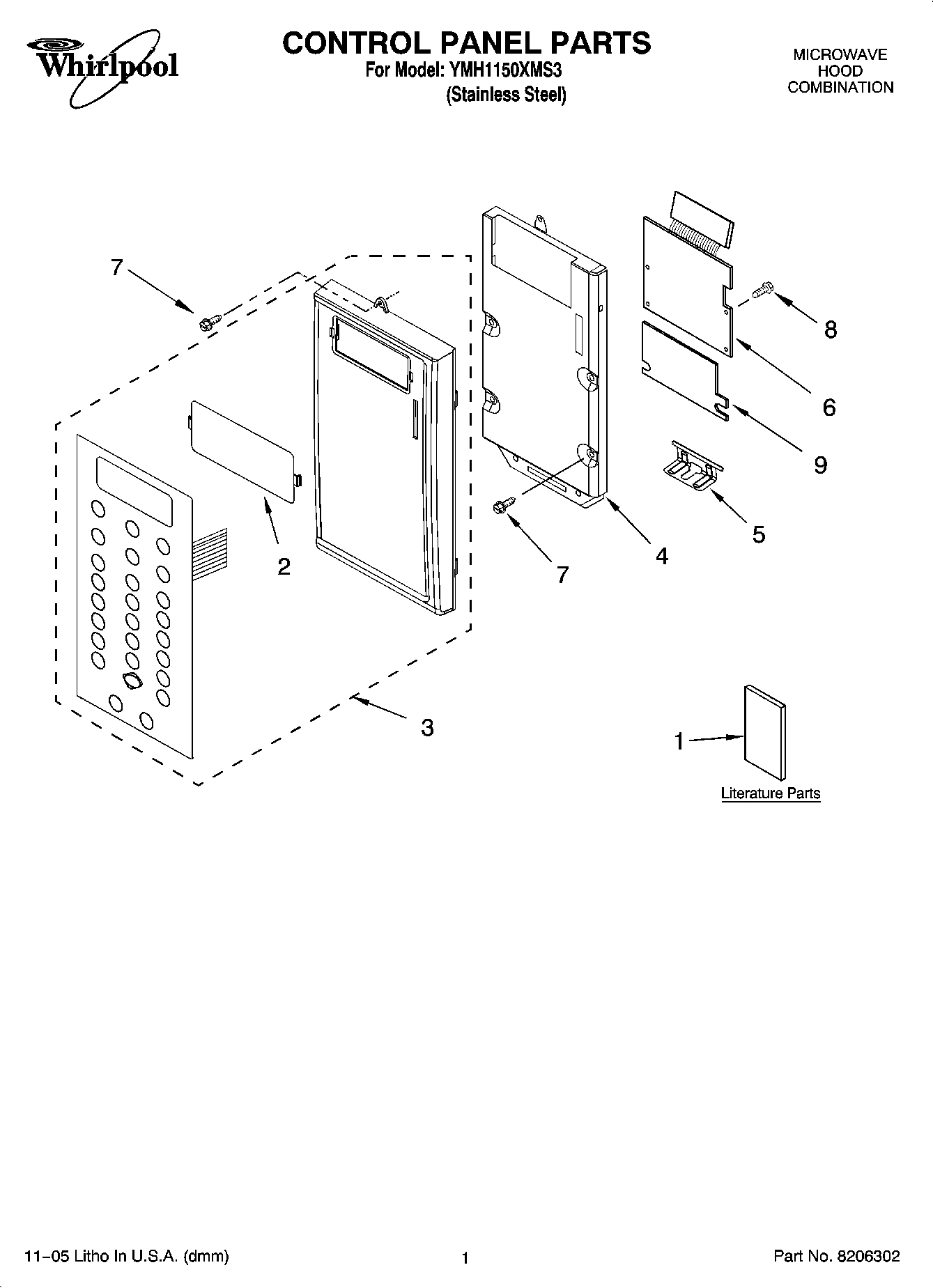

01 - CONTROL PANEL PARTS

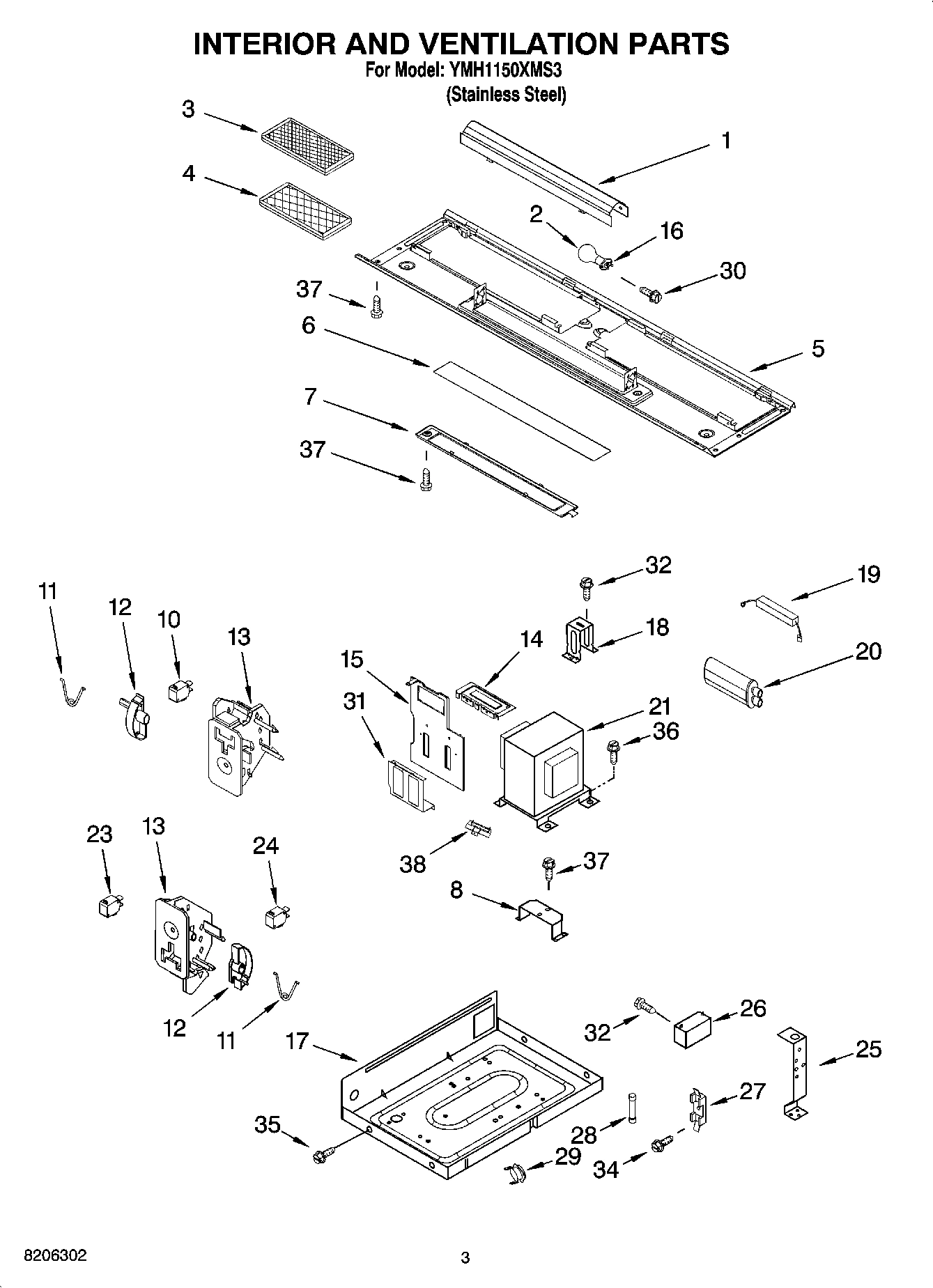

03 - INTERIOR AND VENTILATION PARTS
Common parts from model Whirlpool YMH1150XMS3 MICROWAVE HOOD COMBINATION
Upper Template WPL 8185478 Contact Us For Availability
Miscellaneous WPL ARI138931A Contact Us For Availability
1
Cook Guide Label (English) WPL 8185481 Contact Us For Availability
1
Cook Guide Label (French) WPL 8204745 Contact Us For Availability
1
Tech Sheet WPL 8205124 Contact Us For Availability
1
Installation Instructions WPL 8205144 Contact Us For Availability
1
Use & Care Guide WPL 8205956 Contact Us For Availability
1
Reflector, Lamp WPL 4393688 Contact Us For Availability
2
Hook, Rack (4) WPL 8204662 Contact Us For Availability
2
Lens WPL 4393739 Contact Us For Availability
3
Latch, Door WPL 4393913 Contact Us For Availability
3
Panel, Control (Inlcudes 10) WPL 8205031 Contact Us For Availability
4
Turntable WPL 4393799 Contact Us For Availability
4
Bracket, Control WPL 8183821 Contact Us For Availability
5
Plate, Hinge WPL 4393744 Contact Us For Availability
5
Plate, Bottom WPL 8184307 Contact Us For Availability
6
Wheel, Plastic WPL 4393861 Contact Us For Availability
6
PCB Assembly WPL 8205032 Contact Us For Availability
6
Glass, Lamp WPL 8185210 Contact Us For Availability
7
Case, Outer WPL 8185093 Contact Us For Availability
7
Screw WPL 4393828 Contact Us For Availability
7
Holder, Glass WPL 8184308 Contact Us For Availability
8
Cooling Air Guide WPL 8185215 Contact Us For Availability
8
Screw WPL 4393346 Contact Us For Availability
8
TCO, Bracket Assembly WPL 8205578 Contact Us For Availability
9
Motor, Fan WPL 8184825 Contact Us For Availability
9
Foil, PCB WPL 8185122 Contact Us For Availability
10
Shield WPL 8205355 Contact Us For Availability
11
Spring, Interlock (2) WPL 8169438 Contact Us For Availability
11
Thermostat WPL 8183698 Contact Us For Availability
11
Air Guide, Sealing Plate WPL 8204996 Contact Us For Availability
12
Plate, Cam (2) WPL 8183824 Contact Us For Availability
12
Filter WPL 8169561 Contact Us For Availability
13
Screw WPL 8169474 Contact Us For Availability
14
Block, Transformer WPL 8205579 Contact Us For Availability
15
Screw WPL 4393833 Contact Us For Availability
15
Screw WPL 4393830 Contact Us For Availability
15
Air Guide, Cooling WPL 8205580 Contact Us For Availability
16
Air Guide (Left) WPL 8185115 Contact Us For Availability
17
Cover, Light WPL 8205030 Contact Us For Availability
17
Chassis (Includes 29) WPL 8205582 Contact Us For Availability
18
Holder, Lamp WPL 8169539 Contact Us For Availability
18
Cover, Motor WPL 8185090 Contact Us For Availability
18
Holder, Capacitor WPL 8185102 Contact Us For Availability
21
Transformer, H.V. WPL 8205560 Contact Us For Availability
25
Bracket, Right WPL 8205559 Contact Us For Availability
26
Capacitor WPL 8184091 Contact Us For Availability
27
Holder, Fuse WPL 8184312 Contact Us For Availability
29
Thermostat WPL 4393710 Contact Us For Availability
31
Air guide, Magnetron WPL 8205581 Contact Us For Availability
34
Screw WPL 8169478 Contact Us For Availability
37
Screw WPL 4393839 Contact Us For Availability
38
Resistor WPL 8205152 Contact Us For Availability
× ![]()
