Model Whirlpool YMER8875WB1 ELECTRIC RANGE – Common Parts & Diagrams

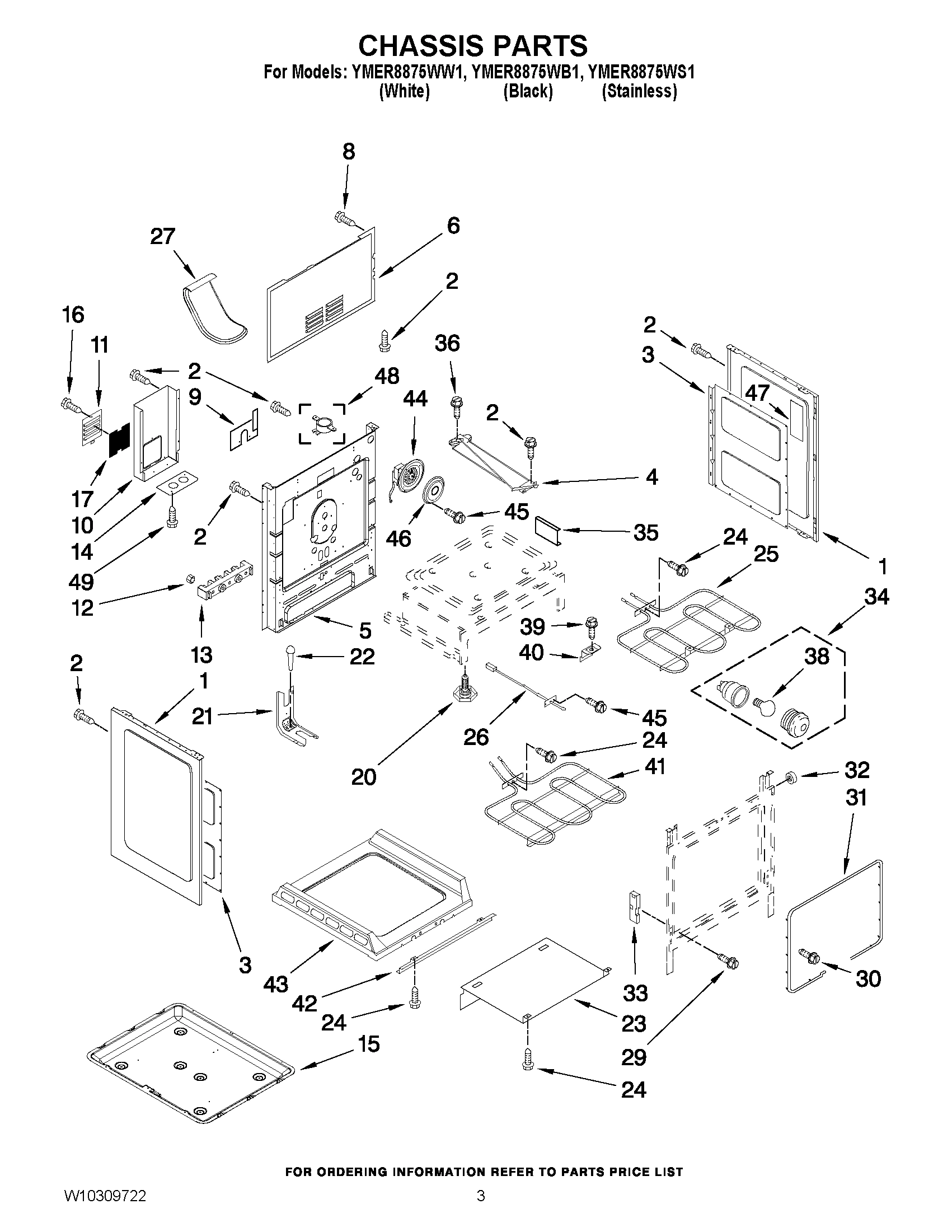

03 - CHASSIS PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)

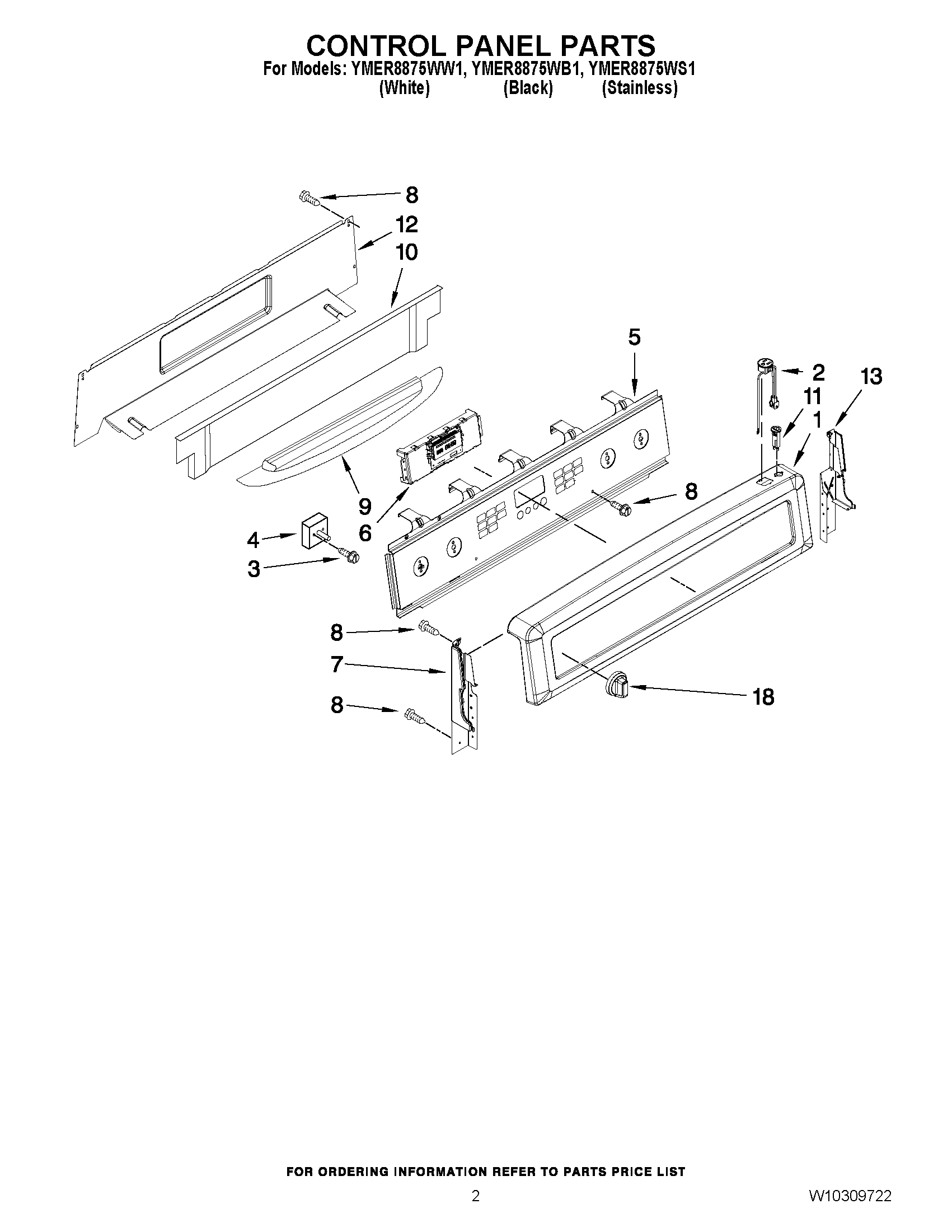

02 - CONTROL PANEL PARTS

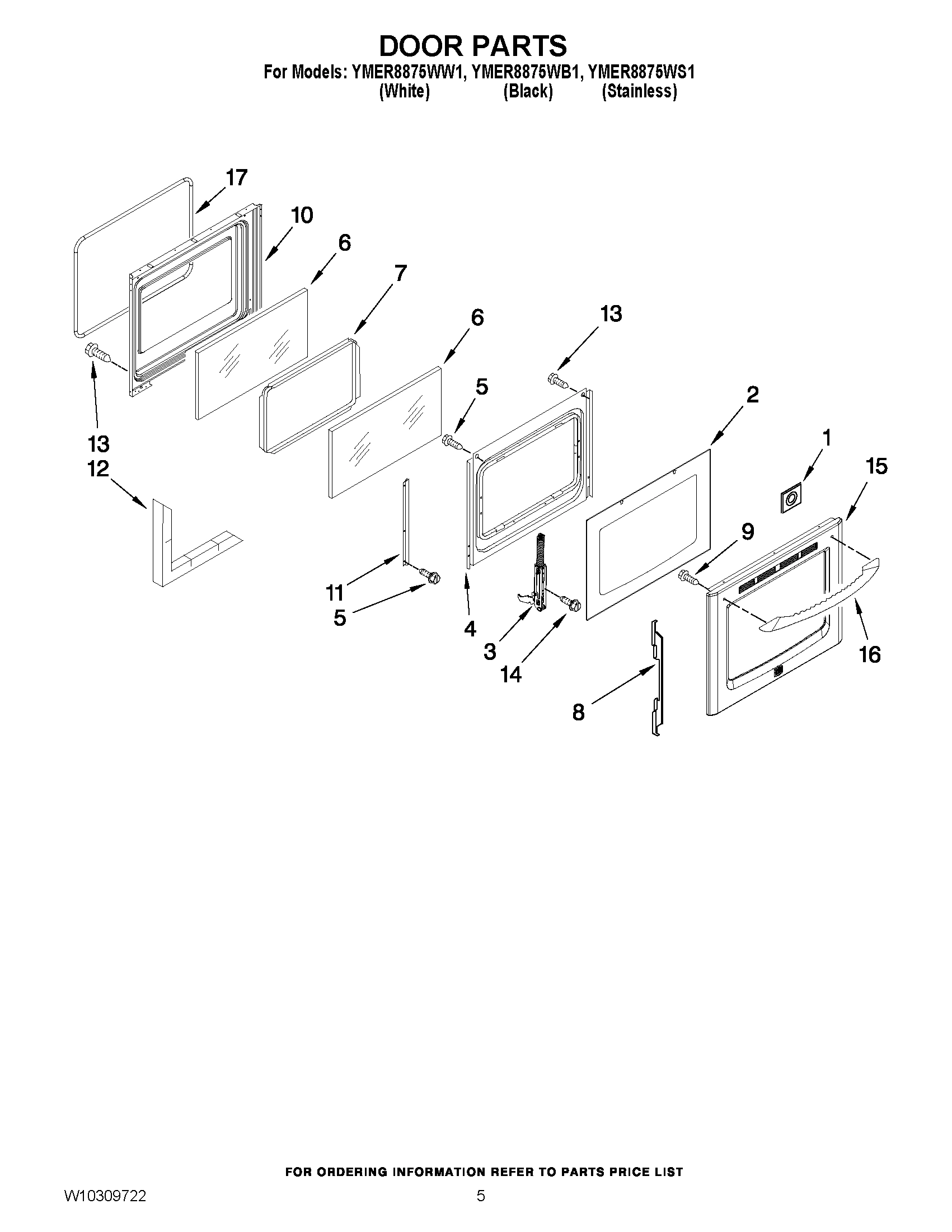

04 - DOOR PARTS

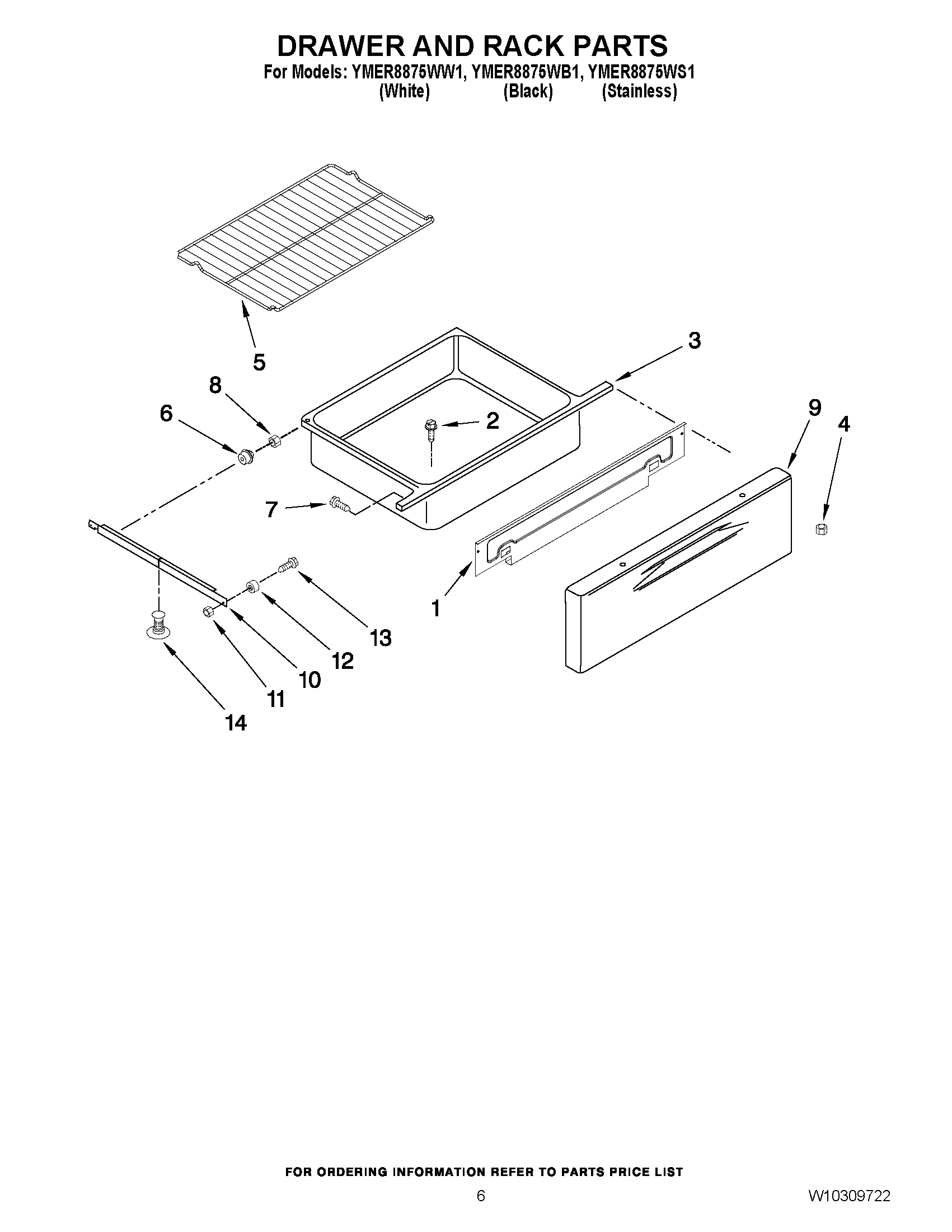

05 - DRAWER AND RACK PARTS

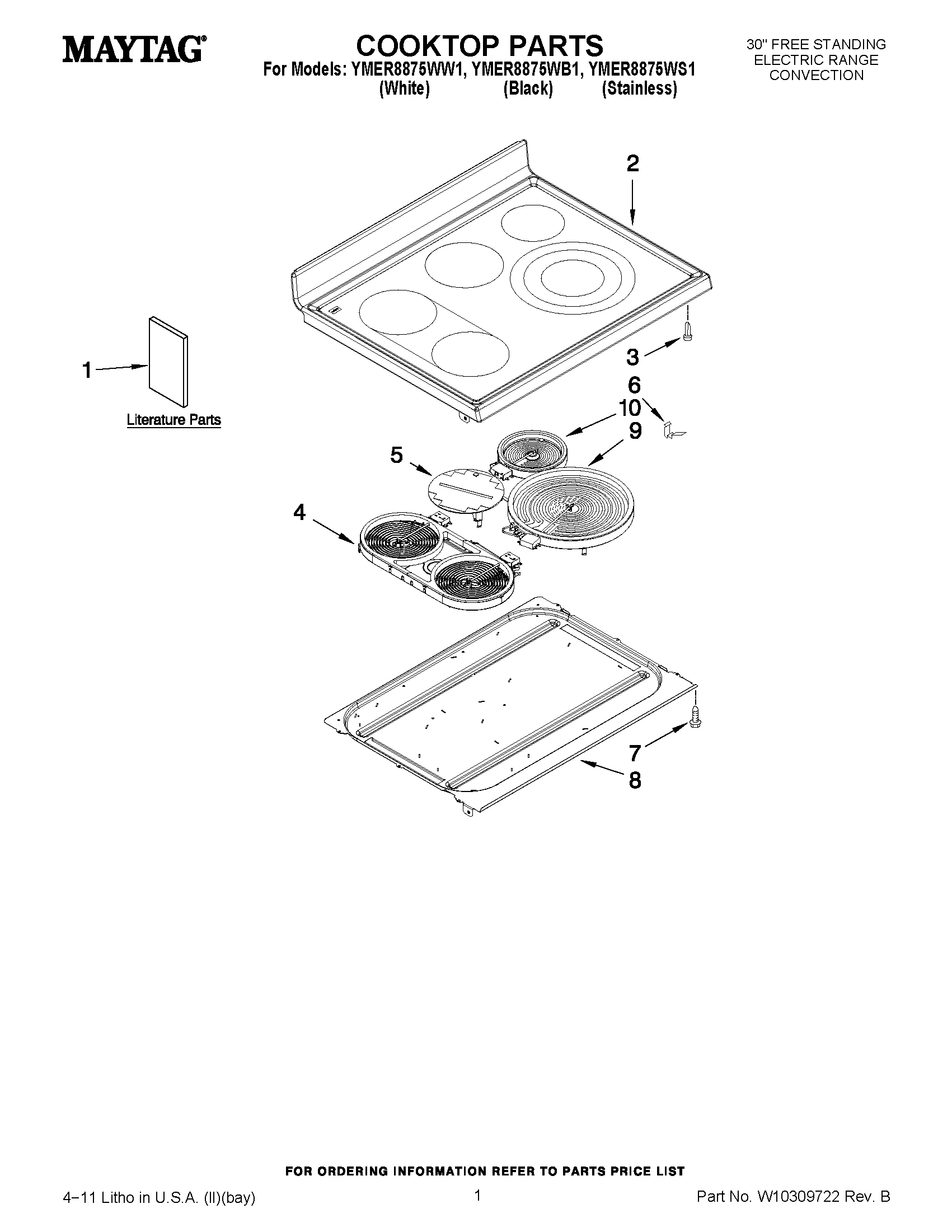

01 - COOKTOP PARTS
Common parts from model Whirlpool YMER8875WB1 ELECTRIC RANGE
1
PANEL, BACKGUARD (WHITE) WPL W10214551 Contact Us For Availability
1
PANEL, BACKGUARD (BLACK) WPL W10225556 Contact Us For Availability
1
PANEL, BACKGUARD (STAINLESS STEEL) WPL W10225557 Contact Us For Availability
1
Spacer, Handle WPL 3823F01745 Contact Us For Availability
1
PLATE, PANEL MTG. WPL 3605P33751 Contact Us For Availability
1
TIPS, SAFE COOKING (ENGLISH) WPL 9762761 Contact Us For Availability
1
TIPS, SAFE COOKING (FRENCH) WPL W10065852 Contact Us For Availability
1
USE & CARE GUIDE WPL W10239461 Contact Us For Availability
1
WIRING DIAGRAM (ENGLISH) WPL W10239470 Contact Us For Availability
1
WIRING DIAGRAM (FRENCH) WPL W10239471 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS WPL W10245713 Contact Us For Availability
2
DOOR, GLASS OVEN WPL W10181725 Contact Us For Availability
2
COOKTOP (BLACK) WPL W10106414 Contact Us For Availability
3
Hinge, Door WPL 7106P12460 Contact Us For Availability
3
DRAWER, STORAGE WPL 3405F03780 Contact Us For Availability
3
Spacer, Snap-In WPL 8010P14960 Contact Us For Availability
4
Baffel, Retainer WPL 3601F38051 Contact Us For Availability
5
ASSEMBLY, OVERLAY (STAINLESS) WPL W10214548 Contact Us For Availability
6
CONTROL WPL W10157249 Contact Us For Availability
6
Glass, Inner WPL 7902P43660 Contact Us For Availability
6
Spring, Element WPL 7803P08760 Contact Us For Availability
7
END CAP, LEFT (WHITE) WPL W10163967 Contact Us For Availability
7
END CAP, LEFT (BLACK) WPL W10163969 Contact Us For Availability
8
BRACKET, GLASS WPL 3801P91851 Contact Us For Availability
8
NUT WPL 7103P08260 Contact Us For Availability
8
BOTTOM, BURNER BOX WPL W10170717 Contact Us For Availability
9
SCREW, MOUNTING WPL W10241367 Contact Us For Availability
9
SHIELD, HEAT VISOR (BLACK) WPL 3604F38209 Contact Us For Availability
9
Shield, Heat Visor (White) WPL 3604F38281 Contact Us For Availability
9
PANEL, DRAWER (WHITE) WPL W10181695 Contact Us For Availability
9
PANEL, DRAWER (BLACK) WPL W10181696 Contact Us For Availability
9
PANEL, DRAWER (STAINLESS STEEL) WPL W10181698 Contact Us For Availability
10
Shield, Vent WPL 3604F38119 Contact Us For Availability
10
Lining, Door WPL 2402W29719 Contact Us For Availability
10
Runner, Drawer WPL 3406P03451 Contact Us For Availability
11
Bracket, Glass WPL 3801F88651 Contact Us For Availability
11
Nut, Lock WPL 7103P19060 Contact Us For Availability
12
ROLLER, DRAWER WPL W10272883 Contact Us For Availability
12
COVER, REAR WIRE WPL W10243038 Contact Us For Availability
12
Insulation, Door WPL 7002P24660 Contact Us For Availability
13
END CAP, RIGHT (WHITE) WPL W10163968 Contact Us For Availability
13
END CAP, RIGHT (BLACK) WPL W10163970 Contact Us For Availability
13
Shaft, Roller WPL 7118P03260 Contact Us For Availability
14
SCREW,(10-24X5/16) WPL 7101P28260 Contact Us For Availability
14
Stop, Drawer WPL 8038P03760 Contact Us For Availability
15
GLASS, DOOR (STAINLESS STEEL) WPL W10097300 Contact Us For Availability
15
GLASS, DOOR (WHITE) WPL W10172590 Contact Us For Availability
15
GLASS, DOOR (BLACK) WPL W10214541 Contact Us For Availability
17
GASKET, DOOR WPL W10306689 Contact Us For Availability
18
KNOB (STAINLESS STEEL) WPL W10291145 Contact Us For Availability
46
Plate, Convection WPL 3605F30519 Contact Us For Availability
47
INSULATION WPL 3804F30051 Contact Us For Availability
48
Switch, Thermal WPL 7403P85760 Contact Us For Availability
49
SCREW WPL 7101P33660 Contact Us For Availability
NI
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability
NI
Retainer, Insulation WPL 3804F31651 Contact Us For Availability
NI
STRAP, INSULATION WPL 4820F01459 Contact Us For Availability
NI
INSULATION, BOTTOM WPL 7002P36160 Contact Us For Availability
NI
Insulation, Wrap WPL 7002P36260 Contact Us For Availability
NI
Insulation, Side WPL W10182346 Contact Us For Availability
NI
INSULATION, BACK WPL W10243056 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
NI
Screw, Ground WPL 7101P02760 Contact Us For Availability
NI
BLOCK, WIRE ADAPTER WPL 7401P15760 Contact Us For Availability
NI
Clip, Wire WPL 8019P01360 Contact Us For Availability
NI
HARNESS, WIRE (MAIN) WPL W10237618 Contact Us For Availability
NI
HARNESS, WIRE (COOKTOP RIGHT) WPL W10237619 Contact Us For Availability
NI
HARNESS, WIRE (COOKTOP LEFT) WPL W10237622 Contact Us For Availability
NI
HARNESS, WIRE (BRIDGE) WPL W10237625 Contact Us For Availability
× ![]()
