Model Whirlpool YKHMS155LSS2 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams

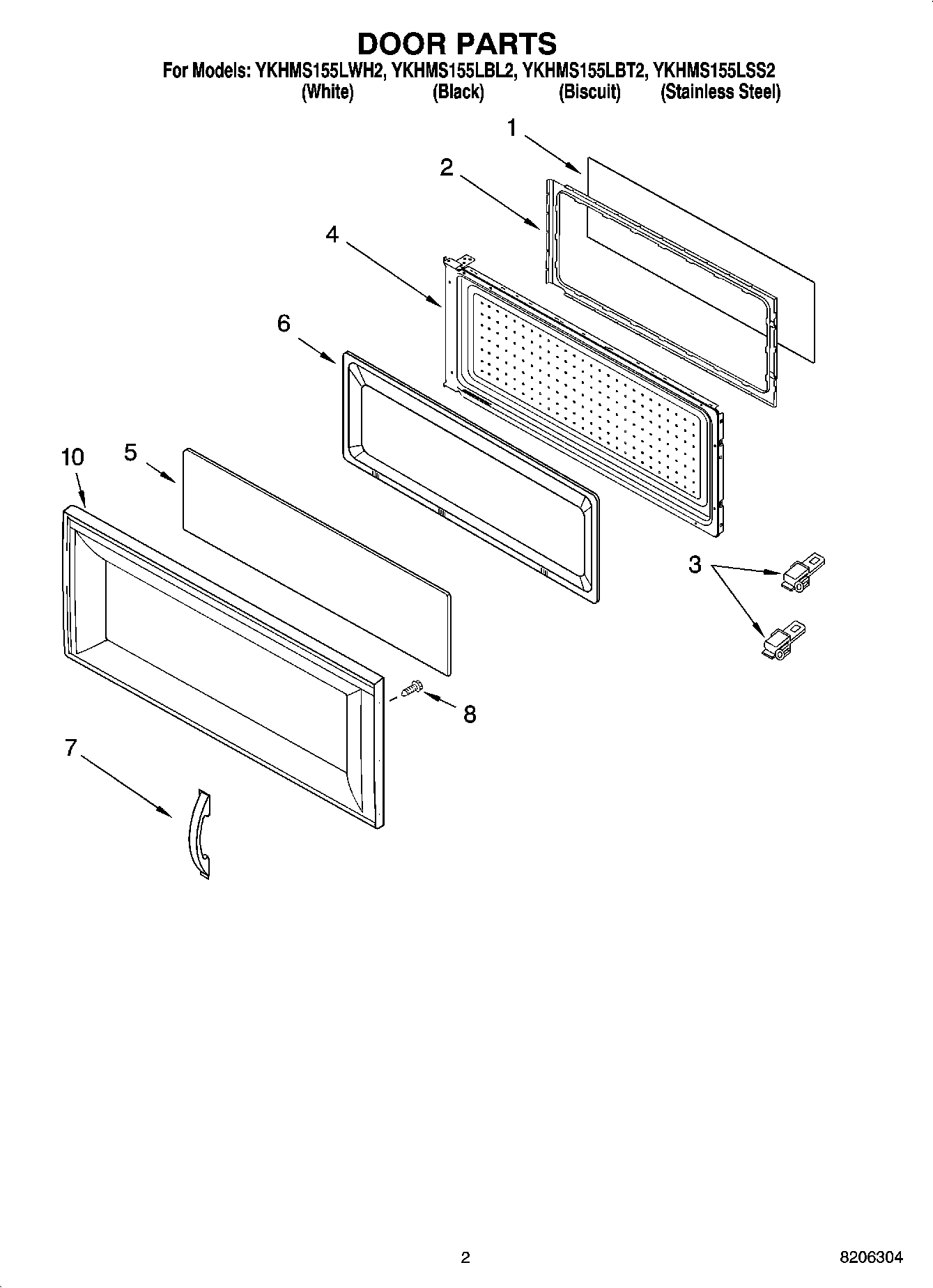

02 - DOOR PARTS

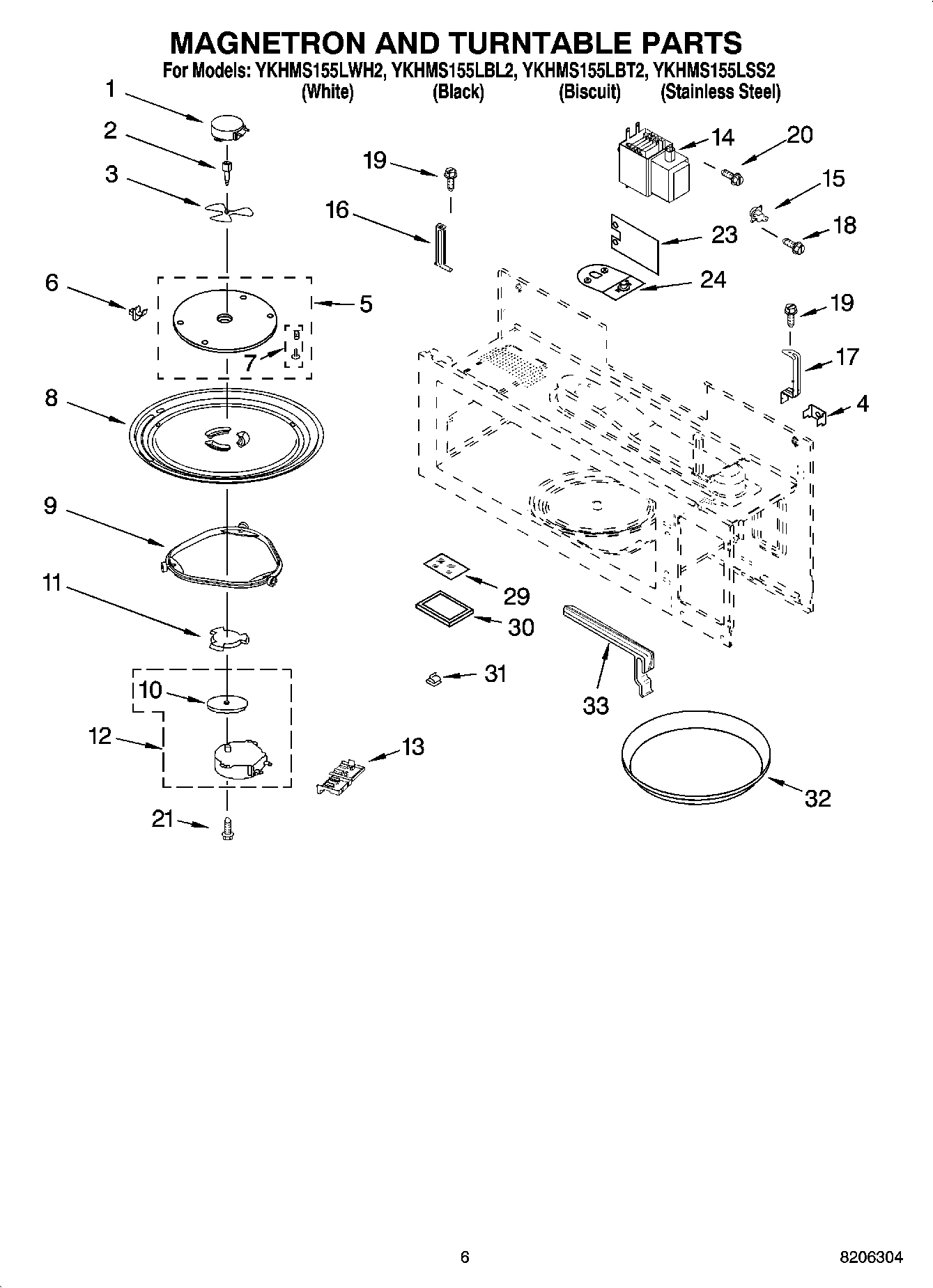

05 - MAGNETRON AND TURNTABLE PARTS

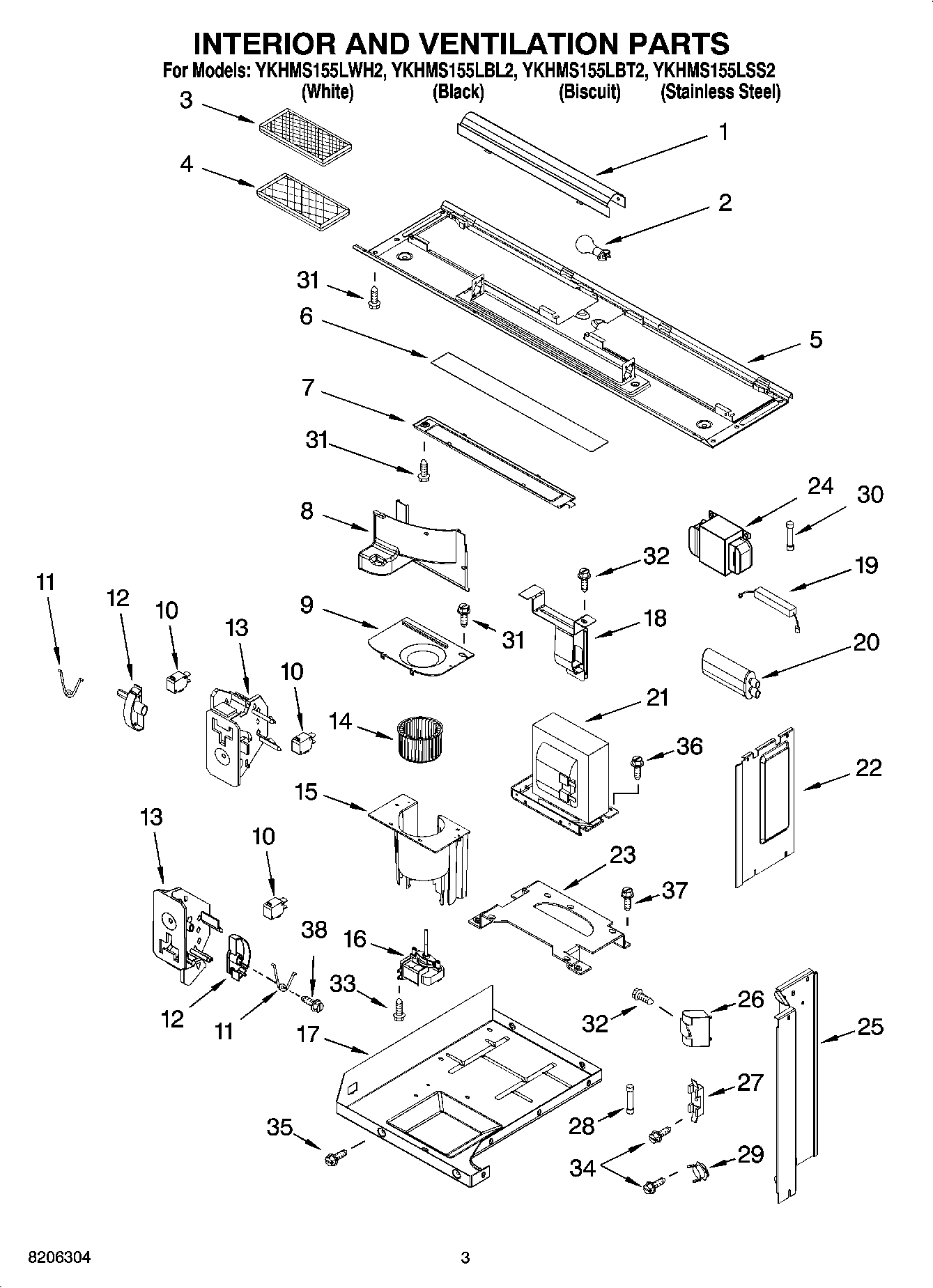

03 - INTERIOR AND VENTILATION PARTS

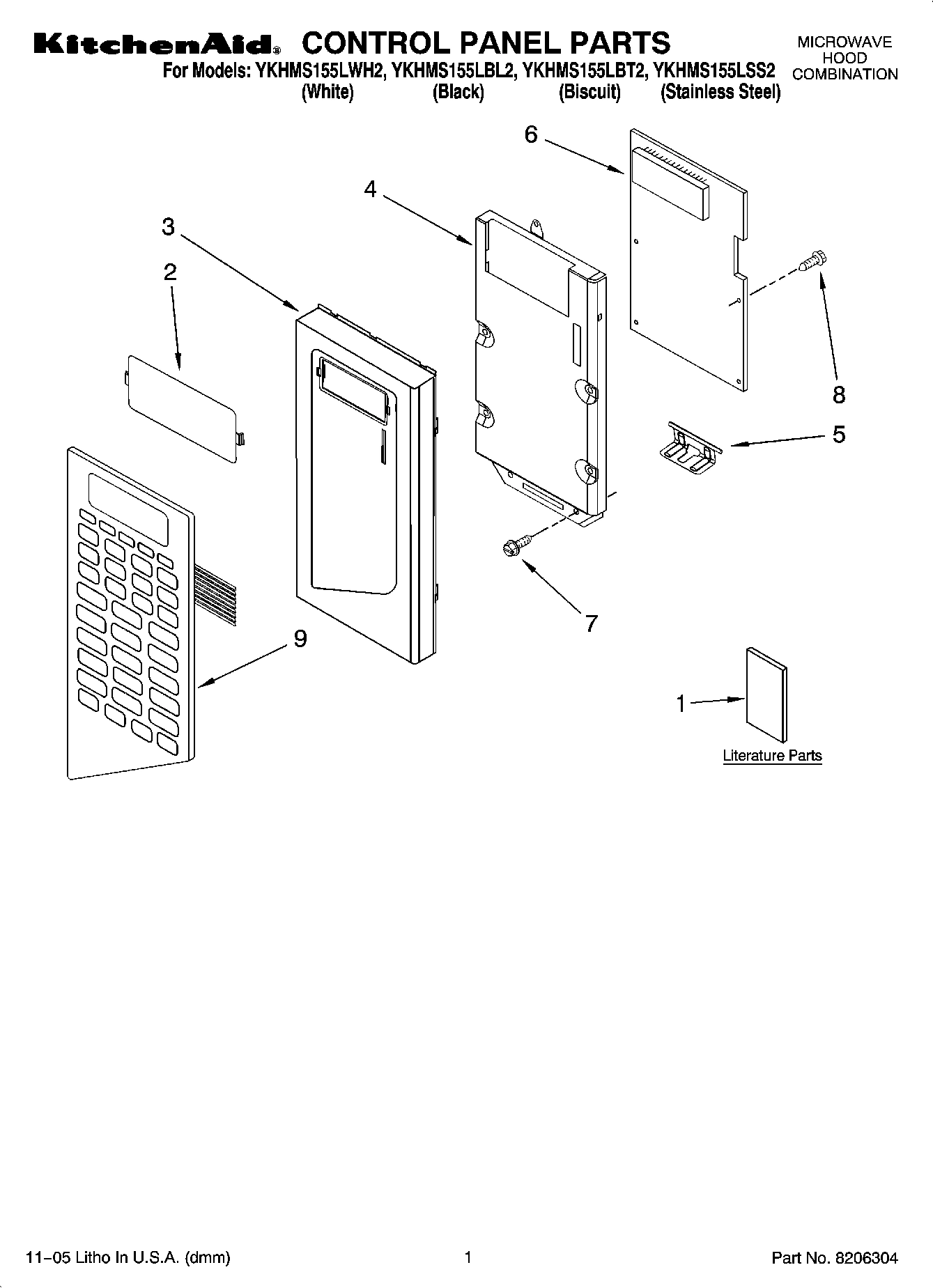

01 - CONTROL PANEL PARTS

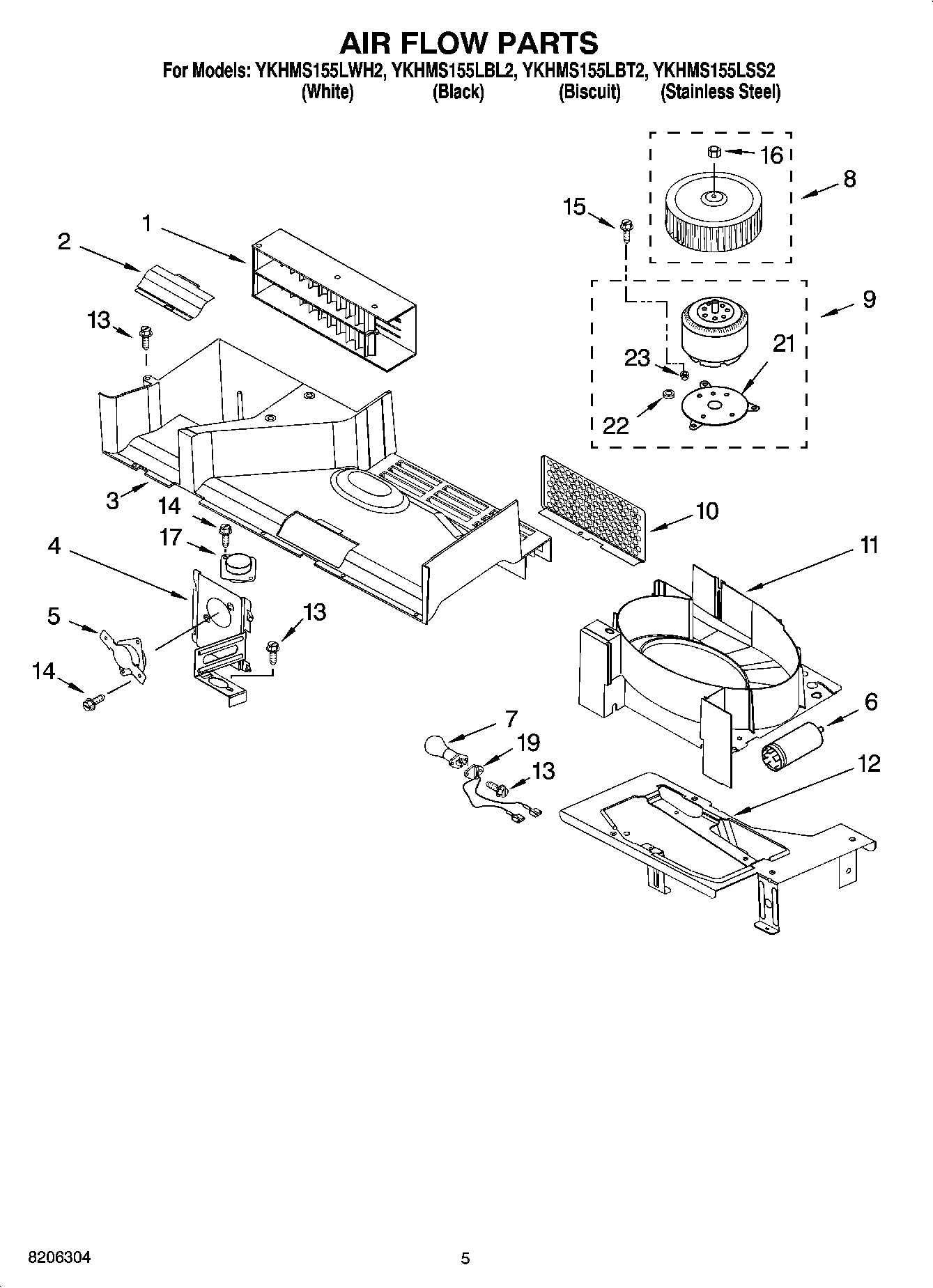

04 - AIR FLOW PARTS

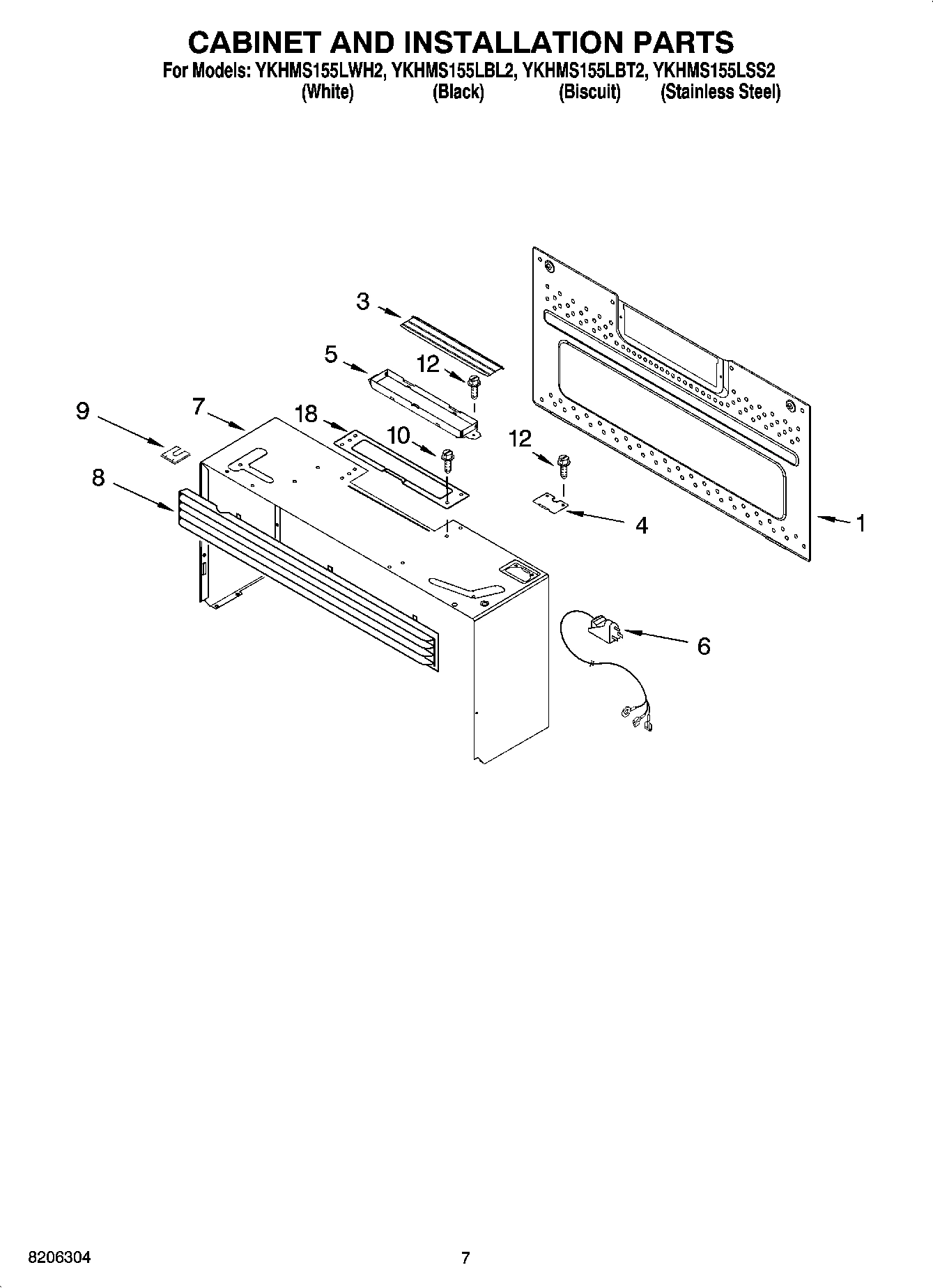

06 - CABINET AND INSTALLATION PARTS
Common parts from model Whirlpool YKHMS155LSS2 MICROWAVE HOOD COMBINATION
Installation, Hardware WPL 8205947 Contact Us For Availability
Upper Cab Template WPL 8183734 Contact Us For Availability
Rack WPL 8204725 Contact Us For Availability
Miscellaneous WPL ARI138800A Contact Us For Availability
1
Reflector, Lamp WPL 8169652 Contact Us For Availability
1
Installation Instructions WPL 8183879 Contact Us For Availability
1
Cooking Guide Label (English) WPL 8185496 Contact Us For Availability
1
Tech Sheet WPL 8185497 Contact Us For Availability
1
Cooking Guide Label (French) WPL 8204749 Contact Us For Availability
1
Use & Care Guide WPL 8205951 Contact Us For Availability
1
Deflector, Air WPL 8184638 Contact Us For Availability
2
Frame, Inner WPL 8169545 Contact Us For Availability
2
Lens WPL 4393905 Contact Us For Availability
2
Reflector, Air WPL 8169557 Contact Us For Availability
3
Latch, Door WPL 4393913 Contact Us For Availability
3
Panel, Control (White) WPL 8169729 Contact Us For Availability
3
Panel, Control (Black) WPL 8169730 Contact Us For Availability
3
Panel, Control (Stainless) WPL 8169731 Contact Us For Availability
3
Panel, Control (Biscuit) WPL 8169732 Contact Us For Availability
3
Duct, Air WPL 8185083 Contact Us For Availability
4
Body, Door (White) WPL 8169653 Contact Us For Availability
4
Bracket, Control WPL 8183821 Contact Us For Availability
4
Bracket, Thermostat WPL 8204653 Contact Us For Availability
4
Lid, Power Cord WPL 8184313 Contact Us For Availability
5
Glass, Outer (Clear (Green Tint)) WPL 4393725 Contact Us For Availability
5
Thermostat WPL 8183697 Contact Us For Availability
5
Plate, Bottom WPL 8184307 Contact Us For Availability
5
Plate, Hinge WPL 4393744 Contact Us For Availability
6
Hook, Rack (4) WPL 8204662 Contact Us For Availability
6
Glass, Lamp WPL 8169564 Contact Us For Availability
6
PCB Assembly WPL 8183822 Contact Us For Availability
6
Filter WPL 8169561 Contact Us For Availability
7
Holder, Glass WPL 8184308 Contact Us For Availability
7
Screw WPL 4393828 Contact Us For Availability
7
Case, Outer (White) WPL 8169660 Contact Us For Availability
7
Case, Outer (Black) WPL 8169661 Contact Us For Availability
7
Case, Outer (Biscuit) WPL 8169664 Contact Us For Availability
8
Turntable WPL 4393799 No Longer Available
8
Grille, Vent (White) WPL 8184148 Contact Us For Availability
8
Grille, Vent (Biscuit) WPL 8184146 Contact Us For Availability
8
Guide, Air (Magnetron) WPL 8184309 Contact Us For Availability
8
Screw WPL 4393346 Contact Us For Availability
8
Wheel, Fan WPL 8204694 Contact Us For Availability
8
Grille, Vent (Stainless) WPL 8184317 Contact Us For Availability
9
Cover, Fan WPL 8183823 Contact Us For Availability
9
Switch, Membrane (White) WPL 8169726 Contact Us For Availability
9
Switch, Membrane (Black) WPL 8169727 Contact Us For Availability
9
Switch, Membrane (Biscuit) WPL 8169728 Contact Us For Availability
9
Motor, Fan WPL 8169632 Contact Us For Availability
10
Frame, Outer (Black) WPL 8184592 Contact Us For Availability
10
Frame, Outer (White) WPL 8184149 Contact Us For Availability
10
Frame, Outer (Biscuit) WPL 8184744 Contact Us For Availability
10
Switch, Micro WPL 8204656 Contact Us For Availability
10
Shield WPL 8204754 Contact Us For Availability
11
Spring, Interlock WPL 8169438 Contact Us For Availability
11
Housing, Fan WPL 8185085 Contact Us For Availability
12
Plate, Cam WPL 8183824 Contact Us For Availability
12
Bracket, Fan (Not Serviced) WPL ARI138799A Contact Us For Availability
13
Screw WPL 8169474 Contact Us For Availability
14
Wheel, Fan WPL 8183825 Contact Us For Availability
14
Screw WPL 4393316 Contact Us For Availability
15
Thermostat WPL 8183698 Contact Us For Availability
15
Housing, Fan WPL 8184310 Contact Us For Availability
15
Screw WPL 4393830 Contact Us For Availability
16
Motor, Fan WPL 8183826 Contact Us For Availability
16
Nut WPL 8184404 Contact Us For Availability
17
Chassis WPL 8185212 Contact Us For Availability
17
Humidity, Sensor WPL 4393808 Contact Us For Availability
18
Holder, Capacitor WPL 8184311 Contact Us For Availability
18
Plate, Damper WPL 8169697 Contact Us For Availability
19
Holder, Lamp WPL 8185084 Contact Us For Availability
21
Transformer, H.V. WPL 8206252 Contact Us For Availability
21
Adapter, Motor WPL 8184000 Contact Us For Availability
22
Plate, Damper WPL 4393874 Contact Us For Availability
23
Cushion, Mtr WPL 8169635 Contact Us For Availability
23
Bracket, Transformer WPL 4393706 Contact Us For Availability
24
Transformer, L.V. WPL 8185003 Contact Us For Availability
25
Plate, Side (L) WPL 8204657 Contact Us For Availability
26
Capacitor WPL 4393709 Contact Us For Availability
27
Holder, Fuse WPL 8184312 Contact Us For Availability
29
Thermostat WPL 8183703 Contact Us For Availability
30
Frame, Glass WPL 8169646 Contact Us For Availability
30
Fuse (5 Amp) WPL 8169702 Contact Us For Availability
33
Screw WPL 4393833 Contact Us For Availability
34
Screw WPL 8169478 Contact Us For Availability
35
Screw WPL 8169475 Contact Us For Availability
37
Screw WPL 4393839 Contact Us For Availability
× ![]()
