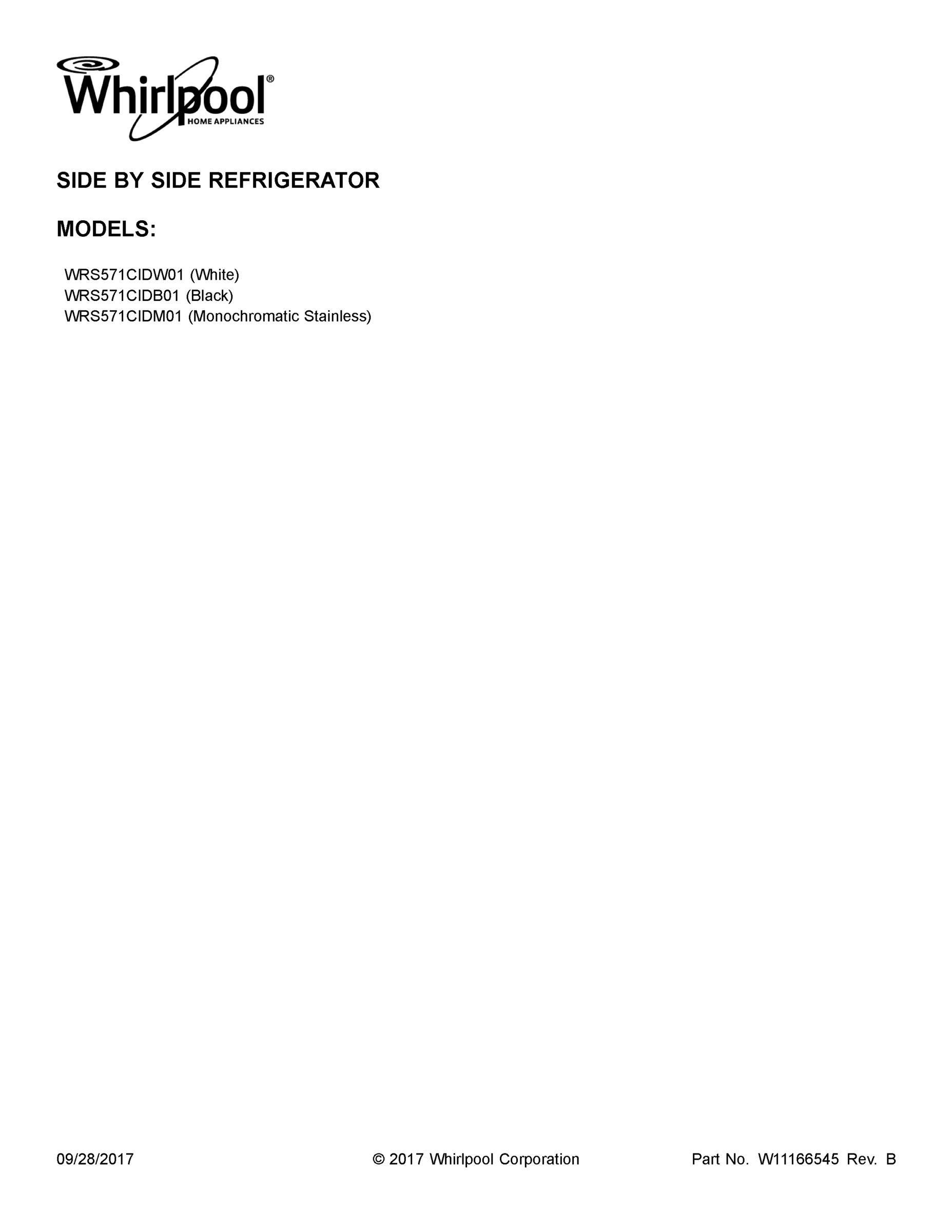

Model Whirlpool WRS571CIDB01 REFRIGERATOR, SIDE-BY-SIDE – Common Parts &amp; Diagrams

1

FAN-SCROLL Backorder WPL W11807265 $20.18

2

W10836801 Whirlpool Refrigerator Drawer Cover Backorder WPL W10836801 $114.65

2

W11652042 Whirlpool Bin Latch Backorder WPL W11652042 $13.58

2

W11671527 Whirlpool Retainer Assembly Backorder WPL W11671527 $13.91

2

WPW10256775 Whirlpool Refrigerator Pan Trim Backorder WPL WPW10256775 $68.83

2

WPW10527271 Whirlpool Refrigerator Door Shelf Backorder WPL WPW10527271 $95.99

2A

WPW10276221 Whirlpool Refrigerator Grille Backorder WPL WPW10276221 $39.13

2A

WPW10710203 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10710203 $32.66

2B

WPW10276223 Whirlpool Refrigerator Grille Backorder WPL WPW10276223 $39.03

3

W10174827 Whirlpool Refrigerator Bracket Backorder WPL W10174827 $51.99

3

W11501035 Whirlpool Refrigerator Filter Cover Backorder WPL W11501035 $9.02

3

W11708426 Whirlpool Condenser Assembly In Stock WPL W11708426 $165.97

3

W11746089 Whirlpool Slide Backorder WPL W11746089 $18.64

3

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $14.99

3

DUCT, UPPER AIR WPL W10260380 Contact Us For Availability

4

WPW10258544 Whirlpool Refrigerator Shaft In Stock WPL WPW10258544 $17.99

4

WPW10296855 Whirlpool Refrigerator Door Bin In Stock WPL WPW10296855 $62.47

4

WPW10435760 Whirlpool Refrigerator Ice Guide In Stock WPL WPW10435760 $17.95

4A

WPW10451873 Whirlpool Door Shelf Bin In Stock WPL WPW10451873 $78.99

5

2212996 Whirlpool Refrigerator Retainer Backorder WPL 2212996 $8.05

5

W10260378 Whirlpool Refrigerator Air Duct Backorder WPL W10260378 $76.63

5

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $15.99

5

WPW10205978 Whirlpool Motor In Stock WPL WPW10205978 $70.82

5

WPW10247884 Whirlpool Refrigerator FIP Gasket Backorder WPL WPW10247884 $231.76

5

WPW10457601 Whirlpool Refrigerator Support Backorder WPL WPW10457601 $103.33

5

WPW10508334 Whirlpool Refrigerator Cover Backorder WPL WPW10508334 $148.99

5A

WPW10249912 Whirlpool Refrigerator FIP Gasket In Stock WPL WPW10249912 $227.99

6

W10848410 Whirlpool Refrigerator Handle Backorder WPL W10848410 $128.93

6

W11106313 Whirlpool Refrigerator Freezer Bin Backorder WPL W11106313 $111.99

6

W11208384 Whirlpool Refrigerator Rivet Backorder WPL W11208384 $11.62

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

6

W11551764 Whirlpool Snack Pan In Stock WPL W11551764 $70.95

6

W11573761 Whirlpool Mounting Bracket In Stock WPL W11573761 $28.54

6

WPW10296857 Whirlpool Refrigerator Cantilever In Stock WPL WPW10296857 $65.99

6A

WPW10430639 Whirlpool Cantilever Bin In Stock WPL WPW10430639 $90.79

7

W11164152 Whirlpool Drawer Roller In Stock WPL W11164152 $8.83

7

W11293072 Whirlpool Refrigerator Extension Backorder WPL W11293072 $21.54

7

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $6.59

7

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $244.60

7

WPW10277958 Whirlpool Refrigerator Fitting In Stock WPL WPW10277958 $47.99

7

WPW10346124 Whirlpool Refrigerator Support In Stock WPL WPW10346124 $28.47

8

W11175807 Whirlpool Axle Assembly In Stock WPL W11175807 $9.96

8

W11266052 Whirlpool Refrigerator Bracket Backorder WPL W11266052 $45.11

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $4.82

8

WPW10247885 Whirlpool Door Gasket Backorder WPL WPW10247885 $240.61

8

WPW10271543 Whirlpool Refrigerator Connector In Stock WPL WPW10271543 $18.93

8

WPW10291905 Whirlpool Seal In Stock WPL WPW10291905 $13.99

8A

WPW10249913 Whirlpool Refrigerator FIP Gasket In Stock WPL WPW10249913 $229.99

9

W10240370 Whirlpool Refrigerator Gasket Backorder WPL W10240370 $16.76

9

W11236850 Whirlpool Refrigerator Pan Trim Backorder WPL W11236850 $56.75

9

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $14.75

9

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $9.86

9

WPW10248011 Whirlpool Refrigerator White Door Backorder WPL WPW10248011 $9.99

9

WPW10248015 Whirlpool Refrigerator Door Cam Backorder WPL WPW10248015 $8.58

9

WPW10292504 Whirlpool Crisper Pan In Stock WPL WPW10292504 $122.99

9

WPW10457603 Whirlpool Refrigerator Cover In Stock WPL WPW10457603 $53.98

9A

W11607100 Whirlpool Refrigerator Thimble Cam In Stock WPL W11607100 $8.48

9A

WPW10257201 Whirlpool Door Closing Cam In Stock WPL WPW10257201 $18.45

9A

RING, TRIM (BLACK) WPL W10276187 Contact Us For Availability

9B

W10276227 Whirlpool Refrigerator Dispense Tri Backorder WPL W10276227 $42.83

W11202789 Whirlpool Auger Motor In Stock WPL W11202789 $195.85

W11293380 Whirlpool Refrigerator Bracket Backorder WPL W11293380 $42.99

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $17.77

W11613294 Whirlpool Refrigerator Reservoir Backorder WPL W11613294 $35.72

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WPW10197428 Whirlpool Start Device In Stock WPL WPW10197428 $49.99

WPW10256854 Whirlpool Refrigerator Meat Pan In Stock WPL WPW10256854 $120.95

WPW10308750 Whirlpool Refrigerator Screw Backorder WPL WPW10308750 $49.86

10A

WPW10308751 Whirlpool Screw Backorder WPL WPW10308751 $5.24

W11126296 Whirlpool Refrigerator Front Cover Backorder WPL W11126296 $77.50

W11232019 Whirlpool Refrigerator Clip Backorder WPL W11232019 $7.27

W11311688 Whirlpool Refrigerator Tube Backorder WPL W11311688 $56.29

WPW10758681-includeCORE Whirlpool WPW10758681 Backorder WPL WPW10758681-includeCORE $311.86

W10166854 Whirlpool Refrigerator Gasket Backorder WPL W10166854 $16.84

W10632059 Whirlpool Refrigerator Wire Cover Backorder WPL W10632059 $14.73

W11566475 Whirlpool Refrigerator Wire Harness In Stock WPL W11566475 $42.99

WPW10269099 Whirlpool Refrigerator Light Lens Backorder WPL WPW10269099 $84.13

WPW10370593 Whirlpool Refrigerator Pad Backorder WPL WPW10370593 $211.98

WPW10511975 Whirlpool Refrigerator Nameplate Backorder WPL WPW10511975 $52.31

12A

W10901052 Whirlpool Refrigerator Door Hinge Backorder WPL W10901052 $47.39

12A

WPW10370592 Whirlpool Refrigerator Pad Backorder WPL WPW10370592 $167.89

12A

WPW10511972 Whirlpool Refrigerator Nameplate Backorder WPL WPW10511972 $51.47

12B

W11590581 Whirlpool Refrigerator Door Hinge Backorder WPL W11590581 $14.45

12B

WPW10370594 Whirlpool Refrigerator Pad In Stock WPL WPW10370594 $205.68

W10276193 Whirlpool Refrigerator Disp Tray Backorder WPL W10276193 $47.26

W11123943 Whirlpool Refrigerator Switch In Stock WPL W11123943 $19.94

W11366418 Whirlpool Screw In Stock WPL W11366418 $11.84

W11573587 Whirlpool Refrigerator Door Hinge Backorder WPL W11573587 $14.13

W11678273 Whirlpool Bracket Backorder WPL W11678273 $45.11

WPW10350564 Whirlpool Refrigerator Freezer Ca In Stock WPL WPW10350564 $74.46

13A

W10276194 Whirlpool Refrigerator Drip Tray Backorder WPL W10276194 $47.18

13A

W11568758 Whirlpool Top Hinge Backorder WPL W11568758 $14.13

13B

W11246841 Whirlpool Refrigerator Drip Tray Backorder WPL W11246841 $41.02

13B

W11409290 Whirlpool Top Hinge In Stock WPL W11409290 $42.99

W10276229 Whirlpool Refrigerator Escutcheon Backorder WPL W10276229 $186.15

W10789144 Whirlpool Refrigerator Wire Cover In Stock WPL W10789144 $12.20

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $7.55

WPW10425252 Whirlpool Refrigerator Cover In Stock WPL WPW10425252 $53.95

14A

W10789145 Whirlpool Refrigerator Wire Cover Backorder WPL W10789145 $12.20

14B

WPW10308489 Whirlpool Refrigerator Screw Backorder WPL WPW10308489 $4.90

W10260382 Whirlpool Refrigerator Cover Backorder WPL W10260382 $54.82

W11293373 Whirlpool Refrigerator Door Hinge Backorder WPL W11293373 $45.13

WPW10269101 Whirlpool Refrigerator Light Lens Backorder WPL WPW10269101 $73.09

WPW10324760 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10324760 $72.69

WPW10386778 Whirlpool Refrigerator Water Tube Backorder WPL WPW10386778 $87.26

WPW10394053 Whirlpool Refrigerator Housing In Stock WPL WPW10394053 $148.99

15A

W10249941 Whirlpool Refrigerator Door Hinge Backorder WPL W10249941 $53.62

15B

W11293374 Whirlpool Refrigerator Door Hinge Backorder WPL W11293374 $45.13

16

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $11.79

16

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $250.47

17

W11311685 Whirlpool Refrigerator Door Cam Backorder WPL W11311685 $8.11

17

CLIP, DEFROST HEATER WPL 2161324 Contact Us For Availability

17A

W11311686 Whirlpool Closing Cam In Stock WPL W11311686 $10.85

19

W10714793 Whirlpool Refrigerator Evaporator T In Stock WPL W10714793 $111.79

20

W10257238 Whirlpool Refrigerator Cover Unit Backorder WPL W10257238 $62.75

21

12587703W Whirlpool Refrigerator Cover Backorder WPL 12587703W $14.02

21

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $17.56

21B

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $4.82

22

W11676780 Whirlpool Refrigerator Wire Harness Backorder WPL W11676780 $44.99

22

WPW10713160 Whirlpool Refrigerator Grille Backorder WPL WPW10713160 $90.47

22A

WPW10713158 Whirlpool Refrigerator Grille Backorder WPL WPW10713158 $66.95

22B

WPW10713153 Whirlpool Refrigerator Grille In Stock WPL WPW10713153 $85.99

23

BASEPAN WPL W10277704 Contact Us For Availability

24

WPW10242407 Whirlpool Refrigerator Power Cord Backorder WPL WPW10242407 $55.08

24A

W10770895 Whirlpool Refrigerator Door Cam Backorder WPL W10770895 $10.07

25

WPW10251467 Whirlpool Refrigerator Air Baffle Backorder WPL WPW10251467 $57.68

26

WPW10279882 Whirlpool Water Line In Stock WPL WPW10279882 $58.82

26

WPW10495967 Whirlpool Refrigerator Heater In Stock WPL WPW10495967 $101.77

27

WPW10279884 Whirlpool Water Tube In Stock WPL WPW10279884 $76.47

27

COVER, UNIT BOTTOM WPL W10284726 Contact Us For Availability

28

W10370680 Whirlpool Refrigerator Fitting Backorder WPL W10370680 $23.79

30

W10815861 Whirlpool Refrigerator Clip Backorder WPL W10815861 $10.00

31

W10236396 Whirlpool Refrigerator Strap In Stock WPL W10236396 $13.74

32

WPW10247993 Whirlpool Refrigerator Control Bo In Stock WPL WPW10247993 $80.71

33

W10782424 Whirlpool Refrigerator Ring Backorder WPL W10782424 $15.41

33A

W10782423 Whirlpool Refrigerator Ring Backorder WPL W10782423 $15.41

37

WPW10341320 Whirlpool Refrigerator Inlet Valv In Stock WPL WPW10341320 $176.99

39

W11545866 Whirlpool Refrigerator Clip Backorder WPL W11545866 $7.27

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4318168 Whirlpool Refrigerator Primary Permag In Stock WPL 4318168 $34.50

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $37.84

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $49.86

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

PAINT, TOUCH-UP (1/2OZ. GRAPHITE) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8") WPL 978029 Contact Us For Availability

MISCELLANEOUS, TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE (UNCUT)) WPL 799344 Contact Us For Availability

TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability
