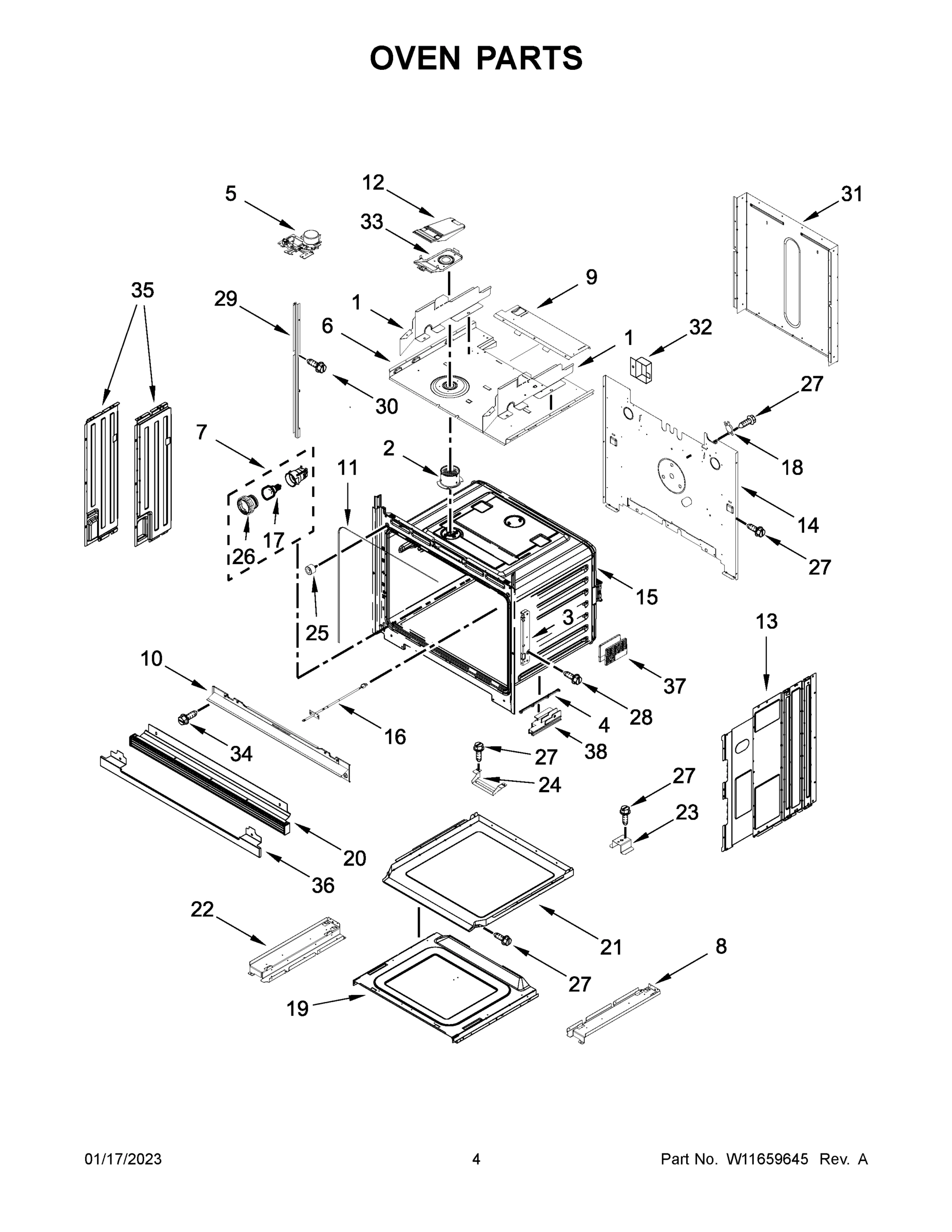

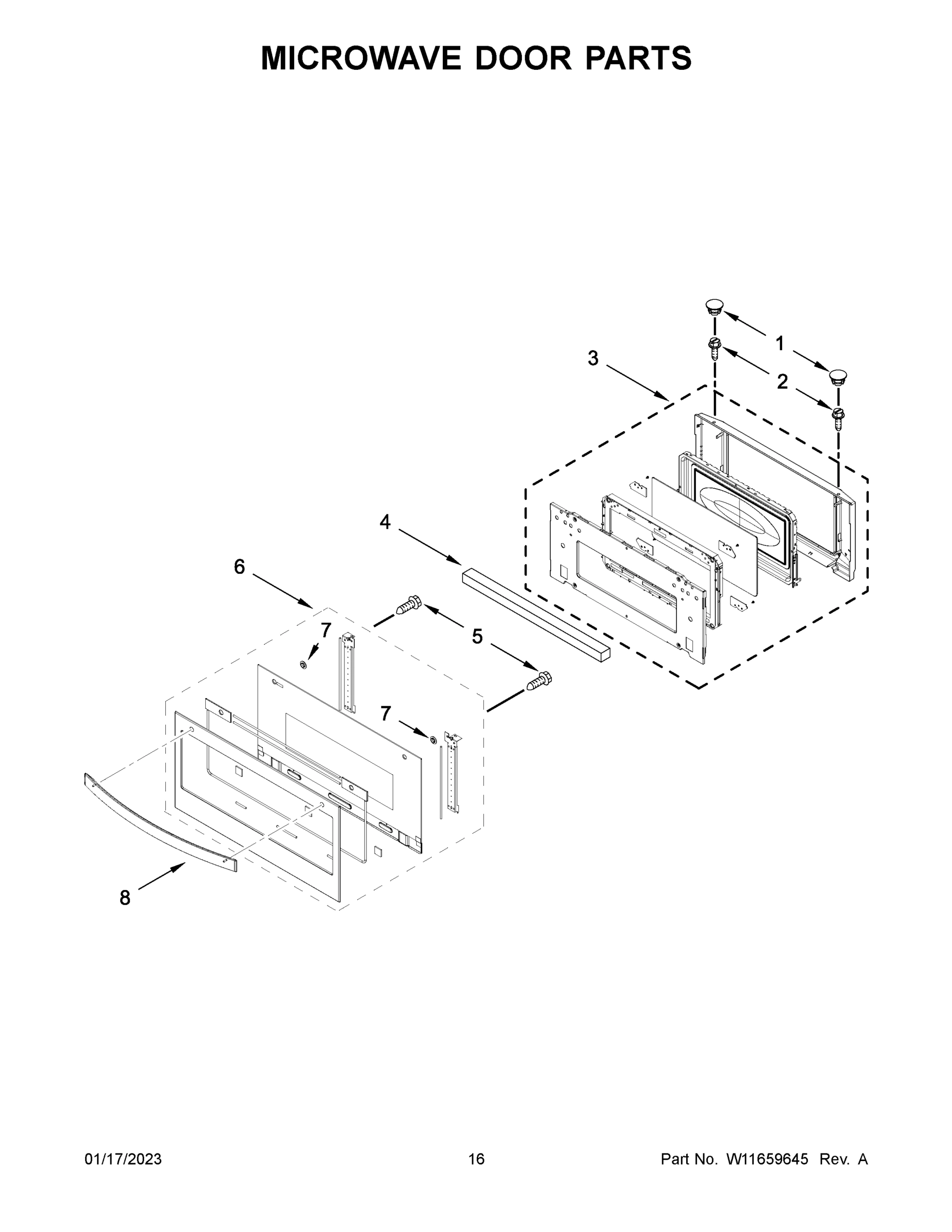

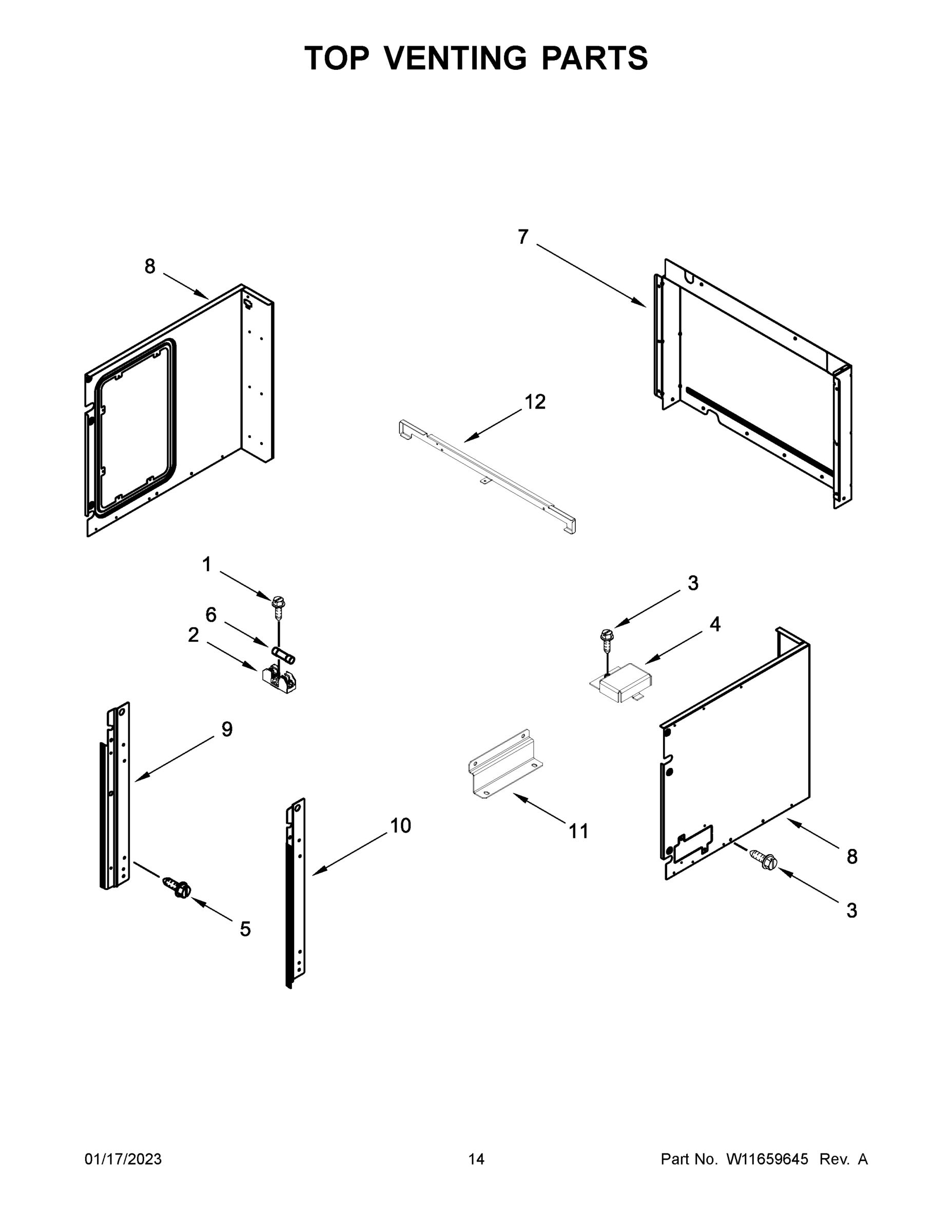

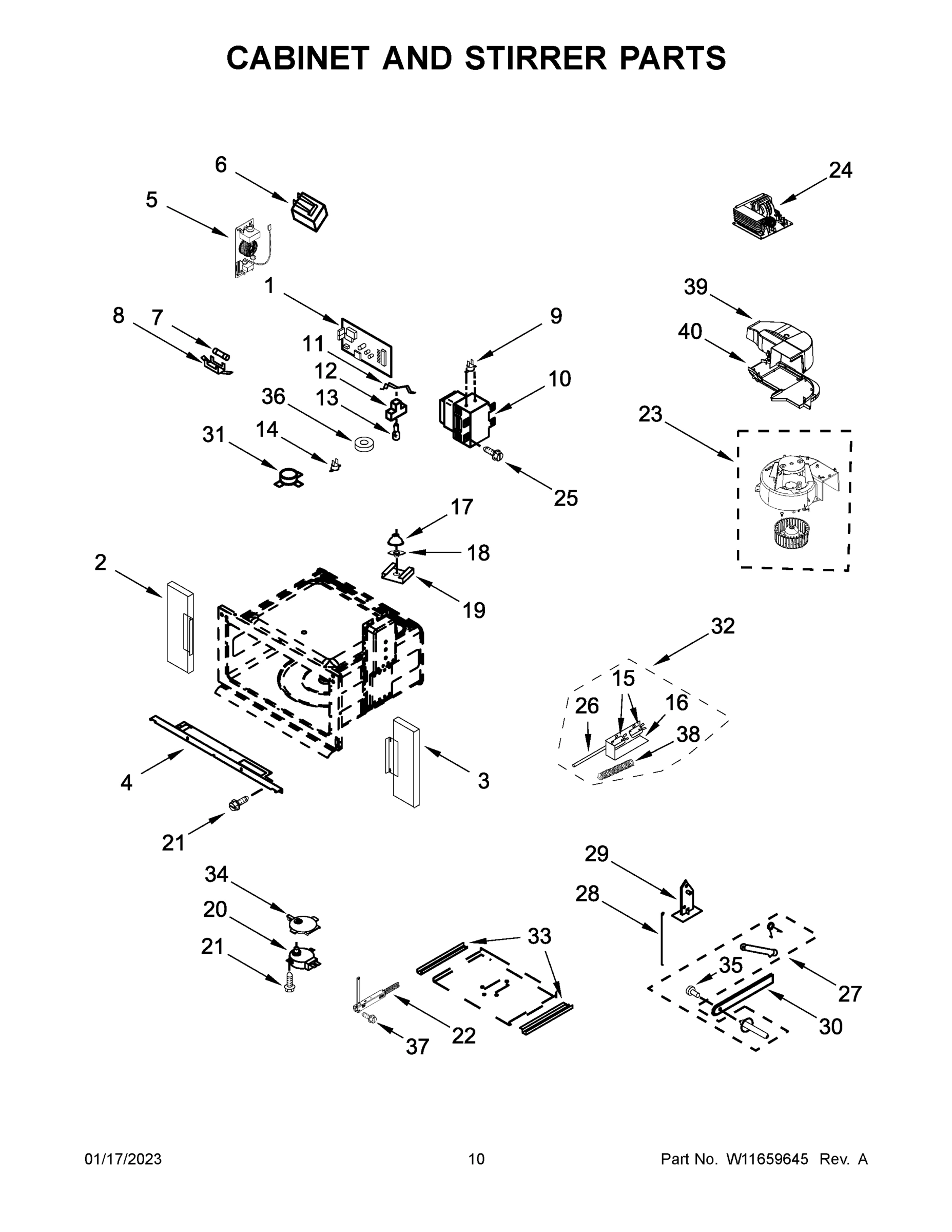

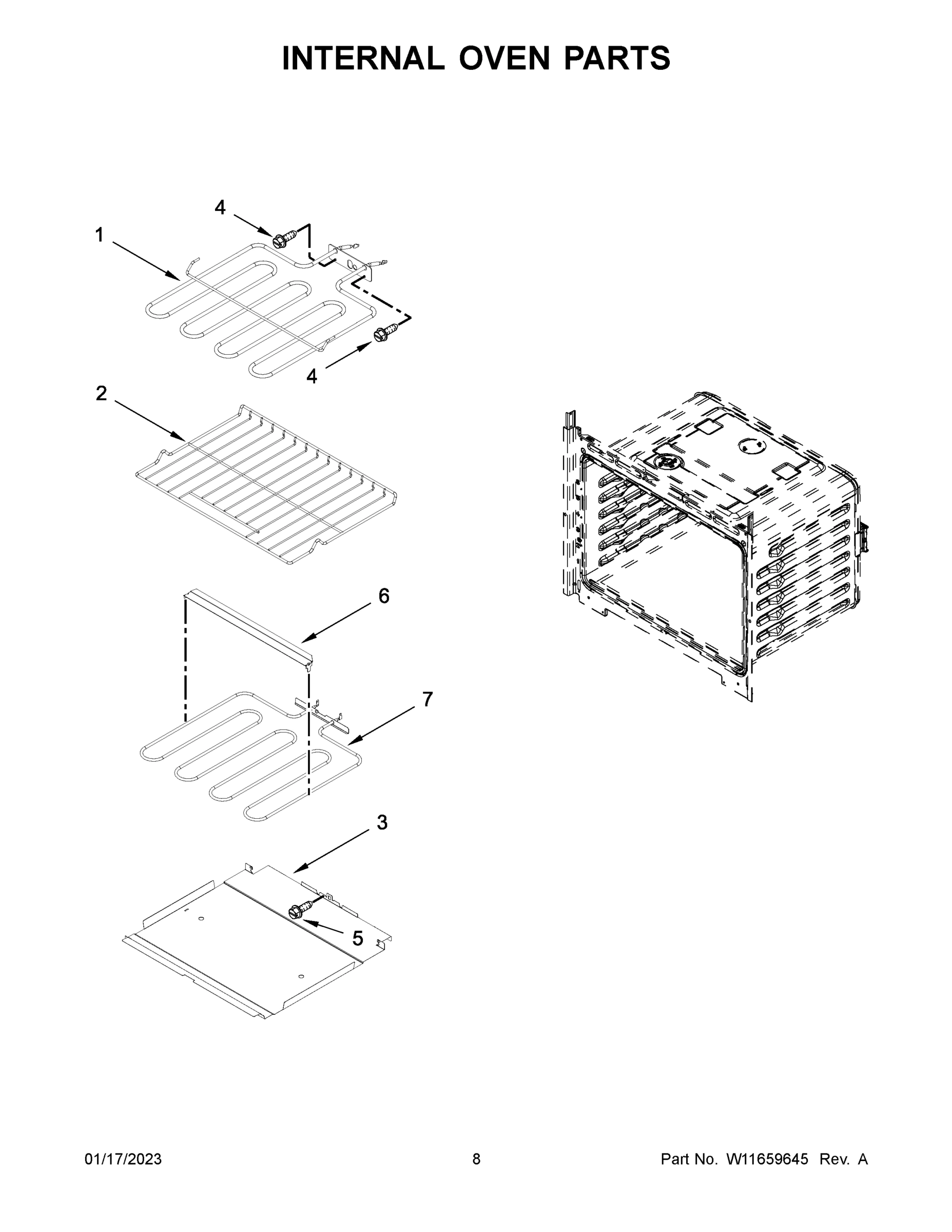

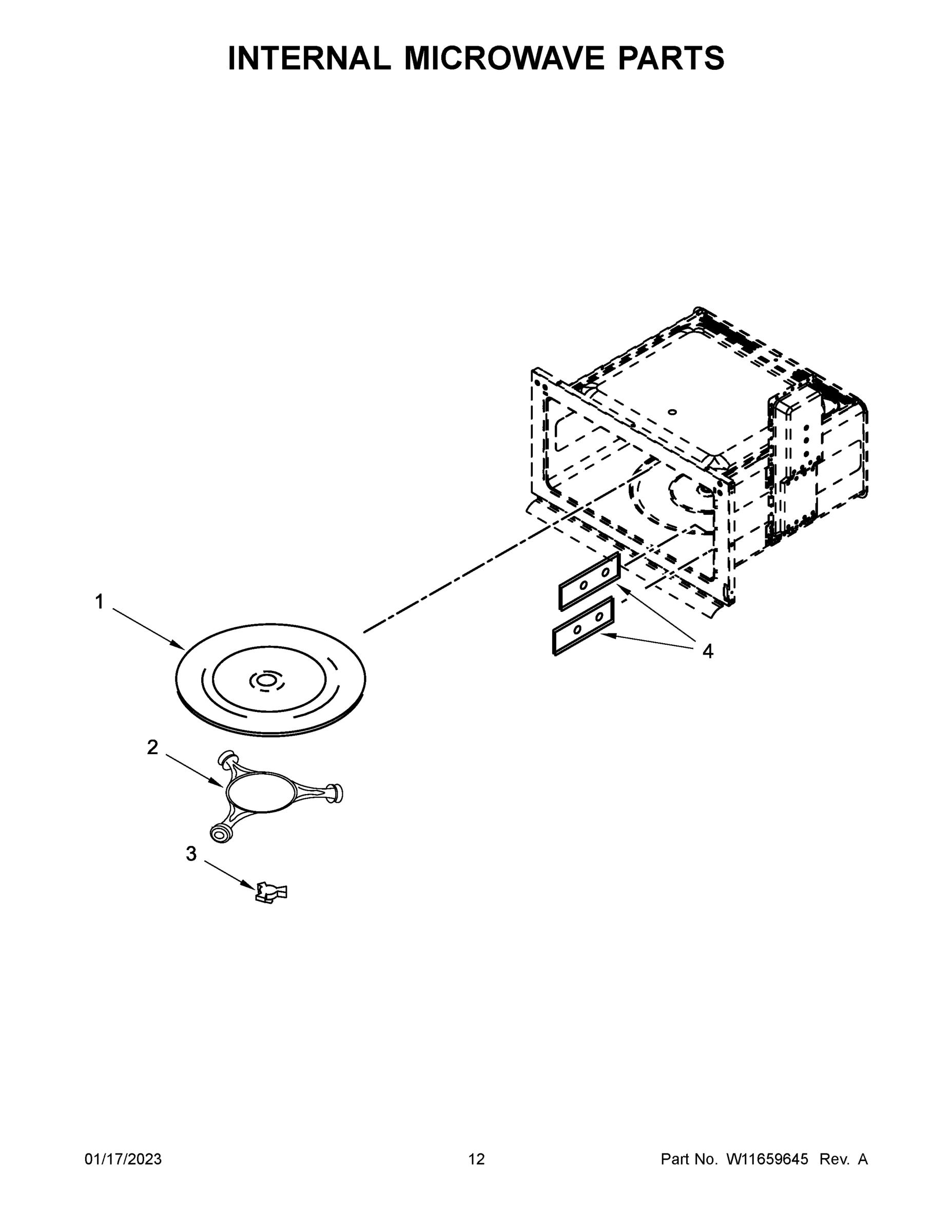

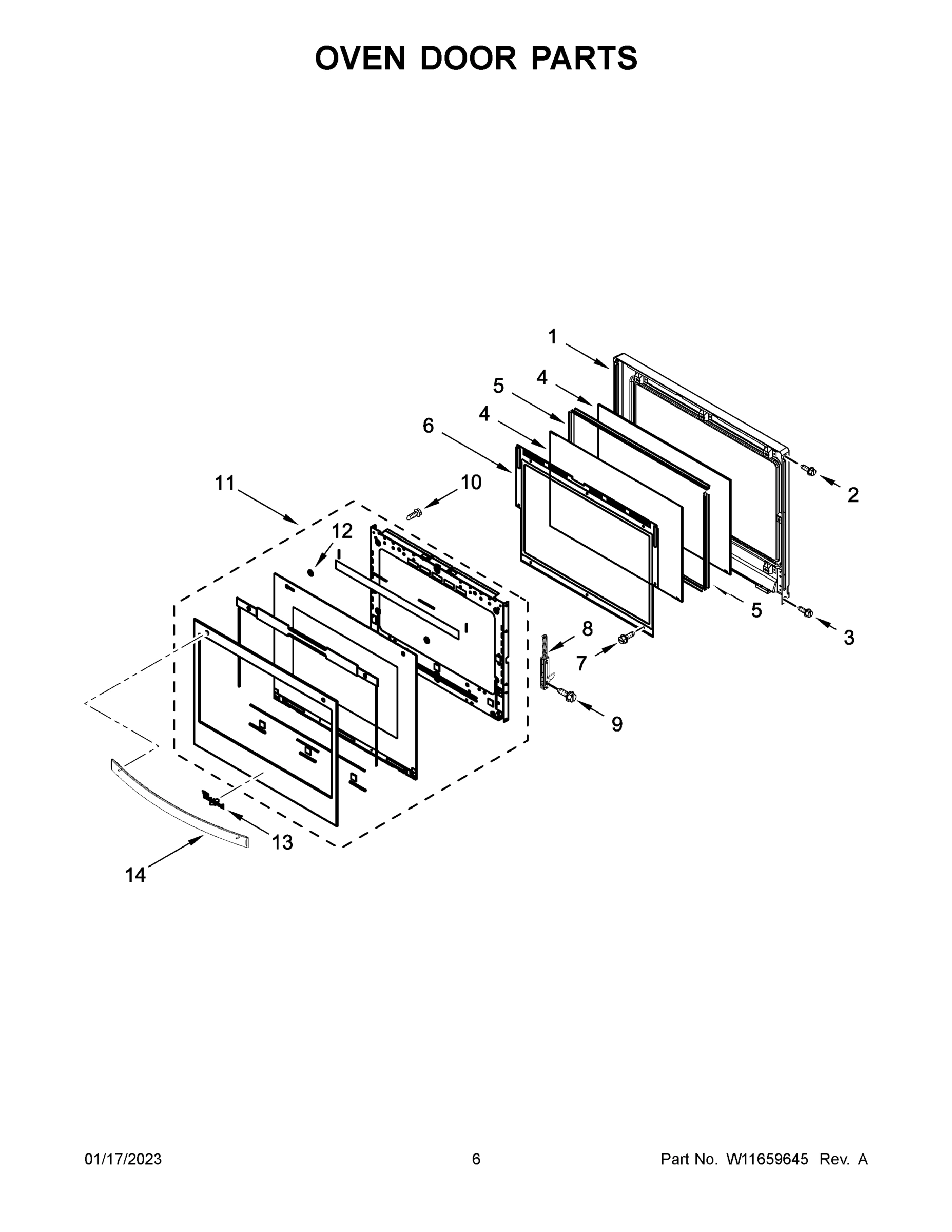

Model Whirlpool WOC54EC7HW21 WALL OVEN, ELECTRIC, MICRO COMBO – Common Parts &amp; Diagrams

1

W11325603 Whirlpool Microwave Electronic Cont In Stock WPL W11325603 $165.67

1

W11460385 Whirlpool Tray Glass Backorder WPL W11460385 $48.29

1

W11598186 Whirlpool Glass Frame Backorder WPL W11598186 $213.85

1

W11617232 Whirlpool Broil Element Backorder WPL W11617232 $75.65

1

SCREW WPL 7101P06060 Contact Us For Availability

2

4454949 Whirlpool Oven Fuse Block Backorder WPL 4454949 $59.08

2

461967017511 Whirlpool Microwave Trim Backorder WPL 461967017511 $32.39

2

W11110134 Whirlpool Glass Tray Support In Stock WPL W11110134 $53.99

2

WPW10317431 Whirlpool Oven Rack In Stock WPL WPW10317431 $80.91

2

SCREW WPL 7101P37560 Contact Us For Availability

2

SCREW WPL 7101P33860 Contact Us For Availability

3

W10318198 Whirlpool Bake Tray Backorder WPL W10318198 $125.31

3

W11044584 Whirlpool Microwave Trim In Stock WPL W11044584 $32.39

3

W11179756 Whirlpool Glass Tray Drive Coupling In Stock WPL W11179756 $17.87

3

W11617225 Whirlpool Oven Screw Backorder WPL W11617225 $8.89

3

W11639552 Whirlpool Microwave Door Backorder WPL W11639552 $327.39

3

SCREW WPL 7101P42660 Contact Us For Availability

4

8285593 Whirlpool Oven Wire Cover Backorder WPL 8285593 $60.72

4

W10359769 Whirlpool Microwave Door Gasket Backorder WPL W10359769 $8.94

4

W10915651 Whirlpool Waveguide Cover In Stock WPL W10915651 $51.99

4

TRIM-DOOR Backorder WPL W11334717 $38.77

4

WPW10284902 Whirlpool Door Glass Backorder WPL WPW10284902 $138.26

4

SCREW WPL 7101P43460 Contact Us For Availability

5

W11578573 Whirlpool Filter Backorder WPL W11578573 $44.25

5

W11598187 Whirlpool Bracket Assembly In Stock WPL W11598187 $38.90

5

W11602624 Whirlpool Oven Screw In Stock WPL W11602624 $14.99

5

SCREW WPL 7101P65360 Contact Us For Availability

6

W10282957 Whirlpool Bracket Support In Stock WPL W10282957 $29.60

6

W11238401 Whirlpool Microwave Transformer In Stock WPL W11238401 $199.99

6

W11598188 Whirlpool Retainer Backorder WPL W11598188 $45.47

6

WPW10017410 Whirlpool Fuse In Stock WPL WPW10017410 $14.70

6

DOOR ASSEMBLY (BLACK) WPL W11300579 Contact Us For Availability

6A

DOOR ASSEMBLY (WHITE) WPL W11300580 Contact Us For Availability

7

W11171004 Whirlpool Rear Cover Backorder WPL W11171004 $47.75

7

W11188752 Whirlpool Microwave Fuse In Stock WPL W11188752 $11.99

7

W11545804 Whirlpool Bake Element In Stock WPL W11545804 $72.99

8

W10245194 Whirlpool Microwave Fuse Block Backorder WPL W10245194 $57.37

8

W11115278 Whirlpool Door Handle Backorder WPL W11115278 $128.51

8

W11296079 Whirlpool Door Hinge Backorder WPL W11296079 $49.18

8

SIDE, COMBO CHASSIS (LEFT) WPL W11171909 Contact Us For Availability

8A

W11200667 Whirlpool Door Handle Backorder WPL W11200667 $128.51

8A

W11296080 Whirlpool Door Hinge Backorder WPL W11296080 $49.18

8A

SIDE, COMBO CHASSIS (RIGHT) WPL W11171919 Contact Us For Availability

9

W10904163 Whirlpool Vent Deflector Backorder WPL W10904163 $110.23

9

W11233913 Whirlpool Microwave Sensor In Stock WPL W11233913 $91.96

9

W11627410 Whirlpool Mounting Rail Backorder WPL W11627410 $37.44

9

WP3196183 Whirlpool Screw In Stock WPL WP3196183 $4.99

10

W11627411 Whirlpool Mounting Rail Backorder WPL W11627411 $37.44

BRKT-MNTG Backorder WPL W10283025 $51.36

W10465869 Whirlpool Microwave Spring Backorder WPL W10465869 $65.38

W11600328 Whirlpool Door Glass Backorder WPL W11600328 $271.76

W11608109 Whirlpool Gasket Backorder WPL W11608109 $42.88

11A

DOOR ASSEMBLY (WHITE) WPL W11286343 Contact Us For Availability

W10283023 Whirlpool Support Backorder WPL W10283023 $51.23

COVR-EXHST Backorder WPL W11256424 $18.09

W11676355 Whirlpool Washer Backorder WPL W11676355 $8.89

WPW10490593 Whirlpool Microwave Lamp Housing In Stock WPL WPW10490593 $51.15

13

W10886919 Whirlpool Light Bulb In Stock WPL W10886919 $15.99

13

W11165274 Whirlpool Side Panel Backorder WPL W11165274 $50.97

13

W11178521 Whirlpool Dishwasher Nameplate In Stock WPL W11178521 $45.94

14

W11568584 Whirlpool Microwave Thermostat Fix Backorder WPL W11568584 $26.80

15

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 $52.99

16

W11214928 Whirlpool Microwave Interlock Backorder WPL W11214928 $20.99

16

W11598120 Whirlpool Thermostat In Stock WPL W11598120 $19.99

17

423107022541 Whirlpool Microwave Reflector Backorder WPL 423107022541 $58.43

17

W11454079 Whirlpool Light Bulb In Stock WPL W11454079 $58.31

18

W11193483 Whirlpool Microwave Lamp Lens In Stock WPL W11193483 $68.68

18

WP4449751 Whirlpool Range Oven Thermostat Fix In Stock WPL WP4449751 $126.49

19

W11440819 Whirlpool Clip Backorder WPL W11440819 $14.02

19

BASE, CHASSIS WPL W11244454 Contact Us For Availability

20

W10911403 Whirlpool Microwave Turn Motor In Stock WPL W10911403 $100.99

20

W11369893 Whirlpool Heat Deflector Backorder WPL W11369893 $56.79

20A

W11598191 Whirlpool Vent In Stock WPL W11598191 $148.90

21

461967825321 Whirlpool Microwave Screw Backorder WPL 461967825321 $8.01

21

W11244446 Whirlpool Cover Access Backorder WPL W11244446 $44.99

22

W10283020 Whirlpool Support Backorder WPL W10283020 $41.96

22

W11598240 Whirlpool Door Hinge Backorder WPL W11598240 $48.77

23

SUPPORT Backorder WPL W11135135 $23.56

23

W11344874 Whirlpool Microwave Fan Motor In Stock WPL W11344874 $100.95

24

W11578579 Whirlpool Inverter In Stock WPL W11578579 $159.99

24

SPACER, CHASSIS BOTTOM DUCT WPL W11390667 Contact Us For Availability

25

461967825971 Whirlpool Oven Screw Backorder WPL 461967825971 $8.13

25

W11598125 Whirlpool Bumper Backorder WPL W11598125 $14.02

26

W11450856 Whirlpool Light Lens Backorder WPL W11450856 $12.63

26

WPW10120235 Whirlpool Microwave Relief Rod In Stock WPL WPW10120235 $8.71

28

W11700292 Whirlpool Spring Backorder WPL W11700292 $45.12

28

WPW10254050 Whirlpool Screw Backorder WPL WPW10254050 $4.82

29

W11235457 Whirlpool Trim Backorder WPL W11235457 $48.41

29

W11684510 Whirlpool Support In Stock WPL W11684510 $8.89

29A

W11235458 Whirlpool Trim Backorder WPL W11235458 $48.41

30

W11602623 Whirlpool Screw Backorder WPL W11602623 $8.89

30

W11607070 Whirlpool Arm Backorder WPL W11607070 $16.92

31

W11134657 Whirlpool Rear Cover Backorder WPL W11134657 $47.75

31

W11699906 Whirlpool Sensor In Stock WPL W11699906 $77.99

32

W11033422 Whirlpool Microwave Interlock In Stock WPL W11033422 $142.76

33

8205707 Whirlpool Microwave Support Backorder WPL 8205707 $46.80

33

TUBE-VENT Backorder WPL W11256423 $33.01

34

W11676353 Whirlpool Tt Motor Adapter Omi In Stock WPL W11676353 $13.90

34

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $4.99

35

W11598150 Whirlpool Side Cover Backorder WPL W11598150 $44.52

35

WPW10128850 Whirlpool Microwave Arm In Stock WPL WPW10128850 $78.99

35A

W11598151 Whirlpool Side Cover Backorder WPL W11598151 $44.52

36

W10769147 Whirlpool Microwave Foam Seal Backorder WPL W10769147 $15.47

36

W11712432 Whirlpool Trim Assembly In Stock WPL W11712432 $52.45

37

W11598170 Whirlpool Level Foot Backorder WPL W11598170 $17.37

37

W11690594 Whirlpool Screw Backorder WPL W11690594 $8.89

38

W11598169 Whirlpool Foot Level Assembly Backorder WPL W11598169 $17.37

38

W11715912 Whirlpool Spring Assembly Backorder WPL W11715912 $4.41

38A

W11598168 Whirlpool Leveling Foot Backorder WPL W11598168 $17.25

39

HOUSING, UPPER INVERTER WPL W11591019 Contact Us For Availability

40

HOUSING, LOWER INVERTER WPL W11591018 Contact Us For Availability

261900 Whirlpool Microwave Spray Backorder WPL 261900 $30.44

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

W10536162 Whirlpool Microwave Trim Cover Kit Backorder WPL W10536162 $26.34

W11173682 Whirlpool Heat Deflector Backorder WPL W11173682 $73.49

W11173686 Whirlpool Heat Deflector Backorder WPL W11173686 $69.29

W11173695 Whirlpool Heat Deflector Backorder WPL W11173695 $64.25

W11356990 Whirlpool Wire Harness Backorder WPL W11356990 $138.99

W11539494 Whirlpool Wire Harness Backorder WPL W11539494 $26.80

W11546965 Whirlpool Wire Harness Backorder WPL W11546965 $48.64

W11578580 Whirlpool Wire Harness Backorder WPL W11578580 $16.70

HARNS-WIRE Backorder WPL W11797348 $88.25

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $4.82

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $34.73

ACCESSORY PARTS, CLEANER, STAINLESS STEEL WPL W10355016 Contact Us For Availability

ACCESSORIES, WIPES, STAINLESS STEEL CLEANING WPL W10355049 Contact Us For Availability

PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability

INSULATION, WRAP WPL W11244474 Contact Us For Availability

INSULATION, BACK WPL W11244475 Contact Us For Availability

HARNESS, INPUT WPL W11555848 Contact Us For Availability
