WHDSR209D6WW

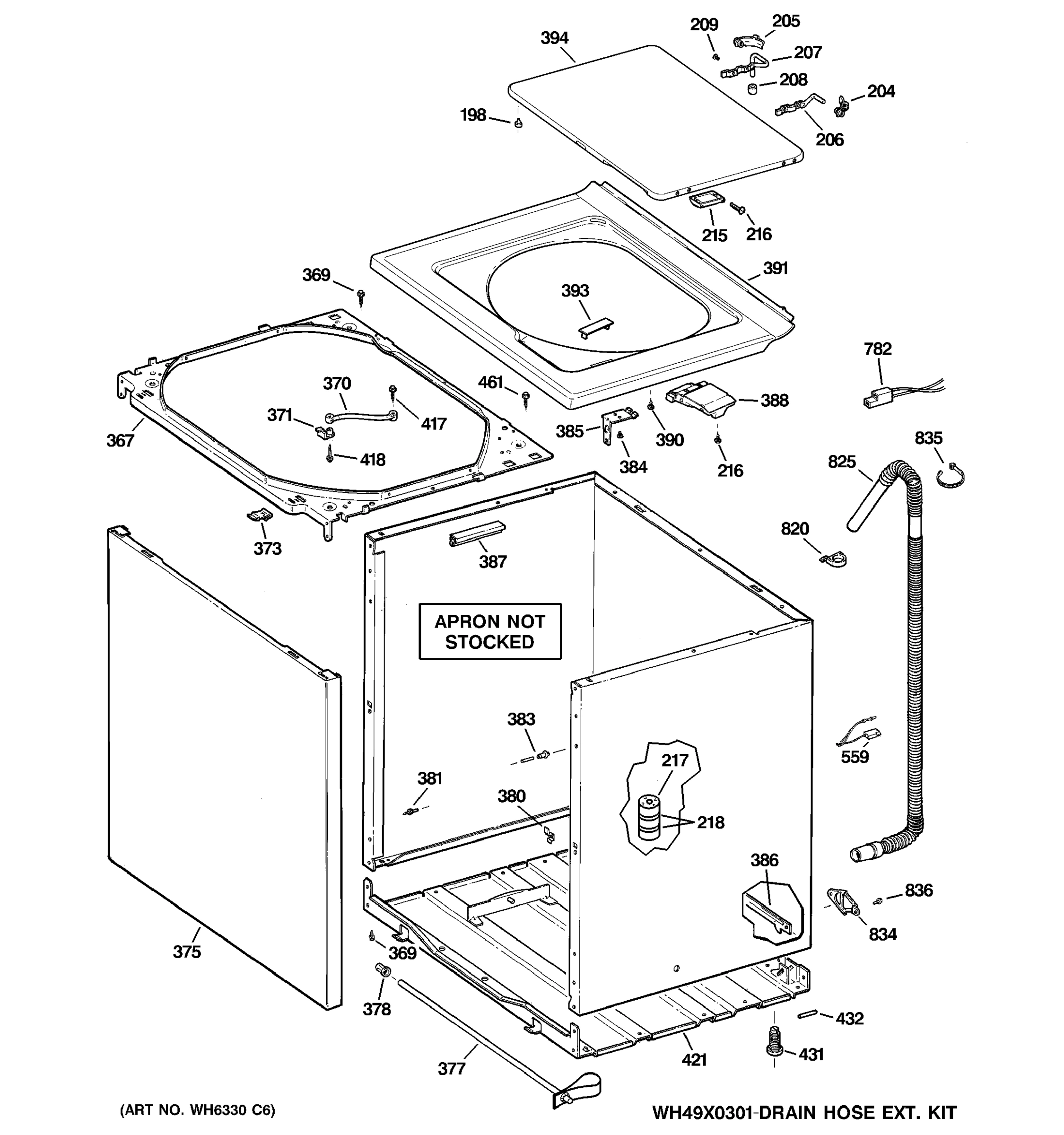

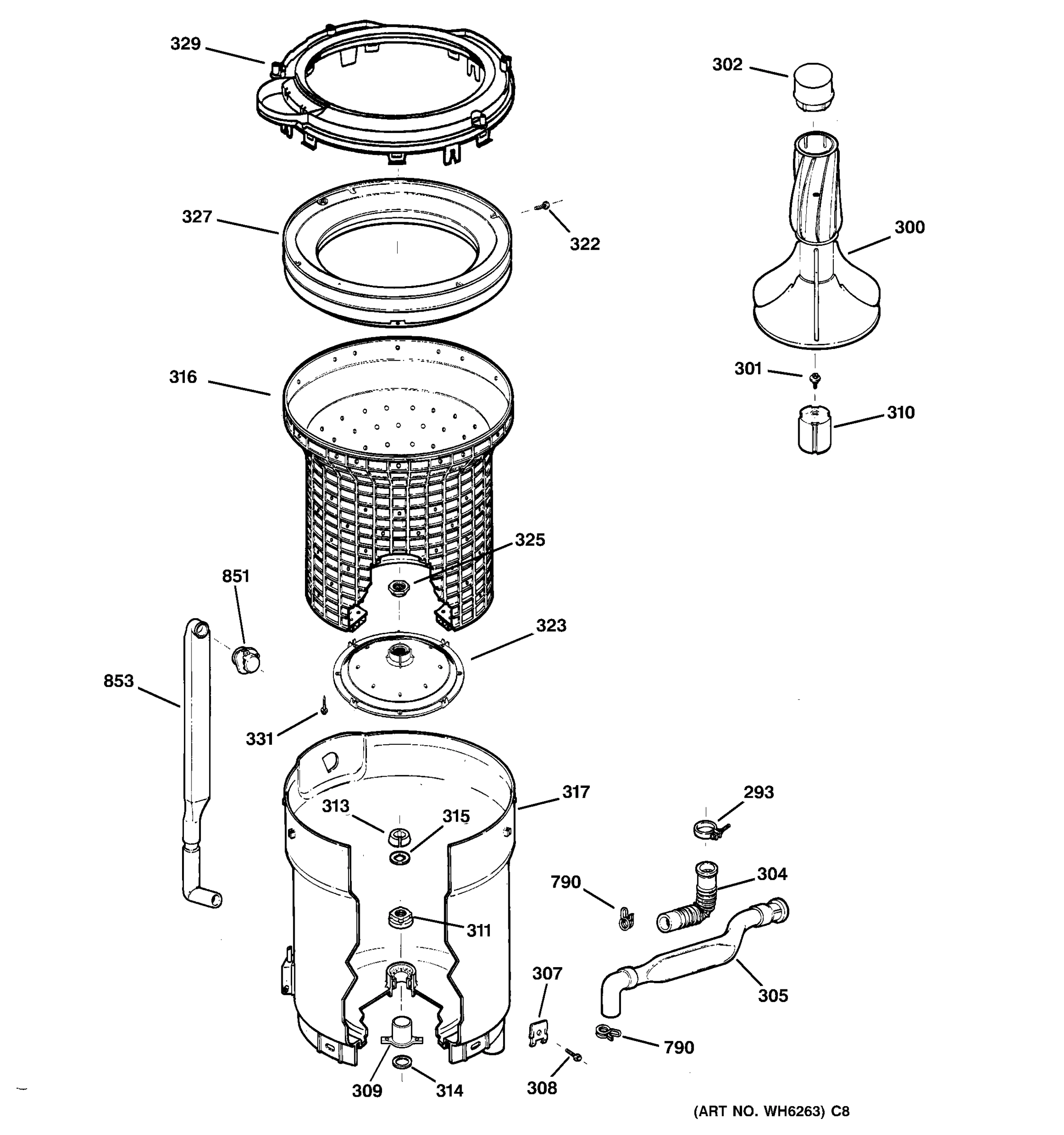

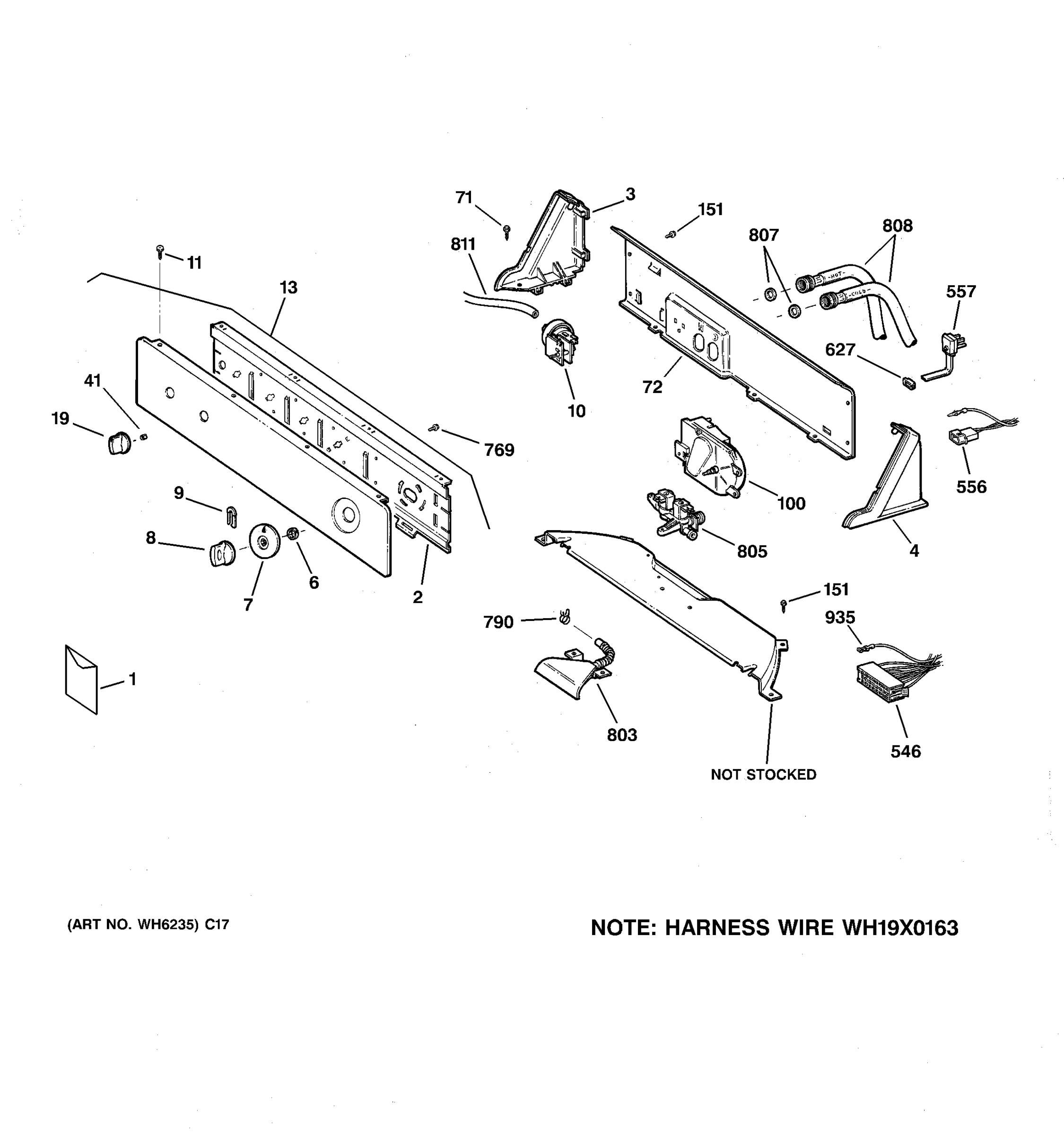

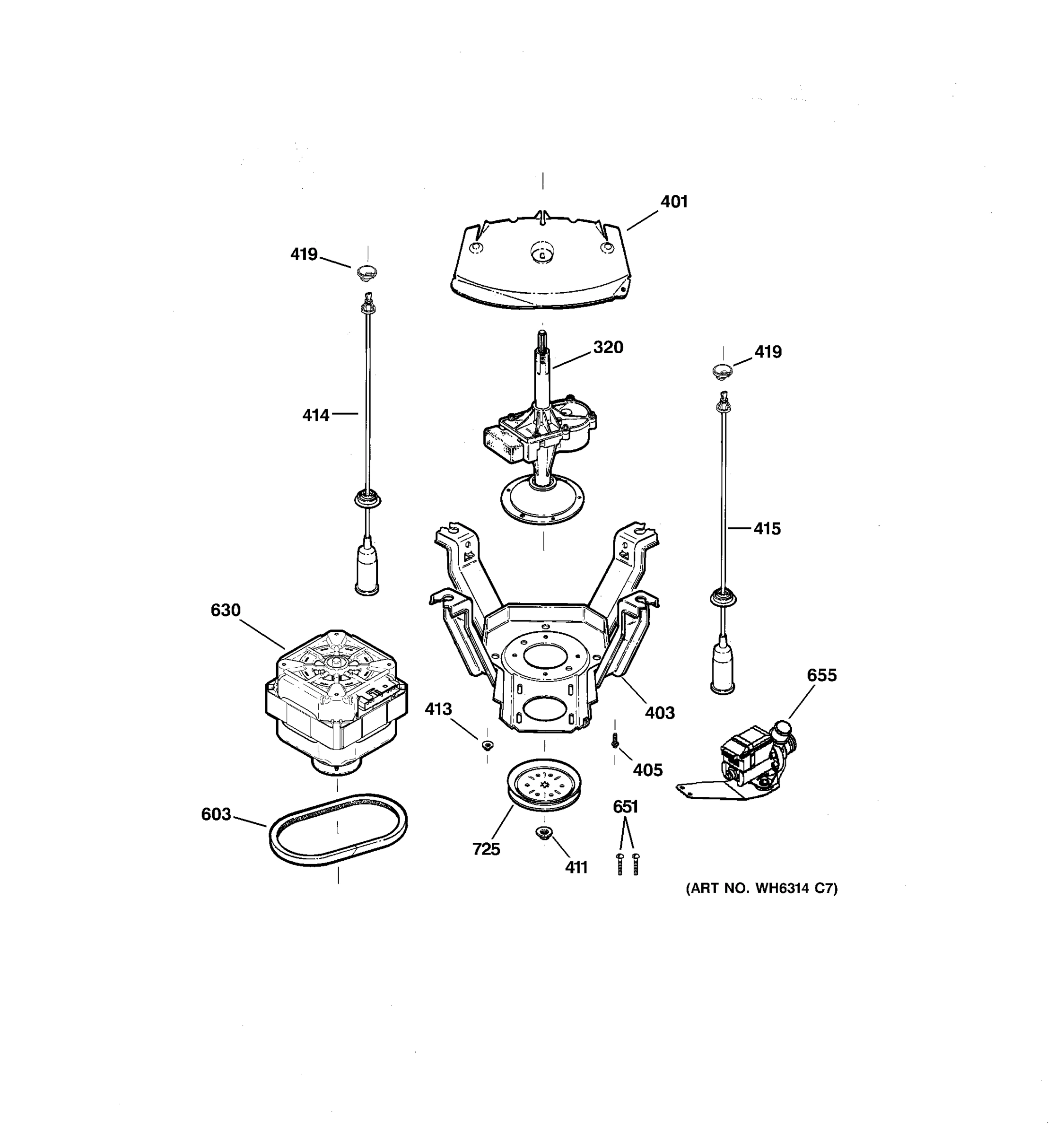

Model WHDSR209D6WW – Common Parts & Diagrams

Common parts from model WHDSR209D6WW

WH02X10093 GE Washer Compression Ring

WH02X10093 GE Washer Compression Ring In Stock GEN WH02X10093 $14.64

WH11X10033 GE Washer Control Timer Dial

WH11X10033 GE Washer Control Timer Dial In Stock GEN WH11X10033 $34.44

WH01X10310 GE Washer Control Knob

WH01X10310 GE Washer Control Knob In Stock GEN WH01X10310 $7.72

WH1X2117 GE Timer Knob Spring Clip

WH1X2117 GE Timer Knob Spring Clip In Stock GEN WH1X2117 $6.09

WH12X10076 GE Washer Water Pressure Switch

WH12X10076 GE Washer Water Pressure Switch Out of Stock GEN WH12X10076 $122.66

WH2X1205 GE Screw 8-18 B

WH2X1205 GE Screw 8-18 B Out of Stock GEN WH2X1205 $7.54

WR01X10653 GE Refrigerator Screw 8-18 B 1HW 1

WR01X10653 GE Refrigerator Screw 8-18 B 1HW 1 Out of Stock GEN WR01X10653 $7.54

WH01X10025 GE Bushing Hinge

WH01X10025 GE Bushing Hinge Out of Stock GEN WH01X10025 $18.40

WH01X10222 GE Magnet Housing Assembly

WH01X10222 GE Magnet Housing Assembly Out of Stock GEN WH01X10222 $22.04

WH01X10704 GE Wire Tie

WH01X10704 GE Wire Tie In Stock GEN WH01X10704 $29.31

WH01X10134 GE Clamp Hose

WH01X10134 GE Clamp Hose Out of Stock GEN WH01X10134 $7.54

WH43X10033 GE Agitator Assembly

WH43X10033 GE Agitator Assembly Out of Stock GEN WH43X10033 $62.18

WH49X10042 GE Agitator Coupling Kit

WH49X10042 GE Agitator Coupling Kit In Stock GEN WH49X10042 $44.82

WH43X25443 GE Cap Agitator Short

WH43X25443 GE Cap Agitator Short In Stock GEN WH43X25443 $6.09

WH41X22935 GE Washer Tub To Pump Drain Hose

WH41X22935 GE Washer Tub To Pump Drain Hose In Stock GEN WH41X22935 $12.60

WH1X2730 GE Clamp Tub

WH1X2730 GE Clamp Tub Out of Stock GEN WH1X2730 $7.54

WH02X10267 GE Screw 5/16-18 TPT IHW S N

WH02X10267 GE Screw 5/16-18 TPT IHW S N Out of Stock GEN WH02X10267 $7.54

WH2X1198 GE Dryer Tub Bearing

WH2X1198 GE Dryer Tub Bearing In Stock GEN WH2X1198 $33.19

WH02X10383 GE Washer Tub Seal Gasket

WH02X10383 GE Washer Tub Seal Gasket In Stock GEN WH02X10383 $12.00

WH02X10265 GE Washer Bearing Split Ring

WH02X10265 GE Washer Bearing Split Ring In Stock GEN WH02X10265 $8.36

WH2X1199 GE Washer Flat Hub

WH2X1199 GE Washer Flat Hub In Stock GEN WH2X1199 $8.10

WH45X20473 GE Tub Assembly

WH45X20473 GE Tub Assembly Out of Stock GEN WH45X20473 $91.91

WH2X1194 GE Screw 10-18 PL

WH2X1194 GE Screw 10-18 PL Out of Stock GEN WH2X1194 $7.54

WH45X10027 GE Dryer Drum Mounting Hub

WH45X10027 GE Dryer Drum Mounting Hub In Stock GEN WH45X10027 $82.55

WH2X1193 GE Dryer Dryer GE Dryer Hub Nut

WH2X1193 GE Dryer Dryer GE Dryer Hub Nut In Stock GEN WH2X1193 $23.15

WH49X21274 GE Cover Tub Kit

WH49X21274 GE Cover Tub Kit In Stock GEN WH49X21274 $141.70

WH02X10001 GE Screw

WH02X10001 GE Screw In Stock GEN WH02X10001 $6.09

WH46X10281 GE Panel Front Assembly

WH46X10281 GE Panel Front Assembly Out of Stock GEN WH46X10281 $108.54

WH01X10109 GE Screw 8-15 A 3/4 SP HXW

WH01X10109 GE Screw 8-15 A 3/4 SP HXW Out of Stock GEN WH01X10109 $7.54

WH46X10094 GE Bar Self Levelling

WH46X10094 GE Bar Self Levelling Out of Stock GEN WH46X10094 $59.10

WH45X10046 GE Shield Tub

WH45X10046 GE Shield Tub Out of Stock GEN WH45X10046 $30.11

WH2X1201 GE Screw 1/4-20 B

WH2X1201 GE Screw 1/4-20 B Out of Stock GEN WH2X1201 $7.54

WH2X1203 GE Nut Pulley

WH2X1203 GE Nut Pulley Out of Stock GEN WH2X1203 $9.77

WH16X544 GE Suspension Rod & Spring Black

WH16X544 GE Suspension Rod & Spring Black In Stock GEN WH16X544 $52.20

WH16X543 GE Dryer GE Suspension Rod and Sprin

WH16X543 GE Dryer GE Suspension Rod and Sprin In Stock GEN WH16X543 $42.58

WH01X10001 GE Washer Tub Suspension Rod Suppo

WH01X10001 GE Washer Tub Suspension Rod Suppo In Stock GEN WH01X10001 $6.09

WH1X2026 GE Washer Drive Belt

WH1X2026 GE Washer Drive Belt In Stock GEN WH1X2026 $25.12

WH12X10208 GE Self Locking Strain Relf

WH12X10208 GE Self Locking Strain Relf Out of Stock GEN WH12X10208 $7.54

WH20X10063 GE Motor

WH20X10063 GE Motor Out of Stock GEN WH20X10063 $311.30

WH02X10123 GE Screw 1/4-20 TPT 1H 1/2 SN

WH02X10123 GE Screw 1/4-20 TPT 1H 1/2 SN Out of Stock GEN WH02X10123 $7.54

WH23X10030 GE Washer Drain Pump

WH23X10030 GE Washer Drain Pump In Stock GEN WH23X10030 $106.33

WB1X500D GE Oven Screw Package 12

WB1X500D GE Oven Screw Package 12 Out of Stock GEN WB1X500D $7.25

WB17X5060 GE Oven Block Assembly

WB17X5060 GE Oven Block Assembly Out of Stock GEN WB17X5060 $62.92

WH1X2036 GE UNIX Clamp

WH1X2036 GE UNIX Clamp Out of Stock GEN WH1X2036 $14.50

WH41X10077 GE Hose and Water Inlet

WH41X10077 GE Hose and Water Inlet In Stock GEN WH41X10077 $13.67

WH13X10024 GE Washer Water Inlet Fill Valve

WH13X10024 GE Washer Water Inlet Fill Valve In Stock GEN WH13X10024 $110.13

WH41X365 GE Washer Water Level Pressure Switc

WH41X365 GE Washer Water Level Pressure Switc In Stock GEN WH41X365 $13.38

WH16X513 GE Washer Drain Hose Clip

WH16X513 GE Washer Drain Hose Clip In Stock GEN WH16X513 $7.54

WH1X2729 GE Gasket FL HD

WH1X2729 GE Gasket FL HD Out of Stock GEN WH1X2729 $37.36
