Model Whirlpool TT20BKXAW01 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
03 - COMPARTMENT SEPARATOR
01 - CABINET

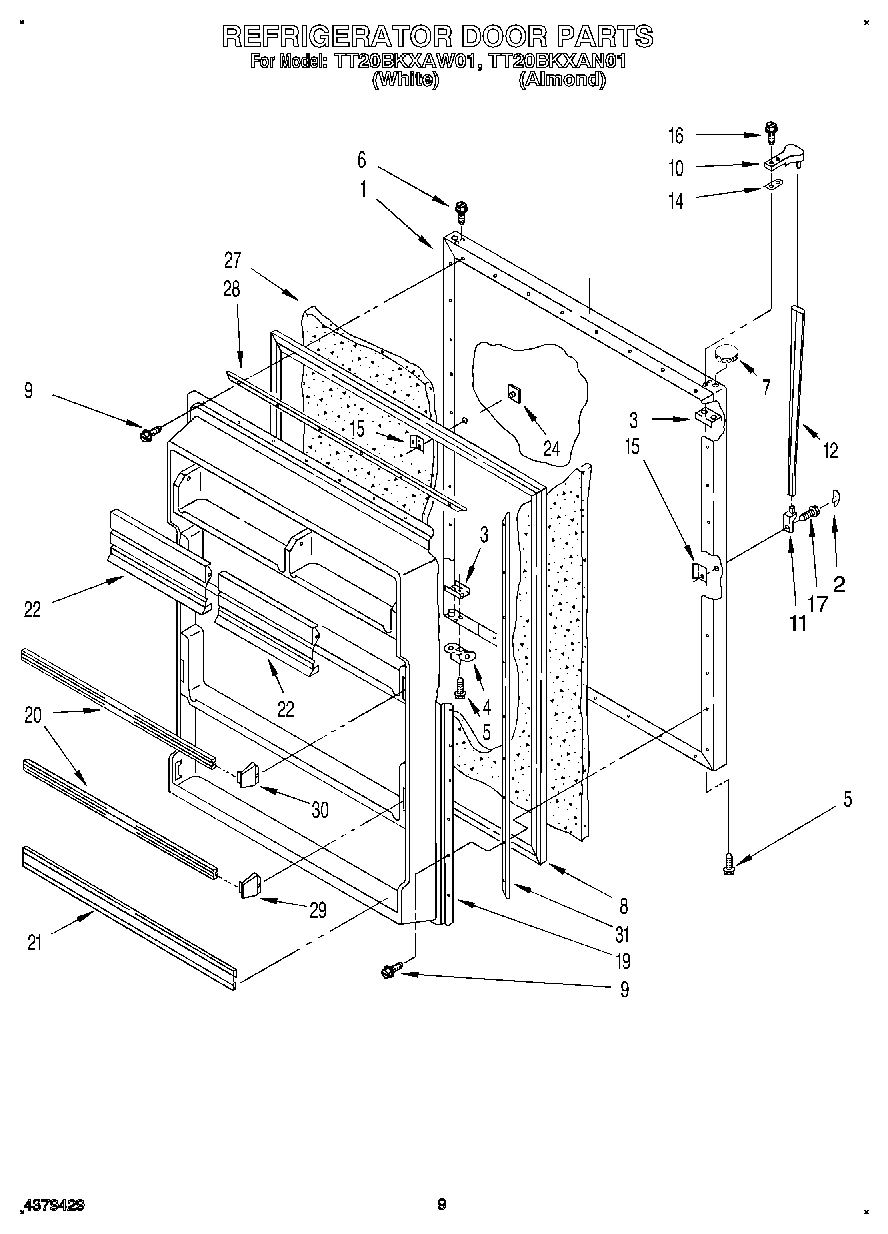

07 - REFRIGERATOR DOOR, LIT/OPTIONAL
04 - SHELF

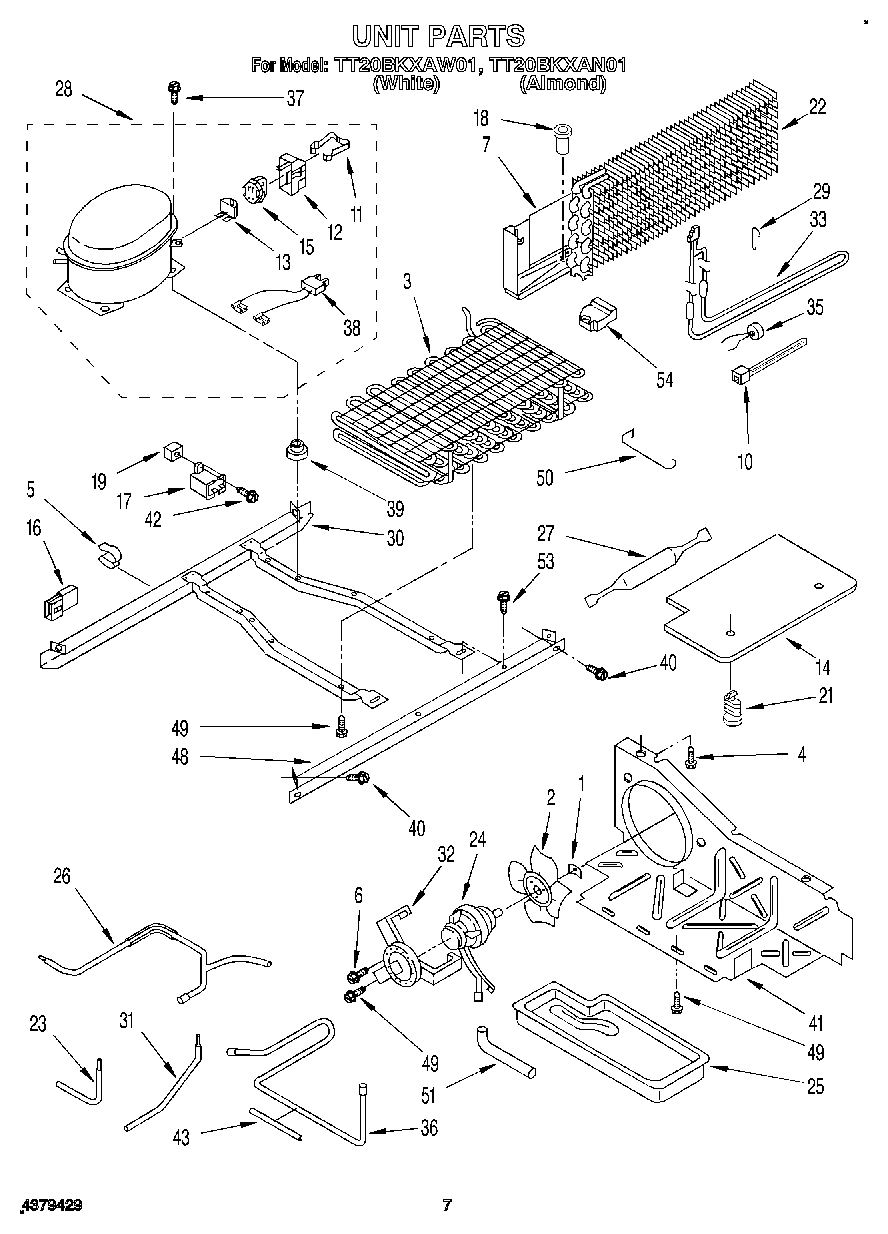

06 - UNIT

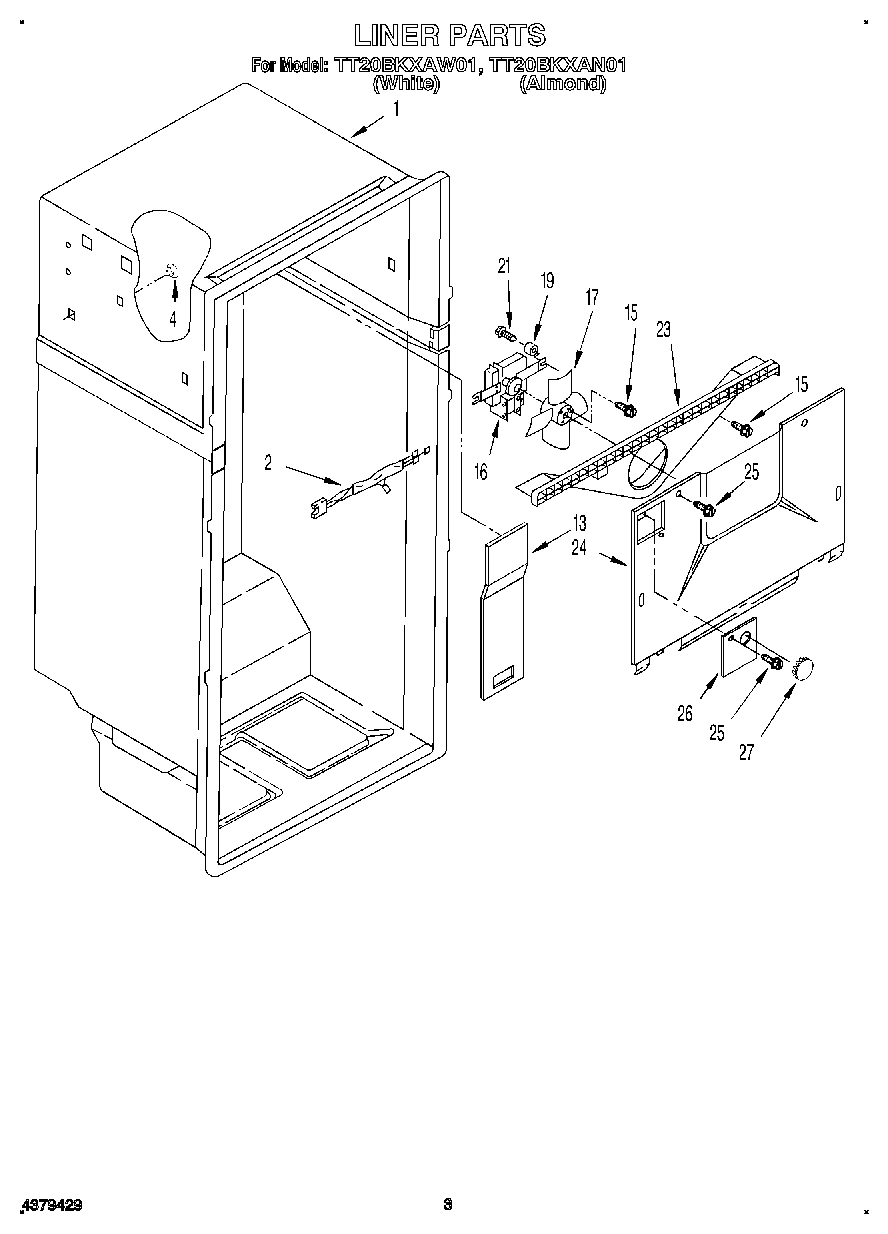

02 - LINER

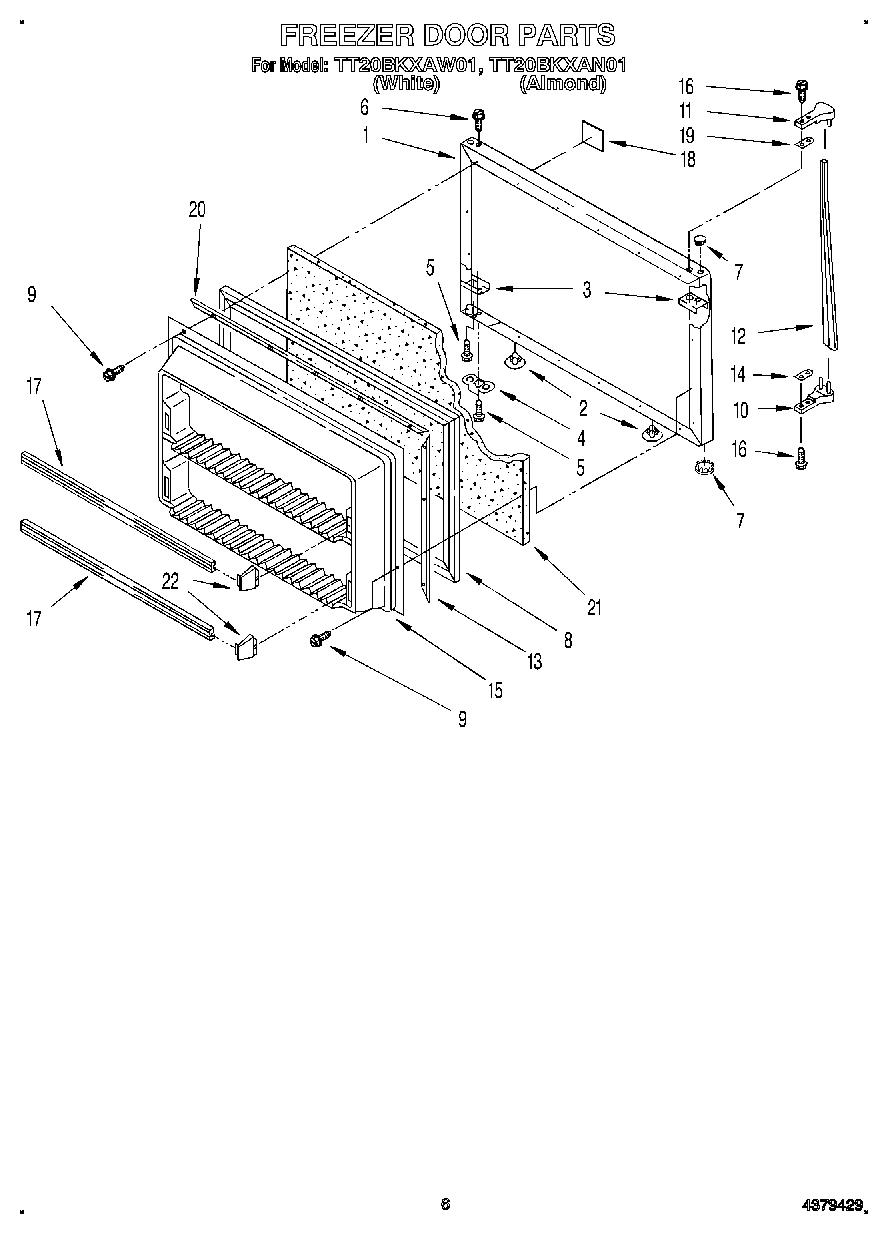

05 - FREEZER DOOR
Common parts from model Whirlpool TT20BKXAW01 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2154075 WPL LIT2154075 Contact Us For Availability
WPL LIT2163262 WPL LIT2163262 Contact Us For Availability
WPL LIT2163507 WPL LIT2163507 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1122549 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1122658 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI133563A Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159160 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159163 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Fan, Blade WPL 851732 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Condenser Assy. WPL 2164513 Contact Us For Availability
4
Bracket, Door Stop WPL 1115910 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
5
Screw, WPL 489345 Contact Us For Availability
5
Clip, Wire WPL 548745 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Shelf, Cantilever WPL 1110738 Contact Us For Availability
7
Drain Pan/ Heat Shield WPL 2153974 Contact Us For Availability
8
Trim, Shelf WPL 1124366 Contact Us For Availability
10
Trim, Crisper Cover WPL 2172711 Contact Us For Availability
11
Glass, Crisper Cover WPL 1124363 Contact Us For Availability
11
Strap WPL 938384 Contact Us For Availability
12
Handle, Center WPL 1106189 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 1110756 Contact Us For Availability
12
Cover, Terminal WPL 1108115 Contact Us For Availability
12
Handle, Center WPL 2163266 Contact Us For Availability
13
Retainer, Gasket WPL 1122553 Contact Us For Availability
13
Retainer, Glass WPL 1110744 Contact Us For Availability
13
Cover, Air Duct WPL 2157411 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Glass, Shelf WPL 1124367 Contact Us For Availability
14
Cover, Unit Bottom WPL 2160505 Contact Us For Availability
15
Relay (See Overload) WPL ARI133564A Contact Us For Availability
15
Interior Door Panel WPL 1122575 Contact Us For Availability
16
Shelf, Full Cantilever WPL 1120135 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
17
Shelf, Freezer WPL 1106615 Contact Us For Availability
17
Running Capacitor WPL 2169137 Contact Us For Availability
18
Drain Fitting WPL 2172811 Contact Us For Availability
18
Nameplate WPL 2163474 Contact Us For Availability
19
Shim, Handle WPL 943187 Contact Us For Availability
19
Interior Door Panel WPL 2156205 Contact Us For Availability
19
Pan, Crisper WPL 2163279 Contact Us For Availability
19
Grommet, Screw WPL 509812 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
20
Trim, Door (2) WPL 1120825 Contact Us For Availability
20
Retainer, Gasket WPL 1122552 Contact Us For Availability
20
Pan, Meat WPL 2163288 Contact Us For Availability
21
Trim, Door WPL 1120826 Contact Us For Availability
21
Trim, Shelf WPL 2152284 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
22
EndCap, Trim (4) WPL 1106862 Contact Us For Availability
22
Compartment Door (2) WPL 2163278 Contact Us For Availability
22
Evaporator WPL 2153978 Contact Us For Availability
23
Shelf Stud WPL 946356 Contact Us For Availability
23
Scroll, Fan WPL 2160644 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Evaporator Cover WPL 2157428 Contact Us For Availability
26
Shelf Stud WPL 1106612 Contact Us For Availability
26
Tube, Discharge WPL 2162475 Contact Us For Availability
27
Support, Stud WPL 946355 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
29
Support, Heater WPL 2149120 Contact Us For Availability
30
Unit Mounting Frame WPL 2160498 Contact Us For Availability
31
WPL 876029 WPL 876029 Contact Us For Availability
31
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
31
WPL 799344 WPL 799344 Contact Us For Availability
31
Spacer WPL 2172744 Contact Us For Availability
31
Gasket, Retainer WPL 1122551 Contact Us For Availability
31
Door Reversal Instructions WPL 2172761 Contact Us For Availability
31
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
31
CEMENT WPL 542639 Contact Us For Availability
31
WPL 799833 WPL 799833 Contact Us For Availability
31
WPL 978883 WPL 978883 Contact Us For Availability
31
Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
33
Corner Filler, Grille WPL 1118078 Contact Us For Availability
33
Heater, Defrost WPL 2162019 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
35
Grille WPL 1129001 Contact Us For Availability
36
Hole Plug WPL 1129062 Contact Us For Availability
36
Tube, Suction WPL 2162472 Contact Us For Availability
37
Wiring Assembly, Intermediate WPL 2153994 Contact Us For Availability
41
Air Baffle WPL 2169417 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
48
Cover, Unit WPL 2160490 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
51
Drain Extension WPL 2154119 Contact Us For Availability
53
Screw, WPL 488454 Contact Us For Availability
54
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
54
Support, Evaporator (R.S.) WPL 1118805 Contact Us For Availability
54
Support-Evaporator (L.S.) WPL 2159708 Contact Us For Availability
54
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
× ![]()
