Model Speed Queen SWTX21*N3020 Washer – Common Parts & Diagrams
Timer, Case and Plate
Timer and Bracket
Coin Slide Meter Case and Service Door
Meter Case and Service Door

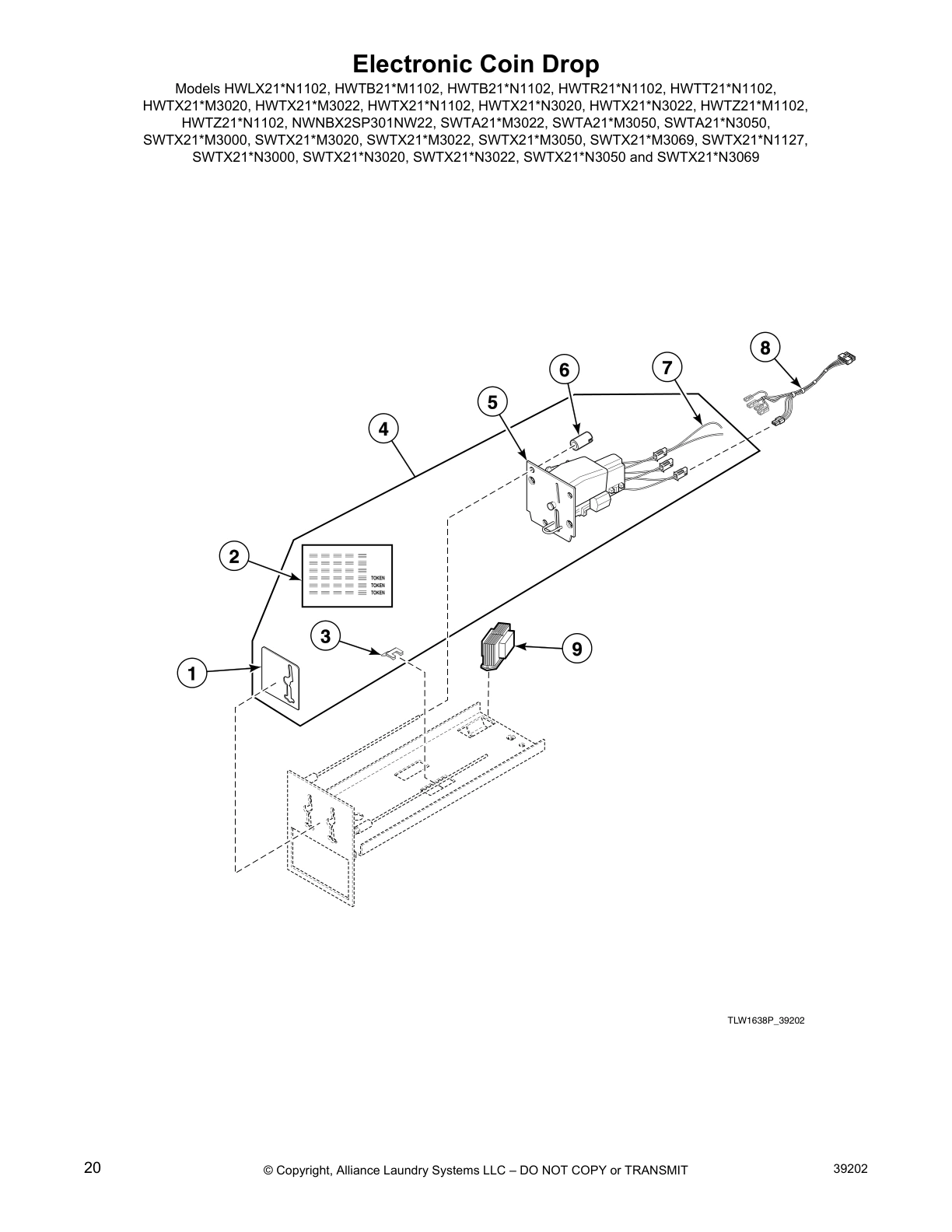

Electronic Coin Drop
Coin Drop, Meter Case and Service Door (Drawing 1 of 2)
Coin Drop, Meter Case and Service Door (Drawing 2 of 2)
Timer Case
Security Case and Card Reader
Control Panel, Control Hood and Controls (Drawing 1 of 18)
Control Panel, Control Hood and Controls (Drawing 2 of 18)
Control Panel, Control Hood and Controls (Drawing 3 of 18)
Control Panel, Control Hood and Controls (Drawing 4 of 18)
Control Panel, Control Hood and Controls (Drawing 5 of 18)
Control Panel, Control Hood and Controls (Drawing 6 of 18)
Control Panel, Control Hood and Controls (Drawing 8 of 18)
Control Panel, Control Hood and Controls (Drawing 9 of 18)
Control Panel, Control Hood and Controls (Drawing 10 of 18)
Control Hood
Control Panel and Controls
Control Panel, Control Hood and Controls (Drawing 11 of 18)
Control Panel, Control Hood and Controls (Drawing 12 of 18)
Control Panel, Control Hood and Controls (Drawing 13 of 18)
Control Panel, Control Hood and Controls (Drawing 14 of 18)
Control Panel, Control Hood and Controls (Drawing 15 of 18)
Control Panel, Control Hood and Controls (Drawing 16 of 18)
Control Panel, Control Hood and Controls (Drawing 17 of 18)
Control Panel, Control Hood and Controls (Drawing 18 of 18)
Lid and Lid Lock
Top Assembly and Shield
Lid
Top Assembly
Lid Switch
Fill Hose, Mixing Valve-to-Tub Cover Hose,
Mixing Valve and Mounting Bracket
Mixing Valve
Fill Hose, Mixing Valve-to-Tub Cover Hose and Mounting Bracket
Motor and Mounting Bracket Assembly (Drawing 1 of 3)
Belt, Pump and Idler Assembly (Drawing 1 of 3)
Motor, Mounting Bracket, Belt and Idler Assembly
Motor and Mounting Bracket Assembly (Drawing 2 of 3)
Belt, Pump and Idler Assembly (Drawing 2 of 3)
Motor and Mounting Bracket Assembly (Drawing 3 of 3)
Belt, Pump and Idler Assembly (Drawing 3 of 3)
Common parts from model Speed Queen SWTX21*N3020 Washer
SPQ 39874LP SPQ 39874LP Contact Us For Availability
1
Lid SPQ 200891Q Contact Us For Availability
1
Mixing Valve SPQ 38918P Contact Us For Availability
4
Idler Lever Spring SPQ 39666 Contact Us For Availability
4
Screw SPQ 200891L Contact Us For Availability
4
SPQ 36965 SPQ 36965 Contact Us For Availability
5
SPQ 39744 SPQ 39744 Contact Us For Availability
11
Screw SPQ 39339Q Contact Us For Availability
12
Screw SPQ 34565 Contact Us For Availability
× ![]()
