Model Speed Queen SWT211*M1300 Washer – Common Parts & Diagrams

Timer, Case and Plate

Timer and Bracket

Coin Slide Meter Case and Service Door

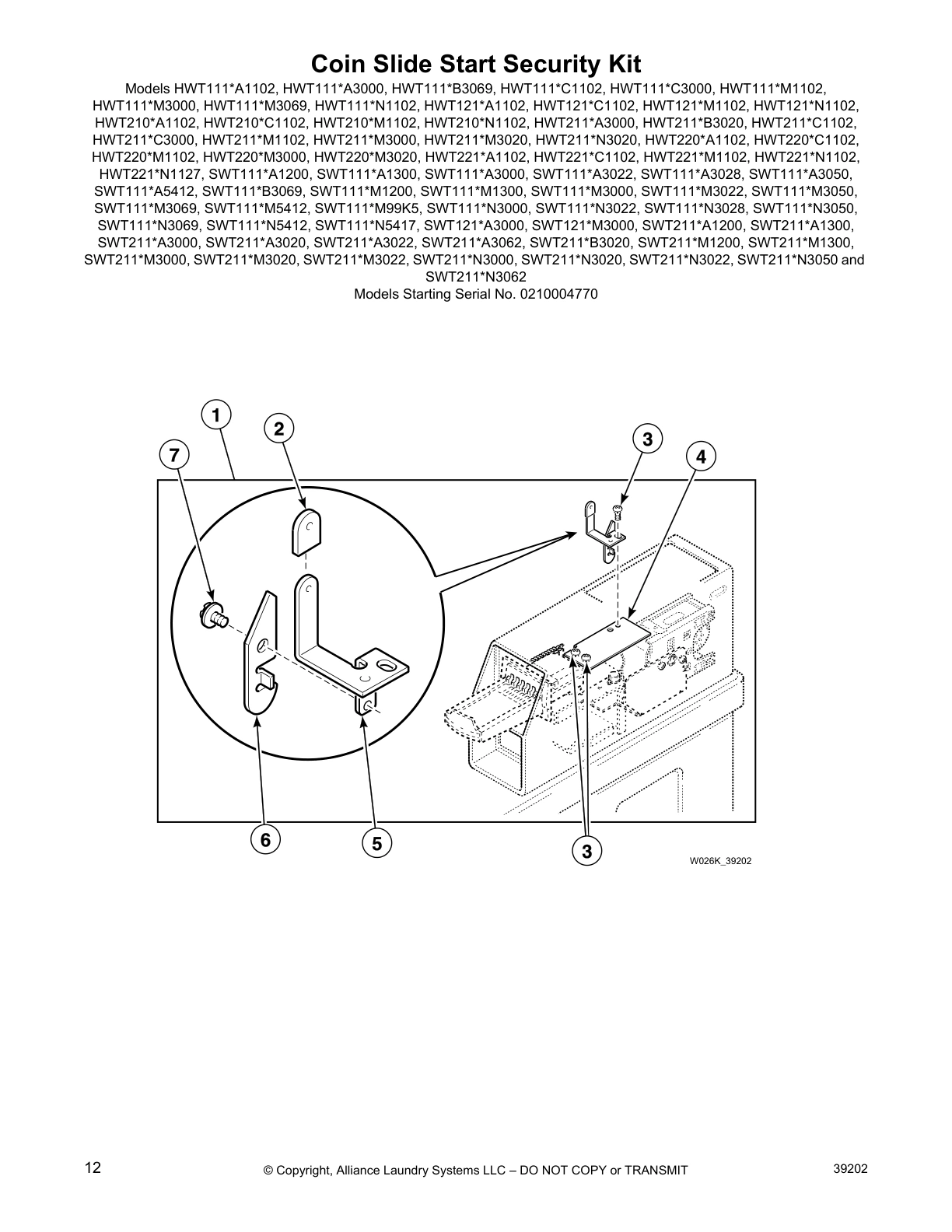

Coin Slide Start Security Kit

Meter Case and Service Door

Coin Drop, Meter Case and Service Door (Drawing 1 of 2)

Coin Drop, Meter Case and Service Door (Drawing 2 of 2)

Timer Case

Security Case and Card Reader

Control Panel, Control Hood and Controls (Drawing 1 of 18)

Control Panel, Control Hood and Controls (Drawing 2 of 18)

Control Panel, Control Hood and Controls (Drawing 3 of 18)

Control Panel, Control Hood and Controls (Drawing 4 of 18)

Control Panel, Control Hood and Controls (Drawing 5 of 18)

Control Panel, Control Hood and Controls (Drawing 6 of 18)

Control Panel, Control Hood and Controls (Drawing 8 of 18)

Control Panel, Control Hood and Controls (Drawing 9 of 18)

Control Panel, Control Hood and Controls (Drawing 10 of 18)

Control Hood

Control Panel and Controls

Control Panel, Control Hood and Controls (Drawing 11 of 18)

Control Panel, Control Hood and Controls (Drawing 12 of 18)

Control Panel, Control Hood and Controls (Drawing 13 of 18)

Control Panel, Control Hood and Controls (Drawing 14 of 18)

Control Panel, Control Hood and Controls (Drawing 15 of 18)

Control Panel, Control Hood and Controls (Drawing 16 of 18)

Control Panel, Control Hood and Controls (Drawing 17 of 18)

Control Panel, Control Hood and Controls (Drawing 18 of 18)

Lid and Lid Lock

Top Assembly and Shield

Lid

Top Assembly

Lid Switch

Fill Hose, Mixing Valve-to-Tub Cover Hose, Mixing Valve and Mounting Bracket

Mixing Valve

Fill Hose, Mixing Valve-to-Tub Cover Hose and Mounting Bracket

Motor and Mounting Bracket Assembly (Drawing 1 of 3)

Belt, Pump and Idler Assembly (Drawing 1 of 3)

Motor, Mounting Bracket, Belt and Idler Assembly

Motor and Mounting Bracket Assembly (Drawing 2 of 3)

Belt, Pump and Idler Assembly (Drawing 2 of 3)

Motor and Mounting Bracket Assembly (Drawing 3 of 3)

Belt, Pump and Idler Assembly (Drawing 3 of 3)

Common parts from model Speed Queen SWT211*M1300 Washer
