Model Speed Queen SSE807*F3000 Dryer – Common Parts & Diagrams

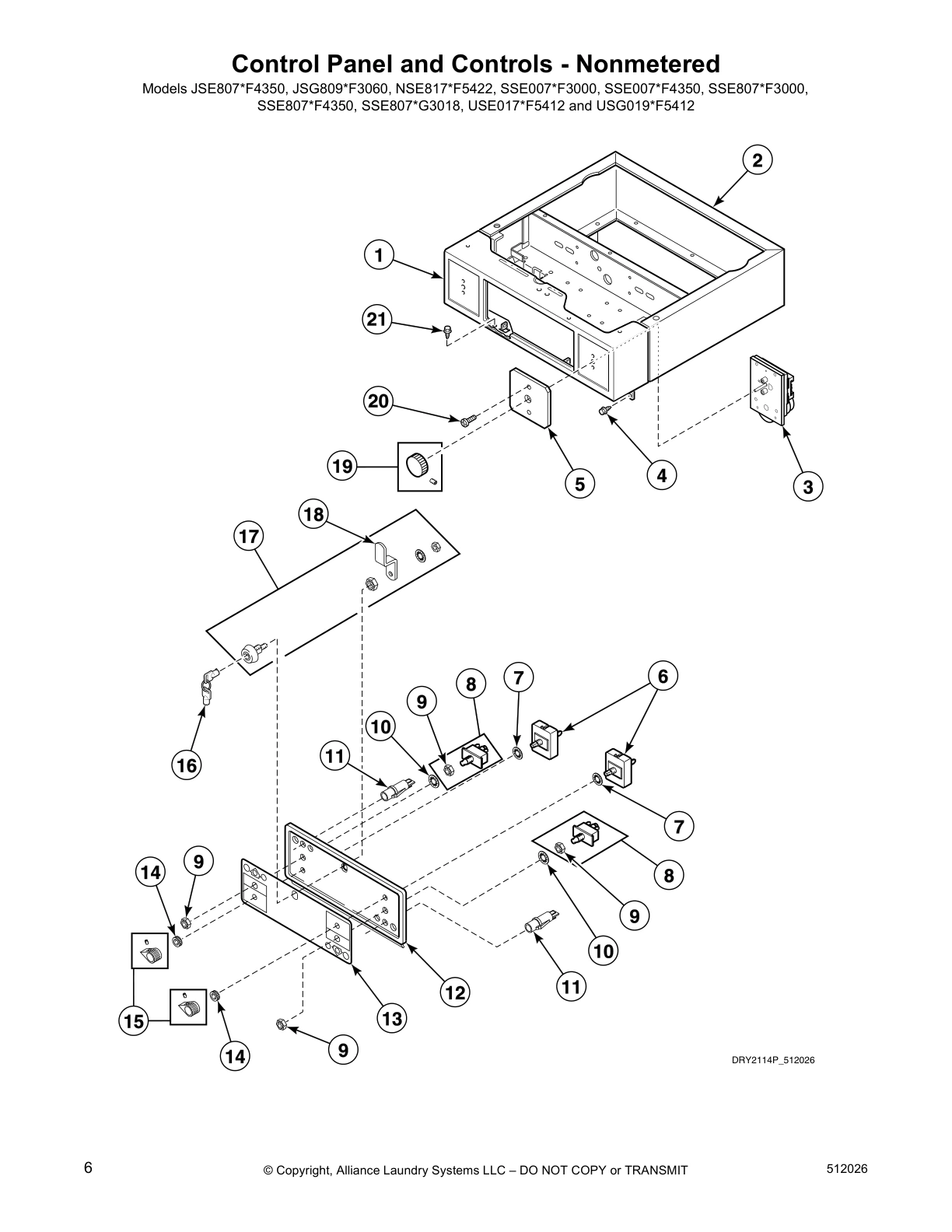

Control Panel and Controls - Nonmetered

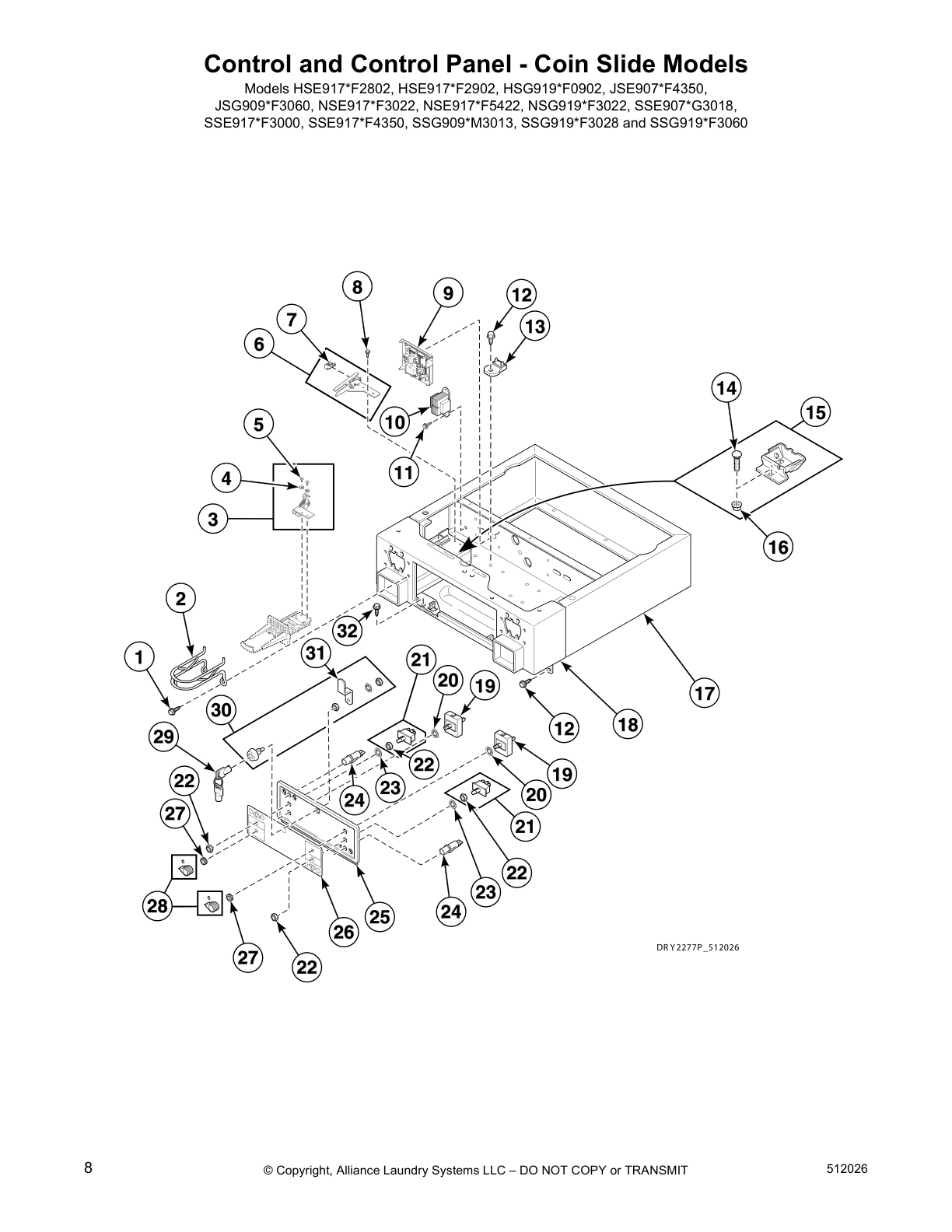

Control and Control Panel - Coin Slide Models

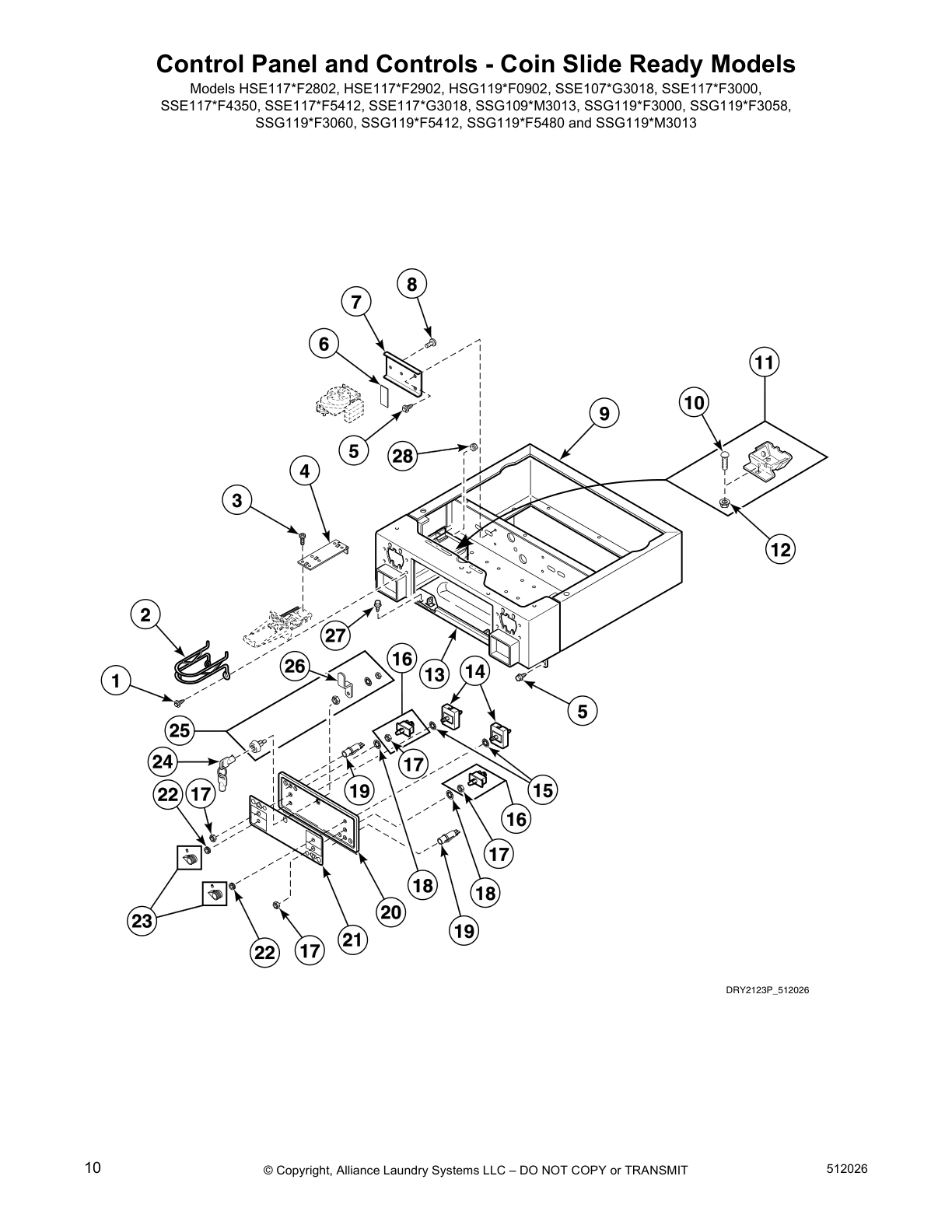

Control Panel and Controls - Coin Slide Ready Models

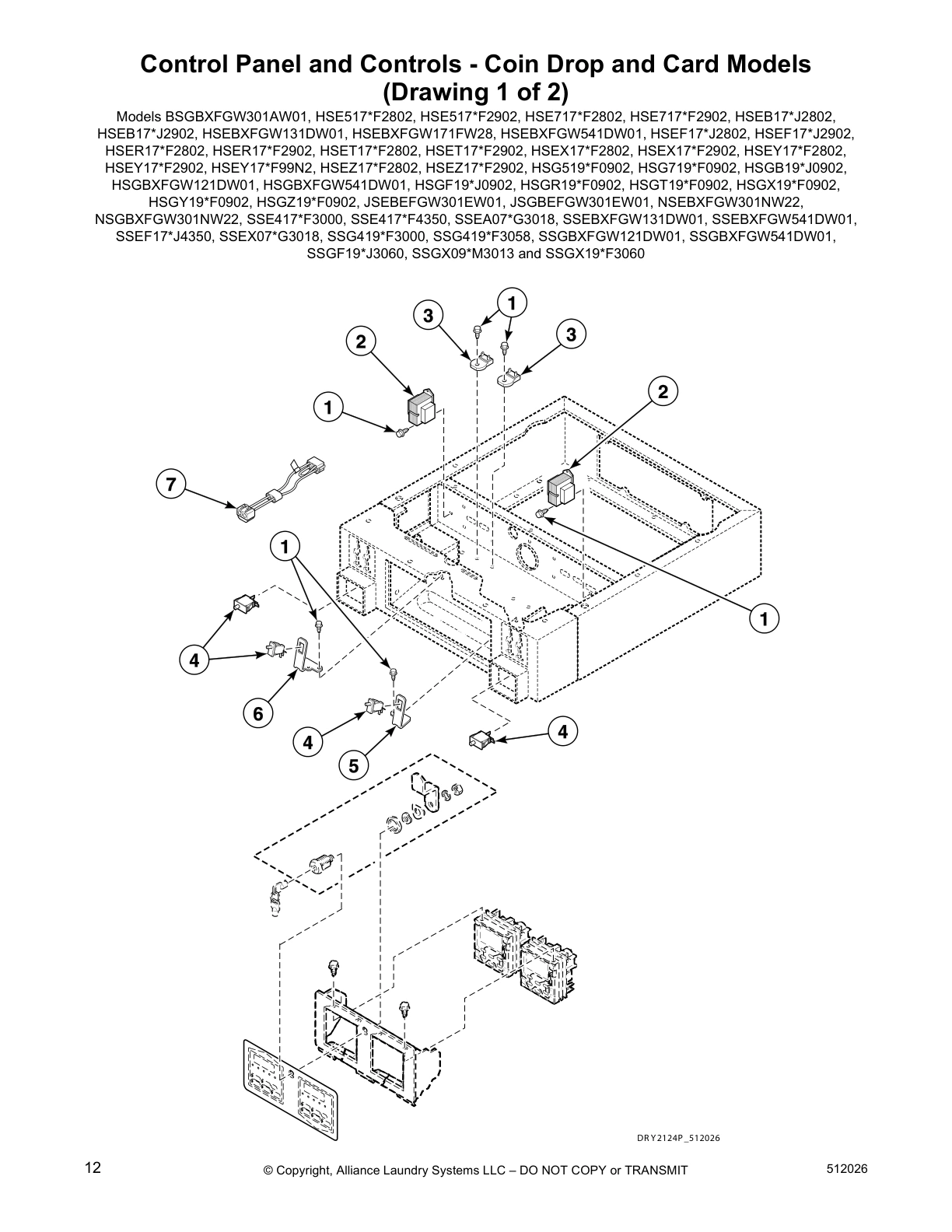

Control Panel and Controls - Coin Drop and Card Models
(Drawing 1 of 2)

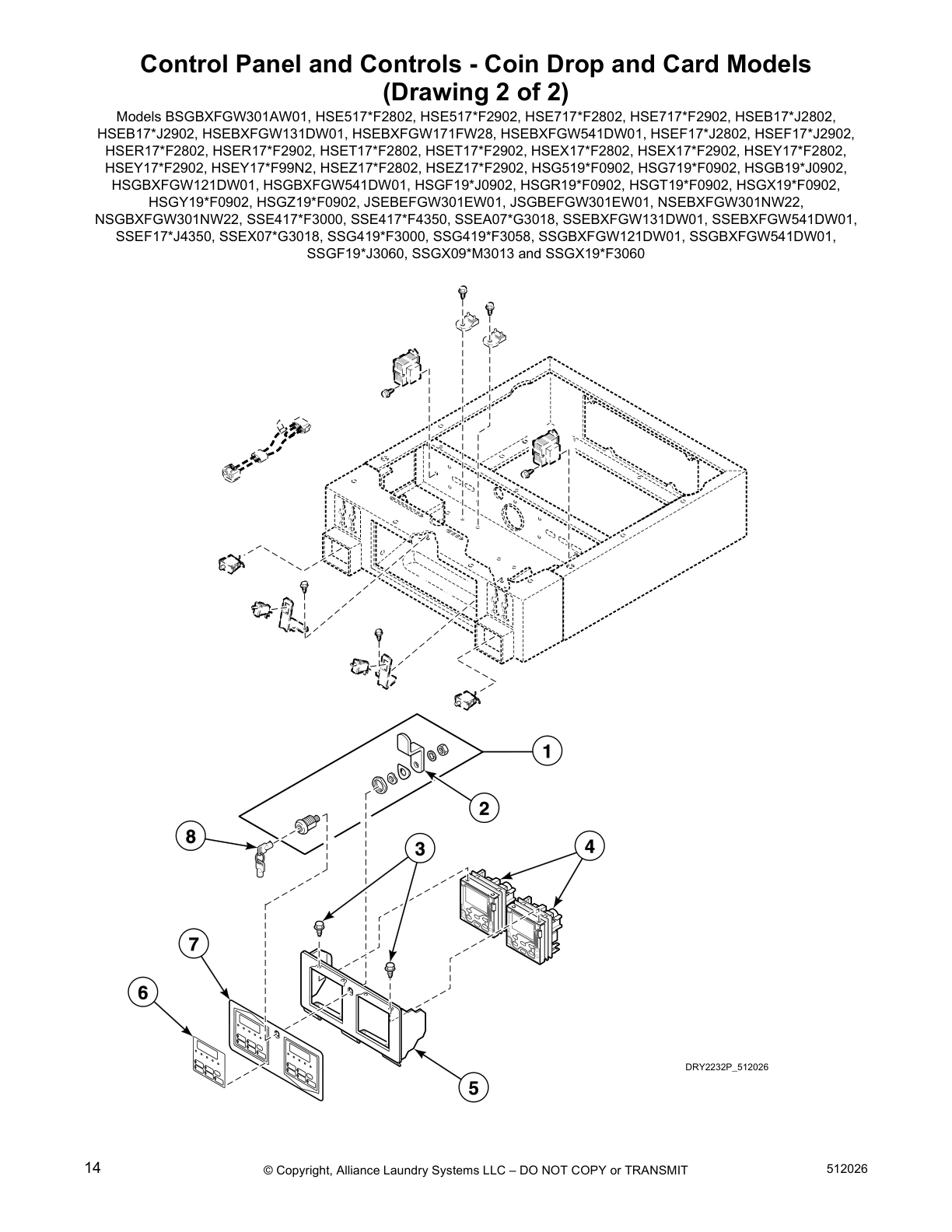

Control Panel and Controls - Coin Drop and Card Models
(Drawing 2 of 2)

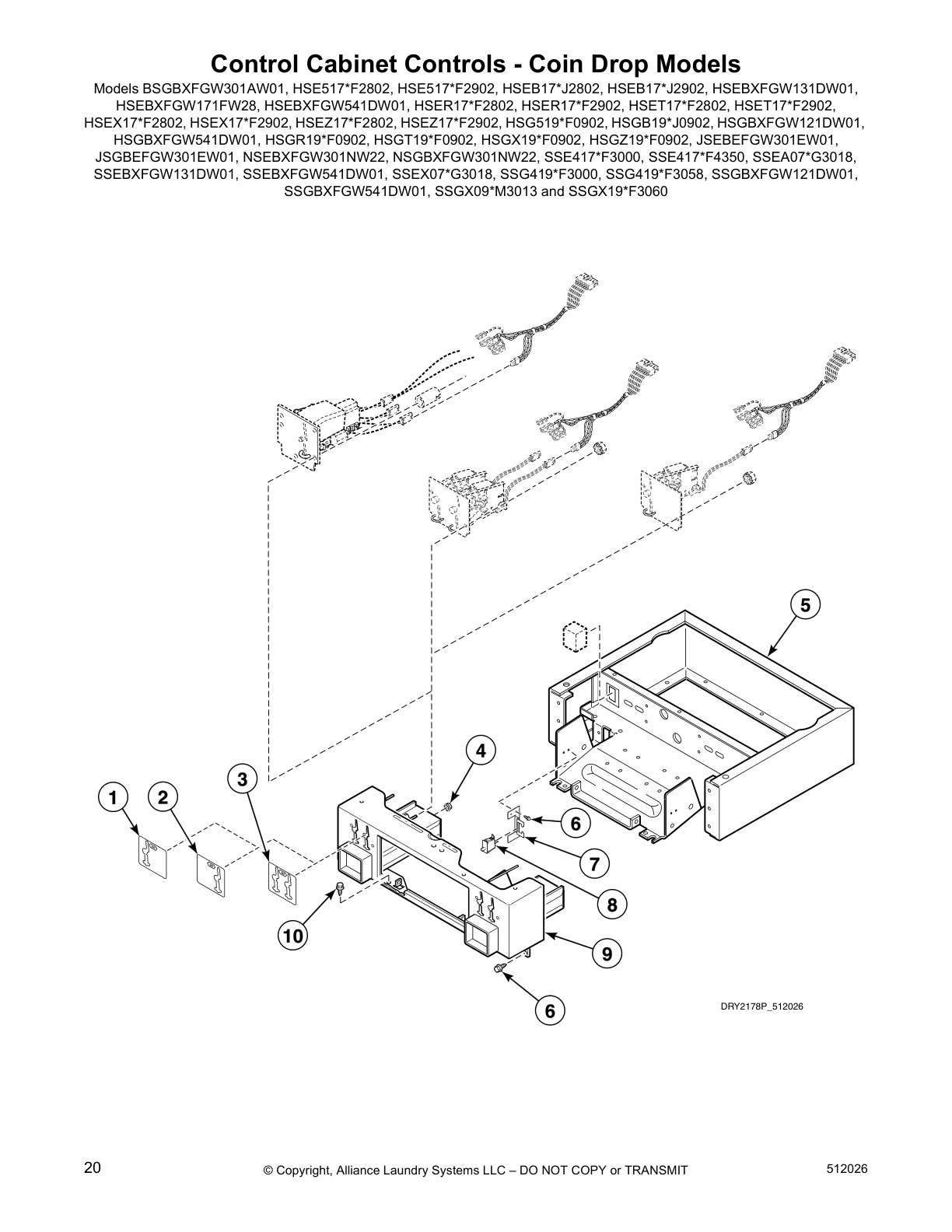

Control Cabinet Controls - Coin Drop Models

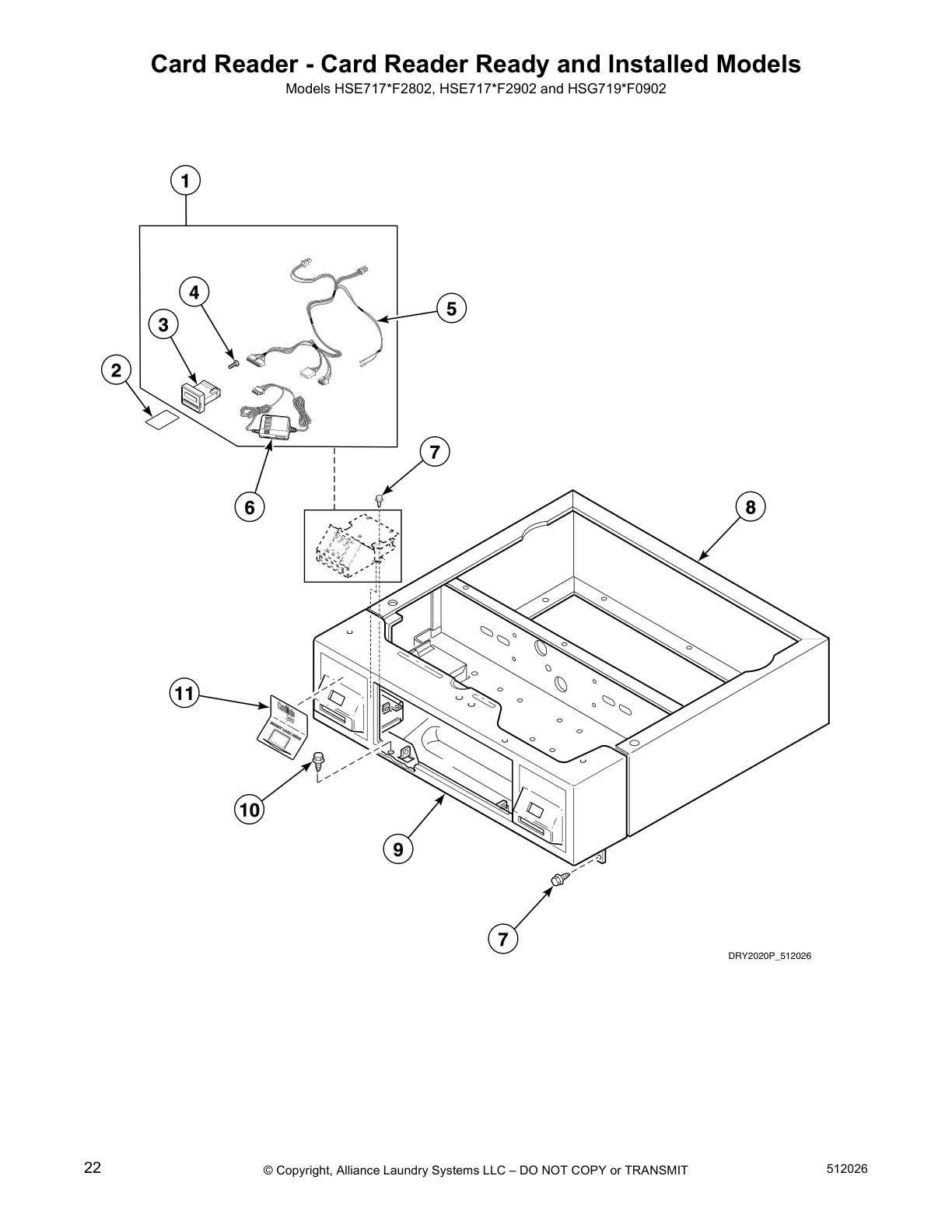

Card Reader - Card Reader Ready and Installed Models

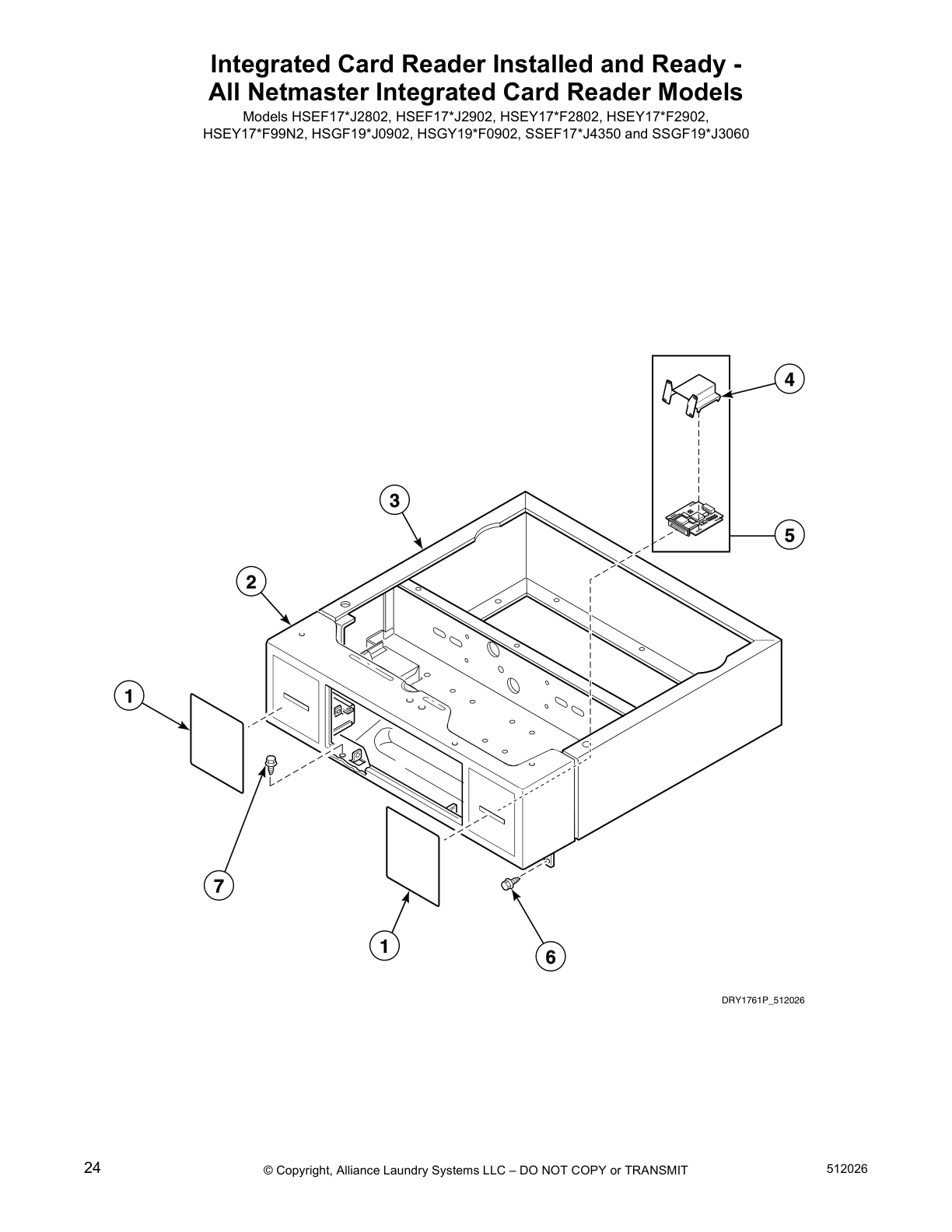

Integrated Card Reader Installed and Ready -
All Netmaster Integrated Card Reader Models

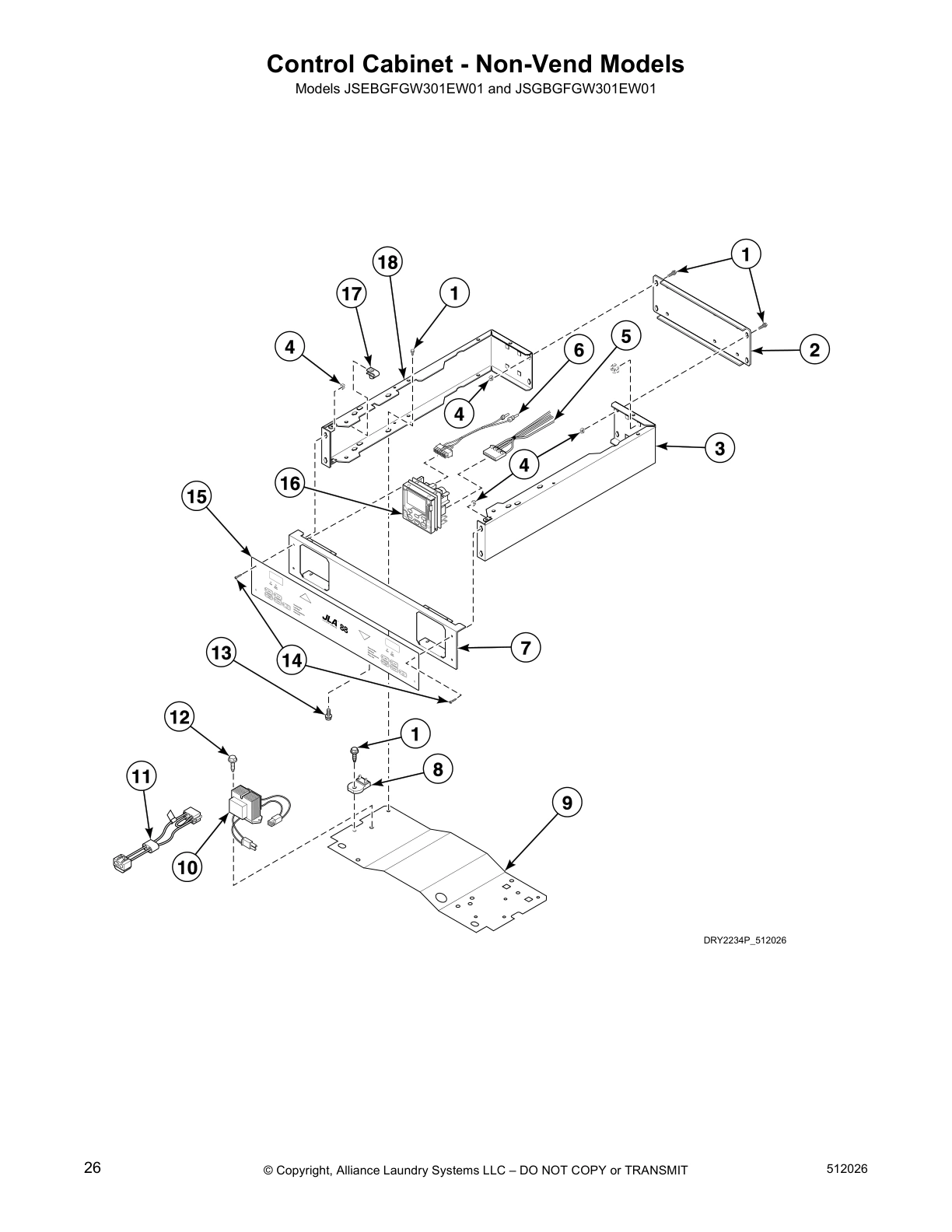

Control Cabinet - Non-Vend Models

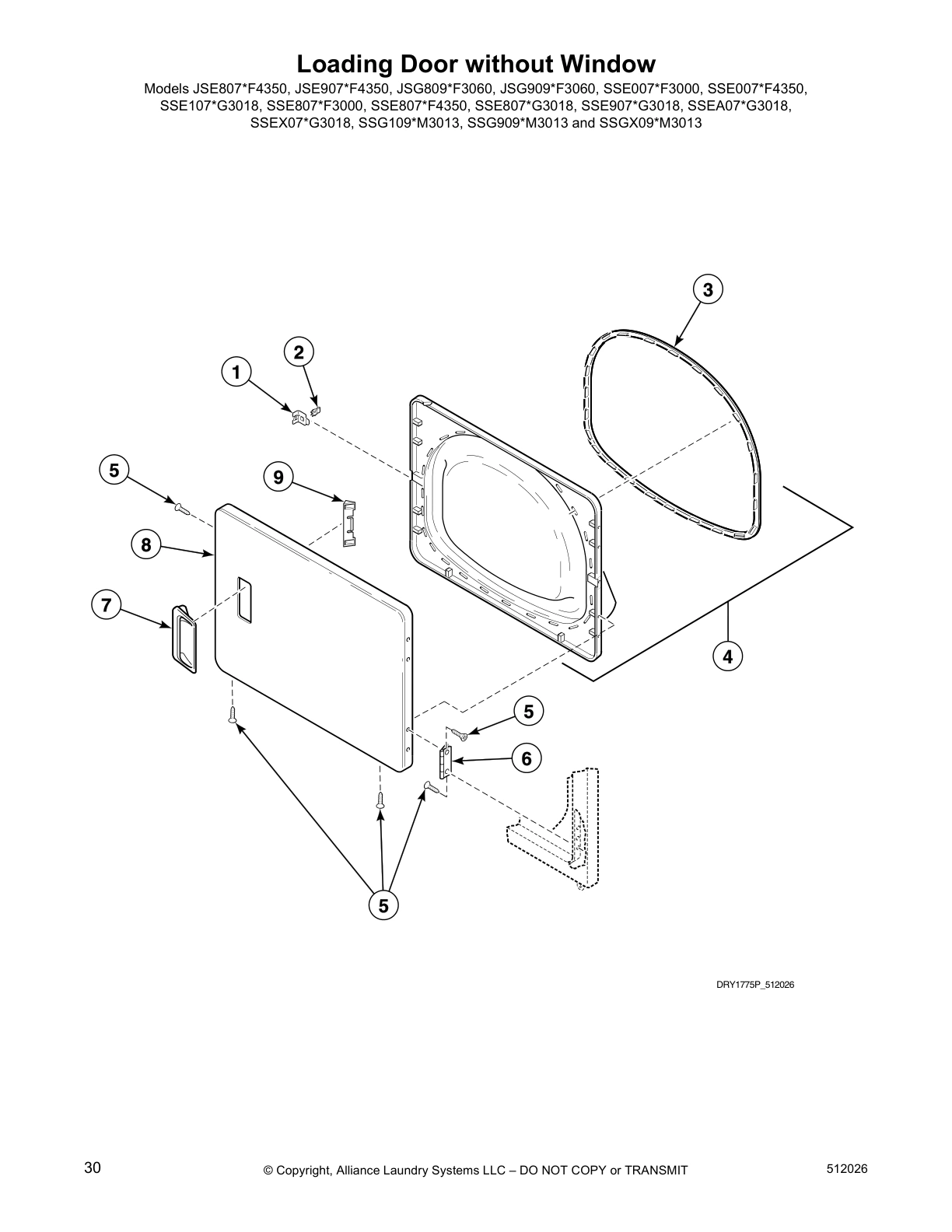

Loading Door without Window

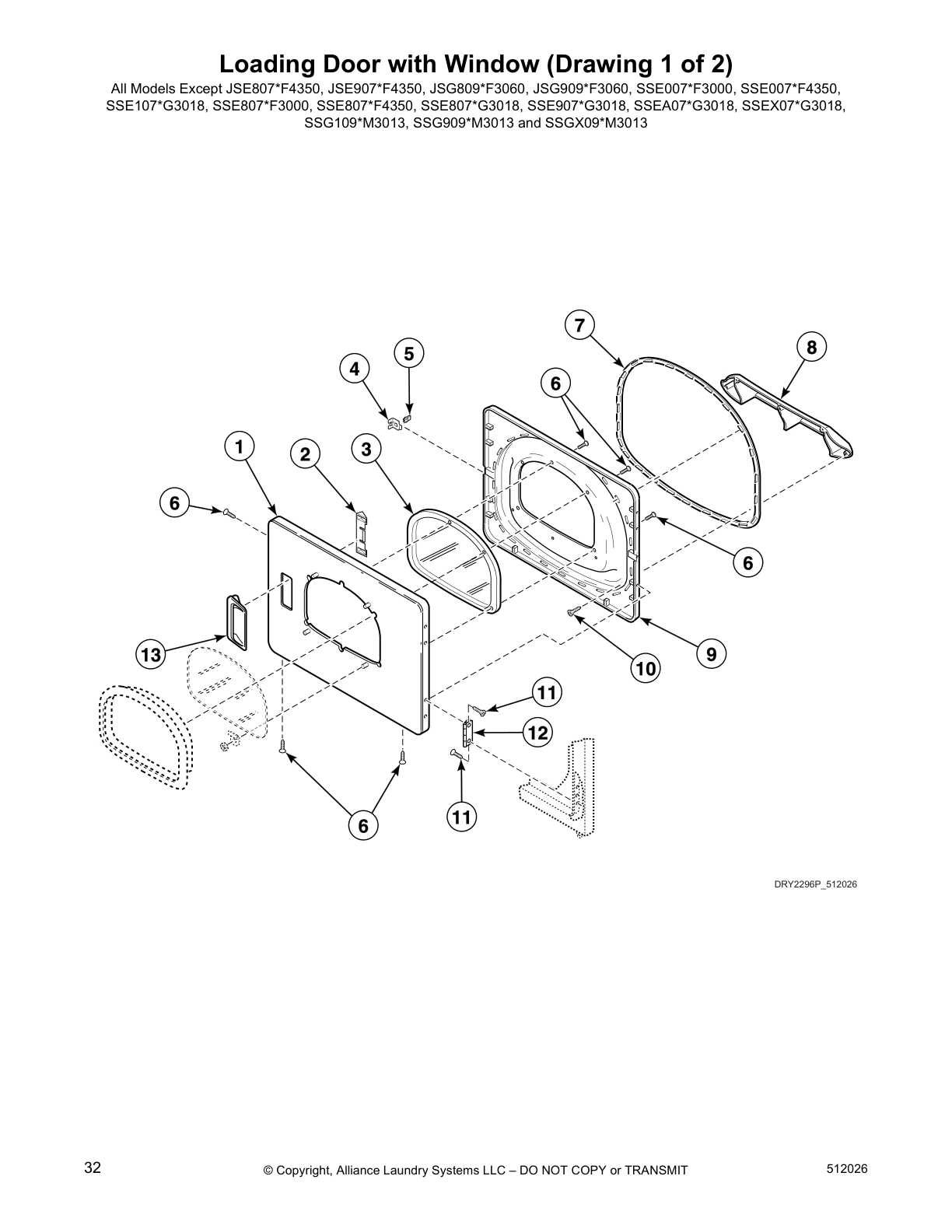

Loading Door with Window (Drawing 1 of 2)

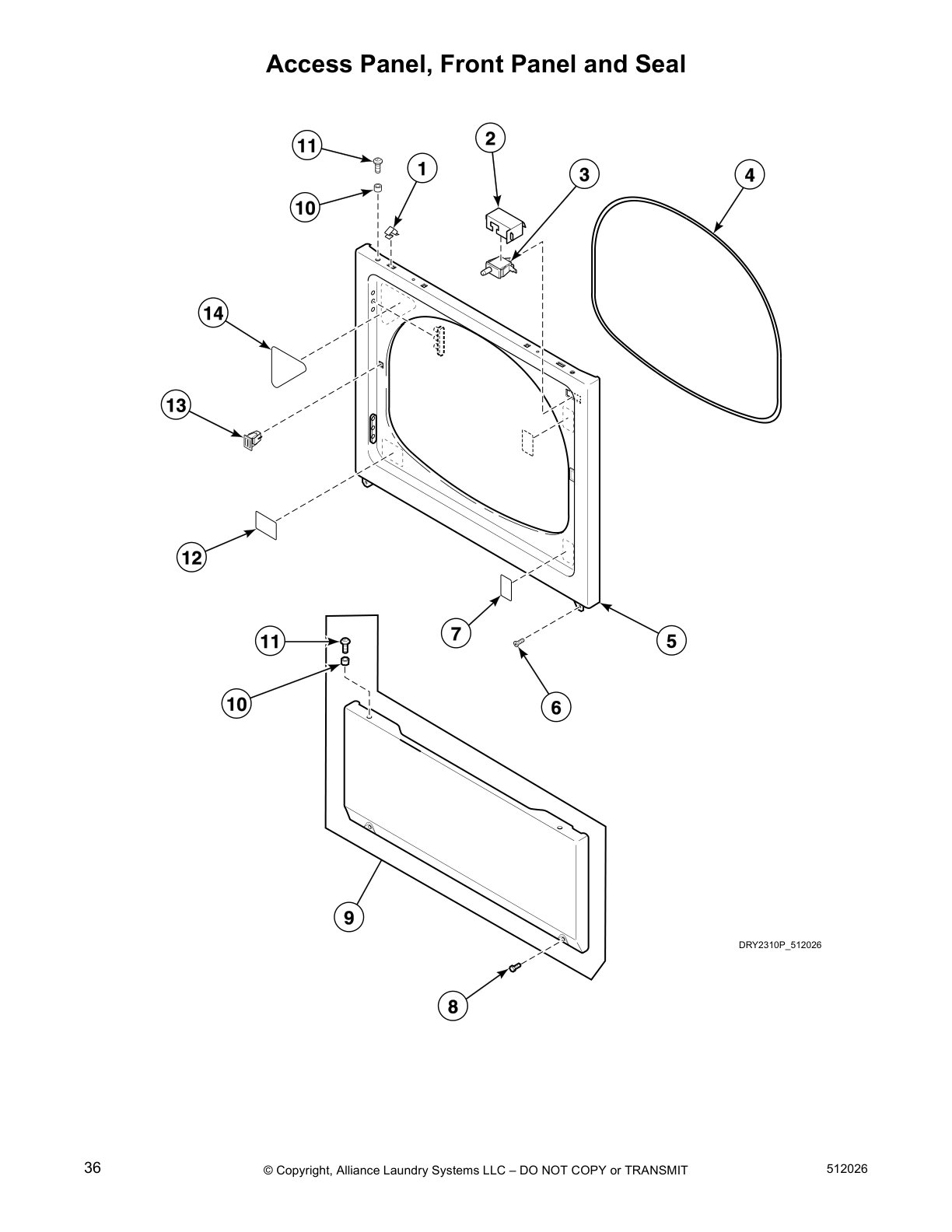

Access Panel, Front Panel and Seal
Common parts from model Speed Queen SSE807*F3000 Dryer
2
Door Handle Wedge SPQ 510103LP Contact Us For Availability
5
Door Strike SPQ 510129 Contact Us For Availability
7
Access Panel SPQ 510066WP Contact Us For Availability
13
Overlay SPQ 32464 Contact Us For Availability
20
Screw SPQ 54612 No Longer Available
21
Control Panel and Bracket Assembly SPQ 91176 Contact Us For Availability
NI
SPQ 62853 SPQ 62853 Contact Us For Availability
× ![]()
