Model Whirlpool SHF3804W2 PORTABLE DISHWASHER – Common Parts & Diagrams

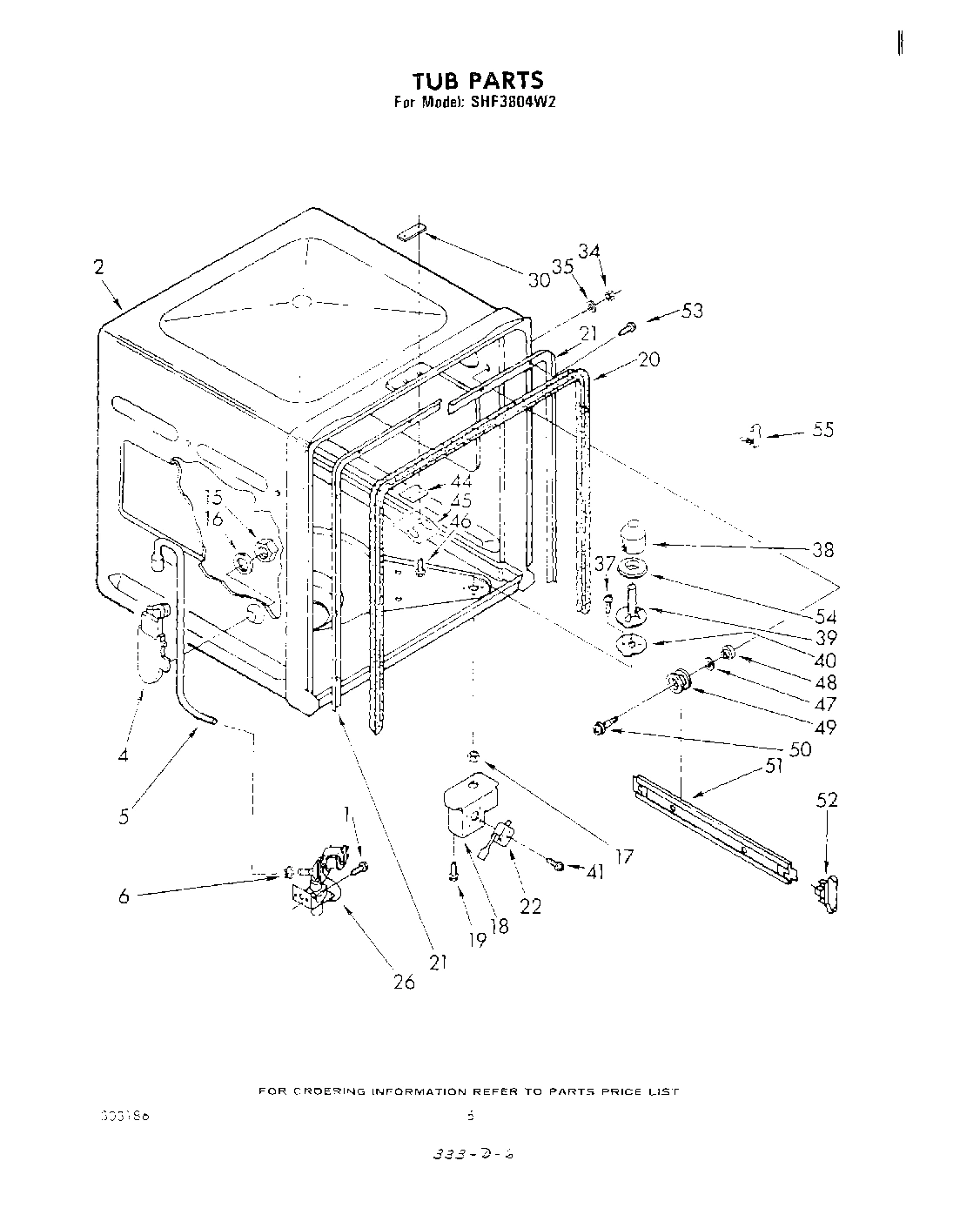

04 - TUB , LITERATURE AND OPTIONAL

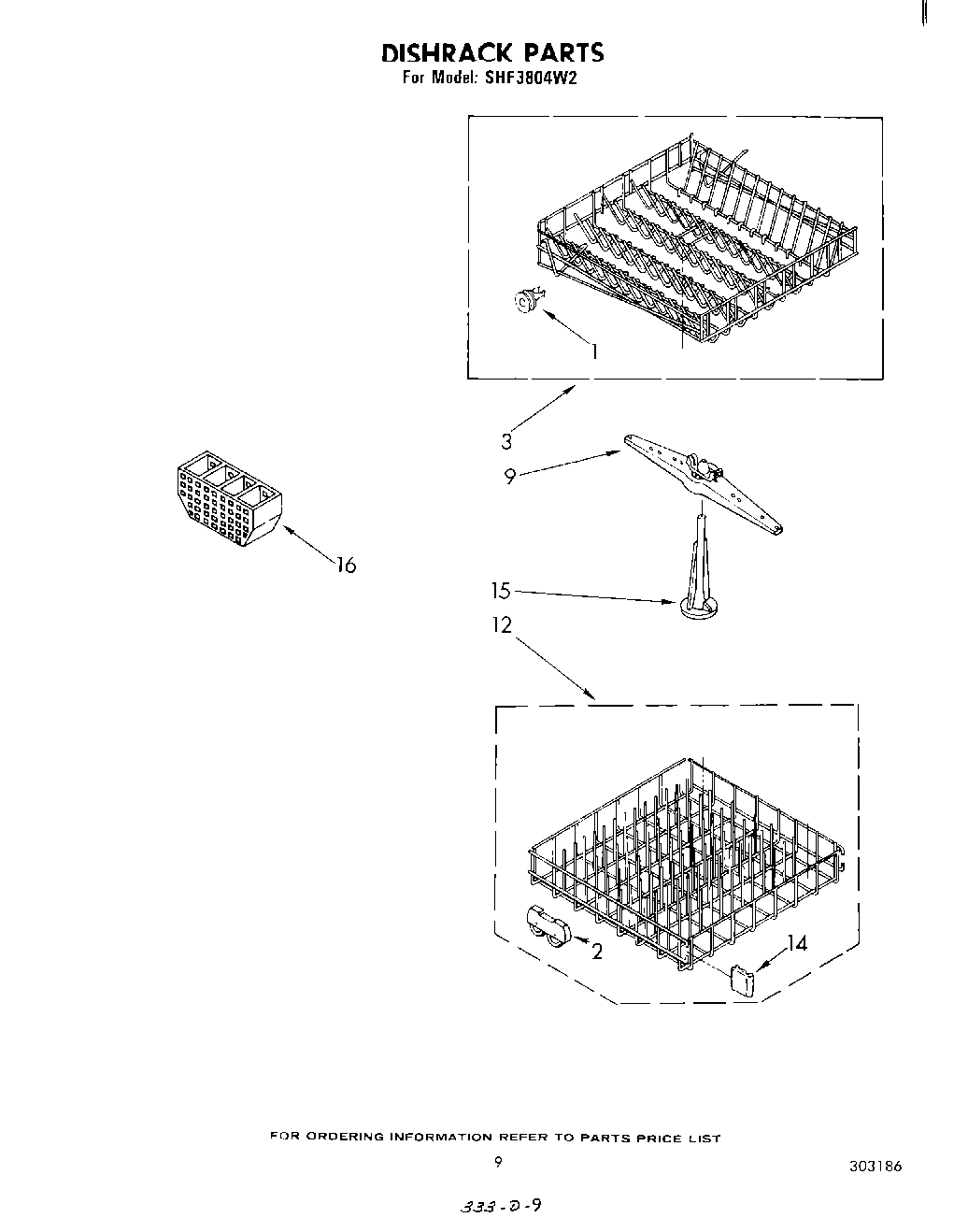

06 - DISHRACK

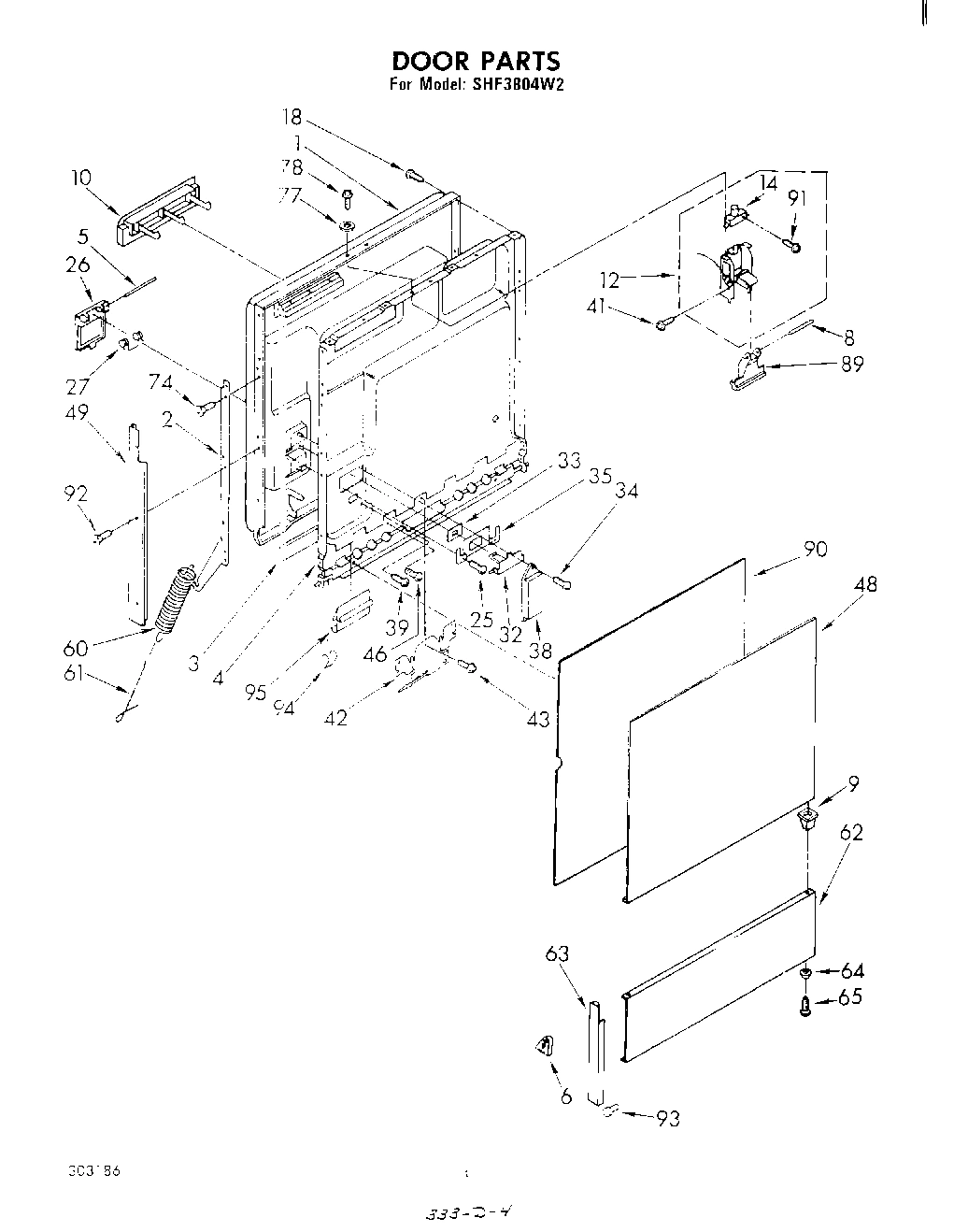

03 - DOOR

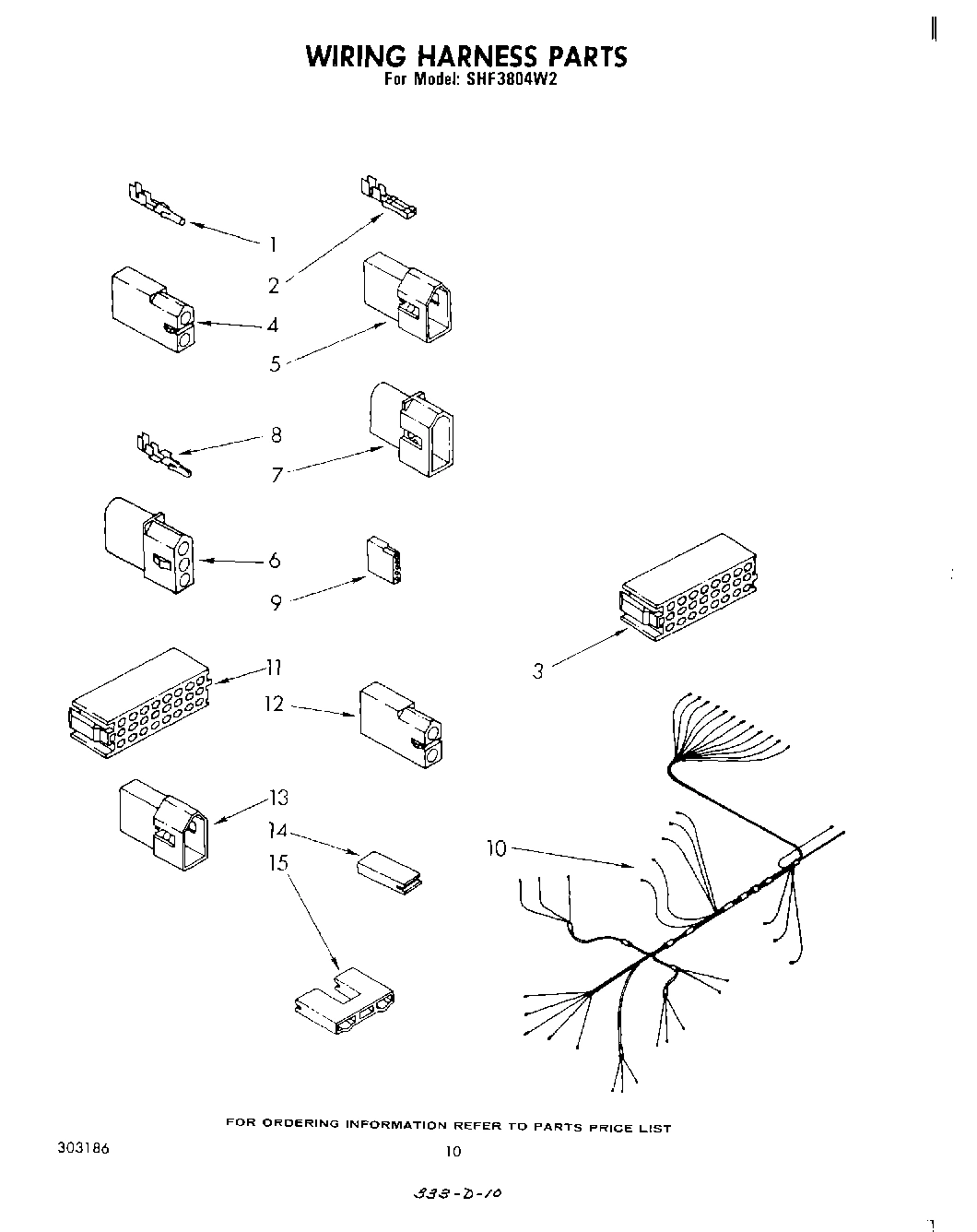

07 - WIRING HARNESS

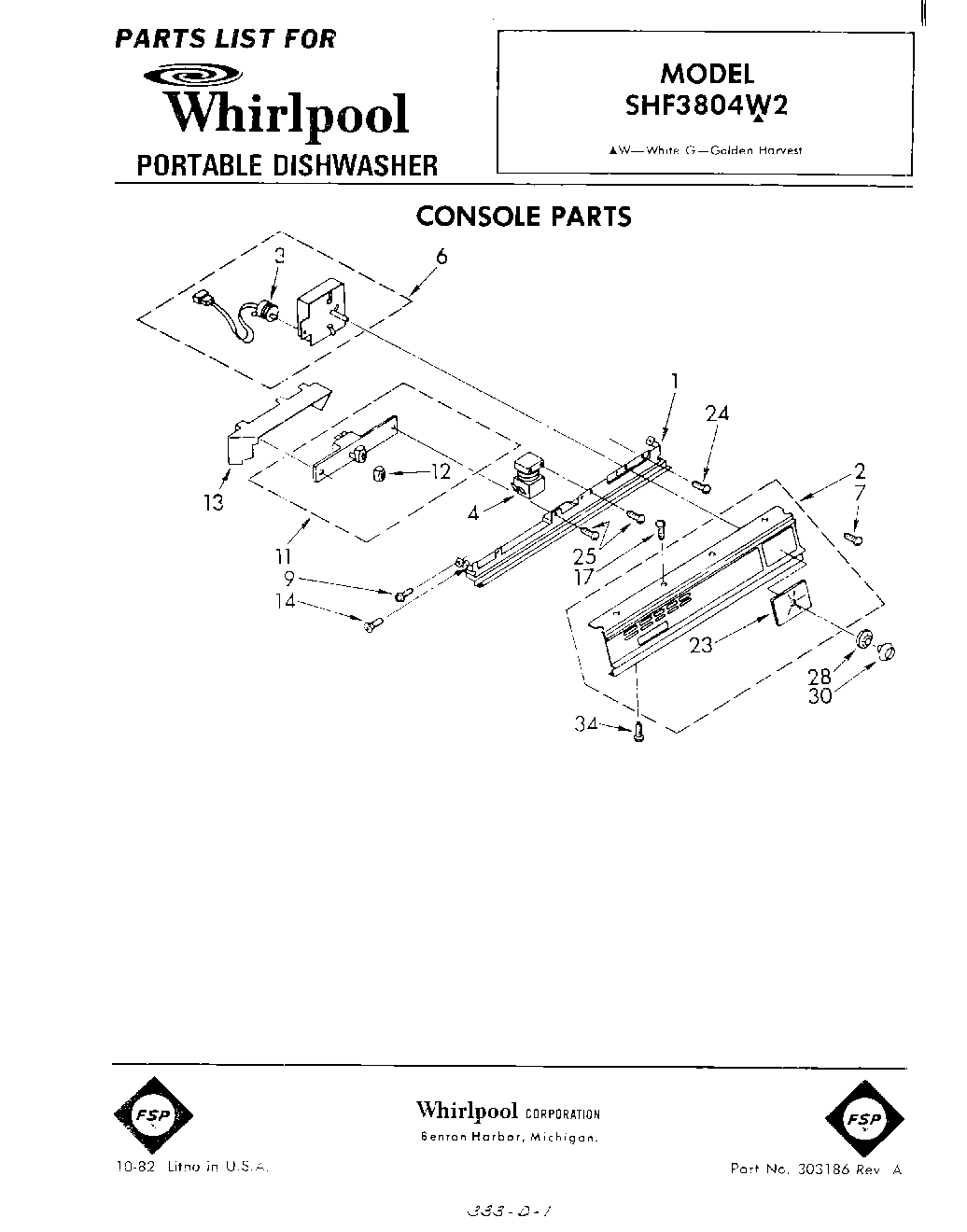

01 - CONSOLE

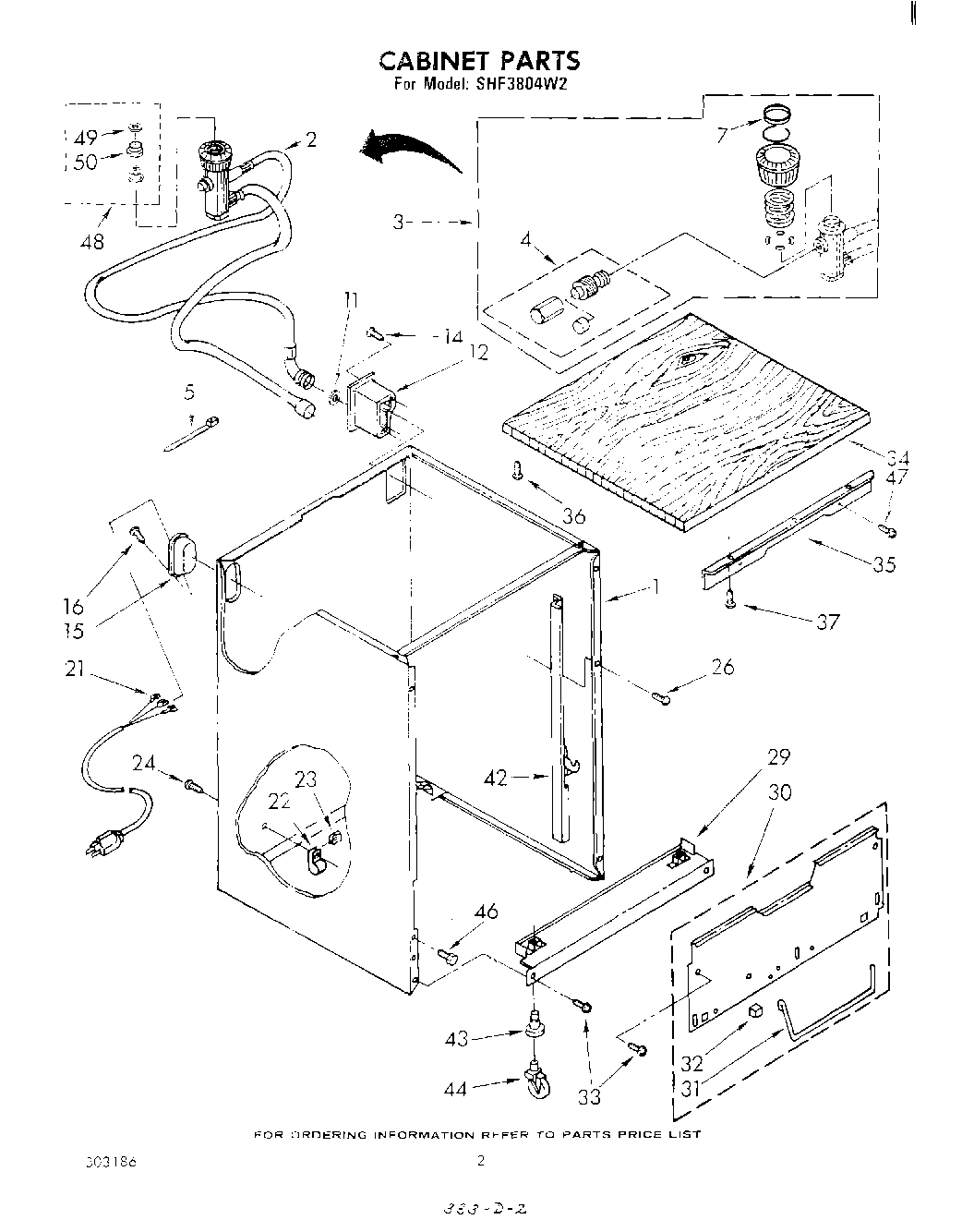

02 - CABINET

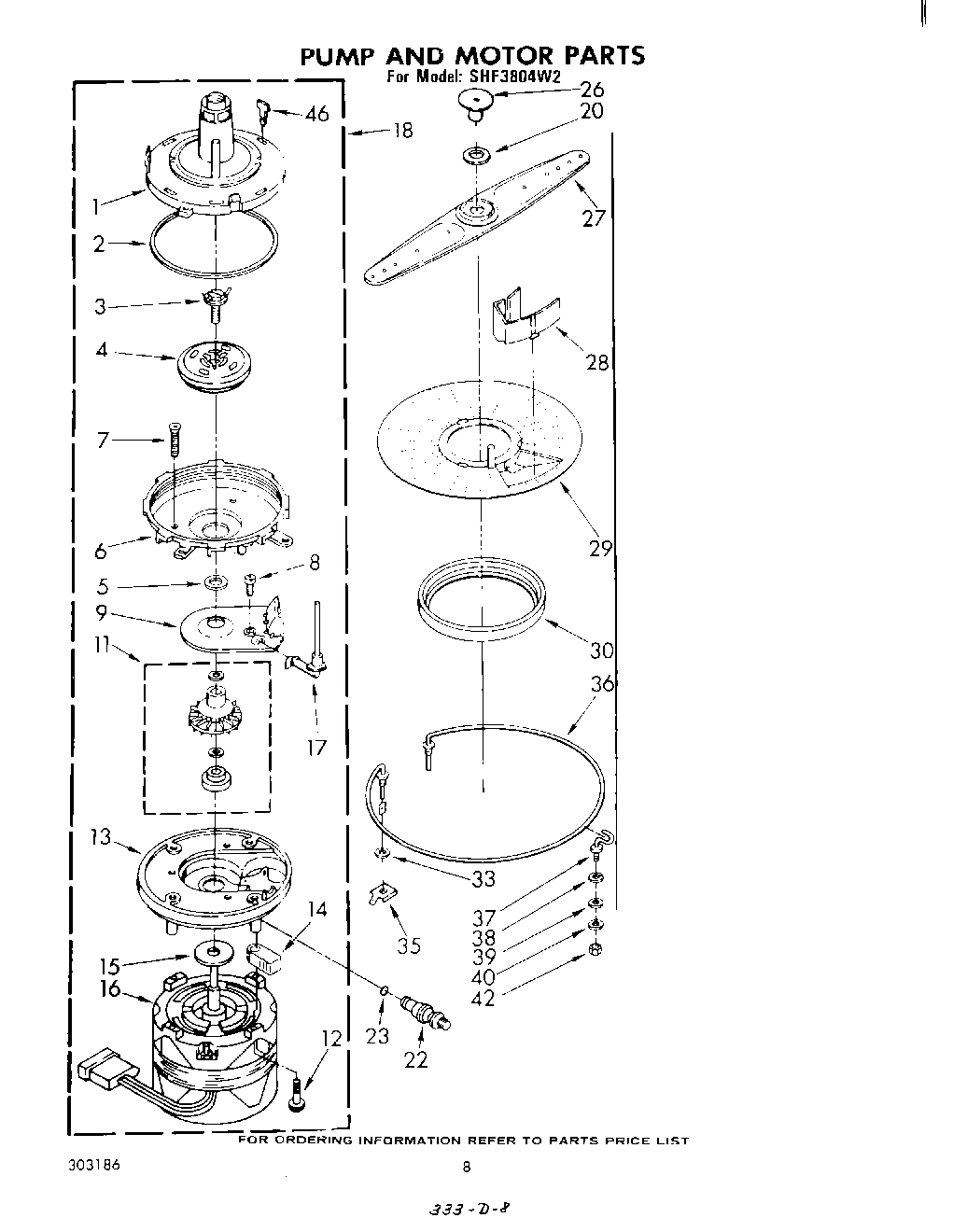

05 - PUMP AND MOTOR
Common parts from model Whirlpool SHF3804W2 PORTABLE DISHWASHER
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
1
Wheel & Axle Assembly (4) WPL 300995 Contact Us For Availability
1
Door, Inner (Includes Illus. 4) WPL 303266 Contact Us For Availability
1
Bracket, Control WPL 300752 Contact Us For Availability
1
Shell Assembly (White) WPL 302897 Contact Us For Availability
1
Shell Assembly (Golden Harvest) WPL 302901 Contact Us For Availability
1
Pump Housing, Upper WPL 301558 Contact Us For Availability
2
Terminal, Female WPL 352088 Contact Us For Availability
2
Seal, Ring WPL 718259 Contact Us For Availability
2
Support Door (L.H.) WPL 303196 Contact Us For Availability
2
Support, Door (R.H.) WPL 303197 Contact Us For Availability
2
Console Assembly WPL 303015 Contact Us For Availability
2
Coupler Assembly WPL 302902 Contact Us For Availability
3
Gasket, Door WPL 717921 Contact Us For Availability
3
Motor, Timer WPL 301062 Contact Us For Availability
3
Screw, 10-32 x .75 WPL 718326 Contact Us For Availability
4
Liner, Door WPL 303202 Contact Us For Availability
4
Receptacle, Terminal (2-Way) WPL 717252 Contact Us For Availability
4
Relay, Start (Alternate) WPL 300516 Contact Us For Availability
4
Relay, Start (Alternate) WPL 301536 Contact Us For Availability
4
Relay, Start (Alternate) WPL 301620 Contact Us For Availability
4
Valve, Pressure Relief WPL 285171 Contact Us For Availability
4
Impeller WPL 719949 Contact Us For Availability
5
Spacer WPL 301619 Contact Us For Availability
6
Retainer (2) WPL 301596 Contact Us For Availability
6
Receptacle, Terminal (3-Way) WPL 353425 Contact Us For Availability
6
Timer, Disconnect WPL 302845 Contact Us For Availability
6
Pump Housing, Lower WPL 718222 Contact Us For Availability
7
Seal WPL 711696 Contact Us For Availability
8
Pin, Pivot WPL 300234 Contact Us For Availability
9
Grommet WPL 356592 Contact Us For Availability
9
Receptacle (5-Circuit) WPL 719585 Contact Us For Availability
9
Coverplate WPL 300084 Contact Us For Availability
10
Screen, Vent WPL 300246 Contact Us For Availability
10
Harness, Wiring WPL 302345 Contact Us For Availability
11
Disconnect Block WPL 352090 Contact Us For Availability
11
Switch, Pushbutton WPL 302099 Contact Us For Availability
11
Kit, Impeller Drain WPL 675297 Contact Us For Availability
12
Latch Assembly WPL 300235 Contact Us For Availability
12
Receptacle Terminal (2-Way) Red WPL 717251 Contact Us For Availability
12
Button (2) WPL 301977 Contact Us For Availability
12
Housing, Hose WPL 302891 Contact Us For Availability
12
Screw, 13-16 (4) WPL 301817 Contact Us For Availability
13
Barrier, Pushbutton WPL 303129 Contact Us For Availability
13
Base, Pump WPL 301812 Contact Us For Availability
14
Bumper WPL 719964 Contact Us For Availability
14
Switch, Interlock (Alternate) WPL 300232 Contact Us For Availability
14
Switch, Interlock (Alternate) WPL 303075 Contact Us For Availability
14
Connector Block WPL 301219 Contact Us For Availability
14
Support, Pump (4) WPL 718260 Contact Us For Availability
15
Tower WPL 302030 Contact Us For Availability
15
Connector Block WPL 300708 Contact Us For Availability
15
Housing, Cord WPL 716234 Contact Us For Availability
16
Motor (Emerson) WPL 301811 Contact Us For Availability
16
Motor (General Electric) WPL 301858 Contact Us For Availability
17
Nut, .125 WPL 717488 Contact Us For Availability
17
Bleeder Assembly WPL 718629 Contact Us For Availability
18
Pump & Motor Assembly (Alternate) WPL 301829 Contact Us For Availability
18
Pump & Motor Assembly (Alternate) WPL 301860 Contact Us For Availability
18
Pump & Motor Assembly (Alternate) WPL 301861 Contact Us For Availability
20
Bearing, Nozzle WPL 719576 Contact Us For Availability
21
Cord, Power WPL 302325 Contact Us For Availability
22
Clamp, Strain Relief WPL 596553 Contact Us For Availability
22
Adapter, Hose WPL 719930 Contact Us For Availability
23
Insert WPL 303001 Contact Us For Availability
23
Nut, J-Type WPL 717337 Contact Us For Availability
23
``O`` Ring WPL 95080 Contact Us For Availability
24
Screw, 8-18 x 5/8 WPL 303090 Contact Us For Availability
24
Screw WPL 339494 Contact Us For Availability
26
Cap, Nozzle WPL 302816 Contact Us For Availability
27
Spray Arm, Lower WPL 302767 Contact Us For Availability
28
Dial WPL 300996 Contact Us For Availability
28
Guard, Screen WPL 303069 Contact Us For Availability
29
Toeplate Assembly (Includes Illus. 43) WPL 719513 Contact Us For Availability
29
Screen, Sump WPL 303070 Contact Us For Availability
30
Gasket, Pump WPL 717000 Contact Us For Availability
30
Knob, Timer WPL 301010 Contact Us For Availability
30
Plate, Cover WPL 719091 Contact Us For Availability
31
Bar, Torsion (R.H.) WPL 719093 Contact Us For Availability
31
Bar, Torsion (L.H.) WPL 719094 Contact Us For Availability
32
Lever, Catch WPL 300119 Contact Us For Availability
32
Bumper, Rubber WPL 719235 Contact Us For Availability
33
Seal, Lever WPL 300105 Contact Us For Availability
34
Panel, Top WPL 301563 Contact Us For Availability
35
Retainer WPL 300104 Contact Us For Availability
35
Trim, Front WPL 301585 Contact Us For Availability
35
Nut, 7/16-20 (2) WPL 718537 Contact Us For Availability
36
Screw (2) WPL 343826 Contact Us For Availability
36
Heater (Alternate) WPL 302113 Contact Us For Availability
36
Heater (Alternate) WPL 302562 Contact Us For Availability
36
Heater (Alternate) WPL 717141 Contact Us For Availability
36
Heater (Alternate) WPL 719687 Contact Us For Availability
37
Support, Heater (2) WPL 717096 Contact Us For Availability
38
Actuator WPL 300109 Contact Us For Availability
38
Washer, Retainer (2) WPL 717289 Contact Us For Availability
39
Screw, 8 x 1/2 Hi-Lo Blunt Point (1) WPL 718250 Contact Us For Availability
39
Washer (2) WPL 14351 Contact Us For Availability
40
Washer (2) WPL 711284 Contact Us For Availability
41
Screw, 4-40 x 3/4 WPL 98086 Contact Us For Availability
42
Shield, Harness WPL 303362 Contact Us For Availability
42
Leg Assembly, L.H. WPL 719621 Contact Us For Availability
42
Leg Assembly, R.H. WPL 719622 Contact Us For Availability
42
Nut, 10-32 (2) WPL 9420162 Contact Us For Availability
43
Socket, Caster (Alternate) WPL 300450 Contact Us For Availability
43
Socket, Caster (Alternate) WPL 717588 Contact Us For Availability
44
Shim WPL 712302 Contact Us For Availability
45
Strike WPL 300233 Contact Us For Availability
46
Key, Pump Housing WPL 301936 Contact Us For Availability
47
Washer (8) WPL 718750 Contact Us For Availability
48
Washer, Cup (8) WPL 718817 Contact Us For Availability
48
Panel, Front WPL ARI130367A Contact Us For Availability
49
Wheel Tub (8) WPL 300844 Contact Us For Availability
49
Trim, Door (R.H.) WPL 302593 Contact Us For Availability
49
Trim, Door (L.H.) WPL 302594 Contact Us For Availability
49
Washer WPL 713747 Contact Us For Availability
50
Screw, Shoulder (8) WPL 712499 Contact Us For Availability
50
Bushing WPL 713748 Contact Us For Availability
51
Track (2) WPL 300846 Contact Us For Availability
52
End Cap, Track (4) WPL 300845 Contact Us For Availability
54
Gasket, Standpipe (2) WPL 301662 Contact Us For Availability
55
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
55
Golden Harvest WPL 261890 Contact Us For Availability
55
Clip, Gasket (2) WPL 301663 Contact Us For Availability
55
Guide, Use & Care WPL 302695 Contact Us For Availability
55
Tag, Energy Fact WPL 302774 Contact Us For Availability
55
Instructions, Installation WPL 303027 Contact Us For Availability
55
List, Repair Parts WPL 303186 Contact Us For Availability
55
Thinner (1 Gal.) WPL 799351 Contact Us For Availability
55
Kit, Epoxy Patch (White) WPL 799640 Contact Us For Availability
61
Retainer, Spring WPL 716401 Contact Us For Availability
62
Panel, Access WPL ARI130368A Contact Us For Availability
63
Cap, End (R.H.) WPL 302621 Contact Us For Availability
63
Cap, End (L.H.) WPL 302622 Contact Us For Availability
64
Foot (2) WPL 719581 Contact Us For Availability
65
Screw, 8-18 x 5/8 WPL 719266 Contact Us For Availability
77
Washer (2) WPL 300237 Contact Us For Availability
89
Lever, Release WPL 300230 Contact Us For Availability
90
Spacer, Panel WPL 300801 Contact Us For Availability
91
Screw, 6-32 x 1 WPL 301582 Contact Us For Availability
93
Bumper WPL 715779 Contact Us For Availability
94
Clip, Wire WPL 301857 Contact Us For Availability
95
Retainer, Clip WPL 303121 Contact Us For Availability
× ![]()
