Model Whirlpool SDG2606AWW GAS DRYER – Common Parts &amp; Diagrams

1

WP40111201 Whirlpool Dryer Drum Belt In Stock WPL WP40111201 $15.99

1

ASSEMBLY, HEATER DUCT WPL 503605 Contact Us For Availability

1

MNL,SERVICE-HOME LAUNDRY DRYER WPL RS3200007 Contact Us For Availability

1

MANUAL, USE & CARE WPL Y2200698 Contact Us For Availability

1

CYLINDER ASSEMBLY (PAINTED) WPL 504467WP Contact Us For Availability

1

HINGE, DOOR & TOP WPL Y503676 Contact Us For Availability

1

PIPE, LEAD-IN WPL 37001001 Contact Us For Availability

1

FACIA WPL 37001099 Contact Us For Availability

2

WP40113601 Whirlpool Dryer Roller Bracket In Stock WPL WP40113601 $47.42

2

WPY503978 Whirlpool Heating Element In Stock WPL WPY503978 $42.92

2

HARNESS, WIRING WPL 37001101 Contact Us For Availability

2

LP TO NATURAL CONVERSION KIT WPL 650P3 Contact Us For Availability

2

BAFFLE, CYLINDER (WHT) WPL 503703 Contact Us For Availability

2

DOOR, DRYER (WHT) WPL 37001029 Contact Us For Availability

2

DIAL, TIMER WPL 37001067 Contact Us For Availability

3

WP37001132 Whirlpool Felt Seal In Stock WPL WP37001132 $31.71

3

HANDLE, DOOR (WHT) WPL 33001241 Contact Us For Availability

3

KNOB, TIMER (GRAY) WPL 37001068 Contact Us For Availability

3

HINGE, TOP WPL 500003 Contact Us For Availability

3

VALVE & PIPE ASSY WPL 37001127 Contact Us For Availability

4

WP2200376 Whirlpool Dryer Drum Drive Motor As In Stock WPL WP2200376 $116.74

4

SHROUD, HEAT DUCT WPL 500122 Contact Us For Availability

4

SCREW, 10BT-12 X 1 TAP WPL Y62588 Contact Us For Availability

4

SCREW, No.8AB-16X3/4 FH WPL 37001030 Contact Us For Availability

4

ASSEMBLY, BURNER WPL Y56234 Contact Us For Availability

4

CAP, TIMER KNOB WPL 27001112 Contact Us For Availability

5

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $25.18

5

WP27001126 Whirlpool Knob Assembly Backorder WPL WP27001126 $41.20

5

RACK,DRYING WPL Y504105 Contact Us For Availability

5

ASSY,BLKHD FRONT CO WPL 503756W Contact Us For Availability

5

PANEL, ACCESS COVER WPL 500114 Contact Us For Availability

5

PANEL, TOP (WHT) WPL 37001027 Contact Us For Availability

5

PAD, BUMPER WPL Y56128 Contact Us For Availability

6

56000 Whirlpool Blower Wheel In Stock WPL 56000 $54.20

6

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $4.82

6

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.82

6

WP40113801 Whirlpool Dryer High Limit Thermal In Stock WPL WP40113801 $7.57

6

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

6

WPW10116735 Whirlpool Dryer High Limit Thermo In Stock WPL WPW10116735 $52.45

6

WPY014874 Whirlpool Screw Backorder WPL WPY014874 $4.82

6

THERMOSTAT, LIMIT WPL Y61886 Contact Us For Availability

6

SCREW, No.12 X 9/16 WPL 501285 Contact Us For Availability

6

DUCT, EXHAUST WPL 505518 Contact Us For Availability

7

WP33001632 Whirlpool Timer Assembly Backorder WPL WP33001632 $258.27

7

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

7

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $29.61

7

DUCT, COMBUSTION WPL 37001041 Contact Us For Availability

7

ASSY,UPPR/LWR AIR DUCT WPL 40124501 Contact Us For Availability

7

LOCATOR, PANEL WPL 505187 Contact Us For Availability

8

WP22001650 Whirlpool Spring Clip In Stock WPL WP22001650 $5.30

8

WP3400094 Whirlpool Screw Backorder WPL WP3400094 $4.82

8

SCREW, 6B-20X5/16 WPL 51782 Contact Us For Availability

8

CABINET, DRYER & WASHER (WHT) WPL 40076402WP Contact Us For Availability

8

ASSEMBLY, GAS VALVE WPL 37001002 Contact Us For Availability

8

PANEL, BACK WPL 37001072 Contact Us For Availability

9

WP27001200 Whirlpool Screw Backorder WPL WP27001200 $4.82

9

WP37001142 Whirlpool Lint Filter Backorder WPL WP37001142 $70.37

9

WP37001308 Whirlpool Igniter In Stock WPL WP37001308 $33.72

9

BLOCK, TERMINAL WPL 61923 Contact Us For Availability

9

BULKHEAD, REAR WPL 502614WP Contact Us For Availability

9

BASE, DRYER WPL 500070 Contact Us For Availability

9

CONSOLE (WHT) WPL 27001110 Contact Us For Availability

LEG, LEVELING (PLASTIC) WPL Y500101 Contact Us For Availability

BRACKET,TOP MOUNT WPL 40130801 Contact Us For Availability

BRACKET, MOUNTING WPL 500821 Contact Us For Availability

SWITCH, TEMPERATURE (ELC.) WPL 33001642 Contact Us For Availability

WP37001042 Whirlpool Dryer Drum Support Rolle In Stock WPL WP37001042 $12.64

SEAL, FRONT PANEL WPL 504005 Contact Us For Availability

CORD, POWER (AS WRAP) WPL 33002494 Contact Us For Availability

HARNESS, WIRE (GAS VALVE) WPL 37001007 Contact Us For Availability

SWITCH, PUSH-TO-START WPL 37001090 Contact Us For Availability

W10169313 Whirlpool Door Switch Kit In Stock WPL W10169313 $21.70

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.82

PAD, FELT WPL 500092 Contact Us For Availability

BUTTON, PUSH-TO-START (SLVR) WPL 37001091 Contact Us For Availability

WP23748 Whirlpool Retaining Ring In Stock WPL WP23748 $7.39

WP37001036 Whirlpool Glide Bracket In Stock WPL WP37001036 $50.00

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

PLUG, HINGE HOLE WPL 503126 Contact Us For Availability

BUZZER, NON-ADJUSTABLE WPL 33001623 Contact Us For Availability

14

SCREW, 8B-16X5/8 TAP WPL 500226 Contact Us For Availability

14

PANEL, FRONT (WHT) WPL 503656WP Contact Us For Availability

15

WP37001144 Whirlpool Dryer Idler Arm Pulley A Backorder WPL WP37001144 $35.47

15

PANEL, ACCESS (WHT) WPL 40045301WP Contact Us For Availability

16

LA-1003 Whirlpool Dryer Door Catch and Metal In Stock WPL LA-1003 $13.15

17

WPY54414 Whirlpool Dryer Idler Pulley In Stock WPL WPY54414 $10.74

17

SEAL & LINER, ASSY(INNER DOOR) WPL 37001028 Contact Us For Availability

18

STRIKE, DOOR (METAL) WPL 500039 Contact Us For Availability

19

SCREW, 1/4-20 UNC HEX WPL 500824 Contact Us For Availability

19

BRACKET,DOOR STRIKE WPL 40116201 Contact Us For Availability

20

WPW10139757 Whirlpool Nut Backorder WPL WPW10139757 $4.82

21

MOUNT, MOTOR WPL 503613 Contact Us For Availability

NI

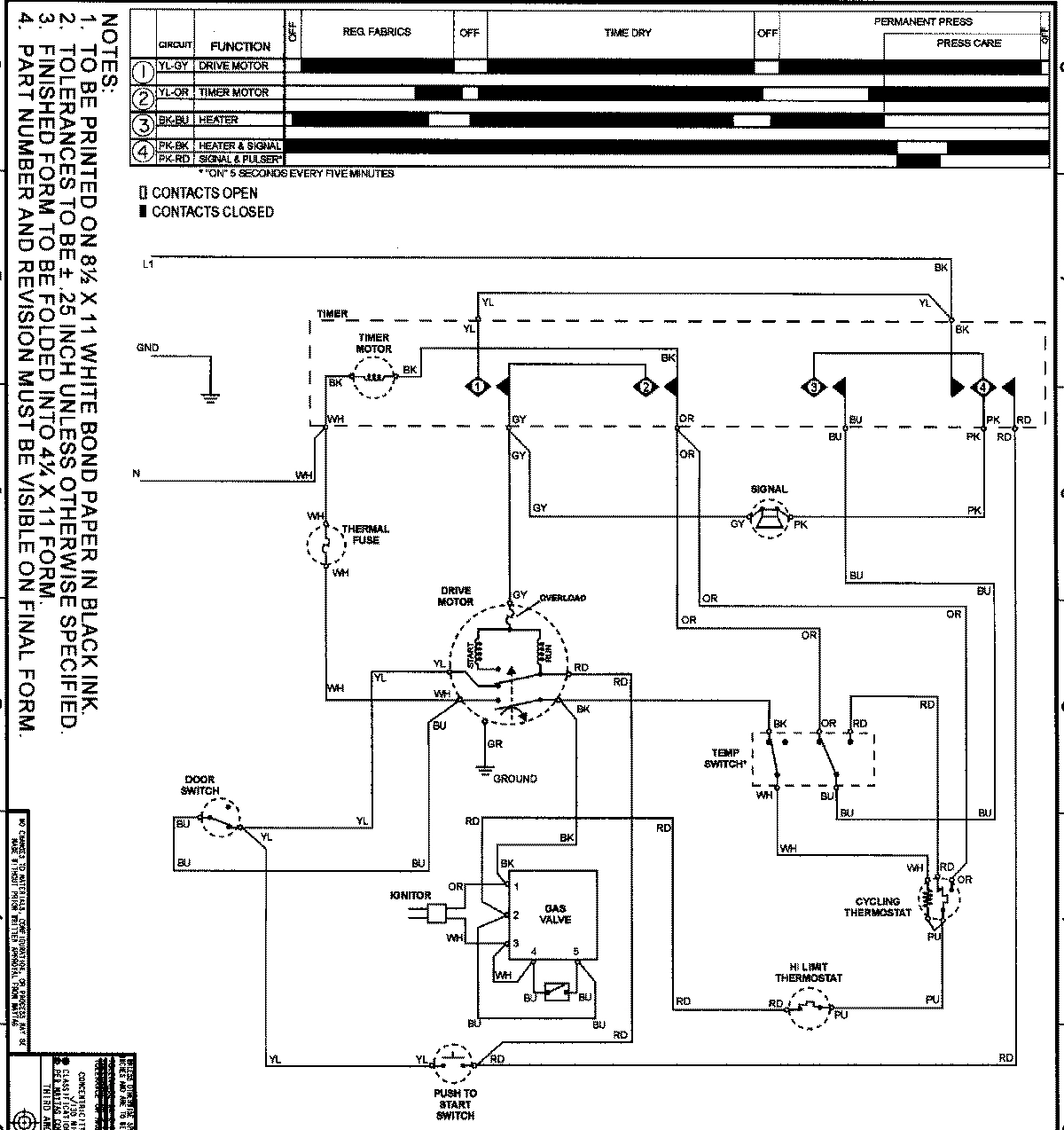

WIRING INFORMATION WPL 15003296 Contact Us For Availability
