Model Whirlpool SDE505DAYW ELECTRIC DRYER – Common Parts &amp; Diagrams

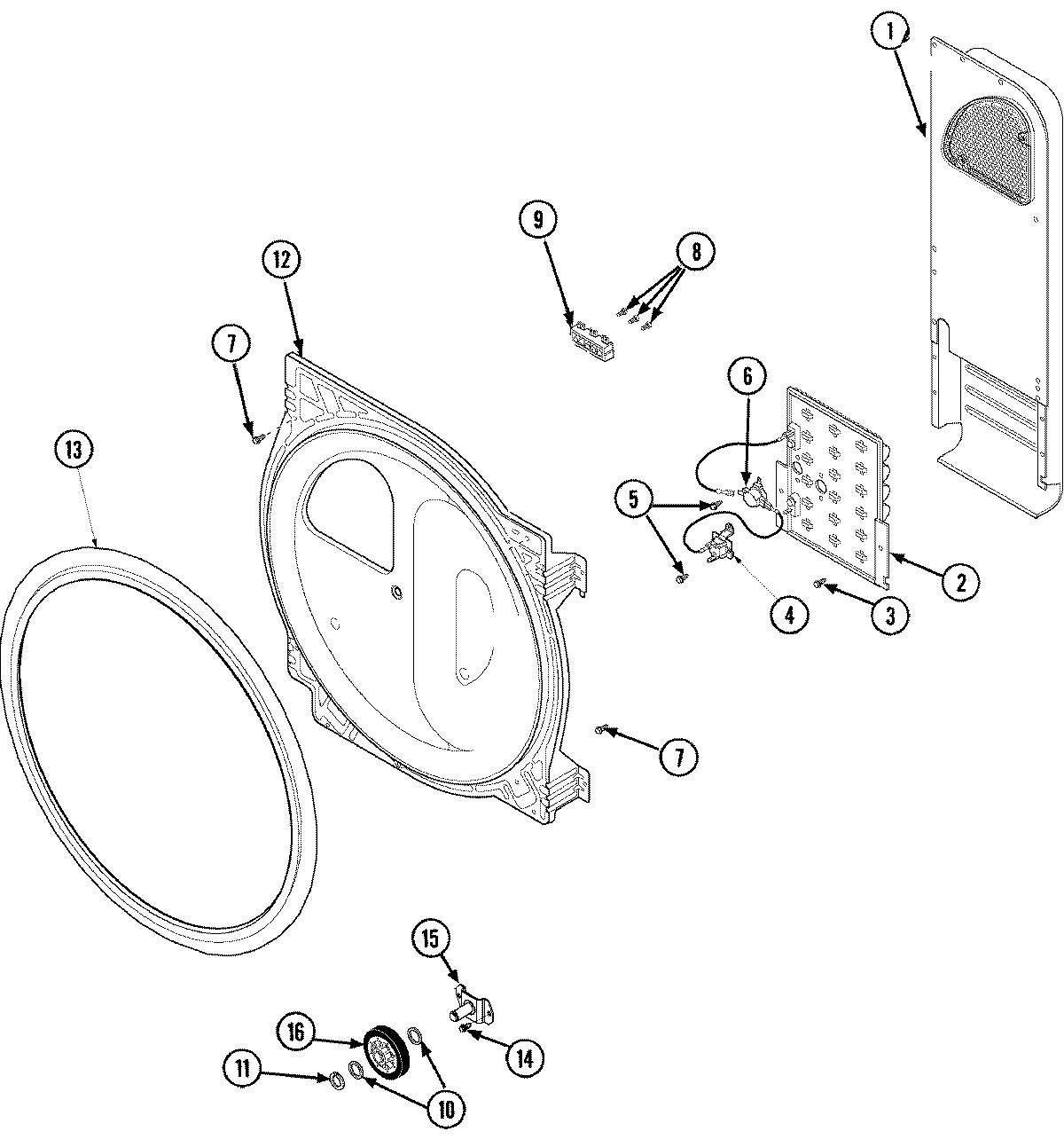

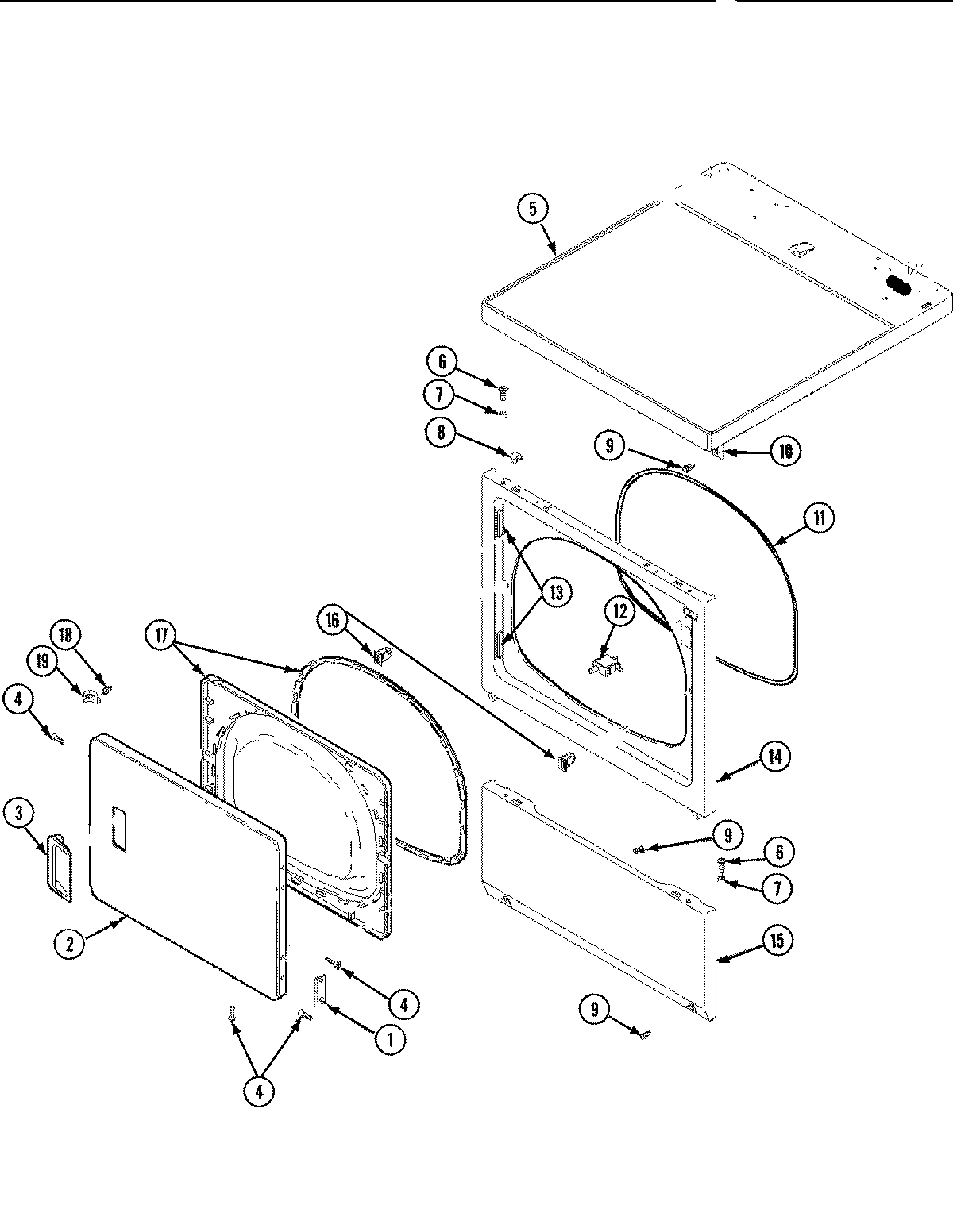

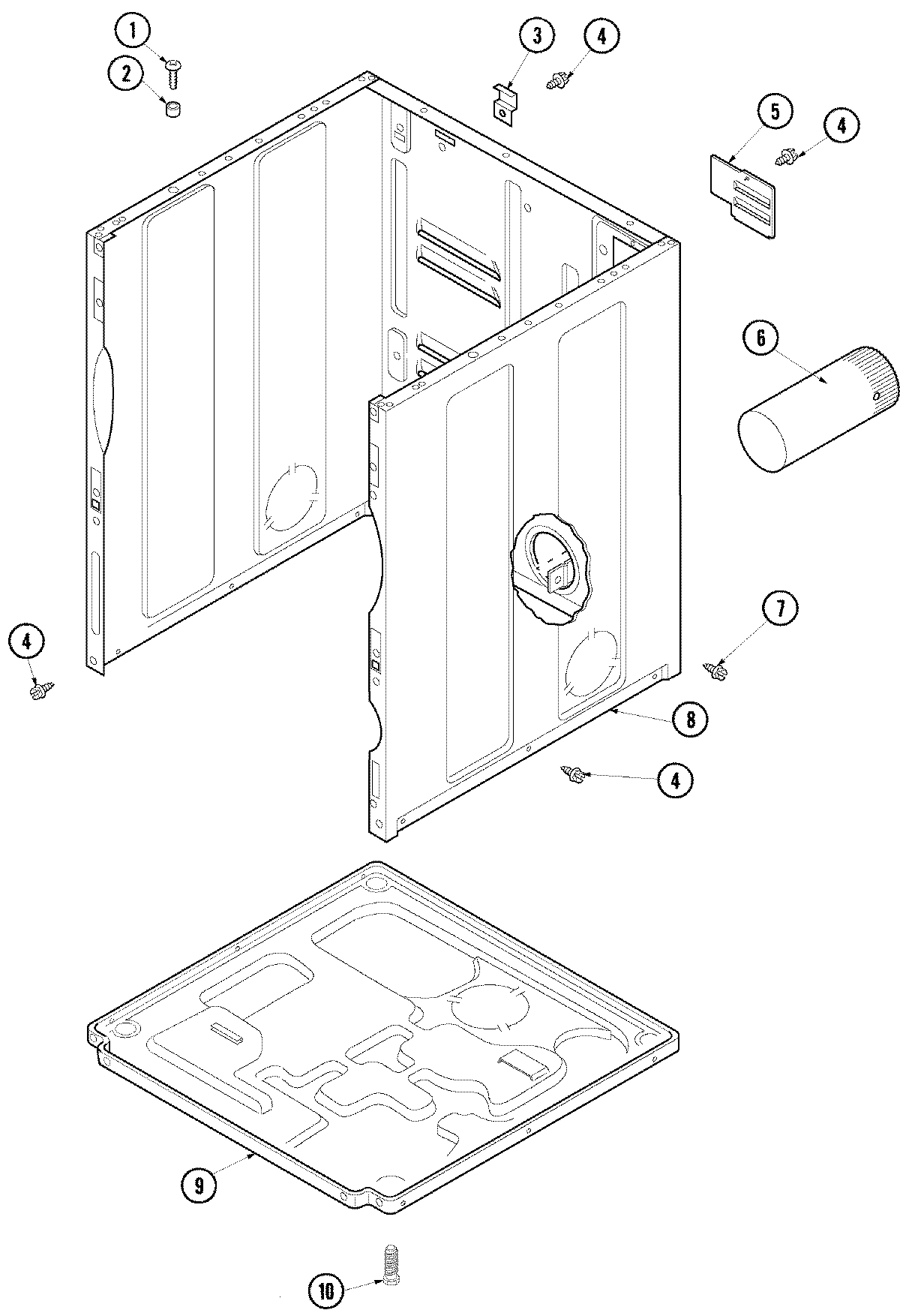

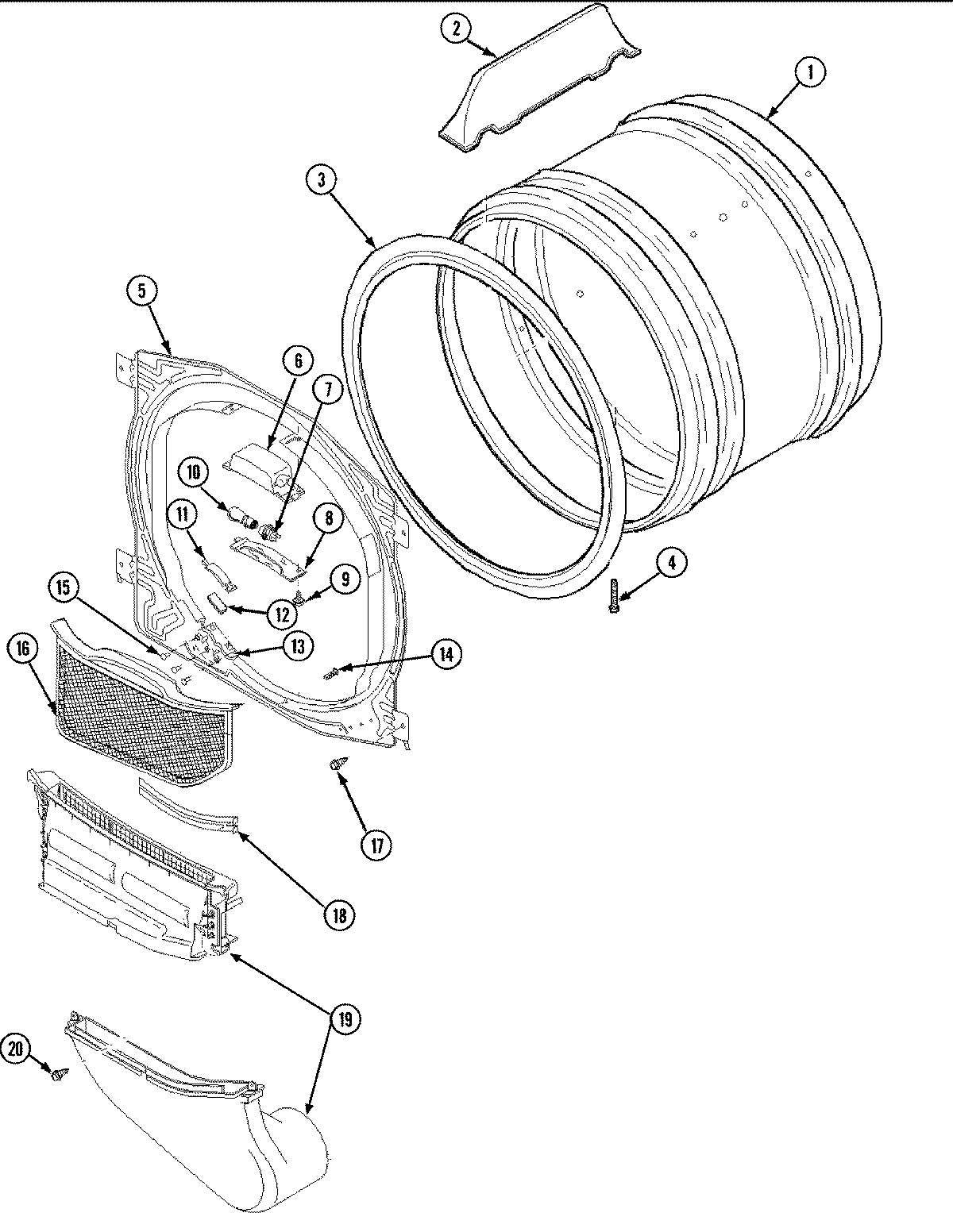

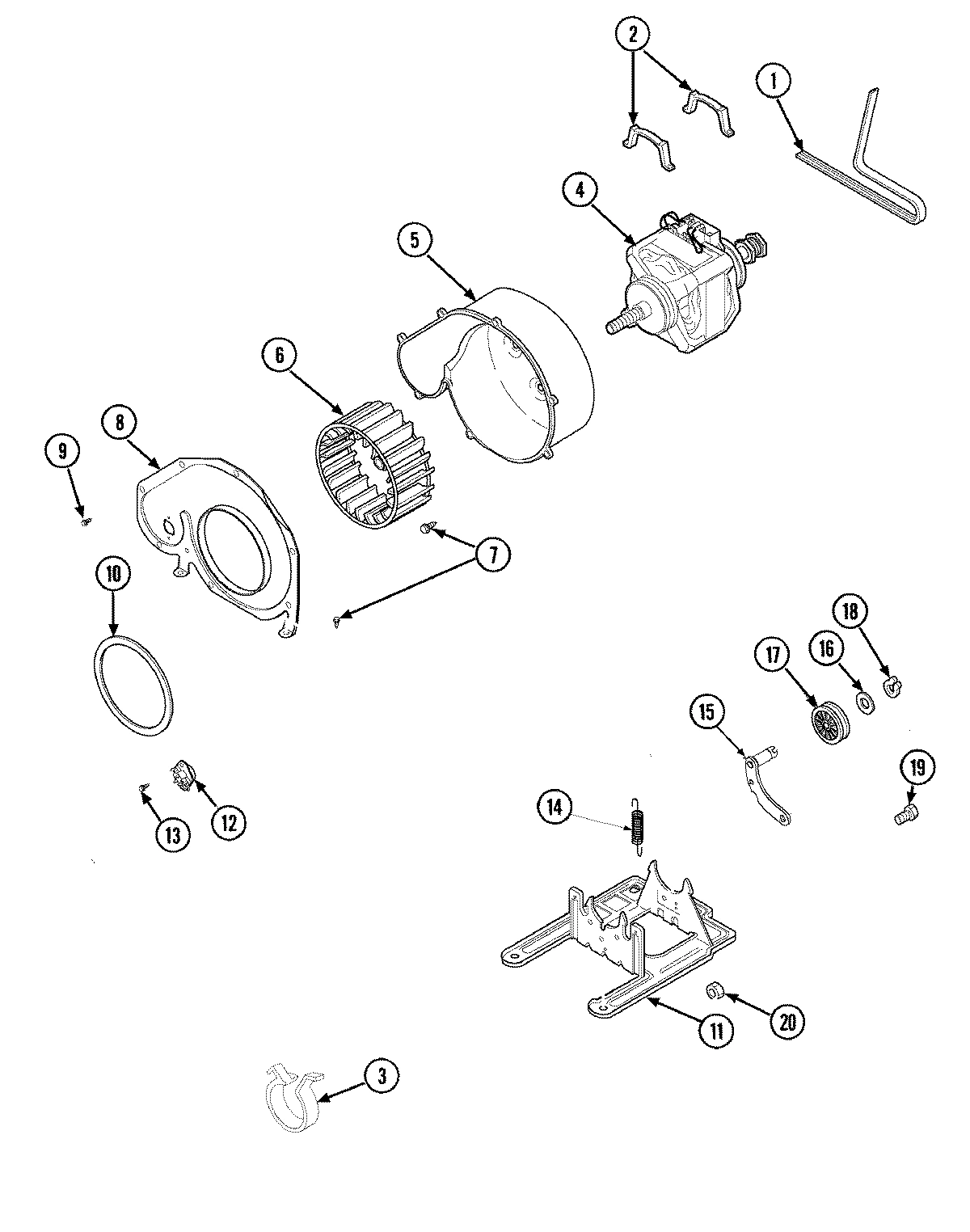

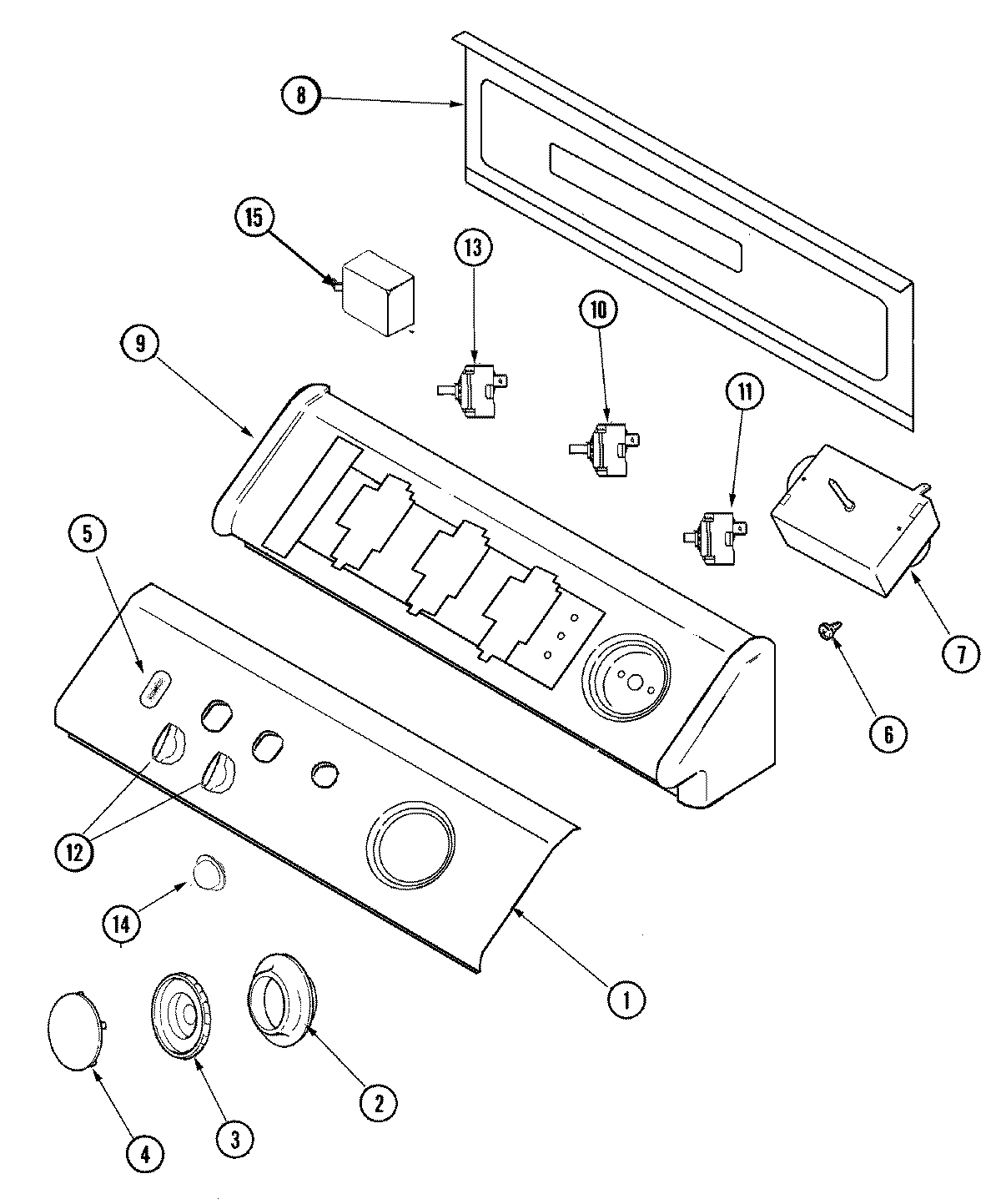

1

WPY014874 Whirlpool Screw Backorder WPL WPY014874 $4.82

1

CYLINDER ASSEMBLY (PAINTED) WPL 504467WP Contact Us For Availability

1

HINGE, DOOR & TOP WPL Y503676 Contact Us For Availability

1

ASSEMBLY, HEATER DUCT WPL 503605 Contact Us For Availability

1

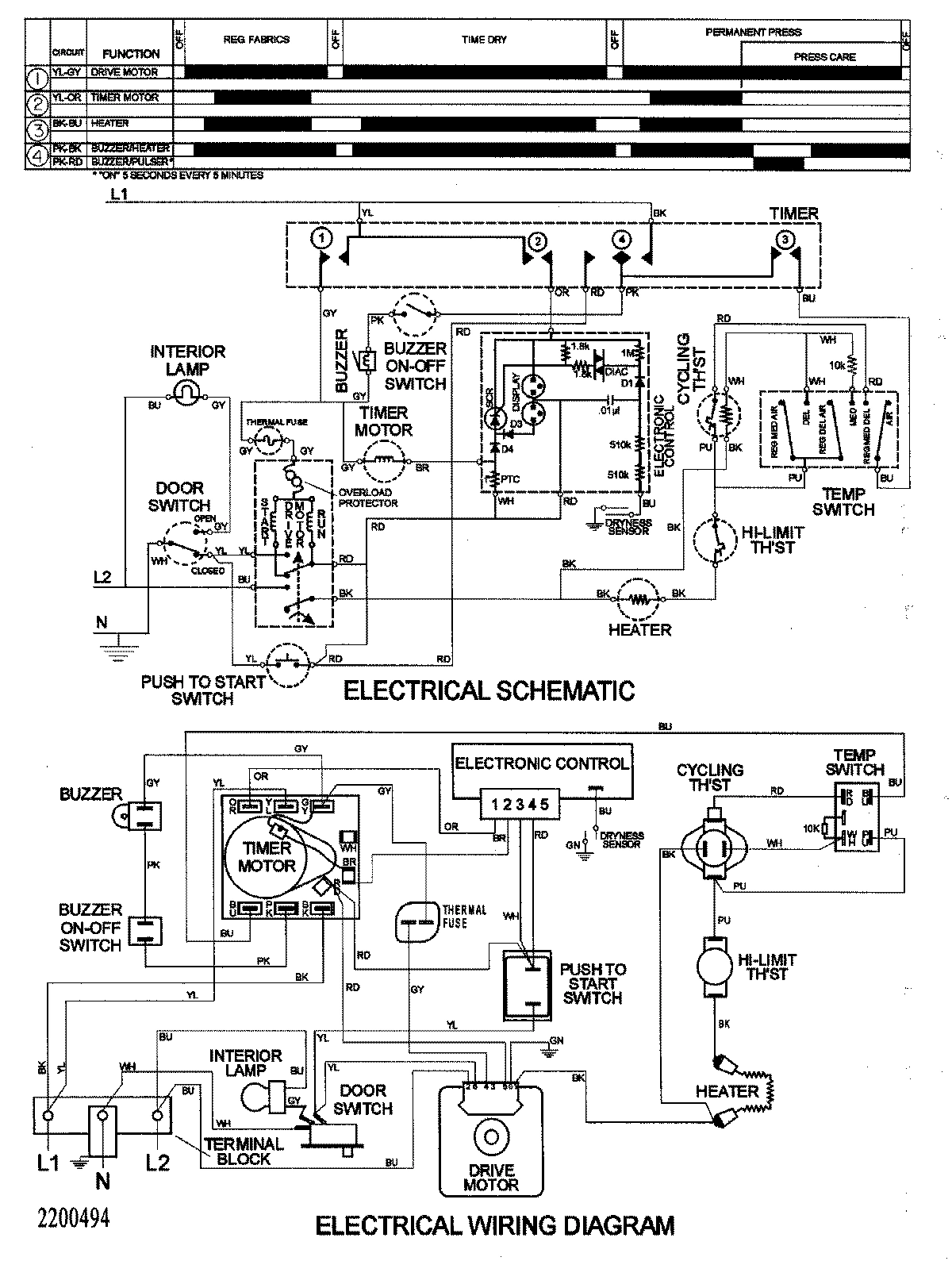

WIRING INFORMATION (ELEC) WPL 15003162 Contact Us For Availability

1

HARNESS, WIRING (ELEC) WPL 37001055 Contact Us For Availability

2

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

2

WPY503978 Whirlpool Heating Element In Stock WPL WPY503978 $42.92

2

BAFFLE, CYLINDER (WHT) WPL 503703 Contact Us For Availability

2

DOOR, DRYER (WHT) WPL 37001029 Contact Us For Availability

2

LOCATOR, PANEL WPL 505187 Contact Us For Availability

2

MANUAL, USE & CARE WPL 37001017 Contact Us For Availability

3

HANDLE, DOOR (WHT) WPL 33001241 Contact Us For Availability

3

HINGE, TOP WPL 500003 Contact Us For Availability

3

CLIP, WIRE WPL 504034 Contact Us For Availability

4

WP2200376 Whirlpool Dryer Drum Drive Motor As In Stock WPL WP2200376 $116.74

4

WP27001200 Whirlpool Screw Backorder WPL WP27001200 $4.82

4

WP40113801 Whirlpool Dryer High Limit Thermal In Stock WPL WP40113801 $7.57

4

SCREW, 10BT-12 X 1 TAP WPL Y62588 Contact Us For Availability

4

SCREW, No.8AB-16X3/4 FH WPL 37001030 Contact Us For Availability

5

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $4.82

5

ASSEMBLY, BULKHEAD-FRONT WPL 503709WP Contact Us For Availability

5

PANEL, TOP (WHT) WPL 37001027 Contact Us For Availability

5

PAD, BUMPER WPL Y56128 Contact Us For Availability

5

HOUSING, BLOWER WPL 56020 Contact Us For Availability

5

RACK,DRYING WPL Y504105 Contact Us For Availability

5

PANEL, ACCESS COVER WPL 500114 Contact Us For Availability

6

56000 Whirlpool Blower Wheel In Stock WPL 56000 $54.20

6

WPW10116735 Whirlpool Dryer High Limit Thermo In Stock WPL WPW10116735 $52.45

6

HOUSING, CYLINDER LIGHT WPL 503622 Contact Us For Availability

6

DUCT, EXHAUST WPL 505518 Contact Us For Availability

7

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

7

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.82

7

LIGHT ASSEMBLY WPL Y504452 Contact Us For Availability

8

WP22001650 Whirlpool Spring Clip In Stock WPL WP22001650 $5.30

8

WP3400094 Whirlpool Screw Backorder WPL WP3400094 $4.82

8

LENS, LIGHT WPL 40094301 Contact Us For Availability

8

COVER, BLOWER HOUSING WPL 500078 Contact Us For Availability

8

CABINET, DRYER & WASHER (WHT) WPL 40076402WP Contact Us For Availability

9

BLOCK, TERMINAL WPL 61923 Contact Us For Availability

9

BASE, DRYER WPL 500070 Contact Us For Availability

W10857122 Whirlpool Refrigerator Light Bulb, In Stock WPL W10857122 $10.02

LEG, LEVELING (PLASTIC) WPL Y500101 Contact Us For Availability

BRACKET,TOP MOUNT WPL 40130801 Contact Us For Availability

SEAL, BLOWER HOUSING WPL 40090001 Contact Us For Availability

11

SEAL, FRONT PANEL WPL 504005 Contact Us For Availability

11

SWITCH, PUSH TO START (WHT) WPL 33001861 Contact Us For Availability

11

MOUNT, MOTOR WPL 503613 Contact Us For Availability

W10169313 Whirlpool Door Switch Kit In Stock WPL W10169313 $21.70

WP22001663 Whirlpool Selector Knob Backorder WPL WP22001663 $40.58

WP3387137 Whirlpool Thermostat In Stock WPL WP3387137 $60.92

PAD, FELT WPL 500092 Contact Us For Availability

BULKHEAD, REAR WPL 502614WP Contact Us For Availability

WP37001036 Whirlpool Glide Bracket In Stock WPL WP37001036 $50.00

WP37001132 Whirlpool Felt Seal In Stock WPL WP37001132 $31.71

SWITCH, TEMPERATURE WPL 33001640 Contact Us For Availability

PLUG, HINGE HOLE WPL 503126 Contact Us For Availability

SCREW, No.8 X 3/8 IND H WPL 31260 Contact Us For Availability

WP56076 Whirlpool Idler Spring Backorder WPL WP56076 $50.95

BUTTON, PUSH TO START (WHT) WPL 33001619 Contact Us For Availability

SCREW, 8B-16X5/8 TAP WPL 500226 Contact Us For Availability

PANEL, FRONT (WHT) WPL 503656WP Contact Us For Availability

WP37001144 Whirlpool Dryer Idler Arm Pulley A Backorder WPL WP37001144 $35.47

WP40113601 Whirlpool Dryer Roller Bracket In Stock WPL WP40113601 $47.42

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

BUZZER, NON-ADJUSTABLE WPL 33001623 Contact Us For Availability

PANEL, ACCESS (WHT) WPL 40045301WP Contact Us For Availability

LA-1003 Whirlpool Dryer Door Catch and Metal In Stock WPL LA-1003 $13.15

WP37001042 Whirlpool Dryer Drum Support Rolle In Stock WPL WP37001042 $12.64

WP37001142 Whirlpool Lint Filter Backorder WPL WP37001142 $70.37

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.82

17

WPY54414 Whirlpool Dryer Idler Pulley In Stock WPL WPY54414 $10.74

17

SEAL & LINER, ASSY(INNER DOOR) WPL 37001028 Contact Us For Availability

18

WP23748 Whirlpool Retaining Ring In Stock WPL WP23748 $7.39

18

SENSOR, MOISTURE WPL 503625 Contact Us For Availability

18

STRIKE, DOOR (METAL) WPL 500039 Contact Us For Availability

19

ASSY,UPPR/LWR AIR DUCT WPL 40124501 Contact Us For Availability

19

BRACKET,DOOR STRIKE WPL 40116201 Contact Us For Availability

19

SCREW, 1/4-20 UNC HEX WPL 500824 Contact Us For Availability

20

WPW10139757 Whirlpool Nut Backorder WPL WPW10139757 $4.82

20

SCREW, No.12 X 9/16 WPL 501285 Contact Us For Availability
