Model Whirlpool SDE505DAYQ ELECTRIC DRYER – Common Parts &amp; Diagrams

1

HARNESS, WIRING (ELEC) WPL 37001055 Contact Us For Availability

1

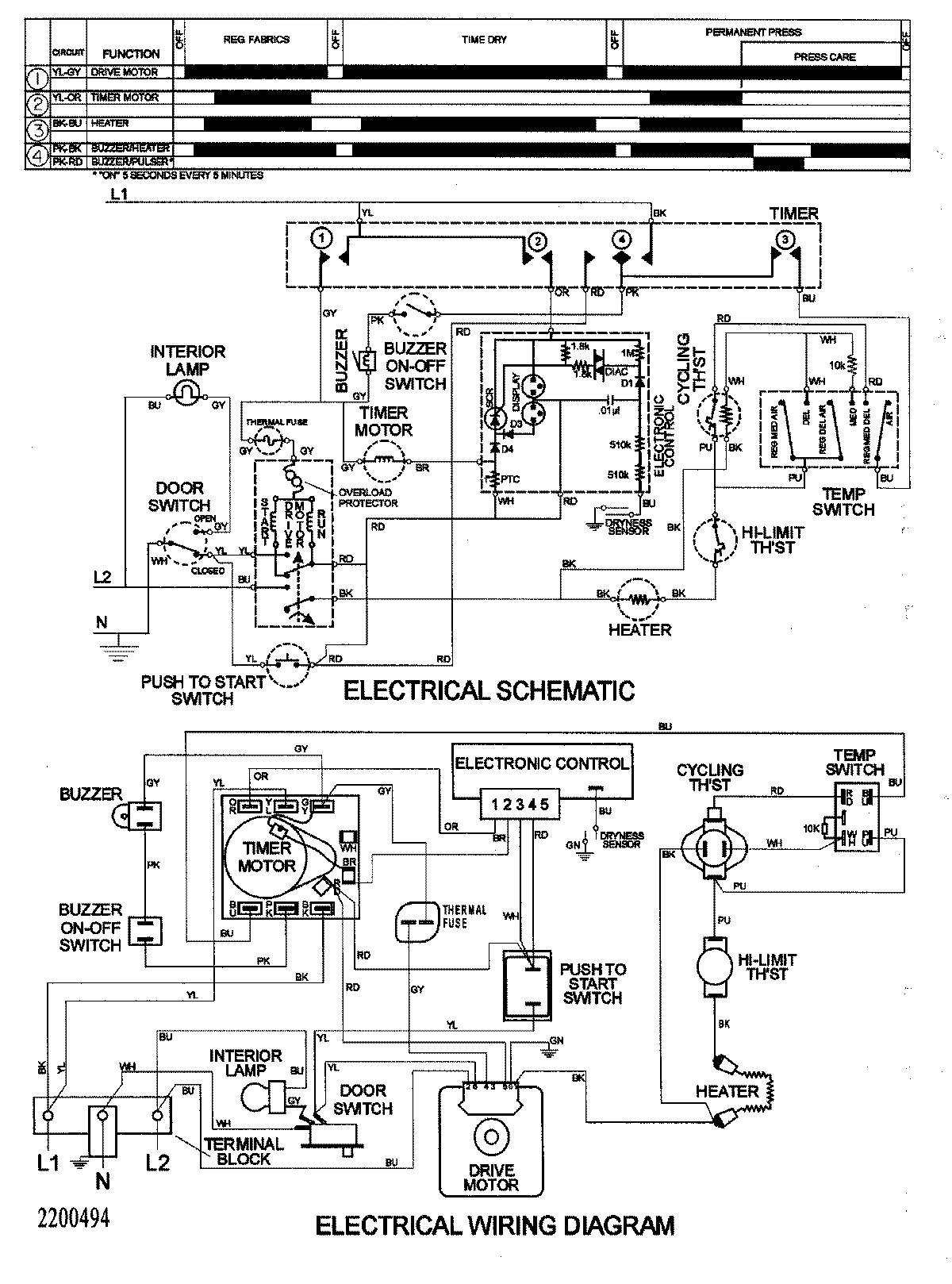

WIRING INFORMATION (ELEC) WPL 15003162 Contact Us For Availability

1

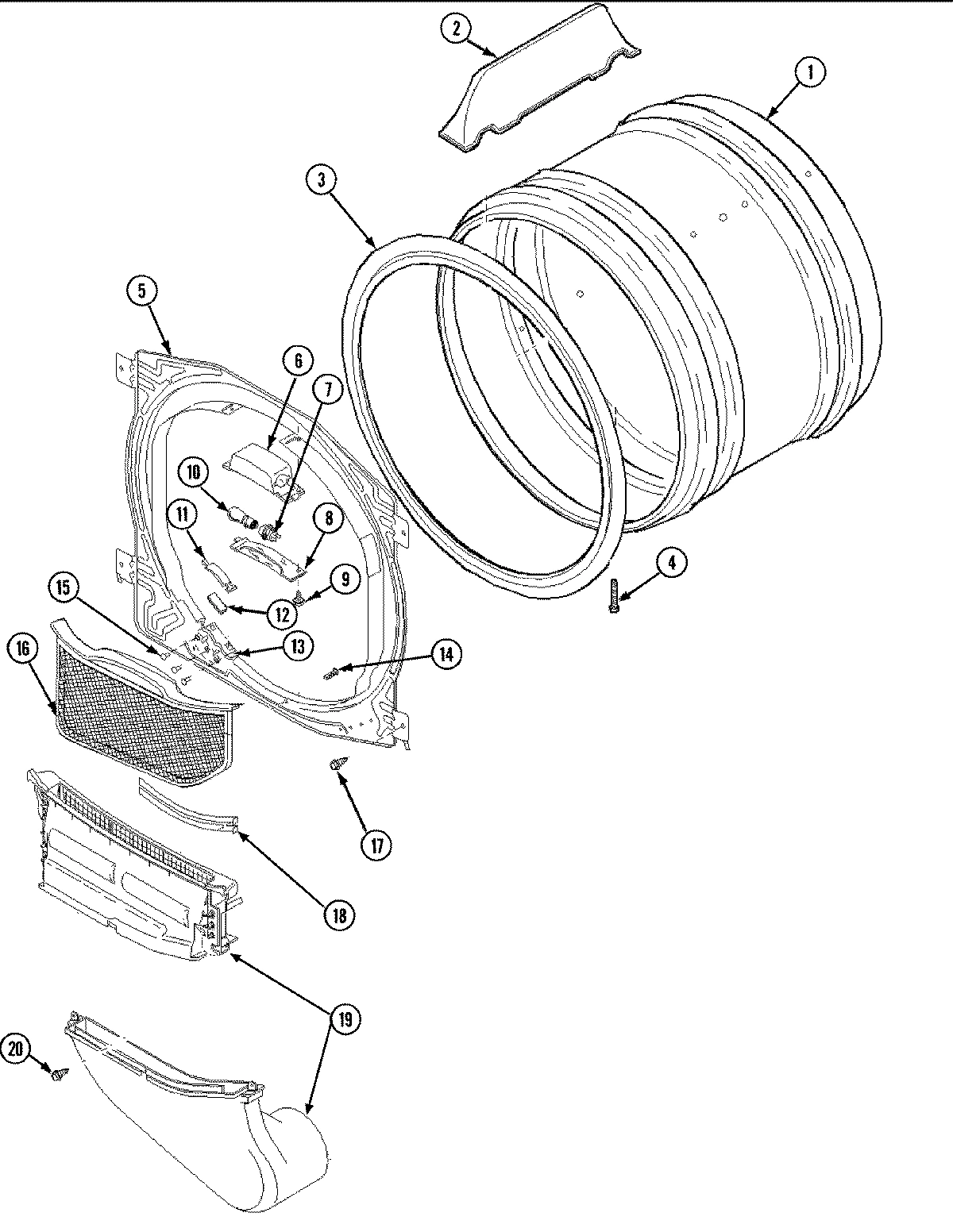

CYLINDER ASSEMBLY (PAINTED) WPL 504467WP Contact Us For Availability

1

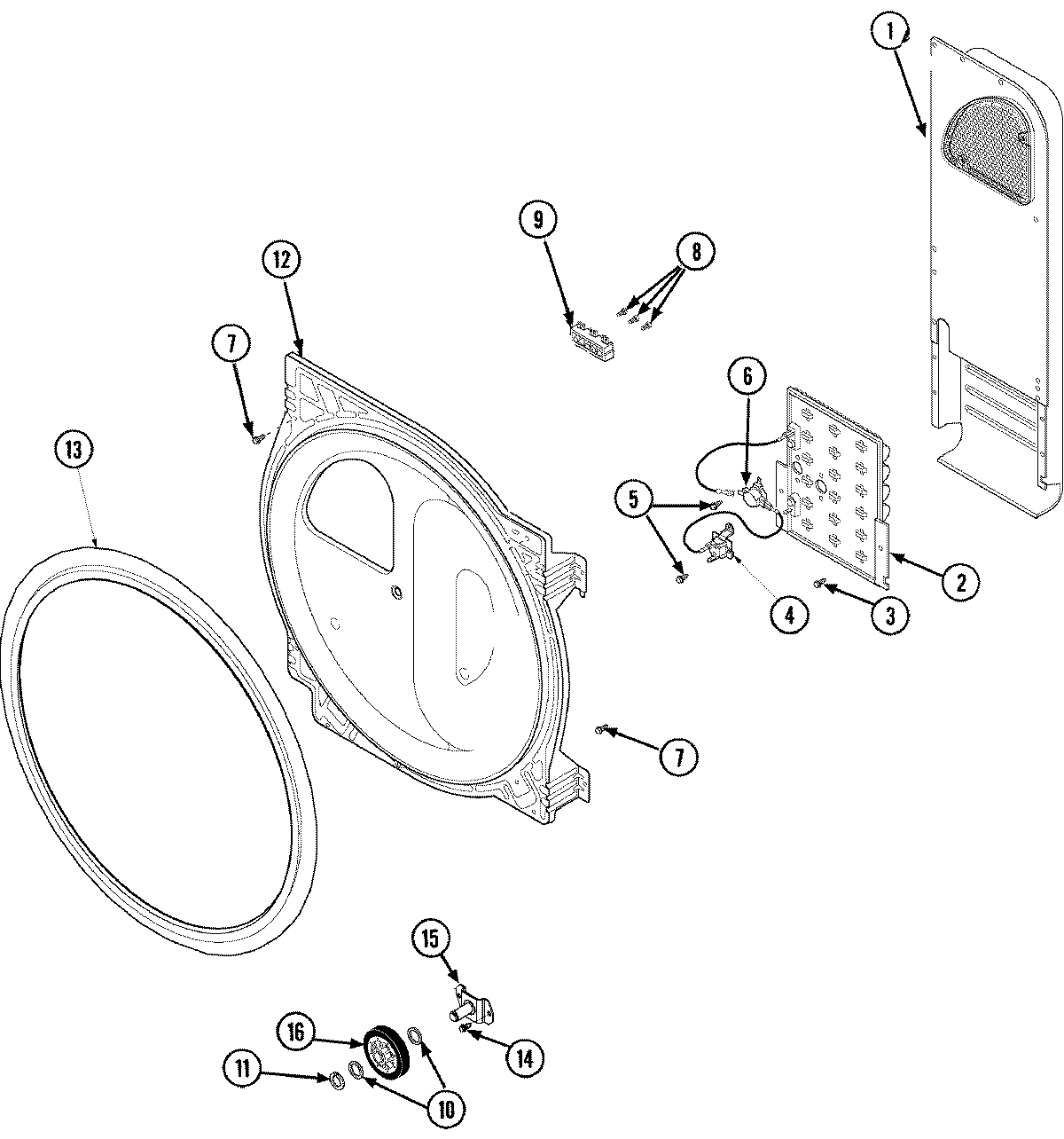

ASSEMBLY, HEATER DUCT WPL 503605 Contact Us For Availability

1

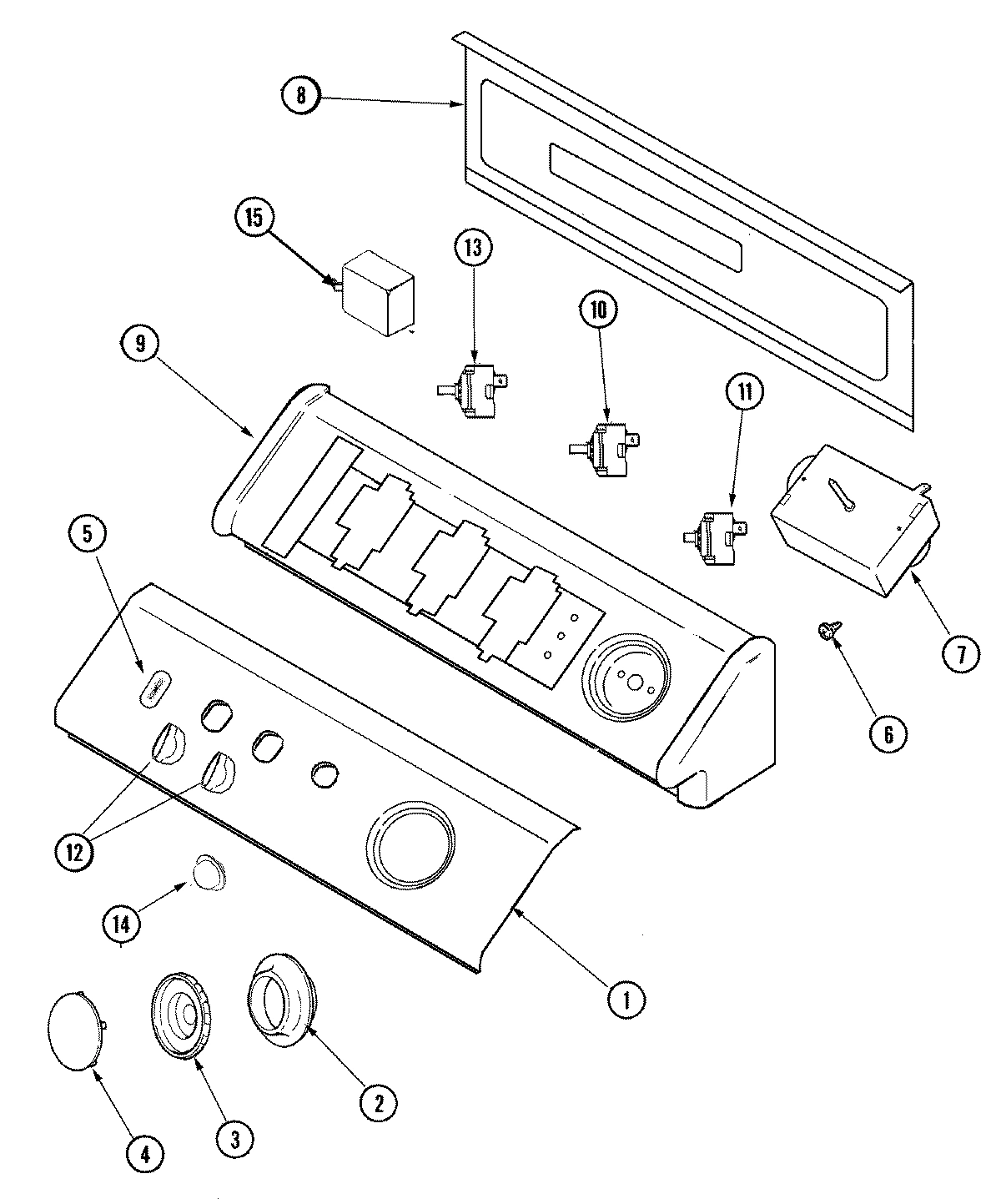

GRAPHIC CONTROL PNL/FACIA/BSQ WPL 37001044 Contact Us For Availability

2

WP33002346 Whirlpool Dial Knob Backorder WPL WP33002346 $31.79

2

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

2

WPY503978 Whirlpool Heating Element In Stock WPL WPY503978 $42.92

2

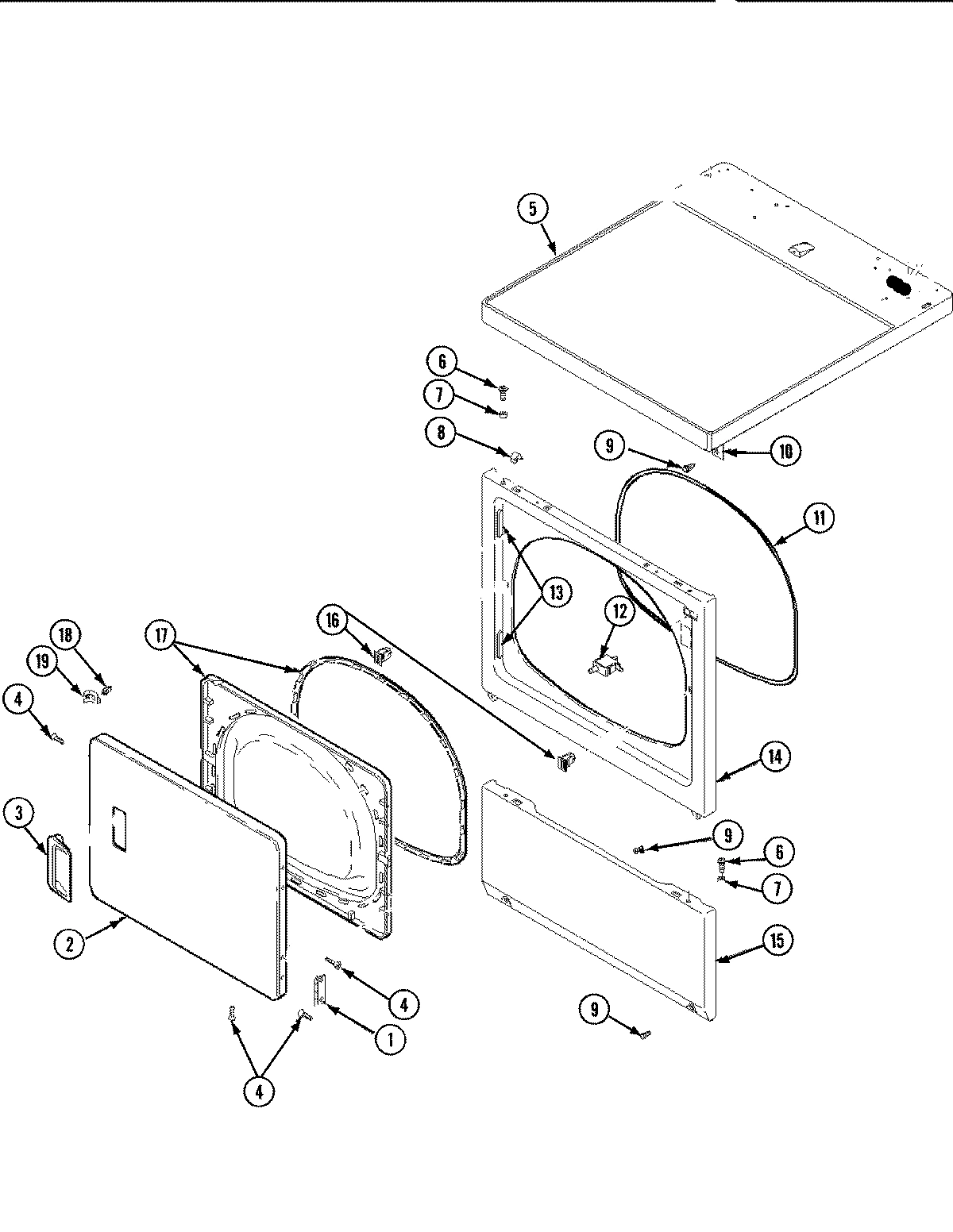

DOOR, DRYER (BSQ) WPL 37001034 Contact Us For Availability

2

MANUAL, USE & CARE WPL 37001017 Contact Us For Availability

2

BAFFLE, CYLINDER (WHT) WPL 503703 Contact Us For Availability

3

WP22001659 Whirlpool Timer Knob In Stock WPL WP22001659 $18.86

3

HINGE, TOP WPL 500003 Contact Us For Availability

3

HANDLE, DOOR (BSQ) WPL 37001047 Contact Us For Availability

3

CLIP, WIRE WPL 504034 Contact Us For Availability

4

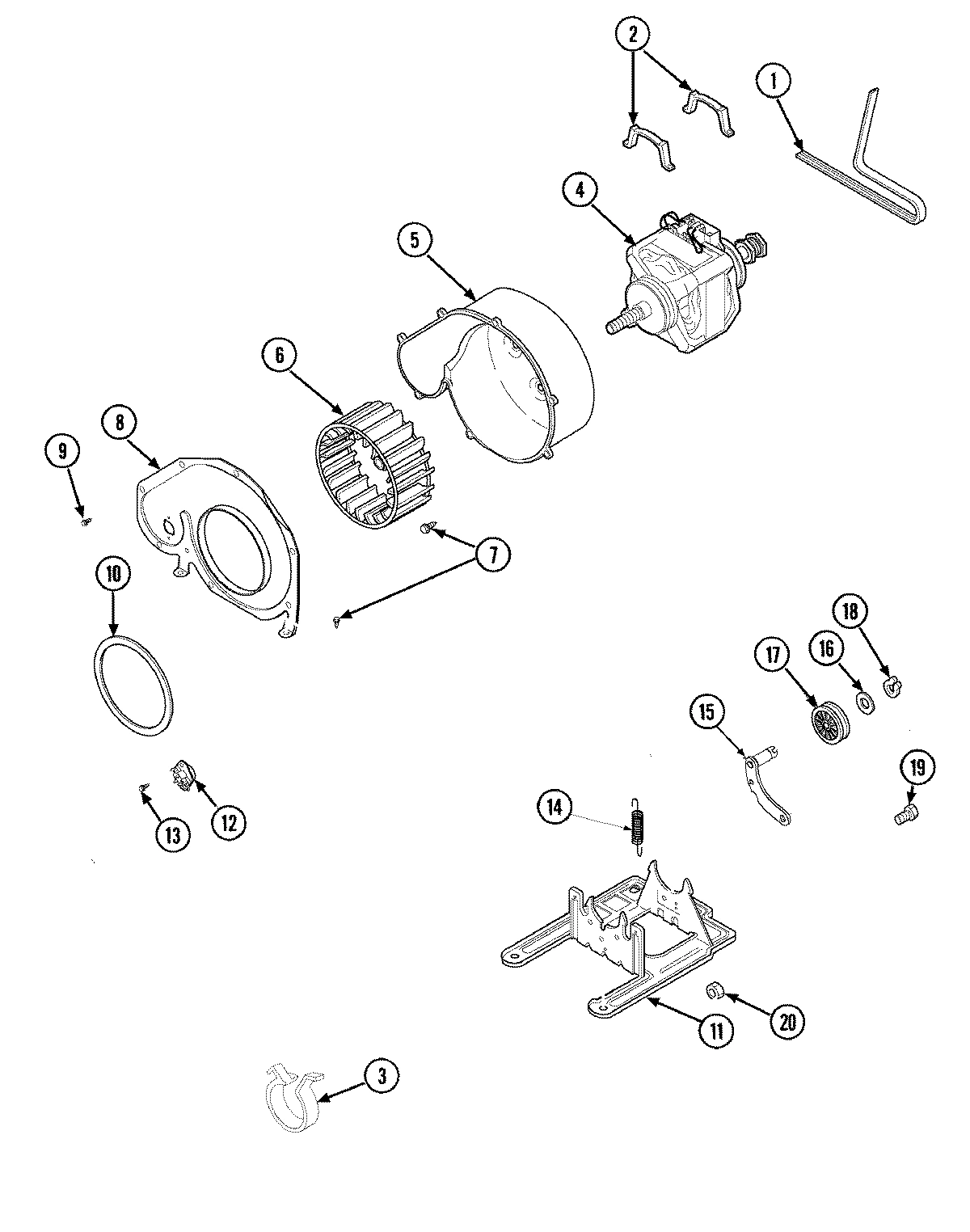

WP2200376 Whirlpool Dryer Drum Drive Motor As In Stock WPL WP2200376 $116.74

4

WP40113801 Whirlpool Dryer High Limit Thermal In Stock WPL WP40113801 $7.57

4

SCREW, No.8AB-16X3/4 FH WPL 37001030 Contact Us For Availability

4

SCREW, 10BT-12 X 1 TAP WPL Y62588 Contact Us For Availability

4

TIMER KNOB INSERT/CAP WPL 33002347 Contact Us For Availability

5

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $4.82

5

PANEL, TOP (BSQ) WPL 37001033 Contact Us For Availability

5

PAD, BUMPER WPL Y56128 Contact Us For Availability

5

RACK,DRYING WPL Y504105 Contact Us For Availability

5

ASSEMBLY, BULKHEAD-FRONT WPL 503709WP Contact Us For Availability

5

HOUSING, BLOWER WPL 56020 Contact Us For Availability

5

DRYNESS DISPLAY CONTROL (BSQ) WPL 33002400 Contact Us For Availability

6

56000 Whirlpool Blower Wheel In Stock WPL 56000 $54.20

6

WPW10116735 Whirlpool Dryer High Limit Thermo In Stock WPL WPW10116735 $52.45

6

WPY014874 Whirlpool Screw Backorder WPL WPY014874 $4.82

6

HOUSING, CYLINDER LIGHT WPL 503622 Contact Us For Availability

7

WP27001200 Whirlpool Screw Backorder WPL WP27001200 $4.82

7

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

7

LOCATOR, PANEL WPL 505187 Contact Us For Availability

7

LIGHT ASSEMBLY WPL Y504452 Contact Us For Availability

7

TIMER, MALLORY ELECTRONIC DRY WPL 33002689 Contact Us For Availability

8

WP22001650 Whirlpool Spring Clip In Stock WPL WP22001650 $5.30

8

WP3400094 Whirlpool Screw Backorder WPL WP3400094 $4.82

8

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

8

LENS, LIGHT WPL 40094301 Contact Us For Availability

8

COVER, BLOWER HOUSING WPL 500078 Contact Us For Availability

8

CONSOLE BACK PANEL WPL 22002529 Contact Us For Availability

9

BLOCK, TERMINAL WPL 61923 Contact Us For Availability

9

CONSOLE (BSQ) WPL 33002327 Contact Us For Availability

W10857122 Whirlpool Refrigerator Light Bulb, In Stock WPL W10857122 $10.02

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.82

LEG, LEVELING (PLASTIC) WPL Y500101 Contact Us For Availability

BRACKET,TOP MOUNT WPL 40130801 Contact Us For Availability

SEAL, BLOWER HOUSING WPL 40090001 Contact Us For Availability

SWITCH, ROTARY (2 POS) WPL 22001794 Contact Us For Availability

WP23748 Whirlpool Retaining Ring In Stock WPL WP23748 $7.39

SEAL, FRONT PANEL WPL 504005 Contact Us For Availability

MOUNT, MOTOR WPL 503613 Contact Us For Availability

SWITCH, PUSH-TO-START (BSQ) WPL 33002356 Contact Us For Availability

W10169313 Whirlpool Door Switch Kit In Stock WPL W10169313 $21.70

WP3387137 Whirlpool Thermostat In Stock WPL WP3387137 $60.92

PAD, FELT WPL 500092 Contact Us For Availability

BULKHEAD, REAR WPL 502614WP Contact Us For Availability

KNOB, SELECTOR WPL 22002589 Contact Us For Availability

WP37001036 Whirlpool Glide Bracket In Stock WPL WP37001036 $50.00

WP37001132 Whirlpool Felt Seal In Stock WPL WP37001132 $31.71

SWITCH, TEMPERATURE WPL 33001640 Contact Us For Availability

PLUG, HINGE HOLE WPL 503126 Contact Us For Availability

SCREW, No.8 X 3/8 IND H WPL 31260 Contact Us For Availability

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.82

WP56076 Whirlpool Idler Spring Backorder WPL WP56076 $50.95

PANEL, FRONT (BSQ) WPL 503656CP Contact Us For Availability

SCREW, 8B-16X5/8 TAP WPL 500226 Contact Us For Availability

BUTTON, PUSH-TO-START (BSQ) WPL 33002435 Contact Us For Availability

WP37001144 Whirlpool Dryer Idler Arm Pulley A Backorder WPL WP37001144 $35.47

WP40113601 Whirlpool Dryer Roller Bracket In Stock WPL WP40113601 $47.42

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

PANEL, ACCESS (BSQ) WPL 40045301CP Contact Us For Availability

BUZZER, NON-ADJUSTABLE WPL 33001623 Contact Us For Availability

16

LA-1003 Whirlpool Dryer Door Catch and Metal In Stock WPL LA-1003 $13.15

16

WP37001042 Whirlpool Dryer Drum Support Rolle In Stock WPL WP37001042 $12.64

16

WP37001142 Whirlpool Lint Filter Backorder WPL WP37001142 $70.37

17

WPY54414 Whirlpool Dryer Idler Pulley In Stock WPL WPY54414 $10.74

17

SEAL & LINER, ASSY(INNER DOOR) WPL 37001028 Contact Us For Availability

18

STRIKE, DOOR (METAL) WPL 500039 Contact Us For Availability

18

SENSOR, MOISTURE WPL 503625 Contact Us For Availability

19

BRACKET,DOOR STRIKE WPL 40116201 Contact Us For Availability

19

ASSY,UPPR/LWR AIR DUCT WPL 40124501 Contact Us For Availability

19

SCREW, 1/4-20 UNC HEX WPL 500824 Contact Us For Availability

20

WPW10139757 Whirlpool Nut Backorder WPL WPW10139757 $4.82

20

SCREW, No.12 X 9/16 WPL 501285 Contact Us For Availability
