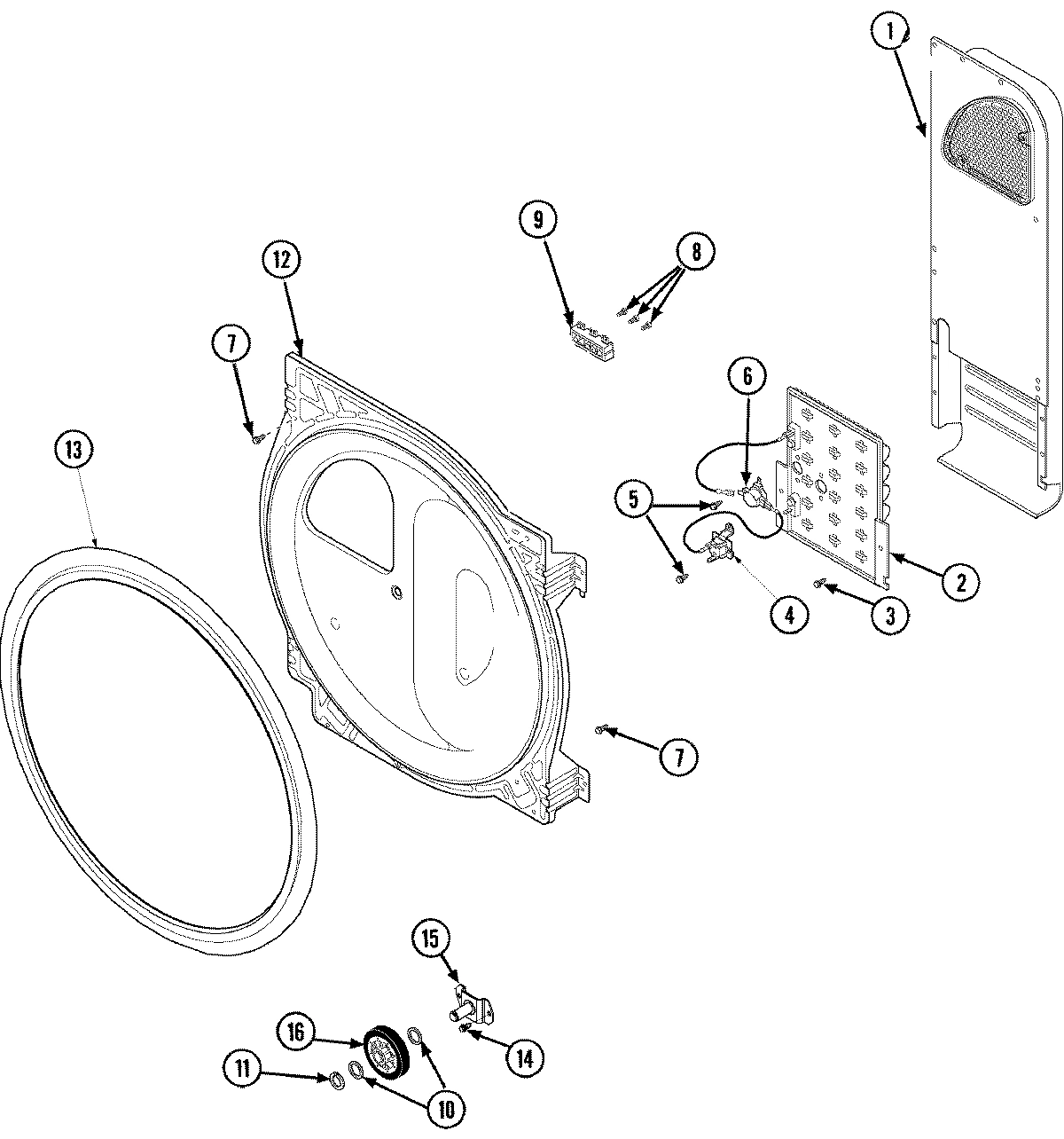

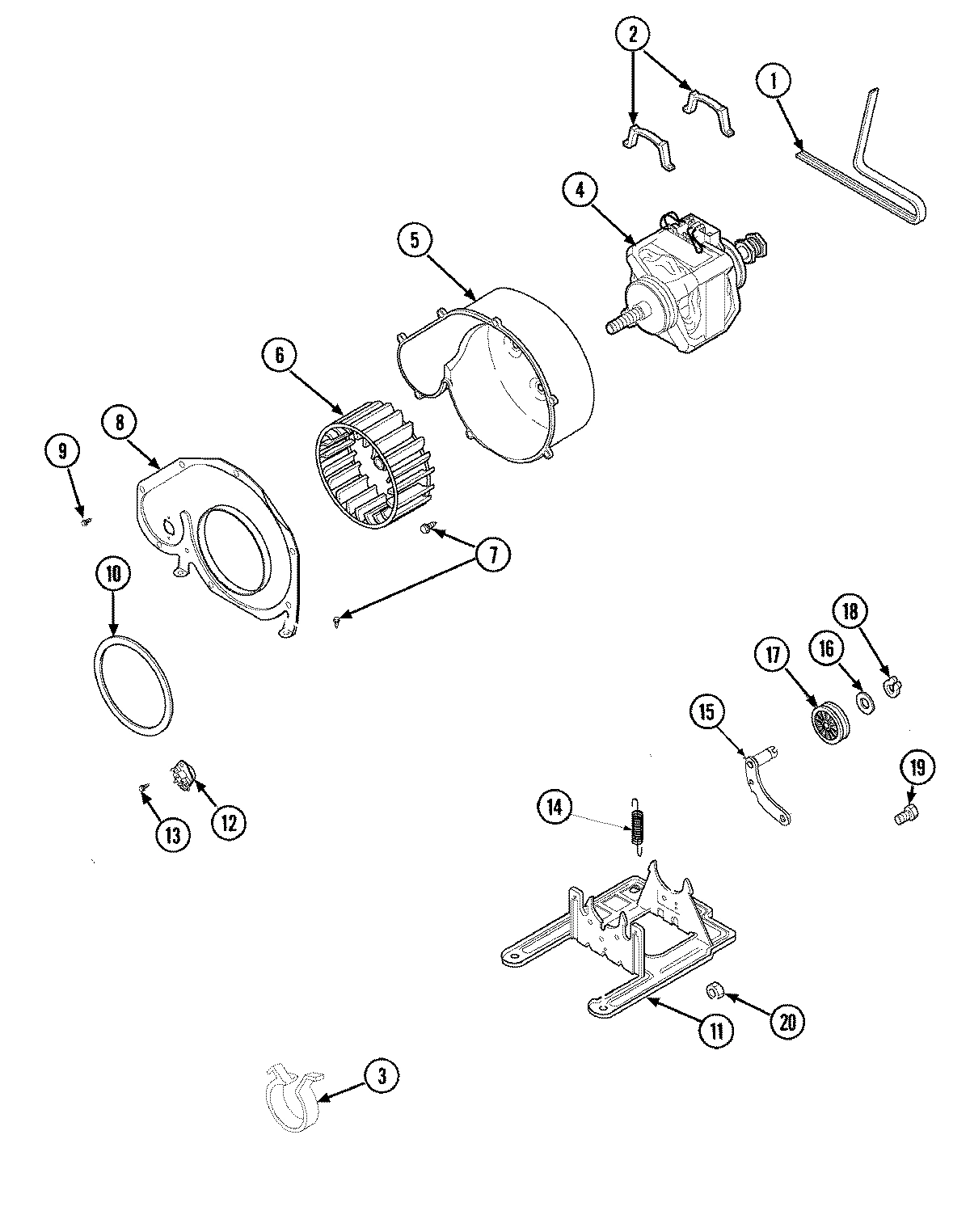

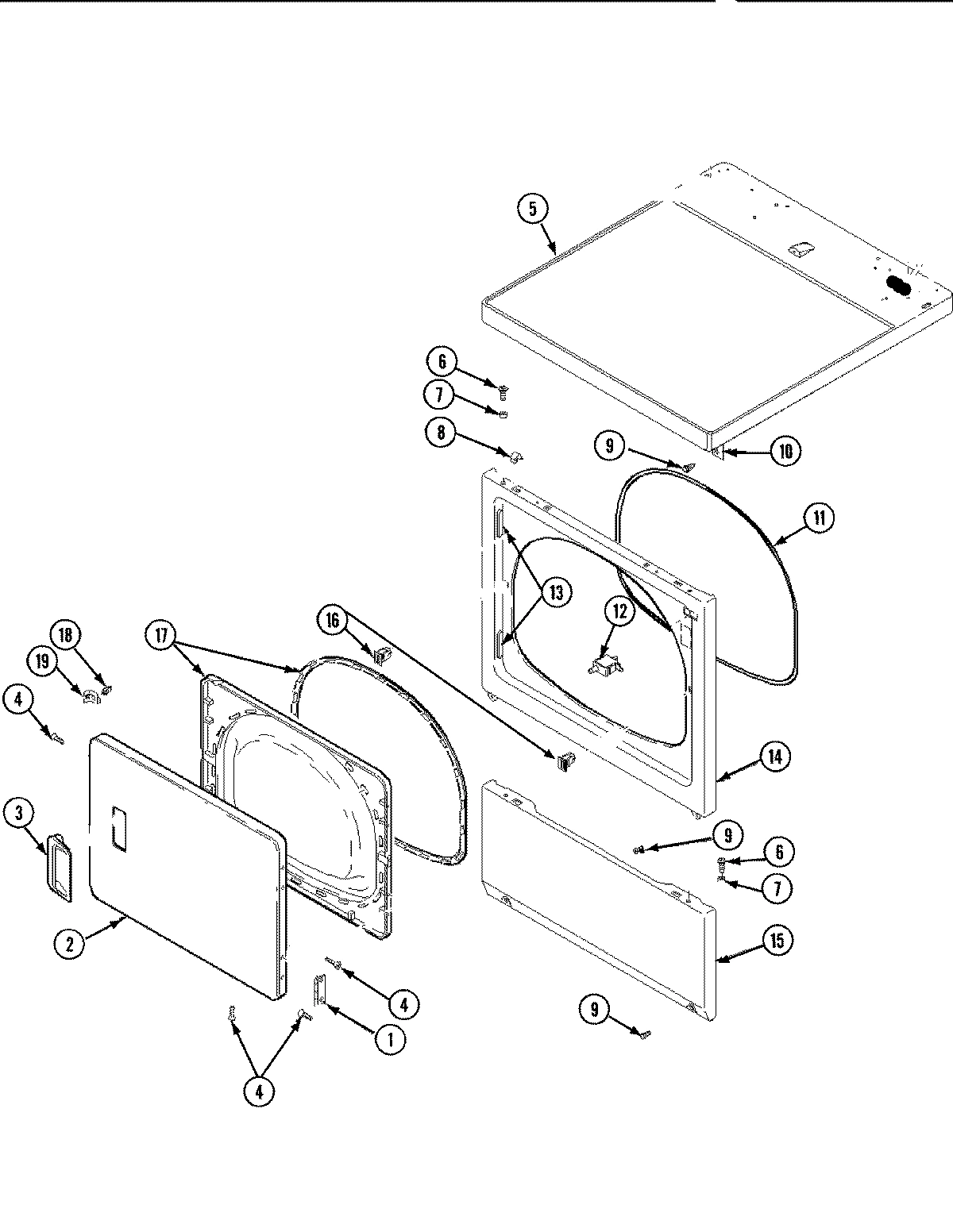

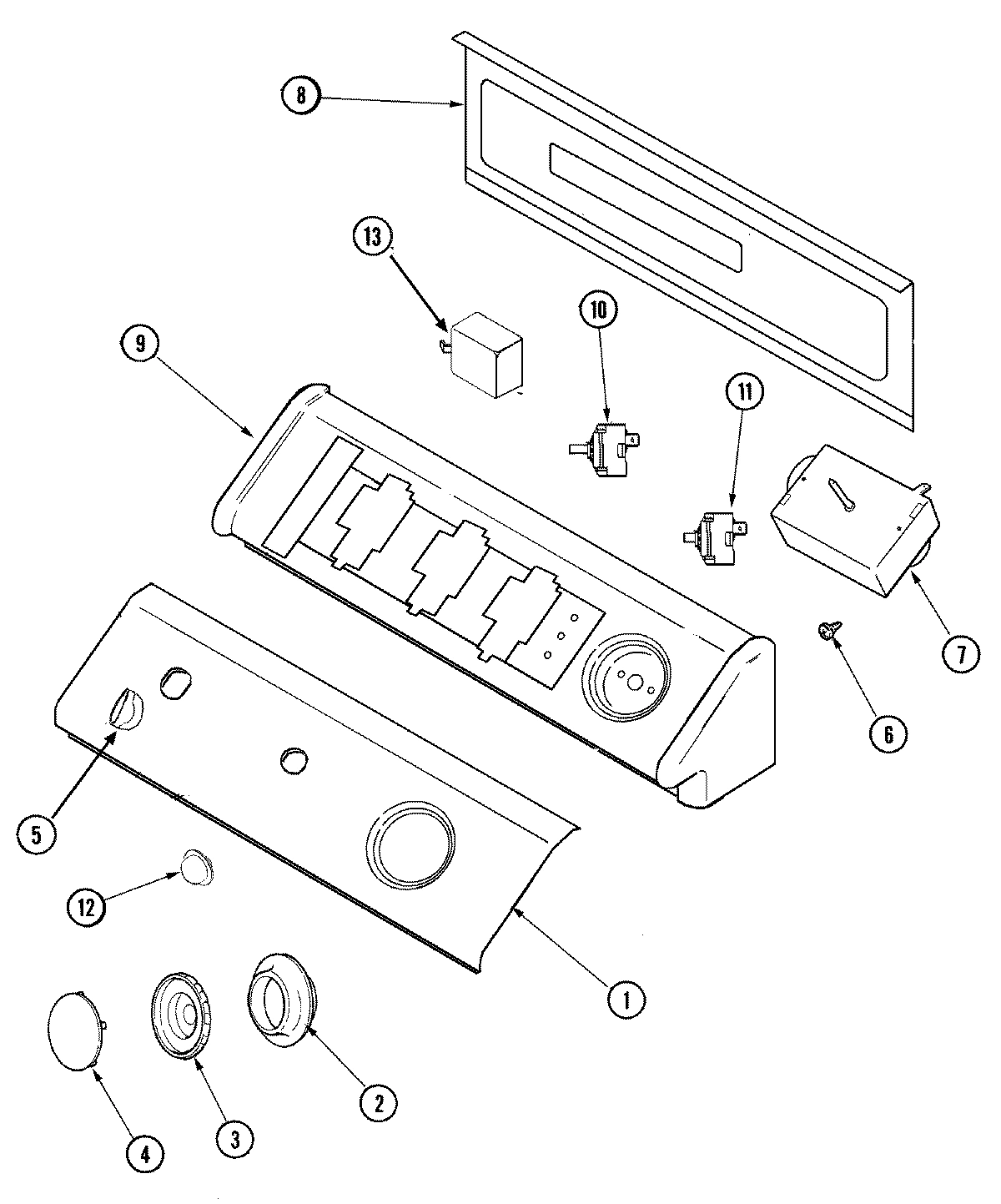

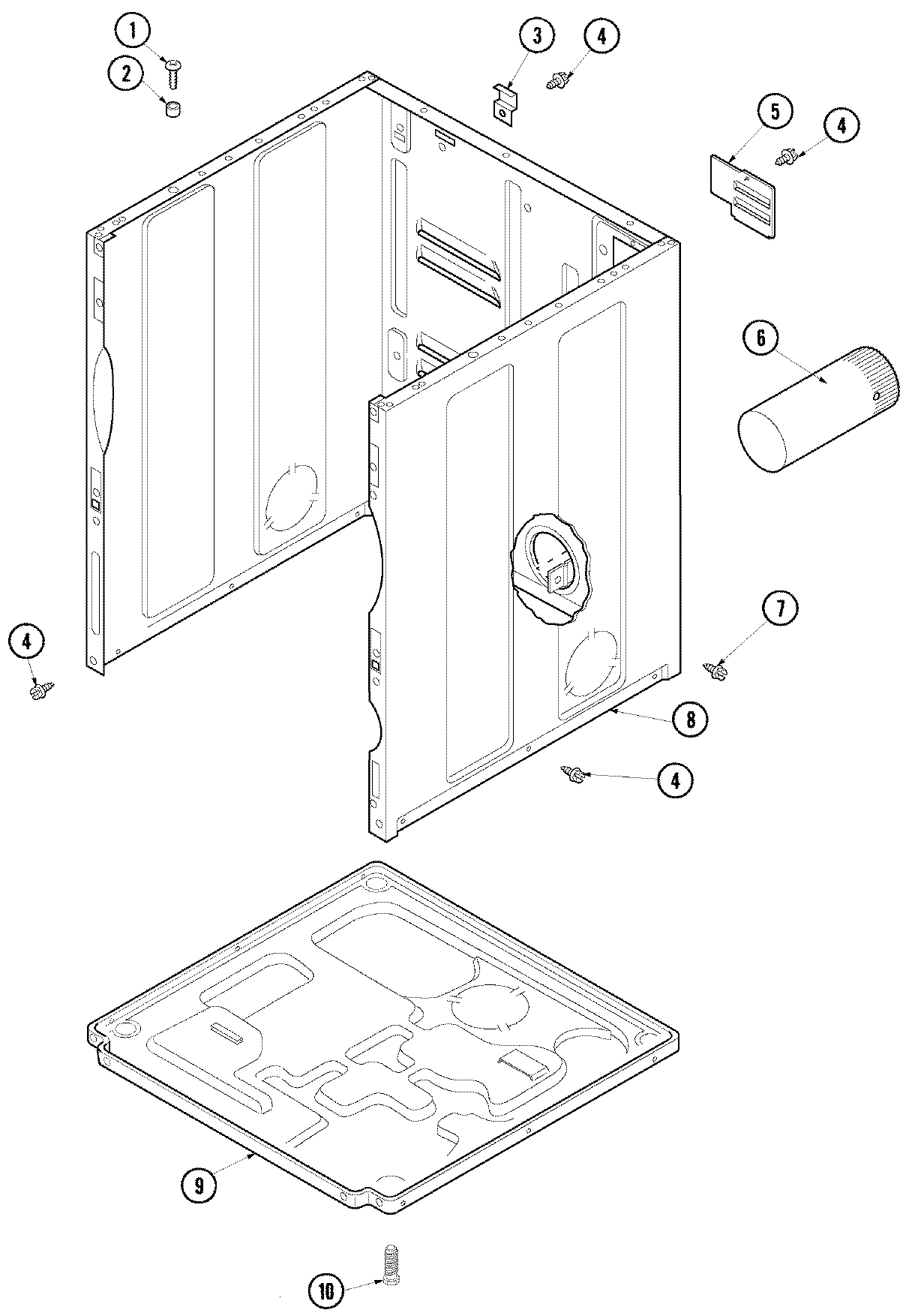

Model Whirlpool SDE405DAYW ELECTRIC DRYER – Common Parts &amp; Diagrams

1

WPY014874 Whirlpool Screw Backorder WPL WPY014874 $4.82

1

ASSEMBLY, HEATER DUCT WPL 503605 Contact Us For Availability

1

HINGE, DOOR & TOP WPL Y503676 Contact Us For Availability

1

HARNESS, WIRE (ELEC) WPL 37001052 Contact Us For Availability

1

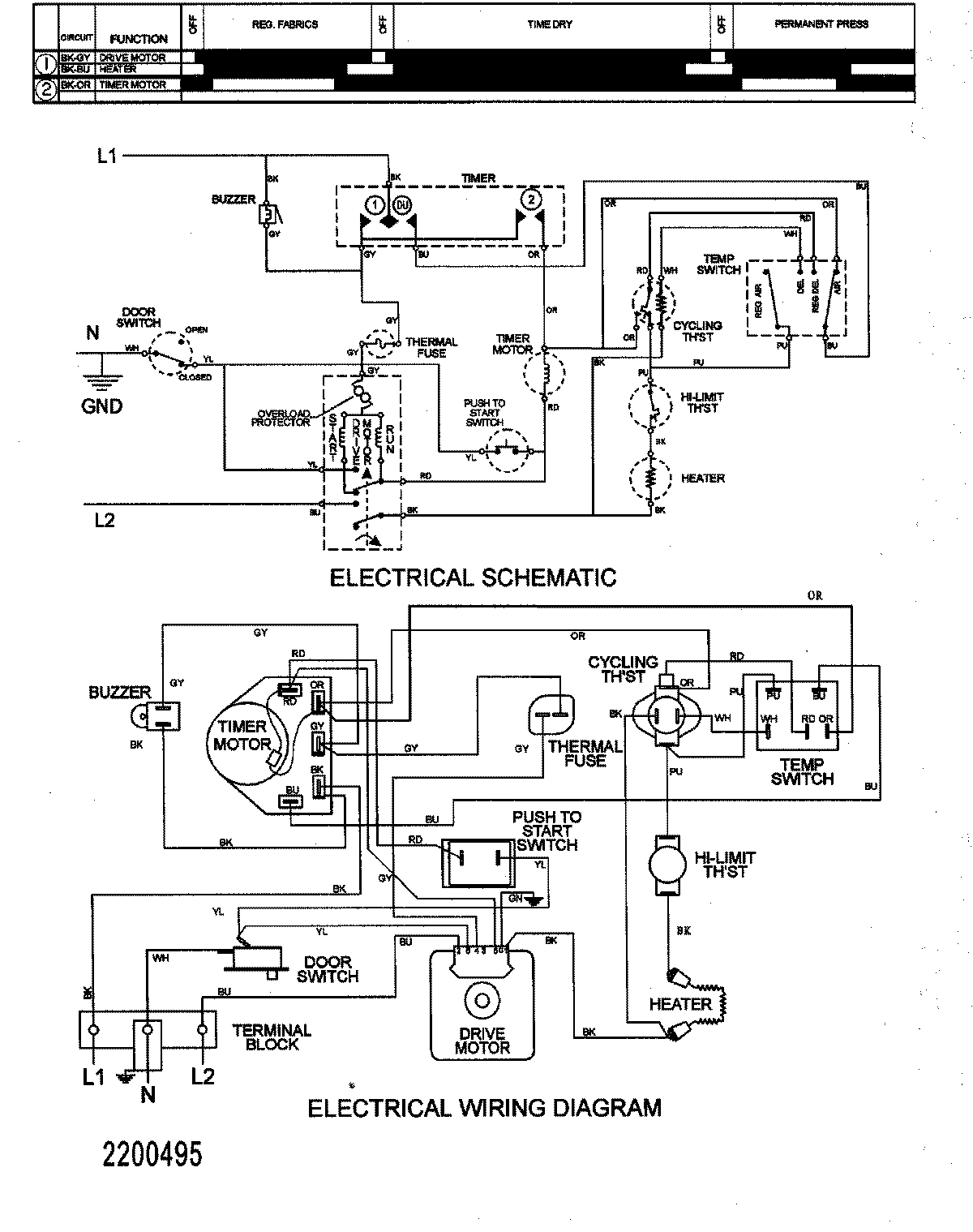

WIRING INFORMATION (ELEC) WPL 15003160 Contact Us For Availability

1

PANEL, CONTROL (WHT) WPL 33001918 Contact Us For Availability

2

WP33001621 Whirlpool Dial Knob In Stock WPL WP33001621 $16.65

2

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

2

WPY503978 Whirlpool Heating Element In Stock WPL WPY503978 $42.92

2

DOOR, DRYER (WHT) WPL 37001029 Contact Us For Availability

2

LOCATOR, PANEL WPL 505187 Contact Us For Availability

2

MANUAL, USE & CARE WPL 37001023 Contact Us For Availability

3

WP22001659 Whirlpool Timer Knob In Stock WPL WP22001659 $18.86

3

HANDLE, DOOR (WHT) WPL 33001241 Contact Us For Availability

3

HINGE, TOP WPL 500003 Contact Us For Availability

3

CLIP, WIRE WPL 504034 Contact Us For Availability

4

WP22001664 Whirlpool Timer Knob Backorder WPL WP22001664 $4.82

4

WP2200376 Whirlpool Dryer Drum Drive Motor As In Stock WPL WP2200376 $116.74

4

WP40113801 Whirlpool Dryer High Limit Thermal In Stock WPL WP40113801 $7.57

4

SCREW, No.8AB-16X3/4 FH WPL 37001030 Contact Us For Availability

4

RACK,DRYING WPL Y504105 Contact Us For Availability

5

WP22001663 Whirlpool Selector Knob Backorder WPL WP22001663 $40.58

5

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $4.82

5

PANEL, TOP (WHT) WPL 37001027 Contact Us For Availability

5

PAD, BUMPER WPL Y56128 Contact Us For Availability

5

PANEL, ACCESS COVER WPL 500114 Contact Us For Availability

5

HOUSING, BLOWER WPL 56020 Contact Us For Availability

6

56000 Whirlpool Blower Wheel In Stock WPL 56000 $54.20

6

WPW10116735 Whirlpool Dryer High Limit Thermo In Stock WPL WPW10116735 $52.45

6

DUCT, EXHAUST WPL 505518 Contact Us For Availability

7

WP27001200 Whirlpool Screw Backorder WPL WP27001200 $4.82

7

WP33001624 Whirlpool Timer Backorder WPL WP33001624 $253.40

7

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

7

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.82

8

WP22001650 Whirlpool Spring Clip In Stock WPL WP22001650 $5.30

8

WP3400094 Whirlpool Screw Backorder WPL WP3400094 $4.82

8

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

8

CABINET, DRYER & WASHER (WHT) WPL 40076402WP Contact Us For Availability

8

CONSOLE BACK PANEL WPL 22002529 Contact Us For Availability

8

COVER, BLOWER HOUSING WPL 500078 Contact Us For Availability

9

BLOCK, TERMINAL WPL 61923 Contact Us For Availability

9

BASE, DRYER WPL 500070 Contact Us For Availability

9

CONSOLE (WHT) WPL 33002286 Contact Us For Availability

LEG, LEVELING (PLASTIC) WPL Y500101 Contact Us For Availability

BRACKET,TOP MOUNT WPL 40130801 Contact Us For Availability

SWITCH, TEMPERATURE (ELC.) WPL 33001642 Contact Us For Availability

SEAL, BLOWER HOUSING WPL 40090001 Contact Us For Availability

11

SEAL, FRONT PANEL WPL 504005 Contact Us For Availability

11

SWITCH, PUSH TO START (WHT) WPL 33001861 Contact Us For Availability

11

MOUNT, MOTOR WPL 503613 Contact Us For Availability

W10169313 Whirlpool Door Switch Kit In Stock WPL W10169313 $21.70

WP307249 Whirlpool Thermostat In Stock WPL WP307249 $100.00

PAD, FELT WPL 500092 Contact Us For Availability

BULKHEAD, REAR WPL 502614WP Contact Us For Availability

BUTTON, PUSH TO START (WHT) WPL 33001619 Contact Us For Availability

WP37001036 Whirlpool Glide Bracket In Stock WPL WP37001036 $50.00

WP37001132 Whirlpool Felt Seal In Stock WPL WP37001132 $31.71

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

PLUG, HINGE HOLE WPL 503126 Contact Us For Availability

BUZZER, NON-ADJUSTABLE WPL 33001623 Contact Us For Availability

SCREW, No.8 X 3/8 IND H WPL 31260 Contact Us For Availability

14

WP56076 Whirlpool Idler Spring Backorder WPL WP56076 $50.95

14

SCREW, 8B-16X5/8 TAP WPL 500226 Contact Us For Availability

14

PANEL, FRONT (WHT) WPL 503656WP Contact Us For Availability

15

WP37001144 Whirlpool Dryer Idler Arm Pulley A Backorder WPL WP37001144 $35.47

15

WP40113601 Whirlpool Dryer Roller Bracket In Stock WPL WP40113601 $47.42

15

PANEL, ACCESS (WHT) WPL 40045301WP Contact Us For Availability

16

LA-1003 Whirlpool Dryer Door Catch and Metal In Stock WPL LA-1003 $13.15

16

WP37001042 Whirlpool Dryer Drum Support Rolle In Stock WPL WP37001042 $12.64

16

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.82

17

WPY54414 Whirlpool Dryer Idler Pulley In Stock WPL WPY54414 $10.74

17

SEAL & LINER, ASSY(INNER DOOR) WPL 37001028 Contact Us For Availability

18

WP23748 Whirlpool Retaining Ring In Stock WPL WP23748 $7.39

18

STRIKE, DOOR (METAL) WPL 500039 Contact Us For Availability

19

BRACKET,DOOR STRIKE WPL 40116201 Contact Us For Availability

19

SCREW, 1/4-20 UNC HEX WPL 500824 Contact Us For Availability

20

WPW10139757 Whirlpool Nut Backorder WPL WPW10139757 $4.82
