Model Whirlpool SBE22AX ELECTRIC RANGE – Common Parts & Diagrams

1

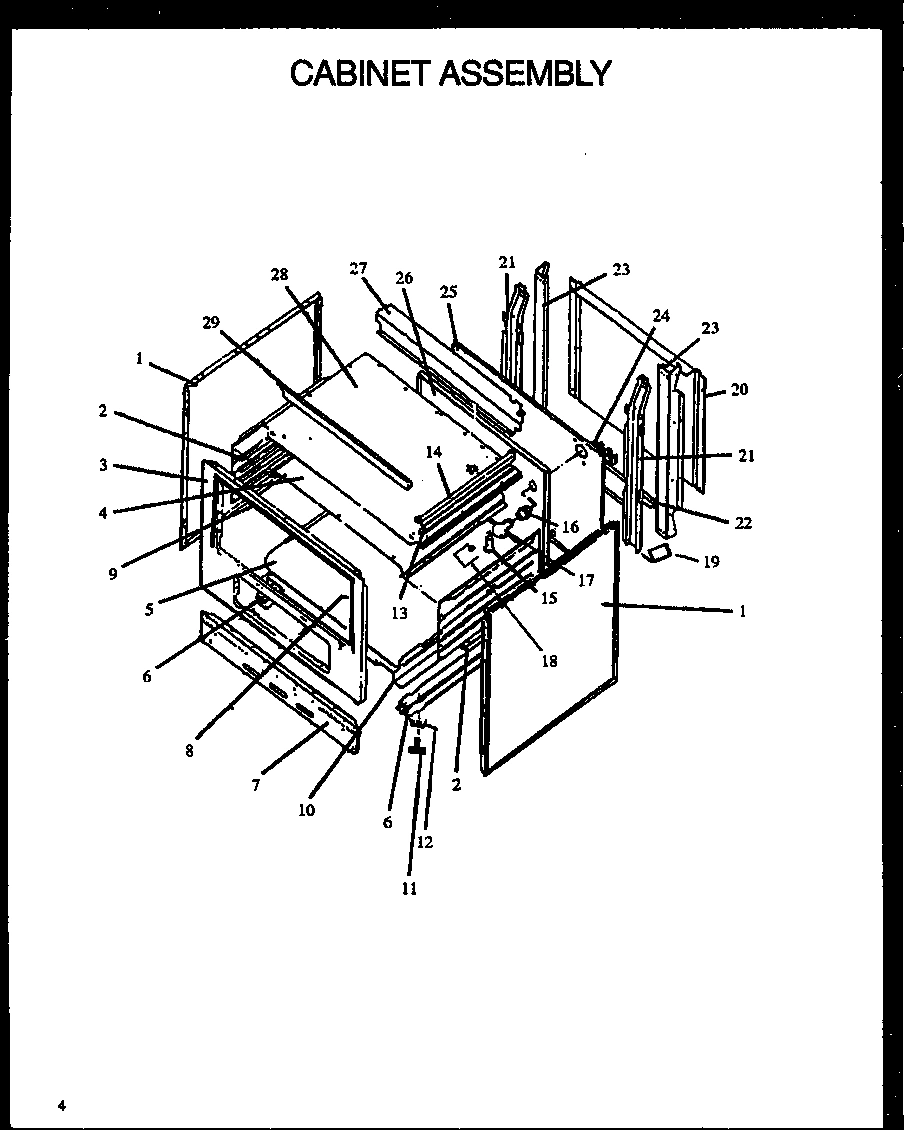

PANEL,BODY SIDE (AL)
PANEL,BODY SIDE (AL) WPL 313762L Contact Us For Availability
View on Model
1
PANEL, TEXTURE BODY
PANEL, TEXTURE BODY WPL 313762W Contact Us For Availability
View on Model
1
BACKGUARD FRAME
BACKGUARD FRAME WPL 0057317 Contact Us For Availability
View on Model
1

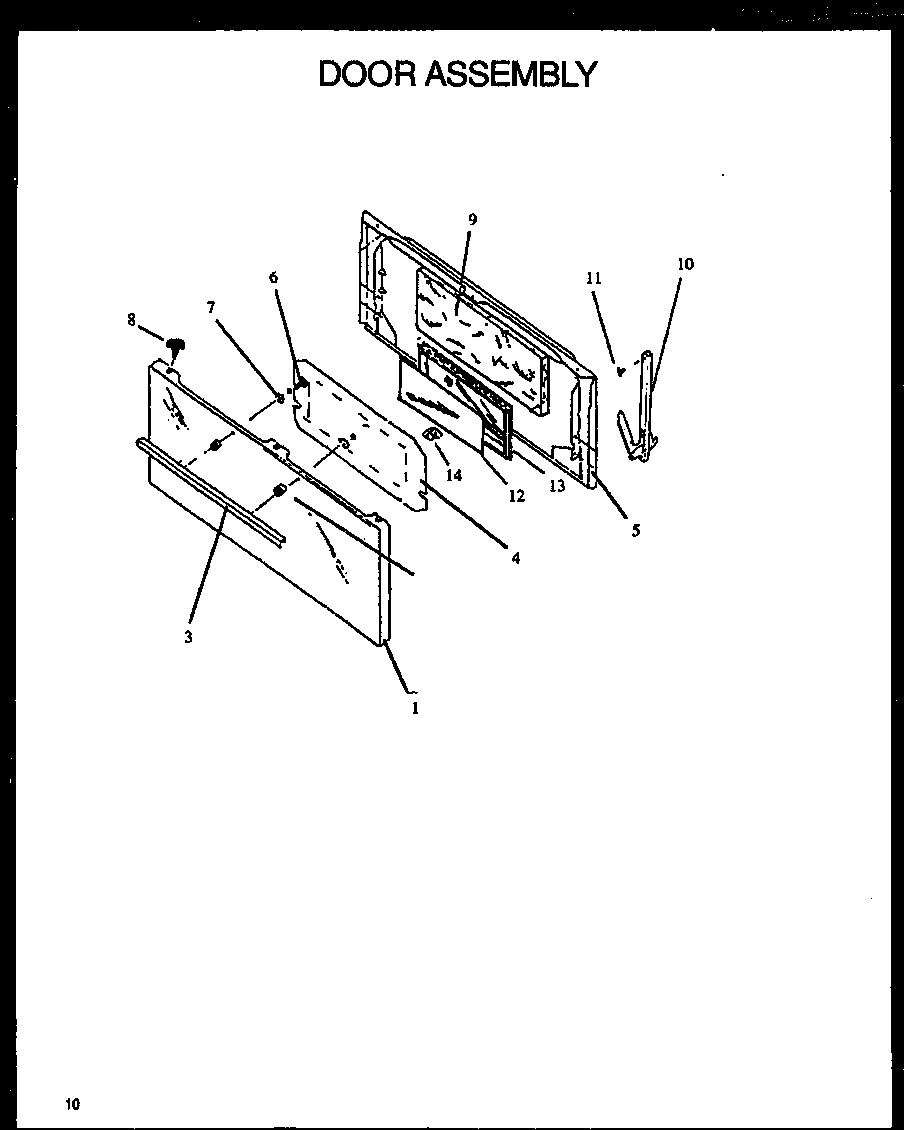

PANEL, OVEN DOOR (ALMOND)
PANEL, OVEN DOOR (ALMOND) WPL 313754L Contact Us For Availability
View on Model
1
PANEL, OVEN DOOR (WHITE)
PANEL, OVEN DOOR (WHITE) WPL 313754W Contact Us For Availability
View on Model
1

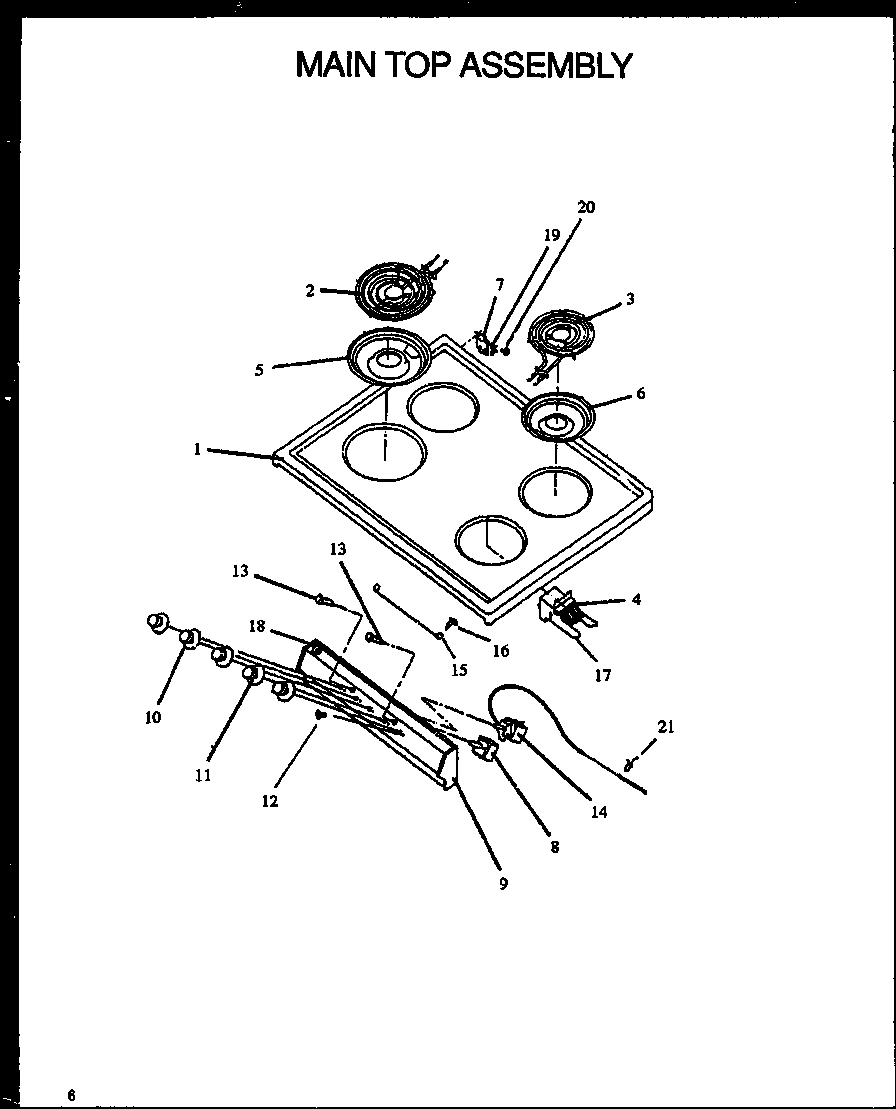

TOP, 20`` MAIN ELECTRIC (ALMOND
TOP, 20`` MAIN ELECTRIC (ALMOND WPL Y06461007L Contact Us For Availability
View on Model
1
TOP, 20`` MAIN ELECTRIC (WHITE)
TOP, 20`` MAIN ELECTRIC (WHITE) WPL Y06461007W Contact Us For Availability
View on Model
1

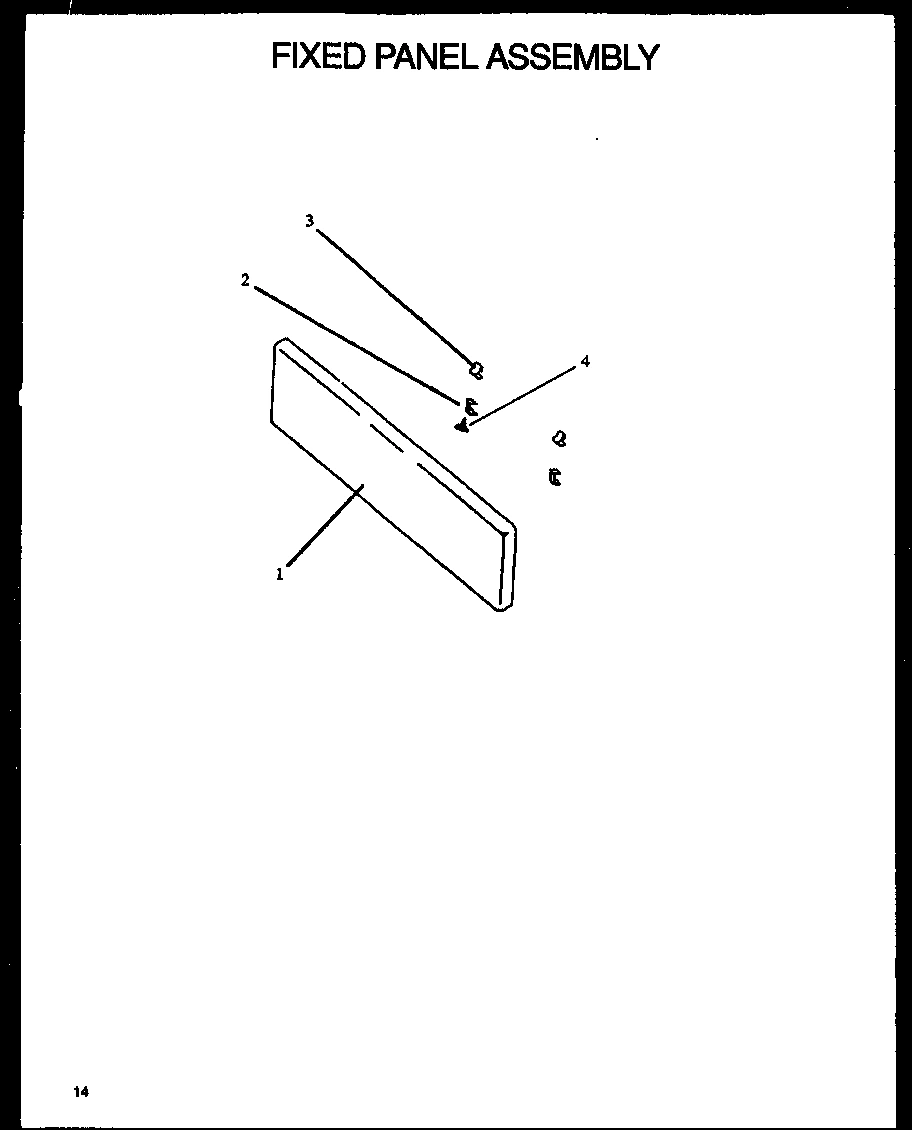

PANEL, FIXED (ALMOND)
PANEL, FIXED (ALMOND) WPL 06538800L Contact Us For Availability
View on Model
1
PANEL, FIXED (WHITE)
PANEL, FIXED (WHITE) WPL 06538800W Contact Us For Availability
View on Model
2
LINER,OVEN SIDE
LINER,OVEN SIDE WPL 0311807 Contact Us For Availability
View on Model
2
PNL-FILR,4X20,NONM
PNL-FILR,4X20,NONM WPL R0708230 Contact Us For Availability
View on Model
2
HANDLE SPACER, PLASTIC (J)
HANDLE SPACER, PLASTIC (J) WPL Y0310818 Contact Us For Availability
View on Model
2
CLIP, BRACKET
CLIP, BRACKET WPL Y06538700 Contact Us For Availability
View on Model
3

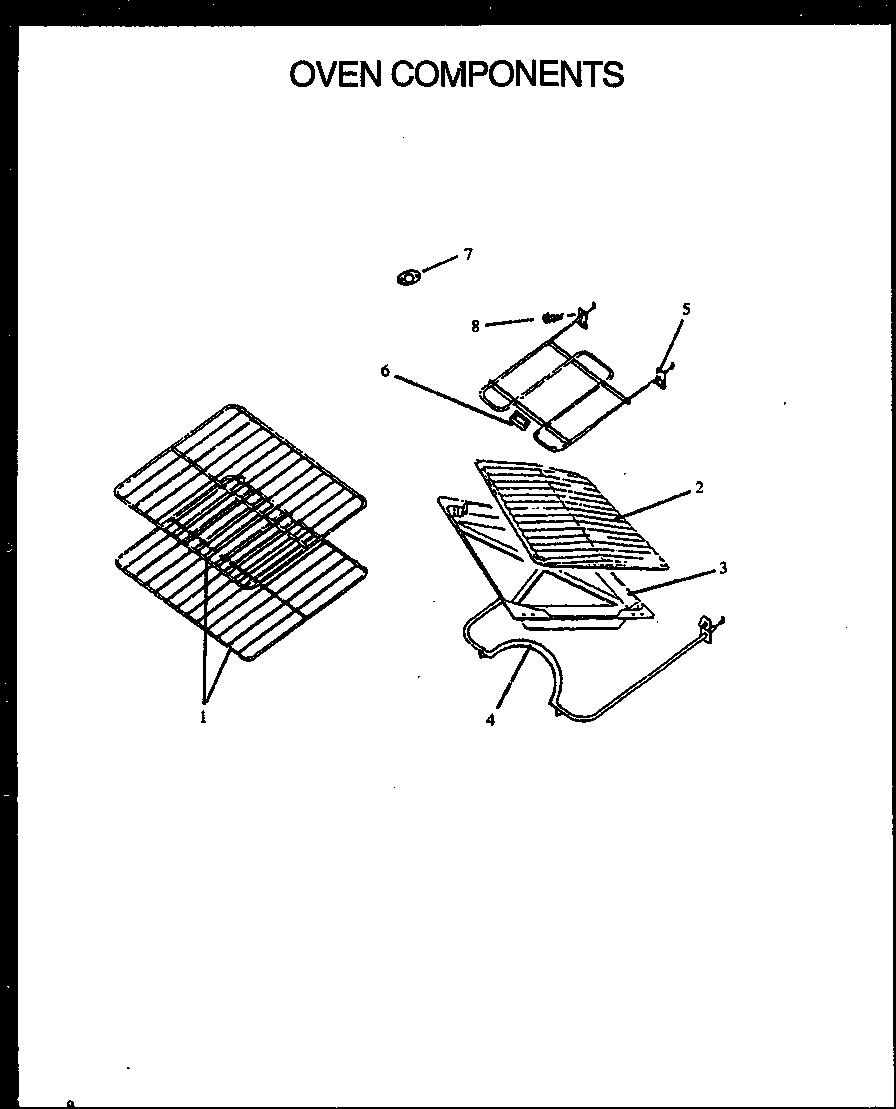

PAN, BROILER
PAN, BROILER WPL 87722CG Contact Us For Availability
View on Model
3
SUPPORT, BKGD. (LOW, LH) {J}
SUPPORT, BKGD. (LOW, LH) {J} WPL 0310811 Contact Us For Availability
View on Model
3
HANDLE, OVEN DOOR (J)
HANDLE, OVEN DOOR (J) WPL Y0052776 Contact Us For Availability
View on Model
3
SPRING CLIP
SPRING CLIP WPL Y0088664 Contact Us For Availability
View on Model
4
LINER, OVEN TOP
LINER, OVEN TOP WPL 86924CG Contact Us For Availability
View on Model
4
SUPPORT, BKGD. (LOW, RH) {J}
SUPPORT, BKGD. (LOW, RH) {J} WPL 0310812 Contact Us For Availability
View on Model
4
BAFFLE, HOLD DOWN
BAFFLE, HOLD DOWN WPL 0088842 Contact Us For Availability
View on Model
5
BROIL ELEMENT
BROIL ELEMENT WPL Y0088867 Contact Us For Availability
View on Model
5
LINER, OVEN BOTTOM
LINER, OVEN BOTTOM WPL 88586CG Contact Us For Availability
View on Model
5
SUNRAY LABEL
SUNRAY LABEL WPL 0310837 Contact Us For Availability
View on Model
5
BACKER, OVEN DOOR
BACKER, OVEN DOOR WPL 54680CG Contact Us For Availability
View on Model
6
CLIP, T-STAT BULB
CLIP, T-STAT BULB WPL Y0088822 Contact Us For Availability
View on Model
6
RAIL, BASE
RAIL, BASE WPL 0312165 Contact Us For Availability
View on Model
6
SCREW
SCREW WPL 0310240 Contact Us For Availability
View on Model
6
SCREW, DOOR HANDLE
SCREW, DOOR HANDLE WPL Y0311884 Contact Us For Availability
View on Model
7
DISC, THERMO
DISC, THERMO WPL 0053357 Contact Us For Availability
View on Model
7
PANEL BASE TOE
PANEL BASE TOE WPL Y0054694 Contact Us For Availability
View on Model
7
HINGE, MAIN TOP
HINGE, MAIN TOP WPL 0088782 Contact Us For Availability
View on Model
8
SCREW
SCREW WPL 0087709 Contact Us For Availability
View on Model
8
SEAL, OVEN-SIDES
SEAL, OVEN-SIDES WPL Y0056090 Contact Us For Availability
View on Model
8
SWITCH, INFINITE
SWITCH, INFINITE WPL 0057312 Contact Us For Availability
View on Model
9
SEAL, OVEN DOOR-TOP
SEAL, OVEN DOOR-TOP WPL Y0056494 Contact Us For Availability
View on Model
9
INSULATION,WRAPPER
INSULATION,WRAPPER WPL Y0041966 Contact Us For Availability
View on Model
9
MANIFOLD PANEL, 20``
MANIFOLD PANEL, 20`` WPL Y07621921 Contact Us For Availability
View on Model
10
SUPPORT
SUPPORT WPL Y0057213 Contact Us For Availability
View on Model
10
HINGE, DOOR (J)
HINGE, DOOR (J) WPL Y0311397 Contact Us For Availability
View on Model
11
KNOB, THERMOSTAT
KNOB, THERMOSTAT WPL Y0310527 Contact Us For Availability
View on Model
11
LEG, LEVELING
LEG, LEVELING WPL Y0062362 Contact Us For Availability
View on Model
12
SNAP-IN TEE NUT
SNAP-IN TEE NUT WPL Y0088571 Contact Us For Availability
View on Model
12
SCREW, INFINITE, SWITCH MTG.
SCREW, INFINITE, SWITCH MTG. WPL 0311874 Contact Us For Availability
View on Model
13
WIRE CHANNEL SUPPORT
WIRE CHANNEL SUPPORT WPL Y0088817 Contact Us For Availability
View on Model
13
LIGHT, PILOT
LIGHT, PILOT WPL 0088640 Contact Us For Availability
View on Model
13
LIGHT, INDICATOR
LIGHT, INDICATOR WPL Y0088777 Contact Us For Availability
View on Model
14
WIRE CHANNEL
WIRE CHANNEL WPL 311010E Contact Us For Availability
View on Model
14
THERMO-ELECT.
THERMO-ELECT. WPL 0088758 Contact Us For Availability
View on Model
15
OVEN VENT
OVEN VENT WPL 0088761 Contact Us For Availability
View on Model
15
SUPPORT ROD
SUPPORT ROD WPL 0087023 Contact Us For Availability
View on Model
16
SHOULDER SCREW
SHOULDER SCREW WPL 0088779 Contact Us For Availability
View on Model
17
MOUNTING BRKT. PLUG BLOCK
MOUNTING BRKT. PLUG BLOCK WPL Y0302765 Contact Us For Availability
View on Model
19
KIT, ANTI-TIP
KIT, ANTI-TIP WPL 07687600 Contact Us For Availability
View on Model
19
NUT, SPEED, FLAT
NUT, SPEED, FLAT WPL Y0310032 Contact Us For Availability
View on Model
20
SUPPORT, BOTTOM WIRE COVER
SUPPORT, BOTTOM WIRE COVER WPL Y0086754 Contact Us For Availability
View on Model
20
SCREW No.10X1/2 BLUNT
SCREW No.10X1/2 BLUNT WPL Y0310363 Contact Us For Availability
View on Model
21
VERTICAL SUP. (J)
VERTICAL SUP. (J) WPL 0052742 Contact Us For Availability
View on Model
21
CLIP, CAPILLARY
CLIP, CAPILLARY WPL 0088050 Contact Us For Availability
View on Model
22
WIRE COVER, MAIN BACK
WIRE COVER, MAIN BACK WPL Y0086752 Contact Us For Availability
View on Model
23
SUPPORT, REAR, VERTICAL {J}
SUPPORT, REAR, VERTICAL {J} WPL 0056477 Contact Us For Availability
View on Model
25
SHIELD, MAIN BACK
SHIELD, MAIN BACK WPL 0311067 Contact Us For Availability
View on Model
26
LINER, OVEN BACK (16``)
LINER, OVEN BACK (16``) WPL Y06472600E Contact Us For Availability
View on Model
27
COVER, REAR B.B. (20``)
COVER, REAR B.B. (20``) WPL 311012E Contact Us For Availability
View on Model
28
BURNER BOX, BOTTOM
BURNER BOX, BOTTOM WPL 311000E Contact Us For Availability
View on Model
29
SWITCH COVER
SWITCH COVER WPL 0086933 Contact Us For Availability
View on Model
