Model Whirlpool SBC24FX5 ELECTRIC RANGE – Common Parts & Diagrams

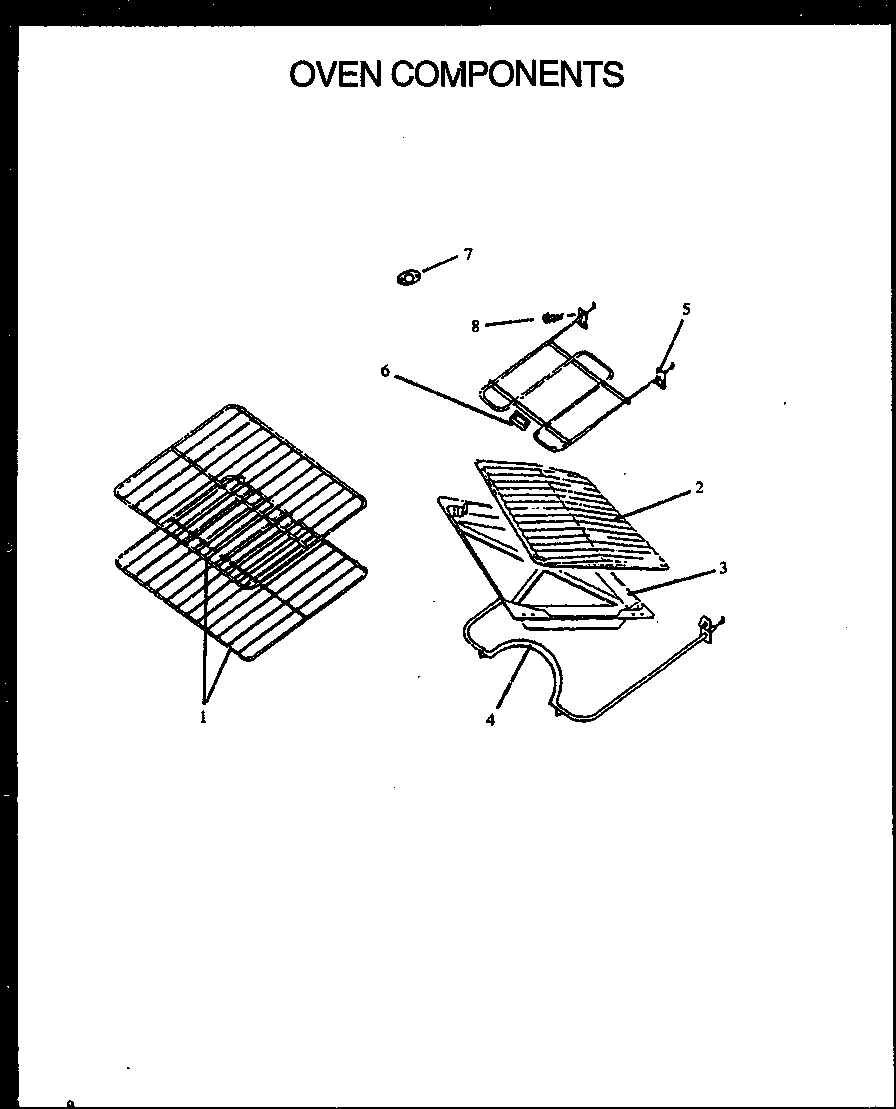

05 - OVEN COMPONENTS

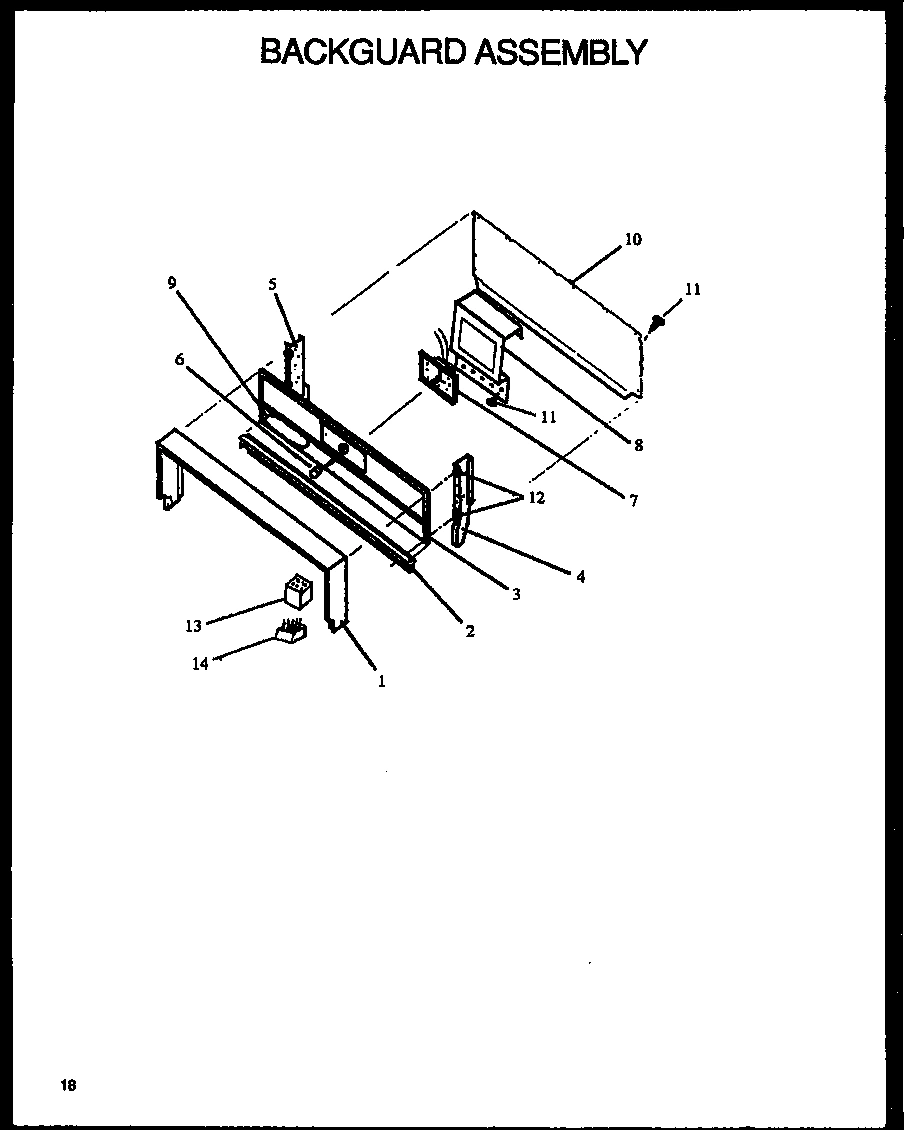

01 - BACKGUARD ASSY

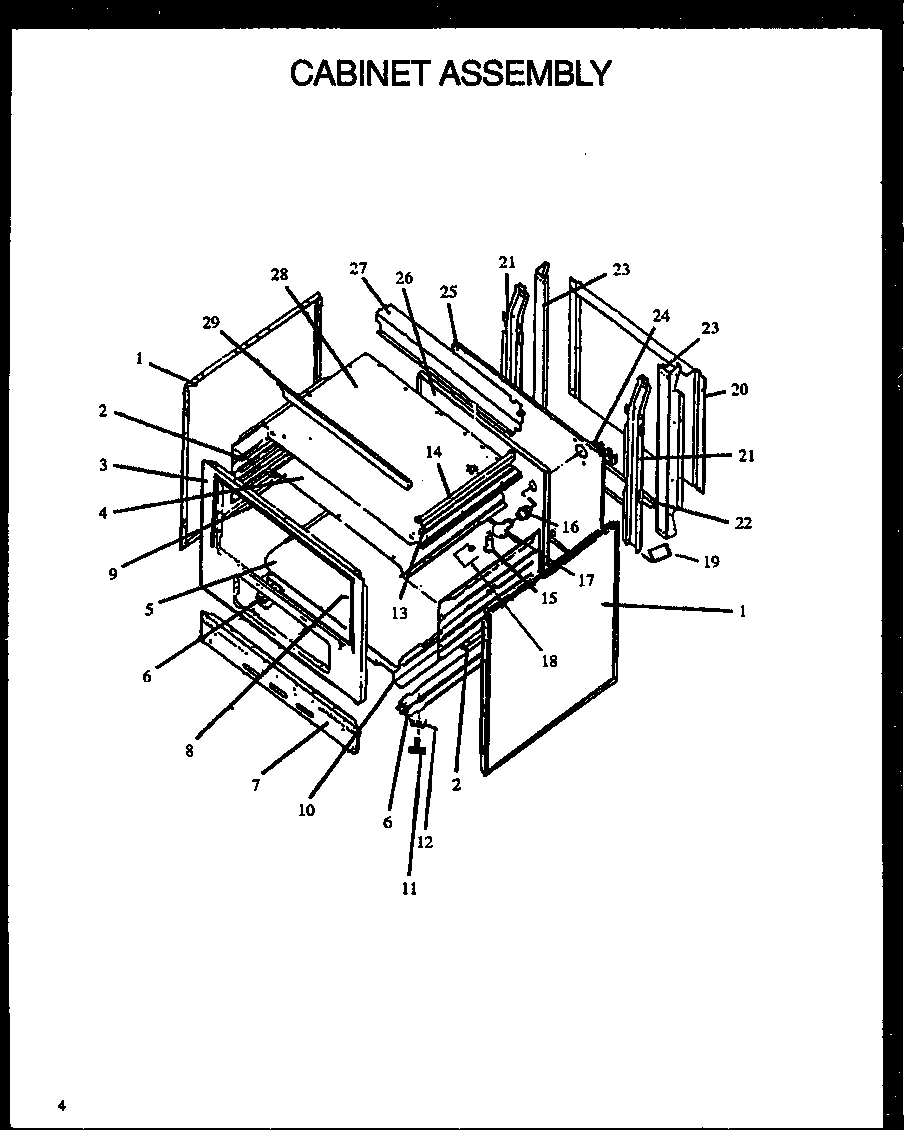

02 - CABINET ASSY

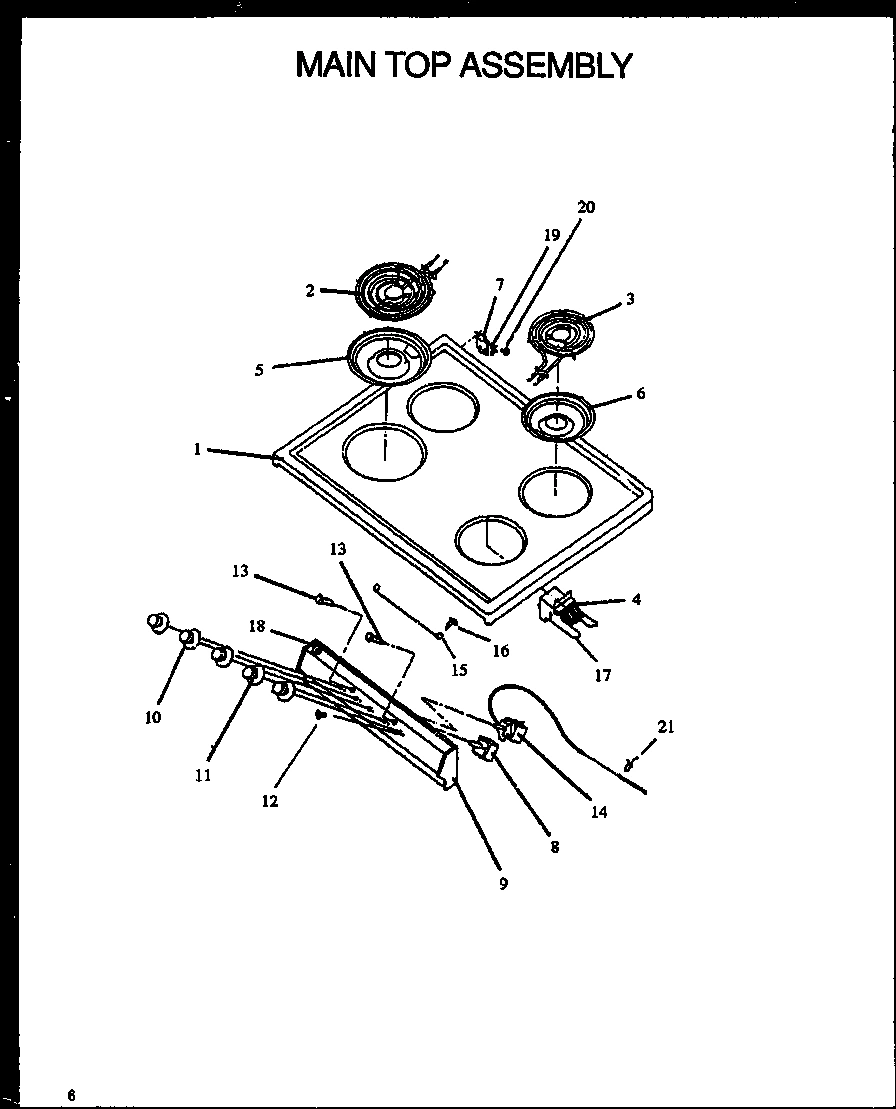

04 - MAIN TOP ASSY

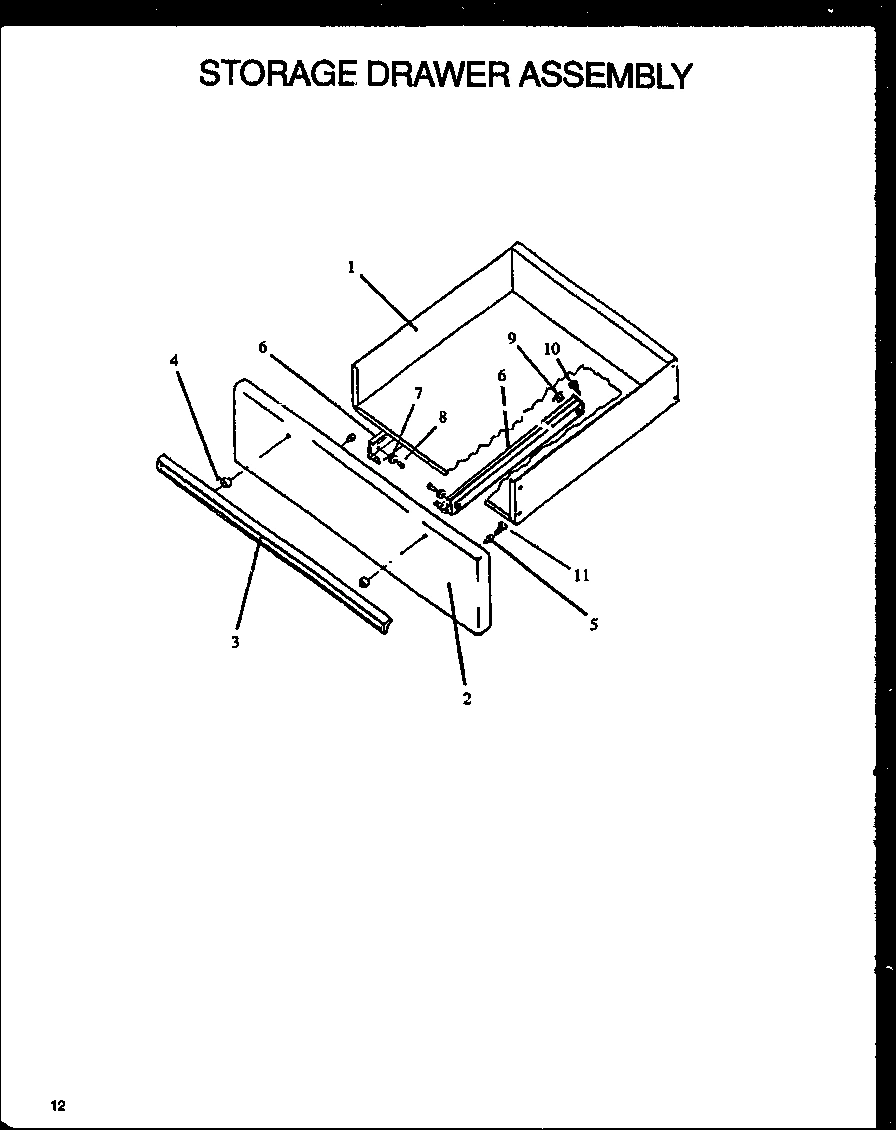

06 - STORAGE DOOR ASSY

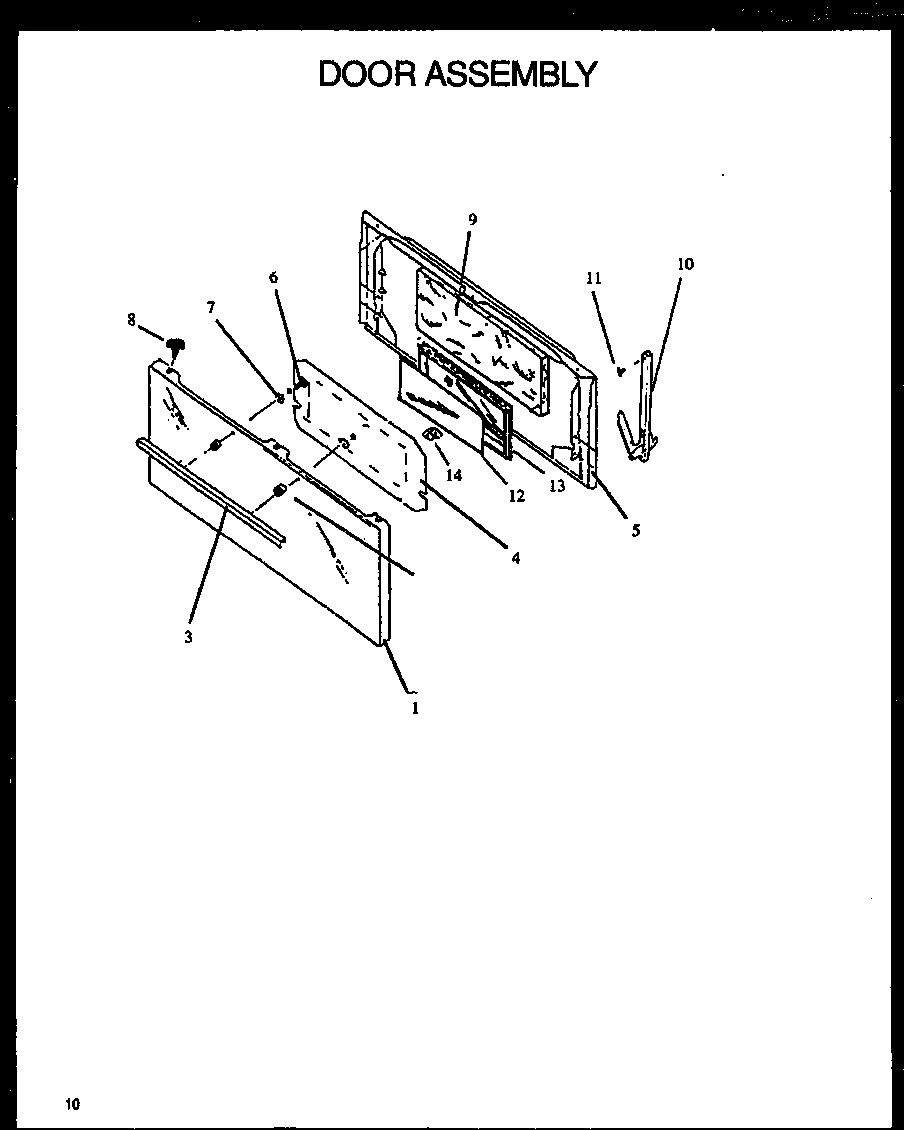

03 - DOOR ASSY
Common parts from model Whirlpool SBC24FX5 ELECTRIC RANGE
1
FRAME, BACKGUARD 8`` WPL Y0310469 Contact Us For Availability
1
PANEL,BODY SIDE (AL) WPL 313762L Contact Us For Availability
1
PANEL, TEXTURE BODY WPL 313762W Contact Us For Availability
1
TOP, 24`` MAIN ELECTRIC (ALMOND WPL Y06461009L Contact Us For Availability
1
TOP, 24`` MAIN ELECTRIC (WHITE) WPL Y06461009W Contact Us For Availability
1
STORAGE DRAWER WPL 0310536 Contact Us For Availability
1
PANEL OVEN DOOR WPL 312819L Contact Us For Availability
1
PANEL OVEN DOOR WPL 312819W Contact Us For Availability
2
BASE-BKGD,24``W/HOLES WPL Y0311614 Contact Us For Availability
2
LINER,OVEN SIDE WPL 0311807 Contact Us For Availability
2
PANEL, STORAGE DRAWER (ALMOND) WPL 313757L Contact Us For Availability
2
PANEL STORAGE DRAWER (WHITE) 2 WPL 313757W Contact Us For Availability
2
HANDLE SPACER, PLASTIC (J) WPL Y0310818 Contact Us For Availability
3
PAN, BROILER WPL 87722CG Contact Us For Availability
3
GLASS, BACKGUARD, 8`` WPL Y0310504 Contact Us For Availability
3
OVEN DOOR HANDLE, 18`` WPL Y0088812 Contact Us For Availability
3
SUB 88812, HANDLE OVEN DR {J} WPL Y0057261 Contact Us For Availability
4
BACKGUARD SUPPORT-RH WPL Y0311038 Contact Us For Availability
4
OVEN TOP LINER, ELECTRIC WPL 0088894 Contact Us For Availability
4
BAFFLE DOOR BACKER WPL 0312824 Contact Us For Availability
5
BROIL ELEMENT WPL Y0088867 Contact Us For Availability
5
BACKGUARD SUPPORT-L.H. WPL Y0311039 Contact Us For Availability
5
OVEN BOTTOM (24``) (ENAM) WPL 310689E Contact Us For Availability
5
BUMPER-RUBBER 1/4`` WPL Y0088788 Contact Us For Availability
5
BACKER, OVEN DOOR WPL 312820E Contact Us For Availability
6
CLIP, T-STAT BULB WPL Y0088822 Contact Us For Availability
6
KNOB, CLOCK WPL Y0055020 Contact Us For Availability
6
RAIL, BASE WPL 0312165 Contact Us For Availability
6
TRACK, UPPER L.H. (ELEC) WPL 0310518 Contact Us For Availability
6
TRACK, UPPER R.H. (ELEC) WPL 0310519 Contact Us For Availability
6
TRACK, LOWER L.H. WPL 0310522 Contact Us For Availability
6
TRACK, LOWER R.H. WPL Y0310523 Contact Us For Availability
6
SCREW, DOOR HANDLE WPL Y0311884 Contact Us For Availability
7
DISC, THERMO WPL 0053357 Contact Us For Availability
7
CLOCK, 240/50 WPL Y0310464 Contact Us For Availability
7
PANEL, BASE TOE 24`` WPL Y0054693 Contact Us For Availability
7
HINGE, MAIN TOP WPL 0088782 Contact Us For Availability
8
SCREW WPL 0087709 Contact Us For Availability
8
CLOCK BRACKET WPL Y0311034 Contact Us For Availability
8
SEAL, OVEN-SIDES WPL Y0056090 Contact Us For Availability
8
SWITCH, INFINITE WPL 0057312 Contact Us For Availability
9
LABEL, SUNRAY WPL 0310497 Contact Us For Availability
9
SEAL, OVEN-TOP & BOTTOM 24`` WPL Y0056092 Contact Us For Availability
9
INSULATION,WRAPPER WPL Y0041966 Contact Us For Availability
9
PANEL, MANIFOLD (24``) WPL Y07621927F Contact Us For Availability
9
GLIDE, DRAWER (WHT) WPL Y07674900 Contact Us For Availability
10
WIRE COVER, 8`` WPL Y0310451 Contact Us For Availability
10
SUPPORT WPL Y0057214 Contact Us For Availability
10
HINGE, OVEN DOOR WPL Y0086789 Contact Us For Availability
11
KNOB, THERMOSTAT WPL Y0310527 Contact Us For Availability
11
SCREW No.10 X 5/16 WPL 0310234 Contact Us For Availability
11
LEG, LEVELING WPL Y0062362 Contact Us For Availability
12
BUMPER WPL 0310037 Contact Us For Availability
12
SNAP-IN TEE NUT WPL Y0088571 Contact Us For Availability
12
SCREW, INFINITE, SWITCH MTG. WPL 0311874 Contact Us For Availability
12
GLASS-WINDOW,OV DR WPL Y0088803 Contact Us For Availability
13
PIN, CONNECTOR WPL Y0087016 Contact Us For Availability
13
WIRE CHANNEL SUPPORT WPL Y0088817 Contact Us For Availability
13
LIGHT, PILOT WPL 0088640 Contact Us For Availability
13
LIGHT, INDICATOR WPL Y0088777 Contact Us For Availability
13
WINDOW, OV.DR.(2)PANE WPL Y0312832 Contact Us For Availability
14
CONNECTOR WPL Y0088643 Contact Us For Availability
14
CHANNEL, WIRE ROUTE WPL 88816CG Contact Us For Availability
14
THERMOSTAT WPL Y0310230 Contact Us For Availability
14
BRACKET WINDOW WPL Y0312823 Contact Us For Availability
15
OVEN VENT WPL 0088761 Contact Us For Availability
15
SUPPORT ROD WPL 0087023 Contact Us For Availability
16
SOCKET, OVEN LIGHT WPL Y0088674 Contact Us For Availability
16
SHOULDER SCREW WPL 0088779 Contact Us For Availability
17
BULB, LIGHT(240) WPL Y0088910 Contact Us For Availability
17
MOUNTING BRKT. PLUG BLOCK WPL Y0302765 Contact Us For Availability
18
CAGE, OVEN LIGHT WPL Y0088635 Contact Us For Availability
18
SWITCH, LIGHT WPL 0088350 Contact Us For Availability
19
KIT, ANTI-TIP WPL 07687600 Contact Us For Availability
19
NUT, SPEED, FLAT WPL Y0310032 Contact Us For Availability
20
SUPPORT, BOTTOM WIRE COVER WPL Y0086753 Contact Us For Availability
20
SCREW No.10X1/2 BLUNT WPL Y0310363 Contact Us For Availability
21
VERTICAL SUP. (J) WPL 0052742 Contact Us For Availability
21
CLIP, CAPILLARY WPL 0088050 Contact Us For Availability
22
WIRE COVER, MAIN BACK WPL Y0086751 Contact Us For Availability
23
SUPPORT, REAR, VERTICAL {J} WPL 0056477 Contact Us For Availability
25
BACK, MAIN ELECTRIC 24`` WPL Y06478201 Contact Us For Availability
26
LINER, OVEN RACK WPL Y06469500E Contact Us For Availability
27
COVER, REAR B.B. (24``) WPL Y0313751 Contact Us For Availability
28
BURNER BOX 24`` WPL 86737CG Contact Us For Availability
29
COVER SWITCH WPL 0086934 Contact Us For Availability
NI
PIN TERMINAL, MALE WPL 0067685 Contact Us For Availability
NI
PIN TERMINAL, FEMALE WPL Y0067689 Contact Us For Availability
× ![]()
