Model Whirlpool RT20AKXZL00 – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT2150256 WPL LIT2150256 Contact Us For Availability

WPL LIT2152543 WPL LIT2152543 Contact Us For Availability

WPL LIT2154075 WPL LIT2154075 Contact Us For Availability

WPL LIT4361171 WPL LIT4361171 Contact Us For Availability

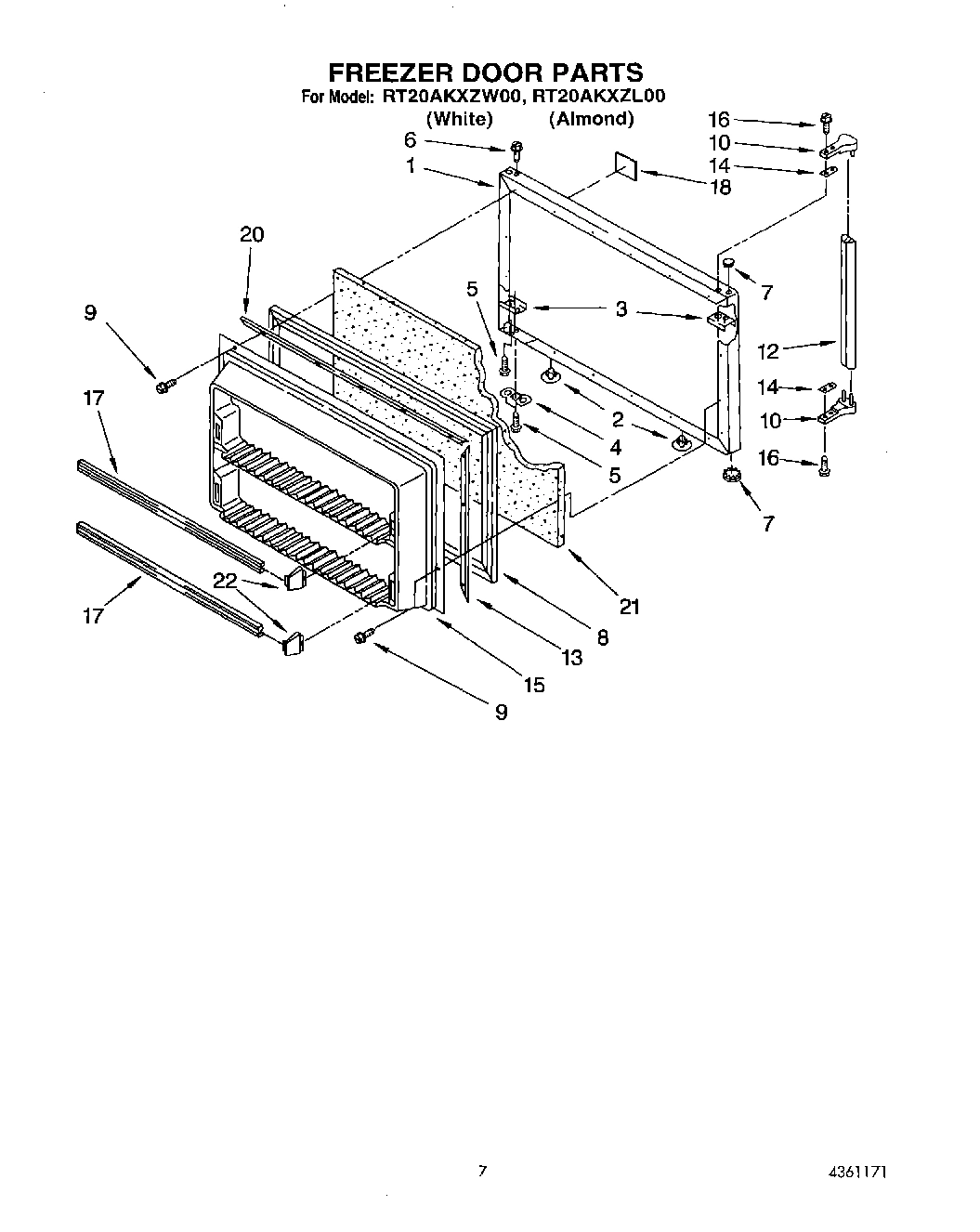

1

Panel, Freezer Door (Also Order Item 21) (Whi WPL 1122550 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Alm WPL 1122663 Contact Us For Availability

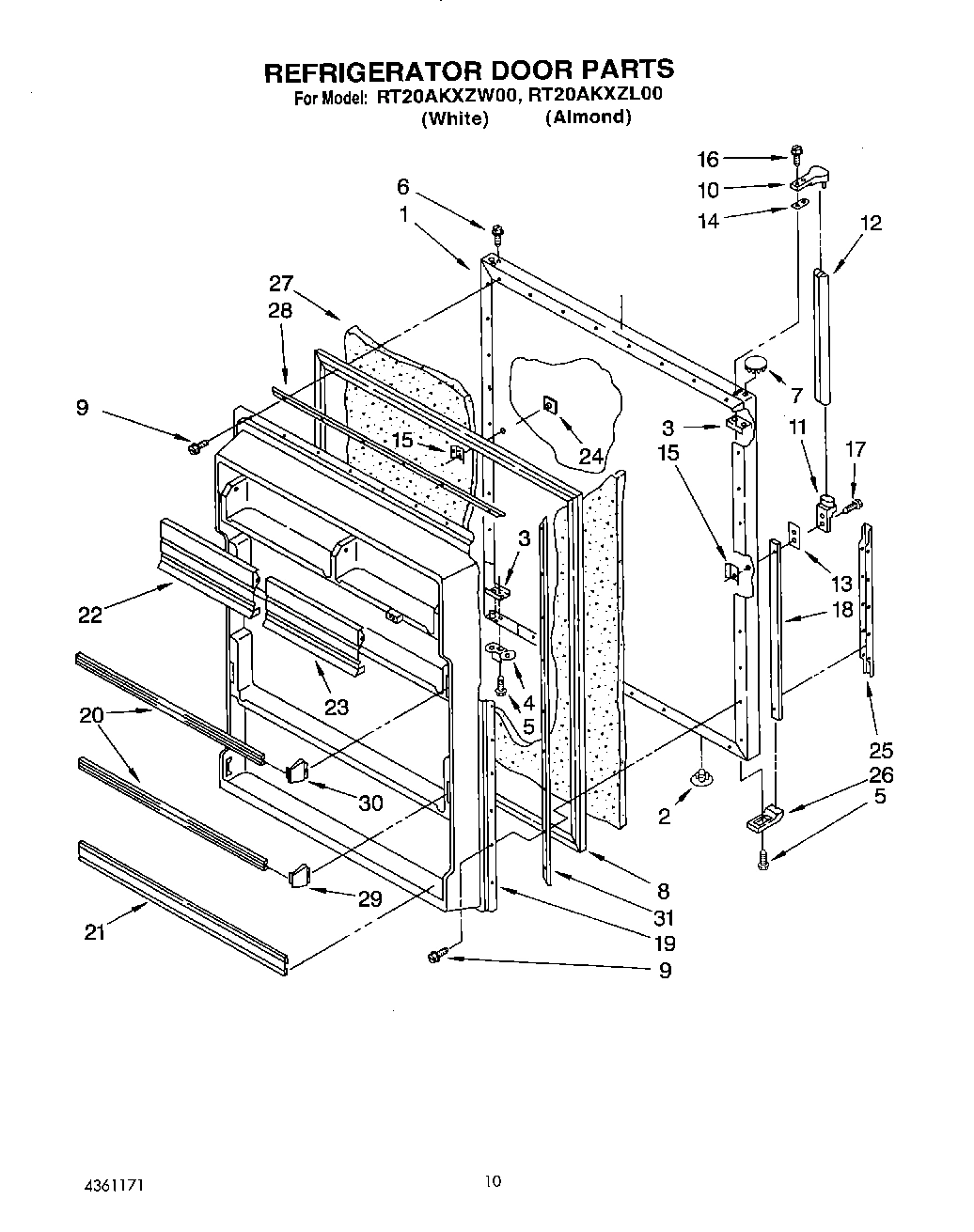

1

Panel, Refrigerator Door (Also Order Item 27) WPL 1122549 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 27) WPL 1122658 Contact Us For Availability

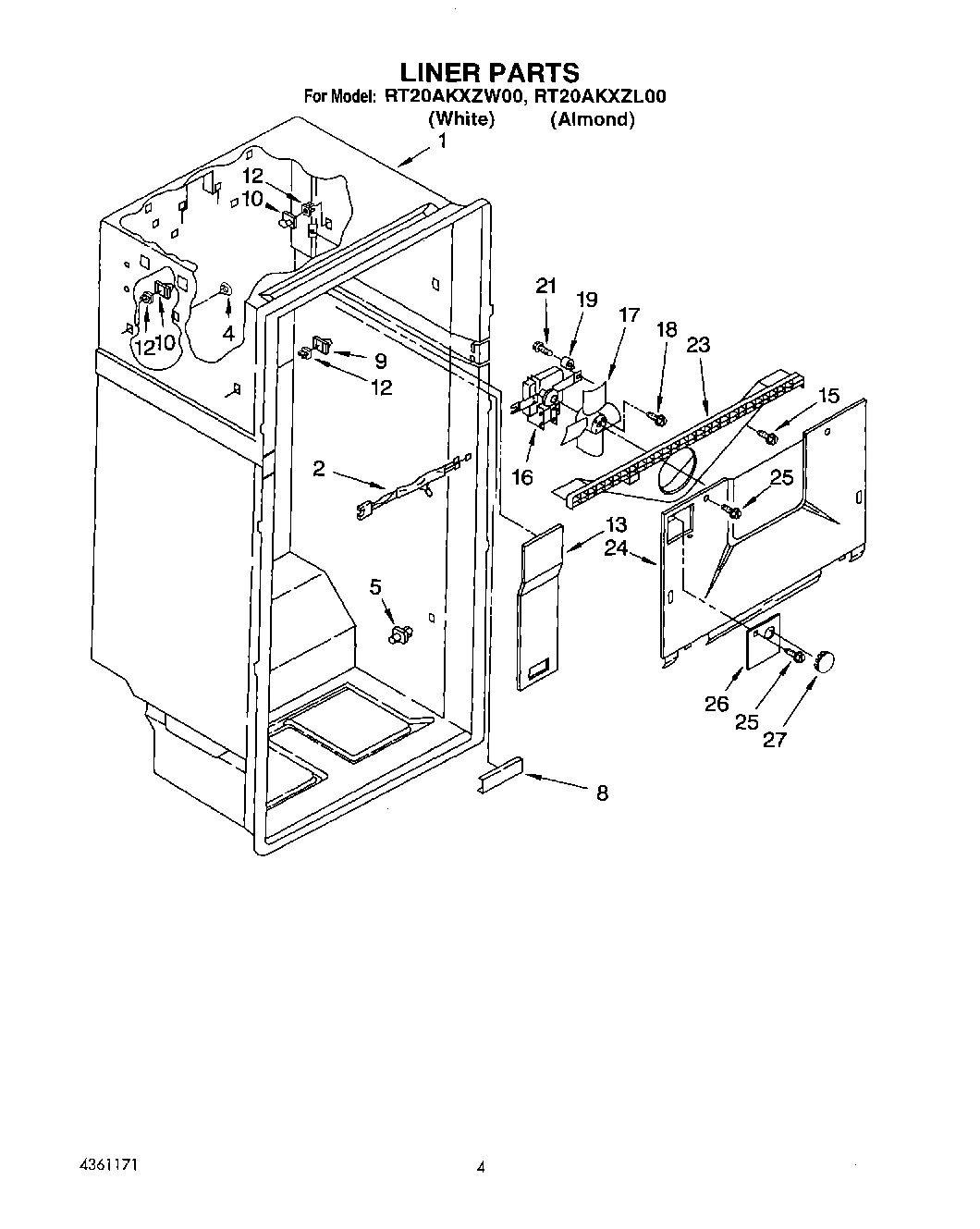

1

Liner (Not A Serviceable Part) WPL ARI127676A Contact Us For Availability

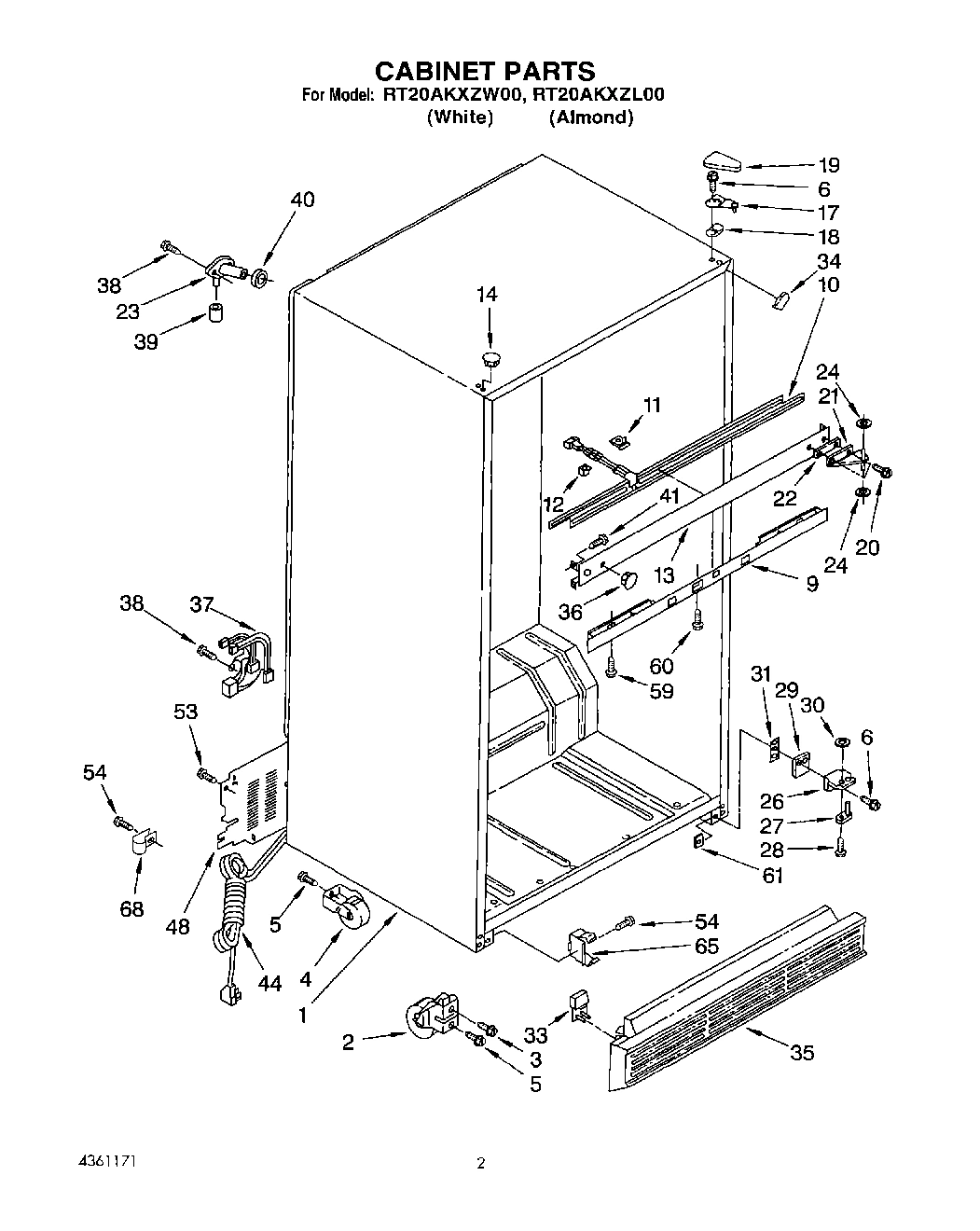

1

Cabinet (Not A Serviceable Part) WPL ARI127675A Contact Us For Availability

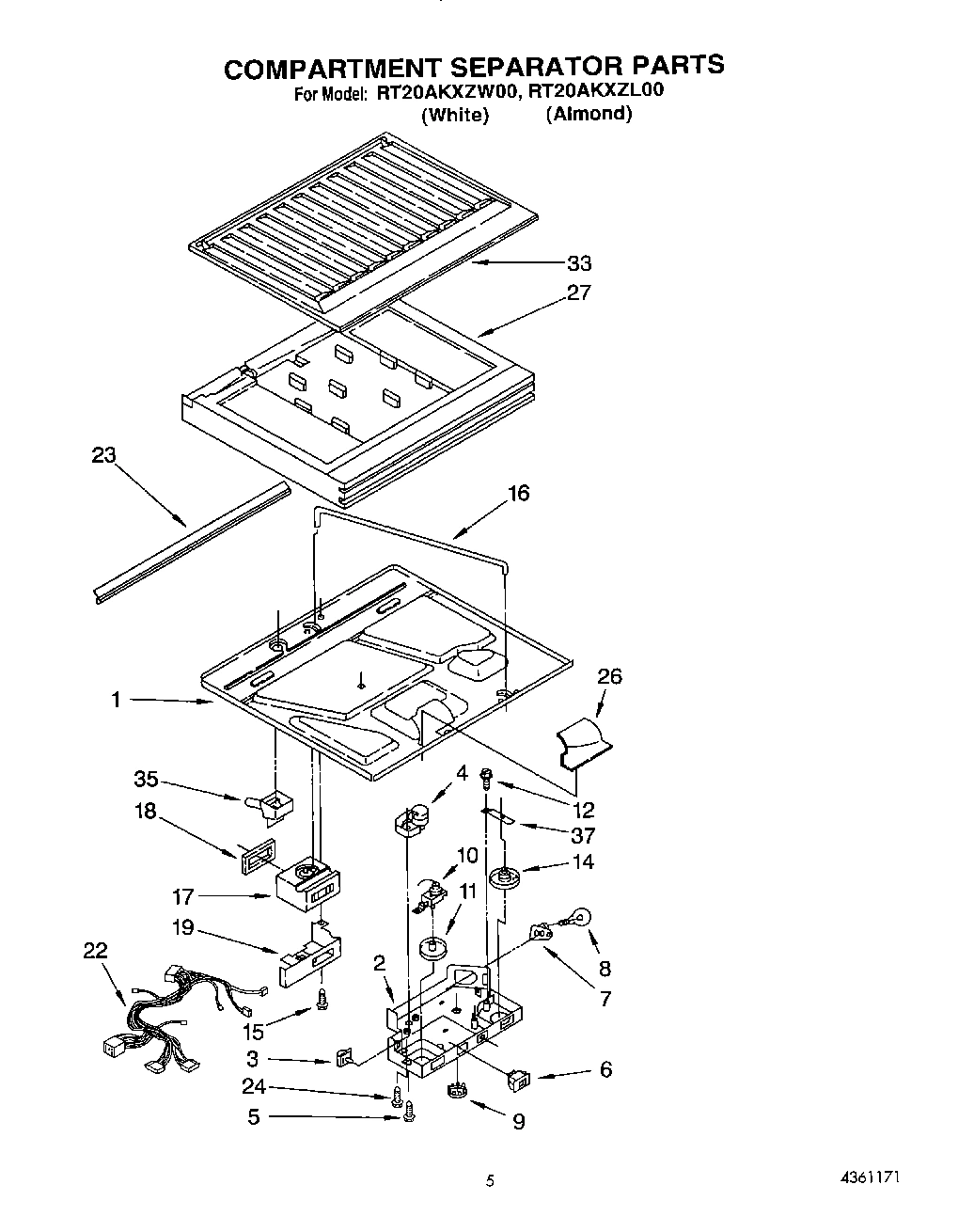

1

Bottom, Compartment Separator WPL 1122715 Contact Us For Availability

2

Wiring, Fan Motor WPL 1127626 Contact Us For Availability

2

Hole Plug (2) WPL 534927 Contact Us For Availability

2

Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability

2

Roller, Front WPL 2152011 Contact Us For Availability

2

Box, Control WPL 1105455 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $19.90

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $10.05

3

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

3

Screw, 5/16-24 x 1-1/4 WPL 489333 Contact Us For Availability

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Bracket, Door Stop WPL 944035 Contact Us For Availability

4

Bracket, Door Stop WPL 1115910 Contact Us For Availability

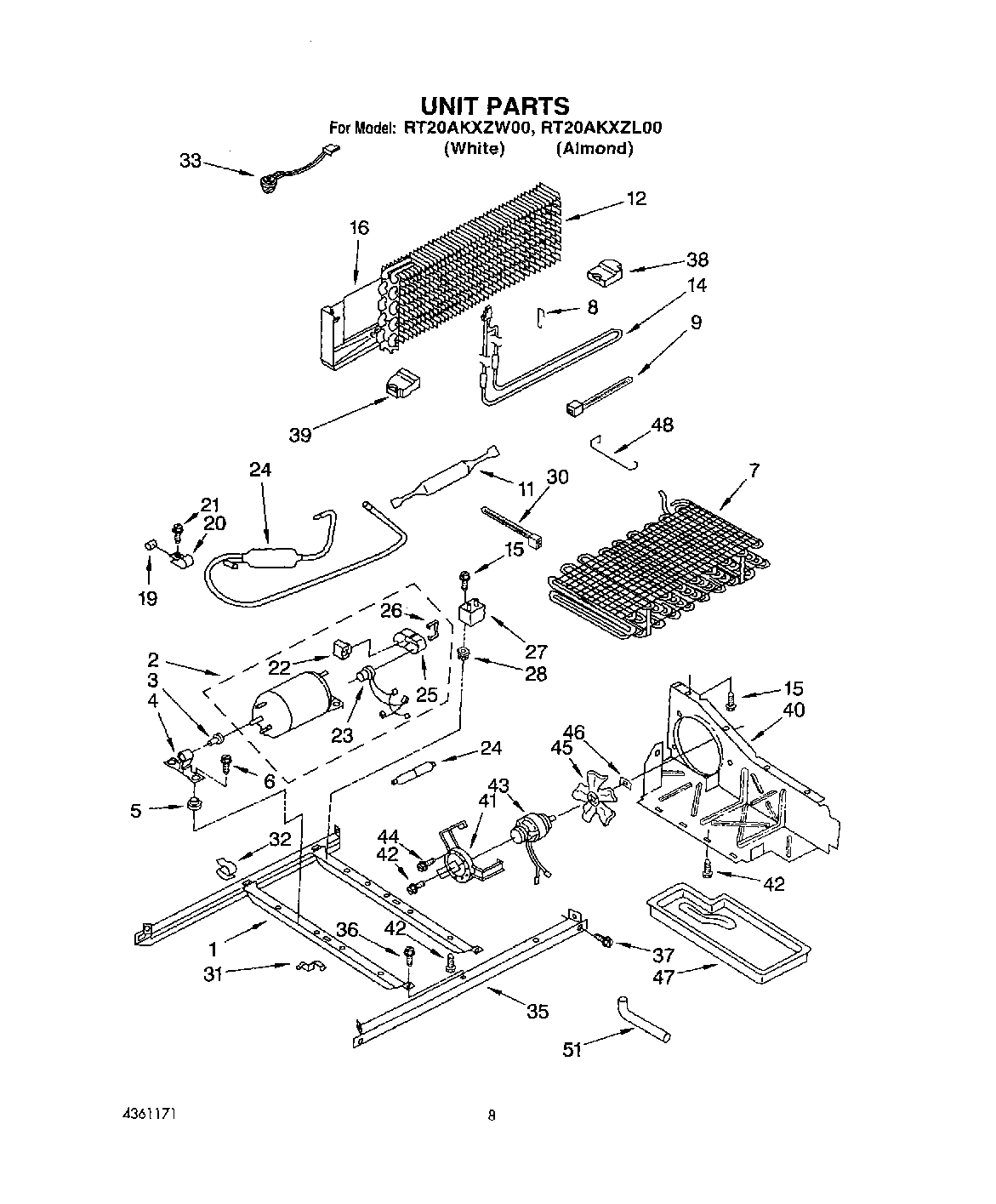

4

Timer, Defrost (10 Hour) WPL 1127570 Contact Us For Availability

5

WP487353 Whirlpool Refrigerator Screw In Stock WPL WP487353 $4.82

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $4.82

5

Shelf Stud (2) WPL 1106612 Contact Us For Availability

5

Screw, WPL 488454 Contact Us For Availability

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

6

WP8281206 Whirlpool Refrigerator Screw Backorder WPL WP8281206 $4.82

6

Screw WPL 489327 Contact Us For Availability

6

Switch, Toggle WPL 1106601 Contact Us For Availability

7

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $4.82

7

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

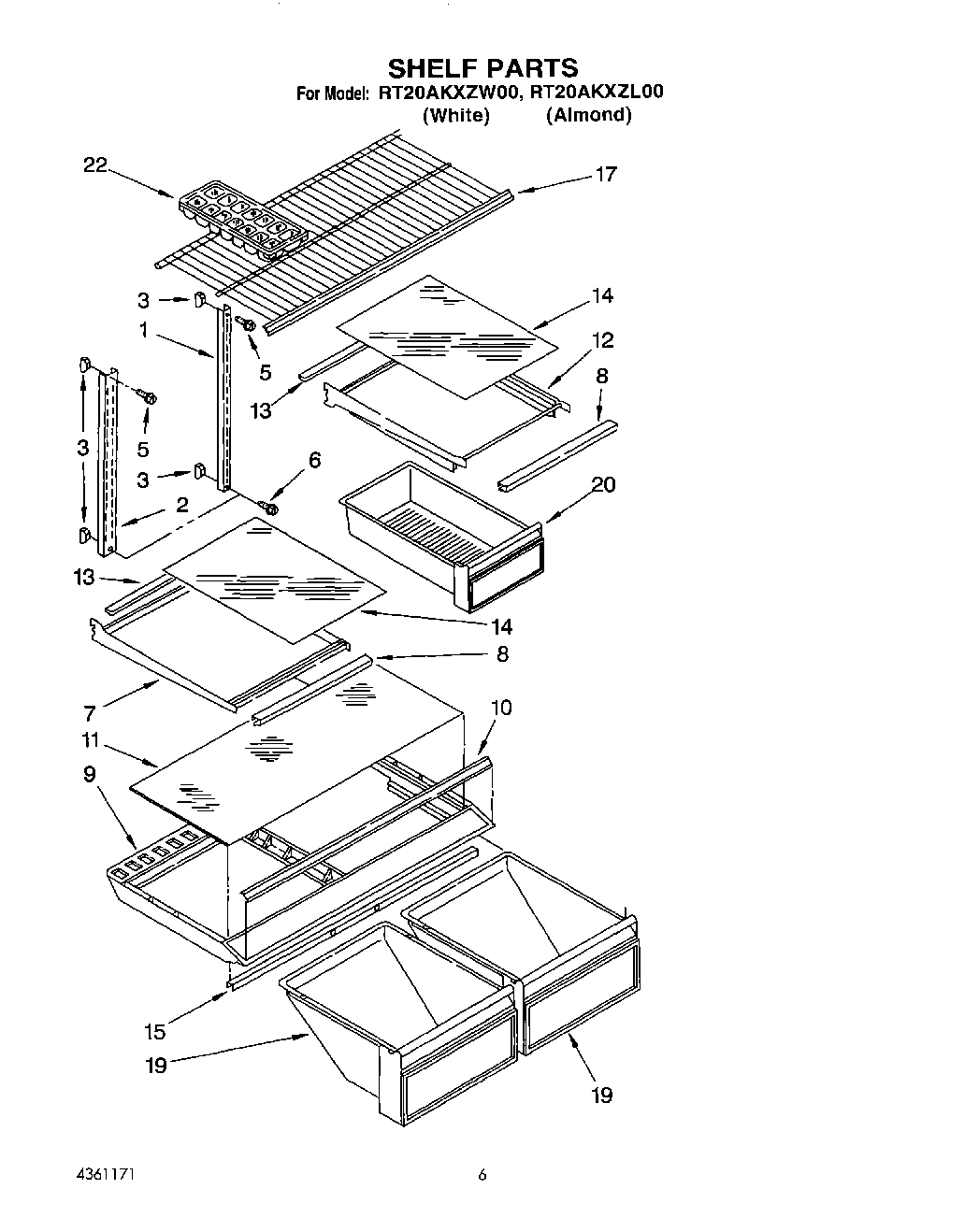

7

Shelf, Cantilever (3) WPL 1110739 Contact Us For Availability

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

8

2188450A Whirlpool Refrigerator Door Gasket Backorder WPL 2188450A $174.99

8

2188460A Whirlpool Refrigerator Door Gasket Backorder WPL 2188460A $143.06

8

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $6.45

8

Trim, Shelf WPL 1124366 Contact Us For Availability

8

Electrical, Shield WPL 1106892 Contact Us For Availability

9

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $13.22

9

WP2151749 Whirlpool Refrigerator Cover Backorder WPL WP2151749 $179.17

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

9

Stud (2) WPL 946356 Contact Us For Availability

9

Control, Front Cover WPL 2148146 Contact Us For Availability

1123394 Whirlpool Refrigerator Cold Control T Backorder WPL 1123394 $148.53

819091 Whirlpool Refrigerator Shelf Stud In Stock WPL 819091 $24.52

Trim, Crisper Cover WPL 1119480 Contact Us For Availability

End Cap, Top WPL 944157 Contact Us For Availability

Heater, Mullion WPL 2154065 Contact Us For Availability

Glass, Crisper Cover WPL 1124363 Contact Us For Availability

Handle End, Center WPL 936930 Contact Us For Availability

Clip, Rail (4) WPL 1129018 Contact Us For Availability

Knob, Thermostat WPL 2148150 Contact Us For Availability

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

Pan Shelf, Cantilever WPL 1110756 Contact Us For Availability

Handle, Center WPL 1120835 Contact Us For Availability

Handle, Center WPL 1124376 Contact Us For Availability

support stud (8) WPL 946355 Contact Us For Availability

Spacer (3) WPL 2149077 Contact Us For Availability

Retainer, Gasket WPL 1122553 Contact Us For Availability

Retainer, Glass WPL 1110744 Contact Us For Availability

Shim, Handle WPL 935076 Contact Us For Availability

Cover, Air Duct WPL 2157410 Contact Us For Availability

Center Rail (White) WPL 1122566 Contact Us For Availability

Center Rail (Almond) WPL 1122569 Contact Us For Availability

WP2151652 Whirlpool Refrigerator Button Plug In Stock WPL WP2151652 $14.52

Spacer, Handle Door WPL 943188 Contact Us For Availability

Glass, Shelf WPL 1124367 Contact Us For Availability

Hole Plug (Almond) WPL 2151653 Contact Us For Availability

Knob, Air Control WPL 2148151 Contact Us For Availability

15

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $67.10

15

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $4.82

15

Interior Door Panel WPL 1122575 Contact Us For Availability

16

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $65.89

16

WP488920 Whirlpool Refrigerator Screw In Stock WPL WP488920 $4.82

16

Rod, Connecting WPL 1105459 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $59.86

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

Shelf, Freezer WPL 1106615 Contact Us For Availability

Trim, Door Shelf (2) WPL 1120833 Contact Us For Availability

Hinge, Top WPL 1123514 Contact Us For Availability

Air Diffuser Assembly WPL 2157416 Contact Us For Availability

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $4.82

Nameplate WPL 2160005 Contact Us For Availability

Retainer, Insert WPL 1118080 Contact Us For Availability

Shim, Hinge Top WPL 1123517 Contact Us For Availability

Gasket, Air Diffuser WPL 1114325 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $15.75

Pan, Crisper WPL 1124364 Contact Us For Availability

Interior Door Panel WPL 2156205 Contact Us For Availability

Grommet (2) WPL 531933 Contact Us For Availability

Cover, Air Diffuser WPL 1108176 Contact Us For Availability

20

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $4.82

20

Pan, Meat WPL 1124369 Contact Us For Availability

20

Trim, Door (2) WPL 1120825 Contact Us For Availability

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

Trim, Door WPL 1120826 Contact Us For Availability

Screw WPL 489168 Contact Us For Availability

Hinge, Center WPL 2147335 Contact Us For Availability

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $8.99

Compartment Door, Utility WPL 1124374 Contact Us For Availability

Shim, Hinge Center WPL 836155 Contact Us For Availability

Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $5.99

Compartment, Butter Door WPL 1124373 Contact Us For Availability

Scroll, Fan WPL 1127100 Contact Us For Availability

Gasket, Bottom Separator WPL 1114382 Contact Us For Availability

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $4.82

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $5.99

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability

Evaporator Cover WPL 2157426 Contact Us For Availability

25

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

25

Insert, Handle WPL 1124378 Contact Us For Availability

WP2217784 Whirlpool Refrigerator Cover In Stock WPL WP2217784 $32.12

Endcap, Retainer WPL 1105804 Contact Us For Availability

Hinge Butt, Bottom WPL 1123378 Contact Us For Availability

Insulation, Filler WPL 1108196 Contact Us For Availability

27

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

27

Hole Plug WPL 1103725 Contact Us For Availability

27

Insulation, Compartment Separator WPL 1105463 Contact Us For Availability

28

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

28

Gasket, Retainer WPL 1122552 Contact Us For Availability

29

4318297 Whirlpool Refrigerator Shelf Bar Endc In Stock WPL 4318297 $12.99

29

Shim, Bottom WPL 1123379 Contact Us For Availability

30

4386917 Whirlpool Endcap Kit In Stock WPL 4386917 $13.82

30

Washer, 7/32 WPL 489200 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $141.89

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Gasket, Retainer WPL 1122551 Contact Us For Availability

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Spacer WPL 1121117 Contact Us For Availability

33

Corner Filler, Grille WPL 1118078 Contact Us For Availability

33

Separator, Compartment (Top) WPL 1129022 Contact Us For Availability

34

Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability

34

Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability

35

Grille WPL 1129001 Contact Us For Availability

35

Cup, Drain WPL 937065 Contact Us For Availability

36

Hole Plug (5) (White) WPL 1129062 Contact Us For Availability

36

Hole Plug (5) (Almond) WPL 1129063 Contact Us For Availability

37

Wireing Assembly Intermediate WPL 2153994 Contact Us For Availability

37

Bracket, Control Knob WPL 1105457 Contact Us For Availability

38

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $4.82

39

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $6.69

40

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $6.17

44

Cord, Service WPL 937360 Contact Us For Availability

45

Fan, Blade WPL 1108179 Contact Us For Availability

46

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

48

Cover, Unit WPL 1105531 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

53

NLA:SCREW Backorder WPL WPW10141645 $4.82

60

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $4.82

61

Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

68

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91
