Model Whirlpool RT12DCLWG00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
04 - COMPARTMENT SEPARATOR

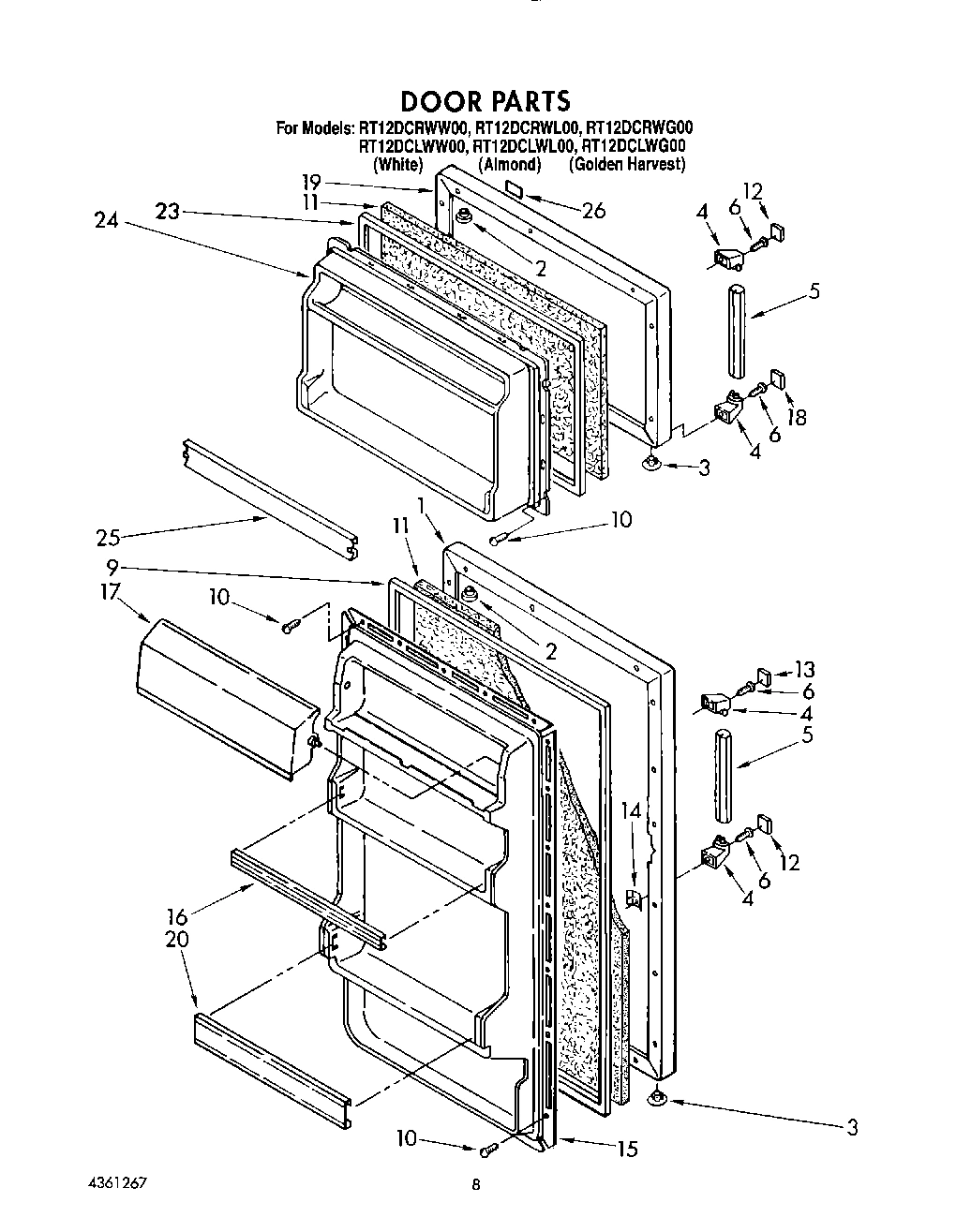

06 - DOOR, LIT/OPTIONAL

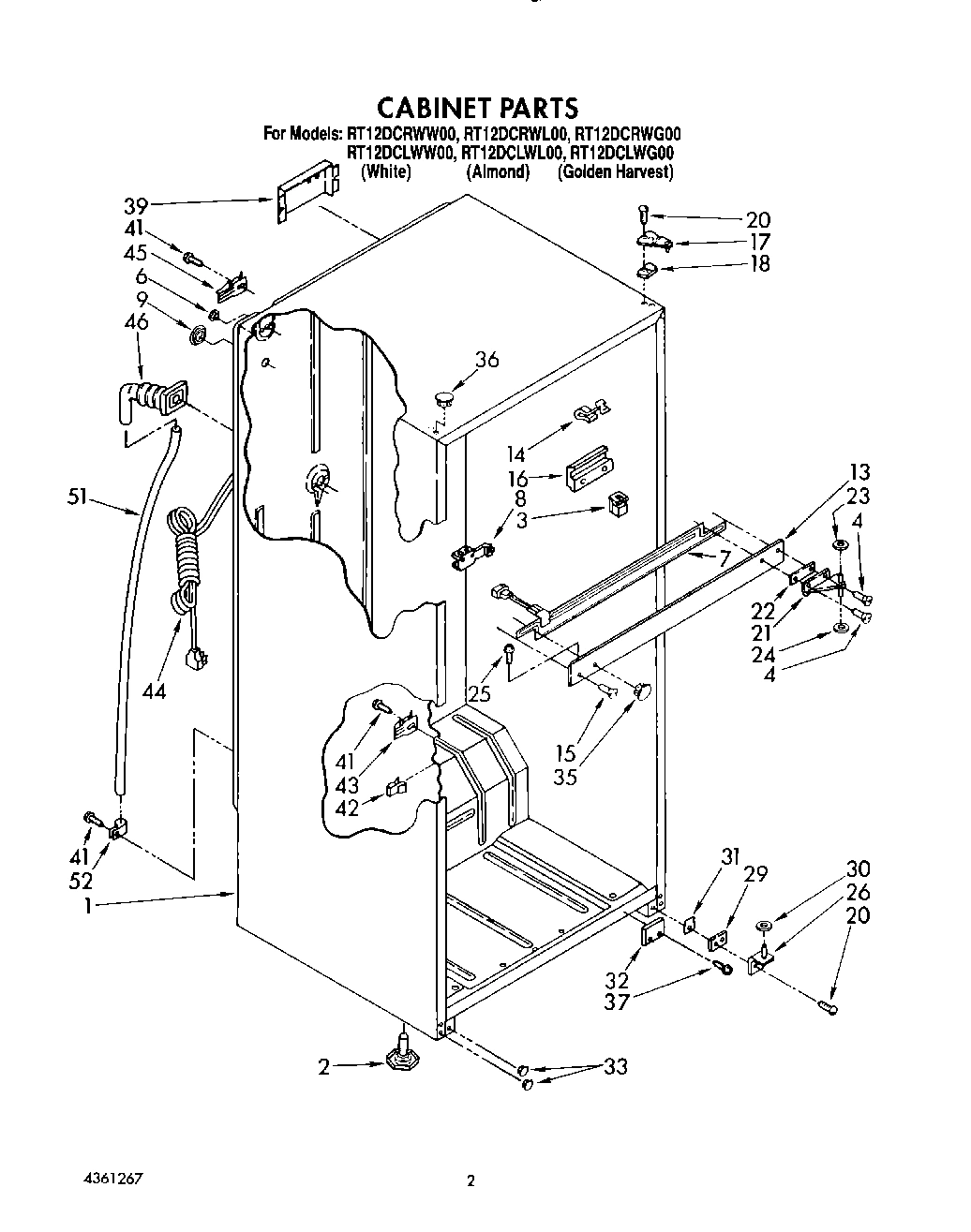

02 - CABINET

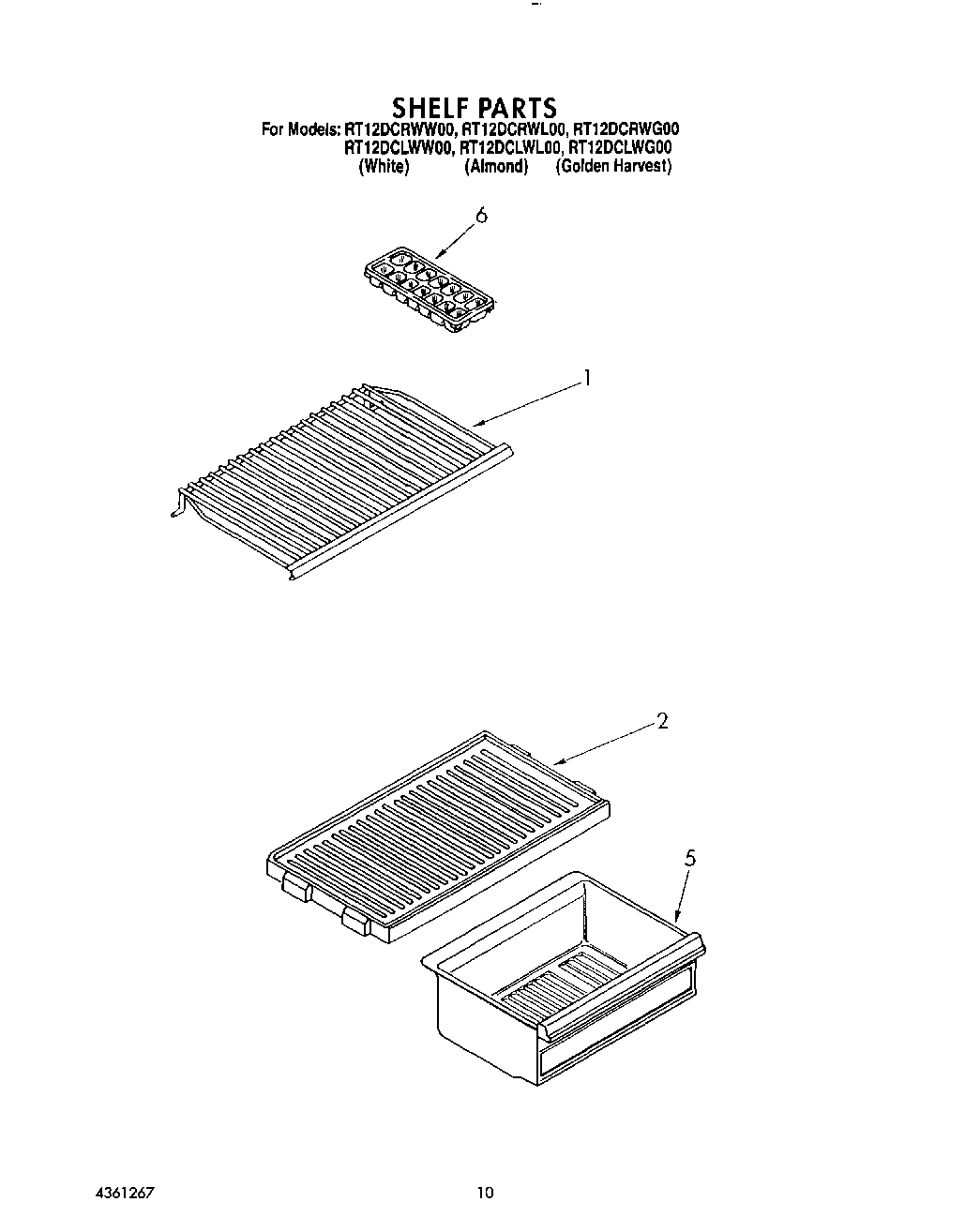

07 - SHELF

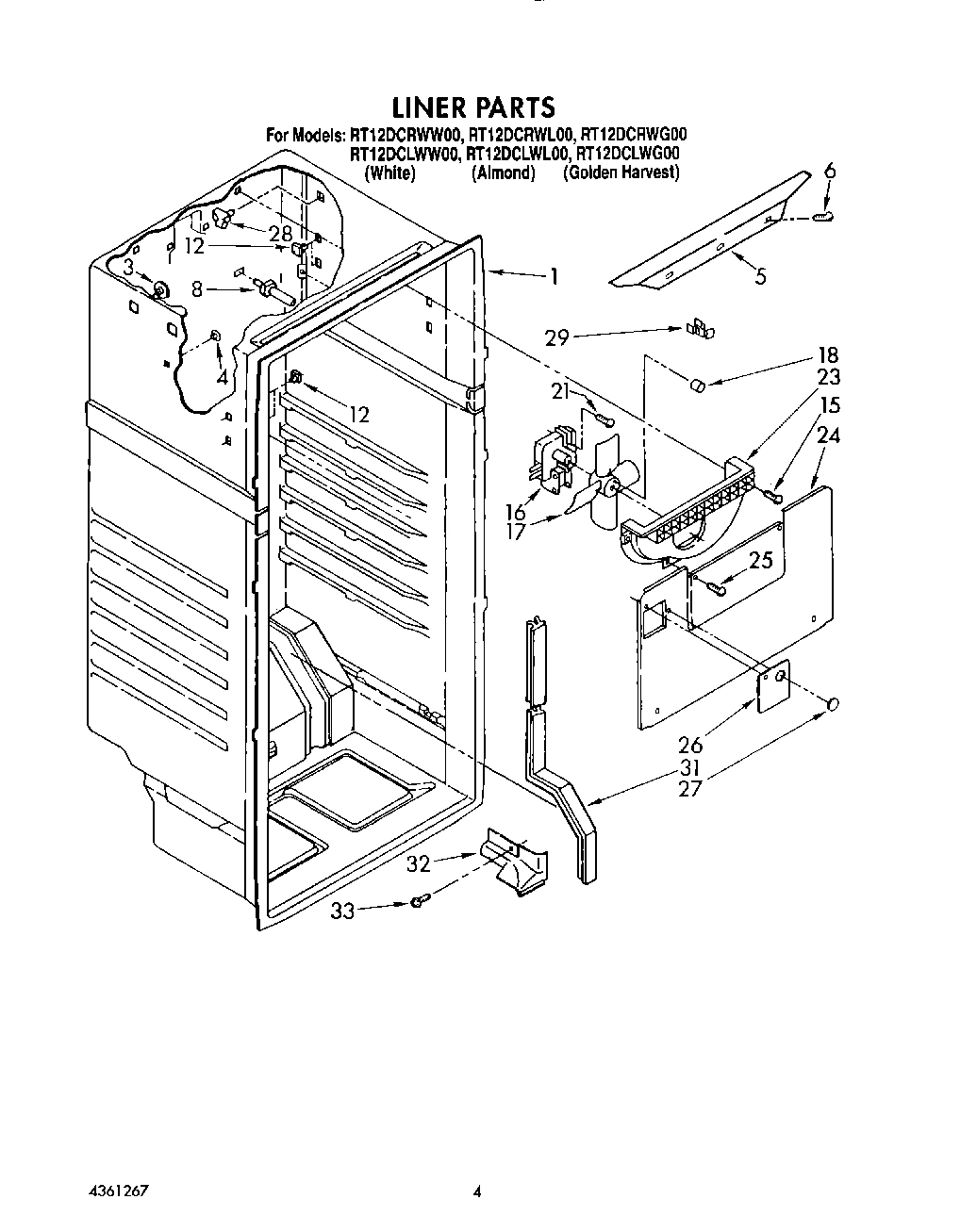

03 - LINER

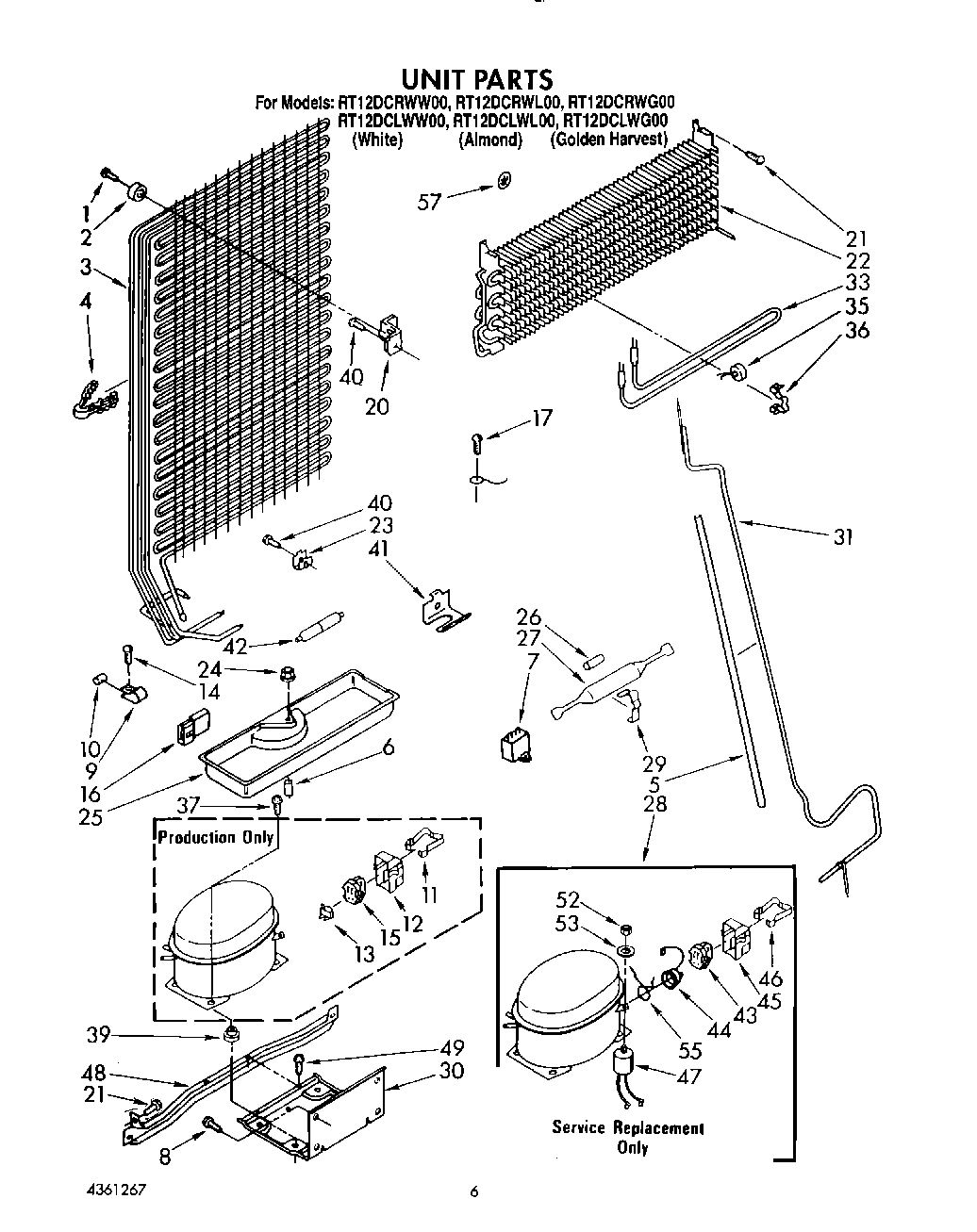

05 - UNIT
Common parts from model Whirlpool RT12DCLWG00 TOP MOUNT REFRIGERATOR
WPL LIT2148877 WPL LIT2148877 Contact Us For Availability
WPL LIT2152220 WPL LIT2152220 Contact Us For Availability
WPL LIT4361267 WPL LIT4361267 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 944910 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 944913 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 944915 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 944916 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 944919 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 11) WPL 944921 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI124752A Contact Us For Availability
1
Shelf, Pullout (1) WPL 946389 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI124753A Contact Us For Availability
1
Screw, 8 x 7/8 WPL 487888 Contact Us For Availability
2
Cap, Hinge Sleeve (4) WPL 509929 Contact Us For Availability
2
Cover, Crisper WPL 944897 Contact Us For Availability
2
Bumper (2) WPL 204349 Contact Us For Availability
3
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
3
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Spacer (2) WPL 1116484 Contact Us For Availability
3
Hole Plug WPL 2152241 Contact Us For Availability
3
Condenser & Precooler Assembly WPL 1128111 Contact Us For Availability
4
End Cap, Handle WPL 1124591 Contact Us For Availability
4
Screw WPL 489179 Contact Us For Availability
4
Clip, Tube (2) WPL 938232 Contact Us For Availability
5
Handle, Center WPL 1124592 Contact Us For Availability
5
Pan, Crisper WPL 1126583 Contact Us For Availability
5
Baffle, Liner Top WPL 2150914 Contact Us For Availability
6
Screw WPL 817000 Contact Us For Availability
6
Spacer WPL 938275 Contact Us For Availability
7
Heater, Mullion WPL 1108480 Contact Us For Availability
8
Center Rail, Bracket (2) WPL 935692 Contact Us For Availability
9
Door Gasket, Magnetic WPL 1128061 Contact Us For Availability
9
Hole Plug WPL 655411 Contact Us For Availability
9
Tube Clamp WPL 510716 Contact Us For Availability
10
Dampener WPL 1108064 Contact Us For Availability
12
Stud, Evaporator (2) WPL 1108519 Contact Us For Availability
13
Center, Rail (White) WPL 944868 Contact Us For Availability
13
Center Rail (Harvest Gold) WPL 944871 Contact Us For Availability
13
Center, Rail (Almond) WPL 944873 Contact Us For Availability
13
Overload WPL 1105172 Contact Us For Availability
14
Breaker, Trim Clip WPL 1114428 Contact Us For Availability
15
Interior Door Panel (Refrigerator) WPL 1108502 Contact Us For Availability
16
Trim, Door Shelf WPL 1116116 Contact Us For Availability
16
Center, Rail Shim WPL 2151428 Contact Us For Availability
16
Motor, Fan WPL 1108698 Contact Us For Availability
17
Compartment Door WPL 2148606 Contact Us For Availability
17
Shim, Hinge Top WPL 1100513 Contact Us For Availability
17
Blade, Fan WPL 1108573 Contact Us For Availability
18
Cover, Screw WPL 934724 Contact Us For Availability
18
Shim, Hinge Top WPL 1100511 Contact Us For Availability
18
Ring, Compression WPL 992953 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Whit WPL 944932 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Harv WPL 944935 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Almo WPL 944937 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Whit WPL 944938 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Harv WPL 944941 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Al WPL 944943 Contact Us For Availability
20
WPL 1124656 WPL 1124656 Contact Us For Availability
20
Screw, 10-32 x 23/32 WPL 489327 Contact Us For Availability
20
Condenser Bracket (2) WPL 510721 Contact Us For Availability
21
Hinge, Center WPL 944788 Contact Us For Availability
21
Screw, 8 x 1/2 WPL 489240 Contact Us For Availability
21
Screw, 8 x 1-1/4 (2) WPL 489165 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Evaporator WPL 1108531 Contact Us For Availability
23
WPL 1128064 WPL 1128064 Contact Us For Availability
23
Scroll, Fan WPL 1108518 Contact Us For Availability
23
Clip, Condenser Mounting (2) WPL 935788 Contact Us For Availability
24
WPL 1104910 WPL 1104910 Contact Us For Availability
24
Evaporator Cover WPL 1108509 Contact Us For Availability
25
WPL 1116120 WPL 1116120 Contact Us For Availability
25
Tray, Evaporator WPL 935781 Contact Us For Availability
26
WPL 876029 WPL 876029 Contact Us For Availability
26
WPL 479502 WPL 479502 Contact Us For Availability
26
WPL 799344 WPL 799344 Contact Us For Availability
26
WPL 2160005 WPL 2160005 Contact Us For Availability
26
WPL 350941 WPL 350941 Contact Us For Availability
26
WPL 542639 WPL 542639 Contact Us For Availability
26
WPL 799340 WPL 799340 Contact Us For Availability
26
WPL 799833 WPL 799833 Contact Us For Availability
26
WPL 978883 WPL 978883 Contact Us For Availability
26
Hinge Butt (Bottom R.H.) WPL 944776 Contact Us For Availability
26
Hinge Butt (Bottom L.H.) WPL 944778 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
28
Support, Stud (2) WPL 939203 Contact Us For Availability
28
Compressor (Includes Items 43, 44, 45, 46, 47 WPL 4317960 Contact Us For Availability
29
Shim, Bottom WPL 935737 Contact Us For Availability
29
Clip, Ground WPL 1108523 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
30
Unit Mounting Plate WPL 942860 Contact Us For Availability
31
Tap Plate WPL 935743 Contact Us For Availability
31
Cover Tube, Rear WPL 1110678 Contact Us For Availability
31
Exchanger, Heat WPL 1116647 Contact Us For Availability
32
Rail, Cover (Harvest Gold) WPL 935707 Contact Us For Availability
32
Rail, Cover (Almond) WPL 935711 Contact Us For Availability
32
Cover Tube, Bottom WPL 941776 Contact Us For Availability
33
Hole, Plug (2) (White) WPL 941416 Contact Us For Availability
33
Hole, Plug (2) (Almond) WPL 941417 Contact Us For Availability
33
Hole, Plug (2) (Harvest Gold) WPL 941419 Contact Us For Availability
33
Heater, Defrost WPL 1108538 Contact Us For Availability
35
Hole Plug (2) (White) WPL 1119707 Contact Us For Availability
35
Hole Plug (2) (Harvest Gold) WPL 1119708 Contact Us For Availability
35
Hole Plug (2) (Almond) WPL 1119709 Contact Us For Availability
35
Bi-Metal, Defrost WPL 1128308 Contact Us For Availability
36
Hole Plug (3) (White) WPL 842031 Contact Us For Availability
36
Hole Plug (3) (Almond) WPL 989195 Contact Us For Availability
36
Hole Plug (3) (Harvest Gold) WPL 989876 Contact Us For Availability
36
Clamp WPL 1110548 Contact Us For Availability
37
Screw WPL 488895 Contact Us For Availability
39
Cover, Wiring WPL 946218 Contact Us For Availability
41
Braket, Wire WPL 939050 Contact Us For Availability
42
Muffler WPL 1116650 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
44
Overload WPL 1108114 Contact Us For Availability
45
Clamp WPL 937357 Contact Us For Availability
45
Cover WPL 1108115 Contact Us For Availability
46
Fitting, Drain WPL 937062 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
48
Unit Mounting Rail WPL 945449 Contact Us For Availability
52
Nut WPL 489142 Contact Us For Availability
53
Washer WPL 489143 Contact Us For Availability
55
Overload Spring WPL 1114190 Contact Us For Availability
57
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
57
Retainer, Evaporator (2) WPL 1108520 Contact Us For Availability
57
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
