Model Whirlpool RS676PXV1 – Common Parts & Diagrams

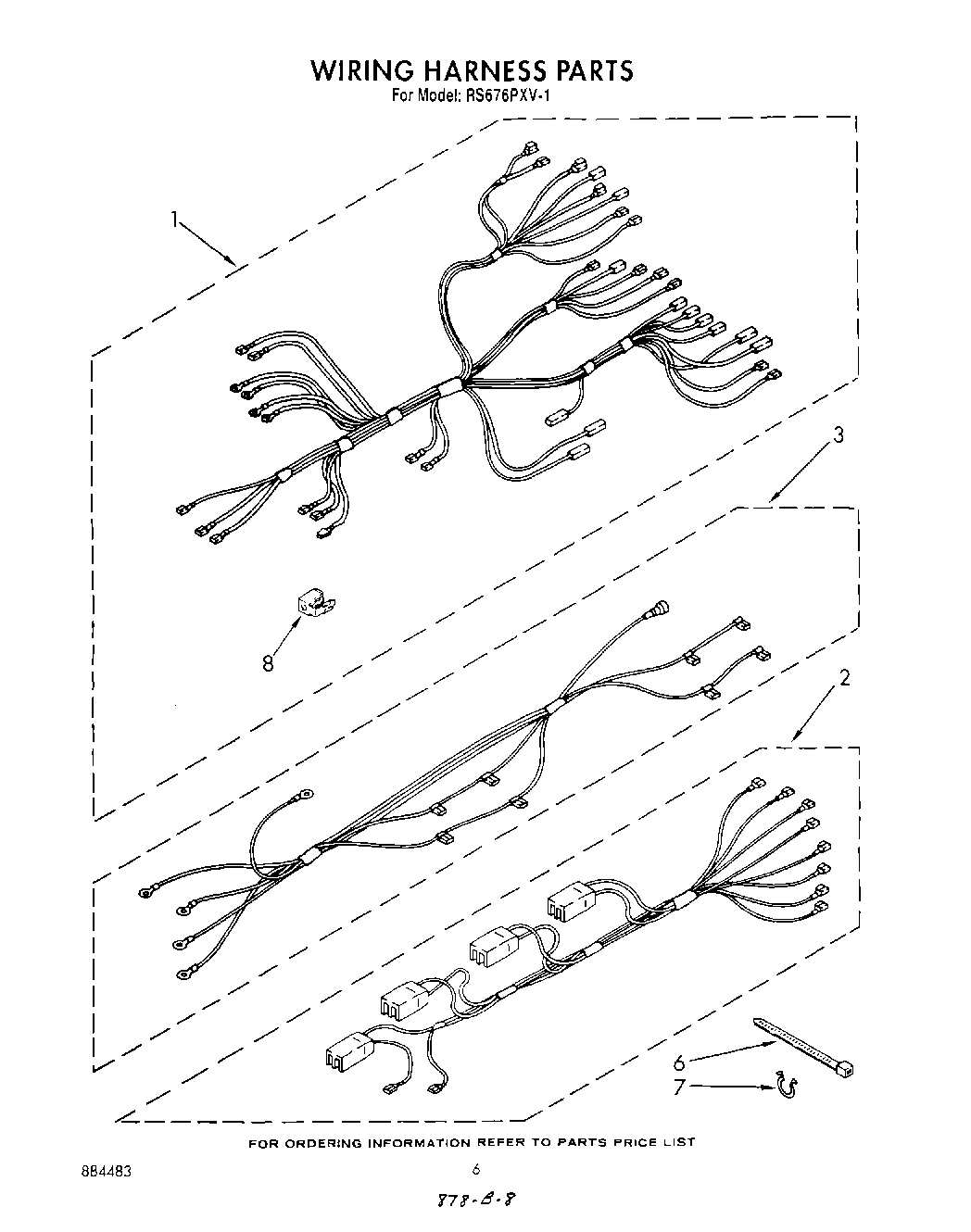

05 - WIRING HARNESS , LIT/OPTIONAL

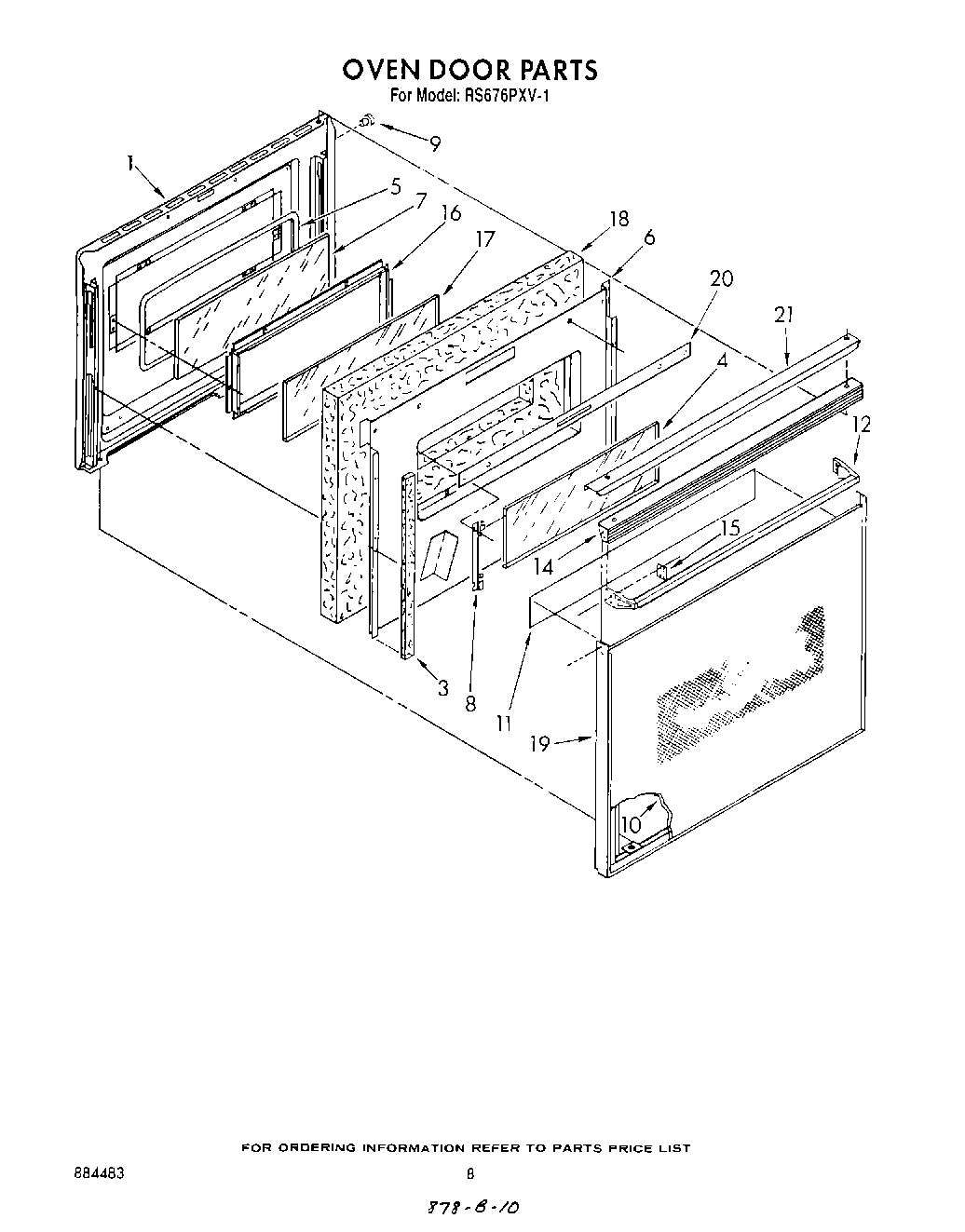

06 - OVEN DOOR

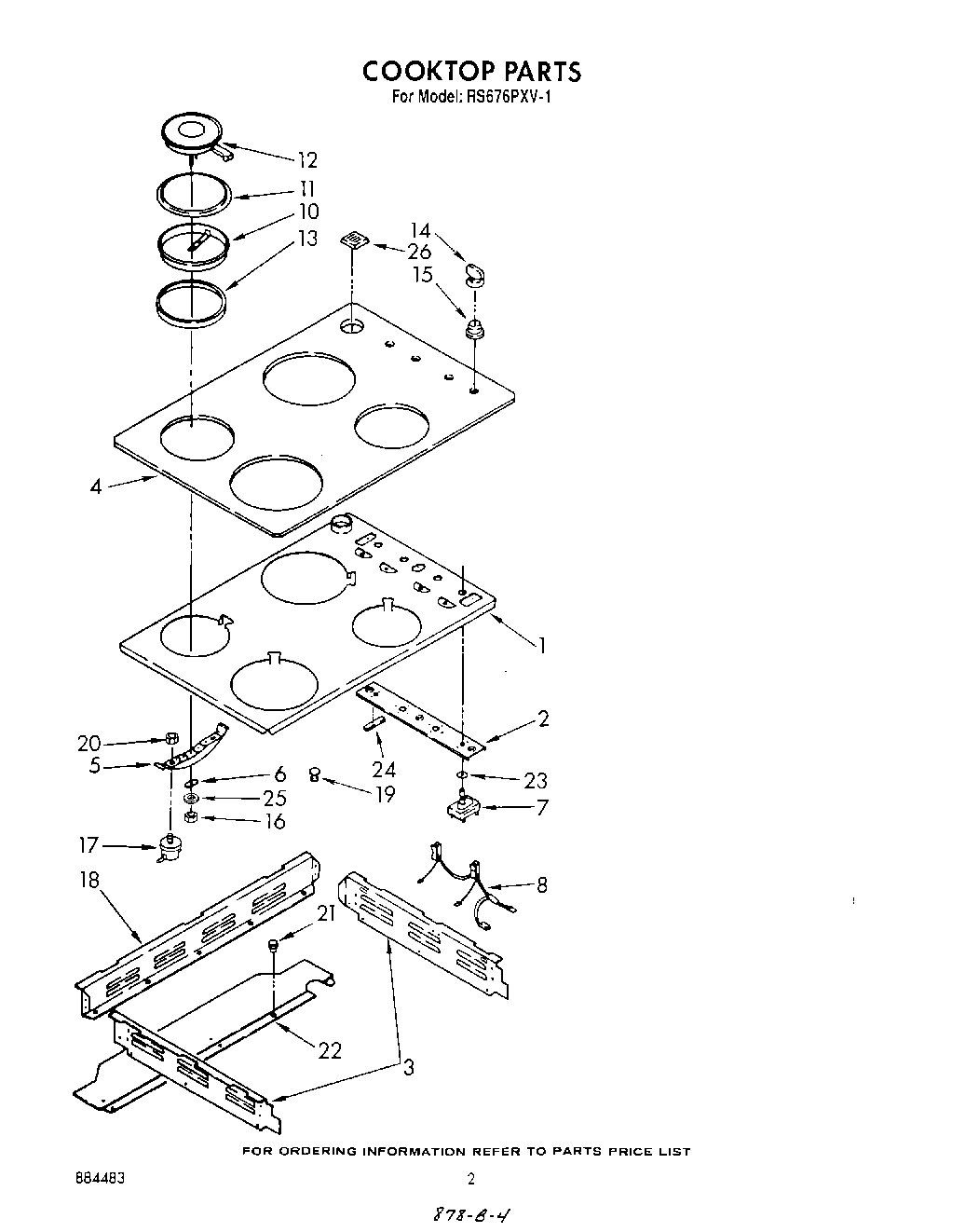

02 - COOKTOP

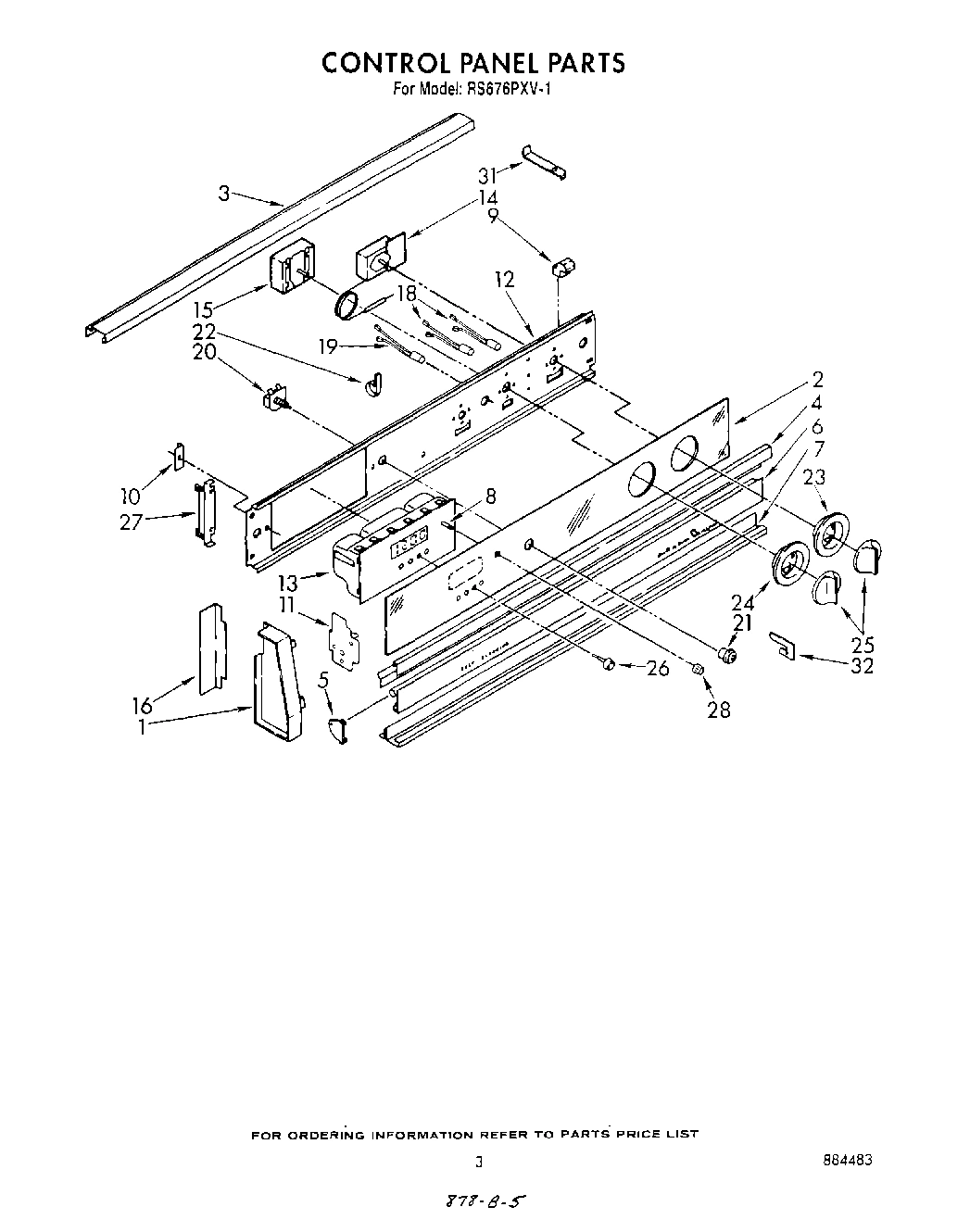

03 - CONTROL PANEL

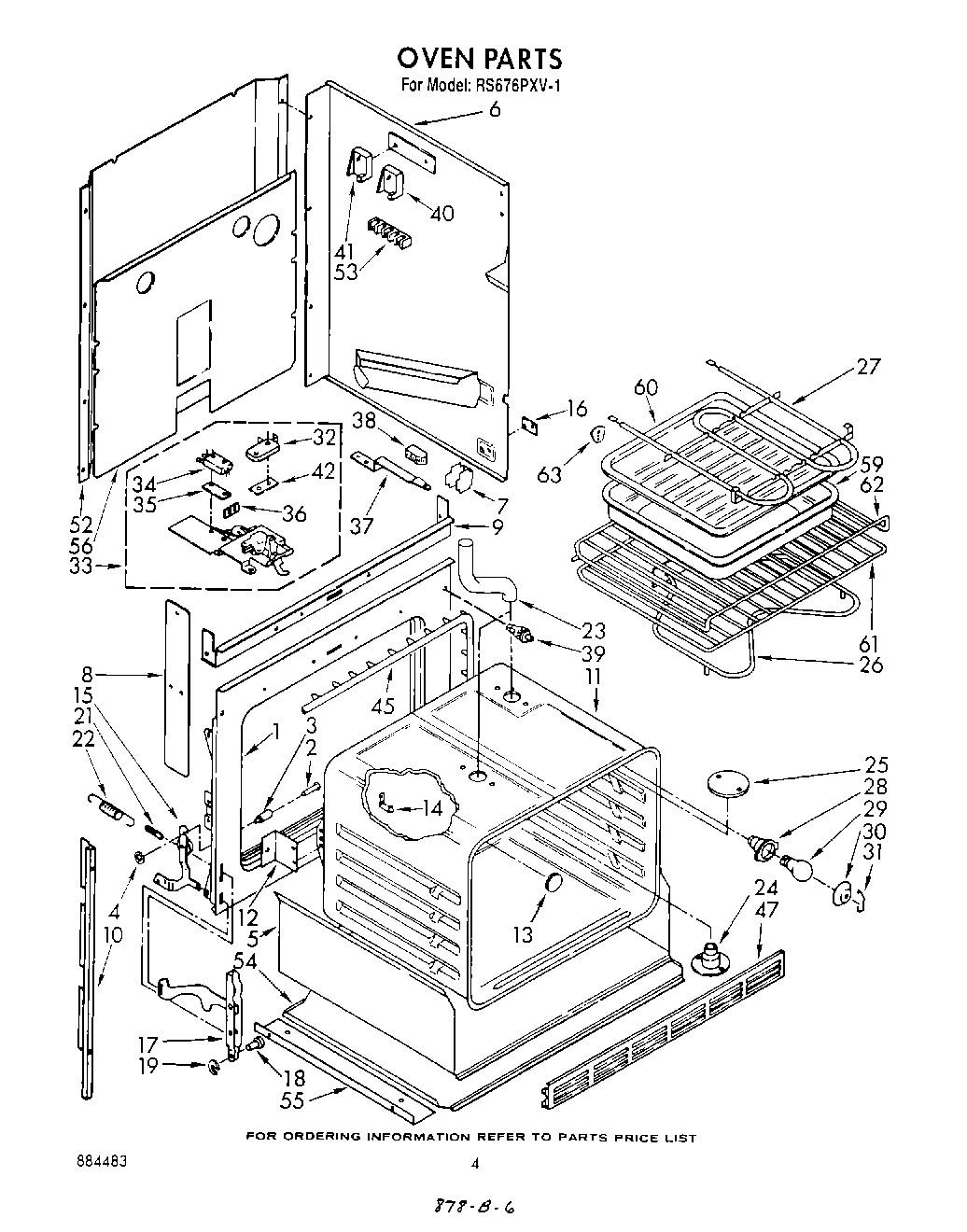

04 - OVEN
Common parts from model Whirlpool RS676PXV1
WPL LIT313358 WPL LIT313358 Contact Us For Availability
WPL LIT3147390 WPL LIT3147390 Contact Us For Availability
WPL LIT3148643 WPL LIT3148643 Contact Us For Availability
WPL LIT3149927 WPL LIT3149927 Contact Us For Availability
WPL LIT884483 WPL LIT884483 Contact Us For Availability
1
Screw No.10x1/2 (2) WPL 307748 Contact Us For Availability
1
Liner, Door WPL 3172218 Contact Us For Availability
1
Plate, Backup WPL 3147038 Contact Us For Availability
1
End Cap. L.H. WPL 3150013 Contact Us For Availability
1
End Cap R.H. WPL 3150014 Contact Us For Availability
1
Frame, Front WPL 3172194 Contact Us For Availability
2
Bracket, Switch WPL 3147735 Contact Us For Availability
2
Glass, Panel WPL 3150019 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
3
Seal, Flange (2) WPL 3148441 Contact Us For Availability
3
Rail, Support (L.H.) WPL 3147024 Contact Us For Availability
3
Rail, Support (R.H.) WPL 3147025 Contact Us For Availability
3
Rail, Top WPL 3148616 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
4
Glass, Reflective WPL 3148178 Contact Us For Availability
4
Cooktop, Glass WPL 3148924 Contact Us For Availability
4
Trim, Center WPL 3149350 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Bracket, Element (6`` Burner) WPL 3147703 Contact Us For Availability
5
Bracket, Element (8`` Burner) WPL 3147704 Contact Us For Availability
5
End Trim, Vent (R.H.) WPL 3148471 Contact Us For Availability
5
End Trim, Vent (L.H.) WPL 3148472 Contact Us For Availability
5
Insulation Tray WPL 310770 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
6
Spring, Leaf WPL 3147191 Contact Us For Availability
6
Door, Vent WPL 3149603 Contact Us For Availability
6
Side Wrapper (Right Side) WPL 311006 Contact Us For Availability
6
Side Wrapper (Left Side) WPL 311009 Contact Us For Availability
7
Switch, Infinite (6`` Unit (2)) WPL 3148949 Contact Us For Availability
7
Switch, Infinite (8`` Unit (2)) WPL 3148950 Contact Us For Availability
7
Screw (4) WPL 342043 Contact Us For Availability
7
Trim, Bottom WPL 3148618 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
8
WPL 799344 WPL 799344 Contact Us For Availability
8
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
8
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
8
Platinum WPL 285368 Contact Us For Availability
8
Adapter WPL 3147832 Contact Us For Availability
8
18 Ga. 80~c Rating (Yellow) WPL 350806 Contact Us For Availability
8
Leveler (Primer) WPL 350941 Contact Us For Availability
8
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
8
Paint, (Touch-Up 1/2 Oz.) ( WPL 72112 Contact Us For Availability
8
WPL 786020 WPL 786020 Contact Us For Availability
8
WPL 786032 WPL 786032 Contact Us For Availability
8
WPL 799832 WPL 799832 Contact Us For Availability
8
WPL 832985 WPL 832985 Contact Us For Availability
8
WPL 978849 WPL 978849 Contact Us For Availability
8
WPL 978883 WPL 978883 Contact Us For Availability
8
Retainer, Glass (2) WPL 3148187 Contact Us For Availability
8
Light, Indicator WPL 3149039 Contact Us For Availability
8
Shaft, Bit Generator WPL 3149320 Contact Us For Availability
8
Insulation Baffle WPL 311256 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
9
Retainer, Glass (4) WPL 3149882 Contact Us For Availability
9
Baffle, Top WPL 310693 Contact Us For Availability
10
Panel, Black Glass WPL 3149049 Contact Us For Availability
10
Gasket, Ring (6`` Burner) WPL 3147187 Contact Us For Availability
10
Gasket, Ring (8`` Burner) WPL 3147188 Contact Us For Availability
10
Bracket, Timer (2) WPL 313864 Contact Us For Availability
10
Side Trim L.H. WPL 310685 Contact Us For Availability
10
Side Trim (R.H.) WPL 310689 Contact Us For Availability
11
Foil, Door WPL 3148184 Contact Us For Availability
11
Pan, Surface (6`` Ring) WPL 3148486 Contact Us For Availability
11
Pan, Surface (8`` Ring) WPL 3148489 Contact Us For Availability
11
Cover, Side (Screw (2)) WPL 308504 Contact Us For Availability
11
Cover, Side (Right Hand) WPL 3149027 Contact Us For Availability
11
Cover, Side (Left Hand) WPL 3149028 Contact Us For Availability
11
Oven (30`` Pyro) WPL 3172450 Contact Us For Availability
12
Handle, Door WPL 3149354 Contact Us For Availability
12
Bracket, Control WPL 330500 Contact Us For Availability
12
Bracket, Oven WPL 310713 Contact Us For Availability
13
Seal, Silicone (8`` Burner) WPL 3148561 Contact Us For Availability
13
Seal, Silicone (6`` Burner) WPL 3148562 Contact Us For Availability
13
Timer, Digital (Includes Knobs) WPL 3149807 Contact Us For Availability
13
Plug Button WPL 257314 Contact Us For Availability
14
Knob, Control WPL 3150020 Contact Us For Availability
14
Frame, Door Top WPL 3149355 Contact Us For Availability
14
Thermostat, Oven WPL 3148934 Contact Us For Availability
14
screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability
15
Clip, Mtg. Handle WPL 3148282 Contact Us For Availability
15
Seal, Switch Shaft (4) WPL 3149899 Contact Us For Availability
15
Selector Switch WPL 310006 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
16
screw (6) WPL 3148443 Contact Us For Availability
16
Frame, Inner Glass WPL 3148234 Contact Us For Availability
16
Nut, Metric (4) WPL 3147189 Contact Us For Availability
16
Trim, End Cap WPL 3149901 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
17
Thermostat WPL 3148397 Contact Us For Availability
17
Channel Arm (2) WPL 329713 Contact Us For Availability
18
Insulation WPL 3147951 Contact Us For Availability
18
Rail, Support WPL 3147061 Contact Us For Availability
18
Indicator, Light Oven On Clean On WPL 311802 Contact Us For Availability
19
Frame, Door WPL 3148235 Contact Us For Availability
19
Light Lens (2) WPL 319221 Contact Us For Availability
19
Locked WPL 3148720 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
20
Shield WPL 3148680 Contact Us For Availability
20
Nut, Thermostat (4) WPL 3147190 Contact Us For Availability
20
Washer WPL 312796 Contact Us For Availability
20
Switch, Oven Light WPL 3148465 Contact Us For Availability
21
Cap-Top, Door WPL 3149473 Contact Us For Availability
21
Bushing WPL 258109 Contact Us For Availability
21
Bezel Switch WPL 3149170 Contact Us For Availability
22
Cover, Top Rear WPL 3147566 Contact Us For Availability
23
Seal, Switch (4) WPL 309839 Contact Us For Availability
23
Escutcheon, Thermostat WPL 3149172 Contact Us For Availability
23
Tube, Vent WPL 3147220 Contact Us For Availability
24
Screw 8BT x 1/4 (2) WPL 254225 Contact Us For Availability
24
Tape, Foam WPL 3147485 Contact Us For Availability
24
screw, 8A x 5/16 WPL 98520 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
25
Washer, Flat (4) WPL 3148615 Contact Us For Availability
25
Knob, Control (2) WPL 3150372 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
26
Cover, Vent WPL 3147037 Contact Us For Availability
26
Set, Button (4) WPL 3149177 Contact Us For Availability
27
Screw, 10-32 x 1/2 (4) WPL 312318 Contact Us For Availability
27
Bracket, Control (2) WPL 3148634 Contact Us For Availability
28
Knob, Bit Generator WPL 3149176 Contact Us For Availability
28
Socket, Oven Light WPL 660556 Contact Us For Availability
30
Cover, Light WPL 308039 Contact Us For Availability
31
Support, Top Rail WPL 312752 Contact Us For Availability
31
Retainer, Light WPL 308038 Contact Us For Availability
32
Shield, Air WPL 3149142 Contact Us For Availability
32
Switch, Lock WPL 3148669 Contact Us For Availability
33
Screw (2) WPL 311056 Contact Us For Availability
33
Latch Assembly WPL 3171148 Contact Us For Availability
34
Safety Switch WPL 308185 Contact Us For Availability
34
Screw (2) WPL 98106 Contact Us For Availability
35
Insulator, Switch WPL 309245 Contact Us For Availability
36
Screw, 6 x 3/8 (2) WPL 309258 Contact Us For Availability
36
Terminal, Shield WPL 313035 Contact Us For Availability
37
Screw (4) WPL 308422 Contact Us For Availability
37
Latch, Handle WPL 310825 Contact Us For Availability
38
screw, 8 x 5/16 WPL 246135 Contact Us For Availability
38
Knob, La WPL 311253 Contact Us For Availability
39
WPL 310345 WPL 310345 Contact Us For Availability
40
WPL 314209 WPL 314209 Contact Us For Availability
41
WPL 314215 WPL 314215 Contact Us For Availability
41
WPL 314210 WPL 314210 Contact Us For Availability
42
WPL 313489 WPL 313489 Contact Us For Availability
42
WPL 3147864 WPL 3147864 Contact Us For Availability
45
WPL 3148284 WPL 3148284 Contact Us For Availability
47
WPL 3149359 WPL 3149359 Contact Us For Availability
52
WPL 311012 WPL 311012 Contact Us For Availability
53
WPL 308043 WPL 308043 Contact Us For Availability
54
WPL 310458 WPL 310458 Contact Us For Availability
55
WPL 311592 WPL 311592 Contact Us For Availability
56
WPL 3149542 WPL 3149542 Contact Us For Availability
61
WPL 308173 WPL 308173 Contact Us For Availability
62
WPL 308172 WPL 308172 Contact Us For Availability
63
WPL 310433 WPL 310433 Contact Us For Availability
63
WPL 310434 WPL 310434 Contact Us For Availability
63
WPL 311982 WPL 311982 Contact Us For Availability
63
WPL 3149328 WPL 3149328 Contact Us For Availability
× ![]()
