Model Whirlpool RS6750XVN1 – Common Parts & Diagrams

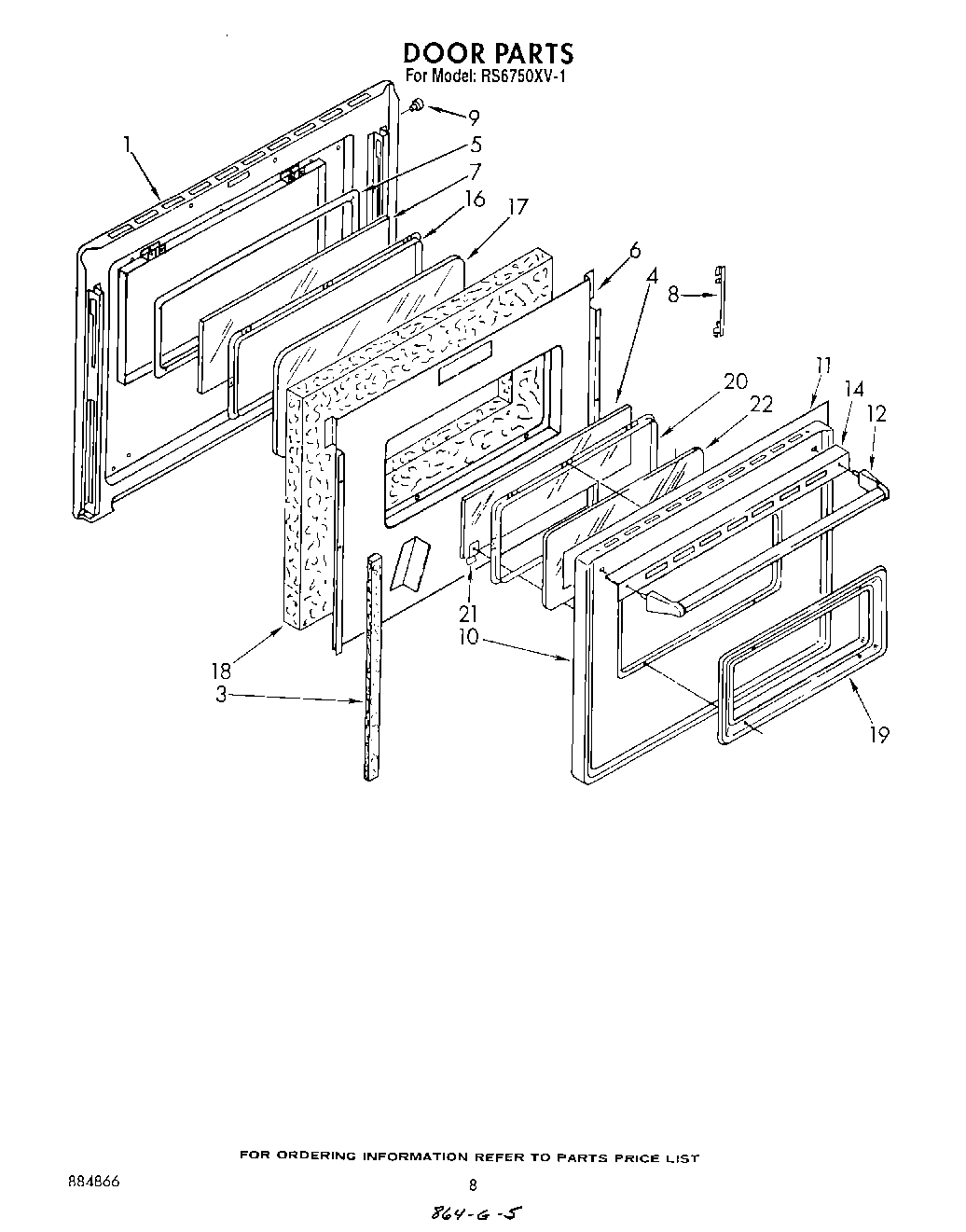

06 - DOOR

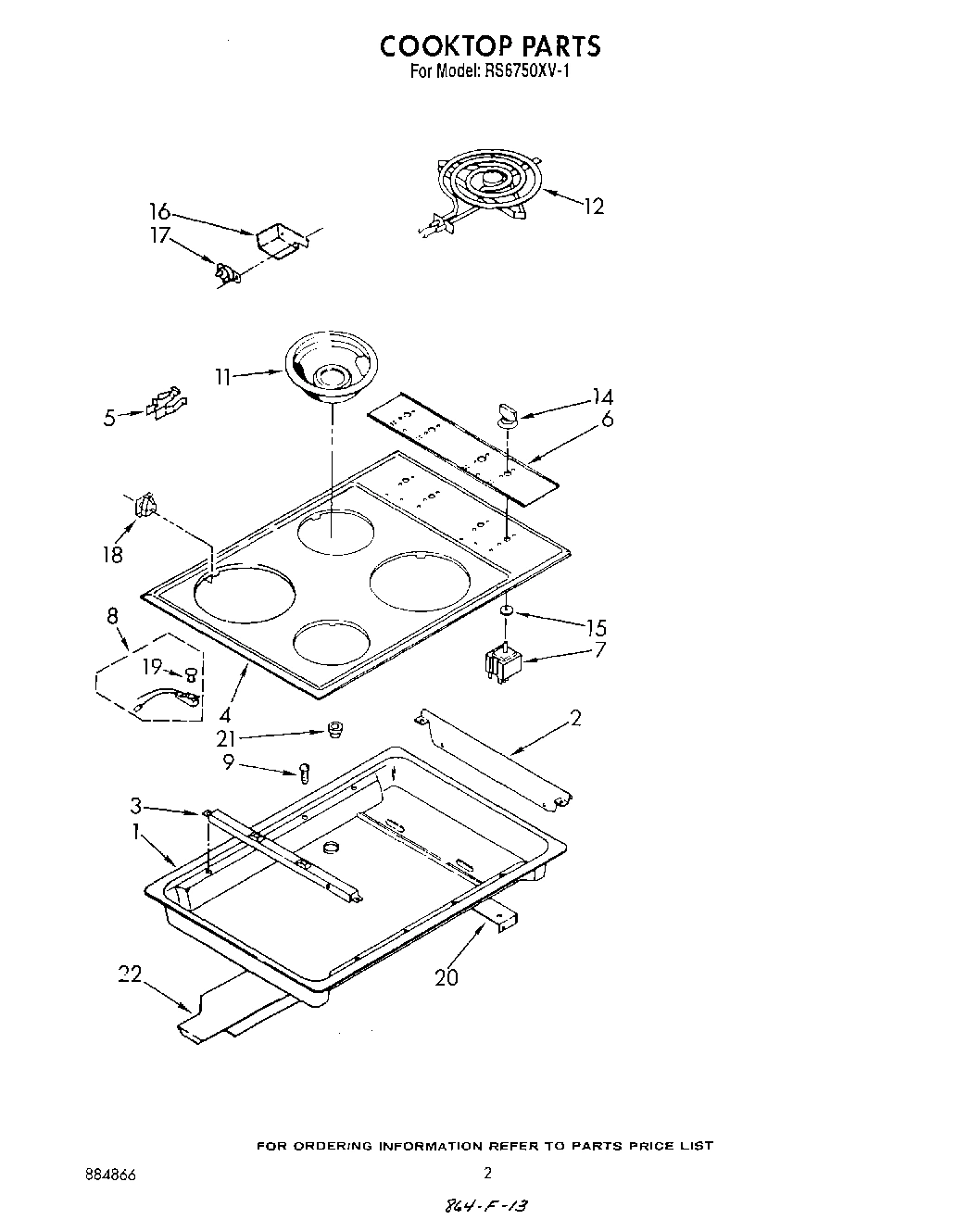

02 - COOKTOP

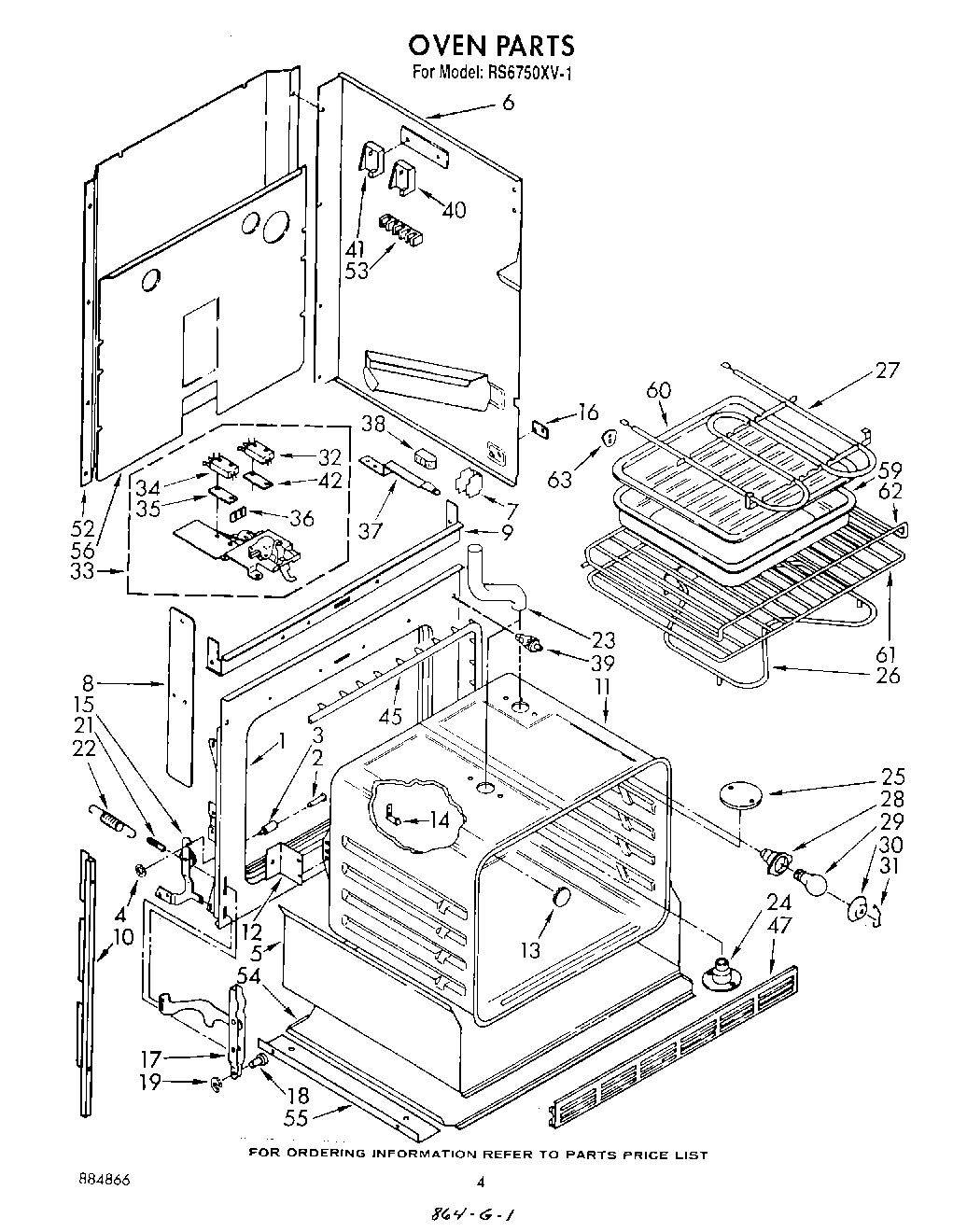

04 - OVEN

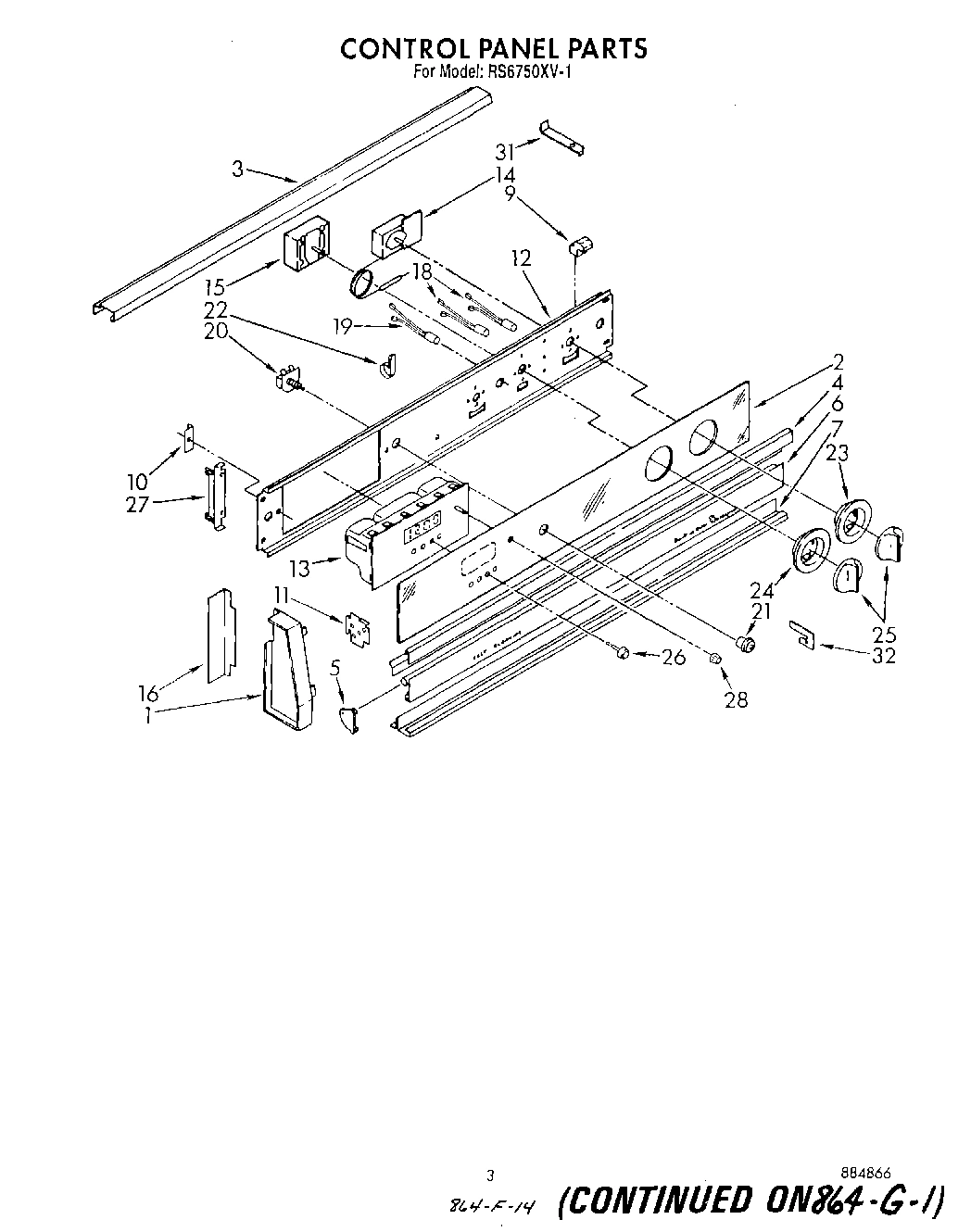

03 - CONTROL PANEL

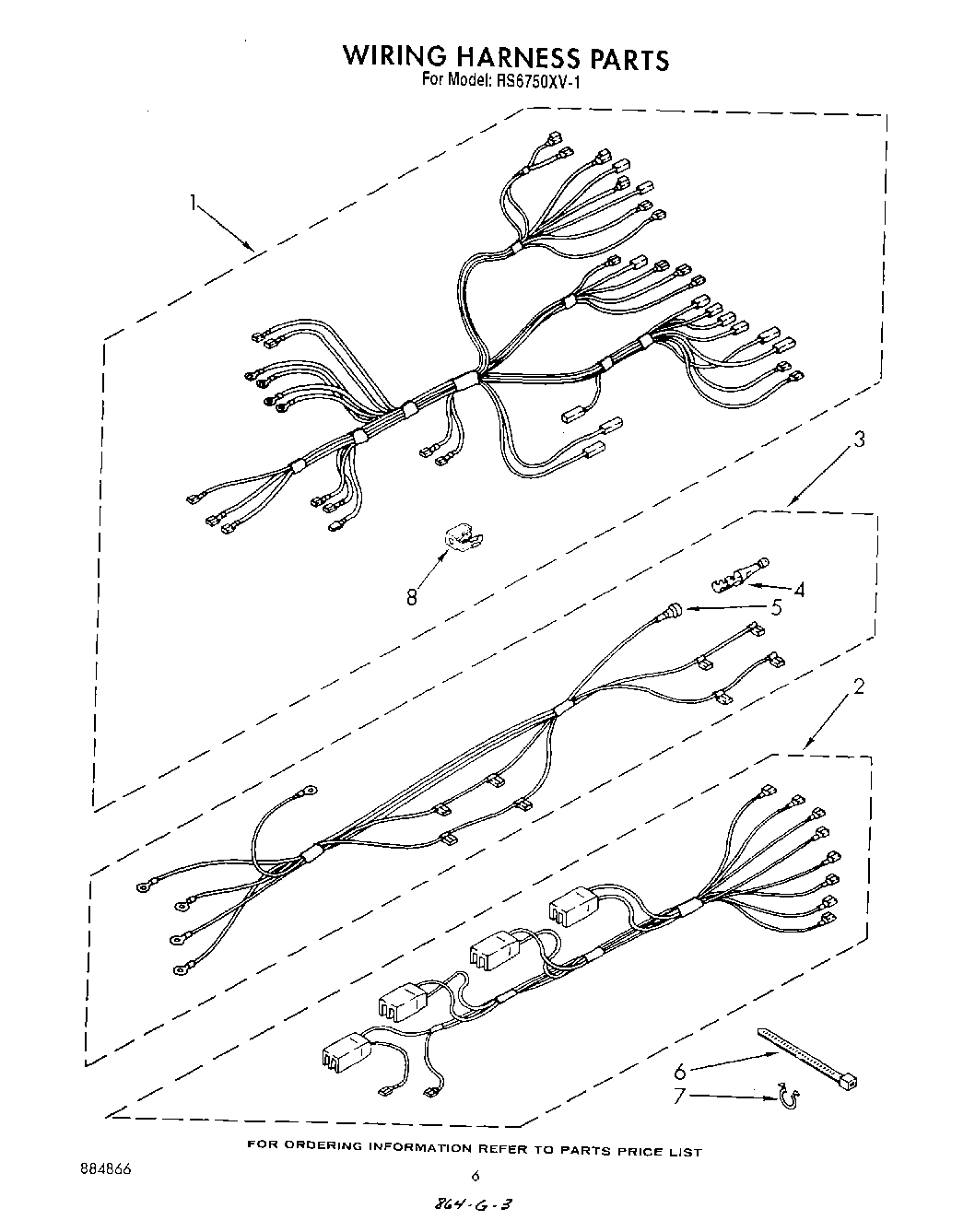

05 - WIRING HARNESS , LIT/OPTIONAL
Common parts from model Whirlpool RS6750XVN1
WPL 310433 WPL 310433 Contact Us For Availability
WPL 310434 WPL 310434 Contact Us For Availability
WPL 3149328 WPL 3149328 Contact Us For Availability
WPL LIT313358 WPL LIT313358 Contact Us For Availability
WPL LIT3148556 WPL LIT3148556 Contact Us For Availability
WPL LIT3148601 WPL LIT3148601 Contact Us For Availability
WPL LIT3149928 WPL LIT3149928 Contact Us For Availability
WPL LIT884866 WPL LIT884866 Contact Us For Availability
1
Frame, Front WPL 3172194 Contact Us For Availability
1
Screw No.10x1/2 (2) WPL 307748 Contact Us For Availability
1
End Cap (R.H.) WPL 3148444 Contact Us For Availability
1
End Cap (L.H.) WPL 3148445 Contact Us For Availability
1
Wiring Harness (Main) WPL 3148595 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Glass, Panel WPL 3148636 Contact Us For Availability
2
Harness, Wire (Surface Elements) WPL 3147828 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Rail, Top WPL 3148616 Contact Us For Availability
3
Harness, Wire (Infinite Switch) WPL 313464 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Trim, Center WPL 3148620 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Insulation Tray WPL 310770 Contact Us For Availability
5
End Trim, Vent (R.H.) WPL 3148697 Contact Us For Availability
5
End Trim, Vent (L.H.) WPL 3148698 Contact Us For Availability
5
Block, Disconnect WPL 351297 Contact Us For Availability
6
Side Wrapper (Right Side) WPL 311006 Contact Us For Availability
6
Side Wrapper (Left Side) WPL 311009 Contact Us For Availability
6
Door, Vent WPL 3148617 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
7
Screw (4) WPL 342043 Contact Us For Availability
7
Trim, Bottom WPL 3148618 Contact Us For Availability
8
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
8
WPL 799344 WPL 799344 Contact Us For Availability
8
Insulation Baffle WPL 311256 Contact Us For Availability
8
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
8
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
8
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
8
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, White 14 Ga. 150 oC WPL 242826 Contact Us For Availability
8
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
8
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
8
Wire, Red 12 Ga. 150 oC WPL 242829 Contact Us For Availability
8
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
8
Wire, Yellow 14 Ga. 200 oC WPL 242832 Contact Us For Availability
8
Grease WPL 261582 Contact Us For Availability
8
Rotisserie Kit (RCK 79) WPL 261881 Contact Us For Availability
8
Coffee WPL 261886 Contact Us For Availability
8
Coffee (Uncut) WPL 261887 Contact Us For Availability
8
New Avocado WPL 261888 Contact Us For Availability
8
New Avocado (Uncut) WPL 261889 Contact Us For Availability
8
Harvest Gold WPL 261890 Contact Us For Availability
8
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
8
Toast WPL 285365 Contact Us For Availability
8
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
8
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
8
Platinum (Uncut) WPL 285368 Contact Us For Availability
8
Adapter WPL 3147832 Contact Us For Availability
8
WPL 72108 WPL 72108 Contact Us For Availability
8
WPL 72112 WPL 72112 Contact Us For Availability
8
WPL 799832 WPL 799832 Contact Us For Availability
8
WPL 978883 WPL 978883 Contact Us For Availability
9
Baffle, Top WPL 310693 Contact Us For Availability
9
Retainer, Glass (4) WPL 3149882 Contact Us For Availability
10
Side Trim L.H. WPL 310685 Contact Us For Availability
10
Side Trim (R.H.) WPL 310689 Contact Us For Availability
10
Bracket, Timer (2) WPL 313864 Contact Us For Availability
11
Oven (30`` Pyro) WPL 3172450 Contact Us For Availability
11
Screw (2) WPL 308504 Contact Us For Availability
11
Cover, Side R.H. WPL 3149027 Contact Us For Availability
11
Cover, Side L.H. WPL 3149028 Contact Us For Availability
12
Handle, Door WPL 311563 Contact Us For Availability
12
Bracket, Oven WPL 310713 Contact Us For Availability
12
Bracket, Control WPL 330500 Contact Us For Availability
13
Plug Button WPL 257314 Contact Us For Availability
13
Timer, Digital (Includes Knobs) WPL 3149806 Contact Us For Availability
14
Knob, Control WPL 3150373 Contact Us For Availability
14
Screw (3) WPL 3149333 Contact Us For Availability
14
Thermostat, Oven WPL 3148934 Contact Us For Availability
14
screw, 6-32 x 1/4 (2) WPL 487384 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
15
Selector Switch WPL 310006 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
16
Trim, End Cap WPL 3149900 Contact Us For Availability
17
Thermostat WPL 3147833 Contact Us For Availability
17
Channel Arm (2) WPL 329713 Contact Us For Availability
18
Nut (4) WPL 814102 Contact Us For Availability
18
Indicator, Light Oven On Clean On WPL 311802 Contact Us For Availability
19
Window, Frame WPL 3149277 Contact Us For Availability
19
Lens, Light WPL 313602 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
19
Locked WPL 3148720 Contact Us For Availability
20
Retainer, Glass WPL 307792 Contact Us For Availability
20
Support, Burner box WPL 310718 Contact Us For Availability
20
Switch, Oven Light WPL 312581 Contact Us For Availability
20
Washer WPL 312796 Contact Us For Availability
21
Bushing WPL 258109 Contact Us For Availability
21
Bezel Switch WPL 313030 Contact Us For Availability
22
Cover, Top Rear WPL 3147565 Contact Us For Availability
22
screw, 8A x 5/16 WPL 98520 Contact Us For Availability
23
Escutcheon, Thermostat WPL 311066 Contact Us For Availability
23
Tube, Vent WPL 310835 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
24
Screw 8BT x 1/4 (2) WPL 254225 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
26
Knob, Timer (4) WPL 313958 Contact Us For Availability
27
Screw, 10-32 x 1/2 (4) WPL 312318 Contact Us For Availability
27
Bracket, Control (2) WPL 3148634 Contact Us For Availability
28
Knob, Timer (1) WPL 313523 Contact Us For Availability
28
Socket, Oven Light WPL 660556 Contact Us For Availability
30
Cover, Light WPL 308039 Contact Us For Availability
31
Retainer, Light WPL 308038 Contact Us For Availability
31
Support, Top Rail WPL 312752 Contact Us For Availability
32
Switch, Lock WPL 3148669 Contact Us For Availability
32
Shield, Air WPL 3149142 Contact Us For Availability
33
Screw (2) WPL 311056 Contact Us For Availability
33
Latch Assembly WPL 3171148 Contact Us For Availability
34
Safety Switch WPL 308185 Contact Us For Availability
34
Screw (2) WPL 98106 Contact Us For Availability
35
Insulator, Switch WPL 309245 Contact Us For Availability
36
Screw, 6 x 3/8 (2) WPL 309258 Contact Us For Availability
36
Terminal, Shield WPL 313035 Contact Us For Availability
37
Screw (4) WPL 308422 Contact Us For Availability
37
Latch, Handle WPL 310825 Contact Us For Availability
38
screw, 8 x 5/16 WPL 246135 Contact Us For Availability
38
Knob, La WPL 311253 Contact Us For Availability
39
WPL 310345 WPL 310345 Contact Us For Availability
40
WPL 314209 WPL 314209 Contact Us For Availability
41
WPL 314215 WPL 314215 Contact Us For Availability
41
WPL 314210 WPL 314210 Contact Us For Availability
42
WPL 313489 WPL 313489 Contact Us For Availability
42
WPL 3147864 WPL 3147864 Contact Us For Availability
45
WPL 3148284 WPL 3148284 Contact Us For Availability
47
WPL 309029 WPL 309029 Contact Us For Availability
47
WPL 310668 WPL 310668 Contact Us For Availability
52
WPL 311012 WPL 311012 Contact Us For Availability
53
WPL 308043 WPL 308043 Contact Us For Availability
54
WPL 310458 WPL 310458 Contact Us For Availability
55
WPL 311592 WPL 311592 Contact Us For Availability
56
WPL 3149542 WPL 3149542 Contact Us For Availability
61
WPL 308173 WPL 308173 Contact Us For Availability
62
WPL 308172 WPL 308172 Contact Us For Availability
63
WPL 311982 WPL 311982 Contact Us For Availability
× ![]()
